BIO STIMULATION SYSTEM INSTRUCTIONS FOR USE
THE BEST
FOR YOUR HORSE.
Congratulations on purchasing your new BIOS System. We wish you a lot of fun and much success
working with it. Please check the contents for damage, operability, and completeness prior to taking
the system into operation.
1 x Bios back part including chest strap
1 x Bios neck part
1 x Belly strap
1 x Control unit
1 x Charger

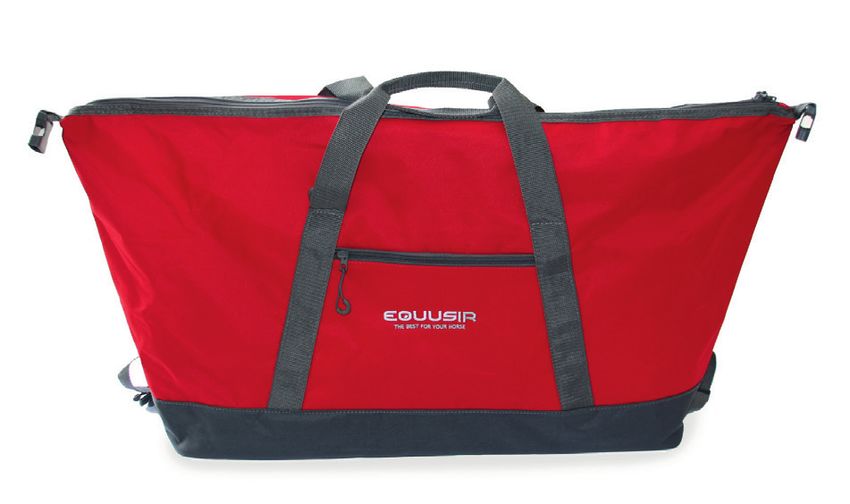

1 x Carrying bag
1 x Brochure
Neck part
Back part (applicator)
Control unit
Chest strap
Belly straps
LARGE SOCKET
PROGRAMMES
activating vitalising regenerating calming relaxing
DEVICE SERIAL NUMBER
ON/OFF
DISPLAY
Accumulator – Applicator – Remaining time
Quick start guide
1
To turn on: Press TURN-ON/TURN-OFF-BUTTON until LEDs light up.
2
Programme selection: The desired programme is selected with the 1
ON/OFF-button. Programme level 1 (Pro. 1 - 5) luminous LEDs.
2
Programme level 1 (Pro. 6 - 9) blinking LEDs.
3
4
3
Remaining time: LED starts to light up 10 minutes before the end
of the programme and will start flashing for the last 5 minutes. 5
6
4
To turn off: The device will turn itself off after the end of the
programme. To turn the device off early, keep the ON/OFF-button
pressed for at least 3 seconds.
5
Applicator: The LED will flash red when defective or when the
applicator is not properly connected.
6
Accumulator: The colour of the LED indicates the state of charge
Green = 100%, yellow = 60%, red = 30%

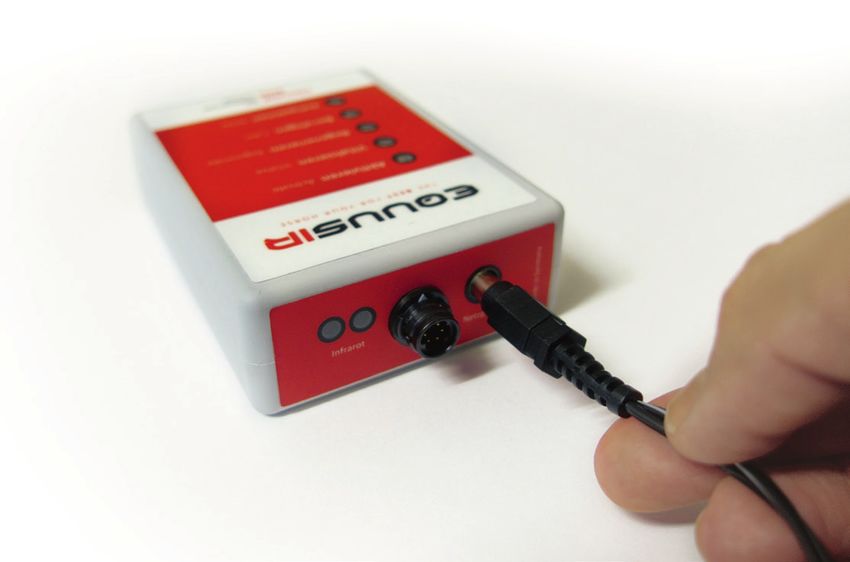

Charging the control unit
Please turn the unit off before charging it. Please note:
Completely charge the device prior to first use! Charging an
empty accumulator takes approximately 2 hours. There are two
sockets located at the front side of the control unit to connect
the power supply and the applicator.
Plug the charger into a 240V outlet and then plug the small
circular connector of the plug-in power supply into the socket
located at the front side of the control unit. The plug-in power
supply is only intended for charging the accumulator. Please
disconnect the plug-in power supply from the control unit for
the duration of the application.

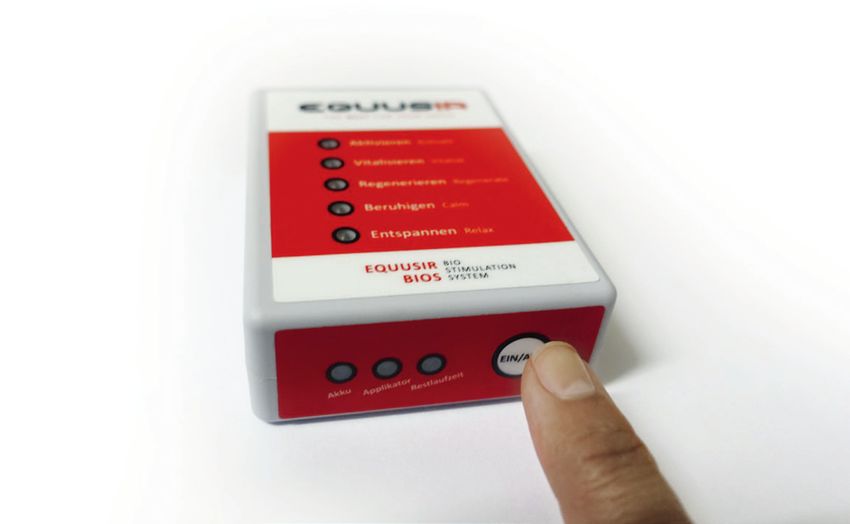

Turning the control unit on and
selecting different programmes
You EQUUSIR control unit comes factory equipped with 9 basic
programmes. In order to retrieve the programmes at the pulse
generator, please press the (on/off) button on the front side of
the control unit and hold the button until the unit indicates its
readiness by sounding a signal tone. The LED-display is now lit
permanently to indicate the „RELAXING“ programme.
By repeatedly pushing the (on/off) button, you can select your
desired programme.
After the “ACTIVATING” programme, the LED display reverts
back to the “Calming” programme and starts flashing. You
are in the second programme level. By pushing the (on/off)
button again, you can select the programmes from the second
programme level.

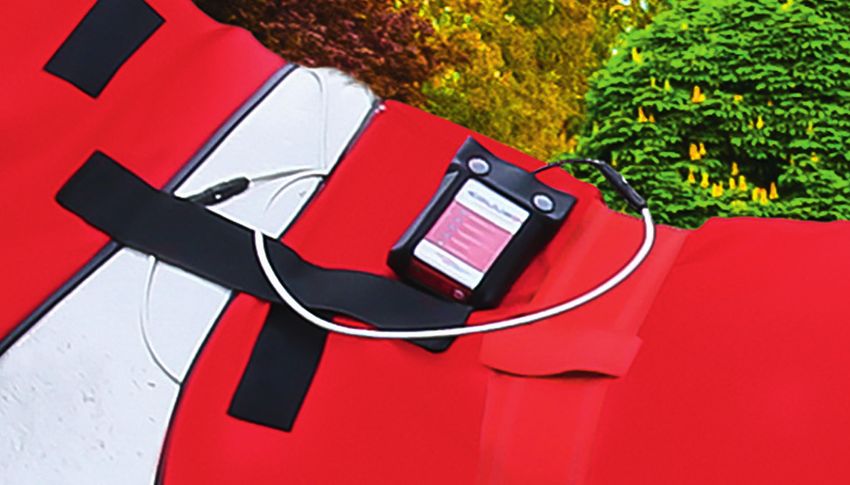

To connect the control unit to the applicator, insert the plug of
the applicator into the large socket located at the front side of
the control unit and close it.
Running times PROGRAMME LEVEL 1 PROGRAMME LEVEL 2
of programmes: RELAXING: 30 min. RELAXING: 3 hours
CALMING: 30 min. CALMING: 3 hours
REGENERATE: 30 min. REGENERATING: 3 hours
VITALISING: 30 min. VITALISING: 3 hours
ACTIVATING: 10 hours ACTIVATING: not active
Please note that the programme ACTIVATING will terminate
automatically after 10 hours and all other programmes of the
first programme level after 30 minutes. Within the second
programme level from “Calming” to “Vitalising”, programmes
will terminate after 3 hours.
To turn off the unit early, keep the on/off-button pushed down
until the end signal sounds and the lights go out.
Light signals of programme LEDs:
Programme level 1: permanent green LED
Programme level 2: flashing green LED
24 months warranty:
Light signal of the accumulator LED: EQUUSIR-BIOS-SYSTEM comes with a 24 month warranty
from the date of purchase, corresponding to the statutory
The colour of the LED indicates the state of charge. warranty prescribed in the European Union.
Green: 100% Yellow: 60% Red: 30%
Please register after the purchase of the product on our
website at: www.equusir.com/garantiebios/
Please note: Returns, warranty claims, and repairs can
only be processed without delay, if they are accompanied
by the following information:
• A completed return delivery document
• An exact description of the error and
• A copy of the invoice
The product must be sufficiently, securely, and appropriately
packaged to exclude any transport damage.
In compliance with our hygiene standards, we reserve
Applicator LED: the right to charge an appropriate fee for the cleaning of
any products with traces of heavy use and/or odour. The
During normal operation, the LED flashes green. The LED flashes General Terms and Conditions of Business of EQUUSIR
red when the neck-part applicator is defective or when it is Germany GmbH apply and are available for download on
improperly connected. our website: www.equusir.com
Note: It may occur that a red light flares up between the Terms and conditions of warranty:
green-flashing LED. This may occur especially at the start of If you experience any problems with your EQUUSIR-BIOS-
the programmes or with very high outside temperatures. The SYSTEM, please contact our customer service immediately.
unit requires some time until the resistance of the solenoid coil
is built up and increased outside temperature may affect this Mail: servicecenter@equusir.com
process. However, the blanket will still function properly. Telephone: +49 151 7438 1157
In case your EQUUSIR-BlOS-System is damaged or requires
The LED will flash red when the neck-part applicator is defective repair, please send the system directly to:
or not properly connected.
EQUUSIR GERMANY GMBH
Service-Center
Remaining time: Paul-Engel-Straße 1, 92729 Weiherhammer
GERMANY
The LED light starts to light up 10 minutes prior to termination
of the programme and will start flashing for the last 5 minutes
prior to termination.
THE RIGHT PROGRAMME
AT THE RIGHT TIME
GENTLE IMPULSES
The EQUUSIR BIOS-blanket
acts gently, but in a targeted
manner on the control systems
in the body of the horse.
A localised intervention on
deeper levels of the body, such
as body cells or tissue, does not
take place.
Wellness and Regeneration
Would you like to afford your horse a relaxing day of regeneration? All you
need to do is applying the following five programmes spread throughout the day:
MY HORSE NEEDS
A DAY OF RECOVERY
IN THE MORNING
Stimulate circulation
VITALISING
AT NOON
For circulation-muscle-metabolism
REGENERATING
IN THE AFTERNOON
Calming down, improve brain performance
CALMING
IN THE EVENING
Calming down nerves and muscles
RELAXING
AFTER EVERY EXERCISE
Supports the start of the recovery phase
REGENERATING
Training and Competition
Alternating between tension and relaxation is the key to optimum performance.
The horse’s full power is only available through the end of the competition, when
the recovery phases between competitions or training units can be utilised.
MY HORSE NEEDS
FULL PERFORMANCE CAPABILITY
95% OF THE HORSES CALM DOWN
FOR NERVOUS HORSES
30 min. prior to saddling: Collecting strength
5% OF THE HORSES REGENERATE
FOR PASSIVE WARM-UP
30 min. prior to saddling: Stabilise circulation
VITALISING
FOR PREVENTION OF INJURIES
30 min. prior to saddling: Increase circulation
ACTIVATING
AFTER RIDING IN THE COMPETITION
Reduce stress
REGENERATING
PRIOR TO RESTING IN THE BOX
Induce sleeping phase
RELAXING
Inflammation and injuries
The EQUUSIR BIOS blanket not only contributes to calming the horse in cases
of acute inflammations, but also promotes the healing of chronic conditions.
Please coordinate the application with the treating veterinarian
MY HORSE SCHALL BECOME
HEALTHY AGAIN
DAY 1
1 – 2 times daily
CALMING
DAY 2
2 – 3 times daily
REGENERATING
DAY 3 – BEFORE NOON
1 – 2 times with a 1 hour interval between applications
VITALISING
DAY 3 – AFTERNOON
1 – 2 times with a 1 hour interval between applications
REGENERATING
FROM DAY 4 ON
Repeat programmes from day 3
BIOS SYSTEM
APPLICATION & CARE INSTRUCTIONS
1. DO NOT TWIST THE PLUGS
The plugs that connect the control unit and neck to the back section of the blanket must NOT be twisted!
On each plug is a white arrow and a white line. The plug section with the white arrow must be drawn back
before the connectors are brought together. Turning the plug will lead to breakage of the sensitive contacts.
PLEASE NOTE
INSERTION!!
CONNECT OPEN This is imperative
to avoid damage.
PICTURE 1: CONNECT PLUG: Align the arrow to the white line mark- pull back the plug with the arrow mark and bring the two straight together (without turning)-
Disengage the plug with the arrow mark and let it click into place. This ensures that the plug connections do not disconnect and that the inlays cannot be damaged.
PICTURE 2: DISCONNECT PLUG: DISCONNECT PLUG: Pull back the plug with the arrow mark- pull straight back and release the plug connection
2. THE HORSE SHOULD BE TETHERED WHILST USING THE BLANKET
When using the BIOS blanket, it is important to ensure that the horse does not lie down or run freely in the paddock.
It is recommended that the horse is tethered during the treatment to make sure that the connections do not tear off
and that the inlays cannot be damaged.
3. THE INLAYS CANNOT GET WET
The BIOS blanket must not be used as a rain cover. Excessive moisture should be avoided as both the inlays and the control unit
can become damaged.
4. THE BIOS BLANKET SHOULD BE STORED IN A COOL DRY PLACE
Please note that you should keep the BIOS blanket in a dry room. Humidity and moisture can cause irreparable
damage to the control unit and inlays.
5. EXTREME TEMPERATURE FLUCTUATIONS SHOULD BE AVOIDED
Please avoid extreme temperature fluctuations. Excessive heat (+35 degrees) and cold (from -10 degrees)
can damage the control unit. In the summer and winter months, we therefore recommend storing the control
unit separately, in a suitable location, such as a house or a heated tack room.
6. CLEANING AND CARE INSTRUCTIONS
Before washing the BIOS blanket the inlays in the back and neck sections must be completely removed. Open the zipper
and remove the inlay as shown in the photo. The red cover can be washed at 30 degrees in a washing machine,
however, handwashing is generally recommended.
30
EQUUSIR Germany GmbH
equusir.com | info@equusir.com | +49 9605 9199 585 | Paul-Engel-Straße 1 | 92729 Weiherhammer | Germany
