MANUFACTURER OF
EGG PROCESSING MACHINES
EGG
BREAKERS CENTRIFUGES WASHERS FILTERS DISINFECTORS ACCESSORIES
EGG PROCESSING MACHINES
Catalog 2021
WWW.EGG-BREAKERS.COM
VISIT OUR WEBSITE
We are a European manufacturer
of specialty egg processing machines
We are the manufacturer of specialty machines designed for companies from the food industry, such
as: confectioneries, bakeries, pasta making companies. Among our clients are also egg suppliers, as
well as egg liquid suppliers.
Our product portfolio consists of:
EGG
BREAKERS CENTRIFUGES WASHERS FILTERS DISINFECTORS ACCESSORIES
OVO-TECH is widely renown as the world’s leader in the production of industrial egg processing
equipment. Since being founded back in 2003 by Piotr Drapejkowski up to this moment, it has evolved into
a company supplying its products onto all continents. Year by year, we are expanding our product
portfolio, developing our authorship products and production technology.
OVO-TECH in the world
+17 Over seventeen years
+3200
Over three thousand
+120 We delivered our machines
on the market machines sold to over a hundred and 3
twenty countries
OVO-TECH USA OVO-TECH HQ
We provide
worldwide
delivery Air Land Sea D2D*
* US and EU only
2
We have a construction department
WE DESIGN
All of our machines are designed
by a professional engineering team
which knows and understands customers’
needs.
We are a manufacturer
WE MANUFACTURE
As a manufacturer we put our best effort
into assembling the machines in
accordance to the highest standards by a
qualified technical cadre.
We provide delivery logistics
WE DELIVER
We deliver machines to all continents.
Our sales department provides logistics
support with the machines delivery.
We provide a service materials knowledge base
WE SUPPORT
Remote support and physical service in
clients’ headquarters. We provide warranty
and post-warranty support in the entire
world.
3
EGG
BREAKERS
yolks
from
whites
separation
VISIT OUR WEBSITE
5
4

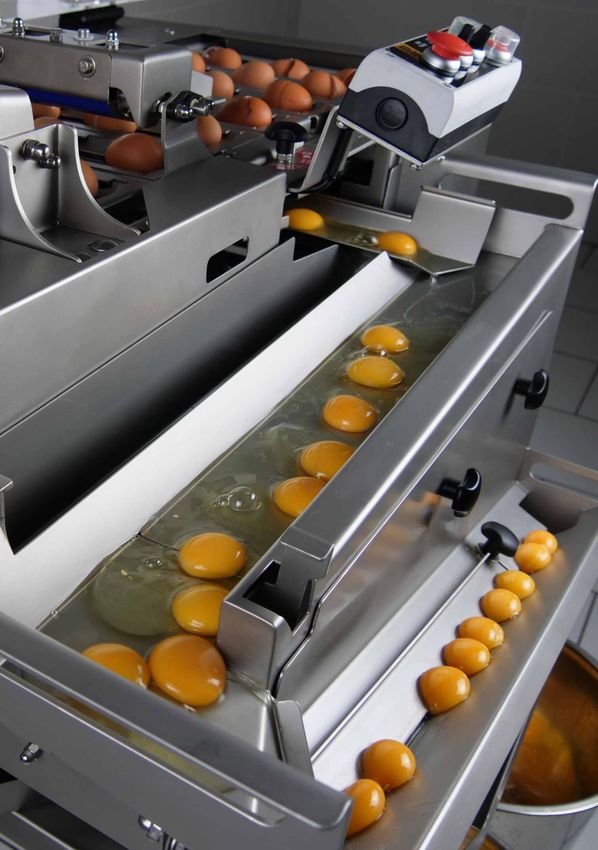

THE MOST HYGIENIC EGG BREAKING
& YOLKS FROM WHITES SEPARATION
THE EGG BREAKER IMITATES
THE WORK OF HUMAN HANDS,
BY SEPARATING THE SHELLS
WITH THE USE OF SPECIAL
KNIVES AND HOLDERS
RZ-1/8
EGG BREAKING SYSTEM
RZ-0
EGG BREAKING SYSTEM
PRECISE YOLKS
FROM WHITES
SEPARATION
SEPARATOR
ADJUSTMENT
FOR DIFFERENT
EGG QUALITY
2% MIXED LIQUID EGG WHITES YOLKS
DUE TO SHELL OR EGG DEFECTS
EGGSHELLS
- 95% VOLUME REDUCTION
BY THE UZS EGGSHELL CRUSHER
5
RZ-0 egg breaker Description
Capacity: 2 020 eggs/hour The egg breaker imitates the work of human hands with
the use of special pneumatic suction cups. The cups grab
Replaces: 3 people the eggs whose shells are then cracked by a specially
designed knife. Next, the machine's arms pull the
eggshells apart and the cracked eggs slide onto a
Power supply: 0.5 kW 110 V 1/N/PE 50/60 Hz Dimensions: 46x36x47 in.
separator, where yolks are separated from egg whites.
0.5 kW 230 V 1/N/PE 50/60 Hz Minimal workspace: 87×98 in. This most hygienic egg breaking method is an innovation
by OVO-TECH. Due to its compact size and cracking
Compressed air: 87-116 psi, min. flow 9.2 CFM Weight: 231 lbs hygiene, the RZ-0 finds its applications in both, food and
pharmaceutical industries. The machine is made out of
Water: n/a Operated by: 1 person
stainless steel EN 1.4301 (AISI 304).
Drain: n/a Compatibility: ESS
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
MINIMAL WORKSPACE
87 in.
98 in.
pneumatic
egg feeder
VEL-15
egg lifter
eggshells
damaged eggs
separator
damaged
eggs
yolks
whites
6
RZ-1 egg breaker Description
Capacity: 3 200 eggs/hour The egg breaker imitates the work of human hands by
cracking the eggshells with the use of special knives. Next,
Replaces: 7 people the cracked eggs slide down a separator, where yolks are
separated from egg whites. This most hygienic egg
breaking method is an innovation by OVO-TECH. The
Power supply: 0.5 kW 110 V 1/N/PE 50/60 Hz Dimensions: 58x29x44 in.
machine is made out of stainless steel EN 1.4301 (AISI 304).
0.5 kW 230 V 1/N/PE 50/60 Hz Minimal workspace: 98x79 in.
Compressed air: n/a Weight: 298 lbs DEMO VIDEOS AT
Water: n/a Operated by: 1 person WWW.EGG-BREAKERS.COM
Drain: n/a Compatibility: VEL-30, MT-1, UVC-1,
ESS, UZS
MINIMAL WORKSPACE
79 in.
98 in.
reliable
mechanical
holder
damaged eggs
separator
damaged
eggs
eggshells
whites
yolks
7
RZ-3 egg breaker Description
Capacity: 9 600 eggs/hour The egg breaker imitates the work of human hands
by cracking the eggshells with the use of special
Replaces: 22 people knives. Next, the cracked eggs slide down a
separator, where yolks are separated from egg
whites. This most hygenic egg breaking method is an
Power supply: 1 kW 110 V 1/N/PE 50/60 Hz Dimensions: 71x37x42 in.
innovation by OVO-TECH. The machine is made out
1 kW 230 V 1/N/PE 50/60 Hz Minimal workspace: 98x98 in. of stainless steel EN 1.4301 (AISI 304).
Compressed air: 80-116 psi, min. flow 9.2 CFM Weight: 397 lbs
Water: n/a Operated by: 2 person DEMO VIDEOS AT
Drain: n/a Compatibility: VEL-30, MT-3, UVC-3, WWW.EGG-BREAKERS.COM
ESS, UZS, PS-2, FS
MINIMAL WORKSPACE
98 in.
98 in.
precise
pneumatic
holder
damaged eggs
separator
damaged
eggs
eggshells
whites
yolks
8

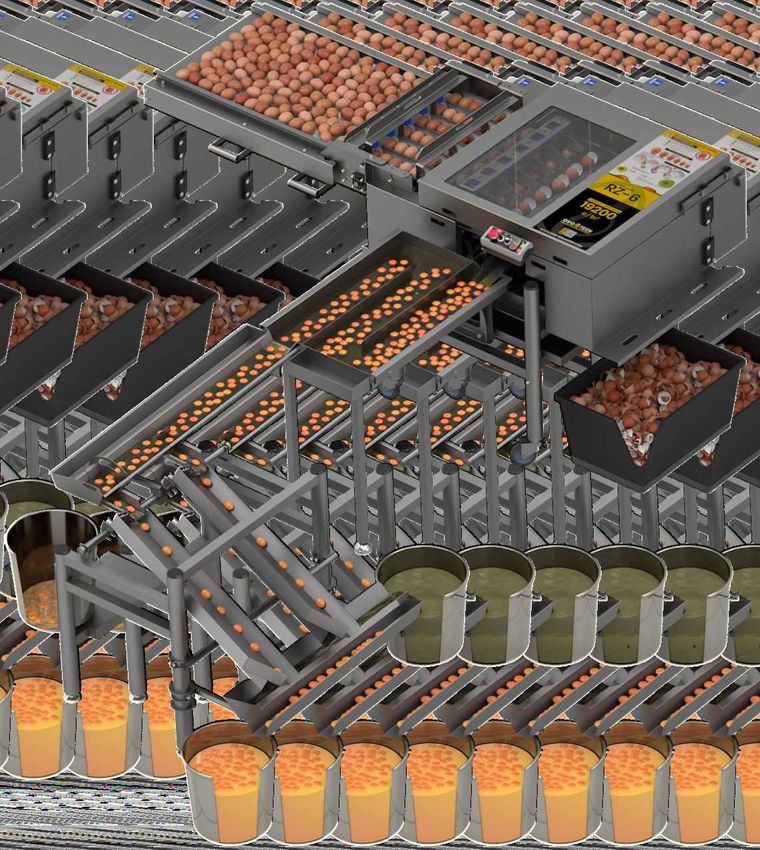

RZ-6 egg breaker Description
Capacity: 19 200 eggs/hour The RZ-6 uses a belt feeder to deliver the eggs into
the cracking section. Then, the breaker cracks open
Replaces: 44 people the eggshells with the use of special knives which
imitate the work of human hands. Next, the cracked
eggs go into a specially designed meander which
Power supply: 2 kW 230 V 1/N/PE 50/60 Hz Dimensions: 127x93x43 in.
serves the purpose of quality control. After passing
2 kW 400 V 1/N/PE 50/60 Hz Minimal workspace: 138x177 in. through quality control, the eggs slide down
separator ramps, where yolks are separated from
Compressed air: 80-116 psi, min. flow 9.2 CFM Weight: 772 lbs egg whites. This most hygienic egg breaking method
is an innovation by OVO-TECH. The machine is made
Water: n/a Operated by: 4 persons
out of stainless steel EN 1.4301 (AISI 304).
Drain: n/a Compatibility: VEL-30, MT-6, UVC-6,
UZS, PS-1, FS DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
egg belt
feeder
precise
pneumatic
holder
eggshells
damaged eggs
separator
visual
quality
control
whites
MINIMAL WORKSPACE
damaged
138 in.
eggs
yolks
177 in.
9

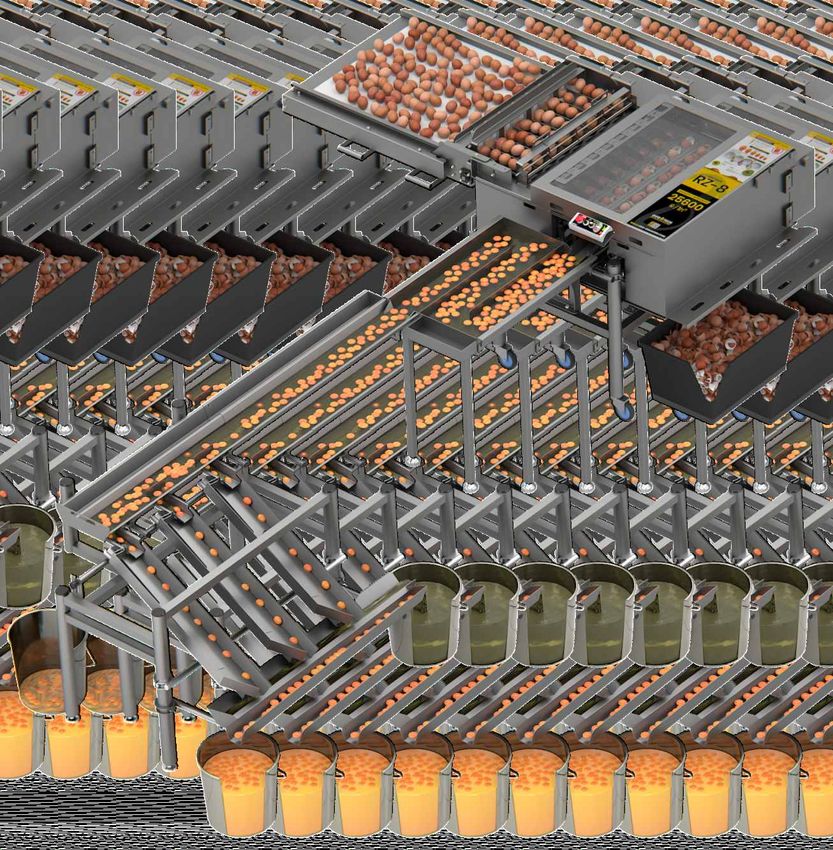

RZ-8 egg breaker Description
Capacity: 25 600 eggs/hour The RZ-8 uses a belt feeder to deliver the eggs into
the cracking section. Then, the breaker cracks open
Replaces: 60 people the eggshells with the use of special knives which
imitate the work of human hands. Next, the cracked
eggs go into a specially designed meander which
Power supply: 2 kW 230 V 1/N/PE 50/60 Hz Dimensions: 180x96x46 in.
serves the purpose of quality control. After passing
2 kW 110 V 1/N/PE 50/60 Hz Minimal workspace: 138x217 in. through quality control, the eggs slide down
separator ramps, where yolks are separated from
Compressed air: 80-116 psi, min. flow 9.2 CFM Weight: 992 lbs egg whites. This most hygienic egg breaking method
is an innovation by OVO-TECH. Machines available
Water: from client's installation Operated by: 4 persons
on per order basis. The machine is made out of
Drain: required Compatibility: VEL-30, MT-8, UVC-8, stainless steel EN 1.4301 (AISI 304).
UZS, PS-1, FS DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
egg belt
feeder
precise
pneumatic
holder
damaged eggs
separator
eggshells
visual quality
control
whites
MINIMAL WORKSPACE
138 in.
damaged
eggs
yolks
217 in.
10CENTRIFUGES
clean
& fresh
egg liquid
VISIT OUR WEBSITE
11UDTJ-10 centrifugal egg cracker Description
Capacity: 4 000 eggs/hour Tthe UDTJ-10 is a semi-automatic centrifugal egg cracker
which produces fresh liquid egg. After filling the hopper
Replaces: 3 people with eggs, the machine cracks the eggs and separates
the liquid egg from the eggshells using an internal filter.
Shells should be removed from the filter after every 210
Power supply: 1.1 kW 110 V 1/N/PE 50/60 Hz Dimensions: 21x22x36 in.
eggs, after which breaking can be continued. The
1.1 kW 230 V 3/N/PE 50/60 Hz Minimal workspace: 59x59 in. machine is made out of stainless steel EN 1.4301 (AISI 304).
1.1 kW 400 V 1/N/PE 50/60 Hz Weight: 132 lbs
Compressed air: n/a Operated by: 1 person DEMO VIDEOS AT
Water: n/a Compatibility: PS-UDTJ, FS WWW.EGG-BREAKERS.COM
Drain: n/a
MINIMAL WORKSPACE
59 in.
59 in.
eggshell filter
should be emptied
every 210 eggs
fresh egg liquid
12UDTJ-150 centrifugal egg cracker Description
Capacity: 20 000 eggs/hour The UDTJ-150 is an automatic centrifugal egg cracker
which produces fresh liquid egg. After filling the hopper
Replaces: 15 people with eggs, the eggs are cracked and the eggshells are
filtered out with the use of a special rotating filter with a
mesh size of 0.8 mm. Clean egg liquid is then
Power supply: 1.1 kW 110 V 1/N/PE 50/60 Hz Dimensions: 25x27x36 in.
transported to a placed container, and eggshells are
1.1 kW 230 V 3/N/PE 50/60 Hz Minimal workspace: 59x59 in. automatically removed from the machine. The
machine is made out of stainless steel EN 1.4301
1.1 kW 400 V 1/N/PE 50/60 Hz Weight: 176 lbs
(AISI 304).
Compressed air: n/a Operated by: 1 person
DEMO VIDEOS AT
Water: n/a Compatibility: MT-1/3/6, UVC-1/3/6,
WWW.EGG-BREAKERS.COM
Drain: n/a PS-UDTJ, FS
MINIMAL WORKSPACE
59 in.
59 in.
automatic eggshells
removal
fresh egg liquid
13UDTJ-500 centrifugal egg cracker Description
Capacity: 120 000 eggs/hour or 250 000 eggshells The UDTJ-500 is heavy duty, automatic centrifugal egg
cracker used for production of fresh liquid egg and drying
Replaces: 90 people of eggshells obtained from hand or machine breaking.
After filling the hopper, the eggs are cracked and the
eggshells are filtered out with the use of a special rotating
Power supply: 5.5 kW 230 V 3/N/PE 50/60 Hz Dimensions: 41x34x48 in.
filter with a mesh size of 0.8 mm. Clean egg liquid is then
5.5 kW 400 V 3/N/PE 50/60 Hz Minimal workspace: 79x79 in. transported into a placed container and the eggshells
are automatically removed from the machine. The
Compressed air: n/a Weight: 584 lbs
machine is made out of stainless steel EN 1.4301 (AISI 304).
Water: n/a Operated by: min. 2 persons
DEMO VIDEOS AT
Drain: n/a Compatibility: MT-1/3/6/8,
WWW.EGG-BREAKERS.COM
UVC-1/3/6/8, FS
MINIMAL WORKSPACE
79 in.
79 in.
automatic eggshells
removal
fresh egg liquid
14WASHERS
effective
egg washing
&
disinfection
DISINFECTORS
VISIT OUR WEBSITE
15EFFECTIVE EGG WASHING
THANKS TO THE USE OF INNOVATIVE SOLUTIONS, OVO-TECH
MACHINES REMOVE STRONG CONTAMINATION FROM EGGS
THANKS TO THE USE OF SPECIALLY PROFILED ROLLERS,
THE EGGS ARE ROTATED ALONG THEIR AXIS, WHILE SPECIALLY DESIGNED
3D
Washing BRUSHES WASH THE EGGS AT EVERY ANGLE, WHICH
RESULTS IN A 3D WASHING EFFECT
THE WASHER OPERATES IN
A CLOSED WATER CIRCUIT,
ECO
Washing WHICH ALLOWS FOR ITS
OPTIMAL USE
AND REDUCES
COSTS
QUICK DISINFECTION
WITH UV-C LIGHT
THANKS TO
THE HIGH POWER UV-C RADIATORS,
OVO-TECH MACHINES DISINFECT
EGGS WITH UP TO 100% EFFICIENCY
16MT-1 tunnel egg washer Description
Capacity: 3 200 eggs/hour The MT-1 washes the eggs in a 3D fashion thanks to the
use of specially designed rotating brushes which clean
Replaces: 8 people all of the eggs’ surfaces. This allows for an exceptional
level of cleanliness. First, the eggs are fed into the
machine with the use of an integrated gravity feeder
Power supply: 30 kW 230 V 3/N/PE 50/60 Hz Dimensions: 100x44x65 in.
tray. There, thanks to the use of specially profiled rollers,
30 kW 400 V 3/N/PE 50/60 Hz Minimal workspace: 138x79 in. the eggs are rotated along their axis, while specially
designed brushes wash the eggs at every angle, which
Compressed air: n/a Weight: 926 lbs
results in a 3D washing effect. After washing, the eggs
are transported into a drying section, where they are
Water: from client's installation Operated by: 1 person
dried by a stream of warm air. The washer operates in a
Drain: required Compatibility: VEL-30, UVC-1, RZ-1, closed water circuit, which allows for its optimal use and
reduces costs. The machine is made out of stainless
UDTJ-150
steel EN 1.4301 (AISI 304).
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
side channel fan
with nozzle system
ECO 3D
Washing Washing
MINIMAL WORKSPACE
water touch screen
filters controls
138 in.
79 in.
17MT-3 tunnel egg washer Description
Capacity: 9 600 eggs/hour The MT-3 washes the eggs in a 3D fashion thanks to the
use of specially designed rotating brushes which clean
Replaces: 25 people all of the eggs’ surfaces. This allows for an exceptional
level of cleanliness. First, the eggs are fed into the
machine with the use of an integrated gravity feeder
Power supply: 35 kW 230V 3/N/PE 50/60 Hz Dimensions: 122x61x68 in.
tray. There, thanks to the use of specially profiled rollers,
35 kW 400 V 3/N/PE 50/60 Hz Minimal workspace: 157x98 in. the eggs are rotated along their axis, while specially
designed brushes wash the eggs at every angle, which
Compressed air: n/a Weight: 1168 lbs
results in a 3D washing effect. After washing, the eggs
are transported into a drying section, where they are
Water: from client's installation Operated by: 2 persons
dried by a stream of warm air. The machine is made out
Drain: required Compatibility: VEL-30, UVC-3, RZ-3, of stainless steel EN 1.4301 (AISI 304).
UDTJ-150
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
egg belt
feeder
side channel fan
with nozzle system
ECO 3D
Washing Washing
MINIMAL WORKSPACE
water touch screen
filters controls
157 in.
98 in.
18MT-6 tunnel egg washer Description
Capacity: 19 200 eggs/hour The MT-6 washes the eggs in a 3D fashion thanks to the
use of specially designed rotating brushes which clean
Replaces: 50 people all of the eggs’ surfaces. This allows for an exceptional
level of cleanliness. First, the eggs are fed into the
machine with the use of an integrated belt feeder. There,
Power supply: 40-50 kW 400 V 3/N/PE 50/60 Hz Dimensions: 177x79x69 in.
thanks to the use of specially profiled rollers, the eggs are
Compressed air: n/a Minimal workspace: 118x236 in. rotated along their axis, while specially designed
brushes wash the eggs at every angle, which results in a
Water: from client's installation Weight: 2205 lbs
3D washing effect. After washing, the eggs are
transported into a drying section, where they are dried
Drain: required Operated by: 4 persons
by a stream of warm air. The machine is made out of
Compatibility: VEL-30, UVC-6, RZ-6, stainless steel EN 1.4301 (AISI 304).
UDTJ-150/500
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
MINIMAL WORKSPACE
236 in. 118 in.
ECO 3D
Washing Washing
19MT-8 tunnel egg washer Description
Capacity: 25 600 eggs/hour The MT-8 washes the eggs in a 3D fashion thanks to the
use of specially designed rotating brushes which clean all
Replaces: 67 people of the eggs’ surfaces. This allows for an exceptional level
of cleanliness. First, the eggs are fed into the machine
with the use of an integrated belt feeder. There, thanks to
Power supply: 40-50 kW 400 V 3/N/PE 50/60 Hz Dimensions: 177x79x69 in.
the use of specially profiled rollers, the eggs are rotated
Compressed air: n/a Minimal workspace: 118x236 in. along their axis, while specially designed brushes wash
the eggs at every angle, which results in a 3D washing
Water: from client's installation Weight: 2425 lbs
effect. After washing, the eggs are transported into a
drying section, where they are dried by a stream of warm
Drain: required Operated by: 4 persons
air. Machines available on per order basis. The machine is
Compatibility: VEL-30, UVC-8, RZ-8, made out of stainless steel EN 1.4301 (AISI 304).
UDTJ-500
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
egg belt
feeder ECO 3D
Washing Washing
side channel fan
with nozzle system
water
filters
touch screen
controls
20UVC-1/3 flood lamp Description
Capacity: 3 200 / 9 600 eggs/hour The disinfector emits UV-C light with the cumulative
power of 475 Watts, which acts on the eggshells and
Replaces: n/a disinfects them by killing 100% of bacteria, including
Salmonella. The machine is made out of stainless steel
EN 1.4301 (AISI 304).
Power supply: 1.5 kW 230V 3/N/PE 50/60 Hz Dimensions: 87x32x63 in.
1.5 kW 400 V 3/N/PE 50/60 Hz Minimal workspace: 59x98 in.
UVC-1
Compressed air: n/a Weight: 507 lbs DEMO VIDEOS AT
Water: n/a Operated by: 1/2 persons WWW.EGG-BREAKERS.COM
Drain: n/a Compatibility: VEL-30, MT-1/3, RZ-1/3,
UDTJ-150
UVC-3
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
UVC-1 / UVC-3 UVC-6 / UVC-8
MINIMAL WORKSPACE MINIMAL WORKSPACE
59 in.
79 in.
98 in.
98 in.
21UVC-6/8 flood lamp Description
Capacity: 19 200 / 25 600 eggs/hour The disinfector emits UV-C light with the cumulative
power of 475 Watts, which acts on the eggshells and
Replaces: n/a disinfects them by killing 100% of bacteria, including
Salmonella. The machine is made out of stainless steel EN
1.4301 (AISI 304).
Power supply: 3 kW 230 V 3/N/PE 50/60 Hz Dimensions: 85x49x62 in.
3 kW 400 V 3/N/PE 50/60 Hz Minimal workspace: 79x98 in.
Compressed air: n/a Weight: 661 lbs UVC-6
Water: n/a Operated by: 4 persons
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
Drain: n/a Compatibility: VEL-30, MT-6/8, RZ-6/8,
UDTJ-150/500
UVC-8
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
UV-C radiators
with total power:
- UVC-1/3: 475 W
- UVC-6/8: 950 W
ladder egg
feeder
22FILTERS
TRANSPORT
AND
FILTRATION
LIQUID EGGS
VISIT OUR WEBSITE
23FILTRATION AND TRANSPORT
OF A PERFECTLY CLEAN EGG LIQUID
FS FILTER ALLOWS FOR OBTAINING OF A PERFECTLY CLEAN EGG
LIQUID. NEXT, A PISTON SQUEEZES THE LIQUID EGG THROUGH
SLOTS WITH A DIAMETER OF 0.2 MM. THIS PROCESS ALLOWS
TO REMOVE 99.9% OF ALL CONTAMINANTS.
FILTERED EGG LIQUID CAN BE USED FOR
FURTHER PRODUCTION OR
PASTEURIZED FOR LONGER
STORAGE
PM BOX PS-1 PUMP SYSTEM PS-2 PUMP SYSTEM
EFFICIENT PUMP EFFICIENT PUMP EFFICIENT PUMP
FOR EGG LIQUID FOR EGG LIQUID FOR EGG LIQUID
3500 l/h 3000 l/h 6000 l/h
24FS wedge wire filter Description
Capacity: 1321 gallons/hour Thanks to the use of an innovative wedge wire filter, the
FS filter allows for obtaining of a perfectly clean egg
Replaces: n/a liquid. The egg liquid is first transported into the filter
using a pump. Next, a piston squeezes the liquid egg
through slots with a diameter of 0.2 mm. This process
Power supply: 0.1 kW 110 V 1/N/PE 50/60 Hz Dimensions: 30x29x72 in.
allows to remove 99.9% of all contaminants, which
0.1 kW 230 V 1/N/PE 50/60 Hz Minimal workspace: 47x59 in. results in obtaining the highest possible level of filtration.
The machine is made out of stainless steel EN 1.4301
Compressed air: 80-116 psi, min. flow 9.2 CFM Weight: 265 lbs
(AISI 304).
Water: n/a Operated by: 1 person
DEMO VIDEOS AT
Drain: n/a Compatibility: UDTJ-150, UDTJ-500,
WWW.EGG-BREAKERS.COM
RZ-1/3/6/8, PM/PM BOX
PS-1/2, PS-UDTJ
filtering system
which removes 99.9%
of contaminants from
the egg liquid
egg liquid
for filtering
filtered
egg liquid
MINIMAL WORKSPACE
47 in.
59 in.
25PS-1 pump system Description
Capacity: 793 gallons/hour The PS-1 pumping system buffers egg liquid in its tanks.
Once the liquid reaches acceptable level, the machine
Replaces: n/a initiates pumping of the egg liquid into the FS wedge wire
filter or a storage container. The machine is made out of
stainless steel EN 1.4301 (AISI 304).
Power supply: 1 kW 230V 3/N/PE 50/60 Hz Dimensions: 36x20x31 in.
1 kW 400V 3/N/PE 50/60 Hz Minimal workspace: 39x59 in. DEMO VIDEOS AT
Compressed air: n/a Weight: 110 lbs WWW.EGG-BREAKERS.COM
Water: n/a Operated by: 1 person
Drain: n/a Compatibility: RZ-1/3/6/8, FS
MINIMAL WORKSPACE 39 in.
59 in.
liquid egg
tank
fresh
liquid egg
efficient pump
for food liquids
3000 l/h
drainage of
liquid egg
26PS-2 pump system Description
Capacity: 1585 gallons/hour The PS-2 pumping system buffers egg liquid in its tanks.
Once the liquid reaches acceptable level, the machine
Replaces: n/a initiates pumping of the egg liquid into the FS wedge wire
filter or a storage container. The machine is made out of
stainless steel EN 1.4301 (AISI 304).
Power supply: 2 kW 230V 3/N/PE 50/60 Hz Dimensions: 30x41x40 in.
2 kW 400V 3/N/PE 50/60 Hz Minimal workspace: 59x79 in. DEMO VIDEOS AT
Compressed air: n/a Weight: 220 lbs WWW.EGG-BREAKERS.COM
Water: n/a Operated by: 1 person
Drain: n/a Compatibility: RZ-3, FS
MINIMAL WORKSPACE
79 in.
59 in.
power
supply
box
control
panel
efficient pump
for food liquids
6000 l/h
yolks tank whites tank
drainage of
liquid egg
27PM/PM BOX pump system Description
Capacity: 925 gallons/hour The PM and PM BOX pumps are designed to transfer egg
liquid from one tank to another. Its small, compact size
Replaces: n/a ease of operation and robust construction have been
specifically designed to meet the harsh, industrial
conditions in large food processing facilities. The
Power supply: 0.75 kW 110V 1/N/PE 50/60 Hz Dimensions: 23x8x13 in.
machine is made out of stainless steel EN 1.4301 (AISI 304).
0.75 kW 230V 1/N/PE 50/60 Hz Minimal workspace: 20x39 in.
0.75 kW 230V 3/N/PE 50/60 Hz Weight: 44 lbs DEMO VIDEOS AT
0.75 kW 400V 3/N/PE 50/60 Hz Operated by: 1 persons WWW.EGG-BREAKERS.COM
Compressed air: n/a Compatibility: FS
Water: n/a
Drain: n/a
MINIMAL WORKSPACE
20 in.
39 in.
PM - food liquid pump PM BOX- food liquid pump
efficient pump
for food liquids
3500 l/h
drainage of
liquid egg
28ACCESSORIES
productivity
enhancing
machines
VISIT OUR WEBSITE
29UZS egg shell crusher Description
Capacity: 42 000 eggshells/hour The machine reduces the volume of eggshells obtained
during egg breaking by 95% by crushing them into small
Replaces: n/a pieces. The machine is made out of stainless steel EN
1.4301 (AISI 304).
Power supply: 1.1 kW 110 V 1/N/PE 50/60 Hz Dimensions: 44x21x35 in.
1.1 kW 230 V 3/N/PE 50/60 Hz Minimal workspace: 39x59 in. DEMO VIDEOS AT
1.1 kW 400 V 3/N/PE 50/60 Hz Weight: 132 lbs WWW.EGG-BREAKERS.COM
Compressed air: n/a Operated by: 1 person
Water: n/a Compatibility: RZ-1/3/6/8
Drain: n/a
MINIMAL WORKSPACE
39 in.
59 in.
eggshells
reduced by
95% in volume
eggshells
after breaking
30VEL-30 vacuum egg lifter Description
Capacity: 30 eggs at a time The lifter, with the use of rubber suction cups and
accumulated vacuum, grabs the eggs which allows for
Replaces: n/a their transportation. It allows to move eggs from the egg
cartons to the machine. The machine is made out of
stainless steel EN 1.4301 (AISI 304).
Power supply: 1.1 kW 110 V 1/N/PE 50/60 Hz Pump dimensions: 19x13x14 in.
1.1 kW 230 V 1/N/PE 50/60 Hz Minimal workspace: 31x47 in. DEMO VIDEOS AT
Compressed air: n/a Weight: 44 lbs WWW.EGG-BREAKERS.COM
Water: n/a Operated by: 1 person
Drain: n/a Compatibility: RZ-1/3/6/8, MT-1/3/6/8
UVC-1/3/6/8
Eggshell settler Description
Dimensions: 10x13x3 in. Compatibility: RZ-0/1/3/6/8
It is designed to eliminate the egg shells created during egg breaking.
The machine is made out of stainless steel EN 1.4301 (AISI 304).
Weight: 3 lbs
DEMO VIDEOS AT
WWW.EGG-BREAKERS.COM
31Take a global look at your business and start saving.
Egg processing lines
3 200 RZ-1 UZS PS-1
eggs / hour
VEL MT-1 UVC-1 FS
440
lbs / hour UDTJ-150 PS-UDTJ
YOLKS FROM WHITES
9 600 RZ-3 UZS PS-1/2
SEPARATION
eggs / hour
VEL MT-3 UVC-3 FS
1 320 UDTJ-150 PS-UDTJ
lbs / hour
EGG LIQUID
19 200 RZ-6 UZS PS-1
eggs / hour
VEL MT-6 UVC-6 FS
2 650 UDTJ-150 PS-UDTJ PASTERIZATON
lbs / hour
25 600 RZ-8 UZS PS-1
eggs / hour
VEL MT-8 UVC-8 FS
3 530 UDTJ-500 PS-UDTJ
lbs / hour
32COMPLETE
EGG PROCESSING
SOLUTIONS
EFFECTIVE EGG WASHING
WITH THE MT SERIES WASHERS
ECO 3D
Washing Washing
EFFECTIVE EGG DISINFECTION
WITH UV-C LIGHT
YOLKS FROM WHITES
SEPARATION,
95% EGGSHELLS
VOLUME REDUCTION
BY THE UZS THE MOST HYGIENIC
EGG BREAKING BY
EGGSHELL CRUSHER
THE RZ SERIES
EGG BREAKERS
33OVO-TECH HQ OVO-TECH USA EUROPE tel. +48 792 333 900
Boczna 43 1680 Michigan Avenue, Suite 700
27-200 Starachowice Miami Beach, FL 33139 UNITED STATES tel. +1 305 777 2227
POLAND UNITED STATES WWW.EGG-BREAKERS.COM
EUROPEAN UNION
sales@egg-breakers.com
OUR DISTRIBUTORS
Bulgaria Malaysia Spain
DION ENGINEERING DAIFUGO AGROTEK MALAYSIA VIMAR 1900
Vihren Genchev +6012-2147566 0034 902 40 21 22
00359 895 580 500 daifugo4646@live.com.my oriol@vimar1900.com
dion@dion.bg
Czech Republic Pakistan Taiwan
ARTOS CZ, SPOL.S.R.O AL-ABD CORPORATION TOP UNION
Roman Kalus Tanveer Ahmed 00886-3-360-0006
00420 777 787 253 0092 300 822 5541 sales@topuniontech.com
kalus@artos.cz info@alabdcorp.com.pk
France Republic of Belarus Turkey
OVOCONCEPT ODO "ROKINTEKHINVEST" PASFIL
Maxime Trehorel Anna Kharevich 0090 216 640 10 34
0033 676 44 11 44 00375 17 250 40 42 info@pasfil.com
maxime.trehorel@ovoconcept.fr riti@yandex.ru
Iran Russia Ukraine
MAGMA CO. OOO Kompania Airin LLC EUROBAKE TECHNOLOGY
Nima Sadeghi 007 499 653 60 11 Oleksandr Anosov
00989126187568 info@irin.ru 0048 794 503 064
Sadeghi.magma@gmail.com anosov@poczta.fm
Italy Romania Vietnam
RIVA SELEGG S.a.s. NOVA PAN HOLAFOODS JSC.
Marco Grilli Marius Costea 0084 985 066 633
0039 366 730 9499 004 0268 331 332 hoanglan@holafoods.com.vn
marcogrilli@rivaselegg.com mariuscostea@novapan.roYou can also read
