ClusterLion Always-On Availability for SAP services
About ProLion – Data Integrity solutions
ProLion ensure organizations' data remains secure, compliant, manageable and accessible.
Founded in Global Reach Consistent Clear technical Strong partner
2013 growing business focus network
Headquartered in
7+ years experience Austria with presence Year-on-Year growth of 55% of employees Distribution and
in enterprise IT across Europe, 100% for the last 4 are focused on Reseller channel.
solutions. Americas and APJ. years. 450+ customers software and Global alliance
from all sectors. technical partners.
development.
Business continuity in todays IT
SAP is the backbone of many companies. To ensure business continuity, systems and
data are replicated in a second data center.
However, many companies need always-ON availability to ensure productivity
continues with zero system downtime.
Downtime impacts
productivity, profits
and reputation!
IT failures in numbers
It could hit everyone!
82% experienced at least one unplanned
downtime over the past 3 years!*
It’s not something you want!
Outages lasted an average of 4 hours and
cost $2 million!*
But it still happens!
83% of outages are due to hardware or
software failure/malfunction!*
*SOURCE: ServiceMax, from GE Digital, commissioned Vanson Bourne to conduct a global study into unplanned downtime, “After The Fall: Cost, Causes and Consequences of Unplanned Downtim e. “The Study surveyed
450 IT & field services decision makers in the UK, US, France and Germany across the manufacturing, medical, oil and gas, energy & utilities, telecoms, distribution, logistics and transportation sect ors, among others.
SAP’s techniques for HA & DR
SAP provides several options to meet the challenges of Disaster Recovery and High Availability. To
achieve the lowest possible RTO and RPO, System Replication for HANA databases and Enqueue
Replication for NetWeaver Application Servers are offered.
SAP HANA System Replication SAP NetWeaver HA
SAP HANA system replication is a SAP NetWeaver architecture is ready
mechanism ensuring the high availability to run an HA environment, with the
of your SAP HANA system. 1) support of SAP Central Services and
SAP Enqueue Replication Services. 2)
1) SOURCE: SAP HANA System Replication Guide, Version 1.1 [Link]
2) SOURCE: Building High Availability for SAP NetWeaver and SAP HANA on Linux, Version 2.1 [ Link]Challenges for always-ON

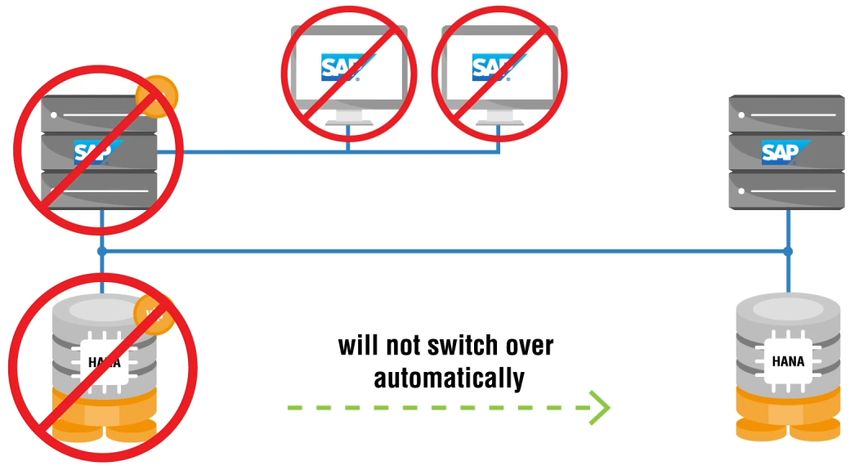

“In general, SAP Central Services Instances, SAP HANA Databases, SAP Global File
Systems, and SAP Web Dispatcher are the Single Point of Failures (SPOFs), which
need to be protected using native or third-party cluster solutions!“
Excerpt from SAP Best-Practice Document: Building High Availability for SAP NetWeaver and SAP HANA on Linux, Version 2.1 [Link]Typical clustering difficulties

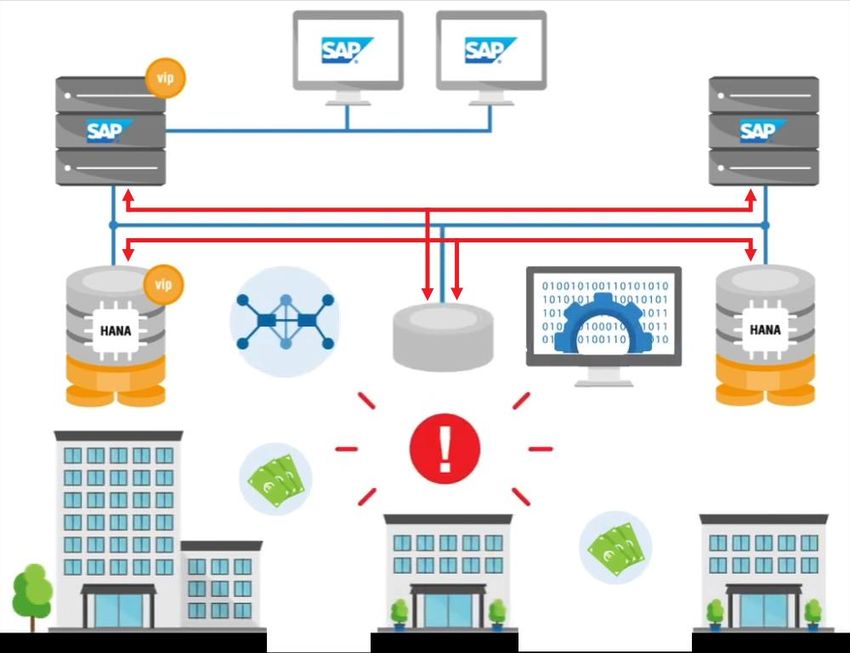

Complex!
Hard to setup, configure and maintain!
Different components from different
initiatives, requires shared storage etc.
Expensive!
High TCO due to 3rd Data Centre,
management effort and special
know-how!
Split brain syndrome!
Facing split brain and false failover
decision challenges!How ClusterLion can help
01 02 03
No Complex Clusters Lowest TCO Simplicity for SAP
Linux single server systems can No 3rd Data Centre / additional ClusterLion is an all-in-one solution
be used. No clustering based on connection lines or associated with a clear focus on SAP. It’s easy
different components from maintenance and management to setup, configure and maintain.
different initiatives! and know-how!
04 05 06
Extremely Secure Monitoring & Alerts 24/7 Premium Support
Highest security against false ClusterLion also provides simple Support during emergencies and
failover decisions and split-brain! monitoring including notification regular software upgrades. No
manager with push warnings and open-source communities, but
alerts. commercial premium support!Supported platforms
ClusterLion supports all common platforms. With SAP HANA systems, a shutdown of the primary
site is often necessary before a takeover to avoid data inconsistencies. ClusterLion offers perfect
interfaces to the following environments:
VMware IBM Linux OS Bare Metal Cisco Lenovo
vSphere PowerVM power-off power-off Intersight XCC
VM shutdown with LPAR shutdown Shutdown with Physical shutdown Server shutdown Server shutdown
vCenter or ESXi with IBM HMC Watchdog/Softdog with ClusterLion with Cisco with xClarity
19“-appliance Intersight ControllerArchitecture and functionality overview

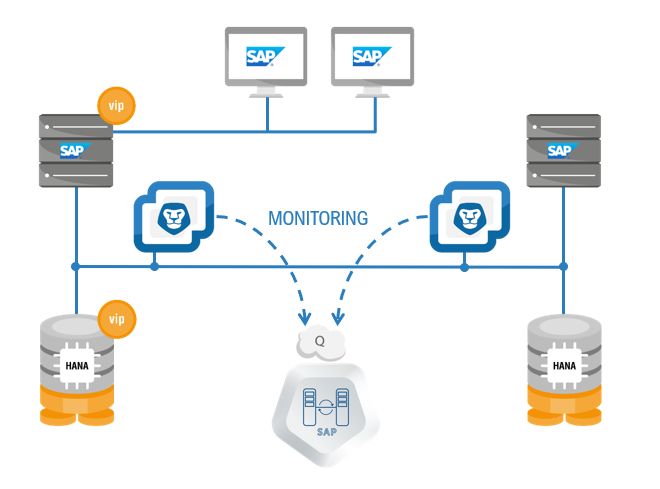

A single VM is deployed to each
datacentre.
Nothing to install on SAP hosts, no
shared storage, no 3rd data centre
MONITORING Easy, Web-GUI based configuration.
Only outgoing connection, no firewall
ports to be opened.
No user data is transmitted to the
cloud, only status metrics.
No transfer of any credentials to the
Internet due to local configuration.Architecture and functionality overview
The quorum analyzes and correlates
the status values from both sides.
SHUTDOWN If a failure is detected that requires a
takeover, the ClusterLion first shuts
down the hosts or services on the
primary side.
As soon as this is done and data
SHUTDOWN consistency has been ensured, the
takeover process begins.Architecture and functionality overview
All processes necessary for a
complete failover are automated.
TAKEOVER The HANA database is taken over to
the secondary site.
Application server central instances
are switched over.
Virtual IP addresses are switched
over.
TAKEOVER
The clients stay connected!Special integrations
Thanks to Azure API integration and Azure Load Balancer support,
ClusterLion is ideal for use on SAP systems that are operated on
native VMs in Azure.
LaMa
ClusterLion’s integration with the SAP Landscape Management API
allows takeover workflows in the LaMa to be triggered
automatically by the ClusterLion in the event of a failure.Summary
Simple ClusterLion setup Complex Linux Cluster setup
No Complex Clusters Complex Cluster setup
No shared storage required Requires shared storage
Lowest TCO 3rd Data Centre needed
Simplicity for SAP Reliance on open-source community
Extremely secure Split brain challenges!
Monitoring and Alerts Bad traceability
24/7 Premium Support High maintenance effortThank You!
The question is not if you can afford ClusterLion…
…the question is can you afford to run SAP
without ClusterLion?
