Commercial presentation of version 2.1.7 - Navarino

Commercial presentation of version 2.1.7

Infinity is a bandwidth management, optimization and
full ICT infrastructure solution specifically designed to
meet the requirements of the growing demands in the
shipping industry :

• increase the efficiency of the vessel’s communications
• reduce significantly the cost of business and crew
  communications
• offer more crew welfare options
• respond to the need for centralized management and
  control
• integrate vessel’s and shore office systems
• increase the security of a modern vessel’s IT
  environment
• provide the infrastructure for hosting all servers to
  virtualize and consolidate the IT environment onboard
• VDI fully supported for provisioning of any clients
  onboard

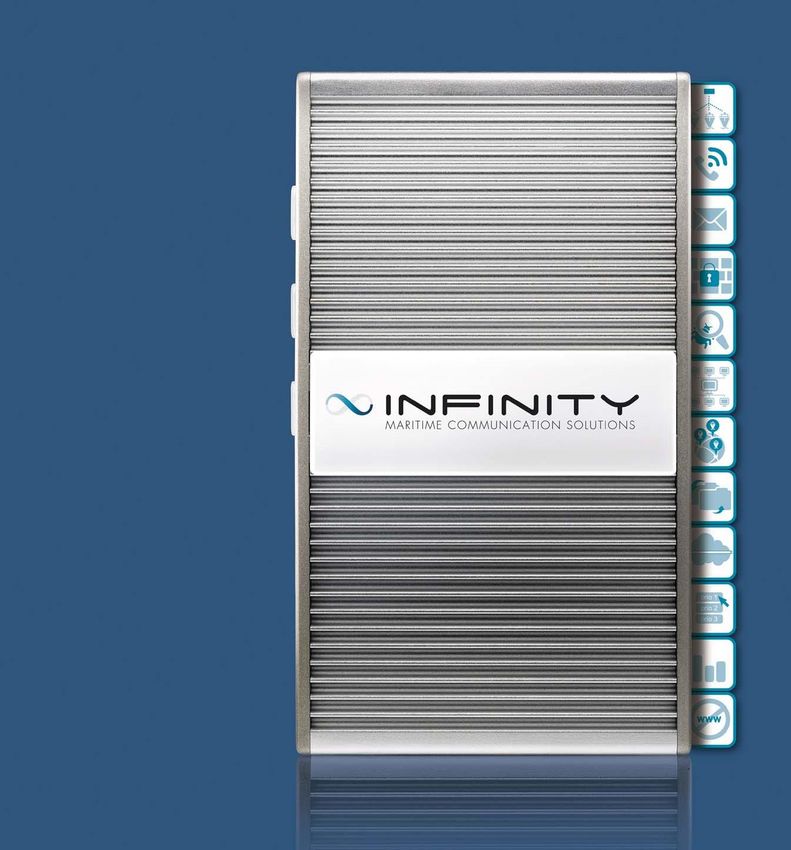

Infinity is comprised of

                     An industrial pc or   An instance in the
                     server onboard the    cloud
                     ship

                   Infinity Software on
                                           A web interface
                   the ship and
                   onshore

How it works

INFINITY – main features

Crew calling PINs or     Crew internet access    Web surfing with
  registered users           with Pins or         compression
                           registered users

Fully managed firewall    E-mail service with         File
 and router including        compression         Synchronization
  “fleet wide” rules

  Failover and load         Ship to Shipping        Web Services
      balancing           company free VoIP        (SOAP & XML)

    File to email/         Quality of Service      Address book
     email to file                                  replication

                             High availability   Advanced Recovery
    Virtualization
                                                      Option

Infinity - Supplementary features

 Light versus Normal      Web Accelerator        Access Control Lists
 Surfing on Demand

   File Type filtering   Advanced Content        Vessel live position,
 for e-mail and web,     Filtering including     speed and heading
  including Smart e-          Antivirus            calculation and
      mail filtering                              status reporting

     Virtual LANs         Functionality with      Traffic measuring
                          automatic queries         and reporting

 VPN Connectivity        Remote monitoring       Security and Audit
                         of critical functions          trail

   Kill All – Kill any    Multicast Support              IPv6

  Areas of Interest

Infinity functionality

                                          Features                                          Infinity   Infinity Plus   Infinity Cube

Crew Calling Service through the use of PINs or with registered users, or both                                            
Crew Internet service with the use of PINs or with registered users, or both                                              
Web surfing with compression, advertisement removal and caching proxy onboard                                             
Fully managed Firewall service including “Fleet‐wide Rules” capability                                                    
IPv6 & Multicast Support                                                                                                  
E‐mail service with compression (body & attachments) for Business or Crew use                                             
Failover and Load Balancing                                                                                               
VoIP: Ship‐to‐shipping company VoIP telephony                                                                             
Web Services (SOAP and XML)                                                                                               
Light or Normal Surfing on demand                                                                                         
Web Accelerator                                                                                                           
Access Control Lists, Restrictions on e-mail size, website black/white listing, maximum
duration restriction, usage allowed within specific time slots and much more
                                                                                                                          
File Type filtering for e‐mail and web, including Smart e‐mail filtering                                                  
Advanced Content Filtering including Antivirus                                                                            
Database driven functionality with automatic queries that can be executed at specific
intervals such as daily or end of month (or in any other interval) and the results can be                                 
sent by e-mail to specific recipients in csv format
Virtual LANs                                                                                                              

Infinity functionality
                                           Features                                               Infinity   Infinity Plus   Infinity Cube

 Vessel live position, speed and heading calculation as well as connectivity status reporting                                   

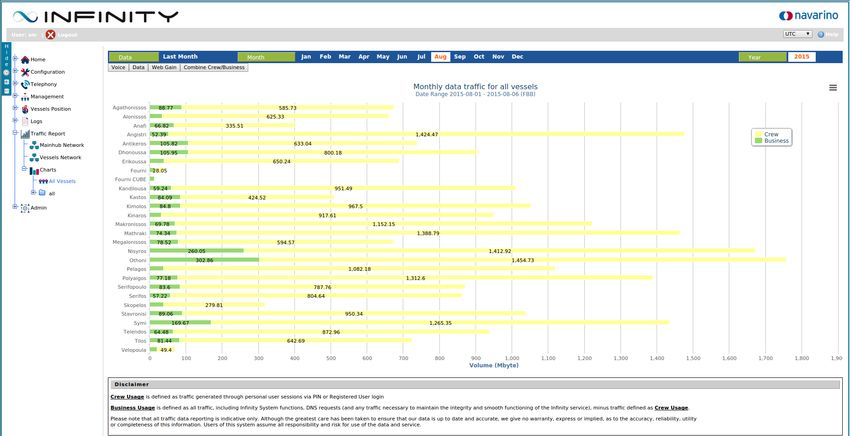

 Traffic measuring and reporting                                                                                                
 VPN Connectivity Upon request VPN and Multi-VPN connectivity between ship and office
can be deployed                                                                                                                 
 Remote monitoring of critical functions such as temperature, hard disk status, processor
status, etc.                                                                                                                    
 Security and Audit trail there exist different levels of authentication allowing different
operations and all changes applied to the system are logged for security purposes                                               
 “Kill All - Kill Any ” The IT administrator or captain onboard can monitor which user is
online at any time and decide to terminate any particular or all users’ sessions                                                
 File Synchronization with compression capabilities. By saving files on both the vessel’s and
the shore-based servers, it synchronizes folders in real time by transferring only file changes                                 
 Quotas for Users and Services                                                                                                  
 Virtualization capabilities                                                                                                     
 Web Manageable Virtualization platform through a user friendly interface                                                        
 VDI Support                                                                                                                     
 Remote Set-Up and Installation on New VM's                                                                                      
 Continuous Data Replication                                                                                                      
 Clustering Management and Administration Tools                                                                                   
 Cluster-Aware File System and Volume Management                                                                                  
 Shared Storage                                                                                                                   
 Full redundancy with active-active clustering                                                                                    

Infinity functionality

                                         Features             Infinity   Infinity Plus   Infinity Cube

File to email/email to file                                                                 

Quality of Service                                                                          

Address Book Replication                                                                    

Areas of Interest                                                                           

Centralized Management & Administration                                                     
Multi Voice                                                                                 
Database Functionality with automatic queries                                               

Advanced Recovery Option *                                                   - /            

High Availability                                                                             

* Available in Infinity Plus Rack Mounted and Infinity Cube

Crew Calling Service (through the use of PINs)

   Each PIN has 400 units by default (talking time is 25 minutes v-t-f and 20 min v-t-c)
   but it can be customized according to customer requirements

   Significantly lower cost per minute for crewmembers as the crewmembers get
   the low voice rate of the FB plan

   Official FB pricing terms are applicable
            no charge for connection costs / ringing time / unsuccessful calls
            15 sec billing steps / 30 sec minimum
    PINs can be ordered at ccc@navarino.gr or online. Crew members buy PINs from
   the Shipping Company and not from Navarino

        Crew voice calls are placed through the FB voice channel

        Crew Calling PINs administration is exactly the same as the one currently used

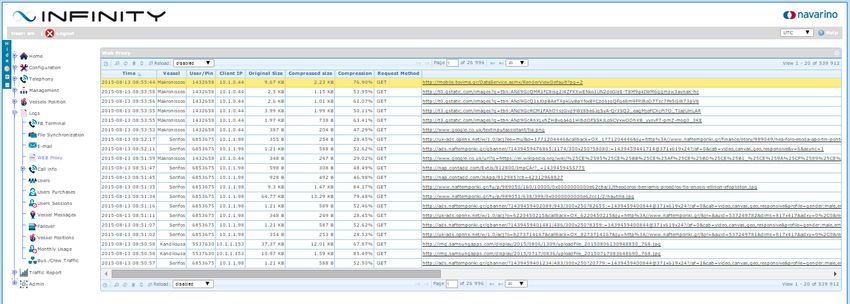

Web Surfing with compression, advertisement removal and caching proxy

    Compress pages objects before send to vessel and decompress onboard
    Compression ratio varies from 0% - 95%
    Average gain above 50%
    Caching onboard the static pages
   All advertisements (video/flash) in http websites are filtered out in
   order to save data consumption
   This service is managed by the shipping company which can set quotas
   per user
    URL filtering and Time‐based restrictions can be set on a per vessel basis

   Web Accelerator
   Specialized accelerator software, enabling much higher download
   speeds via the satellite circuit.

Crew Internet Service

Crew onboard use the PIN or the registered user account details to access the internet

  PINs denominations: 25, 50 & 100MB
  Crew can access internet depending on the firewall rules applied in Stratos and INFINITY firewall
  PINs can be ordered at ccc@navarino.gr or online
  Crewmembers buy PINs from the Shipping Company and not from Navarino
  Registered (permanent) users accounts can be reloaded online with units that can be consumed in
  both voice calls and internet access (the same username/password for both voice and data)
  Registered users can make reverse transaction and one shot transaction

Crew Internet Service

          A pop up window is always displaying the current usage.

  Option to
  limit the
  duration
  of crew
  internet
  access per
  day or per
  week or
  per month

    Light Surfing on demand

     The user has the option ad hoc to switch between Normal sites and Light surfing
     sites by clicking over the available button.

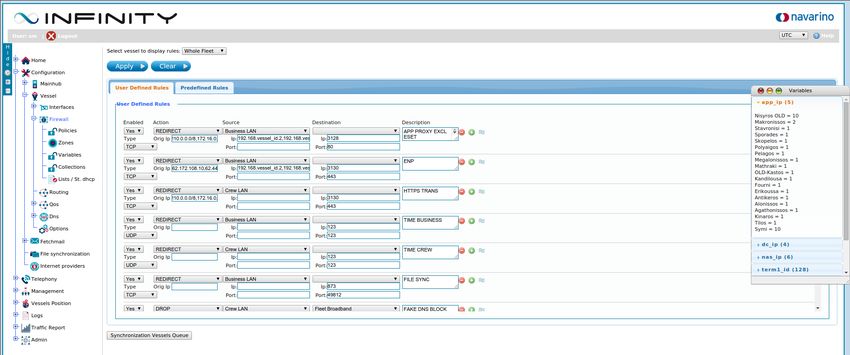

Fully managed Firewall and Router service

  This service is fully managed and controlled by the customer through
 Infinity’s web interface
  All parameters are set onshore and are stored first in the shore based
 infrastructure and are then synchronized with vessels at the push of a button
  Port forwarding to access on board computers
 “Fleet-wide” firewall rules: as an option, firewall rules may apply for one
 vessel or for a group of vessels or for the whole fleet

IPv6 and Multicast support

IPv6 fully supported by Infinity to all LAN networks

Multicast supported as long as the satellite allows it

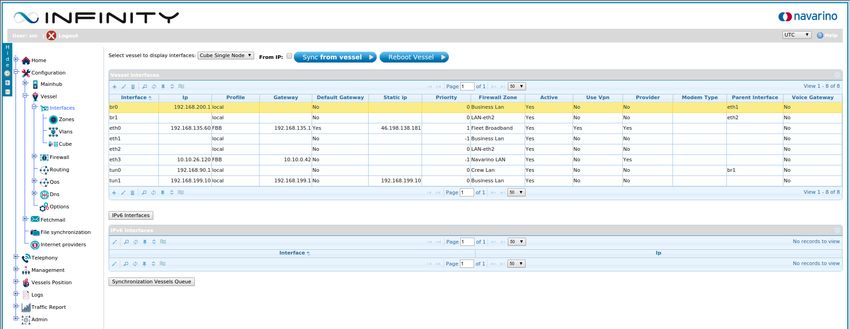

Centralized management & administration

Centralized control and administration of all vessels’ systems through a
user-friendly interface without the need to connect remotely with each
vessel’s server.

 Centralized management applies to Network Interfaces, Firewall rules, File transfer
 queues, current vessel's position, Filters for Web surfing, E-mail restrictions, quotas
 etc.

E-mail

The fastest e-mail system in the sea (message are exchange in less than 10 sec)
E-Mail server on board (smtp/pop3) cooperates with E-Mail relay in the HUB
exchanging e-mails with company's server
Compresses/decompresses body & attachments before sending/receiving
Fetches and forwards e-mail on board from any pop3/imap account
Successful delivery notification
Crew e-mail options - Crew users can access any webmail or any other client-
server e-mail service (provided the necessary firewall rules are applied)
consuming the allowance of data pins.
No user action is required, i.e. crew e-mail belongs to HQ mail system

File Synchronization

     Exchange folders between ship & shore
     Compress files before submitting
     Send only the differences in existing files
     Schedule the transfer (on file change / in predefined time periods)

Failover & Load Balancing / Multi Voice / Web Services

Failover and Load balancing
  Compatible with all networks, all systems
  Load balancing scenario between two FB units
  Wi-Fi connectivity

Multi Voice
  Compatible with FB Sailor terminals having multi voice capability

SOAP&XML

 Utilizing web services in the form of SOAP specification this service allows
 everyone to manage INFINITY using their current tools and without major
 changes in their established workflows
  By doing this, clients can enjoy higher level of automation and deeper
 integration into their corporation infrastructures
  Supports secure connections

VoIP ship‐to‐Shipping Company

  All vessels equipped with an Infinity unit can call the office (and vice‐versa)
  by consuming data out of the vessel’s monthly allowance
  Each vessel becomes an extension of the company’s PBX
   Free of charge office to ship telephony due to “reserved” bandwidth resulting from web
  traffic optimization
  Up to 9 concurrent calls
  The quality of the voice is the same as quality when using the regular Inmarsat voice
  channel

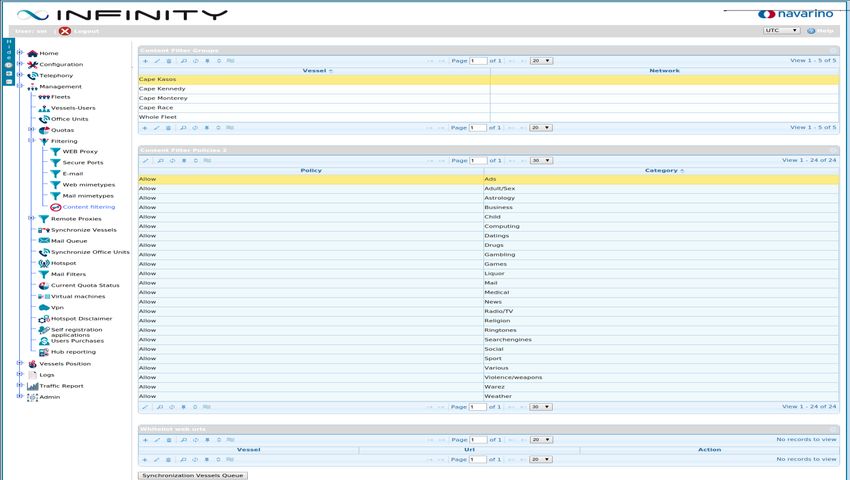

Filtering of e-mails and Access Control Lists

    Definition of which sites to allow/deny Internet access
    Definition of e-mails/domains to allow/deny sent or received e-mails
    Max. size of e-mails sent/received
    All the filters are applied to the source – saving unnecessary traffic
    Usage restriction per time period and/or policy
     File type filtering for e-mail and web, including Smart e-mail filtering: that
    allows to define any complicated business rule, by combining e-mail
    attributes like priority, size, recipients and system properties like current
    provider, time periods etc
    Web Proxy: Filtering can be parameterized based on the Internet provider
    Web Proxy: Filtering on a user basis

Advanced Content Filtering

 Shipping companies can choose which categories of websites should be
 blocked onboard
 INFINITY ACF uses various methods to block content including phrase
 matching and URL filtering

VPN / Virtual LANs

 VPN connectivity
 VPN connection between the onboard INFINITY device and the HUB
 All Infinity units are VPN ready
  Multi VPN: When the carrier with highest priority fails while VPN is open, the
 VPN will be transferred to the next available carrier automatically and up to
 the number of defined providers
 Use of VPN for access through the HQ only
  Virtual LANs
 VLAN allows the network manager to split and isolate a vessel’s single
 physical network into an unlimited number of network segments
 Different firewall rules can apply to each LAN segment
   Database functionality with automatic queries
 All logs of Infinity can be queried using logical operations. All retrieved
 information can then be downloaded as excel files. All logical queries can be
 saved, configured to be executed at pre-defined time intervals and the
 results to be sent automatically by e-mail to predefined e-mail recipients.

Vessel Live Positioning Report

    Reading FB/XL GPS every 6 hours. Customizable upon request.
    Speed Calculation: It calculates average vessel speed
    The above procedure can be triggered from office on demand
    Connectivity Status Alert: Identify if connectivity is broken/e-mail notification
    Alerting system for entering/leaving areas of interest

Traffic Measuring and Reporting

  Captures real time in/out traffic on board/hub
  Distinguishes IP Address/ Port number / Protocol (tcp/udp/icmp)
  Saves it in the database
  Chart presentation (Monthly for all/Daily for each vessel)
  Monthly traffic report per user based on consumed MB and voice minutes

                                                                           Monthly traffic
                                                                           per vessel

Traffic Measuring and Reporting
  Web log can be seen in the main hub, all web access history of users is available
  Compression ratio and gain report
  Separated crew and business traffic report

Crew Business Traffic Report – Monthly Traffic for all vessels

     One of the most useful tools Infinity provides, is the ability to separate business
    from crew traffic with the option to export it as an image for commercial purposes

Compression Gain Traffic Report

   With an exceptional compression technique, we manage to provide a web gain up to 50%.
   The red area shows the requested traffic from the fleet, while the green area shows the
   actual amount of data used.

Other supplementary features

   Kill All – Kill any
   The IT administrator or captain onboard can monitor which user is
   online at any time and decide to terminate any particular or all users’
   sessions

   Database functionality with automatic queries

     All logs of Infinity can be queried using logical operations
     All retrieved information can then be downloaded as excel files
     All logical queries can be saved, configured to be executed at pre-
     defined time intervals and the results to be sent automatically by
     e-mail to predefined e-mail recipients

Other supplementary features

   Remote monitoring of critical functions
   Infinity continuously monitors all critical parameters
   associated with the hardware and software used onboard,
   such as temperature, hard disk status, processor status, etc.

   Security and Audit trail
   With Infinity, there exist different levels of authentication
   allowing different operations and all changes applied to the
   system are logged for security purposes.

Advanced database user interaction

It is a database-driven system that provides data consistency and accuracy

    INFINITY stores into the database web surfing (URLs list), FB terminal call logs
   (Sailor series), sent/received messages a.o.
    Queries and Reports are executable
    Data can be exported in csv files from the web interface

INFINITY hardware

Infinity family products

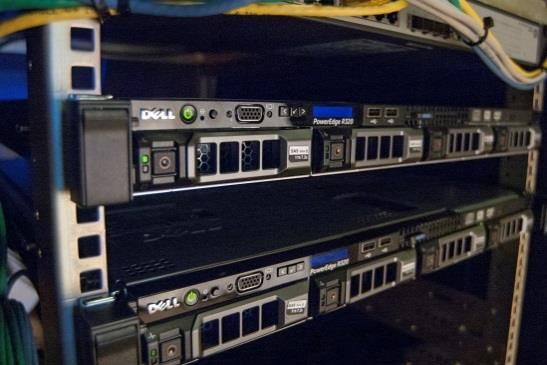

                                   Fanless - RM Advantech
     Standard - Standard RM                                      Dell R230 - R430 - T430 - R420XR
                              Dell R230 - R430 - T430 - R420XR

Infinity hardware

It is a very reliable system through RAID 1; in case of hard disk failure, the system continues to
operate (very important for system installed on board)
  Sealed construction with fanless operation
  Self-monitored system – protection from high temperatures and other system faults
  Anti-vibration and anti-shocking
  Remote configuration
  Easy to install - plug and play

Infinity hardware

Infinity PLUS
     Infinity Plus uses an industrial-grade server with:
        -Improved processing power
        -Larger memory
        -Higher storage capacity
    Virtualization onboard: any kind of virtual machine can be installed to save resources
    Onboard i.e. to accommodate virtual Windows systems
    k

Infinity Hardware

Infinity CUBE
• High Availability environment with Active-Active Clustering
• Advanced Virtualization environment
• Consolidation of the onboard IT infrastructure
• 24/7 Remote onboard IT support
• Content delivery onboard

Advantages

 Database driven system
 Centralized, remote management capabilities. Any changes made onshore are applied immediately to the
 ship, and vessel settings are updated automatically
 Failover and load balancing capability, compatible with all networks and providers
 Shore based infrastructure based on Cloud technology for reliability, efficiency and scalability. The most
 sophisticated and flexible firewall in the industry. Changes can be made to a single vessel or fleet wide, at
 the click of one button
 Infinity offers very high compression gains but delivers 100% quality web browsing
 It uses RAID 1 or RAID 10, so in case of hard disk failure, the system continues to work seamlessly
 Infinity offers a high quality VoIP service enabling up to 9 concurrent calls
 Easy extraction of customized logs, reports and queries
  Infinity combines Data and Voice services
 Virtualization onboard: With Infinity Plus and Cube, any kind of virtual machine can be installed to save
 resources onboard. INFINITY Plus and Cube hardware provides more memory, storage and computing
 power to accommodate the virtual Windows systems
 Full integration of office ERP systems with those onboard Continuous, free of charge Infinity updates with
 new functionality automatically pushed to units on board vessels
 High Availability: with Infinity Cube an Active/Active clustering environment provides a highly available
 and scalable operating environment to cover both server and client needs

Infinity Development

 Infinity is being continuously developed and all users
 benefit from every update and from ideas that are
 suggested by other users in the shipping industry

 Infinity new versions (with new functionality) are
 available to all users in pre-defined time intervals

  INFINITY development roadmap is written by you

       You ask for more, you get more

Thank You

Infinity has been one of the reasons that made
Navarino the #1 FleetBroadband provider worldwide
