Confinement and Shielding:
    Intrabay Doors, Floor Valves and Component
                   Transfer Hatch
                       Pit Lids
                  Penetration Plugs
              Fire Suppression system

                                       COMMERCIAL
|
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
Critical Success Factors

                       Affordable – Economical design
        Value for money by delivering within budget and schedule
     Right, first time delivery during design, build, installation, testing,
                          commissioning, and handover
                 Meets or exceeds all minimum requirements
                        Zero harm safety performance

2|
                                                             COMMERCIAL
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
INTRABAY DOORS, FLOOR VALVES
     AND COMPONENT TRANSFER
     HATCH
3|
                            COMMERCIAL
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
Project Scope

                     Design
             Manufacture and testing
                 Delivery to ESS
                   Installation
                 Commissioning
             System acceptance trials
                     Training

                                        COMMERCIAL
|
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
Constraints/Notes/Exclusions
 •   Constraints
      – Keep-in and Keep-out zone define the boundaries of the design
      – Embedment's are pre-cast to support equipment
           Sized based on concept
 •   Notes
      – Mounting of radiological sensors and setting to work
           Sensors etc are free issued
      – Requirements are not prescriptive.
           Open to discuss other ways to address the needs
      – As built survey to be provided during contract
 •   Exclusions
      – No requirement for:
           Radiological safety system is out of scope
                Limited to mounting of sensors etc. free issued to the contractor
           SIL
           Thermal assessment

5|
                                                                                    COMMERCIAL
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
Lot 3. Floor Valves
                     • Purpose
                        – Protection of Workers outside
                          ActCell in the High BAy
                        – Enable docking of Cask & transfer of
                          components into ActCell
                     • Two identical FVs required
                       (Approx 170t)
                        – Shielding Door with portal frame
                          shielding
                     • Considerations
                        – Recovery system
                        – Confinement

6|
                                                 COMMERCIAL
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
Lot 3: Upper & Lower Intrabay
    Door                 Purpose
                     Protection of Workers in the
                     Maintenance Cell
                     Enable crane movements & waste
                     package transfer
                       Shield doors (~50t ea)
                     Pivot “flap” mechanism (upper door
                     rotated 90º)
                     Sliding door mechanism
                     Locking pin for Upper Door
                           Considerations
                     Recovery
                     Confinement

                                            COMMERCIAL
|
Confinement and Shielding: Intrabay Doors, Floor Valves and Component Transfer Hatch Pit Lids Penetration Plugs Fire Suppression system
Lot 2: Component transfer Hatch
                                       Purpose
                       Protection of Workers in outside the
                       ActC
                       CTH performs nuclear safety function
                       Enable transfer of small items into Cell
                                    Major Items
                       Glovebox
                            Bagging system
                       Transfer system
                            Tray from cold to hot
                       Shield doors (~4T)
                             Hot & Cold side doors Interlocked

                                 Considerations
                       Interlocking Hot and cold doors
                       Confinement
                       recovery

8|
                                                    COMMERCIAL
Status & Key dates
      Tender Action initiated
         PQQ Published
                                Key Dates

                                PQQ: Q2 2018

                                Contract Award: Q1 2019

                                Site Access: Q2/Q3 2021

                                Completion: Q3/Q4 2021

9|
                                                          COMMERCIAL
PIT LIDS & PENETRATION PLUGS

10 |
                               COMMERCIAL
Project Scope

         Production Design, Manufacture and testing
                      Delivery to ESS
                        Installation
                            SAT

                                                COMMERCIAL
|
Pit Lids   Concrete Filled
                                       • Purpose
                                          – Protection of Workers in
                                            outside the ActC
                                       • Major Items
                                          – 10 off Pit Lids ( 26 sub-
                  Steel construction
                                            sections)
                                          – Concrete filled Pit Lids
                                          – Steel Pit Lids
                                       • Considerations
                                          – Pit Cell Location features
                                          – O-ring Sealing face on external
                                            Pit Lids (WTH & PIE Cell).
                                          – Manufacturing tolerance

12 |
                                                              COMMERCIAL
13 |
       COMMERCIAL
Penetration Plugs
                           • Purpose
                              •   Protection of Workers in
                                  outside the ActC
                           • Major Items
                              – ~42 off SS core (OD
                                ~250mm)
                               – SS Cap
                               – O-ring Sealing face

14 |
                                                 COMMERCIAL
Aperture Plug
                                 Purpose
                       Protection of Workers in outside the
                          ActC
                               Major Items
                       1 off Plug
                             Considerations
                       Installed in the Penetration
                       Room (outside of the active
                       cell)
                       Equivalent to 1.3m HDC To fill
                       aperture
                       Removable from cold side

15 |
                                              COMMERCIAL
Status & Key dates
        Tender Action – Not Started           Key Dates

           Pit Lid Market Enquiry Published
                                              PQQ: Q3/Q4 2018
           Plugs currently work in progress
                                              Contract Award: Q1/Q2 2019

                                              Site Access: Jan 2020

                                              Com pletion: Feb 2020

16 |
                                                                           COMMERCIAL
FIRE SUPPRESSION SYSTEM

17 |
                                 COMMERCIAL
Project Scope

                        Design
       Production Design, Manufacture and testing
                    Delivery to ESS
                      Installation
                    Commissioning

                                           COMMERCIAL
|
Concept Overview
                                        Purpose
                     ActC Asset Protection
                                    Major Items
                            Piping and water mist system
                     Conventional piping water mist system to extinguish a
                         fire

                                 Fire Detection in-cell
                     VESDA system draws air from cells to detect smoke
                     Rate-of-heat rise sensor detects heat rise within the cell

                                        Pump Skid
                     Located outside of the Active Cell, in the surrounding
                           technical galleries.
                     Includes, bunded skid consisting of pumps, a water tank
                           and leak detectors

                                   Fire Control Panel
                     Integrate with ESS fire safety system and utilise the
                           infrastructure supplied by UKAEA to distribute
                           power and signalling

19 |
                                                              COMMERCIAL
Status & Key dates
        Tender Action – Not Started   Key Dates
           Market Enquiry Published
                                      Q2/Q3 2019

                                      Contract Award: Q4 2019

                                      Site Access: Q2/Q3 2021

                                      Completion: Q3/Q4 2021

20 |
                                                                COMMERCIAL
ESS – Active Cell Viewing System

 The active cells facility is a windowless hot cell operated from the remote control room. The operator views of the
 equipment and components in the cells are only through the Viewing System cameras. Hence the viewing system
 must be highly reliable and provide a combination of wide area views (safety) and operational views (inspection,
 process monitoring, etc.)

                                                                                      W idely varying specs based on type of
                                                                                      view and position:

                                                                                      •   A combination of high and low radiation
                                                                                          tolerant cameras, B&W and Colour
                                                                                      •   Typical specification radiation tolerant
                                                                                          from 10kGy to 1MGy TID(*) (1          10 Gy/hr)
          Tilt range
                           Camera Pan & Tilt Units                                    •   Picture Resolution: from 576p to 1080p
         90º
                           •   Capable of being remotely handled by the ACF           •   Zoom Range: 70º        20º (diagonal FoV)
         -70º
                               Robotic Handling system                                •   Auto/Manual focus and iris capability
                  -90º     •   Capable of being mounted on wall brackets in           (*) Total Integration Dose over ESS lifecycle
                90º
               Pan range
                               the cells or on moveable stands
                           •   Pan range    90˚
                                                                                                   COMMERCIAL
   |                       •   Tilt Range -70˚    90˚
ESS Active Cells Fabricated Assemblies
                            15/06/2018

22 | RACE-ESS-TEM-0038
                                             COMMERCIAL
Fabricated Assemblies Procurement

      Procurement will consist of 3 main parts:

      • Waste Storage Baskets.
      • Target Station Component Support Structures.
      • Large lifting adaptors.

      The exact nature of the procurement has not been finalised, however at present it is expected that the scope
      will be for the design and manufacture of all the items based on provided requirements specification.

      A Negotiated procedure is expected, that will allow for the scope and risk profile of the procurement to be
      adjusted. If the scope can defined well enough that an Open procedure can be used, this MAY be done.

23 | RACE
                                                                                             COMMERCIAL
Waste Storage Boxes

     • A parametric design will be needed to allow a range of Waste Storage
       Boxes (WSBs) to be manufacture by ESS as they are needed. The boxes
       will be placed within an existing shielded container approximately
       3mx2mx1m and will allow for:
         • A range of packing patterns from a single box up to six boxes.
         • Different shielding thicknesses ranging from 50mm up to 200mm.
     • A single WSB will be manufactured for use in the Acceptance Review
       of the Active Cells.
     • Expected requirements as follow:
         • When full, lifts from the lid using set twist lock pattern,
         • Removable sides.
         • Process to tilt onto one side when empty and back to vertical
             when full.
         • Maximum loaded weight is 25,000kg.
     • Stainless Steel Structure
     • No safety requirements in excess of those relating to standard lifting
       accessories.

24 | RACE
                                                                                COMMERCIAL
Target Station Component Supports

     When Target Station components are introduced into the cell, a
     set of support structures are required to fix their location and
     provide stability. These include:
     • A receiving fixture to locate and support components as they
        are lowered into the cell.
     • Storage racks to support a number of Target Station
        components whilst they are waiting to be processed.
     General Requirements:
     • Interface with existing floor bolting pattern.
     • Stainless Steel construction (or very prescriptive painting
        rules).
     • Will have to support a maximum horizontal force TBD a fixed
        height from the floor

25 | RACE
                                                                        COMMERCIAL
Lifting Adaptors

     A lifting adaptor to allow the lifting of a >8000kg section of target station component using the in cell Grapple.

26 | RACE
                                                                                               COMMERCIAL
Electrical Work Package Procurement Overview
The Electrical Power and Signalling system is responsible for providing electrical services into
the Active Cells from supplier control cubicles to supplier equipment. The Active Cells are a
radiological area that will require a degree of radiation tolerance within the designed electrical
system. The electrical system is a critical part of the operation of the Facility.
                                                           Maintenance
                                                           Cell                Process
                                                                                 Cell

           Active Cell
           Facility
           Overview

                                                                                  COMMERCIAL
  27   |
Purchasing Scope
          Free Issue Components for Manufacture
          •   Suitable Remote Handling & Industrial Connectors à Band A/B

          •   Suitable COTS Industrial Cabling à Band A

          •   Specialist Radiation tolerant cabling >1M/Gy integrated gamma dose à Band A

          •   Specialist Radiological lighting for Active Cells à Band A/B

                                                  Purchasing
                                                   Key Dates
                        Purchasing                                           Purchasing
                        Value Band             Contract Award:               Value Band

                             A                 Q4 2018/Q1 2019
                                                                                B
                            £100K to
Manufacture Scope

  Manufacture, Assembly and Delivery of the following:                   Purchasing         Purchasing
                                                                         Value Band         Value Band
  • Low Voltage distribution Cabinets x 5 à Band A
                                                                            A                    B
                                                                          £100K to
Installation Scope

      4 – 5 month Installation Scope à Band B
      Install the following:
             •      1Km of designed cable infrastructure                                                          Purchasing
            •     Multiple cubicles and enclosures around the Active Cell Facility                                Value Band
            •
            •
                  Technical Gallery Junction Boxes x 39
                  Active Cell Junction Boxes x 39
                                                                                                                       B
            •     Active Cells Control room cable infrastructure                                                 >£100K to
R
3
1
A

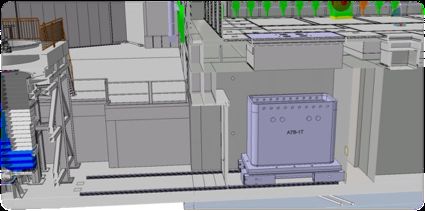

C
E   Waste Transfer Area

     Provisional Timescales               Scope
                                      Transfer Trolley
           Tender start =     Approx. Size = 4.5m x 2m x 0.5m
             Q1 2019
                                  Approx. Weight = 12.5t
                                        SW L = 100t
          Contract Award =
              Q3 2019               Confinement Shroud
                                to control particulate spread
            Site Access =               (Not shown)
            Q3/Q4 2021
                               Rails and M ounting Hardware
           Completion =
           Q3/Q4 2021          Electrical and Control Systems
