DIAPHRAGM COMPRESSORS
MK 1000 / 3000 Range
DIAPHRAGM COMPRESSOR SYSTEMS
FOR GAS APPLICATIONS

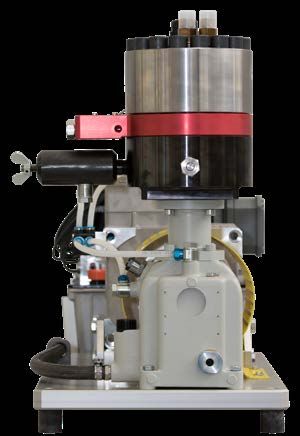

MK-1000-V09-GM / MK-3000-V09-GM MK-1000-V09-SD / MK-3000-V09-SD
•• •••
1˙000 bar / 3˙000 bar, for N², Ar, He applications 1˙000 bar / 3˙000 bar, for N², Ar, He applications.
Start / Stop function For precise pressure control
• Asynchron motor drive (Standard) Servo motor drive (Standard)
NOVA SWISS MK-1000-V09-GM-H² / MK-3000-V09-GM-H² MK-1000-V09-SD-H² / MK-3000-V09-SD-H²
FUTURE TECHNOLOGY ON
A WORLD TOUR •• 1˙000 bar / 3˙000 bar, for hydrogen applications.
Start / Stop function
•• 1˙000 bar / 3˙000 bar, for hydrogen applications.
For precise pressure control
The Energy Observer has been travelling around
the world since summer 2018. The catamaran is
• Asynchron motor drive in
ATEX: II 2G IIC T4 Gb
• Servo motor drive and lubrication unit in
ATEX: II 2G IIC T4 Gb
powered by solar, wind and hydrogen energy and
is intended to provide information on renewable
Customized compressor systems on request.
energies as well as sustainable technology and its
potential during its six-year journey. Nova Swiss
supplied the H² compressor system, which was
installed in the expedition boat.
Suction phase
FUNCTIONAL PRINCIPLE ADVANTAGES
• Gas compression from 20 bar (300 psi)*
minimum inlet pressure up to 1˙000 or 3˙000 bar
•• Maximal tightness
Low operational costs
•
Bottom dead center,
(14˙500 or 43˙500 psi) maximum outlet pressure Very clean: no contamination and no dirt
•
inlet valve closed
Standard version for compressing Nitrogen, or particles through oil free compression
Argon, Helium or Clean air • Diaphragm plates lifetime up to 2˙500 hours
• Special explosion proofed version for Hydrogen (MK 1000)
compression (using special lubrication oil) • Several options available
In a double concave chamber the gas is compressed Due to the high leakage-free design of the com-
by an oscillating membrane insert consisting of pressor head, dangerous gases for humans and Heart of Diaphragm Compressor
three membranes, which is hydromechanically set the environment can safely be compressed to high
in motion from one side. The diaphragm »seals and pressure.
separates« the gas chamber hermetically against
the drive unit. The three-part diaphragm insert is Nova Swiss diaphragm compressors are therefore
clamped between two diaphragm plates on the outer frequently used for applications with explosive
circumference and set in motion by the hydraulic gases.
pressure.
Compression phase,
outlet valve opens
Top dead center
* lower inlet pressures upon request
Technical Data Performance Diagram
MK 1000 / 3000 NITROGEN
1˙000 bar, max. 5˙000 NL/h 3˙000 bar, max. 1˙600 NL/h
6000 3000
5400 2700
4800 6 2400 3
4200 2100
3600 1800
Capacity [NL/h]
Capacity [NL/h]
Capacity [kg/h]
Capacity [kg/h]
4 2
3000 1500
2400 1200
1800 900
2 1
1200 600
480
600 300
0 0
Discharge pressure [bar] Discharge pressure [bar]
MK 1000 / 3000 HYDROGEN
1˙000 bar, max. 4˙800 NL/h 3˙000 bar, max. 900 NL/h
6000 2000
5400 1800
0.15
4800 1600
0.4
4200 1400
3600 1200
Capacity [NL/h]
Capacity [NL/h]
Capacity [kg/h]
Capacity [kg/h]
0.1
350
260 3000 1000
2400 800
0.2
1800 600
0.05
TECHNICAL DATA
Dimensions 480 × 350 × 260 mm Gas connection HP ¼" AVA (Anti vibration 1200 400
(heigth × lenght × depth) connetion assembly)
600 200
Weight 38 kg (without options) Drive motor Gear motor (fixed speed)
(option) or Servo motor (0 – 350 RPM) 0 0
Working medium Nitrogen, Argon, Air, Helium Working medium for additionally Hydrogen, (spec. Discharge pressure [bar] Discharge pressure [bar]
standard H² types oil, ATEX: II 2G IIC T4 Gb)
Suction pressure
Suction pressure
Rotation Speed
min. 20 bar, max. 200 bar Discharge pressure
min. 300 RPM, max. 350 RPM Power
max. 1˙000 / 3˙000 bar
2,2 kW ••P04 = 200 bar
P03 = 100 bar
Mounting orientation vertical Diaphragm rupture
indicator
mechanical indicator (pin)
••
P02 = 50 bar
P01 = 20 bar
Operating Temperature +10 °C … +40 °C Storage Temperature +30 °C … +60 °C
Parts and options Applications
STANDARD SYSTEMS
9
2 1
•• Gas metering units
Gas filling benches
•• Ultrapure gas systems
Pressure test units
••
3
Pressure supply units
Laboratory and Research
•
4a
4
Gas leakage detection
5
10
11 8
15 6
12
13
7
14
PARTS
1 Gas delivery valve 8 Oil safety valve
2 Gas inlet valve 9 Membrane accumulator

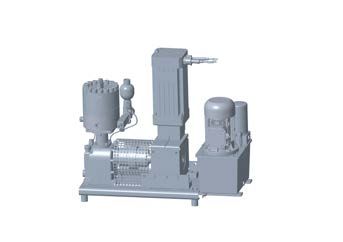

3 Head 10 Oil pressure gauge Gas metering unit High pressure supply system
4 Diaphragm rupture indicator 11 Oil suction valve Nitrogen, Argon, CO², 70 bar – 1˙500 bar Argon, 6˙000 bar
4a Pin 12 Type plate
5 Head base 13 Oil dip stick/ oil filler CUSTOMIZED SYSTEMS
6 Air filter 14 Oil drain screw
7 Crank drive 15 Oil regulation valve For our demanding customers we also offer
complex customer-specific compressor system
••
solutions.
available option OPTIONS FOR UNITS
not available
Special Oil for Hydrogen
Head turn 45°
552.0166
552.0169
552.016
3.1 Cert
BARE COMPRESSOR COMPRESSOR UNITS
For inert gases: N², CO², Ar etc.
555.0218 555.0228-001 1˙000 bar, with gear drive
555.0218 555.0228-003 1˙000 bar, with servo drive
555.0221 555.0229-001 3˙000 bar, with gear drive
For Hydrogen
555.0218-1 555.0230-001 1˙000 bar, with gear drive
555.0221-1 555.0231-001 3˙000 bar, with gear drive
555.0218-1 555.0230-003 1˙000 bar, with servo drive Customized test benches
555.0221-1 555.0231-003 3˙000 bar, with servo drive 1˙000 bar – 10˙000 bar
THE FIRST ELEMENT
Hydrogen was the first element that ever formed. It was the
substance that kindled the fire in the stars. On the Earth,
the oceans are the largest water resource with a volume of
around 1.338.000.000 km³. The sea was also the place where
life first began. Water is life and life is progress.
THE EVOLUTION
OF TECHNOLOGY
High-pressure technology in Like evolution, research and development is a continuous
three variations
process of change. Adapting to current situations, pursuing
new approaches and looking at other sectors — this is how a
company can make itself future-proof. Products and services
from Nova Swiss are highly developed and extremely reliable.
STANDARD DEVELOPMENT AND Our most important strength is our adaptability. Technologies
come and go. However, Nova Swiss has always succeeded
Standard valves, fittings, adapters and pipes for the
CONSULTING in leaving the obsolete behind and integrating new products
pressure range up to 60 kpsi (4˙000 bar). We create the basis for sophisticated, new and into the company while maintaining our customary high qua-
optimized products in the areas of High-Pressure lity standards.
BUSINESS Technology and Engine Components via the conti-
The future
nual expansion of our expertise and results-orien-
High pressure operating systems like Compressors, ted research.
belongs to you
Gas dosing systems, Hand pumps and Pressure
Our material laboratory is equipped with state-of-
supply units. Supporting pressures up to 145˙000 psi
(10˙000 bar) and gases like hydrogen, nitrogen, the-art technology, and it is here that we analyze a
carbon dioxide, helium or argon. wide range of substances in our search for suitable
materials and manufacturing processes. Our ser- Our pioneering spirit makes Nova Swiss your ideal develop-
vice spectrum also includes complex calculations ment partner. For what is and what will be. This is how a
EXCLUSIVE of our customers’ requirements. Furthermore, we workshop business that produced cylinders and crankshafts
can also offer interdisciplinary partnerships in the was able to transform itself into a diversified company with a
Nova Swiss offers customized high pressure tech- area of surface technology in the form of complex focus on cutting-edge technology. Join us on our journey into
nology applications. Their distinguishing features analysis and test procedures for quality testing of the future.
are; mature product development and design, high coatings.
precision, made-to-fit connection geometries and
simple to use. The high pressure components have We constantly ensure that all Nova Swiss products WHAT MAKES YOU SUPER
proven their service worthiness even under hars- meet the latest requirements of the market as well IS
hest conditions and high physical strain. as all statutory regulations.
Our products and services
•• New product development
Optimizations
•• Calculations and simulations
Analyses and tests of materials and coatings
