Enterprise Wi-Fi Stress Test Cloud-managed 802.11ax (Wi-Fi 6) Access Points MARCH 2021 Rowell Dionicio, CWNE #210 rowell@packet6.com
Executive Summary ...................................................................................2
About the author .......................................................................................................... 2
Test Methodology .......................................................................................3
Why this test is important............................................................................................. 3
About the test .............................................................................................................. 3
Access points tested.................................................................................................... 4
Test environment ......................................................................................................... 5
Client Types ........................................................................................................ 6
WLAN configuration............................................................................................. 7
Switch configuration ............................................................................................ 8
Video stream configuration .................................................................................. 8
Test 1 - Multimedia .....................................................................................9
Success Criteria .................................................................................................. 9
Test 1 - Results ................................................................................................. 10
Test 1 - Conclusion............................................................................................ 14
Test 2 - Troubleshooting/Analytics ....................................................... 15
Test 2 - Results ................................................................................................. 15
HPE Aruba .................................................................................................. 16
Extreme Networks ....................................................................................... 16
Cisco Meraki ................................................................................................ 17
Juniper Mist ................................................................................................. 17
CommScope RUCKUS ................................................................................ 18
Test 2 - Conclusion............................................................................................ 20
Summary .................................................................................................. 21
Author Commentary................................................................................ 22
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 1
Executive Summary
The cloud has transformed businesses in more ways than we can count; and Wi-Fi
infrastructure is at an inflection point. Network performance is more important than ever as IT
copes with increasing demands, in particular for prioritized voice and video traffic. Many
organizations are also considering the added benefits of network analytics using artificial
intelligence (AI) and machine learning (ML) to gauge the end-user experience and Wi-Fi
performance.
This report details the performance attributes of cloud-managed 802.11ax (Wi-Fi 6) access
points (APs) in a high-density and high-capacity environment with a mix of video, VoIP, and
data traffic. The intent is to test cloud-managed enterprise AP performance under a real-world
scenario that is relevant to most enterprise networks today.
According to the Global Economic Value of Wi-Fi report, the Wi-Fi Alliance estimates the global
value of Wi-Fi at $3.3 trillion in 2021 1. Enterprises are leveraging Wi-Fi to support new and
innovative use cases while Wi-Fi 6 continues to gain market adoption at a rapid pace.
Video applications and other multimedia services will be the largest consumers of bandwidth on
Wi-Fi networks. For example, in a survey conducted by Education Week Research Center, 71%
of teachers viewed Wi-Fi as a technological innovation significantly improving teaching and
learning 2.
CommScope RUCKUS (“RUCKUS”) sponsored this test, procured the equipment, and
conducted the tests outlined in this report. The author observed the test, validated the
configuration, and ensured a level playing field for each tested vendor. The author performed
the troubleshooting and analytics test with RUCKUS personnel observing. RUCKUS maintained
a fair and neutral testing environment, as required by the author as a condition for writing this
report.
About the author
Rowell Dionicio, CWNE #210, is the Founder and Managing Director of Packet6, a company
with a framework for implementing Wi-Fi that is simple, seamless, and reliable. Rowell has 15+
years of experience in IT and specializes in Wi-Fi technologies. Rowell is the co-host of a Wi-Fi
focused podcast, Clear To Send, which publishes weekly technical content for the purpose of
educating IT operators on Wi-Fi topics.
1
Wi-Fi Alliance: Global Economic Value of Wi-Fi 2021-2025
2
Education Week Research Center: Teachers and Ed-Tech Innovation. Results of a National Survey
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 2
Test Methodology
Why this test is important
Wi-Fi continues to be the most widely used method of access network connectivity. Enterprises
are leveraging mobile devices with real-time, low-latency applications; and mission-critical
applications need reliable, high-performing Wi-Fi. In hotels, guests are joining video
conferences in their rooms and rely on a stable Wi-Fi network. In the classroom, laptops and
tablet devices consume multimedia for instructional purposes.
Video use and video traffic volume is increasing alongside data and VoIP, it is imperative to
understand the impact of network loading on end-user experience for all of these applications.
The objective of this test was two-fold: (1) Establish the performance level of each vendor’s
access point (AP); (2) assess how well the vendor’s corresponding cloud solution can help the
information technology (IT) team minimize the mean time to identify (MTTI) an issue.
Those objectives are evaluated in a high-density, high-capacity environment in which cloud-
managed enterprise APs must provide reliable service to the associated devices. In cases of
network failures of any kind, IT operators should be able to quickly and reliably identify root
cause.
Many organizations are migrating away from on-premises controller appliances to public cloud-
based control and management. This test reveals how each cloud solution stands up to today’s
requirements.
About the test
The results in this report are drawn from two tests—one measuring AP performance and a
second assessing troubleshooting and analytics capabilities of each vendor’s enterprise cloud
platform. A range of 4x4:4 Wi-Fi 6 APs was selected and tested against a high-density and high-
capacity scenario similar to that found in real-world deployments.
Thirty (30) Dell Latitude 5400 laptops with Wi-Fi 6 capability were used to play a high-definition
(1080p HD) video in a single room. The Dell laptops include the Intel AX200 Wi-Fi chipset, a
configuration available for purchase at the time of this test. Each Dell laptop played a unicast
HD video stream before, during, and after the test.
Co-located with the Dell laptops were five (5) Apple iPads running a bi-directional Voice-over-IP
(VoIP) test to simulate a VoIP conversation. The iPads ran this test using an IxChariot client
configured with the G.711u codec. The G.711u codec is one of the most widely used voice
codecs in VoIP deployments and is supported by nearly all VoIP devices and providers. Five
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 3additional iPads running an IxChariot client conducted data downloads, as described in the
following paragraph.
In an adjacent room, associated to the same access point, were twenty (20) Apple MacBook
Pros each running an IxChariot client. A UDP download of varying data sizes was used to
simulate random downloads such as web browsing, email, and file transfer.
The signal traversed a false ceiling and two walls consisting of wood framing and ½-inch
sheetrock.
Each AP was tested for throughput and other performance metrics using an 80 MHz-wide
channel. While the author does not recommend routinely configuring production APs to use 80
MHz-wide channels, in this case it was required in order to realize the maximum performance of
each AP. With that said, many network administrators can and will use 80 MHz-wide channels
given the opportunity, so this is not an unlikely scenario.
The following table summarizes the traffic types used in the performance portion of this test.
Video VoIP Data
High definition G.711u codec UDP download
1920x1080 Bi-directional 64/256/512/1460 bytes
30 clients 5 clients 25 clients
QoS - DSCP 40 QoS - DSCP 46 QoS - Best effort
Table 1. Traffic types used
Access points tested
The performance test evaluated cloud-managed 802.11ax (Wi-Fi 6) access points from HPE
Aruba (“Aruba”), Extreme Networks (“Extreme”), Juniper Mist (“Mist”), Cisco Meraki (“Meraki”)
and RUCKUS. Each Wi-Fi 6 AP selected has similar hardware specifications and is designed to
support high-density environments.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 4Aruba Extreme Mist Meraki RUCKUS
AP Model AP535 AP650* AP43 MR46 R750
Cloud 2.5.2-922-P 21.1.22.2 0.6.18841 27.5.1 20.11.11
Release
AP Firmware 8.7.1.1_78245 10.3r1 build- 0.6.18841 27.5.1 5.2.1.1051
254243
MIMO 4x4:4 4x4:4 4x4:4 4x4:4 4x4:4
Ethernet 5 Gbps 2.5 Gbps 2.5 Gbps 2.5 Gbps 2.5 Gbps
*Note: Also known as AP510C
Table 2. Access points tested
Test environment
Figure 1. Test network diagram and traffic flows
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 5Client Types
Each test used the clients listed in Table 3. The goal of having a client mix is to simulate a real-
world environment comprised of Wi-Fi 6, Wi-Fi 5, and mobile devices. A total of 60 clients was
used in this test.
Client Quantity Capability Test
Dell Latitude 5400 30 Intel AX200 (Wi-Fi 6) HD Video
(Video client) 2x2
Apple MacBook Pro, 20 Wi-Fi 5 Data download
2015 model 3x3
(Data client)
Apple iPad 5 Wi-Fi 5 Data download
(Data client) 2x2
Apple iPad 5 Wi-Fi 5 VoIP
(VoIP client) 2x2
Table 3. Client types
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 6Figure 2. Test environment
WLAN configuration
Each AP used the out-of-the-box default settings, similar to what an IT administrator would see
upon deployment. Each test was run on the 5 GHz band in UNII-3 to ensure consistent results.
For Test 1, a single SSID was configured using WPA2-PSK encryption. For Test 2, three SSIDs
were configured on each AP. Two SSIDs used a pre-shared key and the third SSID was
configured for 802.1X.
Each SSID was configured using an 80 MHz-wide channel.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 7Switch configuration
A RUCKUS ICX 7650-48ZP switch provided Power-over-Ethernet (PoE) to the APs, each of
which was connected to a multigigabit Ethernet port and auto-negotiated to full speed. Each AP
received full power according to its requirements. The switch was configured to place all devices
on the same virtual LAN (VLAN). This eliminated the need for routing.
An IP access list for the video encoder was configured for the VLAN in order to mark the video
stream with a Differentiated Services Code Point (DSCP) of 40.
Video stream configuration
To test HD video, a DVD player was connected to a video encoder to provide HTTP Live
Stream (HLS) capability for the Dell laptops (video clients). This allowed an individual unicast
HD video stream to be downloaded by each video client.
The settings for the video encoder are outlined in Table 4.
Input Size 1920x1080p @ 60 fps
Input Audio Sample Rate 48000
Output Encoding Type H.264
Output Encoded Size 1920x1080 @ 60 fps
Output Bitrate (kbit) 8000
Output Multicast URL Disabled
Table 4. Video encoder settings
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 8Test 1 - Multimedia

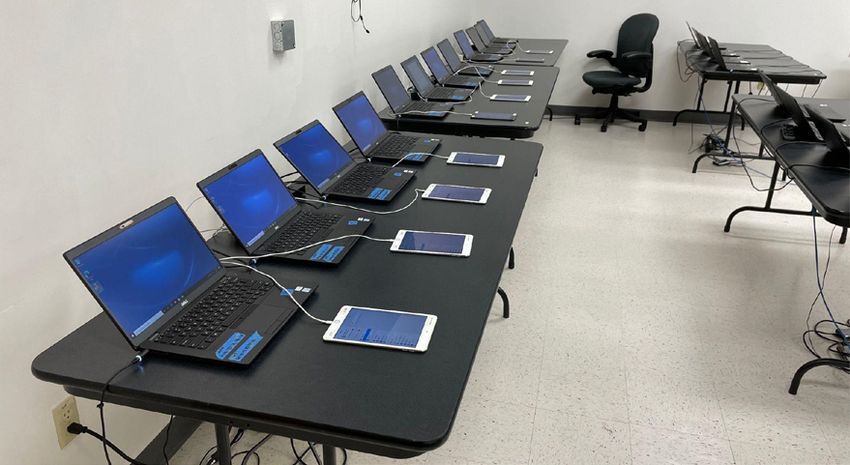

The purpose of this test was to apply a high-density and high-capacity scenario for each AP. In
one room, there were thirty (30) Dell Latitude 5400 laptops playing an HD video and ten (10)
iPads, five of which were running a bidirectional VoIP call and five of which were downloading
UDP data. The AP was mounted on the ceiling T-Bar in the back of the room to maximize
coverage across both rooms. Video streams were initiated on the Dell Latitude laptops before
the test began and played non-stop during the test.
In the next room, as outlined in Figure 2, twenty (20) Apple MacBook Pros were running UDP
data downloads. These downloads consisted of packets of 64, 256, 512 and1460 bytes to
simulate different types of data traffic.
Two (2) test runs were performed with a duration of 3 minutes per run.
Maintaining expected Quality of Service (QoS) is
an important criterion in this test. Video traffic from
the encoder was marked with DSCP 40 on the
switch port. VoIP traffic was marked with DSCP 46
from the IxChariot server and the IxChariot clients
(iPads). The reason for the DSCP markings is to
provide the correct forwarding for special traffic
that may require low latency, loss, and jitter. This
ensured each vendor had the opportunity to
prioritize traffic based on QoS markings. No QoS parameters were configured on the WLAN.
Success Criteria
Each AP must successfully deliver stall-free video streams to all 30 Dell laptops before starting
the test. If a stalled video is encountered prior to the test, the stream is refreshed on the video
client and documented if it continues to stall. During the test, the AP must deliver high-quality
video, data, and VoIP traffic simultaneously to all clients.
The implied user experience associated with the video clients is measured by visually inspecting
for videos that stalled for 20 seconds or longer. This is a conservative estimate of implied user
experience but one that is easy to accurately assess. Data and VoIP metrics are collected by
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 9IxChariot. Total throughput is collected for the data clients. The voice mean opinion score
(MOS) is determined based on jitter, latency, and packet loss collected from the VoIP clients.
Airtime utilization is documented using the WiFi Explorer application.
Average throughput, MOS and the number of non-stalled video clients are compared for each
AP.
Test 1 - Results
Throughput
Throughput is a common metric used to evaluate the performance of access points. During the
test, we measured and averaged the throughput of the data clients, using IxChariot, and the
video clients, as measured at the switchport where the video encoder is connected. Two test
runs were conducted. Figure 3 indicates the sum of the throughput values associated with the
video and data clients, averaged over the two test runs.
In general, a higher throughput number is better as long as data is not favored at the expense of
higher priority traffic (voice and video).
Figure 3. Throughput in Mbps
The RUCKUS R750 significantly outperformed every other AP on the throughput metric.
MOS
MOS is a measure of VoIP call quality. A lower score can mean users will experience poor call
quality. An AP with a network load or one that does not correctly prioritize voice traffic may not
be able to maintain an adequate MOS, as perceived by users. MOS is a function of jitter,
latency, and packet loss. The following table shows how MOS is commonly indexed against
user-perceived voice quality.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 10Mean Opinion Quality
Score
5 Excellent
4 Good
3 Fair
2 Poor
1 Bad
Table 5. MOS and perceived voice quality
Figure 4. MOS results
The RUCKUS R750 outperformed all other APs on the MOS metric, providing significantly
higher call quality under heavy network load. More specifically, no APs other than the RUCKUS
R750 supported a MOS value that would meet typical enterprise service level agreements
(SLAs) requiring “good” voice quality.
Streaming Video
Video traffic is the most widely used multimedia format over Wi-Fi. An AP can simultaneously
serve clients in various multimedia formats. Using HTTP Live Streaming (HLS), video clients
can cache up to 10 seconds of data.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 11In this scenario, HD video clients were playing a unicast HLS video stream prior to starting the
test. Testers took note of any video clients with stalled video, refreshed their video stream, and
confirmed the video was playing before the test was initiated. This was done to give each
vendor an opportunity to get all video streams running simultaneously prior to test initiation, a
state that the test conductors were able to achieve for all but one vendor (Mist).
The table below shows the number of non-stalled video streams for each AP before, during, and
after the test. A lower number indicates more stalled video streams leading to a poor end user
experience.
Figure 5. Number of non-stalled videos before, during, and after the test
The RUCKUS R750 outperformed all other APs, providing continuously streaming HD video to
each video client before, during and after the test period.
The Mist AP43 started with only 24 video streams. Test conductors attempted but, after several
tries, were unable to refresh all stalled video streams prior to starting the test.
Airtime Utilization
Establishing airtime utilization performance was not a test objective, however, airtime utilization
is a useful metric for better understanding the impact of radio frequency (RF) capacity on the
end-user experience. Therefore, a brief discussion is included here. In general, lower airtime
utilization is better, assuming an AP is able to successfully handle all traffic (voice, video, data).
Lower airtime utilization is desirable because it allows the AP to more easily accommodate
additional connected devices and traffic.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 12Figure 6. Airtime utilization during test
As was the case with the video stalling results, the demonstrated airtime utilization of Mist AP43
stands out as lower than that of the other APs. The author concludes that the relatively low
utilization is due to the high number of stalled video clients during the test. Because the video
clients were not playing any video, there was less over-the-air traffic.
We can correlate the number of video clients with stalled video and airtime utilization during the
test as shown in Figure 7.

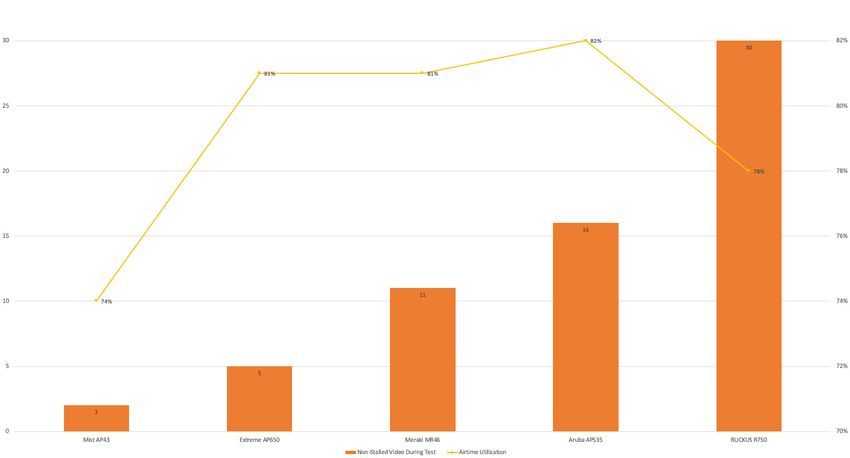

Figure 7. Number of non-stalled videos during the test with airtime utilization
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 13In contrast to the Mist AP43, the RUCKUS R750 exhibited the second lowest airtime utilization
value, yet it exhibited no video stalling during the test. Consequently, one would expect its
airtime utilization to be the highest of the tested group. Since this is not the case, the author
concludes that the RUCKUS R750 makes more efficient use of available airtime than do the
other APs.
Test 1 - Conclusion
The RUCKUS R750 significantly outperformed all other access points in every test. It was the
only access point capable of meeting real-world success criteria: Maintaining a “good” MOS
while simultaneously delivering stall-free HD video streams to 30 clients and maintaining “high”
throughput for all data clients.
The Aruba AP535 was the next most capable of managing the applied network load. While half
the clients experienced stalled videos, they were able to recover after the test. During the test,
however, the AP535 exhibited a “poor” MOS.
The Extreme AP650 maintained the second highest throughput but yielded 25 stalled video
clients during the test and a “poor” MOS. The author concludes that the AP650 applied no QoS
to the traffic.
The Meraki MR46 maintained 250 Mbps of throughput but had the lowest MOS of the group and
was able to support only 11 stall-free video streams. After the test, it recovered all but three
video streams.
The Mist AP43 demonstrated the poorest performance of the evaluated APs. It was able to
support only 24 video streams in the absence of additional network loading and, during load,
supported only two video streams. The AP43 also exhibited the lowest throughput of the
evaluated APs but did exhibit the second highest MOS (rising nearly to “fair”). The author
concludes that the AP43 prioritized VoIP traffic above other traffic classes.
In summary, the RUCKUS R750 stands out as being the most capable of delivering expected
user experience levels and meeting SLAs. Processing various types of multimedia traffic is
critical in today’s networks and the R750 appears to have an exceptional method of handling
QoS, without the need for additional configuration of QoS parameters. This may be attributable
to the SmartCast feature, which prioritizes video traffic over unmarked data traffic.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 14Test 2 - Troubleshooting/Analytics
The cloud offers increased benefits for network administrators in terms of convenience as well
as insights and scale. Cloud-managed APs can leverage cloud resources to deliver network
analytics and enhanced troubleshooting tools. Network analytics, in particular those driven by
Artificial Intelligence (AI) and Machine Learning (ML), are especially well-suited for cloud
delivery due to the high computational resources and data correlation volume that on-premises
equipment may require.
Because Wi-Fi is typically a critical network access method, network administrators are often
required to triage and troubleshoot various network issues. In this test, we introduce end-user
issues for the system to diagnose: Wrong pre-shared key, DHCP unavailability, and an 802.1X
issue (unreachable RADIUS server). The goal is to understand how quickly each vendor’s
product reacts to and reveals to the network administrator the root cause of network incidents.
The author received the three different “tickets”, or test cases, along with the device information;
and was provided with a cloud dashboard to assess ease of use, establish the accuracy of the
information presented, and evaluate the efficacy of the troubleshooting tools available. This
scenario is similar to what a typical IT engineer might experience if an end user called the IT
help desk with a problem.
Another aspect of this test is to discover how Artificial Intelligence (AI) and Machine Learning
(ML) improves the network administrators’ mean time to identify (MTTI), also referred to as
mean time to detect (MTTD).
Test 2 - Results
Before reviewing the results, it’s important to distinguish the type of analytics and
troubleshooting capability provided by each vendor.
Each vendor offers network analytics. This data provides insight into statistics such as
throughput and AP up/down status. This is expected of any cloud-managed system. Another
component of network analytics involves AI and ML, in which the system uses deeper insights
to quickly identify issues and present root cause analysis. While each vendor offers network
analytics, not every vendor’s tested system offered AI/ML insights.
When using each vendor’s dashboard, the author focused on a particular set of criteria. IT
teams aim for low MTTI through dashboard workflow efficiency and accuracy of the data
displayed. The author considered the use of event logs, using dashboard widgets to determine
the scope of an issue, and whether a network administrator needs to navigate multiple pages to
identify a problem. The author looked for details that clearly identified an issue and provided
actionable next steps.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 15HPE Aruba
Aruba Central is Aruba’s cloud management platform. AI Insights is the Aruba feature used to
assist in troubleshooting their WLAN.
At first glance, the dashboard did not clearly display end-user experience issues with the Wi-Fi
network. It required further analysis of event logs. Finding an event log may require additional
research of an error message or additional troubleshooting external to the cloud interface to
determine the impact.
Most importantly, information relating to troubleshooting using AI Insights required 3 hours to
update and be displayed in the AI Insights dashboard. Once displayed, drilling into a specific
device exposed constructive details to help identify the issue. However, there was no easy way
to gauge the impact of a particular issue.
The MTTI for the test-case issues was 6.3 minutes, based on the use of tools other than AI
Insights. The author scrutinized the event log to find the right timestamp and log for the client to
identify there was a PSK mismatch. The DHCP case required filtering of the client device by
MAC address to see an error message relating to a DHCP Discover timeout. On the 802.1X test
case, the author overlooked small text that pointed to the issue of an authentication server
timeout, which added time to identifying the problem. There was no method to test RADIUS
server reachability from the dashboard. The AI insights displays these issues more easily but
only after waiting up to 3 hours to update.
Extreme Networks
ExtremeCloudTM IQ is Extreme’s cloud management platform, which includes AI/ML insights in
the IQ Pilot feature. The dashboard displays large amounts of data and analytics, which can be
intimidating, in particular for an administrator who is not well-versed in the system or Wi-Fi in
general. Fresh data, critical for real-time troubleshooting, is displayed under the client device
details which can be challenging to find if you do not have the actual client device details, such
as a MAC address or IP address.
The system includes multiple ML scorecards to rate the status of the network, but it wasn’t clear
why most areas scored well, yet the overall score was low. Client health reporting does not
reflect near-real-time data. Once clients are connected, this feature requires about one hour to
update. The ML scorecard view provided an overview of how the network is performing, based
on an ML score.
By navigating through different views and pages, a network administrator can identify an issue
and piece together the impact. Identification of an issue can be found in different views of the
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 16dashboard. The overall workflow, however, serves to increase rather than decrease the MTTI.
Effective use of AI and ML insights required a deeper understanding of the scoring
methodology; this information was unavailable (or not obvious) within the user interface.
The MTTI was 10.3 minutes. For the PSK test case, a single red flag for an incident—visible
after restricting the timeframe—pointed to an incorrect PSK. The DHCP case required
investigation on two different pages. Initially, the author couldn’t determine based on the amount
of data presented on screen whether or not there was a DHCP issue. But, after investigating on
a separate page, Client Monitor, there was real-time data (that that did not require waiting for
data) pointing to a DHCP server issue. The 802.1X test case required navigating to different
pages that pointed to an underlying authentication problem.
Cisco Meraki
Meraki offers only cloud-managed control and management of its APs. It does not offer AI/ML-
enabled analytics. The main dashboard homepage provides an overall view of network health
but does not include the view of the Health feature which is of most interest when
troubleshooting a Wi-Fi problem. The Health view of the network is accessible from the Wireless
section of the dashboard under Monitor.
Event logs included in Health can be cryptic and require additional research. In some cases,
Health was able to determine the exact cause of an issue, though getting to that point required
multiple clicks through different sections of the dashboard. Rather than making use of AI or ML,
Meraki follows a heuristic approach that specifies the percentage of clients affected by a
particular issue.
The MTTI for the issues was 3 minutes. Using Health, there is an overall view of issues but after
viewing the specific client on another page, a history of client connectivity listed Association
failures stating the PSK was incorrect. For the DHCP test case, the History view of the specific
client pointed to an exact reason: The authentication server did not respond. The History view
was used again to identify the cause of 802.1X test case indicating the authentication server did
not respond to the affected client.
Juniper Mist
Mist offers only cloud-managed control and management of its APs. The main dashboard
provides a monitor view of how Wi-Fi is performing throughout a site, including whether Service
Levels are being met, and site-level Wi-Fi insights.
Service Levels are a key component of the dashboard and offer a look into how the Wi-Fi
network is performing. When a service level is below a threshold, a network operator can dive
into a particular threshold to identify the impact. Mist feeds ML data into an AI algorithm and
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 17virtual assistant, Marvis (an additional subscription), located at the top-level navigation menu.
Mist uses ML to learn from all collected events to improve their predictive capabilities for
attributes such as device throughput. Network administrators can ask Marvis about issues with
devices or sites and are then presented with identified issues.
The MTTI for the test cases was 5.3 minutes. The author used Service Levels to investigate the
PSK case but found insufficient data for a specific client having the issue. But using Marvis (an
additional subscription), the PSK test case was clearly identified as an authentication issue.
Using Service Levels, the DHCP case was directed to a specific issue of DHCP Discover
unresponsive. The scope of the 802.1X test case was identified as being a widespread
authentication issue but required viewing another page to establish a RADIUS server failed
communication. Then, viewing a dynamic packet capture file showed an authorization failure.
CommScope RUCKUS
RUCKUS offers network analytics as well as AI and ML insights via its RUCKUS Analytics
product, which is integrated into its RUCKUS Cloud management platform and is also available
on a stand-alone basis for use with RUCKUS on-premises deployments. As is the case with
other vendors, an event log is available to view any potential issues. While the impact of an
issue may not be easily identified, it can be correlated to a specific SSID. In addition to event
logs, pre-defined and customizable reports can be generated and reused to help identify Wi-Fi
issues.
RUCKUS offers premium analytics (an additional subscription) which displays the impact of Wi-
Fi issues in clear detail, along with potential resolutions to those issues informed by root cause
analysis. The RUCKUS virtual assistant, Melissa, aims to help identify Wi-Fi issues by using a
natural language chat interface. Wi-Fi issues are displayed clearly with no room for
interpretation and with no requirement for additional research. Data visualization included with
the analysis serves to shorten the MTTI.
The MTTI for the test-case issues was 2.3 minutes. An incident detail provided a root cause of a
passphrase mismatch for the PSK test case. A DHCP incident provided a reason—DHCP
timeout— along with a visualization of where in the DHCP process the failure occurred. For the
802.1X case, the author used the Client Troubleshoot feature and viewed the incident for the
specific device. The reason for the incident was clear and another visualization revealed where
in the 802.1X process the failure occurred.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 18Figure 8. Mean time to identify (MTTI) by vendor in minutes rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 19
Test 2 - Conclusion
RUCKUS premium analytics provided detailed, visual insights into user experience, leading to
the lowest MTTI in the evaluated group. The AI and ML assistance provided further insight into
the impact of Wi-Fi issues than simple event log-driven analysis. The author viewed RUCKUS
as the best solution for speed of MTTI and clarity in the reasons for the Wi-Fi issues, leaving no
room for assumptions nor requiring further troubleshooting. An example is shown in the figure
below.

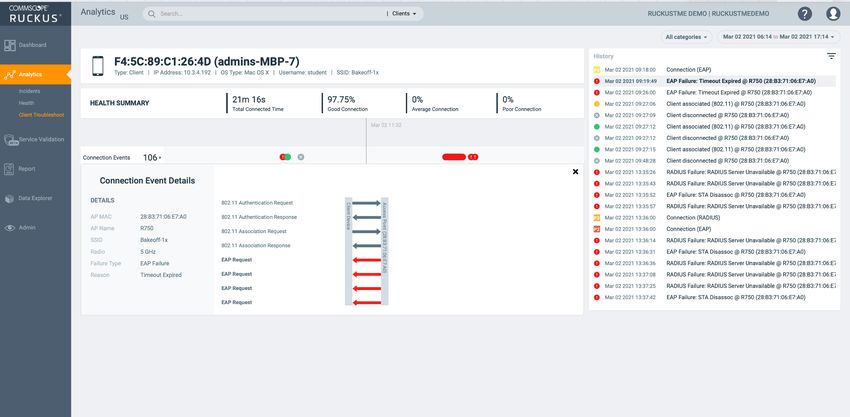

Figure 9. Example of RUCKUS premium analytics and troubleshooting
Meraki offered useful insights without AI/ML or premium analytics, differing from the other
vendors in this respect.
The Mist AI assistant, Marvis, effectively narrowed down Wi-Fi issues to their root causes, a
helpful feature for IT operators.
In the author’s opinion, Aruba’s AI Insights requires further development to be as effective as
comparable features from some of the other vendors, with the requirement for repeated event
log queries standing out as an area for improvement.
Extreme’s dashboard offered useful insights into Wi-Fi issues but required the author to first
identify and locate the affected client on the dashboard. This requirement significantly increased
observed MTTI.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 20The author acknowledges this assessment is based upon the author’s preferred troubleshooting
methodology. Others may follow a different approach.
Summary
The author observed and verified the legitimacy of all tests conducted. RUCKUS provided the
author with open access to validate configurations, to ensure each configuration was similar,
and to make sure that no vendor had an unfair advantage. The author is confident that testing
was fairly conducted for each vendor.
The test suite was designed to represent a typical enterprise or campus environment, including
a mix of device types and device capabilities. The device and traffic mix simulated a real-world
setting that many network administrators will find familiar. For example, devices themselves will
be a mix of both new and previous Wi-Fi generations (802.11n, 802.11ac). Additionally,
administrators (the author included) do not typically observe just one type of traffic traversing an
AP, thus, a mix of HD video, VoIP, and data download traffic was used.
Although each new Wi-Fi generation implements improvements in protocol efficiency, data rate
selection, and throughput, a mixed client environment will serve to somewhat constrain the full
benefit of Wi-Fi 6 infrastructure. However, it is clear from this testing that both aggregate and
individual device performance within a mixed client environment can vary dramatically from one
Wi-Fi 6 vendor to the next. The results displayed in this report are likely to provide network
administrators with insight into how each AP will perform in a similar environment.
While the author is unable to ascertain the basis for each AP’s QoS queuing decisions, the
author observed that video and VoIP traffic displayed significant quality variation from vendor to
vendor. Only the RUCKUS R750 AP was able to handle all traffic consistently and well.
Network IT teams are increasingly focused on end-user experience and workforce productivity.
Therefore, the report includes an analysis of comparative mean-time-to-identify (MTTI) for a set
of incident test cases, using each vendor’s dashboard. The MTTI results observed can
reasonably be extended to mean-time-to-resolution (MTTR) performance. The author
acknowledges that the qualitative assessment of each dashboard is inherently subjective and
dependent on the network administrator’s experience. The author has endeavored to undertake
a neutral and fair approach.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 21Author Commentary
As a Wi-Fi professional and consultant, the author undertook this testing with a set of pre-
conceived notions regarding the relative performance of vendor Wi-Fi 6 equipment. Presented
with similar offerings and a level playing field, the author expected comparable results, given
common underlying silicon.
The author was, thus, surprised to observe the performance variation between different
vendors’ Wi-Fi 6 APs.
This test made clear that vendors do have the ability to differentiate seemingly equivalent
hardware through software, firmware and hardware innovation, even as they seek to
differentiate their management tools via user interface and AI/ML investment. The test
demonstrated that AI and ML can, indeed, help rapidly identify the source of a network issue,
however these technologies cannot resolve an AP’s inability to delivery traffic to each client at
the service level required.
The author recommends conducting a proof of concept to isolate and establish a baseline
network performance level before considering other attributes.
rowell@packet6.com | 669-244-9434 | https://packet6.com © 2021 Packet6, LLC. All rights reserved. 22You can also read
