1
EQUINA™: A CT SCANNER DESIGNED
BY AND FOR VETERINARIANS
December 20, 2018
Asto CT LLC
Asto CT 3300 Commercial Ave, Madison, WI 53714
www.AstoCT.com
Equine Standing CT
Proprietary and Confidential
2
Changing the paradigm in equine imaging
Current imaging tools are not
The
sufficient to optimally manage
Problem
equine patients
EquinaTM is a CT system that
Asto CT
allows imaging of a standing
Technology
sedated horse
Enable veterinarians to broadly
Our Goal offer CT imaging to the equine
community
Asto CT has pioneered standing CT to provide state-of-the-art
screening & diagnosis to equine veterinarians
Proprietary and Confidential
3
Acquiring CT images is a simple process
Lead horse Position Reverse
Step to 75cm Step scanner & Step sedation &
1 target ring &
sedate
2 acquire
images
3 lead horse
off platform
Proprietary and Confidential
4

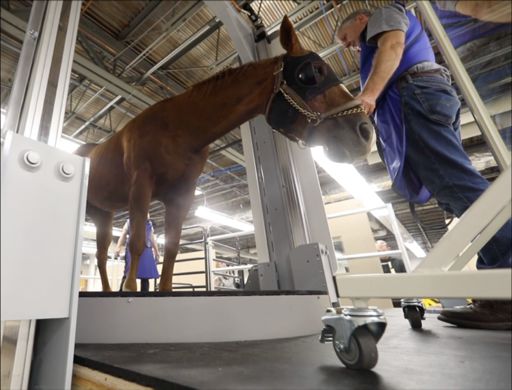

Equina™ in action
“We’ve been waiting a long time to go
from CT under general anesthesia to CT “We’ve been waiting a long time to go
standing... This is going to open it up in from CT under general anesthesia to CT
terms of cost, and additionally it’s going standing... This is going to open it up in
to open it up to many more practices
terms of cost, and additionally it’s going
who don’t have facilities to do general
to open it up to many more practices
anesthesia.”
who don’t have facilities to do general
anesthesia.”
- Carl Kirker-Head
Orthopedic & Large Animal Surgeon
To see the Equina in action, view this short video clip:
https://youtu.be/pdUHwPPPOKw
4
Proprietary and Confidential
5
Equina™ enhances your equine practice
Performance horses
Early detection of stress fractures
Effectively manage training programs
Show & Recreation
Easier identification and management of lameness & other
musculoskeletal concerns
Older horses
Best-in-class diagnosis of dental & sinus problems
Equina™ can help you to manage a wide range of
conditions in your equine patients
Proprietary and Confidential
6
Siting requirements – built-in system
Example 18’ x 16’ room Limb scan
10’-3”
26-inch access floor door
12’ Equine 16’ Head scan
CT
18-inch access floor door
18’
Proprietary and Confidential
7

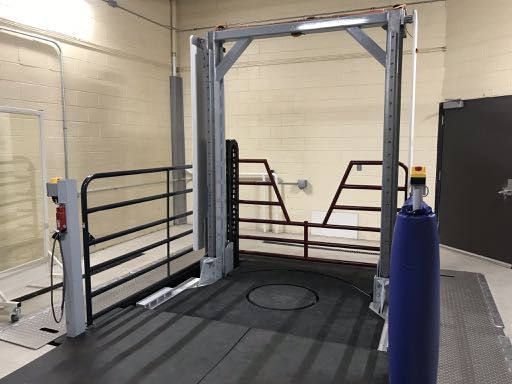

Siting requirements – free-standing system
Example staging area, ramp, and stairs
Stairs
Staging area 4’
22’-6”
4’
14’
4’
14’
6’ Ramp Equine 8’
8’-4”
CT
22’-6”
12’ 8’ 8’
Proprietary and Confidential
8
Performance meets key equine needs Asto CT Equina Specifications
Base System / Motion Assembly
Width (base) 254 cm (100 in)
§ Flexible imaging Length (base)
Height (uprights)
239 cm (94 in)
371 cm (146 in)
Gantry pitch range 0 to 90°
§ 30” (75 cm) opening and field of view (FOV) for easy
Total vertical motion range 228 cm (90 in)
Continuous scan field (limb & head scans) 100 cm (40 in)
Safe, Simple, Standing CT
Changing the paradigm in equine imaging
positioning of horse within target ring
1,364 kg (3000lbs) – optimized to withstand
Max strike force to gantry/pedestal
impact of startled horse
Electrical Service 208-240 V Single Phase; 30 A
CT Gantry
Asto CT Equina Specifications
§ Simultaneous imaging of two legs
Gantry opening (bore diameter) 75 cm (30 in)
Base System / Motion Assembly
Widthgantry
75 cm (30 in) – everything within (base) 254 cm (100 in) Simple
Nominal field of view (FOV)
opening is scanned
Length (base) 239 cm (94 in)
Scan time for a full 360° rotation 1 sec
§ Simple push button control for setup & scanning
Height (uprights) 371 cm (146 in)
Number of detector rows 24
Gantry pitch range 0 to 90° Rugged
Helical pitch Variable (typical = 0.55)
Total vertical motion range 228 cm (90 in)
Helical scan velocity Variable (typical = 2 cm/sec)
Continuous scan field (limb & head scans) 100 cm (40 in)
Safe, Sim
Wide scan ranges
Slice acquisition rate 36 slices/sec
Changing the
§
1,364 kg (3000lbs) – optimized to withstand
Max strike force to gantry/pedestal
Free-standing Platform (Optional) impact of startled horse Diagnostic
Surface
Electrical Service
Non-slip, shock-absorbing, washable
208-240 V Single Phase; 30 A
Ramp Detachable,
9

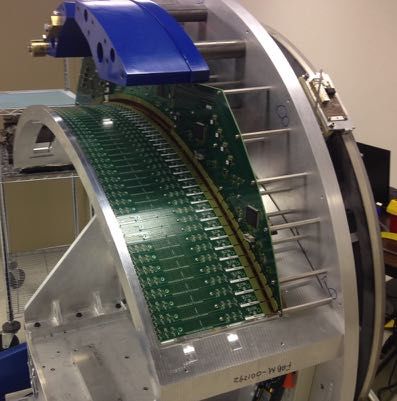

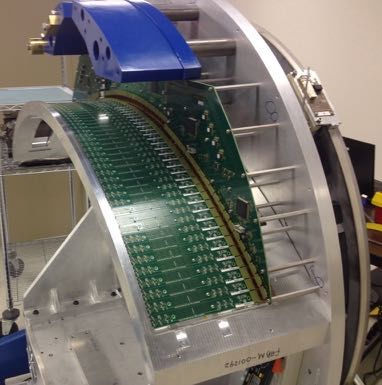

Advantages of new industrial CT technology
§ High-quality imaging
§ Fast acquisition (1 sec per rotation)
§ 0.75mm resolution
§ Variable helical pitch (typical = 0.55)
§ 24 detector rows
§ 36 slices/sec acquisition rate
§ Optional dual-energy imaging
§ Rugged design
§ Water-cooled, sealed gantry
§ Designed to withstand the strike force from
a startled horse
9
Proprietary and Confidential
10
Images demonstrate diagnostic quality
Left
Right
2D MPR → navicular
disease in left front foot
Enhanced detail with 2x dose
3D MPR of thoracic limbs & localizers
Irregular surface
of tarsal bones &
volumetric model
→ spavin
Proprietary and Confidential11

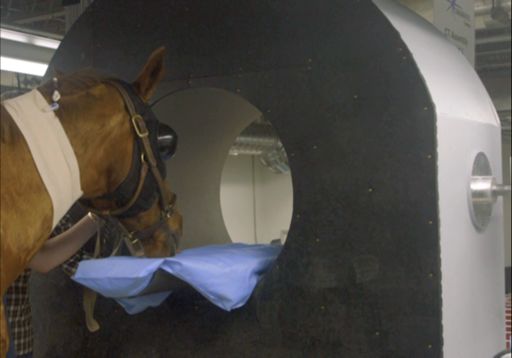

Flexibility for diagnosis of head & sinus problems
Reconstruction
→ pulp cavities
in cheek teeth
Image of vertebral
bone and spine cord
3D MPR of Head and Neck → diagnostic image of sinuses & teeth
Proprietary and Confidential12
Equina™ can be used for small animals
§ Flexibility of robotics can
accommodate a gurney for small
animals
§ The gurney is stationary à
convenient for simultaneous use of
anesthesia equipment & other
apparatus
Proprietary and Confidential13
1st Equina™ – UW School of Veterinary Medicine
§ Commissioned on Nov 24, 2018
§ Building image database across key
equine patient segments
§ Evaluating clinical cases – Equina
identifies more pathology than x-rays
§ Establishing value of Equina – access
to limbs with breakdown injuries
To see the Equina at the UW SVM:
https://youtu.be/Q7lK9htHtiA
Proprietary and Confidential14
About Asto CT
§ Asto CT was founded in 2015 as a result of a research collaboration between
the UW-Madison School of Veterinary Medicine (Peter Muir) and Morgridge
Institute for Research (Rock Mackie)
§ The company has pioneered robotics in combination with CT scanning to
provide new imaging indications
§ Our patented approach allows for imaging of a standing sedated horse, or
small animals on a mobile gurney
§ The first mission is to improve diagnosis and treatment of conditions of the
distal limb and diseases of head & neck in horses
Proprietary and Confidential15
World-class team & advisors
Technology
David Ergun Rock Mackie Leadership Olof Johnson Regina Fulkerson
Founder, CEO Founder, Chair Chief Engineer, Medical Physics
President, PDSI
Peter Muir Harry Freeman
Founder, CMO Chief Commercial
UW Vet School Officer
Equine Commercial
Knowledge Success
Mark Markel Megan Rothney
Founder, Marketing
UW Vet School
Sabrina Brounts Cristina Ergun
Equine Specialist Veterinarian
UW Vet School
Proprietary and Confidential16
Summary
§ Asto CT technology is shifting the paradigm in equine
imaging by solving long-standing diagnostic problems
§ Equina™ offers safe, high-quality CT imaging to the
equine community
§ Equina™ is a versatile system that can be used for small
animals
§ Flexible purchase terms to meet customer needs
Please join our race to end equine fractures!
Proprietary and Confidential17
Asto CT
Preventing equine fractures with
safe, high-quality CT imaging
