PRODUCT
TECHNICAL DATA SHEET
Rev. 3 09/2011
EWN SERIES
LIGHTING FIXTURES
EWN series lighting fixtures are ideal to properly light indoor and outdoor industrial
process areas, especially chemical and petrochemical ones, classified as Zone 2
(Gases), Zone 22 (Dusts).
The particular construction makes them, at the same time, structurally strong, resi-
stant, easy to handle and light compared to the traditional lighting fixtures in aluminum
alloy with type of protection Ex d.
Available in four sizes, EWN 60, 70, 80 and 100, along with the relevant electrical
equipment for discharge lamps with powers from 20W to 500W, EWN lighting fixtures
have a large housing for electrical apparatus, segregated from optical section, which
is able to allow a proper dissipation of the heat generated by the combined action of
ballast and lamp.
1 - Product Technical Data Sheet - EWN Series Lighting Fixtures
MARKING
1. CE mark means "European Conformity": the product fulfils all EU Directives requirements on safety, health, consumer protection,...
2. Identification number of the notified board (CESI) that supervises production in compliance to 94/9/CE ATEX Directive
3. Explosion Protection Marking
4. Apparatus Group II (surface equipment)
5. Category 3 (suitable for Zone 2 (gas) and Zone 22 (dusts)
6. Gas and Dust (Gas and Dust (suitable for both gas and dust zone)
7. Mode of protection (Ex nR: restricted briefing electrical equipment that is to limit/delay the entry of the potentially explosive atmo-
sphere into the lighting fixture; II: gas group; Ex tD A22: protection against dusts)
8. IP mechanical protection degree
9. Temperature class
10. This is the max temperature that can be reached on the equipment hottest surface, while working
11. Ambient temperature allowed range
12. Special ambient temperature allowed range
EX ZONE
2 (gases) - 22 (dusts)
ATEX CERTIFICATE N.
CESI 05 ATEX 018X
OTHER AVAILABLE CERTIFICATIONS
Will follow upon market demand
CONFORMITY TO STANDARDS
EN60079-0, EN60079-15, EN61241-1, IEC61241-0, ATEX 94/9/CE
PRODUCT LINE DESCRIPTION
EWN series lighting fixtures are ideal to properly light indoor and outdoor industrial process areas, especially chemical
and petrochemical ones. Thanks to their features, they are able to show the best performances where the other lighting
fixtures denounce their own limits.
Having a copper-free aluminum body combined with a borosilicate glass optical, EWN lighting fixtures are able to unite
structural strength and resistance to chemically aggressive environments with a lighting efficiency and distribution opti-
mal for industrial process areas where both the lighting of on-walk-way and working surfaces (Horizontal Lux) and the
lighting of potential obstructions (Vertical Lux) are required. Furthermore, their construction makes them particularly
easy to handle and light when compared to the traditional lighting fixtures in aluminum alloy with type of protection Ex
d and same installed power.
The Ex nR (restricted briefing) mode of protection, obtained thanks to the use of special silicone gaskets, resistant to
aeging and wear, makes EWN series “Category 3” equipment, hence suitable for Zone 2 (Gases), Zona 22 (Dusts)
dangerous areas.
Available in four sizes, EWN 60, 70, 80 and 100, along with the relevant electrical equipment for discharge lamps with
powers from 20W to 500W.
Having a large housing for electrical apparatus, segregated from optical section, they allow a proper dissipation of the
heat generated by the combined action of ballast and lamp. The wide external surface keeps the surface temperature
below the limits of T3 Class even in installation areas with ambient temperatures of +50°C/+60°C.
Installation and ordinary maintenance are made easier thanks to the simple access to the inner parts of EWN lighting
fixtures. The fast opening of the electrical equipment housing is achieved with the use of a single closing screw opposi-
te to the hinge that keeps it secured to fixed part. In this way, the operator attending the set-up or the maintenance ope-
rations will be able to have both hands free without having to support any part of the fixture.
2 - Product Technical Data Sheet - EWN Series Lighting Fixtures
CONSTRUCTION FEATURES
Mechanical features Electrical features

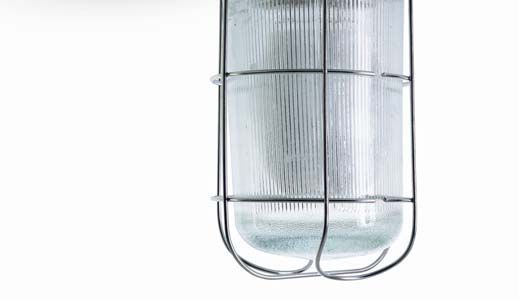

• Body in copper-free aluminum • Voltage rating: 230V. Upon request, different volta-
• Shock-proof and high temperature-resistant borosilicate ges: multitap ballast 120V 208V 240V 277V
glass globe • Operating frequency: 50/60Hz.
• Stainless steel guard • Lamp-holder: ceramic E27 or E40
• Internal and external stainless steel earth screw • Terminals section: 3x4mm2
• Silicone gaskets resistant to acids, hydrocarbons, ageing • Wiring by silicon rubber glass fibres reinforced cables,
and humidity placed between the mounting module, the resistant up to 200°C
body and the optical • Different light sources: mercury vapour lamps (Hg),
• RAL7035 grey epoxy powder coating providing excellent high pressure sodium lamps (Na), metal halide lamps
resistance to corrosion (Ha), mixed vapours lamps (Mix).
• Hinged fixture body opening for ease of installation and
maintenance
Tab. 1: Temperature class and max. surface temp. for
lighting fixture in ambient temperature
Accessories up to +40°C; +50°C; +60°C
• Wide range of lamps and wattages
• Different toreate hubs available, suitable both for cable MODEL LAMP TEMP. CLASS / MAX SUR-
FACE TEMP. TEMP. (°C)
and conduit tube distributions
• White painted aluminum external diffusing reflector
+40°C +50°C +60°C
• White painted aluminum external diffusing sloping re- 50W Hg T6/82 T5/92 T4/102
flector 80W Hg T5/98 T4/108 T4/118
• Wide range of mounting arrangements to suit any li- EWN-60
50W Na T6/82 T5/92 T4/102
ghting layout
• Upon request, optical section suspension cable
70W Na T6/82 T5/92 T4/102
20/23W EL T6/57 T6/67 T6/77
125W Hg T4/106 T4/116 T4/126
100W Na T5/99 T4/109 T4/119
EWN-70
70W Ha T6/82 T5/92 T4/102
100W Ha T5/99 T4/109 T4/119
Mounting arrangements upon request 125W Hg T5/98 T4/108 T4/118
250W Hg T3/167 T3/177 T3/187
150W Na T4/104 T4/114 T4/124
250W Na T3/167 T3/177 T3/187
EWN-80
150W Ha T4/104 T4/114 T4/124
250W Ha T3/167 T3/177 T3/187
160W Mix T4/104 T4/114 T4/124
250W Mix T3/167 T3/177 T3/187
250W Hg T4/117 T4/127 T3/137
400W Hg T4/131 T3/141 T3/151
250W Na T4/117 T4/127 T3/137
EWN-100 400W Na T4/131 T3/141 T3/151
250W Ha T4/117 T4/127 T3/137
400W Ha T4/131 T3/141 T3/151
250W Mix T4/117 T4/127 T3/137
3 - Product Technical Data Sheet - EWN Series Lighting Fixtures
MODELS 4 - Product Technical Data Sheet - EWN Series Lighting Fixtures
PLUS
1. Unscrewing the screw shown in the picture, 2. The hinge, opposite to the screw, allows a com-
it is possible to open the fixture and have a fortable 180° opening making the operations of
direct access to the internal electrical equi- installation and ordinary maintenance easier. This
pment. allows the operator to use both hands minimizing
the risks of accidents at work, in accordance with
HSE policies.
3. Ballast, ignitor, capacitor and terminal boards 4. Loosening the three screws on the body it’s
are installed inside, on alluminum frames. Their possible to remove the glass ring and easily re-
layout is designed in order to have a low operating place the lamp.
temperature inside the fixture.

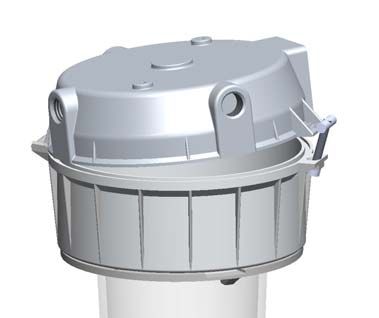

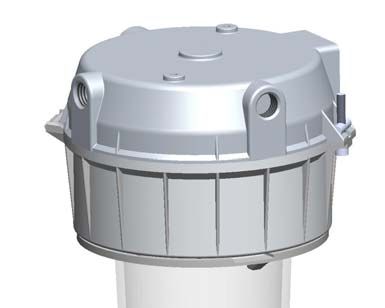

5 - Product Technical Data Sheet - EWN Series Lighting FixturesEASY OPENING/CLOSING SYSTEM -
STANDARD ON MODEL EWN-100
The new standard layout, for only the EWN-100 model, provides the easy opening/closing
system.
This system, a plus with regards to competitors, has been designed to simplify the opening/closing
operations during maintenance, hence increasing safety. The locking system keeps in position the two
hinged body fixture parts allowing to operate in safety, even though in elevation, using only one hand
and a screwdriver. The second hand can be used to hold on to the platform/ladder with advantages in
terms of installation time and accidents prevention.

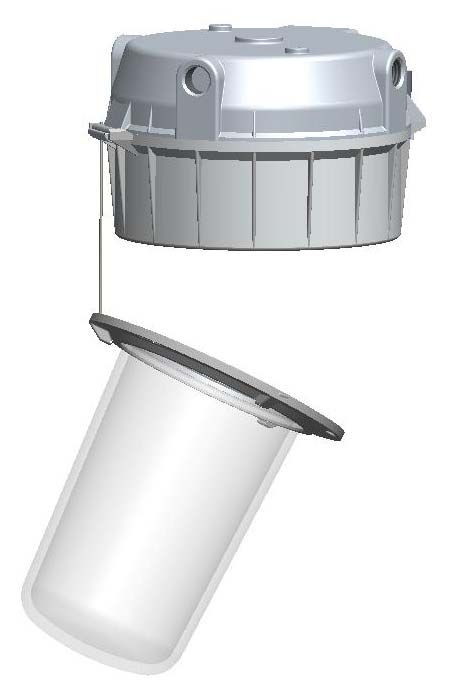

OPTICAL SECTION SUSPENSION CABLE - UPON REQUEST
The suspension cable has been designed in order to further increase the safety of
installation/maintenance, hence reducing the risk of accidents. The cable, with a function of “third
hand”, allows the maintenance personnel to carry out the necessary maintanance operations without
having to hold the globe, which remains suspended and attached to the fixture body.
This system is supplied upon request.
6 - Product Technical Data Sheet - EWN Series Lighting FixturesAPPLICATION MARKET
• Manufacturing plants and process facilities: chemi- • Industry
cal, petrochemical, refineries, pharmaceutical, Gas
∗ Mechanical and electrical engineering
treatment and transport
∗ Agribusiness
• Areas with risk of explosion and fire due to abnor-
mal, unusual or accidental presence of ignitible ∗ Distillery
concentration of gases/vapours and dusts, even ∗ Oil & Gas industries
simultaneously ∗ Pharmaceutical industries
• On-shore, off-shore, naval and harbor installations ∗ Energy
• Waste and or sewage treatment facilities
• Thermal plants • Engineering and Contractors
• Area with presence of combustible dusts such as ∗ Project Design companies
joineries, sugarhouses, food industries with ∗ Electrical contractors
treatment and storage of wheat and derivatives ∗ Construction companies
Thanks to the mechanical strength and the Cortem’s • Electrical equipment distributors
painting exclusive treatment they are also particularly
suitable for: • Shipyards / harbors
• Off-shore rig constructors
• Chemically aggressive environments • On-shore treatment and refining plants
• Marine environments with high saline corrosiveness
• Installation where moisture, dirt, dust, vibration,
impacts and rough usage are problems
• Sites with presence of UV rays or other damaging
effects such as wind, snow and hot sun
• Coal treatment storage and transport sites
