Gas Stoves & Inserts
Innovative Hearth Solutions
Shown with standard black louvres and black flashing with trim.

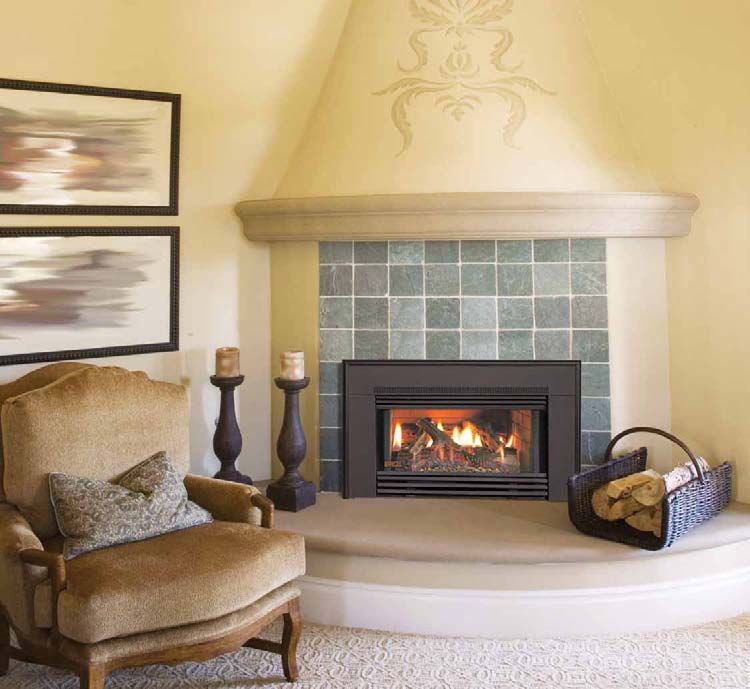

CDI-30 - Direct Vent
A Great Looking Investment
The value that a CDI-30 gas insert adds to your home is
priceless! Outstanding efficiencies, up to 24,500 BTU’s and
a powerful heat circulating blower all contribute to the added
benefit of eliminating drafts and heat loss in your existing
fireplace. It perfectly installs into an inefficient wood burning Optional cast iron surround Optional River Rock kit is available to
masonry or pre-fabricated fireplace. Once installed, all you do and door kit available. switch out the existing logs for a more
is sit back and enjoy all the conveniences of direct vent gas contemporary design.
technology!
2

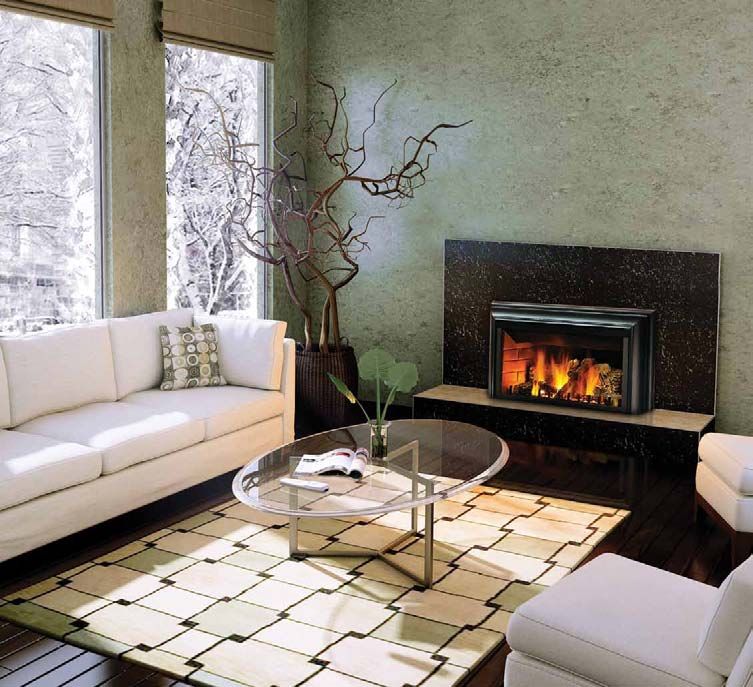

Shown with contemporary four-sided painted black surround.
CDI-30G - Direct Vent
Sparkling Elegance
The CDI-30G comes complete with an exclusive
CRYSTALINE™ glass ember bed and CRYSTALITES™ that
accent the crystals from below. This unit has all the same
outstanding efficiencies and features of the CDI-30 but
Coloured glass options are designed CRYSTALITES™ accent the glass
fills a niche for a more contemporary, elegant fireplace
to enhance the CRYSTALINE ember
™
ember bed from below. design.
bed. Available in amber, black, blue
and red.
3
Shown with painted black trim and standard painted black louvres.
CBI360 - Natural Vent
Comfort and Style
The CBI360 is specifically designed to fit smaller wood
burning zero clearance fireplaces. Available as a flushmount
or create an optional bay front design.
Louvre overlays available in polished The arched cast iron surround with
brass and brushed stainless steel. operable doors adds a dramatic
(Painted black louvres come standard) look to this traditional insert.
4
Shown with painted black three-sided aluminum extrusion trim kit.
CDIZC - Direct Vent
Compact and Efficient
Accommodates the smallest fireplace openings but still
provides an impressive 400 sq. in. viewing area! Designer
options include trim kits in various finishes in both three
and four-sided aluminum surrounds with decorative
Three or four-sided trim kit available Decorative door kits available in
door kits in arched and webbed arched designs.
in painted textured black finish. 24 Karat gold plated or painted
black finishes.
5

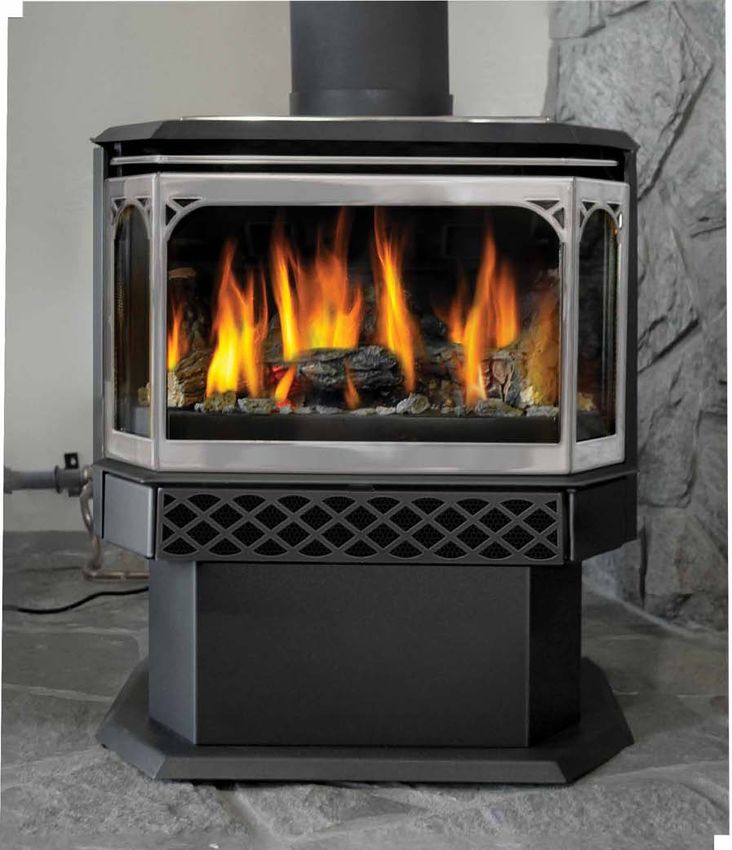

Shown with satin chrome finish door, accent bar and trivet
CDVS280 - Direct Vent *
Medium Size Stove
This stove may be compact in stature, but not in power! If
you have limited space but still desire the beauty, warmth
and conveniences of a gas stove, the CDVS280 is the
answer. Offering a variable heat range up to 30,000 BTU’s,
you control the exact amount of heat needed. The precisely
Decorative door available in painted Decorative inset adds a
engineered burner system produces a unique, patented
metallic black, 24 Karat gold plated designer’s touch.
YELLOW DANCING FLAME which fills your room with a
®
or satin chrome finishes.
warm, inviting glow. This extraordinary, small stove delivers
great peace of mind.
*Natural vent adaptor available.
6

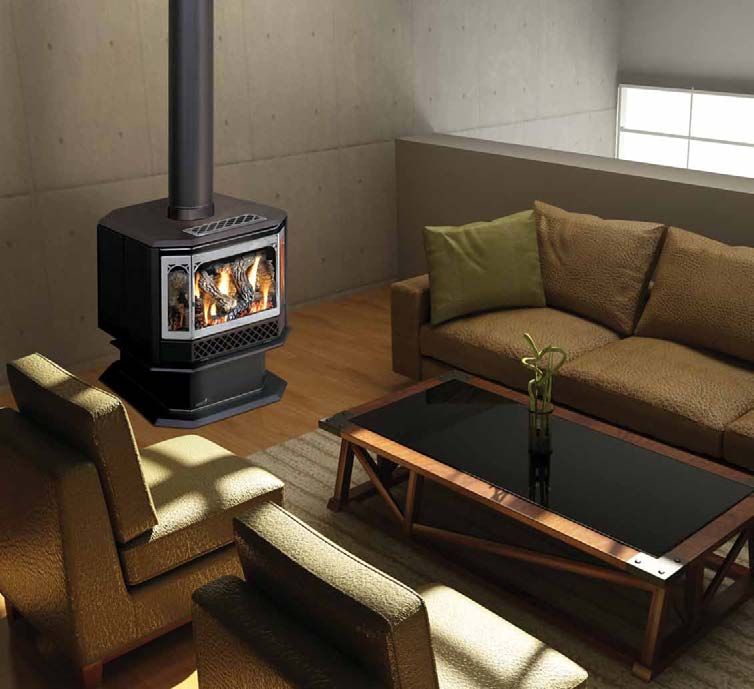

Shown with satin chrome door, trivet and accent bars.
CDVS500 - Direct Vent *
Large Size Stove at 86% Efficiency!
The CDVS500 offers a three burner system - the third
tube burner “boosts” the heating power like no other stove
in the industry. It operates independently to supply an
additional 14,000 BTU’s on top of the already impressive
30,000 BTU’s. Create the right amount of heat you need.
Decorative door available in painted Painted black metallic decorative
Safe, clean burning and high efficiencies make this stove a
metallic black, 24 Karat gold plated trivet comes standard.
or satin chrome finishes. valuable addition to your home.
*Natural vent adaptor available.
7
CDVS600-1 - Direct Vent *
Extreme Comfort and Style
Here is the perfect blend of a traditional design and advanced
gas performance. The customized designer finishes available
for the CDVS600-1 allows you to express your style and
capture a look of elegance while at the same time, provide
a comfortable 21,000 BTU’s to a hearth warming 35,000
BTU’s. Direct vent converts easily from top to rear vent. Elegant fine cast iron detailing. Decorative cast iron trivets available
in satin chrome or painted black.
*
Natural vent adapter available.
Also available in vent free model** (CVFS600-1).
**Vent free units are not approved in Canada and some States.
8
Inn
ova
tive
Hea
rth
Sol
u tion
s
4
Gas Insert Technology
3
Natural Vent System
1 Double steel wall construction on 5 sides for optimum heat
retention and efficiency
5
2 Glowing PHAZER® logs for a realistic wood burning look
3 Dilution hood helps eliminate down drafts
4 Gas flue outlet exhausts combusted air
6 5 Heated room air out through efficient blower system
7 6 Radiant heat flows into the room even when the blower is not on
for maximum efficiency
2
7 High heat ceramic glass for ultimate safety and heat transfer
8 Cool room air in
1b
9 Dual level stainless steel burner for years of trouble free use and
9 your peace of mind
1a 10
10 Variable speed fan provides maximum comfort & efficiency to help
8 circulate room air
Fresh air Direct Vent
intake
Exhausted
combustion air
Direct vent technology draws outside air for
combustion into the firebox chamber then Measuring
exhausts through a separate vent. Both vents are
installed into your existing chimney. for your insert
This will determine which gas insert
is right for your fireplace opening.
No Comparison!
Replace Your Drafty, Inefficient Fireplace with a Continental Gas Insert
®
4 4
Installed into an existing Installed into an existing
masonry fireplace 0” clearance fireplace
3 3
2 2
1 1
9
CDI-30 & CDI-30G CBI360 CDIZC
Features & Benefits Features & Benefits Features & Benefits
• 324 sq. in. viewing area • 350 sq. in. viewing area • 400 sq. in. viewing area
• Comes standard with exclusive CRYSTALINE™ ember bed and four • No electricity required to light or operate - millivolt system ensures • No electricity required to light or operate - millivolt system
CRYSTALITES™ (lights that enhance the crystals from below) (CDI30G) reliable use even during power failures ensures reliable use even during power failures
• Comes standard with Porcelain Reflective Radiant Panels that echo • Double flame stainless steel burner • Exclusive PHAZER® log set with traditional glowing charcoal embers
flames throughout the firebox (CDI30G) • Exclusive PHAZER® log set with traditional glowing charcoal embers • 85% steady state maximum efficiency
• Fuel saving electronic ignition with battery back up • 76% steady state maximum efficiency • Heat circulating blower system with variable speed control and
• Contemporary four-sided bevelled trim available in painted black, • Heat circulating blower system with variable speed control and thermostatic on/off switch comes standard
brown or pewter thermostatic on/off switch comes standard • 100% SAFE GUARD™ automatic gas shut off for your peace of mind
• Exclusive PHAZER® logs with glowing embers (CDI30) • 100% SAFE GUARD™ automatic gas shut off for your peace of mind • Heat radiating ceramic glass window provides clear view of the fire
• Optional remote with digital read out and thermostatic control (CDI30) • Heat radiating ceramic glass door provides clear view of the fire • Multi-flame pan burner creates YELLOW DANCING FLAME® pattern
• No electricity required to light or operate - millivolt system ensures • YELLOW DANCING FLAME® pattern fills the firebox with • Three or four-sided aluminum extrusion trim kit available in
reliable use even during power failures (CDI30) realistic flames anodized textured satin black or anodized polished black
• 100% SAFE GUARD™ automatic gas shut off for your peace of mind • Optional decorative accessories available to transform your fireplace • Three or four-sided backer plates
• Hinged, heat radiating ceramic glass door insert to the exact design you need • Optional remote with digital read out and thermostatic control
• Impressive 85% efficiency • Optional bevelled flashing in a painted black finish with accent • Optional decorative accessories available to transform your unit to
• Heat circulating blower with variable speed control and thermodisc trim available the exact design you need
on/off switch • Painted black riser box available to raise the unit to accommodate • Bedroom, bathroom, bed sitting room and mobile home approved
• Optional decorative accessories available to transform your fireplace fireplace opening dimensions • President’s Limited Lifetime Warranty
insert to the exact design you need • Optional remote with digital read out and thermostatic control
• Painted black riser box available to raise the unit to accommodate • Bedroom and bed sitting room approved
fireplace opening dimensions • President’s Limited Lifetime Warranty
• Bedroom, bathroom, bed sitting room and mobile home approved
• President’s Limited Lifetime Warranty
CDI30 CDI30G CBI360 CDIZC
BTU’s (Input) 24,500 24,500 BTU’s (Input) 24,000 BTU’s (Input) 24,000
Top Top Top Top
Venting* Venting Venting*
3” & 3” 3” & 3” B-Vent 3” & 3”
Glass Type Ceramic Ceramic Glass Type Ceramic Glass Type Ceramic
Glass Size Glass Size Glass Size
Height 14” 14” Height 11 3/4” Height 16”
Width 28 1/2” 28 1/2” Width 29 3/4” Width 28 1/2”
Efficiencies Efficiencies Efficiencies
EnerGuide 64.5% 64.5% EnerGuide 57.5% EnerGuide 65.5%
AFUE (max) 82% 82% AFUE - AFUE 79%
Steady State 85% 85% Steady State 76% Steady State 85%
Dimensions (Height x Front Width x Depth) Height x Front Width x Depth Height x Front Width x Depth
Minimum Opening 21 3/4” x 28” x 18” 21 3/4” x 28” x 18” Minimum Opening 17 1/2” x 25 1/2” x 16 1/2” Minimum Opening 14 1/2” x 25” x 11”
Mobile Home Certified Yes Yes Mobile Home Certified No Mobile Home Certified Yes
* 2” optional liner for intake air * 2” optional liner for intake air
3" ø collars 3” Ø COLLARS
A C
B B
D
B
D
Rating Plate Location 3" ø collars E F A
E A
G F
F G
J H
J
K I
C
O C
G J L M E
K D
M H K N
O
Rating Plate HLocation N
L
I (Gas Supply)
I M L
A B C D E F G H I J K L M N O A B C D E F G H I J K L M A B C D E F G H I J K L M N O
CDI30 23 1/8” 21 3/4” - - 27 1/4” 19 5/8” 11 1/8” 30 1/16” - 13 3/4” 17 7/8” 18 3/4” 1 3/8” 5 1/4” 13 3/4” CBI360 43” 27 1/2” 17 1/4” 13” 7” 3” 4 3/4” 2 1/2” 3” 18 1/2” 16 3/4” 25” 30” CDIZC 44 7/8” 27” 20 3/4” 14” 15 1/2” 25” 15 1/2” 11 5/8” 7 3/8” 3” DIA. 5 1/2” 36” 10 9/16” 15 1/2” 4 15/16”
CDI30G - - 25 1/8” 15 1/8” 27 7/2” 19 5/8” 11 1/8” 30 1/16” 42” 13 3/4” 17 7/8” 20 3/8” 1 3/8” 7 1/4” 13 3/4”
Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house and geographical location. Consult your owner’s manual for complete and up-to-date installation instructions and proper clearances to combustible materials.
10CDVS280 CDVS500 CDVS600-1
Features & Benefits Features & Benefits Features & Benefits
• 250 sq. in. viewing area • 360 sq. in. viewing area • 330 sq. in. viewing area
• No electricity required to light or operate - millivolt system • No electricity required to light or operate - millivolt system • Larger viewing area with it’s new updated design
ensures reliable use even during power failures ensures reliable use even during power failures • Elegant arched front and a sleek, sophisticated outer casting design
• Includes heat activated variable speed blower • Triple “turbo” burner boosts the heating power to increase • ACS (Anti-Condensation Switch) controls pilot usage for cold
• Easy clean hinged door the already impressive 30,000 BTU’s to 44,000 BTU’s climate installations
• Exclusive PHAZER® log set with traditional glowing charcoal embers • Includes heat activated variable speed blower • PHAZER® log set and glowing ember bed produces the most realistic
• Metallic black accent bar, ornamental inset and trivet • Easy clean hinged door wood burning appearance
come standard • Exclusive PHAZER® log set with traditional glowing • Fuel saving electronic ignition with battery back-up and on/off switch
• 85% steady state maximum efficiency charcoal embers • Built-in adjustable flame/heat control for maximum comfort
• Stainless steel flex connector and shut off • Metallic black accent bar, ornamental inset and trivet and efficiency
• 100% SAFE GUARD™ automatic gas shut off for your peace come standard • Available in painted metallic black
of mind • 86% steady state maximum efficiency • Optional convenient hand-held remote control (on/off or thermostatic)
• YELLOW DANCING FLAME® pattern fills the firebox with • Stainless steel flex connector and shut off • Decorative cast iron trivets for rear vent installations (available in
realistic flames • Patented B-Vent adapter kit available painted black or chrome plated)
• Door available in painted black, satin chrome or 24 karat • 100% SAFE GUARD™ automatic gas shut off for your • Optional decorative accessories available to transform your stove to
gold plated finish peace of mind the exact design you need
• Optional decorative accessories available to transform the design • Optional decorative accessories available to transform the • Patented B-Vent adaptor kit
of your stove design of your stove • Optional heat circulating blower kit with variable speed and
• Optional B-vent adapter kit available • Optional remote with digital read out and thermostatic control thermostatic control
• Optional remote with digital read out and thermostatic control • Bedroom, bathroom, bed sitting and mobile home approved • Bedroom, bathroom, bed sitting room and mobile home approved
• Bedroom, bathroom, bed sitting and mobile home approved • President’s Limited Lifetime Warranty • President’s Limited Lifetime Warranty
• President’s Limited Lifetime Warranty
CDVS280 CDVS500 CDVS600-1 CVFS600-1*
BTU’s (Input) 30,000 BTU’s (Input) 44,000 BTU’s (Input) 35,000 30,000
Top Top Top**/ Rear
Venting Venting Venting -
4” & 7” 4” & 7” 4” & 7”
Minimum Clearances to Combustibles Minimum Clearances to Combustibles Minimum Clearances to Combustibles
Corner 1” Corner 1” Corner 2” 2”
Rear 2” Rear 2” Rear 6” 6”
Sides 7” Sides 6” Sides 6” 6”
Glass Type Ceramic Glass Type Ceramic Glass Type Ceramic n/a
Glass Size Glass Size Glass Size
Height 12 3/8” Height 13 7/8” Height 21” n/a
Width 21” Width 25 3/4” Width 19” n/a
Efficiencies Efficiencies Efficiencies
EnerGuide 57.4% EnerGuide 62.4% EnerGuide 63.1%
AFUE 76% AFUE 77% AFUE 72% 99.9%
Steady State 85% Steady State 86% Steady State 78%
Mobile Home Certified Yes Mobile Home Certified Yes Mobile Home Certified Yes Yes
A G
H A G
B I (flue) H
I (flue)
J B
(air intake) J
(air intake)
E F
D D E F C D
C A
C
B I E F
RATING
RATING PLATE
PLATE
LOCATION
LOCATION H G
RATING PLATE
LOCATION
A B C D E F G H I J A B C D E F G H I J A B C D E F G H I
CDVS280 22 1/2” 11 1/4” 26 1/2” 17 3/4” 12” 10 18 1/2” 5 5/8” 4” DIA. 7” DIA. CDVS500 28 1/4” 14 1/8” 30 3/4” 21” 13 3/4” 11” 21 5/8” 8” 4” DIA. 7” DIA. CDVS600-1 31 3/4” 30 1/2” 4” DIA. 7” DIA. - 19 1/2” 27” 17 7/8” 24”
CDVS600-1* - 30 1/2” - - 17 3/4” - 27” 17 7/8” -
*Vent free not approved in Canada and some States. ** B-Vent adaptable. Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house and geographical location. Consult your owner’s manual for complete and up-to-date installation instructions and proper clearances to combustible materials.
11Accessories It’s easy to update the look of your fireplace by simply changing the decorative accessories.
Ornamental Inset Firebox Lining Panel Options
Continental’s decorative ornamental
Firebox panels add a masonry or a contemporary feel to your firebox. Available in painted black or 24 Karat gold plated for CDIZC.
insets add a designer’s touch.
Decorative Porcelain Reflective
Brushed Stainless Arched
Sandstone Radiant Panels
Steel Finish Door Kit
Brick
Painted Black
Finish
Switch out existing logs to a more contemporary Webbed Arched
Louvre Overlays river rock setting. Door Kit
Attach overlays to existing painted
black louvres.
Polished
Brass Finish
Alternate River Rock Kit
Available for CDI30. Door Options
Antique
Available for CDVS280 and CDVS500.
Brass Finish
24 Karat
Stainless
Steel Finish
Deluxe Flashings Gold Plated
Available for CDI30 in 6” or 9”.
Painted
Satin
Black
Chrome
(Included)
Bevelled Flashing Kits Polished Painted Brushed
Painted
Black
Available in 6”. Brass Black Stainless Steel
Textured
Black Accent Bar Options
Available for CDVS280 and CDVS500.
24 Karat Gold Plated
Four-Sided Frame Porcelain Porcelain Antique Porcelain
Satin Chrome
Contemporary surround for CDI30G. Green Almond Brass Black Painted Black
(Standard)
Brown
Finish
Bayfront Extrusion Trim Kits
Pewter Available for CDI30.
Available as three and four-sided kits in painted textured satin black.
Finish
Painted
Black
For an exciting option you can fill your ember bed
Painted with sparkling coloured glass (CDI30G). Three Four
Black Sided Kit Sided Kit
Porcelain Enamel Cast Iron Surround & Door Kit
Majolica Brown Available for CDI30 and CBI360.
Flashing
Porcelain Amber Black Blue Red and door kit.
Enamel Black
Andirons
Designed to simply stand in front of the logs and
give the optimum masonry look and feel. They will
Ornamental Trivets fit directly in a bay window or bay front kit or rest
inside the fire box. Available in painted black. Cast iron surround
Available for the CDVS280 & CDVS500. and door kit.
Chrome Riser Box
Plated
Available in Painted Black Finish.
Remote Controls
Continental’s remotes with digital read out
and thermostatic control give you the comfort
Painted level you need at the touch of a button.
Black
12CDVS600-1
CVFS600-1
CDVS280
CDVS500
CDI30G
CBI360
CDIZC
CDI30
Electronic Ignition S S - - - S S -
Stove Doors
- - - - O O - -
Available in Painted Metallic Black, Satin Chrome or 24 Karat Gold Plated
Louvre Overlays
- - O - - - - -
Available in Polished Brass, Antique Brass, Brushed Stainless Steel or Painted Black Finishes
Bay Front Complete with Pull Screen O - O - - - - -
Bay Louvres
O - O - - - - -
Available in black, painted black, antique brass, brushed stainless steel
Ornamental Insets O - - - - - - -
Contemporary Four-Sided Surround O O• O - - - - -
6” Bevelled Flashing Kit O - - - - - - -
6” Deluxe Flashing O - - - - - - -
9” Deluxe Flashing O - - - - - - -
Cast Iron Surround Kit / Flashing / Door Kit O - O - - - - -
Extrusion Trim Kits - - - O - - - -
Porcelain Reflective Radiant Panels O S O O - - - -
Sandstone Decorative Brick Panels O - O O - - O O
Blower Kit S S S S S S O O
Millivolt Thermostat - S - - S S - -
On/Off Remote Control O O O O O O O O
Thermostatic Remote Control O - O O O O O O
Ornamental Trivet - Black - - - - S S S S
Ornamental Trivet - Satin Chrome Plated - - - - O O O O
Accent Bars
- - - - O O - -
Satin Chrome Plated (Painted Black comes standard)
Andirons
- - - - O O O O
Available in Painted Black
Safety Screen - - - - - - - S
Decorative Door Kits - - - O - - - -
Riser Box
O - O - - - - -
Available in Painted Black
Alternate River Rock Kit O - - - - - - -
Coloured Glass Media Kits
- O - - - - - -
Available in amber, black, blue or red
- = Not Available O= Optional S= Standard
•
Must be purchased to complete unit
Continental gas stoves and inserts are tested to the following standards:
®
Tested as a heater/wall furnace to both ANSI Z21.86, Z21.88 AND CSA 2.32 AND CSA 2.33 - CDVS600, CDVS280, CDVS500, CDIZC
Tested as a heater to ANSI Z21.88 AND CSA 2.33 - CDI30
Tested to ANSI Z21.50 AND CSA 2.22 - CBI360
Tested as a heater to ANSI Z21.11 Volume II, unvented room heater standard - CVFS600
13Quality Promise
All Continental® products are built to the strictest quality standards and only the highest grade materials are used. The
computerized production processes, pride in workmanship and serious commitment to our achieved ISO9001-2008
certification, ensure many years of dependable performance.
Versatile Installation
Install in your home above or below grade, in any room even in bedrooms, bathrooms and kitchens. Inserts can be
installed into existing masonry or prefabricated fireplaces. Direct vent models can be vented up to 20 feet horizontally
through a wall, 40 feet vertically through the roof or below grade with a periscope. For all models we offer the
smallest, architecturally pleasing vent terminal in the industry.
Maximum Efficiency
Our sealed combustion technology in our Direct Vent models uses outside air for combustion eliminating heat loss
and cold drafts associated with conventional fireplaces. All Continental® models are designed to maximize efficiency
levels with special heat retaining components.
Convenience
If all the conveniences of gas inserts and stoves aren’t enough, enjoy full relaxation with Continental’s remote
controls. Available with an easy-to-read backlit digital readout of the room temperature and includes a child proof
safety lock ensuring your peace of mind.
A Reliable Economical Heating Source
Continental® products can save home heating costs by as much as 30% (Zone Heating by heating the rooms you use
most) and provide reliable heat during power failures. No power? No problem! Continental’s built in millivolt system
requires no electricity to light or operate.
Safety Features
100% SAFE GUARD™ gas control system automatically and quickly shuts off the gas supply for your peace of mind.
Heat Transferring Ceramic Glass
Ceramic glass provides an excellent temperature transfer allowing maximum heat to radiate into the room. Some
models use heat resistant tempered glass.
Realistic Ceramic Fibre Logs
Continental’s configuration of realistic logs creates a cozy and natural wood burning atmosphere.
Reliable Burner System & Adjustable Flame
Our advanced YELLOW DANCING FLAME® burner provides maximum heat and flame pattern. For less heat, simply
reduce the input with the built in 50% flame/heat adjustment for maximum comfort and efficiency.
Environmentally Friendly
Clean burning, convenient natural gas or propane provides an environmentally safe energy source - indoors and
outdoors. Continental® products are designed to provide an environmentally friendly energy source.
Other Products Available
Other products available through your authorized Continental® dealer - Waterfall Collection, Patio Heaters, Electric
Fireplaces, Mantels, Outdoor Living Products and Ultra Chef® Grills.
ENERGUIDE - A Canadian efficiency standard based on frequent, short start-up and cool-down cycles. All appliances sold in Canada are subject to this
EnerGuide rating system. AFUE - A US efficiency standard (Department of Energy) based on extended on/off cycles, more typical of fireplace usage. STEADY
STATE - Reflects the highest possible overall heating efficiency. Years of research, design and testing have enhanced optimum performance allowing
Continental products to achieve some of the highest heater rating efficiencies on the market. Our products continuously surpass industry standards not
®
only in appearance but in efficiency and performance.
Consult your owner’s manual for complete installation instructions, accurate framing dimensions and proper clearances to combustible materials. Installations shown may not be accurate to code. Check all local and national building codes and gas regulations.
Products may not be exactly as shown. All specifications are subject to change without prior notice due to on-going product improvements. BTU’s listed in brochure reflect natural gas applications. Continental® is a registered trademark of Wolf Steel Ltd. Patents
Pending. Patent U.S. 5.307.801, 5.303.693, 75054-CAN. 2.073.411, 2.082.915, 74589, 6944982B2 ©Wolf Steel Ltd.
Authorized Dealer
• 103 Miller Drive, Crittenden, Kentucky, USA 41030
• 24 Napoleon Road, Barrie, Ontario, Canada L4M 4Y8
• 7200, Route Transcanadienne, Montréal, PQ, Canada, H4T 1A3
Tel: (705) 721-1212 Fax: (705) 722-6031
ADBRC355- 04/2010
www.continentalfireplaces.comYou can also read
