MARITIME: COMMUNICATION SYSTEMS
ICS 6200
COMMUNICATION
SYSTEM
For maritime and energy applications
■ Suitable for Maritime and Energy Applications
■ Approved according to IEC 60945
■ Compact and robust design
■ VoIP based
■ Adaptable and cost-efficient
in all configurations
■ Dual power supply according to
IMO regulations
■ Easy configuration
ICS 6200 is type approved according to RMRS and DNV:
www.phontech.net
ICS 6200
COMMUNICATION SYSTEM
The digital ICS 6200 Integrated Communi- telephones, Public Address, alarms and combination of analog, digital and IP-based
cation System meets all aspects of internal loudhailing. Its modern architecture allows communication terminals.
/external communications and information network connections including cascading,
exchange onboard maritime vessels, on remote service and interface to/from other Call logging available
offshore installations and to/from onshore IP-based systems and components. Call logging is available via the ICS P-6202
operation centers. Billing Unit, using PIN and extension
Compatible with all registration.
A cost effective solution existing intercom stations
The system’s flexible configuration is The ICS 6200 is compatible with all existing
a cost effective solution for intercoms, intercom stations and offers a unique
OFFICER CABINS / OFFICES CABINS / ACCOMMODATION ENGINE ROOM
P-6210 TELEPHONE, DESKTOP / WALL, UpN, IP22 GIGASET DA-710 P-6211 TELEPHONE, INDUSTRIAL, UpN, IP56
P-7210 TELEPHONE, DESKTOP / WALL, VoIP, IP22 P-7211 TELEPHONE, INDUSTRIAL VoIP, IP56
ENGINE ROOM
HEADSET FOR P-6212 AND P-7212
ADDITIONAL FEATURES:
■ OPTIONAL PA AMPLIFIER P-1671
■ OPTIONAL INTERFACE TO PAGA SYSTEM (E&M)
■ VARIOUS LOUDSPEAKERS INSTRUMENT ROOM BRIDGE / ENGINE CONTROL ROOM
P-6223 TELEPHONE, CONSOLE, UpN, IP22
ICS 6200 SYSTEM CABINET P-7223 TELEPHONE, CONSOLE, VoIP, IP22
ADDITIONAL FEATURES:
■ IP CAMERAS WORKSHOP
■ SIP INTERFACE P-6212 TELEPHONE, INDUSTRIAL,
■ SATCOM INTERFACE WITHOUT HANDSET, UPN, IP56
P-7212 TELEPHONE, INDUSTRIAL, BRIDGE / ENGINE CONTROL ROOM
■ CELL PHONE INTERFACE WITHOUT HANDSET, VOIP, IP56 P-6216 EMERGENCY PA UNIT
Contact us today for more information, www.phontech.net

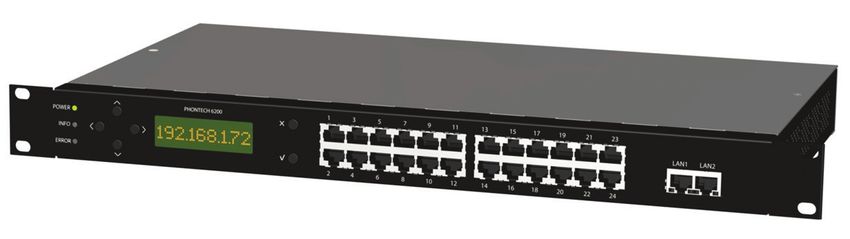

All lines and Ethernet connectors are patched from the front of the unit. There is easy
access to parameters and configuration using the keypad and display on the front of
the unit. Power supply connectors are located at the back of the unit.
HARDWARE
■ Compact 1U 19 inch metal enclosure

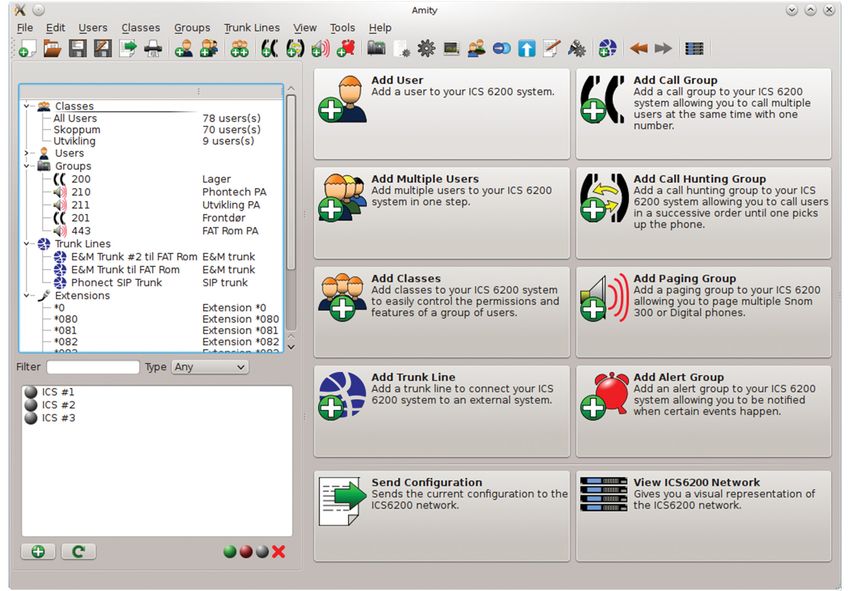

Easy to use and intuitive GUI based software. Configuring call destinations.
■ VoIP, intercom, PA and POTS
interoperability
■ Flexible line card selection
■ Scalable and distributable
■ Modular with standardized interfaces
■ Upgradeable functionality
SOFTWARE ■ Compact enclosure, high line density
possible
■ Automatic discovery of all ICS 6200 units in your system, complete with all ■ Dual power supply
add-on modules ■ Energy efficient
■ Hot swap replacement ■ Fault tolerant interconnection
■ User-friendly interface, including wizards to help first time users perform ■ Quick and easy field replacement
specific tasks and bulk edit operations for experienced users
■ Simple grouping of users in different classes - for instance, Officers and Crew
■ Intuitive access control for resources in the system - for instance, restricting
access to paging groups and resources to Officers only
PHONTECH MARITIME SOLUTIONS
ICS 6200 COMMUNICATION SYSTEM

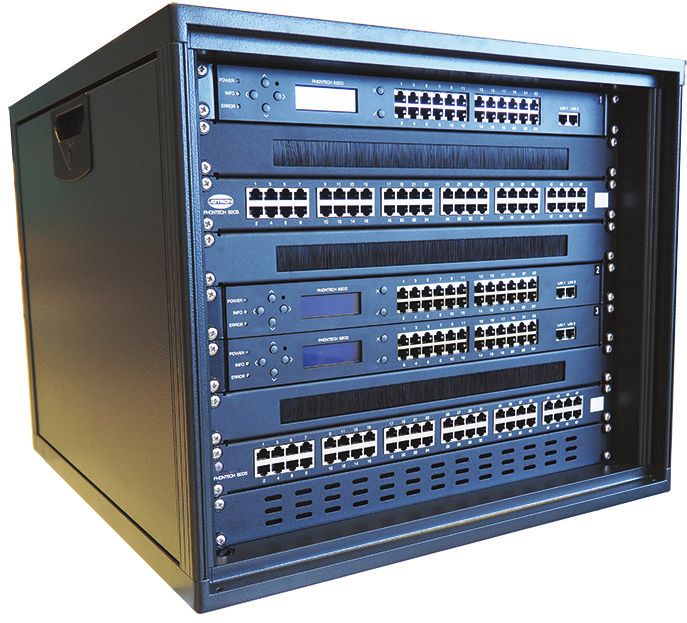

AVAILABLE SIZES
Available cabinet sizes:
■ 9U / 16U / 25U / 34U
Interfaces:
■ VoIP (SIP server/client)
■ Trunk lines (FXO)
■ Analog (FXS)
■ Digital (UpN)
■ E&M 2-wire (PA, UHF, VHF, VF)
Some available telephones / terminals / intercom units:

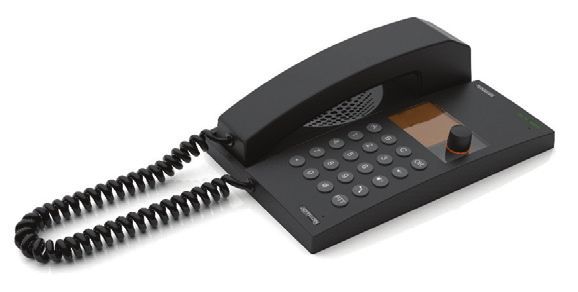

P-6210 Telephone, P-6223 Telephone, console, UpN, IP22 P-6211 Telephone, industrial, UpN, IP56 P-5111 Watertight telephone P-5113/P-5123 Telephone
desktop/wall, UpN, IP22
P-7223 telephone, console, VoIP, IP22 P-7211 Telephone, industrial, VoIP, IP56
P-7210 Telephone,
desktop/wall, VoIP, IP22
CONTACT

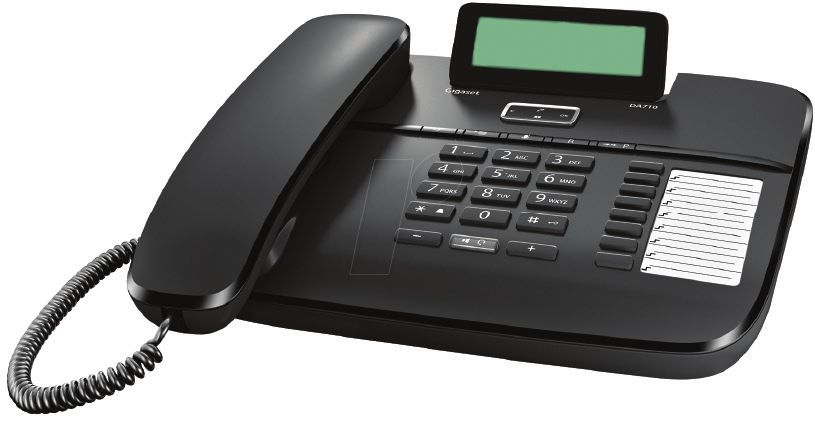

Gigaset DA-710 RESISTEL EX
Based in Horten, Norway, Phontech specializes in Intercom and Public
P-6035 Headset
Telephone Fernsig Address & General Alarm solutions for the global Maritime and Energy
markets, with a worldwide market presence. Phontech was established
in 1987. On November 1, 2018, Zenitel Group acquired the Phontech
business and products from Jotron AS.
P-6212 Telephone, Industrial For all queries, please contact us via these channels:
without handset UpN, IP56
P-7212 Telephone, Industrial
+47 4000 2500 / e-mail: phontech@zenitel.com
P-6216 Emergency PA Unit without handset, VoIP, IP56
A100K119109 8.5.2019 www.phontech.net phontech@zenitel.com
