Invisible 3
Manual 2021
play it smart
Finish All dimensions are given in millimetres.
Galvanised finishes Ito = Length to order
hto = Height to order
cto = Colour to order
L = Length
A = Axis
chrome silk H = Height
T = Depth
Suitable for merchandise supports and structural systems.
Not suitable for large surfaces or for system parts in aluminium.
* on request Quick delivery program
The items in the Manual, which appear with • on the
Anodised finishes for aluminium left-hand side near the part number, indicate the delivery time
up to 10 working days ex works Weil am Rhein. All other items
on request.
Longer delivery times may occur in the event of exceptionally
strong demand.
natural anodised aluminium black anodised aluminium Air freight
Only for aluminium system parts, such as profiles, uprights and frames. Items which are to be dispatched by air must not exceed a
total length of 3 metres.
Powder-coated finishes duro
Drawings of wooden and glass shelves
Production drawings of shelves with the 6 digit part number
are available for download in the product area and in the
download centre at www.visplay.com or can be received on
request.
bright silver duro sterling silver duro
Assembly and operating instructions
Special assembly and operating instructions exist for all
products by Visplay in order to guarantee the functions and
safety. These instructions contain important information e.g.
maximum weight loads, assembly dimensions or information on
black steel duro traffic white duro the correct assembly and use. The respective assembly and
Duro powder-coated surfaces are suitable for all systems, as well as for operating instructions are included in the delivery of our
merchandise supports subject to heavy abrasion. systems. A general catalogue is also available on request for
planning purposes. The assembly and operating instructions
Standard and special colours (powder-coated) are available for download in the product area and in the
download centre at www.visplay.com.
stone grey bright silver mistral
dark bronce forest green
night blue khaki bronce
dolphin grey highland green
champagne gold rose bronce
Suitable for all systems – less so for merchandise supports subject
to abrasion.
ISO 9001 / ISO 14001 Copyright ©
The safety of Visplay products is continuously monitored by external All products by Visplay and their names are protected by intellectual
testing institutes, Intertek Germany and UL (Underwriters Laboratories property rights. This protection is valid for the basic system along with
Inc.). the merchandise supports and accessories.
For electrified systems, the CE marking confirms conformity with the
relevant directives. In the event of infringement, Visplay reserves the right
to take legal steps.
All processes in our company are subject to a comprehensive
management system which corresponds with the ISO 9001 quality • Our general conditions of delivery and sale are valid
standard and the ISO 14001 environment standard. for all orders.
• We reserve the right to make technical and formal
alterations.
Visplay always tries to respect the rights of third parties. Should it not be stated in individual cases, this is an oversight and will be corrected accordingly.Invisible 3 Horizontal 38 1/2021 (EN)
Invisible 3
Horizontal

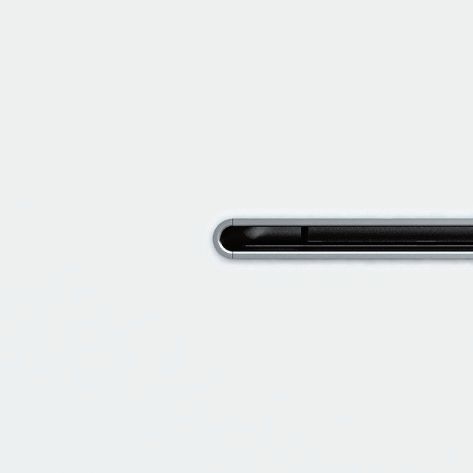

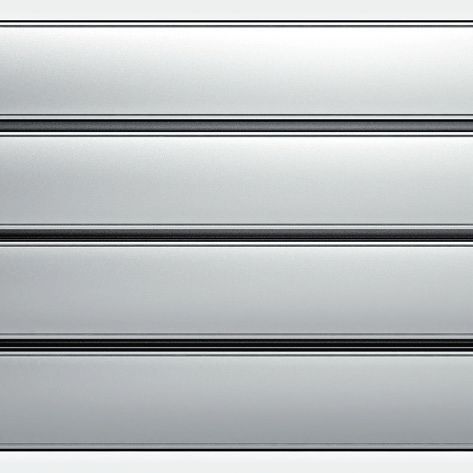

Invisible 3 profile End caps Invisible 3 profile
for wooden panels single-sided
Dimensions
ø 4.5
3100
lto
3100
lto 150
Characteristics
Please observe max. weight loads of Please observe max. weight loads of
merchandise supports. merchandise supports.
Max. weight load = 12 kg per 625 mm Max. weight load = 12 kg per 625 mm
Drawing no. Drawing no.
035-664 Shelf 3 mm 035-664 Shelf 3 mm
Observe the assembly and Observe the assembly and
operating instruction operating instruction
Order number natural anodised aluminium silver natural anodised aluminium
3100 mm 334-768.05 981-363.05 3100 mm 334-770.05
lto 250–3100 mm 334-769.05 lto 250–3100 mm 334-771.05
Set of 2 pcs.
End profile must be ordered
separately.
1/2021 (EN) 39Invisible 3
Horizontal
End profile Front arm, straight Ø 8 mm Front arm, sloping Ø 8 mm Side hanging frame Ø 15 mm
single-sided top
253 ø 15
3100
lto
ø8
ø8
400
ø8
100
200
300
300
Is fitted on Invisible 3 profile (single Max. weight load = 4 kg With 12 pins. Max. weight load = 8 kg
sided).
Max. weight load = 4 kg
Observe the assembly and
operating instruction
natural anodised aluminium chrome chrome chrome
3100 mm 334-772.05 100 mm 397-700.01 397-703.01 108-973.01
lto 250–3100 mm 334-773.05 200 mm 397-701.01 silk silk
300 mm 397-702.01 397-703.30 108-973.30
silk
100 mm 397-700.30
200 mm 397-701.30
300 mm 397-702.30
40 1/2021 (EN)Invisible 3
Horizontal
Hook, straight Ø 6 mm Looped hook Ø 4 mm Eyewear holder Ø 4 mm Clamping bracket
for glass shelf
134
ø6
ø4
70
ø4
100
150 150
200 200
250
165
Max. weight load = 1 kg Max. weight load = 3 kg Max. weight load = 1 kg Max. weight load = 4 kg per bracket
Max. display depth = 235 mm
Drawing no.
289-872 Glass shelf 5 mm
chrome / plastic semi-transparent chrome / plastic semi-transparent chrome / plastic semi-transparent chrome
100 mm 397-744.42 150 mm 397-751.42 395-006.42 340-990.01
150 mm 397-745.42 200 mm 397-752.42 silk
200 mm 397-746.42 340-990.30
250 mm 397-747.42
At least 2 brackets are required per
shelf.
1/2021 (EN) 41Invisible 3
Horizontal
Scliss
100 x
R 20.5
Prevents scratches on hanging rails
and front arms in silk or stainless steel.
To clip into coat hanger hook
(Ø 3.4–3.8 mm).
transparent
929-449.02
Set of 100 pcs.
42 1/2021 (EN)Invisible 3
Horizontal
