LUTENSOL®
SURFACTANTS
PRODUCT GUIDE
SUPERIOR PERFORMANCE WITH SUSTAINABLE INGREDIENTS
LUTENSOL® SURFACTANTS PRODUCT GUIDE 1
Table of Contents ABOUT BASF ������������������������������������������������������������������������������������������������������������� 3 CHEMICAL STRUCTURE AND NOMENCLATURE����������������������������������������������������� 6 LUTENSOL ALCOHOL ETHOXYLATES PRODUCT RANGE NATURAL ALCOHOL BASED������������������������������������������������������������������������������������10 • LUTENSOL® A..N (C1214)��������������������������������������������������������������������������������������������10 • LUTENSOL® LA (C1214) ����������������������������������������������������������������������������������������������10 • LUTENSOL® AT (C16-18)����������������������������������������������������������������������������������������������11 SYNTHETIC BASED • LUTENSOL® CS 6250 (Short chain) ��������������������������������������������������������������������������12 • LUTENSOL® AO (C13C15 OXO)������������������������������������������������������������������������������������13 • LUTENSOL® TDA (C13 OXO) ��������������������������������������������������������������������������������������14 • LUTENSOL® TO (C13 OXO) ����������������������������������������������������������������������������������������15 • LUTENSOL® XP (C10 Guerbet)������������������������������������������������������������������������������������16 • LUTENSOL® XL (C10 Guerbet)������������������������������������������������������������������������������������16 PERFORMANCE��������������������������������������������������������������������������������������������������������17 • CLEANING ��������������������������������������������������������������������������������������������������������������18 • CLOUD POINT����������������������������������������������������������������������������������������������������������18 • HLB��������������������������������������������������������������������������������������������������������������������������19 • SURFACE TENSION��������������������������������������������������������������������������������������������������19 • WETTING ��������������������������������������������������������������������������������������������������������������� 20 • FOAMING ����������������������������������������������������������������������������������������������������������������21 FORMULATION ADVANTAGE • GELLING BEHAVIOR������������������������������������������������������������������������������������������������21 • SOLUBILITY ����������������������������������������������������������������������������������������������������������� 23 • SUSTAINABILITY������������������������������������������������������������������������������������������������������25 PHYSICAL AND PROPERTY TABLE������������������������������������������������������������������������� 26 LOW 1,4-DIOXANE��������������������������������������������������������������������������������������������������� 29
About BASF BASF Home Care and Industrial and Institutional Ingredients (HC I&I) is one of the leading suppliers in the Home Care, Industrial, and Institutional Cleaning industry. We offer a wide range of products, such as chelating agents, polymers, surfactants, optical brighteners, biocides, and enzymes. Our ingredients are welcomed into homes and businesses around the globe because we deliver superior quality combined with an uncompromising commitment to sustainability. This commitment is at the core of what we do, and we have set transparent and verifiable global goals with regard to sustainable development. We offer a diverse portfolio of bio-based, biodegradable and CleanGredients-listed ingredients and are working to ensure that our renewable-based products are made from sustainably sourced raw materials. Not only do we believe that quality and sustainability can coexist, but we take it a step further: We know that sustainability can’t exist without innovation and superior quality. Our products deliver a win-win-win for you, for consumers, and for our collective future. This brochure introduces you to our Lutensol® surfactants product line. In this guide, you can find the unique product characteristics, application areas, and performance advantages. LUTENSOL® SURFACTANTS PRODUCT GUIDE 3
LUTENSOL® NONIONIC SURFACTANTS
What Are Nonionic Surfactants?
Nonionic surfactants are a class of surfactants that do not carry a charge on its hydrophilic
head group.
Examples of nonionic surfactants are alcohol ethoxylates, alkylphenol ethoxylates,
alkyl polyglucosides, and amine oxides. BASF Lutensol® surfactants are all alcohol
ethoxylates and alkoxylates.
Nonionic surfactants
Hydrophobic
Hydrophilic
Alcohol Ethoxylates (AE)
BASF LUTENSOL® SURFACTANTS ADVANTAGES
Low Critical
Excellent Soil
Micelle
Removal
Concentration
Low Skin
Low Foam
Irritation
Low
Sustainable Sensitivity to
Ingredients Water
Hardness
LUTENSOL® SURFACTANTS PRODUCT GUIDE 4
BASF Lutensol® Surfactants vs. Stantard
Ethoxylates and NPE
The Lutensol surfactants include both Superwetting character
synthetic and naturally-derived alcohols. Physical Lutensol® Commercial
These products are suitable for a variety Property XP90 NP-9
of applications. Compared to Standard Actives, wt% 100 100
Ethoxylates and NPE, our BASF Lutensol® Degree of
9 9
surfactants have various performance Ethoxylation
advantages such as fast wetting, Cloud pt, °C 70 54
excellent emulsification, sustainable HLB 14 13
ingredients, and safer choice listed. Our
Foam Height 100/20 105/90
experienced technical team is constantly
innovating to deliver effective solutions Appearance Hazy Liquid Hazy Liquid
to our customers’ needs.
pH 5-8 6
Lutensol® XP and Lutensol® XL exhibit Viscosity, cPs 1200 300
faster wetting
Surface
28 32
Tension
Faster Wetting on Cotton
Faster Wetting on Cotton Proven APE (alkylphenol ethoxylate) and
(En 1772: 23ºC, 1g/l) LAE (linear alcohol ethoxylate) replacement
100
90 Wetting on glass
80 C9-C11 Lutensol® Lutensol®
70 (Sec) + 8 EO XP 80 XL 80
60
0
50
40
30 1
20
10
5
0
2 7 12
EO content in mol
10
Lutensol® XL 40 – 140 Lutensol® XP 30 – 140
C9C11 ethoxylates APEO
60
Contact angle on glass (23°C; 0,5g/I)
Lutensol® XP and Lutensol® XL
Surfactants have faster wetting
performance for hard surface cleaning
LUTENSOL® SURFACTANTS PRODUCT GUIDE 5
Chemical structure and Nomenclature
Lutensol® surfactants are named according to the identity of their hydrophobe and according
to the degree of ethoxylation. The hydrophobe is indicated with a 2 or 3 letter abbreviation
(ex. XP or TDA). Usually the degree of ethoxylation is equal to the number shown in the
product (Lutensol TDA 9 has 9 moles of EO).
In the case of Lutensol XP and Lutensol XL, the degree of ethoxylation is indicated by the first
digit in the name (Lutensol XL 90 has 9 moles EO).
Finally, some products are sold as solutions in water for convenient product handling.
Products sold as solutions in water will have 2 digits and end in a 9 (ex. Lutensol XP 89).
R EO
R = 2 propyl heptanol (branched C10)
Product Line Chemistry Natural/Synthetic Properties
C10 Guerbet alcohol • Excellent wetting
Lutensol® XP ethoxylates, Synthetic • Dynamic wetting
3 – 9 moles EO • High CMC
• Top cleaning power
C10 Guerbet alcohol • Excellent soil removal
Lutensol® XL alkoxylates, Synthetic • Streak-free gloss
4 – 10 moles EO • Solubilizes fats/
perfumes
R EO
R = Linear, natural
C1214 fatty alcohol
Lutensol® A...N ethoxylates, 6.5, 9, • Emulsification power
Natural
12 moles EO • Solubility on oil
C1214 fatty alcohol • Wetting
Lutensol® LA Natural • Soil removal
ethoxylates, 7EO
• Emulsifier
LUTENSOL® SURFACTANTS PRODUCT GUIDE 6
Product Line Chemistry Natural/Synthetic Properties
R EO
R = Short chain alcohol
• Good Solubilizer and
Lutensol® CS 6250 Alcohol ethoxylate Synthetic penetrating agent
• Low foam detergency
R EO
R = Linear C16-C18 alcohol
• Moderate detergency
Lutensol® AT C16-18 Ethoxylates, 25 EO Natural • Excellent dispersant
• Poor wetter
R EO
R = C13-C15 Oxo Alcohol (~67% C13, ~33% C15)
C13C15 OXO alcohol
Lutensol® AO Synthetic • Good detergency
ethoxylates, 3, 8 EO
R EO
R = Branched tridecyl alcohol, C13
C13 OXO alcohol • High detergency
Lutensol® TDA Synthetic
ethoxylates, 3 – 12 EO • Excellent emulsifier
R EO
R = lso-C13 alcohol
• Wetting
C13 OXO alcohol • Detergency
Lutensol® TO Synthetic
alkoxylates, 5 – 12, EO • Soil removal
• Emulsifier
LUTENSOL® SURFACTANTS PRODUCT GUIDE 7
Lutensol® Product Line
Branching
In describing alcohols used to make 18 OH
Lutensol® AT R3 R2 R1
surfactants, we make a distinction between 16 Model alcohol
linear and branched alcohols. In a linear
Alcohol chain length
Lutensol® AO
14
alcohol, all the carbons are arranged in a Lutensol® TO
12 Lutensol® A..N
single chain (one primary carbon, with the
Lutensol® TDA
10
remainder being bonded to no more than Lutensol® XP, XL
8
two other carbons). By contrast, branched 0 1 2 3 4
alcohols will have one or more carbons Degree of branching
bonded to three other carbon atoms creating
a “branch” point or non-linear structure.
Property Comparison: Branched vs. Linear Alcohol Ethoxylates
Branched alcohol ethoxylates Linear alcohol ethoxylates
• Lower gelling • Usually slightly faster biodegredability
• Lower odor • higher aquatoxic
• Less aquatoxic • Higher foam
• Lower foam
• Better wetting
• More dynamic
• Better emulsifiers
• Improved properties under
cold conditions
LUTENSOL® SURFACTANTS PRODUCT GUIDE 8
Applications
Homecare Fabric care I&I
Home Care/
Manual Automatic Hard Institutional
Product Cleaner Commercial Industrial
Dish Dish Surface Cleaner/ Warewash
Name Wipes Laundry Cleaner
Wash Detergent Cleaner Sanitizer
Detergent
Lutensol®
X X
A..N
Lutensol®
X X X
AT
Lutensol®
X X X X
LA
Lutensol®
X X X X
CS 6250
Lutensol®
X X
AO
Lutensol®
X X X X X
TDA
Lutensol®
X X X X X
TO
Lutensol®
X X X X X
XP
Lutensol®
X X X X X
XL
Note: more detailed information on the product structure and application later in the brochure
LUTENSOL® SURFACTANTS PRODUCT GUIDE 9
NATURAL ALCOHOL BASED
LUTENSOL® A..N LUTENSOL® LA
Lutensol A..N surfactant is a 100% Lutensol LA 60 is a 100% active lauryl
active non-ionic surfactant composed of alcohol ethoxylate
ethylene oxide adduct of a linear lauryl
myristyl alcohol.
Product Characteristics Product Characteristics
• Excellent detergency • Excellent detergency
• High wetting power • Excellent wetting power
• Moderate foamer • Moderate foamer
• Readily biodegradable • Highly compatible with other nonionic,
cationic and anionic surfactants
• Readily biodegradable
Applications Applications
• Light-duty and heavy-duty laundry • Light duty liquids
powders and liquids • Heavy duty laundry powders and liquids
• Industrial and household cleaners • Industrial and household cleaners
LUTENSOL® SURFACTANTS PRODUCT GUIDE 10LUTENSOL® AT
Lutensol AT surfactants are made from linear C16C18 fatty alcohol with 11, 18, 25, 50 or 80
moles of EO.
Product Characteristics Applications
• Moderate detergency Carrier/Binder for solid formulations
• Excellent dispersant
Performance Advantages
Highly Effective Oil Emulsifiers
Stability of Sunflower Oil Emulsion
Months 2σ Lutensol AT
Weeks
Days
Lutensol A..N, AO
Hours
Minutes
C10 lin EO
6 7 8 9 10 11 12 13 14 15 16 17 18
HLB Value
30% oil, 1% emulsifier, 69% water temperature: 23ºC
LUTENSOL® SURFACTANTS PRODUCT GUIDE 11LUTENSOL® CS 6250
Lutensol CS 6250 is an alcohol ethoxylate
Product Characteristics Application
• Good Solubilizer and • Hard surface cleaning
penetrating agent • Washing
• Act as a co-solvent or • Carpet cleaning
co-surfactant • Open plant cleaning
• Low foam detergency • Floor cleaning and care
Performance Advantages
Solvent Solubilizer
Lutensol® CS6250
VOC Reduction Solubilization of hydrophobic
Ex. IPA replacement Substances
Ex. hydrotropes
Cosurfactant
Rapid Wetting
Stabilization of microemulsions
CS 6250-New component for surfactant formulations
• Can accelerate the Pioneer attack
action of surfactants • Penetrates the soil
• Can replace • Surfactant encounters
VOC-solvents pre-conditioned surface
• Can replace cumene • Surfactant can act
sulfonate immediately
• Shows remarkable
Guerilla attack
wetting synergism
with certain surfactants • Surfactants organized in
smaller units are faster
and more effective at the
interfaces
LUTENSOL® SURFACTANTS PRODUCT GUIDE 12LUTENSOL® AO
The Lutensol AO types are based on C13C15 OXO alcohol that consists of ca. 67%
C13 and ca. 33% C15
Product Characteristics Application
• Good detergency • Detergents
• Laundry applications
Performance Advantages
Strong detergency in laundry
LUTENSOL® SURFACTANTS PRODUCT GUIDE 13LUTENSOL® TDA
Lutensol TDA surfactants are based on a highly branched tridecyl alcohol and are available
with 3, 6, 8, 9, or 10 moles of ethylene oxide.
Product Characteristics Application
• Excellent rapid wetting properties • Textile scouring and dyeing
• Relatively low foaming levels • Industrial and institutional and specialties
• Good detergency • Chemical intermediates for conversion
• Versality as emulsifiers. to anionic phosphate, sulfate and
Disperants and solubilizers carboxylate surfactants
Performance Advantages
Good emulsification and oily soil removal

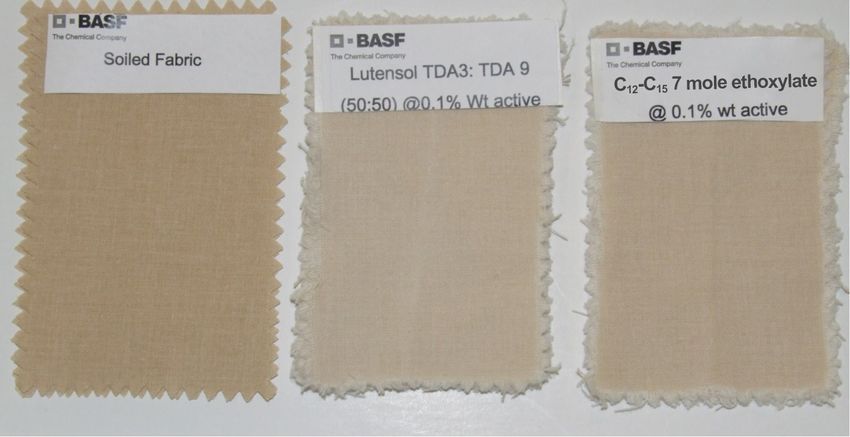

Lutensol® TDA Detergency Study
Conditions: hardness 150ppm, 120ºF, surfactant con. = 0.10wt.%, equal actives,
dirty motor oil
Visual Difference
LUTENSOL® SURFACTANTS PRODUCT GUIDE 14LUTENSOL® TO
Lutensol TO are moderately branched synthetic C13 Ethoxylates (only EO containing)
Product Characteristics Application
• Excellent wetting • Carpet cleaning
• Low foam detergency • Open plant cleaning
• Faster spreading in spray application • Floor cleaning and care
• Effective degreasing power at low
concentrations
• High formulation stability
Performance Advantages
Good emulsification and oily soil removal
Months Lutensol® TO
10% of the droplets coalesced after
Weeks NPEO
Lutensol® XP
Days 30% sunflower oil,
1% emulsifier,
Hours Lutensol® XL 69% water,
Lutensol® A..N, AO storage at 23°C
Minutes
6 7 8 9 10 11 12 13 14 15 16 17 18
HLB Value
Lutensol® TO is better performing as compared to NPE
LUTENSOL® SURFACTANTS PRODUCT GUIDE 15LUTENSOL® XP
Lutensol XP types are alcohol ethoxylates with 3-9 moles of ethylene oxide.
LUTENSOL® XL
Lutensol XL surfactants include a small amount of propylene oxide to create a slightly
extended hydrophobe for improved wetting and emulsification properties. Lutensol XL
surfactants have 4-10 moles of ethylene oxide.
Product Characteristics Application
• Superior cleaning benefits • Industrial & Institutional Cleaning
• Listed on Safer Choice • Home Care
• Quicker manufacturing process due to • Formulation Technologies
low gelling vs. standard ethoxylates
Performance Advantages
Faster Wetting
100 Contact Angle Measurements on
90 Lime Soap Soil @ 0.2wt%
80 65 Active Conc.
70 60
Wetting Time in Seconds
60 55
Theta (degrees)
50 50
40 45
30 40
20
35
10
30
0 0 5 10 15 20 25 30 35 40 45 50
2 7 12 Seconds
EO Content in mol
Iconol NP10 Lutensol® XP70
Lutensol® XL 40 – 140 Lutensol® XP 30 – 140
C9C11 ethoxylates APEO Lutensol® XL80 Tomadol 91 – 8
LUTENSOL® SURFACTANTS PRODUCT GUIDE 16Low Foaming Reduced Odor
Lutensol® XL products have further
Schlag Foam Test
reduced odor than C9C11 ethoxilates
600
500
from lower residual alcohol content
Foam Volume in ml
400 25
300
20
200
100
15
Residual Alcohol in %
Relative Odor Level
0
2 4 6 8 10 12 14 16
10
EO Content in mol
Lutensol XL 40 – 140
® C9C11 ethoxylates
5
Lutensol® XP 30 – 140 APEO
(EN 12728, 2 g/l; 40°C)
0
2 7 12
EO Content in mols
Lutensol® XL Lutensol® XP C9C11 ethoxylates
Improvement in Spraying Process
Reduced droplet size
due to higher dynamics
Small droplets are formed directly behind the nozzle
Large Surface
Standard surfactant Dynamic Surfactant
Droplet Coalescence Stable Droplets
Irregular spray result Regular spray result
LUTENSOL® SURFACTANTS PRODUCT GUIDE 17Performance Advantage
enough to disrupt the weak hydrogen bonds
CLEANING resulting in insolubility. Nonionic surfactants
with higher degrees of ethoxylation and
Cleaning, by definition, is removal of soils
shorter alkyl chains will have relatively
or stains from a surface. This could include
higher cloud points.
lifting a stain from a soft fabric surface to
scrubbing scale from a hard surface in • Cleaning power tends to be better near
the bathroom. the cloud point temperature;
CP – 5°CHLB SURFACE TENSION
The Hydrophilic-lipophilic balance of a Surface tension is a phenomenon in which
surfactant is a measure of the degree to the surface of a liquid, where the liquid is
which it is hydrophilic or lipophilic, determined in contact with gas, acts like a thin elastic
by calculating values for the different regions sheet. This term is typically used only when
of the molecule, as described by Griffin. the liquid surface is in contact with gas
(such as the air). If the surface is between
two liquids (such as water and oil), it is
called “interface tension.”
Lipophilic Group
“Fat-Loving Tail” Surface Tension by EO content
Hydrophilic 36
Hydrophilic Group 34
“Water-Loving Head”
32
Surface Tension (mN/m)
30
28
HLB by EO content 26
16
24
15
14 22
13 20
2 4 6 8 10 12
12 Moles EO
HLB
Lutensol® AN Lutensol® XL Poly. (Lutensol® TDA)
11 Lutensol® AO Lutensol® XP Poly. (Lutensol® TO)
Lutensol® AT Poly. (Lutensol® AN) Poly. (Lutensol® XL)
10 Lutensol® TDA Poly. (Lutensol® AO) Poly. (Lutensol® XP)
Lutensol® TO
9
8
(mN/m)
7 70
2 4 6 8 10 12 65
Moles EO 60
55 Critical Micelle Concentration (CMC)
Lutensol® AN Lutensol® XL Poly. (Lutensol® TDA) 50
Lutensol® AO Lutensol® XP Poly. (Lutensol® TO) 45
Lutensol® TDA Poly. (Lutensol® AN) Poly. (Lutensol® XL) 40
Lutensol® TO Poly. (Lutensol® AO) Poly. (Lutensol® XP) 35
30
0.001 0.01 0.1 1.0 c(g/l)
LUTENSOL® SURFACTANTS PRODUCT GUIDE 19CMC by EO content
100
Poor Wetting Excellent Wetting
Principle:
Liquid
80
Young’s Law
Vapour
sv
= sl
+ IV
. COS
Solid sv = interfacial tention solid/vapour (constant)
sl = interfacial tention solid/vapour (influenced by surfactant)
IV = surface tension (influenced by surfactant)
60 Example:
CMC in ppm
2.8 ms 13.9 ms
40
After 2.8 ms: =60 degrees After 13.9 ms: =24 degrees
Lower dynamic (faster) and equilibrium surface tension give super wetting
60
20
Lutensol® TO-5
55
2 4 6 8 10 12 Dynamic Surface Tension (mN/m @ 5Hz)
0 50
Moles EO
Lutensol® AN Poly. (Lutensol® AN) 45
Lutensol AO
®
Poly. (Lutensol AO)
®
40
Lutensol® TDA Poly. (Lutensol® TDA) Lutensol® XP-90
Plurafac® LF901
Lutensol® XL70
35 Lutensol® TDA 8
30
WETTING 25
25.5 26.5 27.5 28.5
Equilibrium Surface Tension (mN/m)
Wetting is closely related to surface tension, Reference Organic
and describes how well a liquid spreads Superwetter
BASF Products C.J. Reader, J.M. Snyder, R.
on a surface. Poor wetting behavior is Reinartz, Y.Dai Proceedings of
the Brazilian Coatings
exhibited by the liquid forming a droplet Manufactures Association, 2017
on the surface, while excellent wetting Contact angle on glass-various AE7 types
the liquid will instead form a single layer (0,2 g/l,40ºC)
50 50
“sheet” on the surface. Wetting is quantified 45 45
40 40
by measuring the contact angle of the 35 35
contact angle in º
liquid-vapor interface on the solid surface. 30 30
25 25
Surfactants typically lower the contact angle 20 20
15 15
leading to more effective wetting. Some 10 10
5 5
dynamic surfactants can facilitate wetting of 0 0
0,1 contact time in s 1 10
a surface very quickly. (comment – need to Water Lutersol® XP 70 Lutersol® ON 70 Lutersol® A 7 N
add picture of illustrating contact angle). Lutersol® XL 70 Lutersol® TO 7 Lutersol® AO 7 NP E7
LUTENSOL® SURFACTANTS PRODUCT GUIDE 20FOAMING
Foam can be defined as a dispersion of
Ross Miles Foam Heights (0.1 wt % @ 122 deg F)
gas bubbles in a liquid and is therefore a
180
colloidally dispersed system. 160
140
Foam Height (mm)
Foam profiles for XP and XL surfactants are 120
100
lower than linear alcohol ethoxylates. 80
60
The foam for XP and XL surfactants breaks 40
20
faster than ethoxylates based on natural 0
XP-80 XL-80 XP-100 91-6 91-8
alcohols including C9-11 ethoxylates.
Initial Foam Height 5 minutes
Foam profiles for XP and XL surfactants
are lower than NPE’s if the cloud point is
matched (NP-9 and above).
GELLING BEHAVIOR
Lutensol® AO Lutensol® TO
11
12
89
65
O
8
3
7
8
O
5
% Water A % Water
O
AO
AO
TO
TO
TO
TO
A
T
10 10
20 20
30 30
40 40
50 50
60 60
70 70
80 80
90 90
Lutensol® TDA Lutensol® A..N
8 9 N
10
TDO )
DA DA
3
(9 8
2
6
0%
A1
65
A
A
A
% Water % Water A
TD
TD
TD
T
T
10 10
20 20
30 30
40 40
50 50
60 60
70 70
80 80
90 90
Lutensol® XL Lutensol® XP
LUTENSOL® SURFACTANTS
0 PRODUCT GUIDE0 0 0 21
0
0
L4
7102
8102
50
80
90
10
30
40
0
70
50
L P P
6
L6
9
1
% Water X X % Water X X
TPO
TLO
P
XP
XP
XP
XP
XL
XL
XL
X
X
X
X50 50 50
60 60 80 60
70 70 70
90
80 80 80
90 90 90
Lutensol®® A..N
XL Lutensol® XP Lutensol® XP
N 0 0 0
40
0
7102
8102
90 5 0
80
90
XP 0
0
0
70
0
0 % Water
0
5
AL L
% Water 0 P P
X 6
1
3
8X0P 4
L6
9
1
5
O0
X6
0
X X X X
TLO
X P
XP
XP
1T0P
XP
XL
3X0L
7102
XL
8102
50
40
X
X
X
P P
6
9
1
X % Water X X
TPO
TLO
P
XP
XP
XP
XL
XL
10
10 10
20
20 20
30
30 10 30
40
40 20 40
50
50 50
60
60
30 60
70
70 40 70
80
80 80
50
90
90 90
60
70 Viscosity
80 10-100
Lutensol® XP 90 100-1000
0 0 1000-10000
0
0
7102
50
80
90
10
30
40
P P
6
% Water X X 10000-100000
TPO
P
XP
XP
XP
XP
X
X
>100000
10 Viscosity
20
10-100
30
40 100-1000
50
1000-10000
60
70 10000-100000
80
>100000
90
Viscosity
10-100
100-1000
1000-10000
10000-100000
>100000
LUTENSOL® SURFACTANTS PRODUCT GUIDE 22SOLUBILITY
Potable
Caustic Hydrochloric Aromatic
Distilled water (ca Salt Mineral
Product Name soda acid Alcohols hydro
Water 2.7 mmol solution oils
(5% w/w) (5% w/w) carbons
Ca2+ ions/I)
Lutensol® AO 3 - - - - - + + +
Lutensol® AO 7 +/± +/± ± + ± +/± + +/±
Lutensol® AO 8 + + - + + ± + +/±
Lutensol® AO 11 + + - + + +/± + +/±
Lutensol® AT 25 Pwd. + + - + + - + +
Lutensol® AT 80 Flake + + - + + - + +
Lutensol® CS 6250 + + + + + + + +
Lutensol® TDA 3 - - - - - + + +
Lutensol® TDA 6 +/- +/- • +/- +/- +/- + +
Lutensol® TDA 8 + + - + + - + +
Lutensol® TDA 9 + + + + + - + +
Lutensol® TDA 10 + + + + + - + +
Lutensol® TO 12 + + + + + - + -
Lutensol® TO 5 - - - - - + + +
Lutensol® TO 6 - - - - - + + +
Lutensol® TO 65 - - - - - + + +
Lutensol® TO 8 + + - + + ± + -
+ Clear solution
± Sparingly soluble
- Insoluble (Phase separation)
• Forms an opaque soluble, homogeneous emulsion
LUTENSOL® SURFACTANTS PRODUCT GUIDE 23Potable
Caustic Hydrochloric Salt Ethanol Aromatic
Distilled water (ca Solvent
Product Name soda acid solution Isopropo- hydro
Water 2.7 mmol naptha
(5% w/w) (5% w/w) (5%) anol carbons
Ca2+ ions/I)
Lutensol® XL 40 - - - - - + + +
Lutensol® XL 50 • • - - • + + +
Lutensol® XL 70 + + • + - + + +
Lutensol® XL 80 + + - + + ± + +
Lutensol® XL 90 + + + + + ± + +
Lutensol® XL 100 + + + + + - + +
Lutensol® XP 30 - - - - - ± + +
Lutensol® XP 40 - - - • - ± + +
Lutensol® XP 50 • • - • • ± + +
Lutensol® XP 70 + + • + - ± + +
Lutensol® XP 80 + + - + + ± + +
Lutensol® XP 90 + + • + + ± + +
+ Clear solution
± Sparingly soluble
- Insoluble (Phase separation)
• Forms an opaque soluble, homogeneous emulsion
LUTENSOL® SURFACTANTS PRODUCT GUIDE 24Sustainability
We believe that a world with more efficient and safer chemicals is a better world for all.
Our commitment to the industry, to society and to the environment has been translated into
initiatives like developing Safer Choice, biodegradable, and biobased product portfolio.
We are constantly adding sustainable ingredients to the Lutensol portfolio. So consider this
list as a starting guide!
DEFINITIONS EPA Inert Ingredients permitted
for use:
Safer Choice – Ingredients that meet
†
Nonfood use – Nonfood use ingredients
requirements created by the United States
are solely for use in pesticide products
Environmental Protection Agency (EPA)
applied to nonfood use sites, such as
based on performance, packaging, pH,
nonfood handling establishments, nonfood
and VOCs. All chemicals that pass this
industrial applications, bathroom cleaning,
investigation are listed on CleanGredients.
etc. Food use is not permitted.
Biobased – Ingredients are considered
‡
Food and Nonfood use – The only inert
biobased if they have biologically-based
ingredients approved for use in pesticide
carbon molecules. Percentages of biobased
products applied to food are those
carbon are approximate.
that have either tolerances or tolerance
Biodegradable – Ingredients are exemptions in the Code of Federal
considered biodegradable it they can Regulations (CFR), 40 CFR part 180
naturally decay at a certain ratio. There are (the majority are found in sections
five categories of biodegradability. 180.910–960), or where no residues are
• RB: Readily Biodegradable by OECD found in food. Food use sites may include
criteria (≥60% in 10-day window) food contact surfaces in public eating
• UB: Readily Biodegradable places, dairy-process equipment, and
(≥60% in 28 days) food-processing equipment and utensils.
• MB: Moderately Biodegradable Restrictions and limitations may vary.
(>20-60% in 28 days) Please consult your BASF representative
for further information on suitable BASF
• PB: Poorly Biodegradable
inert ingredients for your pesticide
(≤20% in 28 days)
products.
Determination of BASF product EPA Inert
status is either provided directly from EPA
Inerts or by BASF self-assessment.
LUTENSOL® SURFACTANTS PRODUCT GUIDE 25Physical and Property Table
Lutensol® AN
Surface
PH,(“EN Density Viscosity
Foam Height Hydroxyl tension,
Physical Molecular Active Degree of 1262, Color, g/cm3 (EN Cloud pt, ˚C
Product Water, [mm] Ross No., (DIN mN/m HLB CMC
form weight content, ethoxylation solution Pt-Co (DIN 12092, 23˚ (EN 1890,
Name %w Miles 53240) mg (EN NO. (ppm)
(23˚ C) (g/moI) %w (approx.) B, ““5% (APHA) 51757, C, Brook Method E)
(0.1% wt) KOH/g 14370,
in water 23˚ C) field,6
1g/I)
Lutensol®
A 65 N‡ Liquid 500 100 0 7 6 to 7 50 max 118 113 0.98 150 117 28.8 48-52 12 3.989
Lutensol®
A 9 N‡ Waxy 35.9
554 100 0 9 5-8.0 50 max 108 108 0.98 99 30.9 72-82 12.9 8.100
Solid (37.8˚C
Lutensol®
A 12 N‡ Waxy 1.007
698 100 0 12 5.5-6.5 49 (37.8˚C) 79.7 34.7 65-71 14.3
Solid (37.8˚C)
Lutensol® AO
PH,(“EN Density
Viscosity Hydroxyl Surface Cloud pt,
Physical Molecular Active Degree of 1262, Foam Height g/cm3
Product Water, (EN 12092, No., (DIN tension, ˚C (EN HLB CMC
form weight content, ethoxylation solution [mm] Ross Miles (DIN
Name %w 23˚ C, 53240) mg mN/m (EN 1890, NO. (ppm)
(23˚ C) (g/moI) %w (approx.) B, ““5% in (0.1% wt) 51757,23˚
Brookfield,6 KOH/g 14370,1g/I) Method E)
water C)
Lutensol®
Liquid 340 100 0 3 7 13.5 13.5 0.92 60 165 28 45 8
AO 3‡
Lutensol®
Liquid 520 100 0 7 7 101 101 0.98 800 110 28 75 12 11.292
AO 7‡
Lutensol®
Solid 560 100 0 8 7 102 98 0.99 30 (60˚C) 100 28 79 12.5 14.048
AO 8
Lutensol®
Solid 690 100 0 11 7 115.00 106.50 1.02 30 (60˚C) 80 31 87 14 31.585
AO 11‡
Lutensol® AT, CS 6250, LA
PH,(“EN Density Cloud pt,
Foam Height Viscosity Hydroxyl Surface
Physical Molecular Active Degree of 1262, g/cm3 ˚C (EN
Product Water, [mm] Ross (EN 12092, No., (DIN tension, HLB CMC
form weight content, ethoxylation solution (DIN 1890,
Name %w Miles 23˚ C, 53240) mg mN/m (EN NO. (ppm)
(23˚ C) (g/moI) %w (approx.) B, ““5% in 51757,23˚ Method
(0.1% wt) Brookfield,6 KOH/g 14370,1g/I)
water C) E)
Lutensol®
AT 25 FI.‡ 1.02
Solid 1360 100 0 25 7 83 63 70 (60˚C) 40 45 95 16 49.019
(60˚C)
Lutensol
®
AT 25 Pwd.‡ Solid 1.02
1360 100 0 25 7 83 63 70 (60˚C) 40 45 95 16 49.019
(60˚C)
Lutensol® 1.04
Solid 3780 100 0 80 7 62.5 40 300 (60˚C) 14 50 >100 18.5 281.606
AT 80 Pwd. (60˚C)
Lutensol®
CS 6250‡ Liquid 100 0 7 11.00 0.00 1.00 20 48 82 16183.13
Lutensol®
LA 60‡ Liquid 100 0 6 6-7.5 117 116 0.98 150 104-112 29.2 58-62 27.623
LUTENSOL® SURFACTANTS PRODUCT GUIDE 26Lutensol® TDA
PH,(“EN Hydroxyl Cloud pt,
Foam Height Viscosity Surface
Physical Molecular Active Degree of 1262, Color, No., (DIN ˚C (EN
Product Water, Sp.Gravity [mm] Ross (EN 12092, tension, HLB CMC
form weight content, ethoxylation solution Pt-Co 53240) 1890,
Name %w @ 25˚C Miles 23˚ C, mN/m (EN NO. (ppm)
(23˚ C) (g/moI) %w (approx.) B, ““5% in (APHA) mg Method
(0.1% wt) Brookfield,6 14370,1g/I)
water KOH/g E)
Lutensol®
TDA 3‡ Liquid 325 100 0 3 6-7.5 70 max 0.95 11.5 0 90 28Lutensol® XP, XL
Density
Foam Viscosity Hydroxyl Surface Cloud pt,
Physical Molecular Active Degree of g/cm3 Flash pt.
Product Water, Height [mm] (EN 12092, No., (DIN tension, ˚C (EN HLB CMC
form weight content, ethoxylation (DIN ˚ C (ISO
Name %w Ross Miles 23˚ C, 53240) mg mN/m (EN 1890, NO. (ppm)
(23˚ C) (g/moI) %w (approx.) 51757, 2592)
(0.1% wt) Brookfield,6 KOH/g 14370,1g/I) Method E)
23˚ C)
Lutensol®
Liquid 100 0 4 20 5 0.95 40 150 26 >140 46 10.5
XL 40‡
Lutensol®
XL 70‡ Liquid 100 0 7 105 15 0.99 70 100 27 >180 71 12.5 274.816
Lutensol®
XL 79‡ Liquid 85 15 7 105 15 1.01 120 100 27 >180 71 12.5
Lutensol®
Liquid 100 0 8 105 15 1.00 120 95 27 >180 74 13 359.878
XL 80‡
Lutensol®
XL 90‡ Liquid 100 0 9 111 20 1.02 400 90 27 >180 77 14 307.975
Lutensol®
Liquid/
XL 100‡ 100 0 10 120 35 0.99 (60˚C) 30 (60˚C) 75 28 >190 80 15 412.501
Paste
Lutensol®
XP 30‡ Liquid 100 0 3 0 0 0.95 25 195 27 >110 31 9
Lutensol®
XP 40‡ Liquid 100 0 4 10 0 0.96 90 170 27 >120 44 10.5
Lutensol®
XP 50‡ Liquid 100 0 5 20 0 0.97 90 150 26 >130 56 11.5
Lutensol®
XP 70‡ Liquid 100 0 7 80 5 0.99 290 125 26 >140 68 13 565.845
Lutensol®
XP 79‡ Liquid 85 15 7 80 5 1.01 90 125 26 >140 68 13
Lutensol®
XP 80∆‡ Liquid 100 0 8 60 5 0.98 290 110 27 >140 74 14 1081.856
Lutensol®
XP 89∆‡ Liquid 85 15 8 60 5 1.02 90 110 27 >140 74 14
Lutensol®
XP 90∆‡ Liquid 100 0 9 95 10 0.99 (60˚C) 1200 110 28 >150 76 14.5 1345.321
LUTENSOL® SURFACTANTS PRODUCT GUIDE 28FLEX
1,4-dioxane formation O
H2C CH2
OH
RO
O
O
OH
RO + H2C CH2
O
Ethoxylated product, 3 moles of EO Ethoxylated product, 1 moles of EO 1,4- Dioxane
• Unintended side reaction, known as “intramolecular chain transfer” or “backbiting”.
• Two moles of EO are eliminated to form 1,4-Dioxane
• More moles of EO result in greater amounts of 1,4-Dioxane
(backbiting can happen more than once!)
BASF launches first of many Flex products formulation Flexbility
New alternatives to existing products offer guaranteed low 1,4-Dioxane levels, certified at
batch level on every COA
1,4-Dioxane current 1,4-Dioxane FLEX
Market Product Name
specification limit (ppm) specification limit (ppm)
Pluriol® E 8000 E FLEX Not listed on CoA 1
Pluriol E 600 LS FLEX
®
Not listed on CoA 1
Pluriol® E 400 LS FLEX Not listed on CoA 1
Lutensol® TDA3 FLEX < 25 ppm per Prop 65 Statement 3
Home Care
I&I Lutensol® TDA9 FLEX < 10 ppm per Prop 65 Statement 2
Lutensol® XL 90 FLEX < 20 ppm per Prop 65 Statement 2
Dehypon LS 54 FLEX
®
< 20 ppm per Prop 65 Statement 1
Plurafac® SLF 180 FLEX Not listed on CoA 1
Texapon® N 70 FlexGold N/A 5
Standard
Surfactants Texapon® N 70 FlexSilver N/A 10
More Flex products to be launched soon
Please contact representative for the updated list of FLEX products.
Or view our sustainability product guide for full range of bio-based, bio-degradable, safer choice
certified ingredients list.
LUTENSOL® SURFACTANTS PRODUCT GUIDE 29What's Next?
Reach out to your account manager for more details
Email detergents-cleaners-na@basf.com
Go to hcii.basf.us for our latest innovation and insightsDisclaimer
This document, or any answers or information provided herein by BASF, does not
constitute a legally binding obligation of BASF. while the descriptions, designs, data and
information contained herein are presented in good faith and believed to be accurate,
it is provided for your guidance only. Because many factors may affect processing or
application/use we recommend that you make tests to determine the suitability of a
product for your particular purpose prior to use. It does not relieve our customers from
the obligation to perform a full inspection of the products upon delivery or any other
obligation.
No warranties of any kind, either express or implied, including warranties of
merchantability or fitness for a particular purpose, re made regarding products described
or designs, data or information set forth, or that the products, designs, data or information
may be used without infringing the intellectual property rights of others. In no case shall
the descriptions, information, data or designs provided be considered a part of our terms
and conditions of sale.
Safety
We know of no ill effects that could have resulted from using our products for the purpose
for which they are intended and from processing them in accordance with current
practice. According to the experience we have gained up to now and other information
at our disposal, our products do not exert any harmful effects on health, provided that
they are used properly, due attention is given to the precautions necessary for handling
chemicals, and the information and advice given in our safety data sheet are observed.
Labeling
Details about the classification and labeling of our products and further advice on safe
handling are contained in the current safety data sheets.
®
= Registered Trademark of BASF in many countries
TM = Trademark of BASF
BASF CORPORATION
07932 Florham Park, NJ
USA
Phone : 1 973 245 6000
Fax : 1 973 245 6002You can also read
