MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
MOBILE FUEL
SYSTEMS 2019
 RIETBERG CONTAINERS
 Collection . Storage . Transportation

                            SEPPELER – WE MAKE IT WORK.
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
CONTINUITY DURING
                      TRANSITIOND EL

Everything began in Rietberg with rolling tyre drums around 100
years ago. Today, in 2019, we can provide our customers with a
lot more than that. More products, improved advice, extra ser-
vice and, of course, increased experience.

Something else also enables us to guarantee continued expan-
sion – continuity during transition. We always look to the future,
accept any new developments with open arms and simultane-
ously rely on our existing strengths. This is what makes the
container technology a special part of the Seppeler Group.

We would like to say thank you for the previous 100 years and
look forward with you to the next 100.

Your Rietbergwerk container technology team
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
4                                                                                                                  RIETBERG CONTAINERS 2019

01       STATIONARY FUEL SYSTEMS

Diesel on-site filling station                                                                           Petrol on-site filling station

KA                                    K AP ECO                       K AP GIRO                           KA

02       MOBILE FUEL SYSTEMS

Double-walled mobile diesel fuel systems

QUADRO-CV              ›› PAGE   12   QUADRO-C        ›› PAGE   14   QUADRO-C blue        ›› PAGE   18   TRAILER                 ›› PAGE   21

KC-K                   ›› PAGE   22   KC-S            ›› PAGE   24   KC 995               ›› PAGE   26

Single-walled mobile diesel fuel systems

CONT Y-ECO             ›› PAGE   32   CONT Y-B        ›› PAGE   34   QUADRO-C-E           ›› PAGE   36

Double-walled mobile petrol fuel systems                             Single-walled mobile petrol fuel systems

QUADRO-CV 330          ›› PAGE   38                                  CONT Y-B 330         ›› PAGE   42

03       SUPPLY OF POWER UNITS AND HEATERS

QUADRO-AG              ›› PAGE   46   QUADRO-TA 700                  KC-AG 5500                          QUADRO-C OEL
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
RIETBERG CONTAINERS 2019                                                                                                              5

04        STORAGE CONTAINERS

Multi-tanks                         Storage tanks                   Storage tanks

MT                                  LT-se                           LT-elh                        LT-elh

                                                                                                                                          02
05        COLLECTION CONTAINERS

Waste oil collectors                                                Multi-collectors

AS-T-se                             AS-TP-se                        MS-T-se                       MS-TP-elh

Hazardous substance collectors                                      Hazardous substance depots

GS-TP-elh                           GS-TP-elh                       GD-TP-elh                     GD-D-elh

06	FUEL EXTRACTION AND                                            07        AUS 32 (ADBLUE®) DELIVERY
          FUELLING SYSTEMS                                                    EQUIPMENT

MOBILUS tragbar                     MOBILUS 100                     MOBILUS blue

08        CUSTOMER-SPECIFIC SOLUTIONS

AS-TP-SE 5000                       LT-ELH 3000E                    MT MOBIL                      MOBILUS 200 BLUE

      New product          Diesel           AUS 32 (AdBlue®)   Stationary                             se fluid (fire-
                                                                                       Supply
                                                               containers                             resistant, flash point > 55°)
      Motor, gearbox
                           Petrol           Kerosene           Mobile containers       Disposal       elh fluid (flammable, extremely
      and lubrication
                                                                                                      flammable, highly
      oils
                                                                                                      flammable, flash point < 55°)
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
6    SERVICEPARTNER                                                                                        RIETBERG CONTAINERS 2019

RIETBERG CONTAINERS. CONTINUITY IN THE CHANGE

Traditionally, Rietberg containers are
double-walled.
                      Double-walled
                      means that an
                      approved leakage
                      indication system
                      ensures that both
                      container walls are
                      monitored at the
                      same time. This
way, a possible leakage can be detected
and displayed before any fluid can leak
and cause environmental damage.

                     For double-walled
                     containers, no
                     collection tray and,
                     additionally in the
                     event of erection in
                     an outdoor area, no
                     roof are required.
                     Furthermore, the
erection and operation in water
protection areas do not cause any
problems.

                     Rietberg vacuum
                     leakage indicator
                     This system
                     permanently            Traditionally, Rietberg containers are      Traditionally, Rietberg containers are
                     monitors both          hot-dip galvanised                          completely mounted
                     container walls. It    Therefore, they are perfectly protected     Whether as fuel supply containers or dis-
                     is self-contained      against corrosion. The containers are       posal containers for waste material. In
                     and therefore also     individually hot-dip galvanised in a dip    Rietberg containers, all necessary fit-
admissible for usage outdoors. It is        coating procedure according to DIN EN       tings and (ordered) equipment, e.g. fuel
robust and environmentally friendly and     ISO 1461 and are thus equipped with an      dispensing pumps or an overfill safegu-
works completely independently from         internal and external zinc coating of at    ard, are pre-mounted. The system is
energy sources..                            least 55 µm. Thanks to the hot dip galva-   immediately ready for operation.
                                            nisation, the surface receives a cathodic
                                            self-protection and is extremely abra-
                                            sion-resistant.
                                            In Germany, as per DIN EN ISO 14713-1, an
                                            annual zinc abrasion of 1 µm is expected.
                                            Therefore, the containers are equipped
                                            with a corrosion protection which lasts
                                            decades.
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
RIETBERG CONTAINERS 2019                                                                   CONTACTS   7

RIETBERGWERKE CONTACTS

SALES

AREA SALES MANAGER                BUSINESS DEVELOPMENT           AREA SALES MANAGER
SOUTH GERMANY                     NORTH EUROPE/GERMANY           NORTH/WEST GERMANY
Roman Oeverhaus                   Guido Röttgers                 Robert Bee
05244 983-252                     05244 983-250                  05244 983-346
roman.oeverhaus@seppeler.de       guido.roettgers@seppeler.de    robert.bee@seppeler.de

SALES SOUTH GERMANY               SALES SOUTH GERMANY
Lukas Koch                        Sarah Engelmeier
05244 983-263                     05244 983-264
lukas.koch@seppeler.de            sarah.engelmeier@seppeler.de

MARKETING AND ORDER PROCESSING

MARKETING                         SCHEDULING & TRADE FAIR        ORDER PROCESSING
Liliana Junghölter                ORGANISATION                   Sevim Basak
05244 983-244                     Helene Hoppe                   05244 983-240
liliana.junghoelter@seppeler.de   05244 983-261                  sevim.basak@seppeler.de
                                  helene.hoppe@seppeler.de
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
8    MOBILE TANKANLAGEN                                                                                             RIETBERG CONTAINERS 2019

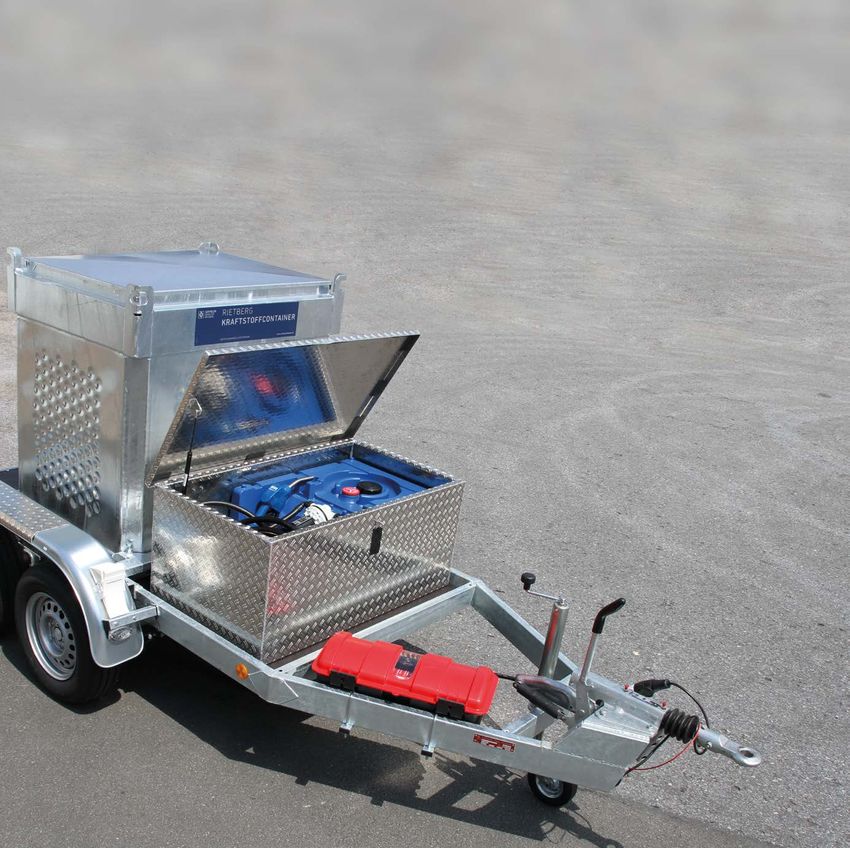

MOBILE FUEL SYSTEMS
FUELLING EVERYWHERE AND AT ANY TIME!

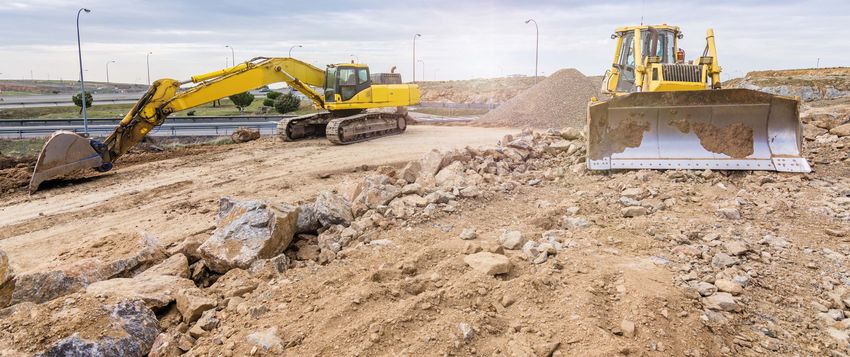

Mobile fuel systems are essentials for the fuelling of machinery         conditions" according to ADR 1.1.3.6. Therefore, a maximum of
and power units. Independent of the location: whether on const-          1000 litres of diesel or of 333 litres of petrol can be transported
ruction sites, during forestry work, on fields or in stone pits, fuel-   without the driver holding an ADR certificate. For the vehicle, no
ling of machinery and equipment should be possible quickly and           labelling of the hazardous goods transport is required and no
safely on site. Rietberg steel fuel containers offer the best possi-     hazardous goods equipment is to be kept on board. For type-
ble levels of safety and flexibility for this purpose and thus con-      tested IBC and steel packages, additionally, there is no time limi-
tribute to the minimization of standstill times. This saves time         tation for use. Furthermore, Rietberg fuel containers are also
and money.                                                               approved for the storage of fuel.

All Rietberg fuel containers are type-tested and approved as IBC         A specific benefit of packaging is that, for such containers, no
or packaging for the hazardous goods transport with all trans-           repeated testing is necessary. Thus, no subsequent costs are
port modes. Thus, they can be transported under "simplified              incurred.

Different options exist for fuelling construction machinery and           31H) or combination IBC(steel sheet with internal plastic
equipment directly on site. The tanks offered for this purpose            container, code: UN 31HZ), i.e. transport containers for
are either made of steel like all Rietberg fuel containers and type       hazardous goods and can therefore also be used universally
tested and have a UN approval as IBC (code: UN 31A...) or                 but with a time limit of a maximum of 5 years.
packaging (code UN 1A1 or 1A2...), i.e. transport containers for
hazardous goods and can therefore be used universally and wit-           OR
hout any time limits.                                                    ›› they are used based on the ADR exceptional regulation
                                                                            1.1.3.1c, also known as so-called “craftsman regulation”, but
OR                                                                          are not type-tested and do not comprise any approval and
›› they are type-tested and UN approved plastic IBC (code: UN               may therefore only be used to a very limited extent.

Rietberg fuel containers with approval as IBC or packaging can           service station to get new fuel are a problem any more. Type-
be universally utilised and may therefore be used for all opera-         tested and approved containers are always secure from a tech-
tions which might be necessary for mobile fuelling. Neither the          nical and legal aspect and always guarantee “free transit”.
supply of multiple construction sites nor the drive to the next

                                  IBC OR
                                PACKAGING
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
RIETBERG CONTAINERS 2019                                                                                         MOBILE TANKANLAGEN    9

The containers corresponding to ADR 1.1.3.1c (in Germany com-         to be transported in these types of containers. This only applies
monly known as “craftsman regulation”) may be exclusively             to the direct route between the depot and the construction
used for carrying (with the machine) for direct utilization. There-   site(s). Any travel to the next service station is prohibited.
fore, machine to be refilled must always be “on board” if fuel is

                                                                                                                                            02
                                 CRAFTS-
                                 MANSHIP
                                CONTAINER

Without the machine which is to be filed, fuel transports in con-     construction sites and also drives to the next service station, are
tainers in accordance with the so-called “craftsman regulation”,      generally inadmissible.
i.e. supply travel to one or several machines on one or different

                                 CRAFTS-
                                 MANSHIP
                                CONTAINER

3

MOBILE FUELLING IS NOT DIFFICULT IF DONE RIGHT!

 Additional legal framework conditions for mobile fuel systems can be found on the catalogue pages 64 – 67.
MOBILE FUEL SYSTEMS 2019 - RIETBERG CONTAINERS - SEPPELER - WE MAKE IT WORK - Seppeler Behälter Rietberg
10   MOBILE FUEL SYSTEMS FOR DIESEL                 RIETBERG CONTAINERS 2019

                                      Mobile fuel systems are essen-
                                      tials for the fuelling of machi-
                                      nery and power units. Inde-
                                      pendent of the location:
                                      whether on construction sites,
                                      during forestry work, on fields
                                      or in stone pits, fuelling of
                                      machinery and equipment
                                      should be possible quickly and
                                      safely on site. Rietberg steel
                                      fuel containers offer the best
                                      possible levels of safety and
                                      flexibility for this purpose and
                                      thus contribute to the minimi-
                                      zation of standstill times. This
                                      saves time and money... 
RIETBERG CONTAINERS 2019   MOBILE FUEL SYSTEMS FOR DIESEL   11

02
MOBILE FUEL SYSTEMS

                                                                 02
                                                                 02
12    MOBILE FUEL SYSTEMS FOR DIESEL                                                                           RIETBERG CONTAINERS 2019

                                                                     FUEL CONTAINERS
                                                                     QUADRO-CV
                                                    3
                                                                     [DIESEL]

                                                                     Their benefits
                                                                     ›› Certification for road, railway, inland shipping and maritime
                                  3
                                                                         transport as well as air freight for an unlimited time
                                                         2           ›› UN approval as hazardous substance packaging and
                                                        2
                                                                         therefore no costs for repeated inspection.
                                                                     ›› Transport under simplified conditions without ADR certificate
                                                                         and without hazardous substance marking
                                                                     ›› German general technical approval as storage container.
                                                                         Storage without additional collection tray
                                                                     ›› Outdoor installation
                                                                     ›› Application in water protection areas
                                                                     ›› Stackable 3-high
                                                                     ›› Full steel design for extreme durability
                                                                     ›› The storage space can also be accessed after rigging of the
                                                                         container
                                                                     ›› Structural protection for corners against damage caused by
                                                                         angled edges and protrusions

                                                             5

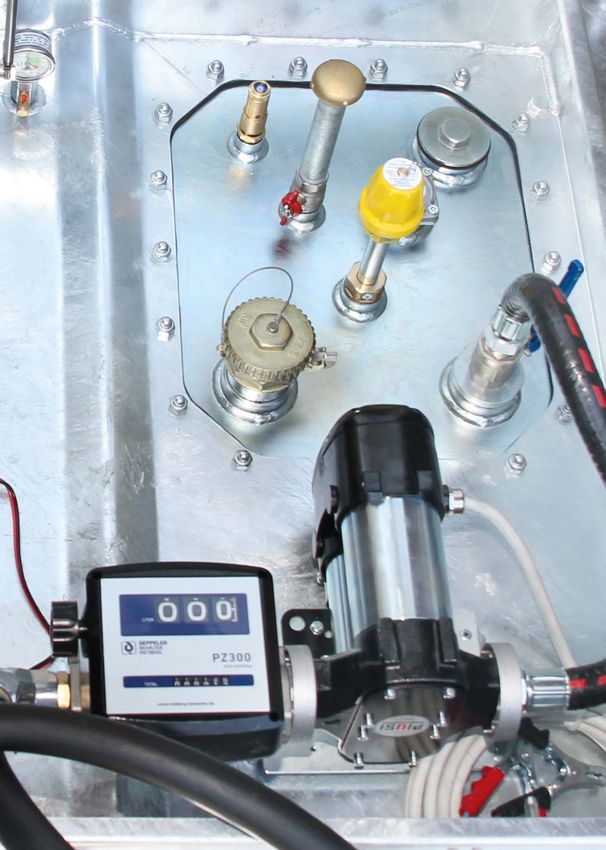

                                                                     Technische Merkmale
                                                                     ›› Hot-dip galvanised on the inside and outside or raw inside
                                                7                       and coated outside
                                         4                           ›› Double-walled within the meaning of AwSV (plant ordinance
                                                                 6      for materials hazardous to water); permanent,
                                                                        energy-independent vacuum leakage monitoring for both
                                                                        walls 1
      8                                                              ›› Continuous mechanical filling level indicator
                                                                     ›› Ventilation line with shut-off ball valve 5
                                                                     ›› Lockable suction line 6
 11                                                                  ›› Filler neck with safety screw fitting, lockable 7
                                                                     ›› Lateral opening for hose lines or cables 9
                                                                     ›› Base construction for secure lifting by forklift truck
                                                                     ›› 4 lifting brackets, safe crane lifting acc. to BGI 556
                                                                     ›› Lockable, spring-mounted cover with 3-point locking and
                                                                        safety locking cylinder 10
                                                                     ›› Discharge nozzle bracket with lockable return line for drip
                                                                        volumes 8
                                                                     ›› Spiral flex sheathing and angled swivel joint on the hose
                                                                        connection provide appropriate kink protection 4
                                                                     ›› Self-priming aspiration pump with mechanical counter,
                                                                        assembled on the container as ready for operation, including
 9                                       10                             6.0 m hose fitting and automatic discharge nozzle

 1                          APPROVAL
                            1A2W/Y/...14970

                           GENERAL TECHNICAL
                           APPROVAL, DIBT, BERLIN
                           Z-38.12-230
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL      13

Technical data

                                      Dimensions (mm)
                                                                Weight
 Type / content                      L          W        H      (kg)        Approval
 QUADRO-CV 330               2 1215         815       760       217         D/BAM 14970/1A2W // Z-38.12-230
 QUADRO-CV 450               3 1215         815       895       234         D/BAM 14970/1A2W // Z-38.12-230

Available models

                                                                                                                                                                  02
                                                                                                                             Flow-rate (l/min)
Type                              Description                                                                           Nominal1)     Effective2) Art. no.
QUADRO-CV 330-12/24              Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                       35/70         30/50       99260
                                 angled swivel joint, 6.0 m connection
                                 cable for battery terminals, automatic discharge nozzle, PZ300
                                 mechanical counter
QUADRO-CV 330-230                Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                         56            52          99261
                                 angled swivel joint, 6.0 m connection
                                 cable with Schuko plug, automatic discharge nozzle, PZ300
                                 mechanical counter
QUADRO-CV 450-12/24              Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                       35/70         30/50       99268
                                 angled swivel joint, 6.0 m connection
                                 cable for battery terminals, automatic discharge nozzle, PZ300
                                 mechanical counter
QUADRO-CV 450-230                Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                         56            52          99269
                                 angled swivel joint, 6.0 m connection
                                 cable with Schuko plug, automatic discharge nozzle, PZ300
                                 mechanical counter

The pump DC 12/24 can be operated with 12 V as well as 24 V direct current.

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
14   MOBILE FUEL SYSTEMS FOR DIESEL                                                                               RIETBERG CONTAINERS 2019

                                                               FUEL CONTAINERS
                                                               QUADRO-C
                                               3
                                                               [DIESEL]

                                                               Their benefits
        2.1
                                                               ›› UN approval as transport container (IBC) for road (ADR),
                                                           2
                                                                   railway (RID), inland shipping (ADN) and maritime (IMDG code)
                                                       2
                                                                   transport of hazardous substances for an unlimited time
                                                               ›› German general technical approval as storage container.
                                                                   Storage without additional collection tray
                                                               ›› Outdoor installation
                                                               ›› Application in water protection areas
                                                               ›› Transport under simplified conditions without ADR certificate
                                                                   and without hazardous substance marking up to a capacity of
                                                                   1000 litres
                                                               ›› Stackable 3-high, container for up to 1,000 litres;
                                                                   Stackable 2-high, container for 2000 – 3000 litres
                                                               ›› Full steel design for extreme durability
                                                               ›› Structural protection for corners against damage caused by
                                                                   angled edges and protrusions

                                                               Technical characteristics
                                                               ›› Hot-dip galvanised on the inside and outside or raw inside
                                                                   and coated outside
                                                               ›› Double-walled within the meaning of AwSV (plant ordinance
                                                                   for materials hazardous to water); permanent,
                                                                   energy-independent vacuum leakage monitoring for both
                                                                   walls 1
                                                               ›› Continuous mechanical filling level indicator
                                                               ›› Ventilation line with shut-off ball valve 5
 3                                        4
                                                               ›› Lockable suction line 6
                                                               ›› Filler neck with safety screw fitting, lockable 8
                                                               ›› Lateral opening for hose lines or cables 10
        1                                                      ›› Base construction for secure lifting by forklift truck
                                      6
                                                               ›› 4 lifting brackets, safe crane lifting acc. to BGI 556
                                                               ›› Lockable, spring-mounted cover with 3-point locking and
                                                   5              safety locking cylinder 11
                                  9
                                                               ›› Discharge nozzle bracket with lockable return line for drip
                                                                  volumes
                                                   7           ›› Spiral flex sheathing and angled swivel joint on the hose
                    8
                                                                  connection provide appropriate kink protection

                                                                 1                        APPROVAL
                                                                                          31A/Y...13081

                                                                                         GENERAL TECHNICAL
                                                                                         APPROVAL, DIBT, BERLIN
                                                                                         Z-38.12-230

                                                               FILM FOR THE PRODUCT

10                                        11
                                                               2.1 Sonderausführung QUADRO-C 1000 Edelstahl
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL      15

                                                                                                                                                                  02
  12                                                                                13

Available models
STANDARD

                                      Dimensions (mm)
                                                                Weight
Type / content                    L         W         H         (kg)       Approval                                                               Art. no.
QUADRO-C 700                      1215      815       1160      270
                                                                D/BAM/13080/31A                                                                   79568
                                                                Z-38.12-230
QUADRO-C 1000                 2 1215  1000 1290 316             D/BAM/13081/31A                                                                   79171
                                                                Z-38.12-230
QUADRO-C 2000                 3 2215  815    1620 629           D/BAM/14552/31A                                                                   98145
                                                                Z-38.12-223
                                QUADRO 2000 without corner fittings                                                                               –
QUADRO-C 3000                 4 2390  1190   1510     838       D/BAM/12180/31A                                                                   77150
                                                                Z-38.12-223

COMPLETE PACKAGE

                                                                                                                             Flow-rate (l/min)
Type                              Description                                                                           Nominal1)     Effective2) Art. no.
QUADRO-C 700-12/24 12 Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                                  35/70         30/50       300119
                    angled swivel joint, 6.0 m connection cable for battery terminals,
                    automatic discharge nozzle, PZ300 mechanical counter and fill limit
                    indicator
QUADRO-C 700-230 13 Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                                      56            52          300118
                    angled swivel joint, 6.0 m connection cable with Schuko plug,
                    automatic discharge nozzle, PZ300 mechanical counter and fill limit
                    indicator
QUADRO-C 1000-12/24 Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                                    35/70         30/50       98244
                    angled swivel joint, 6.0 m connection cable for battery terminals,
                    automatic discharge nozzle, PZ300 mechanical counter and fill limit
                    indicator
QUADRO-C 1000-230   Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                                      56            52          99492
                    angled swivel joint, 6.0 m connection cable with Schuko plug,
                    automatic discharge nozzle, PZ300 mechanical counter and fill limit
                    indicator

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
16    MOBILE FUEL SYSTEMS FOR DIESEL                                                                              RIETBERG CONTAINERS 2019

Accessories

Typ                             Beschreibung                                                                                   Art.-Nr.

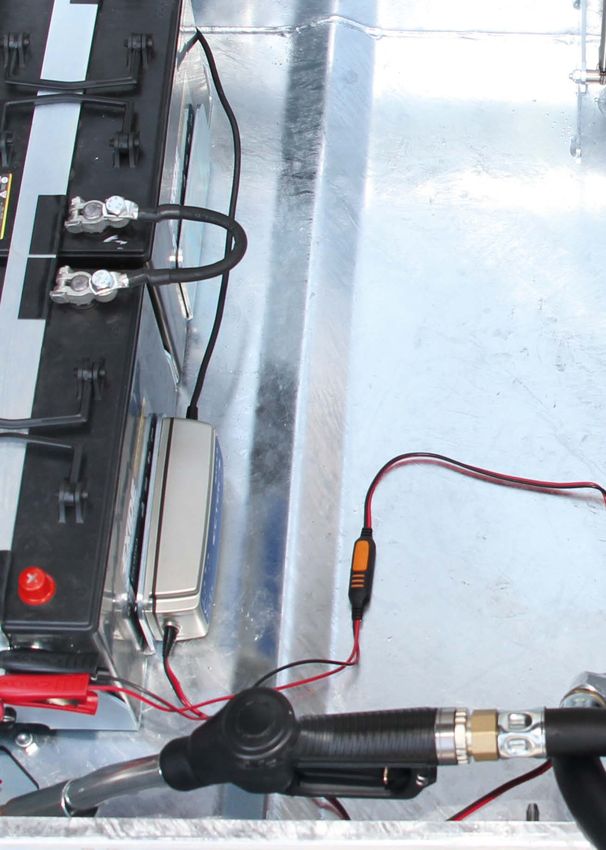

Bausatz                         Including battery bracket, 12 V / 85 Ah battery and charger:                                   97719
Batterie 12 V / 85 Ah1)         Battery bracket: Full steel, hot-dip galvanised, for secure mounting of the battery at         98043
(nur QUADRO-C 700 –             QUADRO-C, maximum battery dimensions;
1000)                           L x W x H = 350 x 180 x 236 mm
                                Battery 12 V / 85 Ah 1): High power 12 V/85 Ah (20h) gel battery, maintenance-free, watt       45747
                                hours: 950 Wh, cold start current (EN): 450 A, flashback and leakage-proof, internal gas
                                return line, low self-discharge, long service life, temperature-resistant, high vibration
                                resistance and safety against tilting;
                                L x W x H: 330 x 171 x 236 mm, weight: 30 kg
                                Charger: Automatic charger including mounting material, micro processor-controlled             98042
                                reverse voltage protection, short-circuit-proof, LED display, insulation: IP 65; voltage: 12
                                V/5A
Assembly kit                    Comprising the following bracket for battery, two 12 V / 85 Ah batteries and battery           300306
Battery 24 V / 85 Ah1)          charger:
(only QUADRO-C 1000)            Battery bracket: Full steel, hot-dip galvanised, for secure mounting of the battery at         300704
                                QUADRO-C, maximum battery dimensions;
                                L x W x H = 350 x 180 x 236 mm
                                24 V / 85 Ah battery1): Two 12 V / 85 Ah (20h) high-performance gel batteries sequentially     300703
                                switched via cable bridges, 950 Wh, maintenance free, cold start current (EN): 450 A,
                                flashback protection and leakage-proof, internal gas return line, low self-discharge, long
                                service life, temperature-resistant, high vibration resistance and safety against tilting;
                                L x W x H (per unit): 330 x 171 x 236 mm, weight/unit.: 30 kg
                                Charger: Automatic battery charger including mounting material, micro                          47823
                                processor-controlled reverse voltage protection, short-circuit-proof, LED display,
                                insulation: IP 65; voltage: 24 V / 4A
Integrated                      Diesel NW19 x 8 m; steel hose drum with protective cover and outlet                            97721
hose drum2)                     window; automatic spring return, horizontally mounted and ready for operation in the
                                loading space of QUADRO-C
Suction line                    Additional suction line with shut-off ball valve, ½” external thread                           97872
Return line                     Additional return line port, ½” external thread                                                97871
Hose drum                       Diesel NW19 x 10 m; hose drum with spring return and outlet window;                            98047
(for panel mounting, art.       incl. mounting material and pump connection hose
no. 97995)                      Diesel NW19 x 14 m; hose drum with spring return and outlet window;                            98046
                                incl. mounting material and pump connection hose
                                Diesel NW25 x 10 m; hose drum with spring return and outlet window;                            98045
                                incl. mounting material and pump connection hose.
                                Diesel NW25 x 15 m; hose drum with spring return and outlet window;                            98044
                                incl. mounting material and pump connection hose
Panel                           Full steel panel, hot-dip galvanised, for secure mounting of hose drums, pumps and             97995
                                additional equipment; for mounting at QUADRO-C for up to 1,000 litres; screw-connected to
                                the container
Forwarder bracket               Folding steel bracket for attachment with forwarder; for QUADRO-C for up to 1,000 l            79555
Fire extinguisher               2 kg ABC powder acc. to ADR 8.1.4.2                                                            45529
Lashing straps                  2 lashing straps, 2-part, length 4 m, long pressure ratchet, belt width 35 mm; max.            47993
                                admissible traction 2000 daN
Non-slip mats                   2 pieces; strength 8 mm, dimensions 1000 x 250 mm                                              47994
Collision protection            Plastic protectors as modular system, mounted on the perimeter of the container                98374

                 FOR PUMPS, COUNTERS AND OTHER EQUIPMENT SEE PAGE 28

1 Cannot be combined with the integrated hose reel and QUADRO complete packages
2 Cannot be combined with the integrated battery and QUADRO complete packages
RIETBERG CONTAINERS 2019                                                                            MOBILE FUEL SYSTEMS FOR DIESEL     17

Special models
For optimum response to customer requests, QUADRO-C offers various optional special models:

SURFACE MODELS

                 7                  8                    9      Surface designation        Inner wall              Outer wall
                                                                Hot-dip galvanised 7       hot-dip galvanised      hot-dip galvanised
                                                                Coated                     Raw                     Coated
                                                                Coated stainless steel     stainless steel         Coated
                                                                Hot-dip galvanised 8       hot-dip galvanised      hot-dip galvanised

                                                                                                                                            02
                                                                with additional coating                            and coated
                                                                stainless steel       9    stainless steel         stainless steel

STORAGE BOX
                                          The storage box offers a standard clearance height of 245 mm. The storage box is
                                          also available in heights 330, 410 and 490 mm for a surcharge. Openings can be
  245 – 490 mm                            positioned as required.

                                           Type              Description                                                    Art. no.
                                           Storage box 330 Inner height 330 mm; for QUADRO-C 700                            98054
                                                           Inner height 330 mm; for QUADRO-C 1000                           98057
                                           Storage box 410 Inner height 410 mm; for QUADRO-C 700                            98055
                                                           Inner height 410 mm; for QUADRO-C 1000                           98058
                                           Storage box 490 Inner height 490 mm; for QUADRO-C 700                            98056
                                                           Inner height 490 mm; for QUADRO-C 1000                           98059

SLEEVES

                                           Type              Description                                                    Art. no.
                                           Additional        Up to 2''; for installation of additional fittings (max. 6),   98036
                                           sleeve            not for QUADRO-CV 330
                                                             and 450

BASE DESIGN
                                          Inclination and double-walled sump tray optionally available for optimum residual
                                          discharge.

                                           Type              Description                                                    Art. no.
                                           Sump tray       Double-walled sump tray ø 150 mm                                 98049
                                           Inner base with For QUADRO-C 700                                                 98050
                                           inclination     For QUADRO-C 1000                                                98051
                                                           For QUADRO 2000                                                  98052
                                                           For QUADRO 3000                                                  98053

RIETBERG TRAILER
                                         The Rietberg TRAILER (refer to page 45) can be adjusted to individual requirements
                                         and optionally equipped with various accessories. It consists of a hot-dip galvanised
                                         steel frame construction. It offers high durability, a long service life and particularly
                                         smooth running characteristics.
                           3             Its dimensions can be adjusted lengthwise to individual requirements.
                           1
18    MOBILE FUEL SYSTEMS FOR DIESEL                                                                                      RIETBERG CONTAINERS 2019

                                                                                FUEL CONTAINERS
                                                                                QUADRO-C BLUE
                                                       3
                                                                                [DIESEL & AUS 32 (AdBlue®)]

                                                                                Their benefits
                                                           2
                                                                                ›› UN approval as transport container (IBC) for road (ADR),
                                                                                   railway (RID), inland shipping (ADN) and maritime (IMDG code)
                                                               2
                                                                                   transport of hazardous substances for an unlimited time
                                                                                ›› German general technical approval as storage container.
                                                                                   Storage without additional collection tray
                                                                                ›› Outdoor installation
                                                                                ›› Application in water protection areas
                                                                                ›› Transport under simplified conditions without ADR certificate
                                                                                   and without hazardous substance marking
                                                                                ›› Stackable 3-high
                                                                                ›› Completely equipped AUS 32 (AdBlue®) tank, protected and
                                                                                   safely integrated
                                                                                ›› Structural protection for corners against damage caused by
                                                                                   angled edges and protrusions

                                                                                Technical characteristics
                                                                                DIESEL CONTAINER QUADRO-C
                                                                                ›› Hot-dip galvanised on the inside and outside or raw inside
                                                                                   and coated outside
                                                                                ›› Double-walled within the meaning of AwSV (plant ordinance
                                                                                   for materials hazardous to water); permanent,
                                                                                   energy-independent vacuum leakage monitoring for both
                                                                                   walls 1
               4
                                                                                ›› Full steel design for extreme durability
                                                  3
                                                                                ›› Continuous mechanical filling level indicator
                                                                                ›› Lockable ventilation and suction lines
                                                                                ›› Filler neck with safety screw fitting, lockable
                                                                                ›› Base construction for secure lifting by forklift truck
  2
                                                                                ›› 4 lifting brackets, safe crane lifting acc. to BGI 556
                                                                                ›› Lockable, spring-mounted cover with 3-point locking and
  1                            APPROVAL                                            safety locking cylinder
                               31A/Y...13081                                    ›› Discharge nozzle bracket with lockable return line for drip
                              GENERAL TECHNICAL
                                                                                   volumes
                              APPROVAL, DIBT, BERLIN
                              Z-38.12-230
                                                                                ›› Spiral flex sheathing and angled swivel joint on the hose
                                                                                   connection provide appropriate kink protection 3
                            DEUTSCHES PATENT                                    ›› Self-priming aspiration pump with mechanical counter,
                            DE 10 2012 112 241                                     assembled as ready for operation, 4.0 m hose fitting,
                                                                                   automatic discharge nozzle and fill limit indicator

                                                                                AUS 32 (ADBLUE®) TANK
                                                                                ›› PE tank, single-walled
                                                                                ›› 125 litres capacity
                                                                                ›› Filler neck DN 100
                                                                                ›› Ventilation with pressure discharge
                                                                                ›› Self-priming aspiration pump, assembled as ready for
                                                                                   operation, 4.0 m hose fitting and automatic discharge nozzle

AdBlue® is a registered trademark of the German Association of the Automotive
  Industry (VDA)
RIETBERG CONTAINERS 2019                                                                                                  MOBILE FUEL SYSTEMS FOR DIESEL       19

Technische Daten

                                      Dimensions (mm)
                                                                Weight
Type / content                    L         W         H         (kg)       Approval
QUADRO-C 700-blue                 1215      1000      1290      341        D/BAM/13081/31A Z-38.12-230

Available models
COMPLETE PACKAGE

                                                                                                                                                                    02
                                                                                                                               Flow-rate (l/min)
Type / content                    Description                                                                             Nominal1)     Effective2) Art. no.
QUADRO-C 700-12/24 2  Diesel container QUADRO-C: Equipped with R50 12/24 (DC) motor                                       35/70         30/50       99585
blue                  pump, 4.0 m hose fitting with angled swivel joint, 4.0 m connection
                      cable with battery terminals, automatic discharge nozzle, PZ300
                      mechanical counter and fill limit indicator
                      AUS 32 (AdBlue®) TANK: 24 V motor pump, 4.0 m hose fitting,
                      connection cable with pole clamps
QUADRO-C 700-230 blue Diesel container QUADRO-C: Equipped with R50 230 (AC) motor                                         56            52          300657
                      pump, 4.0 m hose fitting with angled swivel joint, 4.0 m connection
                      cable with Schuko plug, automatic discharge nozzle, PZ300
                      mechanical counter and fill limit indicator
                      AUS 32 (AdBlue®) TANK: 230 V motor pump, 4.0 m hose fitting,
                      connection cable with plug

Optional accessories for AUS 32 (AdBlue®) tank
FLOW METERS

                                                                                                                           Flow-rate (l/min)
Type / content                   Description                                                                        Min.              Max.          Art. no.
EZ24 AdBlue®                 4 Digital turbine flow meter, not calibratable, not for custody                          6               100           98137
                                 transfer, for AUS 32 (AdBlue®)

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
20    MOBILE FUEL SYSTEMS FOR DIESEL                                                            RIETBERG CONTAINERS 2019

                 MOBIL SOLUTION
                 FOR DIESEL AND AdBlue®

AdBlue® is a registered trademark of the German Association of the Automotive Industry (VDA).
RIETBERG CONTAINERS 2019                                                                                  MOBILE FUEL SYSTEMS FOR DIESEL       21

                                                                           RIETBERG TRAILER
                                                                           Technical characteristics
                                                                           ›› Externally running wheels
                                                                           ›› Stable, hot-dip galvanised tube profile frame
                                                                           ›› Floor made of aluminium corrugated sheet as bracket for the
                                                                               container
                                                                           ›› Wheel cases made of aluminium sheet

                                                                                                                                                    02
                                                                           ›› Maintenance-free rubber spring axle
                                                                           ›› Tyres 185 R 14C
                                                                           ›› Support wheel, automatically foldable
                                                                           ›› Coupling height, approx. 450 mm OK ball
                                                                           ›› Light system according to STZVO 12 V
                                                                           ›› Overrun brake
                                                                           ›› Fixture for containers from 300 to 1000 litres
                                                                           ›› Supporting legs
                               1                                           ›› Approval up to 100 km/h

                                                                             The fuel container series fitting to the TRAILER can be
                                                                             found from page 36 onwards.

Available models

                                       Dimensions      Loading
                                          (mm)      platform (mm)   Admissible
                                                                    total weight
Type                               L        B       L       W       (kg)            Description                                   Art. no.
Rietberg TRAILER-1         1                                                        1-axle
                           2       3000 1800 1500 1300 1500                                                                       99365
Rietberg TRAILER-2                 4000 1800 2500 1300 2000                         2-axle                                        99366
Toolbox A                          Lockable aluminium box screwed onto V drawbar                                                  99370A
Toolbox B                          Lockable, rectangular aluminium box (L x W x H: 1000 x 520 x 520 mm)                           99370B
Fire extinguisher with             6 kg fire extinguisher with box and bracket                                                    99371
bracket

1   Rietberg TRAILER 1-Achser                                                                                                              3
    mit QUADRO-CV 330 (s. S. 12)

2   Rietberg TRAILER 1-axle
    with QUADRO-C 330 (see page 14)                     1                                          2
22   MOBILE FUEL SYSTEMS FOR DIESEL                                                                                          RIETBERG CONTAINERS 2019

                                                                                   FUEL CONTAINERS
                                                                                   KC-K
                                                   3
                                                                                   [DIESEL]

                                                                                   Their benefits
                                                                                   ›› UN approval as transport container (IBC) for road (ADR),
                                                                  2                   railway (RID), inland shipping (ADN) and maritime (IMDG code)
                                                                  2
                                                                                      transport of hazardous substances for an unlimited time
                                                                                   ›› German general technical approval as storage container.
                                                                                      Storage without additional collection tray
                                                                                   ›› Outdoor installation
                                                                                   ›› Application in water protection areas
                                                                                   ›› Full steel design for extreme durability
                                                                                   ›› Transport under simplified conditions without ADR certificate
                                                                                      and without hazardous substance marking
                                                                                   ›› Central and safe arrangement of ports and fittings in a
                                                                                      liquid-proof storage box welded to the container including
                                                                                      lockable folding cover

                                                                                   Technical characteristics
                                                                                   ›› Hot-dip galvanised on the inside and outside or raw inside
                                                                                      and coated outside
                                                                                   ›› Double-walled within the meaning of AwSV (plant ordinance
                                                                                      for materials hazardous to water); permanent,
                                                                                      energy-independent vacuum leakage monitoring for both
                                                       3                              walls 1
                                                                                   ›› Explosion blast proof
                                                                                   ›› Continuous mechanical filling level indicator
                                                                                   ›› Lockable ventilation and suction lines
                                                                                   ›› Filler neck with safety screw fitting, lockable
                                                                                   ›› Base construction for secure lifting by forklift truck
 2
                                                                                   ›› 2 lifting brackets, safe crane lifting acc. to BGI 556
                                                                                   ›› Spiral flex sheathing and angled swivel joint on the hose
                                                                                      connection provide appropriate kink protection 3
 1                         APPROVAL
                           31A/Y...5639

                          GENERAL TECHNICAL
                          APPROVAL, DIBT, BERLIN
                          Z-38.12-51

Available models
STANDARD

                                                                                                                                          Hot-dip
                                                                                                                                          galvani-
                                   Dimensions (mm)                                                                                          sed
                                                                      Weight
Type / content                L            W               H          (kg)     Approval                                                  Art. no.
KC 500-K                  2 1300           770             1400       225      D/BAM/0489/31A                                            81780
KC 1000-K                     1440         1020            1700       310      D/BAM/5639/31A \\ Z-38.12-298                             84710
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL      23

                                                                                                                                                                  02
Available models
COMPLETE PACKAGE

                                                                                                                             Flow-rate (l/min)
Type / content                    Description                                                                           Nominal1)     Effective2) Art. no.
KC 1000-K-12/24              2    Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                      35/70         30/50       300658
                                  angled swivel joint, 6.0 m connection cable for battery terminals,
                                  automatic discharge nozzle, PZ300 mechanical counter and fill limit
                                  indicator
KC 1000-K-230                     Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                        56            52          300659
                                  angled swivel joint, 6.0 m connection cable with Schuko plug,
                                  automatic discharge nozzle, PZ300 mechanical counter and fill limit
                                  indicator

                  FOR PUMPS, COUNTERS AND OTHER EQUIPMENT SEE PAGE 28

                                 KC 500-K with forwarder bracket

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
24   MOBILE FUEL SYSTEMS FOR DIESEL                                                                 RIETBERG CONTAINERS 2019

                                                           FUEL CONTAINERS
                                                           KC-S
                                                           [DIESEL]

                                                           Their benefits
                                                           ›› UN approval as transport container (IBC) for road (ADR),
                                                              railway (RID), inland shipping (ADN) and maritime (IMDG code)
                                                   2
                                                              transport of hazardous substances for an unlimited time
                                                           ›› German general technical approval as storage container.
                                                              Storage without additional collection tray
                                                           ›› Outdoor installation
                                                           ›› Application in water protection areas
                                                           ›› Full steel design for extreme durability
                                                           ›› Transport under simplified conditions without ADR certificate
                                                              and without hazardous substance marking
                                                           ›› Central arrangement of ports and fittings within a protection
                                                              ring, on which a lockable swing door cabinet is mounted 3
                                                              (L500 x W455 x H722 mm; weight: 23 kg)
 2
                                                           Technical characteristics
                                                           ›› Hot-dip galvanised on the inside and outside or raw inside
                                                              and coated outside
                                                           ›› Double-walled within the meaning of AwSV (plant ordinance
                                                              for materials hazardous to water); permanent,
                                                              energy-independent vacuum leakage monitoring for both
                          3
                                                              walls 1
                                                           ›› Explosion blast proof
                                                           ›› Continuous mechanical filling level indicator 4
                                                           ›› Lockable ventilation and suction lines 5
                                                           ›› Filler neck with safety screw fitting, lockable 6
                                                           ›› Base construction for secure lifting by forklift truck
 2                                                         ›› Central lifting bracket, safe crane lifting acc. to BGI 556
                                                           ›› Spiral flex sheathing and angled swivel joint on the hose
                                                              connection provide appropriate kink protection 3

     5

                      6
                                                       4

 1                         APPROVAL
                           31A/Y...5639

                          GENERAL TECHNICAL
                          APPROVAL, DIBT, BERLIN
                          Z-38.12-51
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL        25

Available models
STANDARD

                                      Dimensions (mm)
                                                                Weight
 Type / content                   L         W         H1)       (kg)        Approval                                                       Art. no.
 KC 500-S                       1300 770        1610            248         D/BAM/0489/31A                                                 81778 + 85971
 KC 1000-S                    2 1440    1020 1920               333         D/BAM/5639/31A \\ Z-38.12-298                                  84700 + 85971
 Fortfall swing door            Price reduction                                                                          6                 –
 cabinet

                                                                                                                                                                    02
COMPLETE PACKAGE

                                                                                                                             Flow-rate (l/min)
Type / content                   Description                                                                            Nominal1)     Effective2) Art. no.
KC 1000-S-12/24               2 Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                        35/70         30/50           300660
                                 angled swivel joint, 6.0 m connection
                                 cable for battery terminals, automatic discharge nozzle, PZ300
                                 mechanical counter and fill limit indicator
KC 1000-S-230                    Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                         56            52              300661
                                 angled swivel joint, 6.0 m connection
                                 cable with Schuko plug, automatic discharge nozzle, PZ300
                                 mechanical counter and fill limit indicator

                  FOR PUMPS, COUNTERS AND OTHER EQUIPMENT SEE PAGE 28

                         6   KC 1000-S without swing door cabinet

1) Height including swing door cabinet
2) Indicated nominal power of the manufacturer with free outlet
3) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
26   MOBILE FUEL SYSTEMS FOR DIESEL                                                        RIETBERG CONTAINERS 2019

                                                  FUEL CONTAINERS
                                                  KC 995
                                                  [DIESEL]
                                          3

                                                  Their benefits
                                                  ›› UN approval as transport container (IBC) for road (ADR),
                                              2      railway (RID), inland shipping (ADN) and maritime (IMDG code)
                                                     transport of hazardous substances for an unlimited time
                                                  ›› Storage containers nationally approved according to DIN 6623
                                                  ›› Storage without additional collection tray
                                                  ›› Outdoor installation
                                                  ›› Application in water protection areas
                                                  ›› Full steel design for extreme durability
                                                  ›› Transport under simplified conditions without ADR certificate
                                                     and without hazardous substance marking
                                                  ›› Central arrangement of ports and fittings within a protection
                                                     ring, on which a lockable swing door cabinet is mounted
                                                     (dimensions L500 x W455 x H722 mm; weight: 23 kg) 3

                                                  Their benefits
                                                  ›› UN approval as transport container (IBC) for road (ADR),
                                                     railway (RID), inland shipping (ADN) and maritime (IMDG code)
                                                     transport of hazardous substances for an unlimited time
                                                  ›› Double-walled within the meaning of AwSV (plant ordinance
                                                     for materials hazardous to water); permanent,
                                                     energy-independent vacuum leakage monitoring for both
                                                     walls 1
                                                  ›› Storage containers nationally approved according to DIN 6623
                                                  ›› Storage without additional collection tray
                                                  ›› Outdoor installation
                                                  ›› Application in water protection areas
                                                  ›› Full steel design for extreme durability
                                                  ›› Transport under simplified conditions without ADR certificate
                                                     and without hazardous substance marking
                                                  ›› Central arrangement of ports and fittings within a protection
                                                     ring, on which a lockable swing door cabinet is mounted 3
                                                     (dimensions L500 x W455 x H722 mm; weight: 23 kg)
                                                  ›› Spiral flex sheathing and angled swivel joint on the hose
                                                     connection provide appropriate kink protection

 1                         APPROVAL
                           31A/Y...0249

                          RIETBERGWERKE
                          GMBH & CO. KG
                          DIN 6623
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL        27

Available models
STANDARD

                                       Dimensions (mm)
                                                                Weight
 Type / content                   L         W         H1)       (kg)        Approval                                                       Art. no.
 KC 995                       2 1270        1270      2122      365         D/BAM/0249/31A                                                 73350 + 85971
                                                                            DIN 6623-2 mit PÜZ
 Fortfall cabinet                 Price reduction                                                                                          –

                                                                                                                                                                    02
COMPLETE PACKAGE

                                                                                                                             Flow-rate (l/min)
 Type / content                   Description                                                                           Nominal1)     Effective2) Art. no.
 KC 995-12/24                     Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                      35/70         30/50           300662
                                  angled swivel joint, 6.0 m connection
                                  cable for battery terminals, automatic discharge nozzle, PZ300
                                  mechanical counter and fill limit indicator
KC 995-230                        Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                        56            52              300663
                                  angled swivel joint, 6.0 m connection
                                  cable with Schuko plug, automatic discharge nozzle, PZ300
                                  mechanical counter and fill limit indicator

                  FOR PUMPS, COUNTERS AND OTHER EQUIPMENT SEE PAGE 28

                                      KC 995 without fortfall cabinet

1) Height including swing door cabinet
2) Indicated nominal power of the manufacturer with free outlet
3) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
28     MOBILE FUEL SYSTEMS FOR DIESEL                                                                           RIETBERG CONTAINERS 2019

DIESEL FUEL CONTAINER EQUIPMENT

 1                                                2                                           3 NEU

Type                           Description                                                                                   Art. no.
Fill limit indicator       1   To prevent overfilling of containers from a tanker with fixed line coupling                   97157
Forwarder bracket              Foldable steel bracket for secure mounting with forwarder for construction series:
                               QUADRO to 1.000 l                                                                           79555
                               KC-K                                                                                      2 84636
                               CONTY-ECO                                                                                 3 300448
                               NEU
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL     29

Pumps
VANE PUMPS

                                                                                                                                                                 02
  4                                                      5                                                      6

 Dry, self-priming, good price-performance ratio, bypass valve for protection against pump damage

 Scope of delivery:
 Motor pump, 4.0 m discharge hose, angular swivel joint, automatic discharge nozzle with axial swivel joint, connection cable
 with plug and/or battery clips, adapter for mounting on Rietberg containers, mounted on ordered Rietberg container

                                         Flow-rate (l/min)
                                                                   Voltage
Type                              Nominal1)       Effective2)      (V)          Special features                                     Hose        Art. no.
R50 12                            50              30               DC 12    –                                                        NW19        96347
R50 12/24                         35/70           30/50            DC 12/24 Can be operated with 12 V as well as with                NW19        96352
                                                                            24 V direct current
R50 230                          56               52               AC 230   –                                                        NW19        96349
R75 12                       4   85               66               DC 12    –                                                        NW25        96354
R75 24                       5   85               66               DC 24    –                                                        NW25        96355
R80 230                          70               66               AC 230   –                                                        NW25        96353
R120 230                     6   100              90               AC 230   –                                                        NW25        96478
R180 24                          185              160              DC 24    –                                                        NW32        97442
R200 230                         200              180              AC 230   For QUADRO-C 1000                                        NW32        97441

GEAR PUMPS

                                                                                    High-quality and durable version for delivery of lower fuel
                                                                                    volumes independently from energy sources

                                                                                    Scope of delivery:
                                                                                    Manual pump, 2,5 m discharge hose, safety spout,
                                                                                    connection adapter for mounting at Rietberg containers,
                                                                                    mounted at ordered Rietberg container

                                  Flow-rate
Type                              (l/stroke)             Special features                                                            Hose        Art. no.
TP 3                              0,35                   –                                                                           NW19        31908

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
30     MOBILE FUEL SYSTEMS FOR DIESEL                                                                                RIETBERG CONTAINERS 2019

Flow meters
NOT CALIBRATABLE, NOT FOR CUSTODY TRANSFER

                                                                                                           Flow-rate (l/min)
Type                            Description                                                         Min.            Max.         Art. no.
PZ300                       5 Mechanical roller flow meter                                          20              120          96359
EZ24                            Digital turbine flow meter                                          7               120          96479
K700                            Mechanical oval wheel flow meter for pump R200 230                  20              220          97799

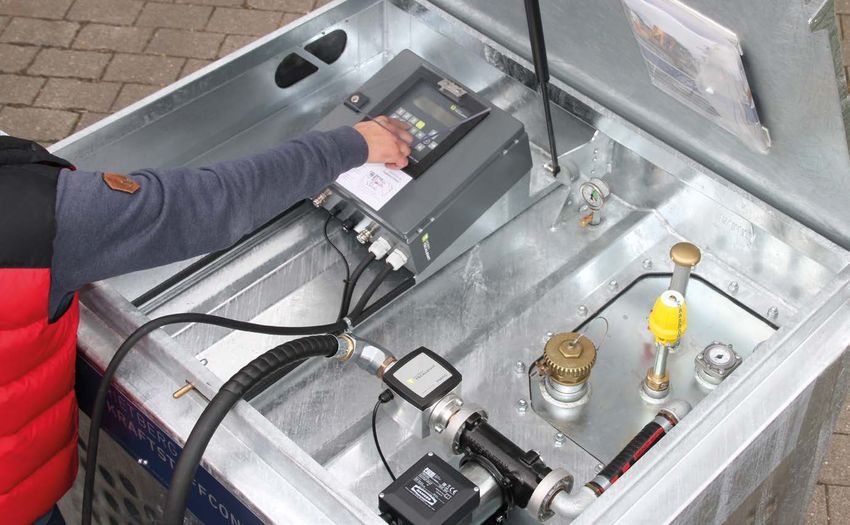

FUEL DATA RECORDING

 Scope of delivery:
 Fuel data recording with LCD display and keypad, oval wheel flow meter with pulse generator, not calibratable, not for custody
 transfer, PC software, mounted at ordered Rietberg container

Type                            Description                                                                                      Art. no.
TDE-DC                      6   This fuel data recording system can be operated with 12 V as well as 24 V direct current         98287
                                and combined with respective dispensing pumps with up to 30 A.
                                The system consists of:
                                Automatic fuel terminal with oval wheel flow meter incl. pulse generator, not calibratable,
                                not for custody transfer, for max. 2,000 users; internal memory for max. 10,000 fuelling
                                processes; integrated transponder reader; user identification and fuel release via coded
                                transponder; automatic recording of the dispensed fuel volume; LCD display, manual input
                                of vehicle or machine data via protected keypad; integrated USB-interface protected
                                against unauthorized access for data retrieval; 6.0 m connection cable, incl. terminal
                                clamps; 10 transponders, freely codeable, for operation/release of the automatic fuel
                                terminal; PC software for management and analysis of fuel data for up to 200 units

Transponder tag                 For TDE-DC; for contact-free user identification                                                 96617
RIETBERG CONTAINERS 2019                                                                              MOBILE FUEL SYSTEMS FOR DIESEL     31

Pump accessories
DISCHARGE HOSES

                                                                                                      Hose          NW19        NW25
                                                                                                      length
Type / content                 Description                                                            (m)        Art. no.     Art. no.
Discharge hose                 Integration 1" IT / 1" OT                                              4          39731        97143
                                                                                                      6          39732        97144
                                                                                                      8          45232        97145
                                                                                                      10         45375        97146

                                                                                                                                              02
DISCHARGE NOZZLES

 3                                                 4                                           5

                               Flow rate
Type                           (l/min)             Special features                                               Outlet      Art. no.
ZVA 19                     3    60                 With axial swivel joint                                        NW19        44535
ZVA 19 Slimline            4    75                 With axial swivel joint                                        NW19        34435
ZVA 25                         120                 With axial swivel joint                                        NW25        39642
ZVA 25 Slimline                140                 With axial swivel joint                                        NW25        37347
ZVA 32 Slimline            5   200                 With axial swivel joint                                        NW32        45244

DIRECT CURRENT CONNECTIONS (ONLY IN CONNECTION WITH DIESEL PUMPS)

                                                       7                8

 6                                                                                             9

Type                           Description                                                                                    Art. no.
GSV I                      6 2 high-current plugs (plug=socket) for pump and vehicle mounting; rated for up to                300188
                             50 A/24 V
GSV socket                 7 3-pin plastic socket according to DIN 9680, voltage of 6 – 24 V, max. 25 A, protection class     46673
                             IP54
GSV plug                   8 3-pin plastic plug according to DIN 9680, voltage of 6 – 24 V, max. 25 A, protection class       46674
                             IP54
NATO                       9 2-pin NATO special plug according to VDA 72593A, voltage 12 – 42 V, rating                       44338
                             300 A, short-term 1,000 A, metal housing with hard rubber cable protection, including 5 m
                             cable H07RN-F 2x6 mm2

PUMP ADAPTERS & FILTERS

Type                           Description                                                                                    Art. no.
Fuel filter                    Mounted on the pressure side of a pump for protection against contamination and water,         73165
                               filter mesh 30 µm, max. 65 l/min flow; the flow is decreased with increasing saturation of
                               the filter cartridge; the flow is blocked if the filter cartridge is fully saturated
Replacement cartridge          Replacement filter cartridge for the fuel filter                                               39759
32   MOBILE FUEL SYSTEMS FOR DIESEL                                                                                           RIETBERG CONTAINERS 2019

                                                                                   FUEL CONTAINERS
                                                                                   CONTY-ECO
                                                     3
                                                                                   [DIESEL]
                                         2

                                                                                   Their benefits
                                                                                   ›› Dimensions adapted for the transport on a pickup truck
                                                                   1               ›› Certification for road, railway, inland shipping and maritime
                                                                   2
                                                                                      transport as well as air freight for an unlimited time
                                                                                   ›› UN approval as hazardous substance packaging and
                                                                                      therefore no costs for repeated inspection.
                                                                                   ›› Transport under simplified conditions without ADR certificate
                                                                                      and without hazardous substance marking
                                                                                   ›› Full steel design, therefore extremely durable
                                                                                   ›› Approved as storage container according to the building rules
                                                                                      list for flammable and water-polluting fluids
                                                                                   ›› Uncomplicated and secure rigging
                                                                                   ›› The storage space can also be accessed after rigging of the
                                                                                      container
                                                                                   ›› Stackable 2-high

                                                                                   Technical characteristics
                                                                                   ›› Raw on the inside and coated on the outside (container: light
                                                         6
                             3                                                        grey RAL 7035, cover: sapphire blue RAL 5003)
                                                                                   ›› Single-walled
                                                                                   ›› The fittings and the pump are safely mounted in a protected
                                                                                      location, in a storage compartment with lockable cover
                                                                                   ›› Discharge nozzle bracket 3
                             5                           7                         ›› Lockable suction line 4
                                                                                   ›› Lockable ventilation line 5
                                     4
                                                                                   ›› Continuous mechanical filling level indicator 6
                                                                                   ›› Filler neck with safely and tightly lockable fitting 7
                                                                                   ›› Base construction for secure lifting by forklift truck
      APPROVAL                                                                     ›› 4 lifting brackets for safe crane lifting, according to BGI 556
      1A1W/Y/...14969                                                              ›› Self-priming aspiration pump with mechanical counter,
                                                                                      assembled on the container as ready for operation, including
     DIBT, BERLIN
     BUILDING RULES LIST A                                                            4.0 m hose fitting and automatic discharge nozzle
     PART 1, 15.19

Technical data

                                             Dimensions (mm)
                                                                       Weight
Type / content                       L           W           H          kg)   Approval
CONTY-ECO 200                    1   1080        800         530       80     D/BAM14969/1A1W
CONTY-ECO 440                    2   1080        800         840       110    D/BAM14969/1A1W
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL       33

                                                                                                                                                                   02
Available models
COMPLETE PACKAGE

                                                                                                                              Flow-rate (l/min)
Type / content                    Description                                                                            Nominal1)     Effective2) Art. no.
CONTY-ECO 200-12/24              Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                        35/70         30/50       99202
                                 angled swivel joint, 6.0 m connection cable for battery terminals,
                                 automatic discharge nozzle
CONTY-ECO 200-230                Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                          56            52          99203
                                 angled swivel joint, 6.0 m connection cable with Schuko plug,
                                 automatic discharge nozzle
CONTY-ECO 440-12/24              Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                        35/70         30/50       99074
                                 angled swivel joint, 6.0 m connection cable for battery terminals,
                                 automatic discharge nozzle
CONTY-ECO 440-230                Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                          56            52          99207
                                 angled swivel joint, 6.0 m connection cable with Schuko plug,
                                 automatic discharge nozzle

The pump DC 12/24 Can be operated with 12 V and 24 V direct current.

Accessories

  8                                                                                  9

                                                                                                                         Flow-rate (l/min)
 Type                             Description                                                                     Min.               Max.          Art. no.
 EZ24                        8 Digital turbine flow meter, not calibratable, not for custody                      7                  120           96479
                               transfer
 Fuel gauge                  9 Fuel gauge with lateral reading, surcharge                                                                          45623
 "Side Reading"

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
34   MOBILE FUEL SYSTEMS FOR DIESEL                                                      RIETBERG CONTAINERS 2019

                                              FUEL CONTAINERS
                                              CONTY-B
                                              [DIESEL]
                        2

                                              Their benefits
                                      1       ›› Certification for road, railway, inland shipping and maritime
                                                  transport as well as air freight for an unlimited time
                                              ›› UN approval as hazardous substance packaging and
                                                  therefore no costs for repeated inspection.
                                              ›› Transport under simplified conditions without ADR certificate
                                                  and without hazardous substance marking
                                              ›› Full hot-dip galvanised steel design for extreme durability
                                              ›› Approved as storage container according to the building rules
                                                  list for flammable and water-polluting fluids
                                              ›› Uncomplicated and secure rigging
                                              ›› The storage space can also be accessed after rigging of the
                                                  container
                                              ›› Stackable 2-high
                                              ›› Structural protection for corners against damage caused by
                                                  angled edges and protrusions

                                              Technical characteristics
                                              ›› Hot-dip galvanised on the inside and outside
                                              ›› Single-walled
                                          6
                                              ›› Fittings and pump mounted in a securely lockable storage
                                8
                                                  compartment
                                              ›› Lockable, spring-mounted cover
                                              ›› Discharge nozzle bracket
                                              ›› Lockable suction line 3
                                              ›› Lockable ventilation line 4
                    4                         ›› Continuous mechanical filling level indicator 5
           5
                                              ›› Filler neck with safely and tightly lockable fitting 6
                                              ›› Base construction for secure lifting by forklift or pallet truck
 7
         3                                    ›› 4 lifting brackets for safe crane lifting acc. to BGI 556
                                              ›› Spiral flex sheathing and angled swivel joint on the hose
                                                 connection provide appropriate kink protection
      APPROVAL                                ›› Self-priming aspiration pump with mechanical counter,
      1A2W/Y/...14374                            assembled on the container as ready for operation, including
     DIBT, BERLIN
                                                 6.0 m hose fitting and automatic discharge nozzle
     BUILDING RULES LIST A
     PART 1, 15.19

                                              FILM FOR THE PRODUCT
RIETBERG CONTAINERS 2019                                                                                                 MOBILE FUEL SYSTEMS FOR DIESEL       35

Available models

                                      Dimensions (mm)
                                                                Weight
Type / content                    L         W         H         (kg)       Approval
CONTY-B 330                   1 800         800       950       110        D/BAM/14374/1A2W
CONTY-B 450                   2 800         800       1150      120        D/BAM/14374/1A2W

                                                                                                                                                                   02
Available models
COMPLETE PACKAGE

                                                                                                                              Flow-rate (l/min)
Type / content                    Pump                                                                                   Nominal1)     Effective2) Art. no.
CONTY-B 330-12/24               Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                         35/70         30/50       99209
                                angled swivel joint, 6.0 m connection cable for battery terminals,
                                automatic discharge nozzle
CONTY-B 330-230                 Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                           56            52          99254
                                angled swivel joint, 6.0 m connection cable with Schuko plug,
                                automatic discharge nozzle
CONTY-B 450-12/24             7 Equipped with R50 12/24 (DC) motor pump, 6.0 m hose fitting with                         35/70         30/50       99192
                                angled swivel joint, 6.0 m connection cable for battery terminals,
                                automatic discharge nozzle
CONTY-B 450-230                 Equipped with R50 230 (AC) motor pump, 6.0 m hose fitting with                           56            52          99193
                                angled swivel joint, 6.0 m connection cable with Schuko plug,
                                automatic discharge nozzle

The pump DC 12/24 Can be operated with 12 V and 24 V direct current.

Accessories
                                                                                                                           Flow-rate (l/min)
 Type                             Description                                                                       Min.             Max.          Art. no.
 PZ300                        8   Mechanical roller flow meter                                                      20               120           96359
 EZ24                             Digital turbine flow meter, not calibratable, not for custody                     7                120           96479
                                  transfer

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
36    MOBILE FUEL SYSTEMS FOR DIESEL                                                                                             RIETBERG CONTAINERS 2019

                                                                                    FUEL CONTAINERS
                                                                                    QUADRO-C-E
                     1                                                              [DIESEL]

                                                                                    Their benefits
                                                                                    ›› Temporarily unlimited approval as transport container (IBC)
                                                                                       for road (ADR), railway (RID), inland shipping (ADN) and
                                                                                       maritime (IMDG code) transport of hazardous substances.
                                                                                    ›› Approved as storage container according to the building rules
                                                                                       list for flammable and water-polluting fluids
                                                                                    ›› Transport under simplified conditions without ADR certificate
                                                                                       and without hazardous substance marking
                                                                                    ›› Full hot-dip galvanised steel design for extreme durability
                                                                                    ›› Uncomplicated and secure rigging
                                                                                    ›› The storage space can also be accessed after rigging of the
                                                                                       container
                                                                                    ›› Compact, space-saving
                                                                                    ›› Stackable 2-high
                                                                                    ›› Structural protection for corners against damage caused by
                                                                                       angled edges and protrusions

                                                                                    Technical characteristics
                                                           3
                                                                                    ›› Hot-dip galvanised on the inside and outside or raw inside
                                                                                       and coated outside
                                                       5          2                 ›› Single-walled
                                                                                    ›› Lockable suction line 2
                                                                                    ›› Lockable ventilation line 3
                                                                                    ›› Discharge nozzle bracket 4
                                                                                    ›› Continuous mechanical filling level indicator
                 4                                                                  ›› Filler neck with safely and tightly lockable fitting 5
                                                                                    ›› Lockable, spring-mounted cover
                                                                                    ›› Base construction for secure lifting by forklift or pallet truck
Equipment: R50 230 pump, fill limit indicator                                       ›› 4 lifting brackets for safe crane lifting acc. to BGI 556
                                                                                    ›› Spiral flex sheathing and angled swivel joint on the hose
        APPROVAL                                                                       connection provide appropriate kink protection
        31A/Y/...15051

       DIBT, BERLIN
       BUILDING RULES LIST A
       PART 1, 15.19

Available models

                                        Dimensions (mm)
                                                                      Weight
 Type / content                    L            W          H          (kg)     Approval                                                      Art. no.
 QUADRO-C-E 700                  1215           1000       1025       245      D/BAM/15051/31A                                               99324
 QUADRO-C-E 1000               1 1215           1000       1280       270      D/BAM/15051/31A                                               99323

                     FOR PUMPS, COUNTERS AND OTHER EQUIPMENT SEE PAGE 28
RIETBERG CONTAINERS 2019   MOBILE FUEL SYSTEMS FÜR BENZIN   37

                                                                 02
                                                                 02
38   MOBILE FUEL SYSTEMS FÜR BENZIN                                                                       RIETBERG CONTAINERS 2019

                                                               FUEL CONTAINERS
                                                               QUADRO-CV 330
                                                   3
                                                               [PETROL]

                                                               Their benefits
                                                               ›› Certification for road, railway, inland shipping and maritime
                                                                   transport as well as air freight for an unlimited time
                                                       2
                                                               ›› UN approval as hazardous substance packaging and
                                                                   therefore no costs for repeated inspection.
                                                               ›› Transport under simplified conditions without ADR certificate
                                                                   and without hazardous substance marking
                                                               ›› German general technical approval as storage container.
                                                                   Storage without additional collection tray
                                                               ›› Outdoor installation
                                                               ›› Application in water protection areas
                                                               ›› Stackable 3-high
                                                               ›› Full steel design for extreme durability

                                                               Technical characteristics
                                                               ›› Hot-dip galvanised on the inside and outside or raw inside
                                                                   and coated outside
                                                               ›› Double-walled within the meaning of AwSV (plant ordinance
                                                                   for materials hazardous to water); permanent,
                                     4                             energy-independent vacuum leakage monitoring for both
                                                           3       walls 1
            6
                                                               ›› Continuous mechanical filling level indicator 2
                                                               ›› Ventilation line with shut-off ball valve 3 and deflagration
                                                                   arrester (IBExU08ATEX2122x) 4
                                                               ›› Lockable suction line 5
                                 2                     5
                                                               ›› Filling nozzle with lockable safety screw-fitting 6 and flame
                                                                  arrester (PTB Ex 12-42028)
                                                               ›› Lateral opening for hose lines or cables
                                                               ›› Base construction for secure lifting by forklift truck
                                                               ›› 4 lifting brackets, safe crane lifting acc. to BGI 556
                                                               ›› Lockable, spring-mounted cover with 3-point locking and
                                                                  safety locking cylinder
                                                               ›› Discharge nozzle bracket 7
                                          7
                                                               ›› Ground connection
                                                               ›› Spiral flex sheathing and angled swivel joint on the hose
                                                                  connection provide appropriate kink protection
                                                               ›› Self-priming aspiration pump, assembled as ready for
                                                       1          operation, 4.0 m hose fitting and automatic discharge nozzle

 1                         APPROVAL
                           1A2W/Y/...14970                      For your safety, QUADRO-CV 330 (for petrol) is equipped
                          GENERAL TECHNICAL
                                                                with flameproof fittings as a standard to prevent flames
                          APPROVAL, DIBT, BERLIN
                          Z-38.12-230
                                                                entering the containers which could cause an explosion
                                                                (German Technical Regulations on Industrial Safety
                                                                BetrSichV and TRBS).
RIETBERG CONTAINERS 2019                                                                                                MOBILE FUEL SYSTEMS FÜR BENZIN       39

                                                                                                                                                                  02
  8                                                                                 9

Technical data

                                          Dimensions (mm)
Type / content                       L         W         H          Weight (kg)      Approval
QUADRO-CV 330                        1215      815       760        217              D/BAM 14970/1A2W \\ Z-38.12-230

Available models
COMPLETE PACKAGE

                                                                                                                             Flow-rate (l/min)
 Type                                Pump                                                                               Nominal1)     Effective2) Art. no.
 QUADRO-CV 330-TPex                Equipped with TP 3-ex manual pump, 4.0 m hose fitting with                           0,35 l/       0,35 l/     99265
                                   angled swivel joint and automatic discharge nozzle                                   Hub           Hub
 QUADRO-CV 330-12ex                Equipped with R50 12 (AC) motor pump, 4.0 m hose fitting with                        50            40          99262
                                 8 angled swivel joint, 6.0 m connection cable with battery terminals,
                                   automatic discharge nozzle
 QUADRO-CV 330-230ex               Equipped with R50 230 (AC) motor pump, 4.0 m hose fitting with                       50            45          99263
                                   angled swivel joint, 6.0 m connection cable with Schuko plug,
                                 9 automatic discharge nozzle

  The pumps mentioned above are suitable for flammable fluids and comprise a corresponding explosion protection. The plugs
  and battery clips offered may only be used in the respective applicable areas. The Ex-zones must be stipulated by the
  operator (see Industrial Safety Regulations). If, in the area of the power supply point, Ex-zones can occur, explosion protected
  plugs and coupling systems must be used.

1) Indicated nominal power of the manufacturer with free outlet
2) Power detected during the test with a suction height of 1m and equipped with 4m discharge hose and automatic discharge nozzle
40   MOBILE FUEL SYSTEMS FÜR BENZIN        RIETBERG CONTAINERS 2019

QUADRO-CV 330-ex
Equipped with Rietberg trailer, 2-axis,
fire extinguisher and toolset on drawbar
(see page 21)

QUADRO-CV 230-ex
Equipped with Stecker Connector for
R50 ex 12
You can also read
