Introduction
We are proud to show you our product line-up for 2021. Manus has
been the industry leader in data gloves for years, and we aim to further
enhance the user’s experience with this range of excellent products.
The Manus Prime II Series is the result of years of intensive research
in sensor technology, optimal comfort, and software development; the
three pillars in which Manus aims to be unparalleled. Manus now moves
forward with its own uniquely developed software: Manus Core.
This product catalog provides you with all the information you need. Due
to our unique products, you know Manus will be your go-to choice for
data-gloves and supporting software.
We thank you for being our partner on this journey, and we appreciate
your interest and trust in our products.
Bart Loosman
CEO
p. 002 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 003
Prime II Product Catalog 2020 Prime II Product Catalog 2020
The central hub for all manus products
Manus Core is the main data-handling software
for all Manus products. This software is designed
to make pipelines of Manus product users more
efficient.
One of the key features is the flexibility of tracking
data input.Manus Core can receive tracking data
from different tracking systems. Inside of Manus
Core this data is synched with the data received
from Manus hardware, streaming it out as one
bundle.
Accessible full-body mocap
Manus Core comes with Manus Polygon, our latest
IK-solver software that enables fluid full-body
motion within any virtual environment.
The IK-system generates an accurately proportioned
virtual human skeleton, and seamlessly re-targets
and synchronizes your motion to a chosen avatar.
p. 004 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 005
Prime II Product Catalog 2020 Prime II Product Catalog 2020 The Prime II is the core of our next generation gloves. An all- The revelation has arrived with our Prime II Haptic VR glove. round wireless data glove that tracks individual fingers on Specially developed for an unparalleled immersive virtual two joints–it now supports full 11DOF on every finger. Quickly experience, these gloves come with high fidelity finger tracking stream data directly into any desired software with the use to achieve accurate measurement of finger spread and of popular industry plugins. Prime II offers flexibility between synchronization. New to Prime II Haptic are customizable haptic projects, use either as a stand-alone data glove for robotics, feedback modules, which provide unique sensory signals when harness its Motion Capture capabilities to deliver high fidelity interacting with varying materials and applied virtual force. finger capture during animation projects, or easy-to-integrate The haptic feedback is programmable per finger giving users VR glove ideal for simulation and virtual training. additional freedom to individualize virtual feedback. Prime II Xsens is our motion capture glove designed as the The Prime II ART is our data glove developed specially for perfect combination with the popular Xsens suit. Complement ART tracking users. Directly integrate Manus finger tracking Xsens motion capture data with consistent Manus finger in your ART project with the use of the Prime II ART gloves. tracking for natural motion every step of the way. With the These gloves allow the user to prevent occlusion challenges added Sensor Fusion in the Prime II Xsens, the user is able during optical finger tracking. With the power of Manus Core, to measure every individual finger in 11DOF providing greater the ART positional data will be bundled with Manus finger detail and accuracy. Now compatible with Xsens MVN Animate, data, streaming it our as a single stream. The Prime II ART Prime II Xsens quickly streams intricate hand and finger gloves come with a perpetual license of Manus Core and are motion to 3D charavyer animations on the fly. The Prime II upgradeable with haptic feedback. Xsens gloves come with a perpetual license of Manus Core. p. 006 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com
Prime II Product Catalog 2020 Prime II Product Catalog 2020
Hardware
Tracking Data
Glove Data
The Central Hub for All Manus Products
Manus Core is the main data-handling software
for all Manus products. This software is designed
to make pipelines of Manus product users more
efficient.
Plugins Software
One of the key features is the flexibility of tracking
data input. Manus Core can receive tracking data
SDK
from different tracking systems. Inside of Manus
Core this data is synched with the data received
from Manus hardware, streaming it out as one
bundle.
Dashboard
Manus Core comes with free plugins for third-party
software, which allows you to stream your data in Recording
real-time into your custom project in Unity, Unreal,
Motion Builder or MVM Animate
Manus Core is required if you want to make use of
the Prime II gloves.
p. 008 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 009
Prime II Product Catalog 2020 Prime II Product Catalog 2020
Manus Dashboard
An easy-to-use and intuitive interface for managing,
calibrating, and recording your performance data
with ease.
Get started in less than a minute. With three simple
gestures, the Manus gloves can be calibrated
quickly and accurately.
With Manus Core the user can select the preferred
tracking system. Positional tracking for the Manus
Gloves and Polygon data will be making use of the
selected tracking system. Manus Core supports:
OpenVR(SteamVR), ART, Oculus, Optitrack and Vicon.
Capture FBX data
Manus Core comes together with the FBX recorder
accessible trough the Manus Dashboard. This FBX
recorder allows the user to record finger data or
body data generated by Manus Polygon.
Compatibility Full-body mocap with Polygon
Manus Core comes with Manus Polygon, our latest
IK-solver software that enables fluid full-body
motion within any virtual environment.
The IK-system generates an accurately proportioned
virtual human skeleton, and seamlessly re-targets
and synchronizes your motion to a chosen avatar.
This system detects the finest nuances in human
body motion resulting in truly realistic virtual
characters, without the need for a motion-capture
suit.
Licensing
Manus Core is available as an annual or perpetual
license. Including full Manus technical support
during the license period, free third-party plugins,
and frequent updates.
Manus Core perpetual license comes with a
discount when purchased together with Manus
gloves.
p. 0010 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0011
Prime II Product Catalog 2020 Prime II Product Catalog 2020
Features
01 02
Full body mocap Quick and easy calibration
Manus Polygon supports up to 8 trackers. Unique to Polygon is the Self-calibrate tool. Designed
Enabling you to use polygon for motion capture. for speed and maximum ease-of-use. The quick 7-step
Stream directly into Unity, Unreal Engine, and calibration process allows the user to operate with full
Motionbuilder. Polygon is also compatible with autonomy.
your preferred software through FBX recordings. Setting up can be done within 2 minutes.
03
Realistic interactions in virtual worlds
Use Polygon with Prime II Haptic gloves for a fully immersive experience.
When a project or team collaboration in VR requires real-time sensations of natural touch and intuitive prop
interactions, it’s essential to combine Polygon with the Manus Prime II Haptic gloves.
The Polygon and Prime II Haptic combination provide a portable and efficient solution used from any location and
within any size volume.
04

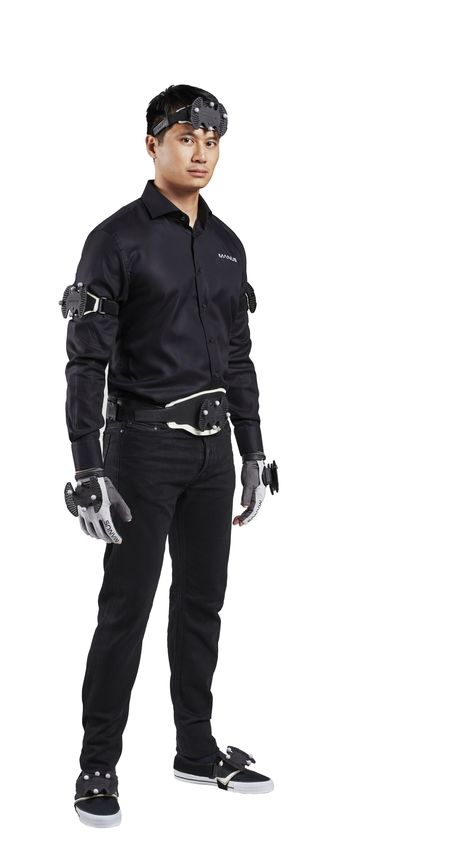

Flexible setup
The setup for Polygon can be customized by the user. The minimum requirements are 6 trackers. Polygon
tracking tracking points can be extended with the use of upper-arm trackers. The headtracker can be replaced
with a VR-headset for direct visualization, or to use Polygon in VR.
High-end natural motion and 5 trackers + HMD 6 trackers 7 trackers + HMD 8 trackers
full-body immersion in VR
Polygon enables fluid full-body motion derived
from 6 to 8 data points. The IK-system generates
an accurately proportioned virtual human skeleton,
and seamlessly re-targets and synchronizes your
motion to a chosen avatar.
This system detects the finest nuances in human
body motion resulting in truly realistic virtual
characters, without the need for a motion-capture
suit.
Polygon is a key-feature of Manus Core and is
accessible through the Manus Dashboard.
p. 0012 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0013
Prime II Product Catalog 2020
Plugins
Finger Tracking
Hand Motion & Orientation
Interaction framework
Multiplayer support
Device diagnostics
Connected devices
Full-Body IK-system
Compatibility
oculus quest
p. 0014 For more information visit: www.manus-vr.com
Prime II Product Catalog 2020 Prime II Product Catalog 2020

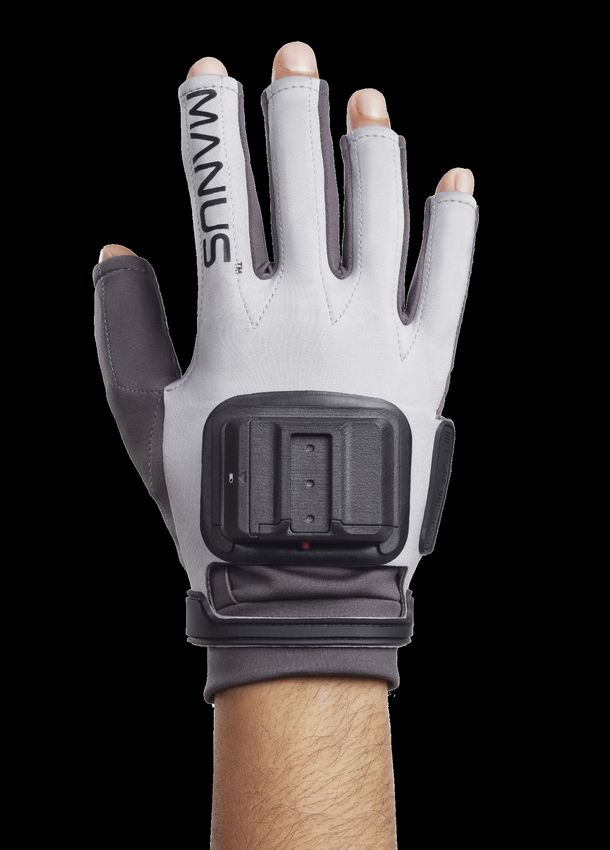

Core Edition
Features
01

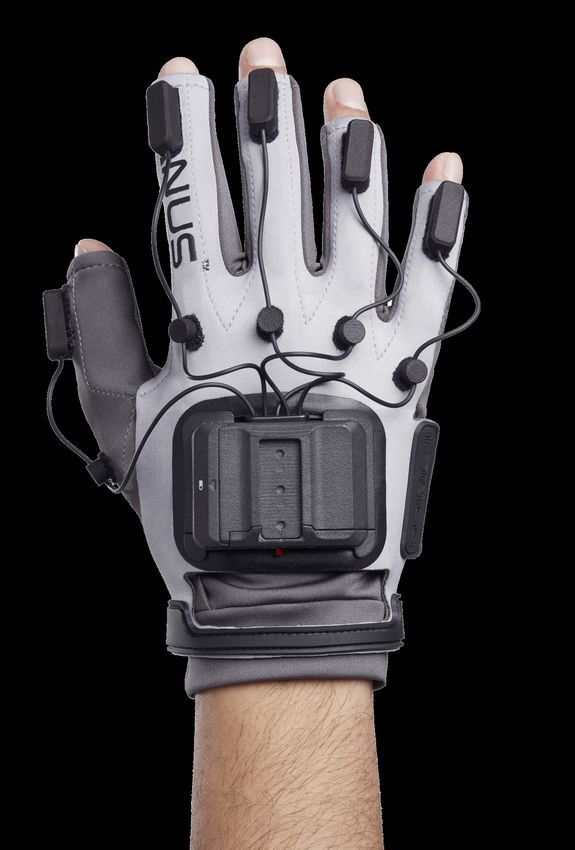

Precise Finger tracking
Merging robustness with precision, all Prime II series gloves incorporate industrial grade flex sensors fused with
high performance inertial measurement units, raising the bar in high fidelity finger tracking. The flex sensors
measure 2 joints per finger, enhanced with 11DOF tracking of individual fingers by the IMU’s to ensure fine finger
movements. IMU drift is prevented with newly implemented automatic filters, enhanced with reference points of
the robust flex sensors. This enables detailed finger spreading measurement without losing continuous quality
during a live performance capture.
02
Interchangeable Battery
All next generation Manus Gloves come equipped with interchangeable batteries, with massive upgraded battery
life powering 5 hours of continuous uninterrupted motion capture time. Choose to charge the battery during use,
or charge individually. Gloves instantly reconnect after swapping the battery, eliminating recalibration down time.
03

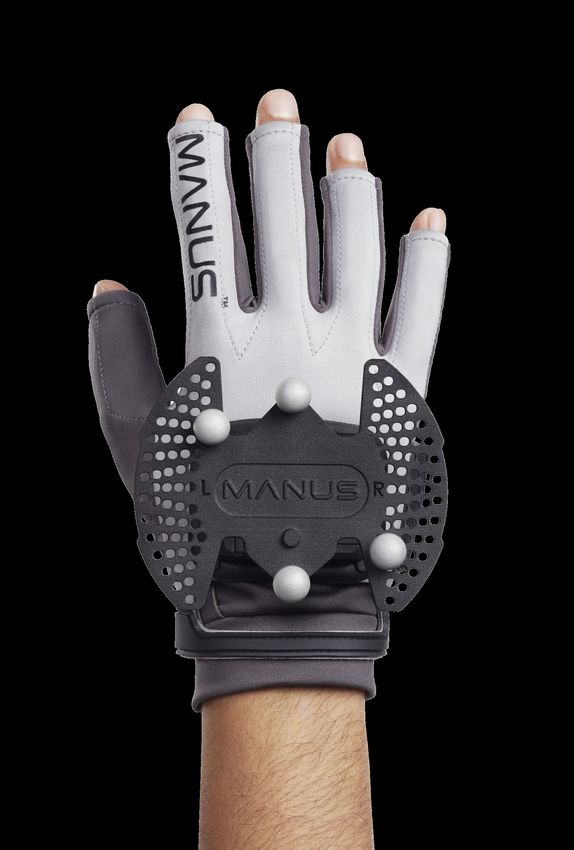

Universal Mounting System
One of the key features of the Prime II series is the easy implementation of third party hardware. For that reason
the Prime II gloves come with a universal mounting system as standard, allowing the mounting of any type of
tracker with dedicated adapters. These adapters slot in with ease on top of the Prime II series gloves.
To make use of the Manus Prime II gloves a valid license of Manus Core is required 04
Prime II for Virtual Reality Prime II for Motion Capture Calibrate in 45 seconds
A 45 second turnaround is all it takes to get moving. With three simple gestures the Manus Prime II gloves take a
Merging real world interactions with virtual world experiences The Prime II gloves are an easy set-up, portable MoCap solution quick and accurate calibration tailored to the users hands. Capturing larger groups is equally streamlined, Prime II
is now augmented thanks to Manus’s quality Prime II Series to produce high fidelity finger tracking from anywhere. The supports simultaneous multi-user calibration resulting in smoother team sessions and maximized time, making
gloves. With the broad hardware and software implementation new generation wireless Manus gloves support simultaneous
the Prime II gloves an easy, time efficient choice.
possibilities, the Prime II gloves are the go-to product for multi-user calibration during one set-up, with a short 45 second
any VR application. Accurate finger tracking and interaction calibration process to get mocap sessions under way quickly. The
framework allows handling small virtual objects naturally and built in Sensor Fusion allows users to measure each individual 05
with ease. Introduce haptics to heighten the senses for a truly finger with a 11DOF ensuring fine motor control. Extend recording
believable experience in VR. Team collaborations for professionals
prototyping high render models before it hits the manufacturing
sessions with the powerful interchangeable battery.
Washable gloves
floor saves significant time and production cost. Virtual reality With many hours of use, it’s essential to keep gloves in top shape and ready to go for your next session. We’ve
training and simulation is essential before entering high risk
made Prime II gloves washable by easy removal of sensors from the glove textile. Additional glove textiles can be
scenarios. Bring realistic hand and finger motions to 3D animated
characters in VR experiences. Whatever your need, Manus has a
acquired separately so all team members have their own personal set, simply swap the sensors from one textile
glove that fits. to another to use the same hardware ensuring responsible hygienic use.
p. 0016 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0017
Prime II Product Catalog 2020 Prime II Product Catalog 2020
What’s in the box?
Core Edition 1. One pair of Manus Prime II Gloves
2. USB-C Cable x2
3
Plugins
3. Dongle
4. Batteries x2
5. Charger 4
6. Mounting adapters
Finger Tracking
5
Hand Motion & Orientation 6
Interaction framework 2 1
Muli-user support
Device diagnostics 6 6
Connected devices
Compatibility Hardware specs.
Signal latency 1.000.000 cycles
Orientation sensor accuracy +/- 2.5 degrees
Textile information High gauge, antibacterial, sports polyester
p. 0018 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0019Prime II Product Catalog 2020 Prime II Product Catalog 2020
Haptic Edition
Features
01
Precise Finger tracking
Merging robustness with precision, all Prime II series gloves incorporate industrial grade flex sensors fused with high performance inertial
measurement units, raising the bar in high fidelity finger tracking. The flex sensors measure 2 joints per finger, enhanced with 11DOF tracking
of individual fingers by the IMU’s to ensure fine finger movements. IMU drift is prevented with newly implemented automatic filters, enhanced
with reference points of the robust flex sensors. This enables detailed finger spreading measurement without losing continuous quality during
a live performance capture.
02
Interchangeable Battery
All next generation Manus Gloves come equipped with interchangeable batteries, with massive upgraded battery life powering 5 hours of
continuous uninterrupted motion capture time. Choose to charge the battery during use, or charge individually. Gloves instantly reconnect after
swapping the battery, eliminating recalibration down time.
03
Universal Mounting System
Haptic Edition One of the key features of the Prime II series is the easy implementation of third party hardware. For that reason the Prime II gloves come
with a universal mounting system as standard, allowing the mounting of any type of tracker with dedicated adapters. These adapters slot in
with ease on top of the Prime II series gloves.
To make use of the Manus Prime II Haptic gloves a valid license of Manus Core is required
04
Cutting-edge haptic feedback technologies Calibrate in 45 seconds
A 45 second turnaround is all it takes to get moving. With three simple gestures the Manus Prime II gloves take a quick and accurate
The Manus Prime II Haptic gloves are next-gen in cutting-edge with feedback applied inside the virtual experience. Access calibration tailored to the users hands. Capturing larger groups is equally streamlined, Prime II supports simultaneous multi-user calibration
haptic feedback technology. The sense of physical touch is not the user friendly dashboard and driver to calibrate and control resulting in smoother team sessions and maximized time, making the Prime II gloves an easy, time efficient choice.
easily replicated, with the Prime II Haptic, precision is paramount the agnostics of your gloves where haptic feedback is fully
to deliver intuitive and natural interactions with low latency customizable, and is equipped with an integrated material editor,
between user and virtual hands. Whether holding digital objects, and signal strength, frequency and resonance adjuster.
feeling textures, pushing buttons or pulling handles inside virtual
05
experiences, the gloves provide a snug and comfortable fit to Prime II Haptic significantly reduces cost and time for teams
ensure delicate vibrations are felt across hands and fingers,
with the hyper-fine feedback loop from motor control to haptics
collaborating on VR projects in motion capture, robotics,
prototyping, educational VR, virtual training and more–or take Washable gloves
providing a powerful presence in VR. This is achieved by assigning gaming experiences to a whole new level of play for VR Arcade With many hours of use, it’s essential to keep gloves in top shape and ready to go for your next session. We’ve made Prime II gloves washable
a programmable LRA haptic module (linear resonant actuator) games. by easy removal of sensors from the glove textile. Additional glove textiles can be acquired separately so all team members have their own
to each individual finger looping back unique signals depending personal set, simply swap the sensors from one textile to another to use the same hardware ensuring responsible hygienic use.
on the interactions with virtual objects and materials along
p. 0020 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0021Prime II Product Catalog 2020 Prime II Product Catalog 2020
What’s in the box?
Haptic Edition 1. One pair of Manus Prime II Haptic Gloves
Plugins 2. USB-C Cable x2
3. Dongle
3
4. Batteries x2
5. Charger 4
6. Mounting adapters
Finger Tracking
Hand Motion & Orientation
5
Interaction framework 6
Haptic feedback 2 1
Multiplayer support
Device diagnostics 6 6
Connected devices
Compatibility Hardware specs.
Signal latency 1.000.000 cycles
Orientation sensor accuracy +/- 2.5 degrees
Textile information High gauge, antibacterial, sports polyester
p. 0022 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0023Prime II Product Catalog 2020 Prime II Product Catalog 2020
Xsens Edition
Features
01
Precise Finger tracking
Merging robustness with precision, all Prime II series gloves incorporate industrial grade flex sensors fused with high performance inertial
measurement units, raising the bar in high fidelity finger tracking. The flex sensors measure 2 joints per finger, enhanced with 11DOF tracking
of individual fingers by the IMU’s to ensure fine finger movements. IMU drift is prevented with newly implemented automatic filters, enhanced
with reference points of the robust flex sensors. This enables detailed finger spreading measurement without losing continuous quality during
a live performance capture.
02
Interchangeable Battery
All next generation Manus Gloves come equipped with interchangeable batteries, with massive upgraded battery life powering 5 hours of
continuous uninterrupted motion capture time. Choose to charge the battery during use, or charge individually. Gloves instantly reconnect after
swapping the battery, eliminating recalibration down time.
03
Universal Mounting System
One of the key features of the Prime II series is the easy implementation of third party hardware. For that reason the Prime II gloves come
with a universal mounting system as standard, allowing the mounting of any type of tracker with dedicated adapters. These adapters slot in
with ease on top of the Prime II series gloves.
Xsens edition 04
Calibrate in 45 seconds
A 45 second turnaround is all it takes to get moving. With three simple gestures the Manus Prime II gloves take a quick and accurate
The Prime II Xsens gloves come bundled with a perpetual license of Manus Core calibration tailored to the users hands. Capturing larger groups is equally streamlined, Prime II supports simultaneous multi-user calibration
resulting in smoother team sessions and maximized time, making the Prime II gloves an easy, time efficient choice.
Expand the Xsens suit
The push for perfect realism in 3D character animations seen With direct integration into MVN Animate, the gloves quickly 05
in the dynamic worlds of games, film, animation, TV broadcast, deliver technicians and artists complex and fine movements
and live entertainment means hardware and software remain
top of its game and at the fingertips for all production teams.
found in hand and finger gestures to create complete and
believable 3D characters. The creative industries including motion
Washable gloves
The Prime II Xsens gloves has been specifically developed to work analysis, industrial control and stabilization sectors already rely With many hours of use, it’s essential to keep gloves in top shape and ready to go for your next session. We’ve made Prime II gloves washable
seamlessly with Xsens MVN Animate, the 3D character animation on the combination of Manus Prime II Xsens gloves, Xsens suits by easy removal of sensors from the glove textile. Additional glove textiles can be acquired separately so all team members have their own
software used by industry professionals over the world. and MVN Animate to breathe life into their projects. personal set, simply swap the sensors from one textile to another to use the same hardware ensuring responsible hygienic use.
p. 0024 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0025Prime II Product Catalog 2020 Prime II Product Catalog 2020
What’s in the box?
Xsens Edition 1. One pair of Manus Prime II Xsens Gloves
2. USB-C Cable x2
3
3. Dongle
Direct MVN Animate 4. Batteries x2
5. Charger 4
integration 6. Mounting adapters
With direct integration into MVN Animate, the gloves quickly Easy integration of the Manus Gloves is one of our top priorities.
deliver technicians and artists complex and fine movements By enabling direct integration into Xsens MVN software we have
found in hand and finger gestures to create complete and made the finger data compatible with all major 3D software 5
believable 3D characters. The creative industries including motion packages. 6
analysis, industrial control and stabilization sectors already rely 2 1
on the combination of Manus Prime II Xsens gloves, Xsens suits
and MVN Animate to breathe life into their projects.
6 6
Compatibility Hardware specs.
Signal latency 1.000.000 cycles
Orientation sensor accuracy +/- 2.5 degrees
Textile information High gauge, antibacterial, sports polyester
p. 0026 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0027Prime II Product Catalog 2020 Prime II Product Catalog 2020
ART Edition
Features
01
Precise Finger tracking
Merging robustness with precision, all Prime II series gloves incorporate industrial grade flex sensors fused with
high performance inertial measurement units, raising the bar in high fidelity finger tracking. The flex sensors
measure 2 joints per finger, enhanced with 11DOF tracking of individual fingers by the IMU’s to ensure fine finger
movements. IMU drift is prevented with newly implemented automatic filters, enhanced with reference points of
the robust flex sensors. This enables detailed finger spreading measurement without losing continuous quality
during a live performance capture.
02
Interchangeable Battery
All next generation Manus Gloves come equipped with interchangeable batteries, with massive upgraded battery
life powering 5 hours of continuous uninterrupted motion capture time. Choose to charge the battery during use,
or charge individually. Gloves instantly reconnect after swapping the battery, eliminating recalibration down time.
03
Universal Mounting System
One of the key features of the Prime II series is the easy implementation of third party hardware. For that reason
the Prime II gloves come with a universal mounting system as standard, allowing the mounting of any type of
tracker with dedicated adapters. These adapters slot in with ease on top of the Prime II series gloves.
ART Edition 04
Calibrate in 45 seconds
A 45 second turnaround is all it takes to get moving. With three simple gestures the Manus Prime II gloves take a
quick and accurate calibration tailored to the users hands. Capturing larger groups is equally streamlined, Prime II
The Prime ART gloves come bundled with a perpetual license of Manus Core supports simultaneous multi-user calibration resulting in smoother team sessions and maximized time, making
the Prime II gloves an easy, time efficient choice.
A glove for your ART setup. 05
The Prime II ART is our data glove developed specially the power of Manus Core, the ART positional data will Washable gloves
for ART tracking users. Directly integrate Manus finger be bundled with Manus finger data, streaming it out With many hours of use, it’s essential to keep gloves in top shape and ready to go for your next session. We’ve
tracking in your ART project with the use of the Prime as a single stream. made Prime II gloves washable by easy removal of sensors from the glove textile. Additional glove textiles can be
II ART gloves. These gloves allow the user to prevent acquired separately so all team members have their own personal set, simply swap the sensors from one textile
occlusion challenges during optical finger tracking. With to another to use the same hardware ensuring responsible hygienic use.
p. 0028 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0029Prime II Product Catalog 2020 Prime II Product Catalog 2020
What’s in the box?
ART Edition 1. One pair of Manus Prime II ART Gloves
2. USB-C Cable x2
3
Plugins
3. Dongle
4. Batteries x2
5. Charger 4
6. Mounting adapters
Finger Tracking
5
Hand Motion & Orientation 6
Interaction framework 2 1
Muli-user support
Device diagnostics 6 6
Connected devices
The Prime II ART Gloves are upgradable with Haptic Feedback Hardware specs.
Signal latency 1.000.000 cycles
Orientation sensor accuracy +/- 2.5 degrees
Textile information High gauge, antibacterial, sports polyester
p. 0030 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0031Prime II Product Catalog 2020 Prime II Product Catalog 2020
Manus Charger and Batteries
Accessories
Eliminate downtime by charging the batteries
of your prime II gloves while you work on
your project. Charge up to 6 batteries with the
Adapters Compatible with. Manus Charger.
Manus Prime II Series Gloves come equipped
One of the key features of the Prime II series with interchangeable batteries. Powering your
is the easy implementation of third party gloves for up to 5 hours during continuous
hardware. uninterrupted use.
The Adapters are made of a high-quality
polymer making them resilient and usable in
any situation. Our innovative sliding system
allows for easy attachment to the Prime II
series Gloves.
Add your preferred Adapter to your quote
request by selecting when ordering your Prime
II gloves.
Glove Textiles
With many hours of use, it’s essential to keep
gloves in top shape and ready to go for your
next session.
We’ve made Prime II glove textiles washable by
easy removal of sensors from the glove textile.
All users can have their own personal set,
simply swap the sensors from one textile to
another to use the same hardware ensuring
responsible hygienic use.
p. 0032 For more information visit: www.manus-vr.com For more information visit: www.manus-vr.com p. 0033Prime II Product Catalog 2020 p. 0034 For more information visit: www.manus-vr.com
You can also read
