RANGER RAPTOR
www.ford.co.za
FEATURES RAPTOR
RAPTOR SMART FEATURES
Powertrain
Bi-Turbo Engine X
10-Speed Auto X
Race-Bred Suspension X
6-Mode Terrain Management System X
Wheels
17" Alloy wheels X
All-terrain tyres X

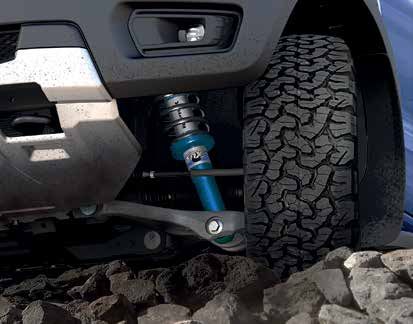

RACE-BRED SUSPENSION Infotainment
Ford SYNC® 3 with Bluetooth, 8" Touchscreen, Navigation and Apple Car Play & Android Auto X
The Ranger Raptor’s suspension system was Rear View Mirror Mounted USB Port X
Convenience
calibrated to tackle tough terrain. Standard 2.5”
Cruise Control, Autonomous Emergency Braking, Lane Keep System X
FOX Racing Shocks deliver 30% more wheel travel Auto-dimming rearview mirror X
compared to Ranger. Push start button and keyless entry X
Dual Electronic Automatic Temperature Control (DEATC) X
ALL-TERRAIN TYRES THAT SAY
Parking sensors - Rear X
Rear Parking camera X
BRING IT Ezi-lift Tailgate X
Power Heated Seats X
The precise tread pattern, longer tread life, and Exterior Lighting
Day time running lights X
tougher side walls on All-Terrain tyres which are
LED headlamps X
standard on the All-New Ranger Raptor, say Bring Front fog lamps X
It – no matter what type of terrain you plan on Styling
Unique Sports Leather Trimmed Seats X
engaging.
Red Racing stripe on steering wheel X
Bash Plate X

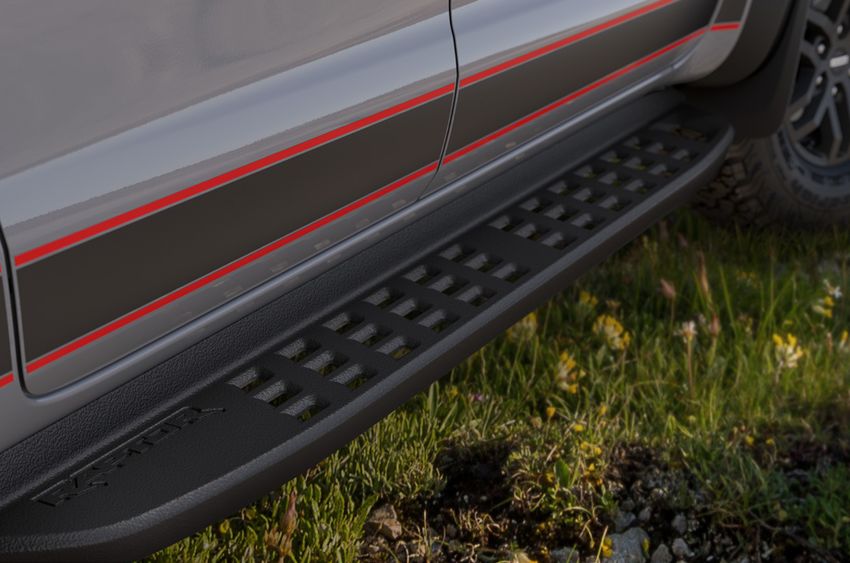

Side Step X
HUGE BASH PLATE

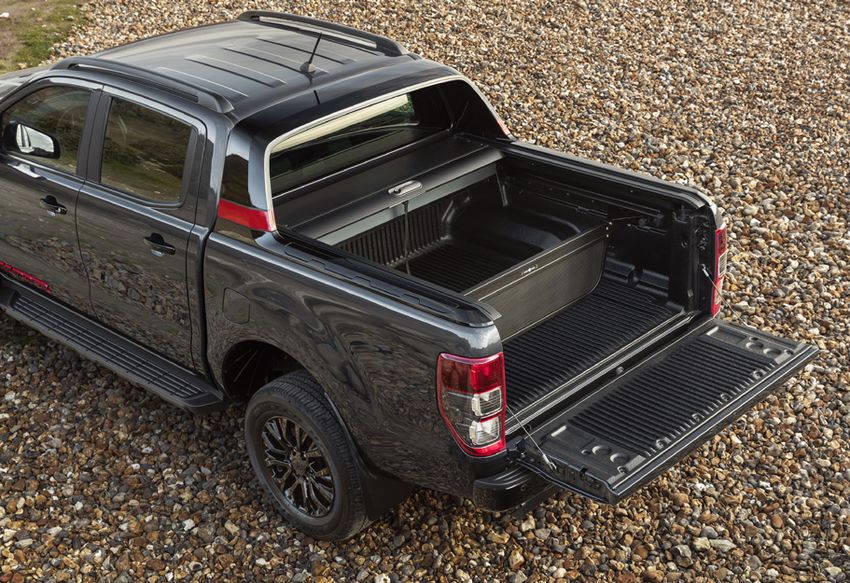

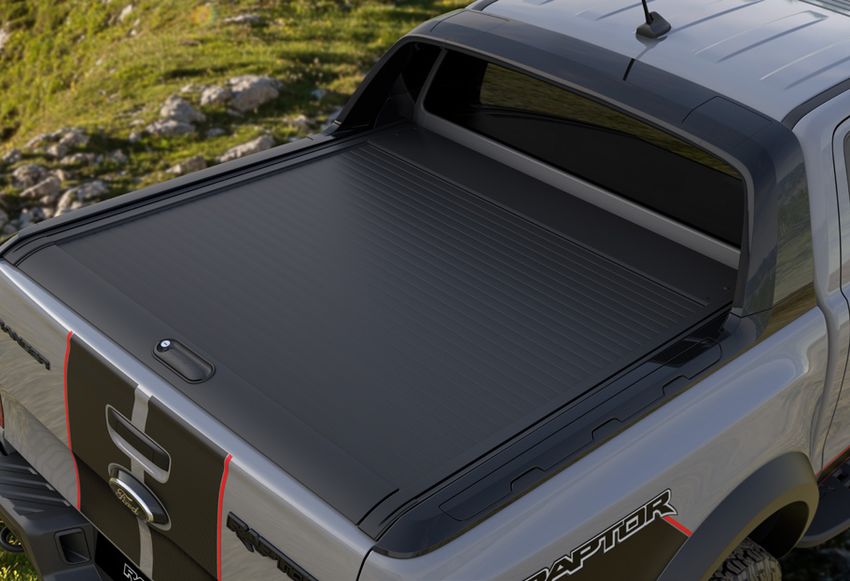

Load Box
Load Box Bin-liner X
12V Power Socket in load box X
The Ranger Raptor’s underbody shield is 230V rear power point plug X
mammoth. Its 2.3mm thick high-strength steel is Security
Thatcham alarm X
designed to absorb the impact from almost any off-
Towing
road event. Towbar X
Towing mass [brake, (kg)] 2500
BODY-CONTOURED OPTIONS

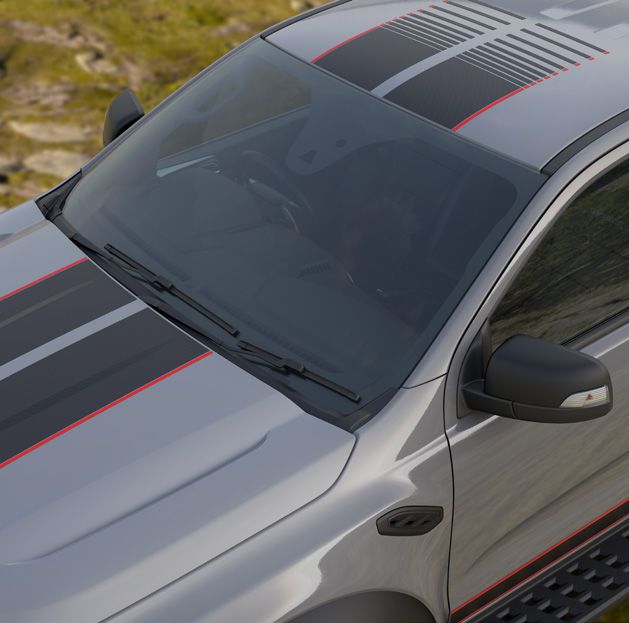

Raptor Decal X

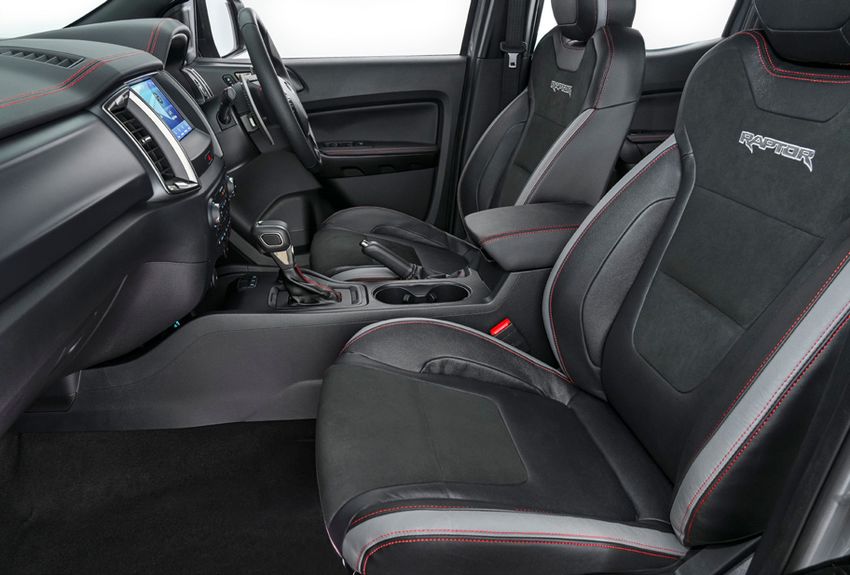

SPORTS SEATS Ford reserves the right, subject to all applicable laws, to discontinue or change features and other specifications either temporarily or
The Ranger Raptor’s purpose-built sports seats permanently, which will be communicated to the Ford Dealer Network. Printed April 2021.
include unique headrests, enhanced bolsters and
suede inserts for better body grip when driving
off-road. 6-MODE TERRAIN
MANAGEMENT
MAGNESIUM PADDLE SHIFTERS SYSTEM
High-quality magnesium paddle shifters on the Ford engineers designed
perforated leather steering wheel allow for fast and calibrated the Ranger
shifting without taking your hands off the wheel. Raptor to stringent Ford
Performance standards.
A cutting-edge Terrain
Management System offers
6 pre-set driving modes to
conquer virtually any terrain,
at the push of a button.
Lane Cruise Rain Sensing
Keeping Aid Control Wipers
2 3
FORD INFOTAINMENT TECHNOLOGIES LEVEL 1
COMPLIMENTARY 4X4 TRAINING
When purchasing a NEW 4x4 RANGER or EVEREST you qualify for
a FREE introductory 4x4 course, hosted by Ford Adventure Club,
CONNECT WITH YOUR CAR
FROM THE PALM OF YOUR HAND Ford Motor Company SA’s official 4x4 training partner.
The New FordPass Connect modem makes your journeys
easier. Discover a range of features in your vehicles, and on
your smartphone, that work together to keep you effortlessly
connected on every journey.
• Remote Lock and Unlock • Remote start*
• Fuel Status • Car Finder
• Car Health Alerts
*Only available on automatic transmission vehicles.
**FordPass connect and embedded modem comes standard on 2021 Rangers (Feb production).
***Ask your nearest dealer for more information on FordPass. FOR MORE DETAILS PLEASE SEE CONTACT INFORMATION BELOW:
E-mail: adventureclub@red-moon.co.za
Contact: +27 60 982 4394
Facebook: https://www.facebook.com/fordadventureclub/
Website: www.fordadventureclub.co.za
http://fordadventureclub.co.za/training/
COLOURS & WHEELS
COLOURS & WHEELS
*Optional Prestige Paint
*Optional
incurs Prestige
additional Paint
charge.
incurs additional charge.
Note: The images are used
Conquer Grey* Ford Performance Blue* Shadow Black* Note: The images
to illustrate are used
body colours
Conquer Grey* Ford Performance Blue* Shadow Black* to illustrate body colours
only, and may not reflect
SATELLITE TALK ENTERTAINMENT
NAVIGATION only, and may
the vehicle not reflect
described.
the vehicle described.
Colours and trims
Colours
reproducedand within
trims this
reproduced
brochure may vary this
within from
SYNC®3 APPLE CARPLAY™ 1
Apple CarPlay/Android Auto requires phone with compatible version of Apple
brochure
the actualmay vary from
colours, due
iOS/Android™ (as applicable), active data service, and connection cable (sold
& ANDROID AUTO1 separately). SYNC® does not control Apple CarPlay/Android Auto while in
the actual
to the colours,ofdue
limitations the
Frozen White Race Red to the limitations
printing processesof the
used.
use. Apple/Google and other third parties are responsible for their respective Frozen White Race Red printing processes used.

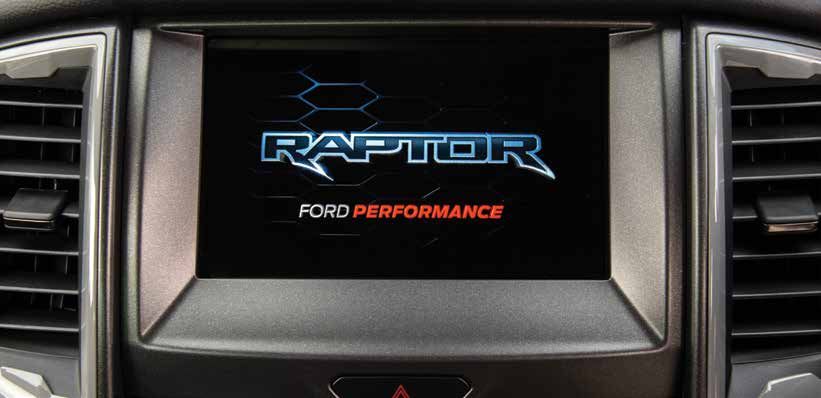

The Ranger Raptor’s voice-controlled
functionality. Message and data rates may apply. Apple CarPlay™, Siri Eyes Free,
SYNC®3 system keeps you connected, iPod and iPhone are trademarks of Apple Inc. registered in the US and other
entertained, and on track. countries. Android Auto and Google Maps are trademarks of Google Inc. Ford
The 8” touchscreen features a AppLink® is available on selected SYNC® models and is compatible with select 17” forged aluminium bead-lock capable wheel.
unique start-up screen and supports smartphone platforms. Warning: Local laws prohibit some phone functions Standard on the RANGER RAPTOR derivatives.
functionalities like swipe. while driving. Check your local road rules before using these functions.
6 7
1 2 3 4 5
UP AND CAN’T HELP CARVE YOUR BRING OTHERS WE MAKE OUR
OVER BUT HELP OWN PATH ALONG OWN FUN
There’s no challenge We are doers. We are the truck It’s great to work There’s no such
we don’t tackle head We pitch in. that redefined the hard and achieve thing as all work and
on. When we see a When people need category. We don’t recognition, but no play. And when
mountain range we help or assistance wait for others to even better to share it’s time to play, we
want to go over, not we’re always there. lead. We have a it with those who know how to make
around. This is true On the building site, vision and objective mean the most - our the mot of those
of our truck, users, helping friends or and we’re fearless in family and friends. opportunities. Our
Ford and partners. loved ones, or our what we need to do truck is awesome
dealers within their to achieve our goals. and fun to drive.
local communities.
FORD PROTECT
Ford PROTECT offers a holistic suite of service, maintenance, warranty and roadside-assistance products aimed at
keeping your new RANGER in perfect working condition.
YEAR/
UNLIMITED KM SERVICE AND
CORROSION MAINTENANCE
WARRANTY
All RANGER derivatives retailed on or after 01 November 2021 will not have a service plan included in the vehicle in line with the
Competition Commission’s Guidelines for the Automotive Aftermarket Industry. Service and maintenance plans can be purchased
directly from the Finance and Insurance Manager at any Ford Authorised dealership. Please ensure you follow your service booklet for
your service intervals. Service Plan covers all scheduled servicing except friction materials and wear items, i.e. brake pads and wiper
blades. An Extended Warranty may be purchased prior to the expiry of the 4-yr/120 000km New Vehicle Limited Warranty (NVLW).
Warranty: Extension covering your vehicle for up to 7 years or 200 000kms from the original warranty start date.
Service Plans options available for up to 8 years or 135 000kms from original warranty start date.
Maintenance Plans: Ford Protect has a variety of maintenance options for up to 8 years or 135 000kms.
Roadside Assistance: opt for an additional 1 or 2 years Roadside Assistance
Please contact your nearest Ford Dealer for more information regarding Ford PROTECT plans and products options or visit
www.ford.co.za/fordprotect
The declared fuel consumption and CO2 emissions figures were achieved during technical laboratory testing in accordance with the legislated technical
specifications (SANS 20101: 2006/ECE R101: 2005 as last amended) and validated and approved by the UK Vehicle Certification Authority (VCA).
Fuel consumption and CO2 emissions figures are used to compare different vehicle types under uniform conditions, and are not necessarily indicative
of real-life driving conditions. Note that the actual fuel consumption and emissions levels will depend on many factors and are directly affected by the
length of the journey; number of passengers and the amount of luggage carried; individual driving style; road conditions; weather conditions; vehicle
age, mileage, condition and standard of maintenance; use of vehicle features such as air conditioning; and any modifications to the vehicle. Your fuel
economy will vary based on these and other factors and, for these reasons, many drivers may not achieve the EU fuel economy figures in day-to-day
driving, although the vehicle is technically capable of doing so.
Ford reserves the right, subject to all applicable laws, to discontinue or change features and other specifications either temporarily or
permanently, which will be communicated to the Ford Dealer Network. E & OE. Printed October 2021.
DOUBLE CAB 1
RAPTOR RAPTOR
2.0BiT 2.0BiT
RAPTOR 4x4 High Rider RAPTOR 4x4 High Rider
10AT 10AT
ENGINE SAFETY/SECURITY SPECIFICATION
Power: kW @ rpm 157 @ 3750 Door Locking
Torque: Nm @ rpm 500 @ 1500 - 2000 Smart Keyless Entry & Push Button Start S
Engine displacement (cc) 1996 Safety/Restraints
Number of cylinders 4 Curtain Airbags S
Number of valves 16 Driver & Passenger Belt minder S
Fuel requirement Diesel Driver Airbag S
FUEL CONSUMPTION Front Passenger Airbag S
Fuel economy (L/100km) 8,3 Inflatable Knee Airbag S
CO² Emissions (g /km) 220 ISOFIX seats S
VEHICLE CAPABILITIES Passenger Airbag Disable - Switch & Light S
ABS with Electronic brakeforce distribution (EBD) S Side Airbags (Thorax Only) S
Adaptive Load Control S Two outboard 3-point and one centre 3-point rear seat belts S
Electronic Stability Programme (ESP) S Security
ESP Brake System S Lane Keeping System: Includes Lane Keeping Aid, Lane Departure Warning & Driver
S
Hill Descent Control S Alert System
Hill Launch Assist S Parking Distance Sensors – Rear S
Roll-over mitigation S Rear View Parking Camera S
Traction Control S Thatcham Alarm S
Trailer Sway Control S MECHANICAL SPECIFICATION
EXTERIOR SPECIFICATION 4x4 Control
Exterior Trim Terrain Management S
Decal Package O Wheels & Tyres
Ezi-lift tailgate S 17" Alloy Wheel S
Side Steps S Non Locking Wheel Lug Nuts S
Tailgate Lock - power (activated with Central Locking) S Vehicle Capability
Body & Box Elements Front Towing hook S
Drop-in Bedliner with 12V Power Point S Tow Bar S
Glass & Wash/Wipe Dimensions & Weights
Rain Sensing Wipers S Cargo depth (mm) 561
Rear window Defroster S Cargo floor length (mm) 1743
Exterior Lighting Cargo floor width (mm) 1560
Auto On/Off Headlamps S Front Overhang 908
Daytime Running Lamps S Fuel capacity (Litres) 80
Front Fog Lamps - LED S GCM (Gross Combination Mass) (kg) 6000
High Mounted Stop Lamp with loadbox lighting S Ground clearance (mm) [Fully loaded] 283
LED Headlamps S GVM (Gross Vehicle Mass) (kg) 3090
Rear Fog Lamp S Overall height (mm) 1873
INTERIOR SPECIFICATION Overall length (mm) 5398
Climate Control Payload (kg) [passenger weight (65kg) and fuel weight (80l) removed] 607
Dual Electronic Automatic Temperature Control (DEATC) S Rear Overhang 1270
Fresh Air Heater S Tare Mass (kg) 2338
Audio/Media Towing mass (Braked) (kg) 2500
Ford SYNC®3 with 6 speakers, 2 x USB ports, MP3, Bluetooth, Towing mass (Unbraked) (kg) 750
S
8" Colour TFT screen & 1 x 4.2" TFT screens in Cluster & Navigation Wading Depth (mm) 850
Instrument Panel, Cockpit & Controls Wheelbase 3220
12V Power Point Plug - Front console S Ford Pass3
12V Power Point Plug - Loadbox S FordPass Connect S
12V Power Point Plug - Rear console S Remote Lock and Unlock S
230V/150W power converter S Remote start S
Cruise Control, Autonomous Emergency Braking, Lane Keep System S Fuel Status S
Leather stitched steering and soft feel dashboard S Car Finder S
Floor & Cowl Side Trim Car Health Alerts S
Front & Rear Carpet Mats S Ford Protect
Nonwoven fabric Carpet S Service & Warranty
Seat Fabric Types Warranty (NVLW) (4 years / 120 000km) S
Seat Material - Leather Trimmed6 S Corrosion Warranty (5 years / unlimited km's) S
Interior Lighting Roadside assistance (3 years / unlimited km's) S
Dome Interior Lighting with Theatre Dimming & Illuminated Entry S Service Intervals (15 000km) S
Rear View Mirror Mounted USB Port S Service Plan (6 years / 90 000km) O
Interior - Mirrors
Electrochromatic Rear View Mirror S
The declared fuel consumption and CO2 emissions figures were achieved during technical laboratory testing in accordance with the legislated technical specifications (SANS 20101: 2006/ECE R101: 2005
as last amended) and validated and approved by the UK Vehicle Certification Authority (VCA). Fuel consumption and CO2 emissions figures are used to compare different vehicle types under uniform
conditions, and are not necessarily indicative of real-life driving conditions. Note that the actual fuel consumption and emissions levels will depend on many factors and are directly affected by the length
of the journey; number of passengers and the amount of luggage carried; individual driving style; road conditions; weather conditions; vehicle age, mileage, condition and standard of maintenance; use of
vehicle features such as air conditioning; and any modifications to the vehicle. Your fuel economy will vary based on these and other factors and, for these reasons, many drivers may not achieve the EU fuel
economy figures in day-to-day driving, although the vehicle is technically capable of doing so.
3
FordPass connect and embedded modem comes standard on all Rangers from February production 2021. Remote start only available on automatic transmission vehicles. 6Leather seats are a combination
of leather and high-quality, durable materials. *Ford reserves the right, subject to all applicable laws, to discontinue or change features and other specification either temporarily or permanently without
incurring any liability to any prospective purchaser or purchasers. E and OE. Printed October 2021.
SPECIAL EDITION RANGERS
Black Ford Grille, Black Sports Hoop and Red Recovery Hooks
RA PTO R SPECIAL E DITI O N
Black Matte 17” alloy wheel Black Side Step Dark Interior Finish with Red Stitching
Raptor SE Decal Bedliner with 12V power socket Black Roller Shutter
The RANGER RAPTOR SPECIAL EDITION is available in the following colours:
Conquer Grey (Metallic*) Agate Black (Metallic*)
1 Blue Lightning (Metallic*) Frozen White (Solid)
*Metallic body colours are options at extra cost. www.ford.co.za
DOUBLE CAB 2
RAPTOR SPECIAL RAPTOR SPECIAL
RAPTOR RAPTOR
RAPTOR • RAPTOR 2.0BiT
EDITION
2.0BiT
RAPTOR • RAPTOR 2.0BiT
EDITION
2.0BiT
SPECIAL EDITION 4x4 High Rider 4x4 High Rider SPECIAL EDITION 4x4 High Rider 4x4 High Rider
10AT 10AT 10AT 10AT
ENGINE SAFETY/SECURITY SPECIFICATION
Power: kW @ rpm 157 @ 3750 157 @ 3750 Door Locking
Torque: Nm @ rpm 500 @ 1500 - 2000 500 @ 1500 - 2000 Smart Keyless Entry & Push Button Start S S
Engine displacement (cc) 1996 1996 Safety/Restraints
Number of cylinders 4 4 Curtain Airbags S S
Number of valves 16 16 Driver & Passenger Belt minder S S
Fuel requirement Diesel Diesel Driver Airbag S S
FUEL CONSUMPTION Front Passenger Airbag S S
Fuel economy (L/100km) 8,3 8,3 Inflatable Knee Airbag S S
CO² Emissions (g /km) 220 220 ISOFIX seats S S
VEHICLE CAPABILITIES Passenger Airbag Disable - Switch & Light S S
ABS with Electronic brakeforce distribution (EBD) S S Side Airbags (Thorax Only) S S
Adaptive Load Control S S Two outboard 3-point and one centre 3-point rear seat belts S S
Electronic Stability Programme (ESP) S S Security
ESP Brake System S S Lane Keeping System: Includes Lane Keeping Aid, Lane
S S
Hill Descent Control S S Departure Warning & Driver Alert System
Hill Launch Assist S S Parking Distance Sensors – Rear S S
Roll-over mitigation S S Rear View Parking Camera S S
Traction Control S S Thatcham Alarm S S
Trailer Sway Control S S MECHANICAL SPECIFICATION
EXTERIOR SPECIFICATION 4x4 Control
Exterior Trim Terrain Management S S
Decal Package* O S Wheels & Tyres
Ezi-lift tailgate S S 17" Alloy Wheel S S
Hoop Sports Bar with Box Illumination + brake lamp - S 17” Cast Alloy Wheel - Black - S
Side Steps S S Non Locking Wheel Lug Nuts S S
Tailgate Lock - power (activated with Central Locking) S S Vehicle Capability
Red Recovery hooks - S Front Towing hook S S
Body & Box Elements Tow Bar S S
Drop-in Bedliner with 12V Power Point S S Dimensions & Weights
Mountain Top Roller Shutter - S Cargo depth (mm) 561 561
Glass & Wash/Wipe Cargo floor length (mm) 1743 1743
Rain Sensing Wipers S S Cargo floor width (mm) 1560 1560
Rear window Defroster S S Front Overhang 908 908
Exterior Lighting Fuel capacity (Litres) 80 80
Auto On/Off Headlamps S S GCM (Gross Combination Mass) (kg) 6000 6000
Daytime Running Lamps S S Ground clearance (mm) [Fully loaded] 283 283
Front Fog Lamps - LED S S GVM (Gross Vehicle Mass) (kg) 3090 3090
High Mounted Stop Lamp with loadbox lighting S S Overall height (mm) 1873 1873
LED Headlamps S S Overall length (mm) 5398 5398
Rear Fog Lamp S S Payload (kg) [passenger weight (65kg) and fuel weight
607 607
INTERIOR SPECIFICATION (80l) removed]
Climate Control Rear Overhang 1270 1270
Dual Electronic Automatic Temperature Control (DEATC) S S Tare Mass (kg) 2338 2338
Fresh Air Heater S S Towing mass (Braked) (kg) 2500 2500
Audio/Media Towing mass (Unbraked) (kg) 750 750
Ford SYNC®3 with 6 speakers, 2 x USB ports, MP3, Bluetooth, Wading Depth (mm) 850 850
8" Colour TFT screen & 1 x 4.2" TFT screens in Cluster & S S Wheelbase 3220 3220
Navigation RAPTOR SPECIAL EDITION
Instrument Panel, Cockpit & Controls Black Exterior Accents - S
12V Power Point Plug - Front console S S Black Ford logo - S
12V Power Point Plug - Loadbox S S Black Matte 17" alloy wheel - S
12V Power Point Plug - Rear console S S Black Sports Hoop - S
230V/150W power converter S S Interior Red Stitching - S
Cruise Control, Autonomous Emergency Braking, Lane Keep Mountain Top Black Roller Shutter - S
S S
System Off Road Decal - S
Leather stitched steering and soft feel dashboard S S Red Recovery hooks - S
Floor & Cowl Side Trim FORD PASS3
Front & Rear Carpet Mats S S FordPass Connect S S
Nonwoven fabric Carpet S S Remote Lock and Unlock S S
Seat Fabric Types Remote start S S
Seat Material - Leather Trimmed6 S S Fuel Status S S
Interior Lighting Car Finder S S
Dome Interior Lighting with Theatre Dimming & Illuminated Car Health Alerts S S
S S
Entry FORD PROTECT
Rear View Mirror Mounted USB Port S S Service & Warranty
Interior - Mirrors Warranty (NVLW) (4 years / 120 000km) S S
Electrochromatic Rear View Mirror S S Corrosion Warranty (5 years / unlimited km's) S S
Roadside assistance (3 years / unlimited km's) S S
All Ranger derivatives retailed on or after 01 November 2021 will not have a service plan included in the vehicle in line
Service Intervals (15 000km) S S
with the Competition Commission’s Guidelines for the Automotive Aftermarket Industry. Service and maintenance
plans can be purchased directly from the Finance and Insurance Manager at any Ford Authorised dealership. Service Plan (6 years / 90 000km) O O
The declared fuel consumption and CO2 emissions figures were achieved during technical laboratory testing in accordance with the legislated technical specifications (SANS 20101: 2006/ECE R101: 2005 as last amended) and validated
and approved by the UK Vehicle Certification Authority (VCA). Fuel consumption and CO2 emissions figures are used to compare different vehicle types under uniform conditions, and are not necessarily indicative of real-life driving
conditions. Note that the actual fuel consumption and emissions levels will depend on many factors and are directly affected by the length of the journey; number of passengers and the amount of luggage carried; individual driving style;
road conditions; weather conditions; vehicle age, mileage, condition and standard of maintenance; use of vehicle features such as air conditioning; and any modifications to the vehicle. Your fuel economy will vary based on these and other
factors and, for these reasons, many drivers may not achieve the EU fuel economy figures in day-to-day driving, although the vehicle is technically capable of doing so. *Rear PDC is not available on XL Sport. *Side Step is not available
on XL Sport Single Cab (it is only available on Rap Cab & Double Cab). *Leather seats are a combination of leather and high-quality, durable materials. *Ford reserves the right, subject to all applicable laws, to discontinue
or change features and other specification either temporarily or permanently without incurring any liability to any prospective purchaser or purchasers. *Power Roller Shutter is only available on all Wildtrak derivatives built
from February 2021. *Raptor SE Decal is only available on Raptor SE. The optional Decal is different. *FordPass connect and embedded modem comes standard on all Rangers from February production 2021. Remote start only
available on automatic transmission vehicles. *Printed October 2021.
You can also read
