RESEARCH IN MARINE ENERGY IN CHILE
Fondef Tidal Energy
Dr. Rodrigo Cienfuegos (racienfu@ing.puc.cl)
Director Fondef 09I1052
Pontificia Universidad Católica de Chile
Congreso Bienal Internacional CIGRE 2013
ROAD MAP FOR MARINE ENERGY
EXTRACTION
Open Hydro
Congreso Bienal Internacional CIGRE 2013
TIDAL ENERGY EXTRACTION
Horizontal Axis
Hydrofoil
La Rance, France .
240 MW tidal barrage Vertical Axis
Congreso Bienal Internacional CIGRE 2013
PRE-COMMERCIAL TECHNOLOGIES
MCT: OpenHydro: Hammerfest Strom:
SeaGen Open-centre Turbine HS1000
1.2 MW pre-comercial device. 1 MW device installed at EMEC on
Installed in Strangford Lough, 2011.
0.25 MW pre-comercial devide
Ireland. Grid connected from
installed in 2006 at EMEC, grid
2008, where it has generated Future 10 MW demonstration
connected on 2008.
more than 3 GWh. project in Isley, Scotland.
1 MW pre-comercial device installed in
Two future demonstration
FORCE in 2009.
projects in the UK:
New 16m diameter turbine to be
- 8 MW in Kyle Rhea
installed in France this year
- 10 MW in the Skerries
Congreso Bienal Internacional CIGRE 2013
PRE-COMMERCIAL TECHNOLOGIES
Alstom Hydro: MeyGen: Voith Hydro:
Clean Current TISEC Atlantis Ak-1000 VoithHyTide
Clean current prototype was 1 MW pre-comercial device installed 1 MW device will be installed at
installed in Race Rocks, Canada and grid-connected in EMEC in 2010. EMEC in 2012, piles and support
in 2007. were installed in 2011
1 MW pre-comercial device will 1 MW pre-comercial device is planned
be installed in FORCE in 2012. to be installed in FORCE in 2012.
Congreso Bienal Internacional CIGRE 2013
CENTERS FOR MARINE ENERGY R&D
EMEC: European Marine Energy Centre
Orkney, Scotland, United Kingdom
Test and monitoring of marine turbines (wave and tidal).
7 tidal and 5 wave grid conected berths
Installed Tidal Turbines: OpenHydro, Tidal Generation, Tidal Site, EMEC
Atlantis, Hammerfest Strom, Voith Hydro, Scotrenewables
Fundy Bay, Canada
FORCE: Fundy Ocean Research Centre for Energy
Test and Monitoring of tidal turbines
3 grid conected tidal berths Tidal Generation,
EMEC
OpenHydro, EMEC
Partners: Nova Scottia Power with
OpenHydro, Minas Basin Pulp Power with MCT
and Alstom Hydro.
Other Centres: NNMREC (USA), PRIMaRE (UK),
NAREC (UK), CORE (USA), DanWEC (Denmark) NS Power - OpenHydro, FORCE
Congreso Bienal Internacional CIGRE 2013
MARINE ENERGY: INSTALLED CAPACITY IN
2010
Fuente: International Energy Agency (IEA). “Annual Report 2010: Implementing Agreement on Ocean Energy Systems”, 2010.
Congreso Bienal Internacional CIGRE 2013
COST PROJECTIONS
Range in levelized COE
Fuente: IPCC Report 2012
Congreso Bienal Internacional CIGRE 2013
TIDAL ENERGY POTENTIAL IN CHILE
Chile has one of the best tidal Available energy:
energy sites around the world ~2.5TWh/year
The Chacao Channel is one of the (using 20% of the available mean
power)
most interesting sites according to
different variables (high tidal currents,
bathymetry, electric network,
infrastructure, etc.)
Chacao Channel
0.7-0.9TWh/year
Corcovado Gulf
0.3TWh/year
Source : Garrard Hassan (2009) 2nd Angostura
1.3TWh/year
Congreso Bienal Internacional CIGRE 2013
WAVE ENERGY POTENTIAL CHILE
Chile: Annual mean wave power density
30-120 kW/m
Estimated gross available wave power:
200 GW
Challenges:
Scarse and short term data
Complex and highly energetic wave
climates (multi modal wave spectrums)
Insufficient bathymetric information
and marine biosphere knowledge
Source : Gunn and Stock-Williams (2012)Congreso Bienal Internacional CIGRE 2013
GENERAL OBJECTIVES
To perform detailed bathymetric and oceanographic studies to
characterize tidal energy resources in the Chacao Channel.
To investigate environmental issues, technical, economical and
regulatory aspects and market barriers for marine energy
extraction in Chile.
To define suitable areas for device deployment and testing.
To support the NCRE implementation process that Chile has
defined.Congreso Bienal Internacional CIGRE 2013
R&D METHODOLOGY
Numerical Recommendations
State of the Art Field Studies for ME Development
Modeling
in Chile
• Bibliographic • Bathymetric • 2D and 3D tidal • Policies and
surveys surveys current modeling regulations
• Technological • Tidal and current • Deep water to • Infrastructure
trips measurements shallow water • Technical and
• International • Ocean wave wave propagation economical
collaboration measurements • Tidal farm evaluations
• Capacity building • Environmental numerical • Market barriers
• Attendance to and marine modeling and systems
international biology field • Energy resource failures
workshops and studies maps
congressesCongreso Bienal Internacional CIGRE 2013
TIDAL ENERGY RESOURCE ASSESSMENT
Field studies (Bentos)
Current measurements (ADCPs)
Tidal measurements

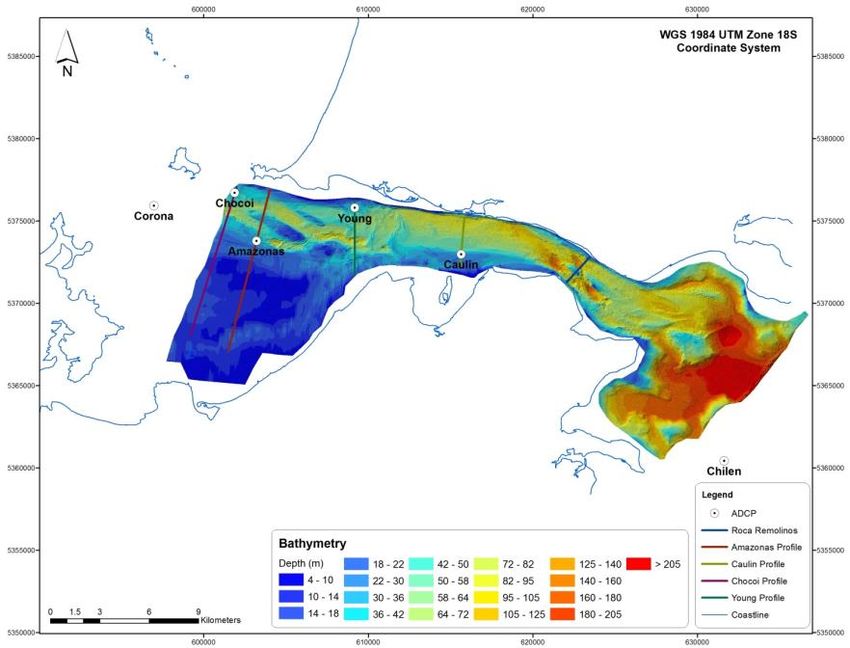

Multi beam bathymetric survey
Atmospheric variables
Preliminary biofouling estimationsCongreso Bienal Internacional CIGRE 2013
HYDRODYNAMIC MODELING
Regional and Detailed Hydrodynamic Modeling (FVCom)
Refined grid in the Chacao Channel (20 m, 10 V layers)
Model calibration and validation using ADCPs and tidal gauges
Potential Energy Resource Assessment
Selection of sites and prediction of curves of productionCongreso Bienal Internacional CIGRE 2013
HYDRODYNAMIC MODELING
Software Development (Energy Resource Map)
Preliminary analysis of power generation and economic assessmentCongreso Bienal Internacional CIGRE 2013

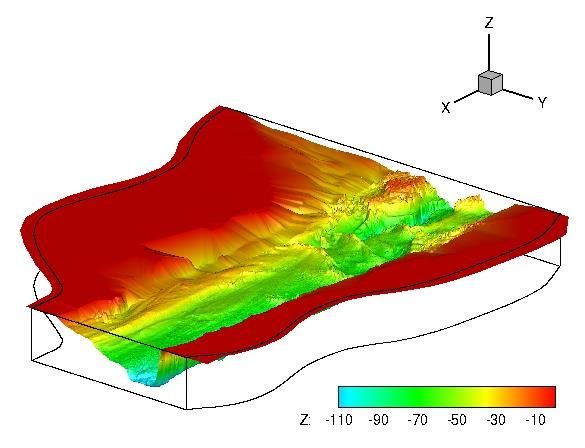

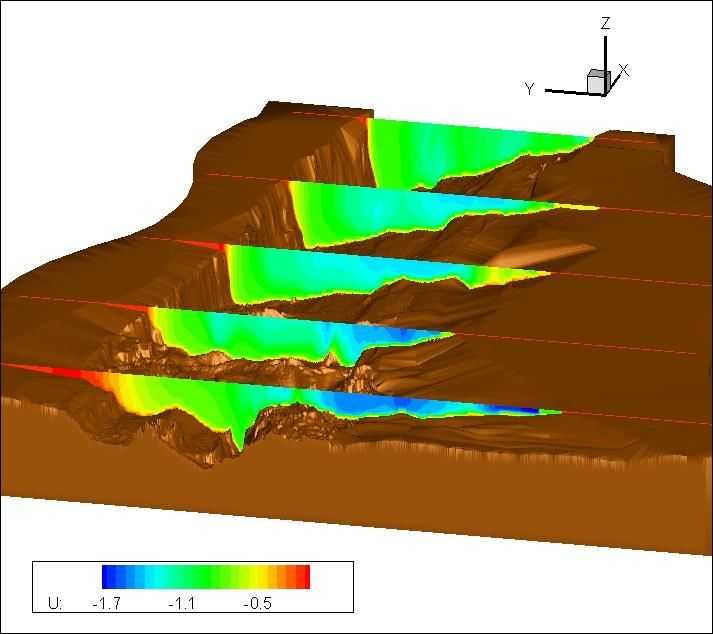

3D MODELING OF FLOW HYDRODYNAMICS
IN THE CHACAO CHANNEL
CFD modeling (URANS) in the real setting, considering
detailed bathymetric information (1-10 m resolution)
Characterization of turbulence and macro-vortices
Collaboration with the Saint Anthony Fall Laboratory,
University of MinnesotaCongreso Bienal Internacional CIGRE 2013
TURBULENCE AND SPATIAL VARIABILITY OF
TIDAL CURRENTS
Collaboration with APL-U.
Washington (Jim Thomson et
al.)
Complementary study funded
by ONRG
ADVs, ADCPs, and
hydrophone measurements
Comparative study with
Admiralty Inlet, Pudget
Sound, Wa., USA.Congreso Bienal Internacional CIGRE 2013
LES MODELING OF FLOW-ACTUATOR DISCS
INTERACTIONS
CFD modeling:
Navier-Stokes equations URANS/LES solver
Actuator discs approach for wake modeling
Multiple devices interaction to advance tidal farm studies
New experimental work to validate the model
Meyers y Bahaj, 2010
Coherent turbulent structures in a single actuator disc Coherent turbulent structures for two actuator discs. Sciolla y
wake. Sciolla y Escauriaza, 2012 Escauriaza, 2012Congreso Bienal Internacional CIGRE 2013
EXPERIMENTAL MODELING OF FLOW-
ACTUATOR DISCS INTERACTIONS
Escala geométrica de
1:150.
Igualdad en el Número de
Froude.
Número de Reynolds
para régimen turbulento.Congreso Bienal Internacional CIGRE 2013
ENVIRONMENTAL STUDIES AND
INTERFERENCES IN THE CHACAO CHANNEL
Commercial fisheries and fish farmers
Species and rate of extraction
Protected areas and maritime concessions
Benthic fauna and mammals
Mamíferos observados desde la
orilla y Liquen. JC Castilla (2012)
Algunos invertebrados presentes en el Canal
Areas utilizadas para acuicultura en el Canal de Chacao, JC Castilla (2012)
de Chacao. JC Castilla (2012)Congreso Bienal Internacional CIGRE 2013
ENVIRONMENTAL STUDIES AND
INTERFERENCES IN THE CHACAO CHANNEL
Technical report that
summarizes the different studies
and findingsCongreso Bienal Internacional CIGRE 2013
WAVE RESOURCE STUDIES
INNOVA CORFO 09CN14-5718
INSTITUTO NACIONAL DE HIDRAULICACongreso Bienal Internacional CIGRE 2013
WAVE RESOURCE STUDIES
INNOVA CORFO 09CN14-5718
INSTITUTO NACIONAL DE HIDRAULICA
Field work : End date. Jan 2014
• Tri-axis buoys and ADCP’s deployment
• Field surveys (in progress)
• Synchronous Tri-axis and ADCPs measurements
• Bathymetric surveys
• Data analysis and post processing (in progress)
Numerical modeling and wave energy resource estimation. End date: March 2014
• Spectral wave propagation methodologies and model intercomparison
• Training on the use of wave models
• Development of wave analysis tools for post processing
• Selection of best models and practices for the central-south coast of Chile (V to X region) (in
progress)
• Wave energy resource mapping for the central-south coast of Chile (in progress)
Complementary studies. End date: March 2014.
• Environmental studies
• State of the art technology report and challenges for Chile (in progress)
• Guideline for the wave energy device implementation process (in progress)Congreso Bienal Internacional CIGRE 2013
WAVE RESOURCE STUDIES
INNOVA CORFO 09CN14-5718
INSTITUTO NACIONAL DE HIDRAULICA
Instrument deployment
Synchronous Triaxys and ADCP
measurements in deep and
shallow watersCongreso Bienal Internacional CIGRE 2013
WAVE RESOURCE STUDIES
INNOVA CORFO 09CN14-5718
INSTITUTO NACIONAL DE HIDRAULICACongreso Bienal Internacional CIGRE 2013
CHALLENGES FOR THE NEXT STAGE OF MARINE
ENERGY DEVELOPMENT IN CHILE
• Chile has one of the highest marine energy resources in the
world and could play an important role in the current pre-
commercial marine energy extraction phase
• There are good scientific and technical capacities available that
can contribute to make marine energy extraction real
(leapfrogging strategy)
• If devices work in Chile, they can do so almost everywhere
(highly energetic climates, earthquakes and tsunamis,
extremely rich marine biosphere, etc.)
• Chile is a natural laboratory for coastal sciences and technology
advancement and testing
• Innovative regulatory policies and market strategies should be
