088949 – ADVANCED COMPUTER ARCHITECTURES
AA 2018/2019 – Second Semester
http://home.deib.polimi.it/silvano/aca-milano.htm
Prof. Cristina Silvano
email: cristina.silvano@polimi.it
Dipartimento di Elettronica, Informazione e Bioingegneria (DEIB)
Politecnico di Milano
Goals of the ACA course
Provide an overview of the most recent and advanced
computer architectures
Introduce the basic microarchitectural mechanisms
found in modern microprocessor architectures
Provide the reasoning behind the adoption of advanced
computer architectures
Cristina Silvano – Politecnico di Milano -2-
ADVANCED COMPUTER ARCHITECTURES: AN OVERVIEW Cristina Silvano – Politecnico di Milano -3-

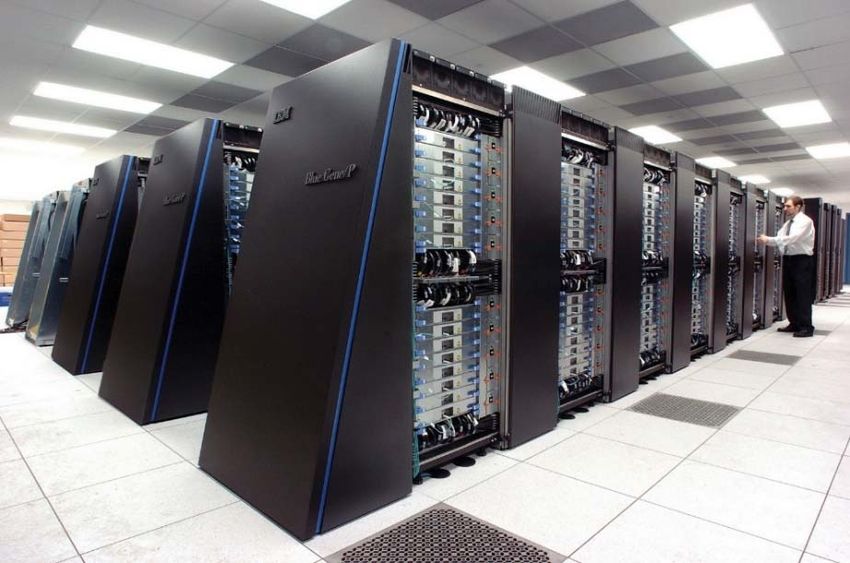

Advanced Computer Architectures:
Supercomputers
First supercomputer reaching the Petascale peak
performance (1015 Flops) was IBM Roadrunner installed in
2008 at Los Alamos National Lab (New Mexico)
Research on supercomputing is pushing towards the
Exascale (1018 Flops) billions of billions to be reached in
2023.
Cristina Silvano – Politecnico di Milano -4-
How to measure performance:
FLOPS, Floating Point Operations per Second
Name FLOPS
zettaFLOPS 1021
exaFLOPS 1018
petaFLOPS 1015
teraFLOPS 1012
gigaFLOPS 109
megaFLOPS 106
kiloFLOPS 103
FLOPS 1
Cristina Silvano – Politecnico di Milano -5-
TOP500 List
• The TOP500 list is ranking the world's most powerful
supercomputers.
• The LINPACK Benchmark (introduced by Jack Dongarra) is
used to measure the system's floating point computing
power
• LINPACK measures how fast a computer solves a dense n by
n system of linear equations Ax = b, which is a common task
in engineering
www.top500.org
US Dept. of Energy announced Summit and
Sierra Supercomputers
Cristina Silvano – Politecnico di Milano -7-
Top500 ranking of the world’s most
powerful supercomputers (Nov. 2018)
1. Summit, IBM-built supercomputer at Dept. of Energy’s Oak Ridge
National Lab. reached 143.5 PetaFLOPS Linpack performance with
2,397,824 cores: Processor IBM Power9 22C at 3.1 GHz, NVIDIA Volta
GV100 GPUs, Mellanox dual-rail EDR InfiniBand network.
2. Sierra, IBM-built supercomputer at DOE’s Lawrence Livermore National
Lab. reached 94.6 PetaFLOPS with 1,572,480 cores. Sierra is quite
similar to Summit with IBM Power9 22C at 3.1 GHz, NVIDIA Volta GV100
GPUs, Mellanox dual-rail EDR InfiniBand network.
3. Sunway TaihuLight, developed by China’s National Research Center of
Parallel Computer at the National Supercomputing Center in Wuxi. It
dropped to No. 3 after leading the list for the past 2 years with 93
PetaFLOPS and 10,649,600 cores.
www.top500.org
Cristina Silvano – Politecnico di Milano -8-
Top500 ranking: the Italian most powerful
public supercomputer (Nov. 2018)
No. 19 in Top500 and No.4 in Europe: Marconi Intel Xeon Phi:
10.38 PetaFlops (Linpack performance) 18.8 PetaFlops (peak performance)
with 348,000 cores. Site: Casalecchio di Reno, Bologna (Italy)
Marconi is the Cineca's Tier-0
system, co-designed by Cineca
and Lenovo based on the
Lenovo NeXtScale platform and
Intel® Xeon Phi™ product
family alongside with Intel®
Xeon® processor and Intel
Omni-Path
Cristina Silvano – Politecnico di Milano -9-
Energy efficiency underlies all markets
Energy efficiency is of paramount importance
for all application markets (automotive,
consumer, mobile, healthcare and beyond) and
target systems spanning from sensors, cyber-
physical systems, embedded systems up to
servers and HPC systems.The Gren500 List
The Green500 list ranks the top 500 supercomputers in the world by
energy efficiency (performance-per-watt) for sustainable
supercomputing.
The inaugural Green500 list was announced on Nov. 2007
Currently, the top positions of Green500 are occupied by
heterogeneous computing systems (host processor + coprocessor):
The top three positions in June 2018 are taken by
supercomputers installed in Japan and based on the
ZettaScaler-2.2 architecture using PEZY-SC2 accelerators,
while other top 10 systems use NVIDIA GPUs.
The dominance of heterogeneous computing is becoming a trend to
reach the target of 20 MW Exascale supercomputer
www.top500.org/green500/
Cristina Silvano – Politecnico di Milano - 11 - March 2013Exascale Supercomputers
Most green supercomputer in Green500 is Shoubu SystemB with
18.4 GigaFlops/W during its 858 TeraFLOPS Linpack run (ranked
N.359 in Top500)
IBM Summit equipped with NVIDIA VOLTA GV100 is ranked No.1 in
Top500 with 122.3 PetaFLOPS Linpack and ranked No. 5 in the
Green500 with 13.8 GigaFLOPS/W
To reach 20 MW Exascale supercomputer projected to 2021, current
supercomputers need to achieve 4x energy efficiency from around
13 towards 50 GFLOPS/W
Cristina Silvano – Politecnico di Milano - 12 -Applications driving the demand for more
computing performance
Climate Astrophysics
Biology
Business Analytics
Cristina Silvano – Politecnico di Milano - 13 -Performance Trend Source: Jack Dongarra, U. of Tennessee, Oak Ridge National Lab, U. of Manchester
Performance of HPC over the last years from
the Top500
Source: Jack Dongarra, U. of Tennessee, Oak Ridge National Lab, U. of ManchesterAdvanced Computer Architectures:
Intel® Core™ i7-3770T Processor
# of Cores 4
# of Threads 8
Clock Speed 2.5 GHz
Max Turbo Frequency 3.7 GHz
Intel® Smart Cache 8 MB
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2, AVX
Embedded Options Available No
160mm² die @ 22nm Lithography 22 nm
1.40 billion transistors Max TDP 45 W
Next generations: Broadwell, Recomm. Customer Price TRAY: $294.00
Skylake, Kaby Lake at 14nm Max Memory Size 32 GB
(2014); Cannonlake at 10nm (2H
Memory Types DDR3-1333/1600
2017); Ice Lake 10nm (2018)
# of Memory Channels 2
Cristina Silvano – Politecnico di Milano
Max Memory Bandwidth 25.6 GB/sNVIDIA Fermi GPU Cristina Silvano – Politecnico di Milano - 17 -
NVIDIA Kepler GPU Kepler GK110 Architecture • 7.1B Transistors • 15 SMX units (2880 cores) • >1TFLOP FP64 • 1.5MB L2 Cache • 384-bit GDDR5 • PCI Express Gen3 Cristina Silvano – Politecnico di Milano - 18 -

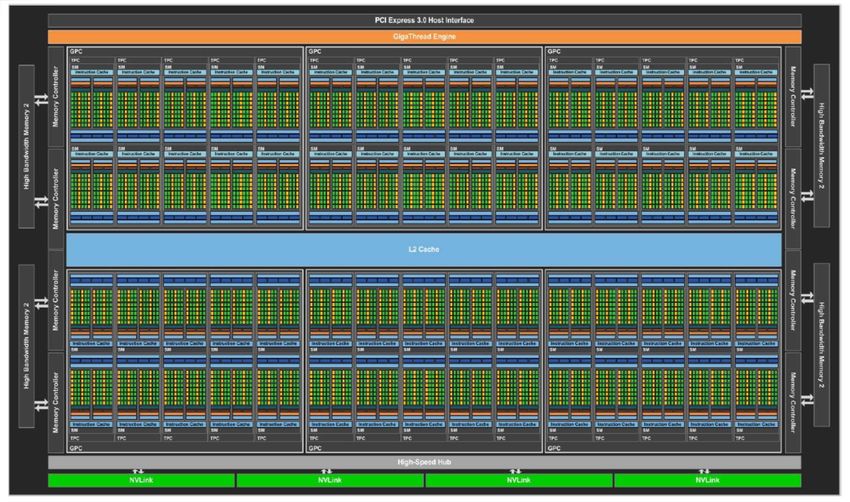

NVIDIA Tesla P100 with Pascal GP100 GPU
NVIDIA Tesla GP100 (Pascal) with 3584 FP32 CUDA Cores/GPU and 1792 FP64 CUDA Cores/GPUs
Total 15.3 billion transistors in 16 nmFinFET process technology
Cristina Silvano – Politecnico di Milano - 19 -Advanced Computer Architectures:
Smart Phones
iPhone 7 iPhone 7 Plus
4.7-inch 4.7-inch 5.5-inch display
12MP camera 12MP camera New 12MP camera New 12MP camera ++
5MP videocamera 5MP videocamera 7MP videocamera 7MP videocamera
Retina HD display Retina HD display Retina HD display Retina HD display
with 3D touch with 3D touch with 3D touch with 3D touch
A9 chip 64-bit A9 chip 64-bit Waterproof Waterproof
M9 coprocessor M9 coprocessor Audio stereo Audio stereo
iOS 10 iOS 10 A10 Fusion chip 64-bit A10 Fusion chip 64-bit
32GB 128GB 32GB 128GB M10 co-proecessor M10 coprocessor
iOS 10 iOS 10
- 20 -
32GB 128GB 256GB 32GB 128GB 256GBApple A9 System-on-Chip
Apple A8 is a 64-bit ARM-based SoC was introduced on Sept. 2015 for the
iPhone 6S and iPhone 6S Plus
Apple states that it has 70% more CPU performance and 90% more graphics
performance compared to its predecessor A8.
This is one of the most powerful mobile chip on the market toady along with
the Samsung Exynos 8890 and Qualcomm Snapdragon 820.
The A9 features the Apple-designed 64-bit 1.85 GHz ARMv8-A dual-core CPU,
called Twister, and an integrated PowerVR Series 7XT GT7600 six-core GPU.
The A9 is manufactured by two companies: 14nm FinFET process by Samsung
and 16 nm FinFET process by TSMC.
A9 has 2 GB of LPDDR4 RAM included in the package.
Apple introduced a variant of the A9, the A9X, in the iPad Pro with the M9
motion coprocessor embedded in it
Cristina Silvano – Politecnico di MilanoApple A10 Fusion
Apple A10 Fusion is a 64-bit ARM-based SoC designed by Apple and introduced
on Sept. 2016 for the iPhone 7 and iPhone 7 Plus
Apple states that it has 40% more CPU performance and 50% more graphics
performance compared to its predecessor A9.
The A10 with a die area of 125 mm2 and 3.3 billion transistors (including GPU
and cache) features two Apple-designed 64-bit 2.34 GHz ARMv8-A cores called
Hurricane and two energy-efficient 64-bit cores codenamed Zephyr (like the
ARM big.LITTLE technology).
A10 integrates new designed PowerVR Series 7XT GT7600 six-core GPU.
The A10 is manufactured 16 nm FinFET process by TSMC.
Cristina Silvano – Politecnico di MilanoSqueezing of computing cores
2005
65 nm
1.4 mm2
Source:
ARM9 STMicroelectronics
2007
45 nm
2009
32 nm
2011
22 nm
2013
14 nm… entering the multi/many‐core era
2005
65 nm
1.4 mm2
Source:
ARM9 STmicroelectronics
2007
45 nm
2009
32 nm
2011
22 nm
2013
14 nmWhat are the barriers of further scaling?
Transistor density
increases ~2x
every 2 years
Frequency wall
Power wall
Utilisation wall
… the end of the Dennard scaling
… increasing power densities
… entering the dark silicon eraThe dark silicon problem
The power wall
and the
utilisation wall
represent the main
barriers for the
efficient scaling in
the multi/many-
core era
Dark silicon: Fraction of the
die not usable due to the
