March 9, 2021
ADMINISTRATIVE REPORT TO COUNCIL
ON
REZONING APPLICATION NO. REZ00724
DEVELOPMENT PERMIT APPLICATION NO. DPM00770
1560 VERSATILE DRIVE
OWNER/APPLICANT: SEKHON INVESTMENTS INC.
PURPOSE
The purpose of this report is to amend the C-3 (Highway Commercial) zone on a site-specific
basis to allow an education/training facility and retail trade on the subject property and to issue a
development permit to allow a two-storey commercial building with 817 m2 of leasable floor
space.
SUMMARY
The subject property is the former location of the Tandoori Bar and Grill and is located on the
northeast side of Versatile Drive next to the Holiday Inn Express. The property is zoned C-3
(Highway Commercial) and is 3,222 m2 in area. The applicant wishes to remove this building
and construct a new building to house a 48-seat restaurant (Dairy Queen) with a drive-thru,
retail space on the ground floor, and a cake production and training facility associated with the
restaurant on the second floor. The facility would provide training for all Dairy Queen employees
in the region. As neither education/training facilities nor retail trade are permitted uses in the C-3
zone, a site-specific zoning amendment is required (Attachment “A”). As the development falls
within the City’s Commercial Development Permit Area (DPA), a development permit is required
to control the form and character of the project.
The subject property is designated Commercial in KAMPLAN: City of Kamloops Official
Community Plan. KAMPLAN’s Commercial policies support redevelopment of existing
underused commercial space and encourages auto-oriented businesses, such as drive-thrus,
that rely on highway exposure to develop adjacent to highway corridors where the road network
is able to handle traffic demands. In this instance, both KAMPLAN’s policy and zoning support
drive-thru restaurants, such as the proposed Dairy Queen, in this corridor. The training facility
would be complementary to the restaurant, so it is supportable in this instance. Allowing retail
trade on the property will increase leasing options for the owner, thus supporting the viability of
redeveloping the site.
The development permit application meets the intent of the Commercial DPA Guidelines with
respect to site design, building design, and landscaping (Attachment “B”). Key features of the
site design include shared access with the Holiday Inn Express property to the south, outdoor
patio areas on the west side of the proposed building, and a pedestrian connection from the
public sidewalk along Versatile Drive to the building. The proposal, which includes 39 parking
spaces, 4 bicycle parking spaces, and stacking for 10 vehicles in the drive-thru (measured from
the menu board), meets all zoning requirements. The only exception is the minimum setback
between a parking area and a property line abutting a road; a variance is required to reduce the
parking lot setback from the Trans Canada Highway from 1 m to 0.56 m to support the proposed
S:\LGS\Council ARM Development (c7)\2021-03-09\Word\333494_REZ00724 DPM00770 v2_REP updated.docx February 26, 2021
REZONING APPLICATION NO. REZ00724 March 9, 2021
DEVELOPMENT PERMIT APPLICATION NO. DPM00770 Page 2

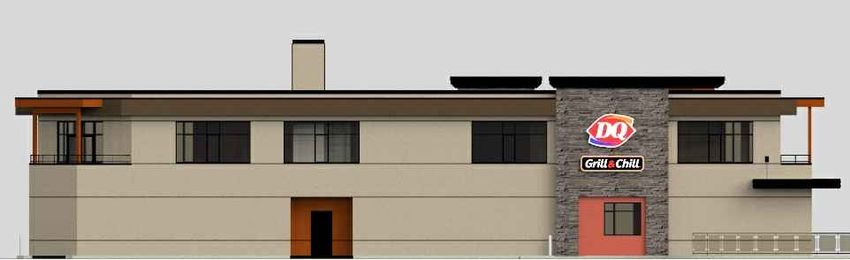

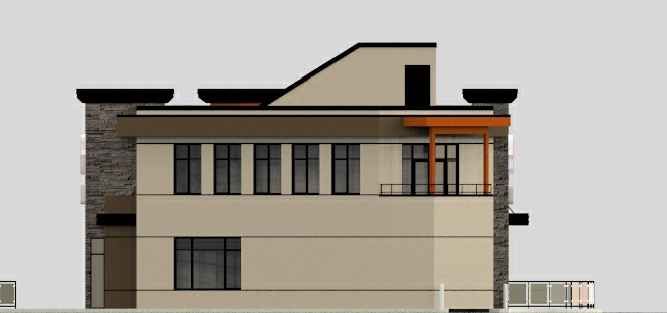

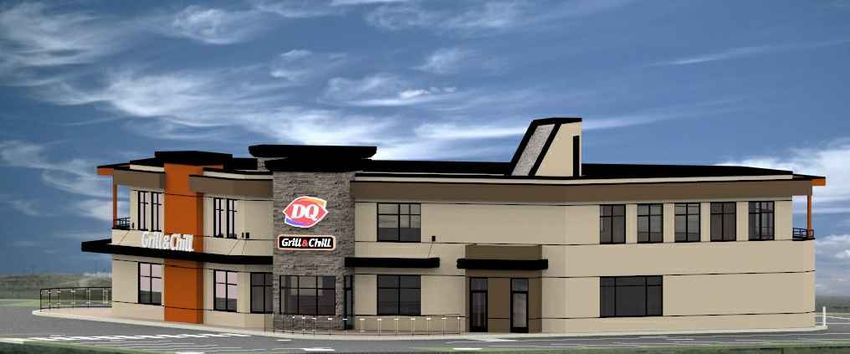

parking configuration (Attachment “B-1”). The building design features articulation in the building
face, raised parapet features, rock veneer and colour stucco accents, and metal awnings over
doors to provide visual interest. (Attachment “B-2”). Landscaping features a variety of shrubs
and ornamental grasses to screen parking areas and trees for shade and street appeal
(Attachment “B-3”). The portion of the Trans Canada Highway boulevard on the north side of the
property that was previously paved will be restored with landscaping to Ministry of
Transportation and Infrastructure requirements.
The site specific rezoning application is consistent with KAMPLAN and the development permit
application meets the intent of the City’s Commercial DPA Guidelines. Therefore, the
Development, Engineering and Sustainability Department supports the application and advises
Council to proceed as outlined in the recommendation.
RECOMMENDATION:
That Council authorize:
a) Zoning Amendment Bylaw No. 5-1-2952 (Attachment “A”) to be
introduced and read a first and second time
b) a Public Hearing to consider Bylaw No. 5-1-2952
Note: Bylaw No. 5-1-2952 will be held at third reading pending
approval from the Ministry of Transportation and Infrastructure.
c) subject to adoption of Bylaw No. 5-1-2952, that Council authorize
issuance of Development Permit No. DPM00770 for 1560 Versatile
Drive, in accordance with Attachment “B”.
Note 2: Final registration of this development permit is conditional
on submission of $61,254 in landscape security.
SUPPORTING COUNCIL AND CORPORATE DIRECTION
• KAMPLAN, Section D-1, Land Management and Development
- Area-specific Land Use Policies, Commercial
SITE CONDITIONS AND BACKGROUND
• Neighbourhood - Aberdeen
• KAMPLAN Designation - Commercial
• Current Zoning/Use - C-3 (Highway Commercial)/vacant restaurant
• Proposed Zoning/Use - C-3 (Highway Commercial) site specific to allow a
education/training facility and retail trade/drive-thru
restaurant, cake production, and training facilities
associated with the restaurant, and a retail store
• Surrounding Uses - Trans Canada Highway to northeast, hotel to the
south, and casino to west
• Application Date (Rezone) - October 28, 2020
S:\LGS\Council ARM Development (c7)\2021-03-09\Word\333494_REZ00724 DPM00770 v2_REP updated.docx February 26, 2021
REZONING APPLICATION NO. REZ00724 March 9, 2021
DEVELOPMENT PERMIT APPLICATION NO. DPM00770 Page 3
• Application Date (Development - June 3, 2020
Permit)
• Restrictive Covenant - n/a
• Project Evaluation Team (PET) - June 12, 2020
• Parcel Size - 3,222 m2
• MOTI Referral - Required
DISCUSSION
Site Context
The subject property is located at 1560 Versatile Drive on the east side of Versatile Drive next to
the Holiday Inn Express. The property is 125 m from the No. 5 Pineview bus stop, located in
front of Cascades Casino. There is an existing building on site that formerly housed the
Tandoori Bar and Grill. The property is zoned C-3 (Highway Commercial) and is 3,222 m2 in
area. The property was subdivided from the adjacent Holiday Inn Express property to the south
(1550 Versatile Drive) in 2007. As a condition of subdivision approval, a reciprocal parking and
access easement was registered between the two properties. With the construction of the traffic
roundabout at the intersection of Versatile Drive and Hugh Allan Drive in 2015, direct access to
the Holiday Inn Express property from Versatile Drive was removed, which required that all
traffic going to and from the Holiday Inn Express to come through the subject property. It should
be noted that the applicant has contacted the Holiday Inn Express regarding the proposed
development proposal and received its support regarding the proposed parking and access
configuration.
Land Use and Rezoning Application
The applicant wishes to remove the existing on-site restaurant building and construct a new
building to house a 48-seat, 265 m2 restaurant (Dairy Queen) with a drive-thru and 131 m2 of
retail space on the ground floor. The 396 m2 second floor area would function as a cake
production facility and a regional Dairy Queen training facility. As education/training facilities and
retail trade are not permitted uses in the C-3 zone, a site-specific zoning amendment is
required.
KAMPLAN designates the subject property as Commercial. KAMPLAN’s goal for commercial
development is to establish a strong, diversified commercial base to provide employment and a
high level of service to residents and visitors. KAMPLAN’s Commercial policies support
redevelopment of existing, underused commercial space and requiring auto-oriented
businesses, such as drive-thrus, that rely on highway exposure to develop adjacent to highway
corridors, where the road network is able to handle traffic demands. In this instance,
KAMPLAN’s policies and zoning support drive-thru restaurants such as the proposed Dairy
Queen.
While the training facility is intended to be complementary to the Dairy Queen restaurant, the
proposed zoning amendment would allow an education/training facility to operate independently
of the restaurant. In either case, allowing a training facility increases the range of non-offensive
uses permitted on the property. Similarly, allowing 131 m2 of the building to be used for retail
trade increases the range of uses and potential leasing options for the building, thereby
supporting the economic viability of the site’s redevelopment.
S:\LGS\Council ARM Development (c7)\2021-03-09\Word\333494_REZ00724 DPM00770 v2_REP updated.docx February 26, 2021
REZONING APPLICATION NO. REZ00724 March 9, 2021
DEVELOPMENT PERMIT APPLICATION NO. DPM00770 Page 4
Development Permit
The proposed project is subject to the City’s Commercial DPA Guidelines. The purpose of these
guidelines is to “ensure that commercial development occurs in a manner that is sensitive to the
existing built form by encouraging new development to consider local characteristics and
incorporate high‑quality design into the siting configuration, landscaping treatments, and overall
building aesthetics.” The application meets the intent of the Commercial DPA Guidelines with
respect to site design, building design, and landscaping (Attachment “B”).
Site Design and Parking
The building is located in the middle of the site with the parking and circulation aisle wrapping
around the building in a counter-clockwise direction. The vehicular access from Versatile Drive
at the northwest end of the site will service both the subject property and the adjacent Holiday
Inn Express property to the south. A pedestrian pathway provides connectivity from the public
sidewalk along Versatile Drive to the proposed commercial building, consistent with the City’s
Commercial DPA Guidelines which state that pedestrian paths should provide safe and direct
access to commercial businesses from the municipal sidewalks and on-site parking areas.
The proposal includes 39 parking spaces, which meets zoning requirements for the proposed
uses and adjacent hotel as follows:
No. Parking
Use and Parking Requirement
Spaces
48-seat restaurant - one space/every 4 seats + 4 spaces 16
131 m retail space (104 m of gross leasable area [GLA]) -
2 2
3
3 spaces/100 m2 of GLA
Second floor training facility (proposed occupancy of 32 persons) - 9
one space/4 people of designed occupant load + one space/classroom
Basement storage area (295 m2 of GLA) - 1.5 spaces/100 m2 of GLA) 5
Holiday Inn Express shortfall through reciprocal parking and access 6
easement (80 room hotel - 1 space/room = 74 spaces on the Holiday
Inn Express property)
Total Parking Spaces Required 39
Four bicycle parking spaces are provided and will be accessible via the pedestrian pathway
from Versatile Drive. Staff support a variance to reduce the minimum setback between a parking
area and a property line from 1 m to 0.56 m to facilitate proposed parking configuration since
the boulevard between the property and the Trans Canada Highway is wide and will be
landscaped. (Attachment “B-1”). The proposal also provides stacking for 10 vehicles before the
drive-thru menu board, which exceeds the zoning requirement of 3 stalls of stacking and is
consistent with the City’s Traffic Impact Assessment Guidelines. The orientation of the drive-thru
also meets the Commercial DPA Guidelines, which state that that drive-thru facilities should be
located at the side or rear of the building.
S:\LGS\Council ARM Development (c7)\2021-03-09\Word\333494_REZ00724 DPM00770 v2_REP updated.docx February 26, 2021
REZONING APPLICATION NO. REZ00724 March 9, 2021 DEVELOPMENT PERMIT APPLICATION NO. DPM00770 Page 5 Building Design The Commercial DPA Guidelines state that buildings should incorporate architectural features and variation to avoid the appearance of long, blank façades and to reduce apparent building mass; that roof design should add visual interest to a building; that durable building materials should be used to contribute to an appearance of quality construction that evokes a sense of permanence; and that business entrances should be well defined through signage and architectural design features (e.g. awnings, building articulation, use of detailed building materials). In this instance, the proposed building features a unique shape, exterior pillar features, and windows rather than long, blank facades; variation in building roofline to add visual interest; and rock veneer accents add a more permanent look. Black metal awnings over windows and doors help visitors locate entrances (Attachment “B-2”). Landscaping A professional landscape plan has been submitted in accordance with the Commercial DPA Guidelines. In total, 542 m2 or 16.8 percent of the site will be soft landscaped, which exceeds the minimum 10 percent landscape requirement in the C-3 zone. The design features landscaping at the perimeter of all parking areas with landscape islands at the end of parking aisles, including shrubs, perennials, ornamental grasses, and trees. Four street trees will be provided along the Versatile Drive frontage. Plantings include coniferous and dogwood shrubs to provide colour and visual interest over the course of the winter. Landscaping and curbing at the edge of the pedestrian pathway from Versatile Drive to the proposed building helps to define this connection. The solid waste bin is enclosed to City standards and is screened by landscaping. The portion of the Trans Canada Highway boulevard on the north side of the property that was previously paved will be restored with landscaping to Ministry of Transportation and Infrastructure requirements (Attachment “B-3”). Technical Issues and Traffic Study There is adequate municipal infrastructure in the vicinity to service the development. Servicing and technical issues will be addressed through the building permit process. As a condition of development approval, the applicant was required to submit a transportation impact assessment (TIA). The TIA indicates that the proposed restaurant, training facility, and retail store will not have an adverse impact on the traffic network. Adequate gaps between vehicles entering the property are anticipated, such that there are will not be any significant delays to motorists on site or on Versatile Drive. The report notes that the development will comply with the City’s drive-thru queuing requirements and parking requirements. SUSTAINABILITY IMPLICATIONS As a measure of success in sustainable development, the Sustainable Kamloops Plan states that the City will ensure appropriate commercial activities are located within all City neighbourhoods to provide for neighbourhood needs. S:\LGS\Council ARM Development (c7)\2021-03-09\Word\333494_REZ00724 DPM00770 v2_REP updated.docx February 26, 2021
REZONING APPLICATION NO. REZ00724 March 9, 2021
DEVELOPMENT PERMIT APPLICATION NO. DPM00770 Page 6
Author: S. Bentley, RPP, MCIP, Planner
M. Kwiatkowski, P.Eng.
Development, Engineering, and Reviewed by: E. Beach, RPP, MCIP, Planning and
Sustainability Director Development Supervisor
R. J. Martin, RPP, MCIP, Planning and
Development Manager/Approving Officer
Approved for Council
