style, security, innovation...
The best compact
solution is now
stronger and
bigger!
New! Huge
range of
colours!
1
Watch AlluGuard online at: www.thegaragedoorchannel.co.uk
4 6
1
9 7
8
2
3 5
Somfy Wireless and Wired
(bottom sensor shown right)
control units available
1 2 3
Power fail override External power fail override Keeps out the weather
If the power fails, a An optional external crank with lockable Weather resistance is excellent with a rubber
simple hand crank is used access is also available should there be no compression seal (not watertight) to the
to operate the door. other access to the garage. bottom of the door and a brush strip within
the guides.
2

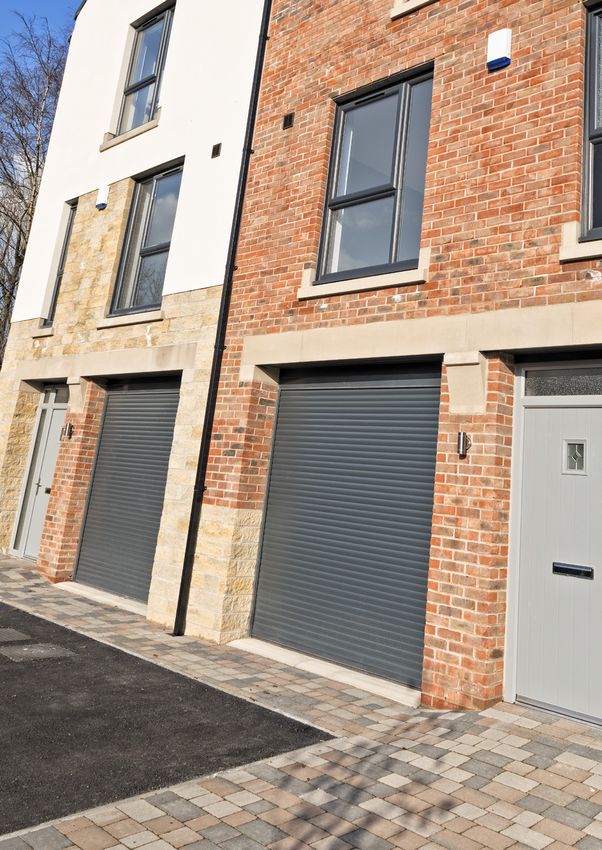

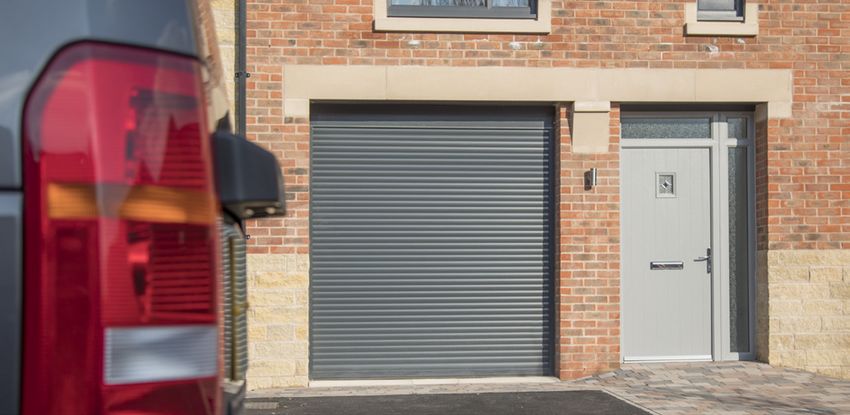

The AlluGuard 55 is the compact insulated
roller garage door of choice. Its upgraded
design is stronger and covers a larger size
range than other compact doors. Bigger,
It’s small but perfectly formed! It covers stronger
single doors up to 3000mm wide and
2225mm high and only requires 205mm of
and more
headroom to install. colours!
Its compact size makes it the perfect solution
when space is limited - great performance
packed into a small space!
Features at a glance
4 5 6
Smooth & quiet Safe Powerful
The lock straps create a The safety edge stops and reverses Concealed within the barrel
smooth running surface to the travel of the door on contact of the door is a powerful and

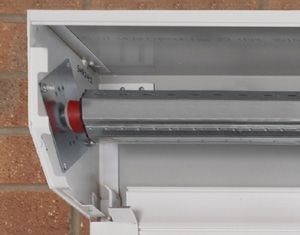

help reduce operating noise. with an obstruction. quiet motor that drives the
door and holds the curtain
locked when closed.
7 8 9
Secure Complete control Fur lined

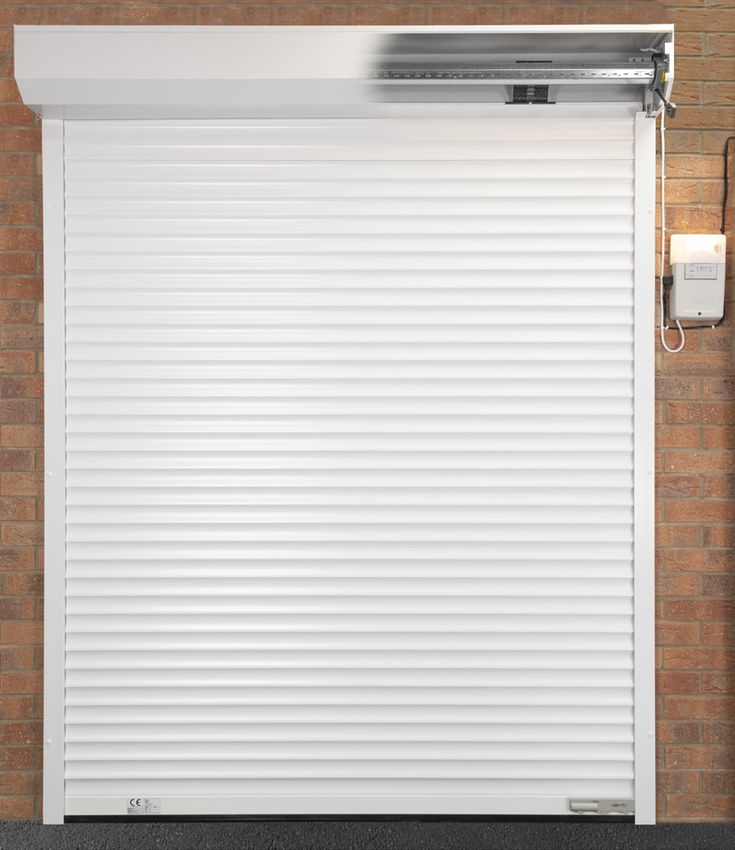

Security is excellent with strong The wall-mounted control unit has a courtesy The front edge of the door box has
locking straps that prevent forced light to guide your way and push button a line of synthetic fur to increase
lifting of the door. control for the door. The alarm is also housed weather protection and help
in the control unit that sounds on an attempt reduce draughts.
to force up the door from the bottom slat.
3
Standard Colour Range
Solid powdercoat colours
Low maintenance powdercoat finish for AlluGuard55 garage doors are available in these classic colours:
White RAL 9016 Black RAL 9005 Blue RAL 5011
Light Beige BS 08B17 Anthracite Grey RAL 7016 Racing Green RAL 6009
Home Cream RAL 1015 Burgundy RAL 3004 Brown RAL 8014
Silver Metallic RAL 9006 Pale Grey RAL 7038 Chartwell Green BS 14 C 35
Wood-effect powdercoat
Low maintenance powdercoat wood effect finish for AlluGuard55 garage doors are available in these classic colours:
Mahogany Golden Oak Rosewood
The AlluGuard 55 fits in smaller spaces!
4
Notes on colours
Coloured guide rails are supplied as
standard, however, they may not perfectly
match the lath colour. The manufacturing
process for the lath profile results in a
textured finish, whilst all other coloured
items (guides, bottom laths, lock laths,
optional fascias and vision panels) are
supplied in a satin finish, so cannot be I’m smaller
guaranteed to match exactly. Over time
some scuffing / pressure marks may occur
on front and rear surfaces of doors as a
but perfectly
result of their normal operation.
formed!
Colours shown are for guide purposes only and
are limited by the printing process. Please ask to
AlluGuard 55
see a colour sample to confirm your choice.
Colours
AlluGuard’s wide choice of finishes ensure your new garage door not only looks good for years to come,
but also complement the look of your home. Don’t see the colour you want? Explore our extended range of
laminate finishes and custom colours on the next page.
The door curtain The door guides The door roll box
The door curtain is available The guides colour match* the Doors are supplied with a half roll
powdercoat finished in the solid door curtain colour as standard box as standard but are available
colours and wood effects shown on all solid powdercoat colours. as an option with a full roll box.
left. Wood effect powdercoat doors These are finished to match the
are supplied with White, Brown or door guides for all solid colours.
The rear of the door slats is
Black guides. Rosewood, Golden Oak and
finished to match the front.
Mahogany are finished in White,
*See notes on colour at the top of the page
Brown or Black.
The half box is standard. The full box option encloses the door
roll for a very neat installation.
5
Special Laminate finishes
In addition to our standard colour ranges, you can also order your door in special laminate finishes shown below.
The laminate colours are selected from the Renolit Exofol high-performance films range for exterior applications. Renolit
Exofol is the market leader, and its multi-layered structure protects and decorates many architectural surfaces such as
windows and are ideal for garage doors. Finishes have a 10-year warranty against perforation of the substrate.
Doors with special laminates are available with the rear face of the door finished in White or Brown. White is standard for
all solid colours, brown for wood effects. The guides and box are finished in White, Brown or Black.
Steel Blue RAL 5011 Moss Green RAL 6005 Wine Red RAL 3005
Brilliant Blue RAL 5007 Dark Green RAL 6009 Dark Red RAL 3011
White RAL 9010 Cream White RAL 9001 Ice Cream
Crystal White RAL 9003 Chartwell Green BS 14 C 35 Agate Grey RAL 7038
Hazy Grey RAL 7001 Basalt Grey RAL 7012 Basalt Grey Smooth RAL 7012
Signal Grey Smooth RAL 7004 Anthracite Grey RAL 7016 Anthracite Grey Smooth RAL 7016
Quartz Grey RAL 7039 Slate Grey RAL 7015 Slate Grey Finesse RAL 7015
Dark Oak Light Oak Sherwood
Irish Oak Mahogany Walnut
Golden Oak Black Cherry Anteak
6
Want something
special? Pick
from the
rainbow!
Custom Colours
Matched to Farrow & Ball,
Stiffkey Blue
Custom Colour
finishes
In addition to our standard colours
and special laminate ranges, you
Matched to can also order your door in a custom
Farrow & Ball, colour.
Treron Perhaps you have a RAL colour, a
Farrow & Ball colour, a Little Greene
shade or a Dulux Trade colour and
you want your garage door be
similar... ... No problem - our custom
painting service is what you need!
We can custom paint your door to
match. The wet-spay process uses
paint mixed to match your chosen
shade and gives a finish that is
warranted for five years with suitable
care and cleaning.
Custom coloured doors are available
Matched to Dulux Trade with guides and box finished in White,
Violet Verona 4 Brown or Black. As an option, the
front face of the guides and the front
face of the box are available painted
to match the door curtain colour with
the inner surfaces in White, Brown,
or Black. The rear face of the door is
available in White or Brown.
Fill your world with colour!
Matched to Little Greene Mister David
7
Safety - CE marking
It is against the law to install a power operated garage door in the UK without
complying with The Machinery Directive.
To comply with the Machinery Directive both the door and the motor and
controller used in the installation must have a Declaration of Incorporation from the
manufacturer.
On completion of the installation the installer must provide a Declaration of
Conformity and apply a CE mark giving details of the installation to the door / motor
and controller combination, which is now classed as a machine.
The installer must issue to the customer a
Declaration of Conformity, maintenance and
operation instructions on the completion of the
installation.
The installer must hold copies of both the
Declaration of Incorporation and the Declaration of
Conformity on a technical file for inspection by the
relevant authorities.
If any of the above requirements are not fulfilled the
Installation is illegal and may be unsafe.
Please ensure for your own safety and peace-of-
mind that whoever installs your electric motor and controller is both willing and
able to fulfil these requirements; if they are not – do not use them.
Choose a member of the DHF Garage Door Installer Group who CAN and WILL
install your motor and controller safely and legally.
Peace-of-Mind Warranties
(a) AlluGuard roller garage doors are guaranteed against any form of manufacturing defect for a period of 2
years from the date of original purchase.
(b) AlluGuard tubular motors are guaranteed against any form of manufacturing defect for a period of 5 years.
Other electrical and mechanical elements within the control system are guaranteed for a period of 5 years.
(c) AlluGuard roller garage doors exterior finish is guaranteed to provide an effective weatherproof mem-
brane that will resist perforation of the substrate from the weather side due to corrosion for a period of 5
years. Externally fitted reverse roll AlluGuard roller garage doors will resist perforation of the substrate from
the weather side due to corrosion for a period of 2 years. Colour change or fade to the exterior surface will be
limited and uniform during the guarantee period.
Guarantees are subject to conditions - please visit www.alluguard.co.uk/warranty for full details.
style, security, innovation...
AlluGuard Limited
Rotherham Road, Parkgate, Rotherham S62 6FP
t: 01709 529 723
f: 01709 524 577
e: info@alluguard.co.uk
w: www.alluguard.co.uk
AlluGuard reserve the right to alter specifications to design and manufacture without notification.
All specifications are correct at time of publication, errors and omissions excepted. April 2020
