UP-DF760
FilmStation Digital Film
Imager
With superior image quality and high speed printing for diagnostic
Overview
imaging

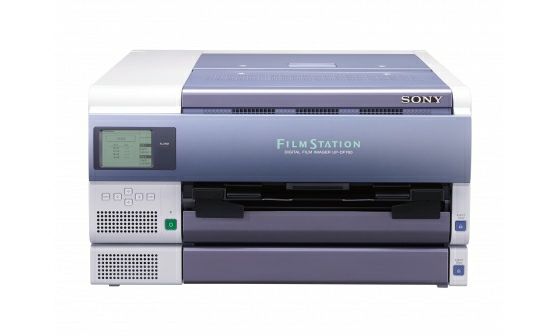

The UP-DF760 FilmStation Digital Film Imager
incorporates the very best in digital thermal printing
technologies developed by Sony over many years.
This compact film imager is ideal for printing data sent
from MRI, CT, DR/CR and other diagnostic imaging
sources in the modern hospital.
Capable of speedy printing at up to 100 sheets an hour,
the UP-DF760 delivers highly durable prints with superior
image quality and resolution. Film sizes are selectable to
suit various diagnostic modality printing tasks, including
standard 14x17-inch blue thermal film, as well as 11 x
14, 10 x 12, and 8 x 10-inch prints. A new 'Dual' mode
allows two UP-DF760 units to be configured as a group
for even more efficient handling of print jobs.
Compatible with latest DICOM standards, the UP-DF760
FilmStation is a valuable addition to diagnostic imaging
workflow in today's clinical environments.
© 2004 - 2021 Sony Corporation. All rights reserved. 1
Reproduction in whole or in part without written permission is
prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are
approximate. All trademarks are the property of their
respective owners.
High speed printing
Features
The UP-DF760 reproduces precise diagnostic images at a
rate of up to 100 sheets of 14x17 inch blue thermal film
(UPT-517BL) per hour. The first print can be delivered in
approximately 63 seconds, and subsequent prints in
approximately 36 seconds.
Superior image reproduction
Superior direct thermal-printing technology enables
extremely high quality prints with a resolution of 604 dpi.
The combination of a thermal printing head and PQC
(Picture Quality Control) enables diagnostic images to be
reproduced clearly and accurately. Sony’s sharpness
algorithm assures consistently crisp images, not only in
high spatial frequency areas but also in middle spatial
frequency areas.
Dual configuration printing
Two FilmStations can be configured as a single 'group',
with one UP-DF760 set as the main unit and the second
as the subordinate unit. Print jobs input to the main unit
are allocated to the relevant device, reducing the
workload on a single imager. With both units loaded with
the same size film (UPT-517BL), print speeds of up to 200
sheets per hours are achievable. For extra flexibility,
each FilmStation can be loaded with two different sized
films, allowing printing with a maximum of four different
film sizes.

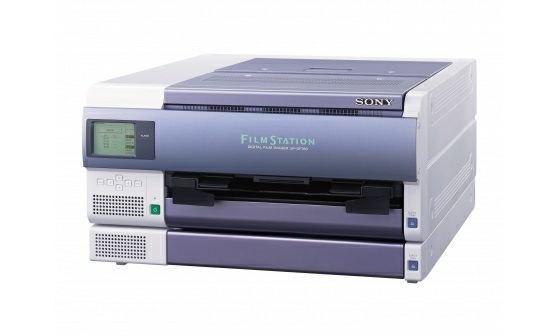

Compact space saving design
Thanks to its innovative printing mechanism, the UP-
DF760 has space-saving approximate dimensions of just
600 (W) x 316 (H) x 686 (D) mm and a weight of only 66
kg.
Dust resistant mechanism
© 2004 - 2021 Sony Corporation. All rights reserved. 2
Reproduction in whole or in part without written permission is
prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are
approximate. All trademarks are the property of their
respective owners.
The design of the UP-DF760 prevents accumulation on
the film of dust particles and other foreign matter.
Contact area between the thermal head and film is
totally isolated from the flow of incoming air from the
cooling fans. Also, dust-cleaning rollers clean the surface
of the film, which remains inside the UP-DF760 until the
printing process is completed to preventing foreign
matter from damaging prints.
Uses reliable blue thermal film
Sony’s blue thermal film assures high contrast, high
density diagnostic images with excellent stability and
durability. Unique IC tag technology in each pack tracks
film type and number of prints remaining inside the film

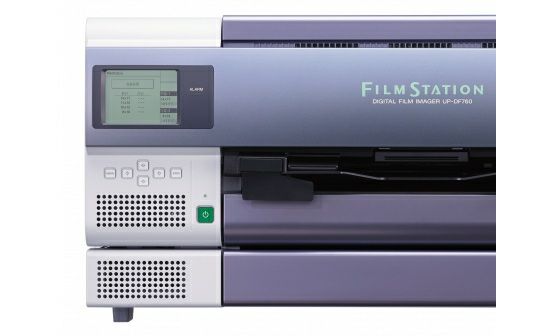

tray. Film type can be automatically displayed on the
imager's LCD screen.

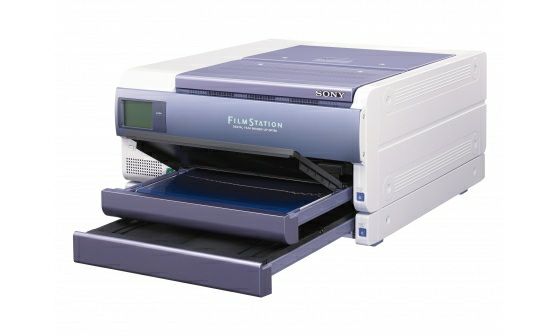

Multiple film sizes for various radiology modalities
The UP-DF760 supports four different film sizes: 14x17,
11x14, 10x12 and 8x10-inch prints. These various sizes
make the imager suitable for a variety of diagnostic

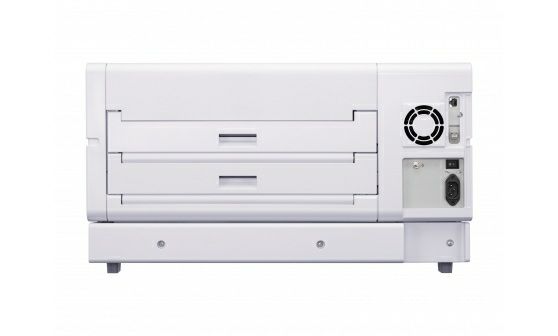

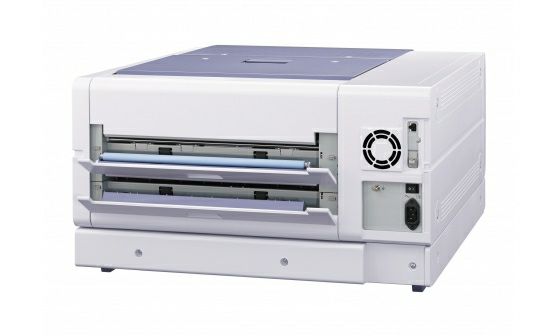

modality printing tasks. Two separate film trays are
included, each capable of accepting any size of film. The
printer's output tray sorts film prints according to their
size.
DICOM connectivity
The UP-DF760 is equipped with a DICOM 3.0 interface,
enabling it to be connected to hospital imaging
networks.
Gamma curve settings
Gamma curve adjustment allows the film imager to
reproduce accurate gray-scale contrast as required.
Alongside a default fixed gamma curve, 19 additional
gamma curves can be saved to achieve best contrast
© 2004 - 2021 Sony Corporation. All rights reserved. 3
Reproduction in whole or in part without written permission is
prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are
approximate. All trademarks are the property of their
respective owners.
from multiple modalities.
Large effective print area
The UP-DF760 can print edge-to-edge on the horizontal
plane, leaving blank areas only at the top and bottom of
the film. This allows doctors to check films with no gap
when two films are laid side by side.
Quick warm-up time
From power on, the UP-DF760 is ready to start printing in
only two minutes, allowing rapid use whenever the unit
is required.
Environmentally friendly
No liquid chemicals are used in the printing process, and
no chemical waste is produced after printing. Sony
thermal film doesn’t contain any metal component such
as silver, and so can be treated as household waste
rather than as industrial waste.
Specifications Specifications
Printing Method Thermal Printing
Resolution 604 dpi
Gradations 16,384 levels processing
8,256 x 9,888 dots (when
Picture Elements
using the UPT-517BL)
3.2 and higher with UPT-
Maximum Density
517BL/514BL/512BL/510BL
UPT-517BL: 346.7 x 415.3
Picture Area
mm (13 3/4 x 16 3/8 inches)
© 2004 - 2021 Sony Corporation. All rights reserved. 4
Reproduction in whole or in part without written permission is
prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are
approximate. All trademarks are the property of their
respective owners.
354 x 430 mm (14 x 17
inches)
279 x 354 mm (11 x 14
Media Size inches)
253 x 304 mm (10 x 12
inches)
202 x 253 mm (8 x 10 inches)
Approx. 100 sheets per hour
(excluding time for cooling
Throughput
the head)(when using the
UPT-517BL)
Film Supply Tray Two trays
Film Supply Tray
125 sheets (max.)
Capacity
Network port (x1)
(RJ-45 modular jack),
Interface Conforming to 1000BASE-
T/100BASE-TX standard
AC IN (for power) (x1)
Power
AC 100 V to 240 V, 50/60 Hz
Requirements
Input Current 4.4 A to 2.4 A
Operating
10°C to 30°C (50°F to 86°F)
Temperature
20% to 80% (no condensation
Operating Humidity
allowed)
Operating Pressure 700 hPa to 1,060 hPa
Storage and
-20°C to +60°C
Transport
-4°F to +140°F
© 2004 - 2021 Sony Corporation. All rights reserved. 5
Reproduction in whole or in part without written permission is
prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are
approximate. All trademarks are the property of their
respective owners.
Temperature
Storage and 20% to 80% (no condensation
Transport Humidity allowed)
Storage and
700 hPa to 1,060 hPa
Transport Pressure
600 x 316 x 686 mm
Dimensions (W x H
23 5/8 x 12 1/2 x 27 1/8
x D) *1
inches
66 kg
Mass
145 lb 8 oz
(CB) IEC 60601-1, IEC 60950-
Safety Standards
1
EMC Standards IEC60601-1-2
Output tray (1)
Cleaning Kit (1)
Supplied
Output tray stopper (1)
Accessories
Film tray size adapter kit (1)
Instructions for use(1)
Notes
The values for dimensions are
*1
approximate.
