RESOURCE EFFICIENCY CASE STUDY
January 2021
Waitangi Wharf Upgrade
Resource Efficiency in Action
The Waitangi Wharf project was completed • Construction of a new 163 metre breakwater for wave
absorption;
in 2018 and demonstrates how innovative
• Dredging of the harbour to allow for improved berthing
design and resource efficient practices
and construction; and
can deliver a legacy of environmental and
• Improvements to surrounding services such as the fuel
community benefits to our most remote dispensing and transfer system, wharf power supply
locations. and livestock holding areas.
The 600 residents there are reliant on the Waitangi The site is prone to extreme weather conditions. Strong
Wharf for the import and export of essential supplies, weather systems meant that the existing wharf was only
including goods, diesel, fuel, fishing and livestock. able to provide safe harbour 50% of the time, resulting in
Nearing the end of its structural life, a complex upgrade narrow weather windows for successful berthing. Failed
project was completed making ship docking more reliable attempts to berth or load cargo caused delays as ships
in poor weather to encourage economic growth. remained offshore until conditions improved. Providing a
breakwater as part of the wharf upgrade helps to protect
The Waitangi Wharf upgrade project involved:
the wharf and decrease the number of days berthing was
• Demolition of the existing wharf structures; not possible.
• Reclamation of 9,500 m2 of land for development
of new commercial and fishing wharves;
Owing to the remote project location
and the associated scale of the project,
several challenges were recognised.
The project success relied heavily on access to the
island’s limited resources and services including;
food, accommodation, fuel supplies, electricity,
water resources, solid waste disposal options,
shipping, flights and the labour force.
The isolated project site and minimal construction
infrastructure also meant resources would need to
be shipped or flown to the island unless innovative
solutions were found.

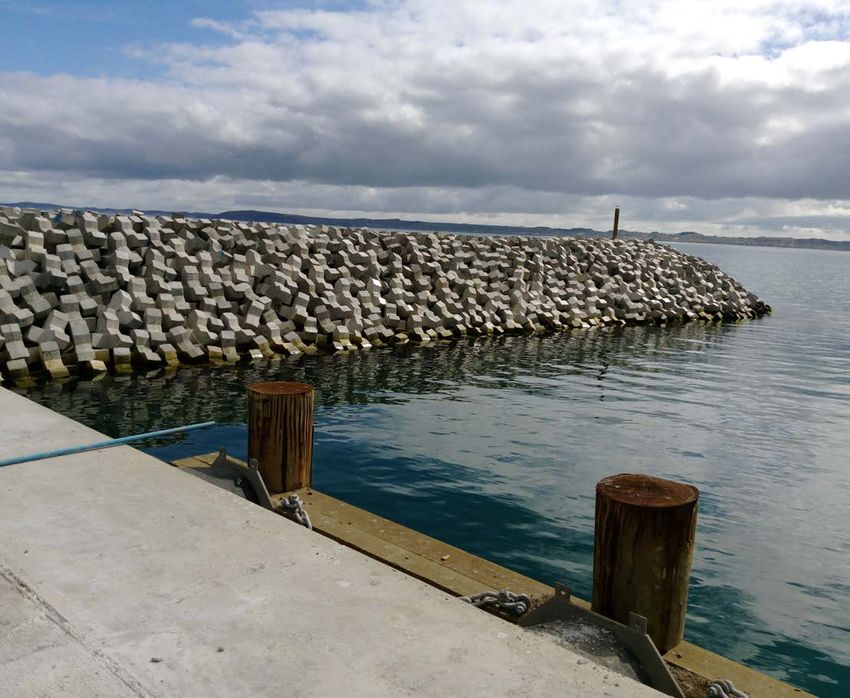

The construction of the wharf structure and An innovative breakwater design was required to protect
the wharf. The project team altered a double-layered
breakwater armour required approximately
Xbloc design creating a single layer interlocking Xbloc
100,000m³ of rock aggregate and sand concrete armour unit. The concept, the first of its kind in
materials. Aotearoa New Zealand, resulted in Xblocs that were small
enough that the available rock on island was suitable to
Early inspection and testing of local rock found sources be used as underlaying material.
of good quality basalt, however, the size of the rock

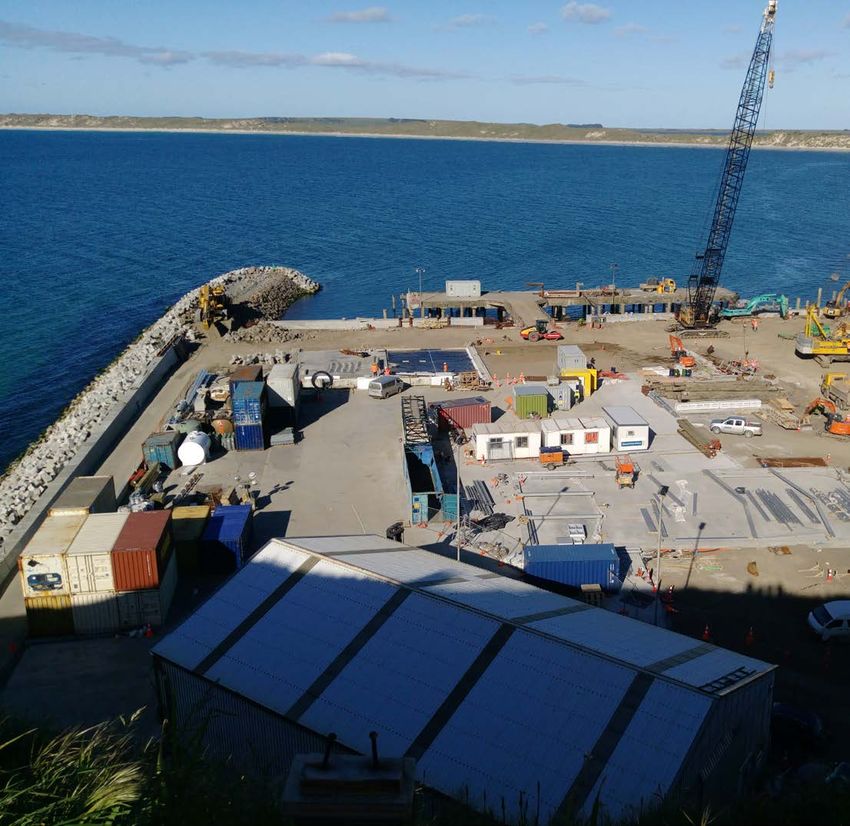

was limited by shear planes. The limited raw materials A portable concrete batching plant was shipped to the
available on the island and high cost to transport island and set up in a standalone construction yard which
resources meant conventional breakwater armour stone was designed to become the island’s emergency response
designs were not a viable option. Concrete armour units centre at the conclusion of the project. About 3,300
were therefore chosen as the preferred option. Xblocs were made using specially designed moulds and
local aggregate and water resources.
Establishing the Ohinemama Quarry on the island
allowed the project to source the required aggregate As the local water supply was already under pressure, a
and sand locally rather than shipping the material new water supply bore was installed at the construction
from the mainland. This significantly reduced the yard. At the conclusion of the project the bore was
project’s carbon footprint and the number of barge handed over to the Chatham Island Council to augment
loads required by up to 80%, also saving project time the Waitangi township water supply.
transporting the aggregate materials to the island.
Local aggregates were used in the construction of the
10,700 m2 wharf, including all wharf pavement slabs,
the capping beam on the top of the concrete pile and
panel reclamation facing.
AWARD
The innovative design and resource efficient
practices were recognised by the winning of the
Civil Contractors New Zealand National Award
in 2018 and the Gold Award of Excellence from
the Association of Consulting and Engineering
NZ in 2019. It was noted that “The Gold award
acknowledges a superior project for innovative
achievement or setting a new industry precedent”.
Waste Minimisation
The isolated site also created challenges replenish the main Waitangi Beach, with the remaining
materials transferred to a consented location offshore.
for removal of the old wharf structure and
The project team employed waste minimisation practices
residual resources, with the project finding with almost 100% of the existing wharf structures being
solutions that reduced environmental and repurposed; the wooden wharf structure was reused for
commercial impacts. building materials and firewood on the island, as vehicle
impact barriers on the main wharf and concrete decking
To allow for the surrounding seabed construction and from the wharf was used to provide for an improved
improved berthing for vessels into the wharf, 13,300 m3 boat haul-out area for the collection of boat cleaning,
of sand was dredged over an area of 10,700 m2. Residual antifouling and maintenance water.
sand from this part of the project was repurposed to
Resource Efficiency at a glance
MORE EFFECTIVE USE OF REPLENISHMENT REUSE/
EFFICIENT PORT USE OF LOCAL INNOVATIVE OF THE LOCAL REPURPOSING
OPERATIONS AGGREGATE SINGLE LAYER ENVIRONMENT EXISTING
• 100,000m3 of CONCRETE • To improve berthing STRUCTURES
• The new design
was modelled to aggregate and XBLOCS for vessels into the • 3,400 tonnes of
provide for up to sand were sourced • Using a non- wharf, 13,300m2 of concrete and rebar
351 days of berthing locally. This standard design sand was dredged waste diverted from
an improvement helped to avoid in order to suit over an area landfill. By reusing
of up to 40%. approximately the local rock spanning 1.5 rugby the material as a
For the two years 145 additional source, resulted fields. boat haul out area,
following the wharf barge trips saving in approximately • Approximately as wheel stops
commissioning, the 7,900 tonnes of 17,800 tonnes less 3,300 m3 of residual on the wharf and
port management carbon equivalent aggregate and sands were used to some for a concrete
reports that not a (the approximate concrete, less water replenish Waitangi seperation station
single ship has been emissions of 300- and approximately Beach rather than at the island refuse
delayed in berthing. 400 average annual $9.5 million less disposing of the sorting centre
households) and costs than the materials offshore. saving $150k in
$30-60 million in standard double- cost.
cost for barging • The addition of the
layered concrete • The diversion of
alone. sand to Waitangi
unit solution. waste from landfill
Beach provides
• The design used extra protection and reuse of
by the project against erosion from materials helped
required less large storm events. to avoid 1,000
Portland Cement tonnes of carbon
reducing carbon dioxide equivalent
dioxide equivalent emissions had the
emissions by structures been
approximately created from virigin
800 tonnes due to materials.
less transportation
of the concrete
materials.
