Data Sheet 2021

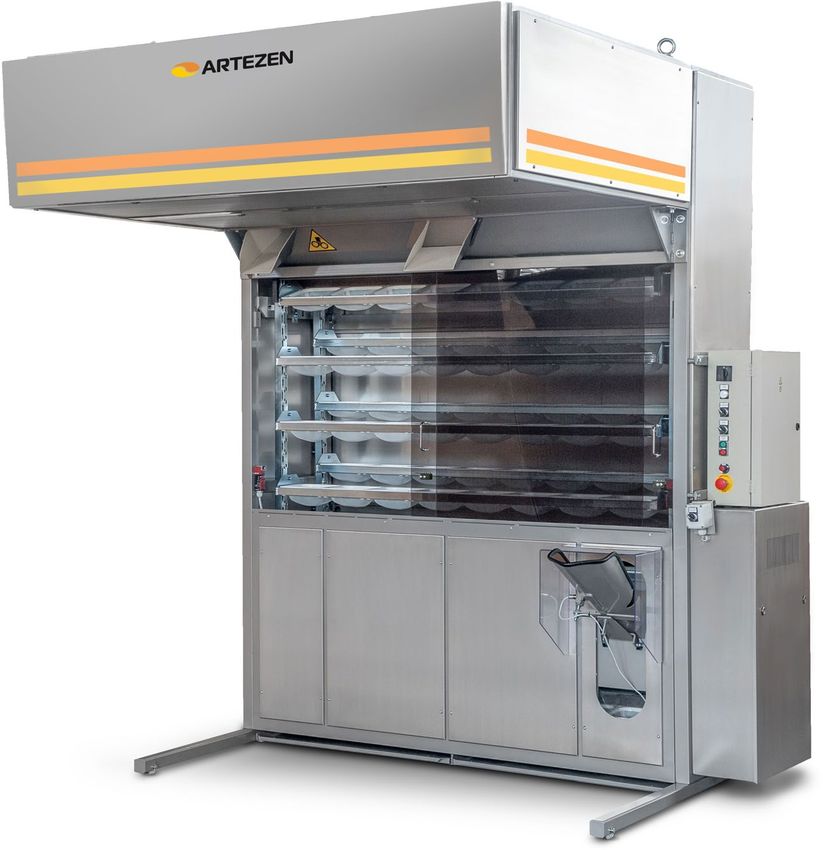

CUBYCA
Intermediate Prover
MAIN FEATURES
• Available in different sizes and with numerous options to optimise any bread makeup line (front or rear loading,
side loading etc.).
• Hygienic design complying with the latest health and food safety norms.
• Singular removable and replaceable dough pockets.
• Photocell infeed control working step-by-step.
• UV lamp to prevent bacteria and mould.
• Extraction fan to extract excess humidity.
• Stainless steel covers.
• Flour collection drawer.
Cu byc a 2
2 02 1
Model Notes
Useful for:
• Max. portions of 1200 gr
Cubyca 168
• Max. speed 1800 pcs/hr
• Resting time 5,6÷14,4 minutes
Useful for:
• Max. Portions of 1200 gr
Cubyca 216
• Max. speed 1800 pcs/hr
• Resting time 7,2÷15,5 minutes
Useful for:
• Max. portions of 1200 gr
Cubyca 296
• Max. speed 1800 pcs/hr
• Resting time 9,9÷25,4 minutes
Useful for:
• Max. portions of 1200 gr
Cubyca 336
• Max. speed 1800 pcs/hr
• Resting time 11÷27,5 minutes
Useful for:
• Max. portions of 1200 gr
Cubyca 376 • Max. speed 1800 pcs/hr
• Resting time 12,5÷30,5
minutes
Bigger intermediate provers and special specifications
Cu byc a 3
2 02 1
CUBYCA

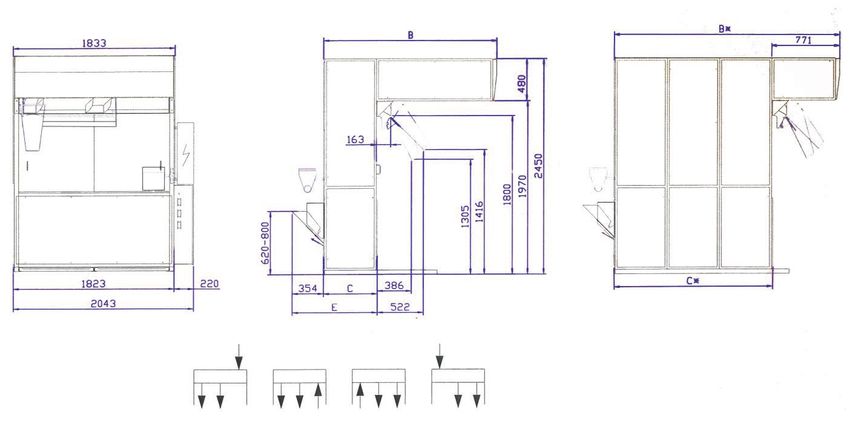

Model Speed Weight N° Useful Overall size Total Weight
round rows pockets power (with
dough (400/50- shipment
3) crate)
Pc/hr gr N° N° B C E kW kg
up to
650
Cubyca 168 1800 100÷1200 8 168 1370 600 950 0,6
(790)
690
Cubyca 216 1800 100÷1200 8 216 1970 600 950 0,6
(830)
930
Cubyca 296 1800 100÷1200 8 296 1970 1200 1550 0,6
(1090)
960
Cubyca 336 1800 100÷1200 8 336 1970 1200 1500 0,6
(1110)
980
Cubyca 376 1800 100÷1200 8 376 2550 1200 1550 0,6
(1130)
Total net pockets
Resting time (Minutes) =
Capacity rate/minute (pcs/min)
Capacity rate/minute
Total net pockets = x desired proving time in minutes
60
Cu byc a 4
2 02 1
CUBYCA
Options
Useful for:
• Double infeed
Optional exit
• High speed production
conveyor belt
• Different resting times
• Lateral exit required
Synchronised
Useful for:
in feed conveyor
• Capacity up to 2100 pcs/hr
belt
Useful when:
• The exit height is lower than
Slide at exit 1,80 m
• Unloading into conical
rounder and long moulder
With special housing on the infeed

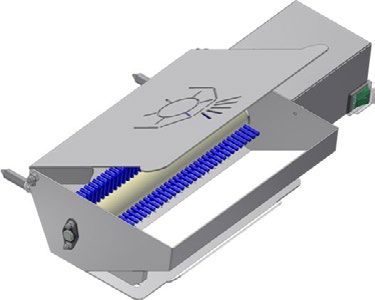

Stainless steel slide
electric flour
duster Useful for:
• Extra sticky dough
Cu byc a 5
2 02 1
All prices are in Euro (EUR) Tous les prix sont en Euro Todos los precios están en Tutti i prezzi sono in Euro
and ex-factory. Prices for op- (EUR) et départ usine. Les Euro (EUR) y ex fábrica. Los (EUR) e ex-fabbrica. I prez-
tions are valid for delivery on prix pour les options ne sont precios de las opciones son zi per le opzioni sono valide
new machines only. valables que pour livraison sur válidos sólo para la entrega solo per spedizioni su nuove
les nouvelles machines. con máquinas nuevas. macchine.
Weight ranges and capacities
are approximates and depend Les plages de poids et les ca- El rango de pesos y las capa- La gamma di peso e capa-
on the dough consistency. pacités mentionnées sont ap- cidades son aproximados y cità sono approssimativi e
proximatives et dépendent de dependen de la consistencia dipendono dalla consistenza
Prices and technical specifica- la consistance de la pâte. de la masa. dell’impasto.
tions may change due to con-
tinued development. Please Les prix et les spécifications Los precios y las especifica- I prezzi e le specifiche tecni-
check the order confirmation. techniques peuvent changer ciones técnicas pueden variar che potrebbero subìre cam-
en raison de développement debido al desarrollo continuo. biamenti dovuti allo sviluppo
Standard delivery time is four continu. Veuillez vérifier la Por favor, compruebe la con- continuo delle attrezzature.
weeks from the order confir- confirmation de commande. firmación de pedido. Per cortesia, controllare sem-
mation date. pre la conferma d’ordine.
Le délai de livraison habituel El tiempo estándar de entrega
Machines and options ‘on re- est de quatre semaines à date es de cuatro semanas desde la Il tempo di spedizione stan-
quest’ may have a longer deli- de la confirmation. confirmación de pedido. dard è di 4 settimane dalla
very time. conferma d’ordine.
Les machines et options ‘à de- Las máquinas y opciones ‘pre-

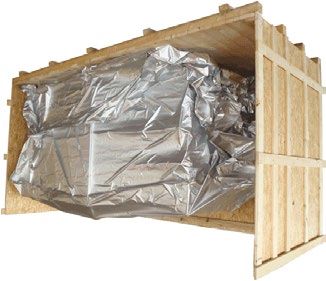

Packaging is not included in mande’ peuvent donner lieu à via demanda’ pueden tener un Le macchine e le opzioni ‘su
the equipment’s price. un délai de livraison plus long. tiempo de entrega mayor. richiesta’ potrebbero richie-
dere un tempo di spedizione

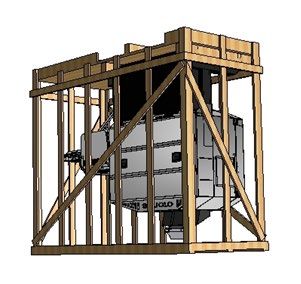

All equipment respects CE L’emballage est exclu du prix El envase está excluido del più lungo dello standard.
Directives. The customer is de l’équipement. precio del equipo.
responsible for any adjust- L’imballaggio è escluso dal
ments to comply with local Les équipements satisfont aux La máquinaria cumple con las prezzo dell’attrezzatura.
regulations. Directives CE. Le client est Directivas CE. El cliente es re-
responsable de tout aménag- sponsable de cualquier ajuste Le macchine rispettano le Di-
ement destiné à satisfaire aux necesario para cumplir con rettive CE. Il cliente è respon-
réglementations locales. las normas locales. sabile per ogni adattamento
che è tenuto a rispettare nei
confronti delle norme locali.
Cu byc a 6
2 02 1
COMMON OPTIONS for ALL EQUIPMENT
In case of:
3-phase
Special voltage
• V 240
• V 420
Electrical system Useful for:
with UL certified • North American markets
components • V >200
