Data Sheet 2020
AGYLA

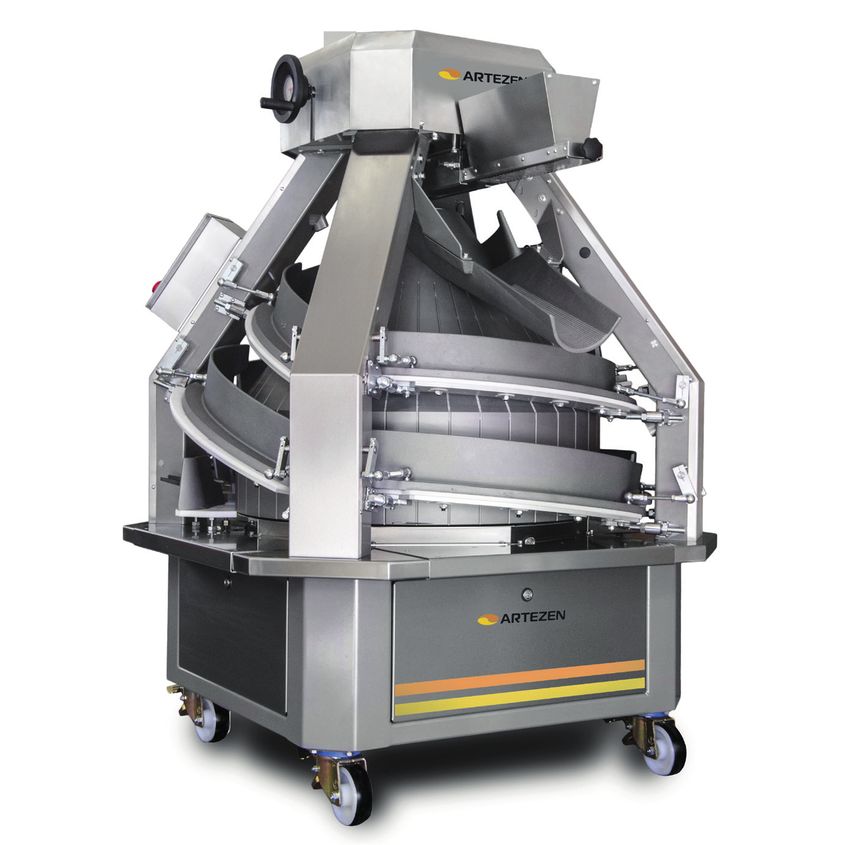

Heavy Duty Rounder
MAIN FEATURES
• Stainless steel covers and plating.
• Adjustable flour duster in stainless steel.
• Simple coupling to any production line.
Fully adjustable channels to adapt to a wide variety of products, included pizza dough.
• Generous 4 m (Agyla 4000) or 7 m (Agyla 5000) rounding channel.
• Channels and cone are Teflon coated to prevent dough sticking.
• Hot and cold air blowing available as option.
• Construction of machine ensures durability with minimal maintenance.
• On wheels with brakes for easy mobility and sufficient ground clearance.
• Soft start-up of the machine to ensure a stable position in the production line.
• Electronic adjustable speed.
Agy l a 2 02 0 | 2
Model Notes
Useful for:
• 30÷2000 gr
• Adjustable rounding channels
Agyla 5000 for better shapes
• Production up to 5000 pcs/hr
• Industrial use
• Pizza dough
Useful for:
• 30÷2000 gr
• Adjustable rounding channels
Agyla 4000
for better shapes
• Production up to 4000 pcs/hr
• Industrial use
Agy l a 2 02 0 | 3

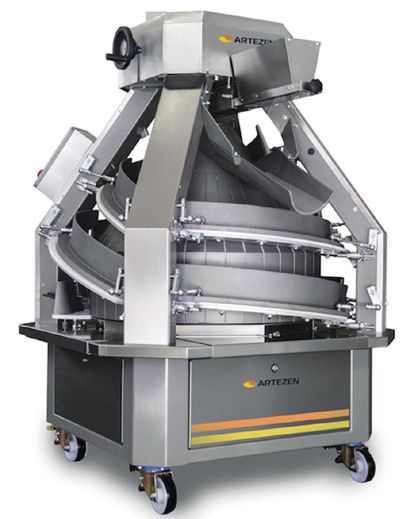

AGYLA
Model Max Weight range Channel Total power Weight (with
Speed lenght (400/50-3) shipment crate)
Pc/hr gr mm kWh kg
up to
1,5 750
Agyla 5000 5000 30÷2000 7000
(2,7)* (860)
1,5 630
Agyla 4000 4000 30÷2000 4000
(2,7)* (740)
* = Optional hot and cold air blower
Agyla 5000
1621
1458
809
680
Agyla 4000 1295
1160
1621
1458
1160
1196
809
680
1295 1339
1160
Agy l a 2 02 0 | 4
0
AGYLA
Options
Hot and cold
Useful for:
air blower with
• Very sticky dough
thermostat
Useful for:
Full stainless steel
• High humidity work
structure
environment
In feed position
6 o’clock
In feed position
3 o’clock
Agy l a 2 02 0 | 5
COMMON OPTIONS for ALL EQUIPMENT
In case of:
3-phase
Special voltage
• V 240
• V 420
Useful for:
Electrical system
• North American
with UL certified
markets
components
• V >200
All prices are in Euro (EUR) Tous les prix sont en Euro Todos los precios están en Tutti i prezzi sono in Euro
and ex-factory. Prices for op- (EUR) et départ usine. Les Euro (EUR) y ex fábrica. Los (EUR) e ex-fabbrica. I prez-
tions are valid for delivery on prix pour les options ne sont precios de las opciones son zi per le opzioni sono valide
new machines only. valables que pour livraison sur válidos sólo para la entrega solo per spedizioni su nuove
les nouvelles machines. con máquinas nuevas. macchine.
Weight ranges and capacities
are approximates and depend Les plages de poids et les ca- El rango de pesos y las capa- La gamma di peso e capa-
on the dough consistency. pacités mentionnées sont ap- cidades son aproximados y cità sono approssimativi e
proximatives et dépendent de dependen de la consistencia dipendono dalla consistenza
Prices and technical specifica- la consistance de la pâte. de la masa. dell’impasto.
tions may change due to con-
tinued development. Please Les prix et les spécifications Los precios y las especifica- I prezzi e le specifiche tecni-
check the order confirmation. techniques peuvent changer ciones técnicas pueden variar che potrebbero subìre cam-
en raison de développement debido al desarrollo continuo. biamenti dovuti allo sviluppo
Standard delivery time is four continu. Veuillez vérifier la Por favor, compruebe la con- continuo delle attrezzature.
weeks from the order confir- confirmation de commande. firmación de pedido. Per cortesia, controllare sem-
mation date. pre la conferma d’ordine.
Le délai de livraison habituel El tiempo estándar de entrega
Machines and options ‘on re- est de quatre semaines à date es de cuatro semanas desde la Il tempo di spedizione stan-
quest’ may have a longer deli- de la confirmation. confirmación de pedido. dard è di 4 settimane dalla
very time. conferma d’ordine.
Les machines et options ‘à de- Las máquinas y opciones ‘pre-
Packaging is not included in mande’ peuvent donner lieu à via demanda’ pueden tener un Le macchine e le opzioni ‘su
the equipment’s price. un délai de livraison plus long. tiempo de entrega mayor. richiesta’ potrebbero richie-
dere un tempo di spedizione
All equipment respects CE L’emballage est exclu du prix El envase está excluido del più lungo dello standard.
Directives. The customer is de l’équipement. precio del equipo.
responsible for any adjust- L’imballaggio è escluso dal
ments to comply with local Les équipements satisfont aux La máquinaria cumple con las prezzo dell’attrezzatura.
regulations. Directives CE. Le client est Directivas CE. El cliente es re-
responsable de tout aménag- sponsable de cualquier ajuste Le macchine rispettano le Di-
ement destiné à satisfaire aux necesario para cumplir con rettive CE. Il cliente è respon-
réglementations locales. las normas locales. sabile per ogni adattamento
che è tenuto a rispettare nei
confronti delle norme locali.
Agy l a 2 02 0 | 7
