ADD - Additives
Product Guide
www.add-additives.com An IGM Group Company
An IGM Group Company
Product Range
Introduction
ADD-1000 range
ADD Additives BV started in 2010 and is rapidly expanding
Binders for Pigment
throughout Europe. ADD Additives manufactures and supplies an
Concentrates Page 4
extensive range of high quality additives for industrial coatings,
decorative paints, printing inks, adhesives, sealants, plastics and
ADD-2000 range
building materials.
Foam Control
Additives Page 6
All ingredients used for the production
for ADD-Additives products are
ADD-3000 range
European sourced. The additives are
Slip & Levelling
manufactured at our state of the art
Additives Page 10
production facility in The Netherlands.
ADD-4000 range
To complement the already existing additives range, ADD-Ad-
High Molecular Weight
ditives is investing resources into new developments. The new
Dispersants Page 13
developments and the technical service inquiries are carried out
by our highly skilled staff. ADD Additives creates and nourishes ADD-5000 range
solid and long term successful relationships with their partners Low Molecular Weight
by providing excellent customer service, customer support and Dispersants Page 16
supplying high quality materials.
Our extensive portfolio has allowed us to be a partner of choice for ADD-6000 range
both multinational companies and small independent companies. Modern Low Molecular
We deliver what we say and actively engage in finding the optimal Dispersants Page 19
solution for your business, creating top-notch customer satisfaction
and profitability. ADD-7000 range
Miscellaneous Page 21
2
An IGM Group Company
Binders for Pigment Concentrates
Binders for Resin Minimal Pigment Concentrates
The RMPC concept improves the manufacture of pigmented coatings or paints through the use of a
highly pigmented, low resin content pigment concentrates. The concentrates can be formulated to
be compatible with the majority of resins used to manufacture industrial coatings, while meeting the
specific requirements of paint end-users.
Resin Minimal Pigment Concentrates (RMPC) based on ADD binders and high molecular weight
dispersants off er the following advantages over conventional pigment concentrates:
1. Consistent colour development / no flocculation
2. Considerably lower resin content
3. Significantly lower viscosity
This leads to the following benefits:
► No flooding or floating
► Minimal effect on the quality of the finished product
► Application in a very wide range of different systems and solvents due to excellent compatibility of
the pigment concentrates ADD-1000 range
3
An IGM Group Company
ADD-1000 range
Binders for Pigment Concentrates
Binders
Active
Product Incorpo- Solvent Water-
Description / Application Content UV
name ration borne borne
in %
Fatty acid modified polymer,
ADD-1501
crosslinkable with amino or polyiso- Before 100 • •
cyanate resins
Fatty acid modified polymer, VOC
ADD-1502 Before 95 •
free
4
An IGM Group Company
Foam Control Additives
Foam
During the production and application of paint systems, foam is an undesired side-effect of mixing. It
is usually slowing production and making it difficult to fill vessels with the correct amount of paint. In
addition it can cause surface defects such as craters and weak points in the dried film.
Stable dispersion of gas bubbles in a liquid medium
The most general definition of foam is a substance that is formed by trapping many gas bubbles in
a liquid or solid. A foam is normally an extremely complex system consisting of poly disperse gas
bubbles separated by draining films. In other words foam can be described as a stable dispersion of
gas bubbles in a liquid medium. In pure liquids, foam is not stable. Foam is only stable in systems
containing surfactants.
5
An IGM Group Company
ADD-200 Range
Foam Control Additives
Silicone-free foam control additives
Product Incorpora- Dosage Solvent Water-
Description / Application UV
name tion in % borne borne
Acid-cure and NC-curtain coating
Before or after
ADD-2020 systems, unsaturated polyester 0.1-0.7 • •
processing
and gelcoats
Polyurethane, acid-cure and End of process-
ADD-2021 0.5-2.0 • •
stoving enamels ing
Mineral oil-based high perfor-
Before and/or
ADD-2504 mance defoamer for aqueous 0.1-0.5 •
after processing
formulations
Vegetable oil-based high perfor-
Before and/or
ADD-2508 mance defoamer for aqueous 0.1-1.0 •
after processing
formulations
High performance liquid defoamer Before and/or
ADD-2523 0.1-0.5 •
for aqueous formulations after processing
Defoamer for various water-based
Before and/or
ADD-2526 coating and water based ink 0.1-1.0 •
after processing
systems
Very effective silicone free, high
performance defoamer for water- Before and/or
ADD-2540 0.5-1.0 •
based ink & coatings, partly based after processing
on vegetable oils
Very effective silicone free high
Before and/or
ADD-2548 performance defoamer for water- 0.5-1.0 •
after processing
based ink & coatings
Unsaturated polyester, epoxy and Before or after
ADD-2720 0.1-1.0 • •
polyurethane systems processing
Unsaturated polyester, epoxy and Before or after
ADD-2724 0.1-1.5 •
polyurethane systems processing
* Dosages: % on total formulation
6
An IGM Group Company
Silicone-containing foam control additives
Product Incorpora- Dosage Solvent Water-
Description / Application UV
name tion in % borne borne
Polyurethane curtain coatings and Before or after
ADD-2022 0.1-1.0 •
stoving enamels processing
Physically drying systems and air Before or after
ADD-2025 0.1-1.0 •
drying alkyds processing
Physically drying systems and air Before or after
ADD-2026 0.1-1.0 •
drying alkyds and especially for ink processing
Air-drying systems based on acrylic,
vinyl or chlorinated polymers; and
Final produc-
ADD-2035 fast-drying industrial, decorative and 0.5-1.0 •
tion
decorative finishes based on medium-
to long-oil alkyd resins
Solvent borne industrial and decorative
Final produc-
ADD-2041 finishes, including roller, brush and 0.1-0.7 •
tion
airless spray applications
For solvent borne and radiation curing
Before pro-
ADD-2286 coatings, inks and varnishes. Ideal for 0.05-0.6 • •
cessing
high speed rotation screen printing inks
Waterborne coatings and pigment Before or after
ADD-2524 0.1-1.0 •
concentrates processing
Highly compatible silicone based high
Before pro-
ADD-2525 performance defoamer for water-based 0.1-1.0 •
cessing
pigment concentrates.
VOC-free clear silicone-based
defoamer which is particularly designed Before or after
ADD-2560 0.1-0.5 •
for water- and glycol-based pigment processing
concentrates and universal colorants
VOC-free silicone-based defoamer for
water-based coatings, printing inks,
Before or after
ADD-2561 overprint varnishes and emulsion 0.05-0.8 •
processing
adhesives. Suitable for pigment con-
centrates
VOC-free all-purpose defoamer that
is easy to incorporate in all kinds of
Before or after
ADD-2563 water-based coatings, printing inks, 0.2-1.0 •
processing
overprint varnishes and emulsion
adhesives
VOC-free clear defoamer that is easy
to incorporate in all kinds of water-
Before or after
ADD-2564 based coatings, printing inks, overprint 0.1-1.0 •
processing
varnishes and emulsion adhesives.
Suitable for pigment concentrates
VOC-free clear defoamer that is easy
to incorporate in all kinds of water- Before or after
ADD-2568 0.1-1.0 •
based coatings, printing inks, overprint processing
varnishes and emulsion adhesives
7
An IGM Group Company
Product Incorpora- Dosage Solvent Water-
Description / Application UV
name tion in % borne borne
Defoaming substances in acrylate
ADD-2721 Any stage 0.5-1.0 •
monomers for radiation curing systems
Before addi-
Solvent-free epoxy and polyurethane
ADD-2722 tion of pig- 0.5-1.5 •
systems
ments/fillers
Solvent-free epoxy and polyurethane Prior to pro-
ADD-2723 0.5-1.5 •
systems, low odour cessing
2 Component polyurethane and epoxy Prior to pro-
ADD-2730 0.5-1.5 •
systems cessing
* Dosages: % on total formulation
8
An IGM Group Company
Slip & Levelling Additives
The surface of coating
Although the coating might be for different purposes; protective, decorative or both, it is the
eye-catcher for its users and consumers. It is exposed to “the world” and has not only to withstand
some severe circumstances like weathering, but is responsible for the appearance of the coating,
colour, brightness, gloss and the “touch”. It all starts at the surface. In most cases, superior surface
properties cannot be achieved without the addition of slip & levelling additives which alter the surface
properties of the coating.
Polysiloxanes have a very high surface activity and therefore are often used as surface control
additives. Silicone-based surface control additives are modified by polyethers, polyesters or alkyl side
groups to improve recoatability and inter-coat adhesion. Modification parameters are silicone content,
molecular weight, and modification degree.
Polyacrylates, homo- and copolymers based on (meth)acrylic monomers are well known surface
control additives. In addition to their positive impact on flow and levelling, acrylic homo- and co-pol-
ymers are effective as air-release agents. Since they are not reducing the surface tension of the
coating to the extent of silicone-based products, the wetting of substrate surfaces is improved
(substrate wetting).
9
An IGM Group Company
ADD-3000 range
Slip & Levelling Additives
Silicone-free slip & levelling additives
Active
Product Description / Incorpo- Dosage Solvent Water-
content UV
name Application ration in % * borne borne
%
Wetting, levelling and flow
End of
ADD-3260 control agent with excellent 0.05-1.0 100 • •
process
anti-cratering properties
Paraffin wax emulsion for
anti-blocking, scratch and End of
ADD-3506 0.05-1.0 40 •
burnish resistance for inks and process
coatings
Anionic substrate wetting End of
ADD-3572 0.1-0.5 70 •
agent process
After or
Excellent substrate wetting, prior to
ADD-3575 0.5-1.5 55 •
levelling and anti-cratering process-
ing
Solvent borne or solvent free
End of
ADD-3772 systems, coil coatings, OEM 0.5-2.0 60 • •
process
and industrial coatings
End of
ADD-3777 Strong anti-cratering 0.5-1.0 70 •
process
Polyethylene wax for Depend-
ADD-3906 anti-blocking and scratch ing on 0.5-2.0 100 • •
resistance system
* Dosages: % on total formulation
10An IGM Group Company
Silicone-containing slip & levelling additives
Active
Product Description / Incorpora- Dosage Solvent Water-
Content UV
name Application tion in % * borne borne
in %
Improve slip and mar
ADD-3030 Any stage 0.1-1.0 52 • •
resistance, very compatible
Solvent borne metal, wood
ADD-3031 and paper coatings, includ- Any stage 0.1-1.0 52 •
ing UV cured
Improve surface flow,
ADD-3033 excellent compatibility in Any stage 0.1-1.0 15 •
clear coat
Strong substrate wetting End of
ADD-3034 0.05-0.5 52 • •
and cratering process
Solvent- and water borne
stoving enamels, unsatu- End of
ADD-3035 0.5-1.0 52 • •
rated PE including UV process
cured
ADD-3230 100% version of ADD-3030 Any stage 0.05-0.5 100 • • •
End of
ADD-3235 100% version of ADD-3035 0.25-0.5 100 • • •
process
Solvent borne wood fin-
ADD-3236 ishes, industrial coatings After thinning 0.02-0.3 100 • •
and solvents-free coatings
Similar to ADD-3236, but
ADD-3239 stronger defoaming prop- After thinning 0.05-0.3 100 • •
erties
Premium additive that
increases slip, surface
ADD-3290 Any stage 0.05-0.5 100 • • •
smoothness and “soft-
touch” effect
Anti-cratering and leve-
After or prior
ADD-3580 ling agent for waterborne 0.1-1.0 100 •
to processing
coatings
Leveling agent for water-
ADD-3581 borne coatings with Any stage 0.2-1.0 100 •
impregnating properties
After or prior
ADD-3585 Solution of ADD-3580 0.2-2.0 52 •
to processing
* Dosages: % on total formulation

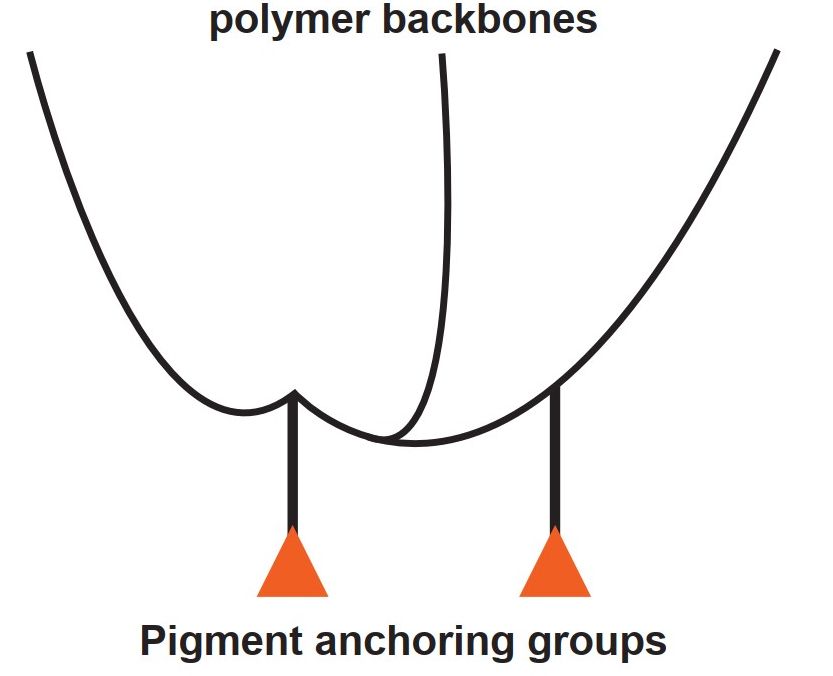

11An IGM Group Company Dispersing Additives Pigment stabilization by steric hindrance When dispersing pigments, in particular organic pigments, one often encounters problems such as flocculation, insufficient colour or transparency, poor rheological behaviour or bad stability. These issues arise along every step of the coatings life cycle from production and storage through to the end-use performance of the film. The dispersing of solid pigments or fillers into the liquid phase of binder solutions is an important step in paint and coatings production influencing optical properties like gloss and colour strength. Dispersion control additives are used to improve and accelerate the dispersion process and to stabilize the dispersion during storage. High molecular weight wetting and dispersing agents Are built of linear or branched polyacrylate or polyurethane structures with a molecular weight between 5,000 g/mol - 30,000 g/mol and have special groups which have high affinity towards specific sites on the pigment surface. These are called anchoring groups, and are built in at strategic points on the polymer backbone. Mode of action Anchoring groups enable strong interaction between the dispersion control additive and the pigment surface. This interaction is much stronger compared to the anchoring mechanism of the conventional low molecular weight types. Because these dispersion control additives have multiple adsorptions points, they are therefore connected to numerous sites on the surface of the pigment particles. The remaining parts of the dispersion control additive act as a steric barrier to the surroundings by stretching into the liquid phase and assuring an effective steric hindrance preventing flocculation. 12
An IGM Group Company
ADD-4000 range
High Molecular Weight Dispersants
High molecular weight dispersants based on Block co-polymer
Waterbone
inorganics
% of DBP
Organics
Product
% of OA
Content
Solvent
Description / Application
Blacks
Active
name
borne
% of
in %
BET
UV
Particularly recommended for
carbon black pigments. Ideal for
ADD-4276* pigment concentrates for polyols -- -- -- 100 •
and PVC plastisols and color mas-
terbatches for thermoplastics
Aqueous coating systems, printing
ADD-4519 inks and adhesives. Ideal for res- 8-12 30-50 50-60 40 •
in-free pigment concentrates
* Recommended addition levels (based upon pigment weight):
15-50% for carbon blacks, 10-25% for organic pigments and 5-10% for inorganic pigments
High Molecular weight dispersants based on Polyurethane Chemistry Content in %
Organics %
Waterbone
inorganics
% of DBP
Product
% of OA
Description / Application
Solvent
name
Blacks
Active
borne
BET
UV
of
General-use industrial coatings
ADD-4009 where cost effective performance 10 30-50 15-25 60 •
is vital
General-use industrial coatings
ADD-4010 including coil coatings and decora- 5-10 20-40 25-30 50 •
tive finishes
ADD-4046 General-use industrial coatings 10 30-50 15-25 40 •
High quality industrial finishes
ADD-4047 including automotive OEM and 10 30-50 15-25 35 • •
refinish
Solvent-based coatings, including
automotive topcoats and high-qual-
ADD-4063 ity industrial coatings. Ideal for 10 25-50 20-30 45 •
pigment concentrates for high-end
applications requiring durability
High quality industrial finishes
including automotive OEM, refinish,
ADD-4100 10 30-50 15-25 50 •
as well as universal solvent-based
colorants
13An IGM Group Company
Content in %
Organics %
Waterbone
inorganics
% of DBP
Product
% of OA
Description / Application
Solvent
name
Blacks
Active
borne
BET
UV
of
Particularly suitable for the man-
ufacture of APE-free and sol-
ADD-4685 vent-free universal colorants used 10 30-50 25-30 52 • •
in aqueous, solvent-based and
solvent-free coatings
* Recommended addition levels (based upon pigment weight):
15-50% for carbon blacks, 10-25% for organic pigments and 5-10% for inorganic pigments
High molecular weight dispersants based on polyacrylates
Solvent borne
Content in %
Organics %
Waterbone
inorganics
Product
% of DBP
Description / Application
% of OA
name Blacks
Active
BET
UV
of
High quality industrial coatings
ADD-4401 10 30-50 15-25 50 • •
including transportation coatings
High quality industrial coatings,
ADD-4430 especially RMPC’s including NC 10 30-50 20-30 50 •
lacquers
High molecular weight dispersants based on polyacrylates
OA: Oil absortion value
BET: Surface area value
DBP: Dibutyl Phtalate absorption value
14An IGM Group Company
Dispersing Additives
Pigment stabilization by controlled flocculation

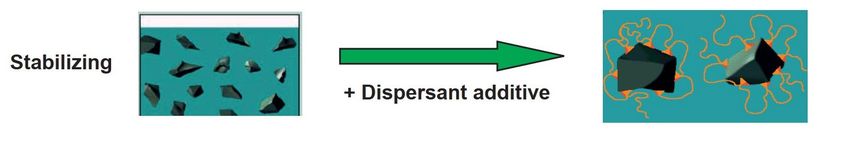

The dispersing of solid pigments or fillers into the liquid phase of binder solutions is an important
step in paint and coatings production influencing optical properties like gloss and colour strength.
Dispersion control additives are used to improve and accelerate the dispersion process and to
stabilize the dispersion during storage.
Low molecular weight wetting and dispersing agents
are categorized according to their chemical structure and the nature of their hydrophilic groups
(amphoteric, cationic, … etc). The molecular weight is between 800 and approximately 2000 g/
mol which is too low to give enough steric hindrance for stabilization of organic and carbon black
pigments
The interaction of their polar groups with the pigment surface and the behaviour of the non-polar
chains in the medium determine their effectiveness.
Mode of action

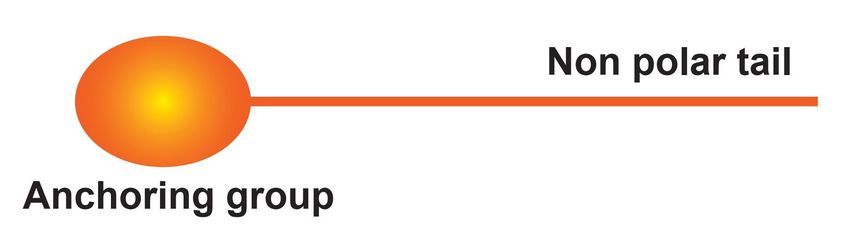

The polar heads will form hydrogen bonding interactions
between different pigment units resulting in a network that
enhances the separation of the particles (controlled floccu-
lation).
Inorganic pigments are usually metal oxides which contain positive metal ions and negative oxide
ions. These ions are good anchoring points on which the anchoring groups of the dispersion control
additive can attach to (polar interactions).
15An IGM Group Company
ADD-5000 range
Low Molecular Weight Dispersants
Low Molecular Weight Dispersants
Solvent borne
Inorganics Organics Bentonite
Content in %
Waterbone
Product Description /
name Application % Dosage based on
Active
Pigment/Bentonite
UV
Cost effective dispersant
ADD-5001 based on fatty acids for 0.5-2.0 30-50 30 • •
primers and under-coats
Solvent borne architectural
ADD-5002 4.0-7.0 3.0-7.0 70 •
and decorative paints
Solvent borne industrial
ADD-5005 0.2-2.0 2.0-5.0 52 •
and marine coatings
All types of industrial coat-
ADD-5010 ings, especially for inor- 1.0-10.0 - - 50 •
ganic pigments
Solvent borne or sol-
ADD-5044 vent-free coating systems. 0.2-2.0 2.0-5.0 30-50 52 •
Also for bentonite gels
Non-polar to medium-polar
ADD-5054 coating systems. Also for 0.2-2.0 2.0-5.0 30-50 52 •
bentonite gels
Polyurethane systems and
stoving enamels. Also for
ADD-5065 0.5-2.5 - - 52 •
orientation of aluminium
pigments
Polyurethane systems and
ADD-5066 stoving enamels. Strong 0.5-2.5 - - 52 •
anti-settling effect
Water and solvent borne
ADD-5071 systems. Strong anti-set- 0.5-2.0 2.5-5.0 - 52 • •
tling effects
Similar to ADD-5065, but
ADD-5165 with different solvents com- 0.5-2.5 - - 52 •
bination
Similar to ADD-5066, but
ADD-5166 with different solvents com- 0.5-2.5 - - 52 •
bination
16An IGM Group Company
Solvent borne
Inorganics Organics Bentonite
Content in %
Waterbone
Product Description /
name Application % Dosage based on
Active
Pigment/Bentonite
UV
Solvent borne architectural
ADD-5207 0.5-5.0 2.0-5.0 - 100 • •
and decorative paints
Solvent borne, solventless
coatings and printing inks.
ADD-5217 0.5-5.0 - - 100 • •
Excellent for Titanium
Dioxide and extenders
Solvent-free version of
ADD-5244 0.1-1.0 1.0-2.5 15-25 100 • •
ADD-5044
Solvent borne or sol-
vent-free coating systems.
ADD-5844 0.1-1.5 1.0-3.0 20-30 80 •
Ideal for dispersing extend-
ers in thermosetting resins
17An IGM Group Company Dispersing Additives Pigment stabilization by hybrid dispersants Hybrid dispersant are modern low molecular weight dispersants. They contain anchoring mecha- nisms similar as in high molecular weight dispersants but have significant lower molecular weights varying between 1000 – 5000 g/mol. Due to the anchoring groups, multi adsorption is possible and therefore anchoring on organic- & carbon black pigments can be achieved. Compared to conven- tional low molecular weight dispersants the molecular weight of these hybrid dispersants are usually much higher which ensures more improved steric hindrance. The active substance of hybrid dispersant is typically 100%. Because high molecular weight disper- sants are usually having 30 – 60% activity, hybrid dispersants are very cost effective to use. Unlike conventional low molecular weight dispersants, hybrid dispersants can be used for inorganic-, organic- and carbon black pigments. Example of a hybrid dispersant polymer with ‘triple tail’ technology. 18
An IGM Group Company
ADD-6000 range
Modern Low Molecular Weight Dispersants
Inorganics Organics Bentonite
Solvent borne
Content in %
Waterbone
Product Description /
name Application % Dosage based
Active
on Pigment/Bentonite
UV
Acidic polyether, disper-
sant for solvent-based and
ADD-6211 solvent-free coatings and 0.5-2.0 - - 100 •
composite, is particularly
suitable for car putties
Acidic polyether, disper-
sant for solvent-based and
ADD-6212 5-10 - - 100 • •
solvent-free coatings and
composite
Fatty acid dispersant for
PVC plastisol’s, solvent
ADD-6213 5-10 10-30 15-25 100 •
based and solvent free
coatings
Anionic wetting agent to
improve compatibility and
color acceptance of all
ADD-6215 3-10 10-20 15-25 100 • •
kinds of tinting pastes in
both solvent and water-
based systems, VOC-Free
Hybrid dispersant to
improve compatibility and
ADD-6220 5-10 10-20 15-25 100 • •
color acceptance of univer-
sal colorants in base paints
Hybrid dispersant for uni-
ADD-6225 versal colorants for tinting 5-10 10-20 15-25 100 • •
systems
Hybrid dispersant for
oil and solvent- based
ADD-6228 systems and colorants. 5-10 10-20 100 •
Also for heatset and offset
inks
Aliphatic polyether with
ADD-6230 1-3 - - 100 • • •
acidic groups
Aliphatic polyether with
ADD-6231 acidic groups especially for 1-3 - - 100 • • •
PVC plastisol purposes
19An IGM Group Company
Inorganics Organics Bentonite
Solvent borne
Content in %
Waterbone
Product Description /
name Application % Dosage based
Active
on Pigment/Bentonite
UV
Hybrid dispersant for uni-
versal colorants for tinting
ADD-6245 systems, VOC- free and 5-10 10-20 15-25 100 • • •
low viscosity pumpable
dispersant
Hybrid dispersant stabiliz-
ing all kind of pigment and
ADD-6525 extenders in waterborne 10-20 20-40 - 50 •
coatings, especially in dec-
orative coatings
Triple tail technology dis-
persant to improve stability
of tinting pastes as well
ADD-6540 0.5-2.0 2.5-5.0 - 62 •
as dispersant for organic,
inorganic and pearlescent
pigments
Fatty acid modified polyes-
ADD-6622 7-14 14-28 - 70 • •
ter in di-basic ester
Incorporation: In the mill base before adding the pigments
20An IGM Group Company
ADD-7000 range
Miscellaneous
Active
Product Dosage Solvent Water-
Description / Application Content UV
name % borne bone
in %
Anti-setting rheology control additive for
ADD-7101 0.5-5.0 50 •
solvent based systems
Alkali- swellable acrylic thickener for Newto-
ADD-7112 0.3-1.5 40 •
nian rheological behaviour
ADD-7200 Solvent and halogen free conductivity agent 0.2-2.0 100 • •
Reactive UV Absorber for air drying coat-
ADD-7725 0.5-3.0 100 •
ings
Combination of a reactive UV Absorber with
ADD-7730 0.5-3.0 100 •
HALS for air drying coatings
Solution of an ammonium salt of an acrylic
ADD-A40* 0.5-2.0 45 •
polymer in water
Solution of a sodium salt of an acrylic
ADD-N40* 0.5-2.0 45 •
polymer in water
* Recommended addition levels are based upon pigment weight
21ADD-Additives global brochure V1.2 - 01/2021
DISCLAIMER
The information and recommendations provided Contact information
in this product catalogue are presented in good
faith and believed to be correct. ADD-Additives
makes no representations or warranties as to To find your distributor, please contact:
the completeness or accuracy of the information
provided.
The information is provided on the condition
ADD Additives BV
that the persons receiving it will make their own Daltonstraat 42
assessment as to its suitability for their own 3846 BX Harderwijk
purpose and use.
The Netherlands
No representations or warranties, either express Tel. +31 (0)88 070 17 00
or implied, of fitness for purpose or of any
other nature are made herein with respect to
information or product to which the information info@add-additives.com
refers. www.add-additives.com
An IGM Group CompanyYou can also read
