Apple iPhone 7 Plus: Rear-Facing Dual Camera Module
Apple iPhone 7 Plus:
         Rear-Facing Dual Camera Module
With its choice of a dual camera, Apple’s innovations include new objectives
   lens assemblies, new bonding processes and a new type of autofocus
                                      In the iPhone 7 Plus, Apple
                                      introduced a new rear camera                   Title: Apple iPhone 7 Plus
                                      module. Like its competitors LG and            Rear-Facing Dual Camera
                                      Hu awei , t h ey h ave c h o sen to            Module
                                      integrate a dual camera. The module            Pages: 145
                                      features two sensors, one closed to
                                                                                     Date: November 2016
                                      the sensor in the previous flagship,
and another with a totally new structure.                                            Format: PDF & Excel file
Competition for the best camera phone was revived by Huawei with its                 Price: Full report: EUR 3,490
flagship, the P9, using a dual camera. Like the other main players except
Samsung, Apple has now introduced a dual camera module. This module
integrates two 12 megapixel resolution CMOS Image Sensors (CISs) from Sony,          COMPLETE TEARDOWN WITH:
using Exmor-RS Technology. The wide-angle objective lens assembly features
an aperture of f/1.8 and a pixel size of 1.22 µm. The telephoto has a pixel size     • Detailed photos
of 1 µm but a smaller aperture of f/2.8.                                             • Precise measurements

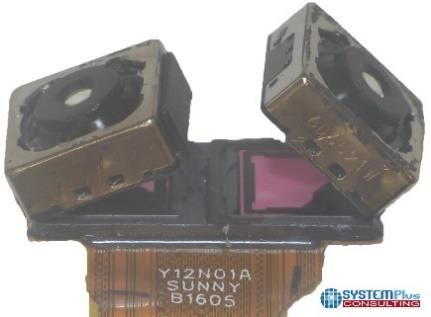

The iPhone 7 Plus dual camera module, with dimensions of 20.6 x 10.0 x 5.9           • Material analysis
mm, is equipped with two sub-modules each including a Sony CIS. The wide-
angle module is equipped with an optical image stabilization (OIS) voice coil        • Manufacturing process
motor (VCM), while the telephoto only comes with a general VCM. The CISs               flow
are assembled using a flip-chip process on a ceramic substrate with a gold           • Supply chain evaluation
stud bumping process.
                                                                                     • Manufacturing cost
With this new dual camera module and Sony’s Exmor-RS technology, Apple                 analysis
has innovated its offering in areas including phase detection autofocus (PDAF),
                                                                                     • Selling price estimate
its objective lens assembly structure, its sensor, and adopts a second
generation of through-silicon vias (TSVs). Surprisingly both logic circuit sensors   • Comparison with Samsung
for controlling PDAF are very similar.                                                 Galaxy S7 & iPhone 6S
                                                                                       camera module
The report includes technology and cost analysis of the iPhone 7 Plus dual

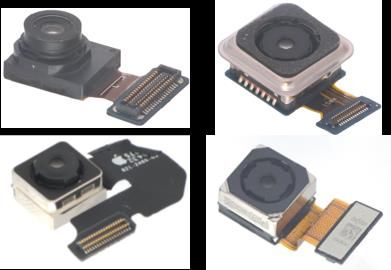

camera module. Also, comparisons with the Huawei P9, Samsung Galaxy S7               • Comparison with Huawei
and iPhone 6S rear camera modules are provided. These comparisons                      P9 dual camera module
highlight differences in structures, technical choices and manufacturing cost.
Apple iPhone 7 Plus: Rear-Facing Dual Camera Module
TABLE OF CONTENTS
 Overview/Introduction                CIS Manufacturing Process Flow
                                       • Overview
                                                                                 AUTHORS:
 Dual Camera Module Supply
                                       • Logic Circuit Front-End, Pixel Array
 Chain and Company Profile               Circuit Process                                        Stéphane
 iPhone 7 Plus Teardown                • BSI + TSV + Microlens Processes /                      Elisabeth
                                         Wide angle & Telephoto CIS                           Stéphane has a
 Physical Analysis                     • CIS Wafer Fabrication Unit                           deep knowledge
 • Physical Analysis Methodology
 • Dual Camera Module View and        Cost Analysis                              of materials characterizations
   Dimensions                          • Yield Hypotheses                        and electronics systems. He
 • Dual Camera Module Disassembly      • CMOS Image Sensor Cost                  holds an Engineering Degree
 • Cross-Section of the Dual Camera    • Wide angle CMOS Image Sensor /          in Electronics and Numerical
   Module, Housing, Flex PCB, and        Telephoto CMOS Image Sensor             Technology, and a PhD in
   IR Filter                              Front-end costs: logic circuit,       Materials      for     Micro-
 • Comparison With Apple iPhone             pixel array, BSI and TSV Color       electronics.
   6S Plus Structure                        filter and Microlens
 • CMOS Image Sensors                     Total front-end cost
    View and dimensions                  Back-end: tests and dicing                           Nicolas
                                                                                                  Author (Lab):
    Pads and tungsten grid               CIS wafer and die cost                               Radufe    (Lab)
                                                                                                  Véronique
    CIS pixels                        • Dual Camera Module Assembly                            N Le
                                                                                                  i c oTroadec
                                                                                                        las is in
 • Cross-Section of the CMOS Image       Cost                                                   charge of phy-
   Sensor                              • Lens Module Cost                         sical analysis. He has a deep
    Overview                          • AFA Cost                               Véronique is in charge of
                                                                                  knowledge in chemical and
    Pixel array and logic circuit     • Final Assembly Cost                    structure analysis of semi-
                                                                                  physical      analyses.       He
 • Comparison of Right / Left CMOS     • Dual Camera Module Cost                conductors. She has a deep
   Image Sensors                                                                  previously worked in micro-
                                      Estimated Price Analysis                  knowledge in chemical &
 • Comparison With Huawei P9,                                                     electronics R&D for CEA/LETI
                                                                                physical technical analyses. She
   Samsung Galaxy S7 and Apple        Comparison with Huawei P9,                  in     Grenoble        and    for
                                      Galaxy S7 and iPhone 6S Plus cost         previously worked for 20 years
   iPhone 6S Plus                                                                 STMicroelectronics in Crolles.
                                                                                in Atmel Nantes Laboratory.

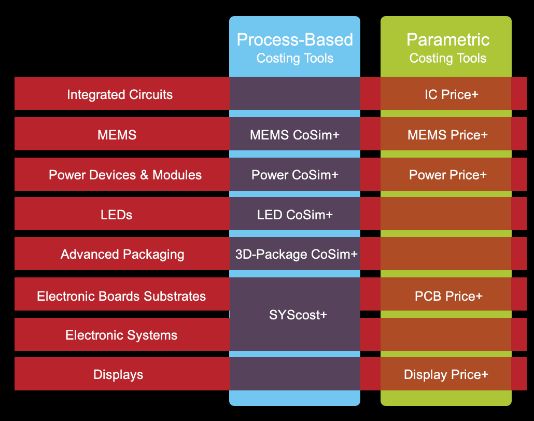

ANALYSIS PERFORMED WITH OUR COSTING TOOLS POWER COSIM+ AND POWER PRICE+
