Cartilage Restoration of the Knee Gregory A. Woods, MD

Cartilage Restoration of the Knee
     Gregory A. Woods, MD

I have no financial interests, relationships, or potential conflicts of interest relative to this
presentation

Jayhawk Doc

Team   • We use a team
         approach to care
         of our athletes.
       • Athletic trainers,
         physicians,
         physician
         assistants,
         physical
         therapists,
         occupational
         therapists,
         coaches.

History of a twisting injury while playing basketball.
C/O pain, swelling, and instability
PE- guarded Lachman, pain medially and laterally,
+McMurray’s

Case 2- 41 y/o Male
           • X-ray showed

Case 2- 41 y/o Male
           • MRI Showed

Case 2- 41 year old Male
Articular replacement
   – Biological
      •   OATS-Ostoarticular Transfer
      •   OBI plugs
      •   ACI- Autologous Chondrocyte Implantation
      •   Microfracture/drilling
      •   Allograft- Fresh Frozen Osteoarticular
   – Nonbiological-
      • Focal replacement- Arthrosurface
      • Compartmental replacement
            – Oxford Mobile bearing Unicompartmental- medial
            – Fixed bearing- lateral compartment
            – Patellofemoral replacement
      • Total Knee Replacement- TKR

Case 2- 41 y/o male

Problem: Femoral Articular Defect that is 1-2
cm2 in size
Therapeutic Primary Options:
  – Debridement
  – Microfracture
  – Osteochondral Grafting
  – Autologous Chondrocyte Implantation
  – OBI plug

Osteochondral defect treatment
options Size 1-2 cm2
Debridement
  – Advantages
    •   Cheap
    •   Quicker Rehab
    •   Decreases mechanical symptoms
    •   Decreases debris load into the joint
  – Disadvantages
    • Does not replace or repair the defect
    • Poor load characteristics

• Microfracture
  – Mesenchymal Stem Cell stimulation
    for repair
  – Creates holes in the cortical bone
    for marrow stimulation of repair of
    the defect.

Microfracture
  – Advantages
    • Cheap
    • Low complication rate
    • Results-Steadman best results -80% better
       – Range from 60%- 86% Improved symptoms
  – Disadvantages
    • Increased Rehab time (limited WB 4-6 weeks)
    • Results probable won’t hold up over time
    • “Repair” cartilage is mainly fibrocartilage

Osteochondral defect treatment options Size 1-2 cm2

Osteochondral Grafting: Autologous
   – Move a plug of Cartilage and bone from one area
     of the knee to the damaged area.
   – Multiple plugs→ mosaicplasty

Osteochondral defect treatment options Size 1-2 cm2
 Osteochondral grafting- OATS
    – Advantages
       • Cheap
       • Can be done arthroscopically most of the time
       • Only surgery that restores the height and shape of articulating
         surface along with the composite autologous material
       • Results better than Microfracture- 80- 100% G/E
    – Disadvantages
       • Limited in size due to limited number of host plugs
       • Rob Peter to pay Paul
       • Mismatch of cartilage curvature and thickness (especially when
         grafting the patella)
       • 4-6 weeks limited WB
       • Cannot graft the tibia

Osteochondral defect treatment
options Size 1-2 cm2
Autologous Chondrocyte Implantation (ACI)
  – Scope knee and harvest Cartilage
  – Grow the cartilage in a lab (in vitro)
  – Second operation to implant the cartilage using a
    periosteal flap

Autologous Chondrocyte
Implantation (ACI)

Osteochondral defect treatment options Size 1-2 cm2

Autologous Chondrocyte Implantation (ACI)
   – Advantages
      • Do not have to rob Peter – much.
      • Good long term results- 65%- 86% G/E
   – Disadvantages
      •   Very Expensive (Total $15-25,000)
      •   Two operations
      •   Does not replace with 3 dimensional scaffold
      •   Protected WB for 6-12 weeks
      •   Open procedure

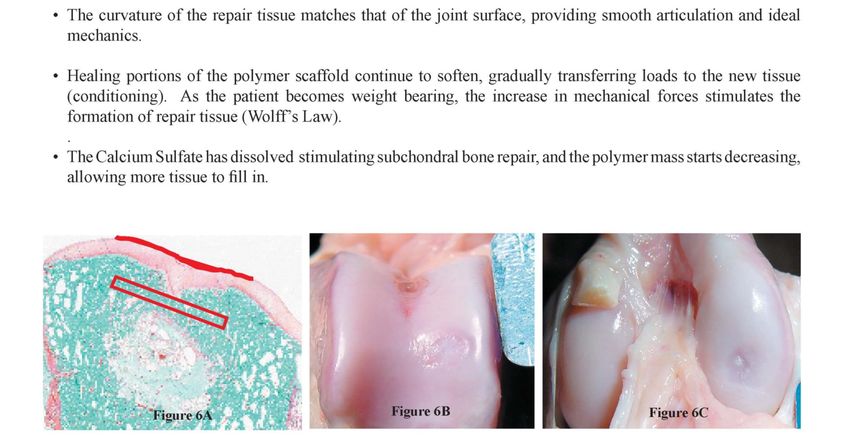

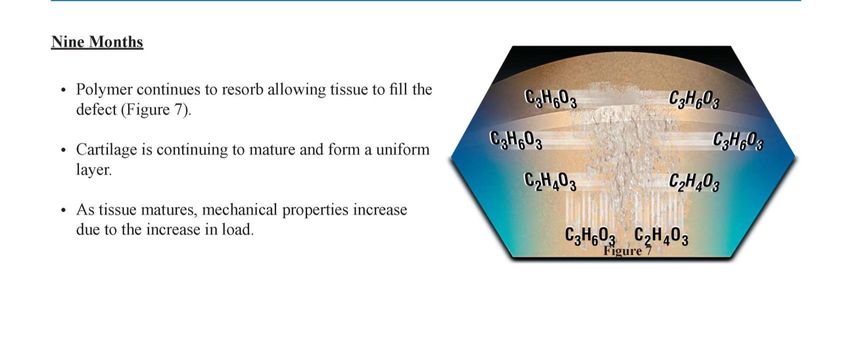

Marrow Stimulation- OBI plug

Scaffold of PGA/ PLA and Calcium Triphophate
Available in preshaped diameter plugs that can
be cut to custom length
Provides 3 dimensional scaffold that for marrow
stimulation repair
High tech microfracture technique

OBI plugs

OBI Plugs

OBI Plugs

OBI Plugs

OBI Plugs

OBI Plugs

OBI Plugs

FDA has approved the use of OBI plugs as a
bone void filler only
This is an off label use/indication for this device.

Future of Mesenchymal Stem Cell
Stimulation
Microfracture enhanced with BMP-7
OBI plugs
  – Plus ACI
  – Plus PRP (Platelet Rich Plasma)
  – Plus OP1/BMP7
ACI plus Scaffolds
  – Hyaluronic acid Hyalograft
  – PLA/PGA Fleece
  – Collagen MACI

Future is partly here.
MACI procedure.
Matrix Autologous Chondrocyte Implantation

1. Cartilage Biopsy

Description of MACI
      MACI, autologous cultured chondrocytes on porcine collagen membrane,
is a cellular sheet that consists of autologous chondrocytes seeded on a 3 x 5
cm, resorbable porcine Type I/III collagen membrane, for implantation into
cartilage defects of the knee.
      The active ingredients of MACI are the autologous cultured chondrocytes
and porcine Type I/III collagen. The autologous chondrocytes are propagated
in cell culture and are seeded on the collagen at a density of 500,000 to
1,000,000 cells per cm2. The final MACI implant contains at least 500,000
cells per cm2 and does not contain any preservative.

Biopsy Transport Medium Bottle→Ship to Vericel

MACI IMPLANTATION

       Epinephrine 1cc—1:1000 Vial
       Neurosurgical Patties (Spinal, 1/2” Square)
       Fibrin Sealant
       6-0 VicrylR Suture on P1 Cutting Needle
       Sterile Intermediary Dishes (2)
       Ink Marker (Sterile) and Ruler (Sterile)

Alternate technique
Ring (4.5 mm and 6 mm) or Spoon Curette
No. 15 Surgical Scalpel
Toothless Adsons (2)
Fine Dissecting Scissors
Sterile Paper or Foil (from surgical gloves or suture packaging)
Epinephrine 1cc—1:1000 Vial
Neurosurgical Patties (Spinal, 1/2” Square)
Fibrin Sealant
6-0 VicrylR Suture on P1 Cutting Needle
Sterile Intermediary Dishes (2)
Ink Marker (Sterile) and Ruler (Sterile)

THE MACI IMPLANT is available as a cellular
sheet, 3 x 5 cm, with a 0.5-cm2 section
removed from the lower left-hand corner,
consisting of autologous cultured chondrocytes
on
a resorbable Type I/III collagen membrane at a
density of at least 500,000 cells per cm2.

Preparation of defect

Applying fibrin sealant to the bone bed
for fixation of the MACI implant

The MACI implant should be implanted with the
cell-side facing the subchondral bone. The cell seeded
side has the rougher texture

The MACI implant should completely fill the defect

Close wound in standard fashion. The use of an
intraarticular drain is not recommended because it may
damage the implant.
Intra-articular injections of any type are also not
recommended.

Post op care- recommended
• Wrap knee in soft, supportive dressing.
• Fit patient with knee immobilizer and set at 0° flexion for the
  first 12 to 24 hours.
• Cryotherapy may be administered.
• Begin continuous passive motion (CPM) within 12 to 24 hours
  following implantation surgery. (I rarely use it!)
• Range of motion (ROM) control brace (initially set at 0°–30° of
  knee flexion) should be worn 24 hours per day for the first 3
  weeks.
• Weightbearing depends on location of the defect.

Rehabilitation

No high impact or cutting twisting sports for 6-9
months. I recommend a year for full return.
Long term results better than microfracture.

The pain relief held in longer term followup
 KOOS Pain and Function (SRA) Scores in the 3-Year
 Extension Study

   Visit      MACI                      Microfx
                 N    Pain   Function      N      Pain   Function
   Baseline   65/65   37.1   15.4       63/63     35.2   11.9
   2 years    63/63   82.2   60.5       60/60     71.8   48.9
   5 years    65/64   82.2   61.3       59/59     74.8   50.3
