CATALOG 2020
DESIGNED TO INSPIRE EXCEPTIONAL BACKYARDS BEGIN WITH EXTRAORDINARY EFFECTS Grand Effects® transforms ordinary pools and landscapes into the extraordinary with beautifully handcrafted fire and water elements that create excitement and a rich luxurious ambiance to backyard designs. Available in a variety of sizes, shapes, materials and finishes to reflect any style — each exquisite fire, water or combination fire & water element will elevate your outdoor space and provide long lasting enjoyment, whether entertaining or creating life-long memories with the family. All burners are CSA certified and can be operated by either full automation with seamless control from your mobile device or easy-to-use manual key kits.
CONTENTS
Burners 4
Fire Bowls 7
Fire & Water Bowls 8
360° Fire & Water Bowls 9
Fire Pits 10
Fire Pit & Rock Burners 13
Candeleres 14
Helix Torch 15
Water Bowls 16
Water Plantiers 17
Water Scuppers 17
Fire Media 18
Accessories 19
Colors & Finishes 20
Terms & Conditions 22
3
CAPTIVATE
Bring your backyard to life with enthralling choosing, our fire and fire & water elements
flames that dance on water and flicker in the add excitement and allure to any pool and
night. Contained within a stylish bowl of your landscape design.
BEST BURNERS
IN THE BUSINESS
For spectacular designs with fire, your best bet is Grand Effects®.
Our premium and standard burners provide unmatched flame
formation and functionality.
Failsafe Flame Reliable Operation
All automated burners feature our Advanced engineering and a compact,
exclusive CSA certified SmartSense insulated design helps to keep
automated technology which produces electronics from overheating, so you can
a flame that holds steady in the wind count on dependable performance that
and provides advanced flame detection keeps the flame burning and the water
that senses if the flame has gone out and flowing day-in and day-out.
rapidly shuts off the gas in response.
Automation Ready
Grand Effects® products work with any home or pool
automation system, including Jandy® AquaLink® automation
systems. Our technology is reliable and proven and comes as
an ETL listed packaged unit, factory tested and easy to install.
4 GRAND EFFECTS
Model 100-9 Model 50-12
PREMIUM BOWL BURNER STANDARD
• SmartSense Automated Technology* • SmartSense Automated Technology*
• Reliable Operation • Reliable Operation
• Fullest, Tallest, Most Impressive Flame • Lower, Broader Flame
• Easy Manual Operation or Automated Control • Automated Only
• 3-Year ProEdge® Warranty • 1-Year Warranty
2-Year ServicePro Warranty
™
1-Year Standard Warranty
* NOT AVAILABLE FOR MANUAL OPERATION.
2020 CATALOG 5
CORINTHIAN
SIZE CONCRETE METALLIC COPPER
30" × 30" Sq. × 10" H × 17" B
29" × 29" Sq. × 9" H × 17" B
31" × 31" Sq. × 10" H × 17" B
36" × 36" Sq. × 12" H × 20" B
SHOWN IN STANDARD CONCRETE: EBONY
ESSEX
SIZE CONCRETE METALLIC COPPER
31" OD x 10"H x 10"B
31" OD x 11"H x 11"B
36" OD x 11.5"H x 10"B
SHOWN IN STANDARD CONCRETE: SAHARA
PREMIUM
STANDARD
6 GRAND EFFECTS

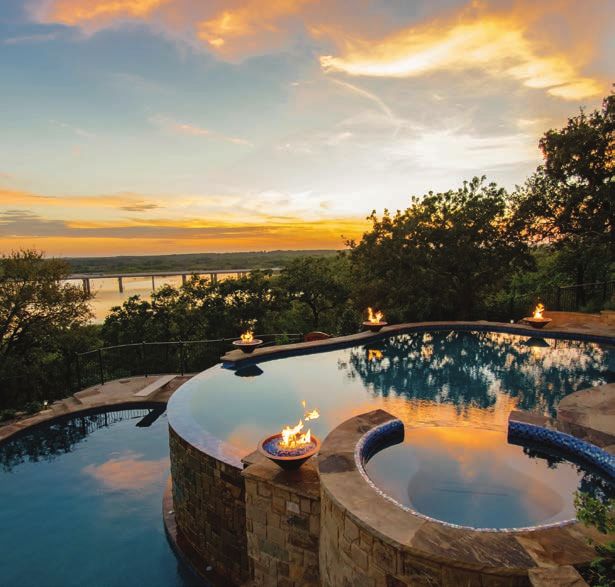

FIRE BOWLS
For added flare and drama, fire features create a • Available with SmartSense automated technology
magnificent effect. Our top-of-the-line CSA certified or manual operation
burner with SmartSense automated technology • CSA certified burner assembly and control panel
produces the tallest, most impressive flame on
• Natural gas or propane: 60,000 – 80,000 BTU/hr
the market.
AUTOMATION
READY
See page 4.
LEGACY
SIZE CONCRETE METALLIC COPPER
31" OD × 12" H × 15" B
31.5" OD × 12" H × 15" B
30" OD × 12" H × 15" B
36" OD × 15" H × 17" B
SHOWN IN PREMIUM CONCRETE: CHARCOAL GREY
BILTMORE
SIZE CONCRETE METALLIC COPPER
32" OD × 9" H
(4.5" Dia. Balls on 18" Dia. Ctr.)
SHOWN IN PREMIUM CONCRETE: BURNT TERRA COTTA
BANDED RIM
SIZE CONCRETE METALLIC COPPER
30" OD × 9" H × 10" B
30" OD × 15" H × 14" B (With Pedestal)
SHOWN IN PREMIUM CONCRETE: SEQUOIA
2020 CATALOG 7
FIRE & WATER BOWLS
Bring the elements of fire and water together Available with SmartSense automated technology
in one alluring feature for an enchanting effect or manual operation
backed by our proprietary CSA certified burner
• CSA certified burner assembly and control panel
with SmartSense automated technology which
produces the most impressive and reliable flame • Natural gas or propane: 60,000 – 80,000 BTU/hr
on the market.
Choose from our collection of decorative bowls
AUTOMATION
made from handcrafted copper, metallic or READY
See page 4.
concrete. All of our bowls hold up to the elements
and the test of time.
PREMIUM
STANDARD
LEGACY BILTMORE
SIZE CONCRETE METALLIC COPPER SIZE CONCRETE METALLIC COPPER
31" OD × 12" H × 15" B 32" OD × 9" H
(4.5" Dia. Balls on 18" Dia. Ctr.)
30" OD × 12" H × 15" B
SHOWN IN PREMIUM CONCRETE: BURNT TERRA COTTA
31.5" OD × 12" H × 15" B
36" OD × 15" H × 17" B
SHOWN IN METALLIC: BRONZE
CORINTHIAN ESSEX
SIZE CONCRETE METALLIC COPPER SIZE CONCRETE METALLIC COPPER
29" × 29" Sq. × 9" H × 17" B 31" OD × 10" H × 10" B
30" × 30" Sq. × 10" H × 17" B 31" OD × 11" H × 11" B
31" × 31" Sq. × 10" H × 17" B 36" OD × 11.5" H × 10" B
36" × 36" Sq. × 12" H × 20" B 48" OD × 15" H × 14" B
SHOWN IN PREMIUM COPPER SHOWN IN STANDARD CONCRETE: SAHARA
8 GRAND EFFECTS
360° FIRE &
WATER BOWLS
Make your pool design more magical with an
astonishing focal point that seemingly floats atop a
cascading circle of water.
• Available with SmartSense automated technology
• CSA certified burner assembly and control panel
• Natural gas or propane — 60,000 - 80,000 BTU/hr
• 30-50 GPM water flow
ESSEX LEGACY BILTMORE
SIZE CONCRETE SIZE CONCRETE SIZE CONCRETE
48" OD x 15"H x 14"B 42" OD x 18"H x 20.5"B 42" OD x 14"H
(6" Dia Balls on 24" Dia ctr)
48" OD x 20"H x 22.5"B
NOTE: OPTIONAL SHEER RING NOT OFFERED
WITH THE LEGACY SERIES.
2020 CATALOG 9

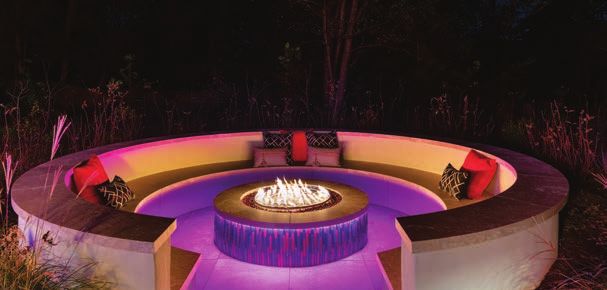

GATHER
Create an inviting backyard with a fire get-togethers and cozy conversations.
pit as your centerpiece. These fiery focal Choose from one of our handmade
points provide a warm backdrop making designs or construct your own using our
them the ideal gathering place for friendly industry-best burner systems.
PREMIUM
STANDARD
FIRE PITS
Grand Effects® has developed a GRAND CORINTHIAN
beautiful line of Fire Pits that will SIZE CONCRETE COPPER
enhance any landscape design. 40" × 40" Sq. × 17" H with 6.5" Ledge
Manufactured with the highest quality, 50" × 50" Sq. × 17" H with 8.5" Ledge
our decorative pieces come handmade 42" × 42" Sq. × 18" H with 7" Ledge
in copper or GFRC concrete. SHOWN IN STANDARD CONCRETE: BEECHWOOD
• Available with SmartSense automated
technology or manual operation
• CSA certified burner assembly and
control panel
• Natural gas or propane: 80,000 –
120,000 BTU/hr LINEAR CORINTHIAN
SIZE CONCRETE COPPER
60" L × 36" W × 22" H with 11" Ledge
58.5" × 26.5" W × 19.5" H with 8" Ledge
AUTOMATION
READY* SHOWN IN PREMIUM CONCRETE: DARK WALNUT
See page 4.
* Manual Operation not available on all Fire Pits.
ESSEX
SIZE CONCRETE COPPER
48" OD × 15" H × 14" B with 7" Ledge
60" OD × 19" H × 19" B with 7" Ledge
SHOWN IN PREMIUM CONCRETE: SEQUOIA
10 GRAND EFFECTSCALDERA
SIZE
43" OD × 18" H Table Top with 31" Dia. Inner Bowl
AVAILABLE ONLY WITH OIL RUBBED BRONZE COPPER TABLE AND
PREMIUM CONCRETE DARK WALNUT BOWL
BILTMORE
SIZE CONCRETE
42" OD × 14" H (6" Dia. Balls on 24" Dia. Ctr.)
SHOWN IN PREMIUM CONCRETE: BURNT TERRA COTTA
LEGACY
SIZE CONCRETE COPPER
42" OD × 18" H × 20.5" B with 7" Ledge
48" OD × 20" H × 22.5" B with 7" Ledge
45" OD × 15" H × 12" B with 7" Ledge
SHOWN IN STANDARD CONCRETE: EBONY
CARDIFF
SIZE CONCRETE
58" L × 38" W × 16" H with 12" Ledge
48" L × 48" W × 16" H with 9" Ledge
78" L × 32" W × 20" H with 10" Ledge
SHOWN IN STANDARD CONCRETE: EBONY
2020 CATALOG 11FIRE PIT BURNERS
Round Automated and Manual Fire Pit Burners come
with a CSA certified burner assembly and control panel.
SIZE BTU/HR
18" Fire Pit Burner 120,000
24" Fire Pit Burner 275,000
30" Fire Pit Burner 400,000
* REQUIRES USE OF SUB PANEL.
24" AND 30" AVAILABLE IN AUTOMATED OPERATION ONLY.
ROCK BURNERS
Automated and Manual Rock Burners come with a
CSA certified burner assembly and control panel.
SIZE BTU/HR
9" Fire Pit Burner 60,000 - 80,000
18" Fire Pit Burner 120,000
FIREPLACE BURNERS
Available only with automation. Options include
metal grate, ceramic logs, fire glass, lava rock or
ceramic stones.
SIZE BTU/HR
36" Fire Pit Burner 90,000
48" Fire Pit Burner 120,000
60" Fire Pit Burner 150,000
12 GRAND EFFECTSFIRE PIT & ROCK BURNERS
All of our Fire Pit and Rock Burners incorporate • Available with SmartSense automated technology
full Automation or Manual operation using a CSA or manual operation
certified burner system. Our proprietary Burner • CSA certified burner assembly and control panel
Assembly is factory tested, safe, easy to install and
• Natural gas or propane
proven to last.
• Easy to Install
AUTOMATION
READY
See page 4.

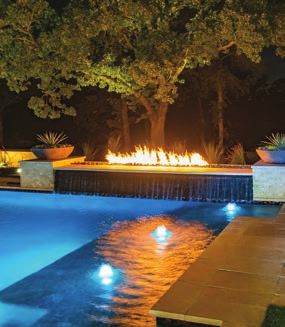

LINEAR BURNERS
All of our Linear Burners use a CSA certified burner
system. Available in 3' to 10' lengths. Custom lengths
and shapes are available on request. Our Burner
Assembly is a packaged unit. Automation systems
include: CSA certified Control Panel, Sub Panel and
Support Plate with Burner. Fabricated from a high
grade of 304 stainless steel, each unit is factory tested
and easy to install.
• Available with SmartSense automated technology
or manual operation
• CSA certified burner assembly and control panel
• Available in 3' to 10' lengths
• Custom lengths and shapes are available
• Natural gas or propane
• Easy to install
SIZE BTU/HR PER FOOT
3-10' Linear Burner 30,000
LINEAR BURNER SUB PANEL CONTROL PANEL
2020 CATALOG 13ILLUMINATE
Punctuate your backyard landscape with
radiant accents. Our selection of ornate torches
and candeleres let you illuminate the night
with blazing excitement and an enticing glow.
CANDELERES
Illuminate your designs with Candeleres from
Grand Effects®. Available with a round or
square design, our handcrafted white quartz
stone Candeleres are pieced together using a
beautiful marquetry inlay technique. When lit Round Stone Candelere
shown with Concrete Base
with standard white LED lights, these elegant
quartz stone Candeleres come alive with a SIZE
majestic translucent radiance. Each Candelere 18.5" Dia. × 18" H
includes a black base.
• Available in SmartSense automated
technology operation
• CSA certified burner assembly and
control panel
• Lights and burners can be operated
independently of one another
• Can be operated remotely from any home or
pool operating system
• White LED lights (ETL Certified) included with
Square Stone Candelere
Quartz Stone Candeleres shown with Concrete Base
• Wall or floor mounting SIZE
• 6,500 BTU/hr 16.375" Sq. × 19.5" H
AUTOMATION
READY
See page 4.
14 GRAND EFFECTSHELIX TORCH
BY TRAVIS
The Helix Torch provides a beautiful combination of
function and design. The design of the torch head
incorporates venturi technology to create a dramatic
spiraling flame. The decorative flame is housed in
high temperature glass panels that provide a unique
look, accenting the swirling flame. The torch head is
well constructed using all stainless-steel materials.
• Available with SmartSense automated technology
or manual operation
• O.T.L. certified burner
• 3 Mounting types: Post, Wall and Column
• Mounting hardware included
• Natural gas or propane: 20,000 BTU/hr
2020 CATALOG 15SOOTHE
WATER BOWLS
Create a mesmerizing sense of ambiance and tranquility in your
backyard with exquisite cascading water elements.
Choose from our classic collection of decorative bowls made from
durable and weather-resistant handcrafted copper, metallic or concrete.
• Easy to install
• 15 GPM Water Flow PREMIUM AUTOMATION
STANDARD READY
See page 4.
ESSEX BILTMORE
SIZE CONCRETE METALLIC COPPER SIZE CONCRETE METALLIC COPPER
31" OD × 10" H × 10" B 32" OD × 9" H
(4.5" Dia. Balls on 18" Dia. Ctr.)
31" OD × 11" H × 11" B
SHOWN IN PREMIUM CONCRETE: BURNT TERRA COTTA
36" OD × 11.5" H × 10" B
48" OD × 15" H × 14" B
SHOWN IN STANDARD COPPER
CORINTHIAN LEGACY
SIZE CONCRETE METALLIC COPPER SIZE CONCRETE METALLIC COPPER
29" × 29" Sq. × 9" H × 17" B 31" OD × 12" H × 15" B
30" × 30" Sq. × 10" H × 17" B 30" OD × 12" H × 15" B
31" × 31" Sq. × 10" H × 17" B 31.5" OD × 12" H × 15" B
36" × 36" Sq. × 12" H × 20" B 36" OD × 15" H × 17" B
SHOWN IN STANDARD CONCRETE: STONE GREY SHOWN IN METALLIC: BRONZE
16 GRAND EFFECTSTransform your backyard into a
peaceful oasis accented by the soothing
serenade of running water with water
bowls, plantiers, and scuppers from
which an elegant sheet of water flows.
WATER PLANTIERS
Bring the beauty of nature into your pool design with
bowls of bountiful bouquets and lush foliage.
• Easy to install
• Large area for plant materials
• 15 GPM Water Flow
6" Double Wall Scupper 8" Double Wall Scupper 10" Double Wall Scupper
DWCS6 DWCS8 DWCS10
12" Double Wall Scupper 6" Single Wall Scupper Curved Wall Scupper
DWCS12 CSREC10 CS7
12" L × 10.13" W × 6.25" H 11.38" L × 7" W × 6.75" H
WATER SCUPPERS
Grand Effects® Water Scuppers come • 15 GPM
with a rich oil-rubbed bronze finish. • Easy to install
“V” Wall Scupper Barrel Scupper They are easy to install and provide an
CSV9 BCS4: 12" L × 4" Dia.
11" L × 8.38" W × 4.97" H BCS6: 12" L × 6" Dia. elegant stream of water.
2020 CATALOG 17DECORATIVE
FIRE MEDIA
FIRE GLASS
Enhance your Grand Effects® natural gas Fire features
with decorative and captivating jewel-like Fire Glass.
* Glass media cannot be used with Propane Gas.
STANDARD FIRE GLASS
AVAILABLE IN 1/2" TO 3/4" SIZES WITH NON-REFLECTIVE FINISH
Black Chestnut Ocean Blue Turquoise Blue
REFLECTIVE FIRE GLASS
AVAILABLE IN 1/4" SIZE WITH REFLECTIVE FINISH
Black Copper Royal Blue Blue Lagoon
LAVA ROCK & CERAMIC STONE
For a more rustic appearance, surround your Grand Effects® fire
features with natural looking lava rocks and ceramic stones both
artfully designed to withstand the heat and elevate your pool design.
Ceramic Stone Lava Rock Tumbled Lava Rock
2-3" Pieces | Black 2-5" Pieces | Black 2-3" Pieces | Grey
18 GRAND EFFECTSACCESSORIES
LED LIGHT BARS
• Available with Fire & Water Bowls
and Water and Plantier Bowls
• Available in white LED
• Lighting can be controlled remotely
with any pool controller
BOWL COVERS
Custom made to fit Grand Effects Fire Bowls and
Fire Pits, our covers are fabricated from patented
WeatherMax® material, one of the highest quality
fabrics available.
• Available color: Tan
• Custom bowl covers available for most
Grand Effects® models
VENT GRATES
For Fire Pit & Linear Inserts
Stainless Steel Copper
5" Diameter | 5" W × 4.5" H 3.5" Diameter | 6" W × 6" H
2020 CATALOG 19COLORS & FINISHES
CONCRETE
Each concrete basin is individually molded using a concrete-fiberglass mix that
results in a lighter, but structurally stronger bowl. Final color and textures are
achieved with a hand applied process that includes multiple stains to achieve a
rich, vibrant hue and a final wax seal to protect against fading and discoloration.
Concrete finishes and colors may vary. Color samples available upon request.
STANDARD CONCRETE
Sahara Stone Grey Ebony Natural Beechwood
PREMIUM CONCRETE
Burnt Terra Cotta Dark Walnut Charcoal Grey Sequoia
METALLIC
Our Metallic bowls are made from the highest quality, heavy gauge
aluminum. Each piece is sandblasted and treated with an anti-corrosion
process before they are powder-coated with a vibrant array of color
choices for a durable and long-lasting finish.
Black Bronze Copper Vein Grey Hammertone
20 GRAND EFFECTSCOPPER
Beautifully handmade copper vessels are buffed to a lustrous sheen
with an oil-rubbed bronze glaze that develops a natural patina over
time. Adorned with hand-hammered indentations that add depth and
enhanced artistry, each bowl is truly one-of-a-kind.
PREMIUM COPPER
A unique oil-rubbed bronze finish
covers the entirety of the product
including the copper scupper
and the robust folded top edge.
CORINTHIAN FIRE & WATER BOWL IN PREMIUM COPPER
STANDARD COPPER
Same beautiful oil-rubbed bronze
finish, but with more basic
construction including a black
powder coated metal scupper.
CORINTHIAN FIRE & WATER BOWL IN STANDARD COPPER
2020 CATALOG 21TERMS & CONDITIONS WARRANTY POLICY 1-Year standard limited warranty on all products. CUSTOM PRODUCTS Some custom made products are available, however, they have a no return policy. ORDER CANCELLATION A 15% restocking fee will be charged for cancellation of product orders. FREIGHT DAMAGE POLICY Immediately inspect shipment for any damages when received. Notification is required of any damages within 5 days. Zodiac Pool Systems LLC is not responsible for damages after 5 days. LEAD TIMES Lead times can vary based on product, finish and delivery requirements. Please contact your sales representative. COMMERCIAL JOBS Commercial jobs require additional safety equipment. Please call for a quote. TERMS Full payment required before shipment. PAYMENT Check, MasterCard, Visa, American Express For checks, mail payment to: • Zodiac Pool Systems LLC C/O Wells Fargo Lockbox PO Box 202146 Dallas, TX 75320-2146 Additional terms and conditions shall apply. Please contact us for full details. CONTACT INFORMATION Phone 1.949.697.5270 Fax 1.949.625.8027 Email info.rsm@fluidra.com Web GrandEffects.com 22 GRAND EFFECTS
GrandEffects.com | 1.949.697.5270 ©2020 Zodiac Pool Systems LLC. All rights reserved. ZODIAC ® is a registered trademark of Zodiac International, S.A.S.U., used under license. All other trademarks are the property of their respective owners. 4614_SA
You can also read
