DISCOVER
2019 | Ecocapsule® CATALOGUE
YOUR
w w w.ecocapsule.sk
NEW
FREEDOM
1

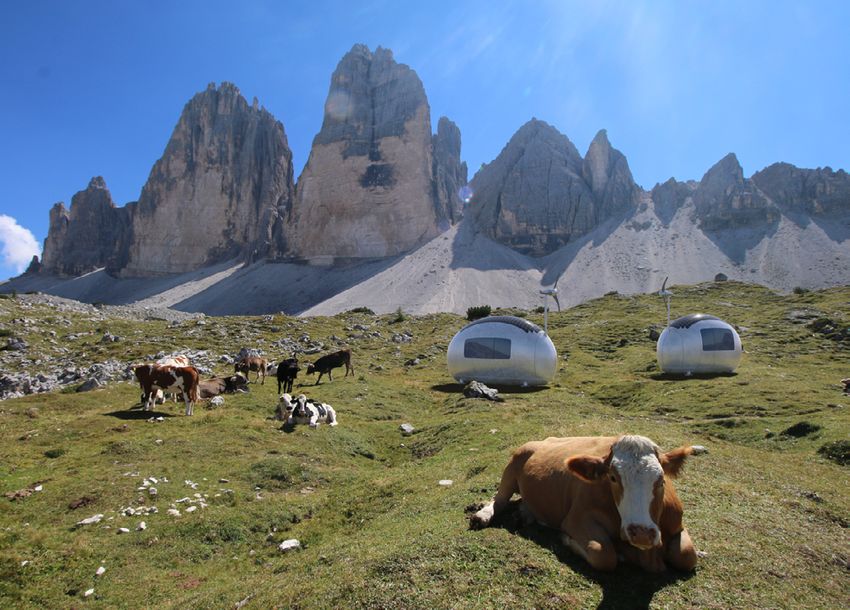

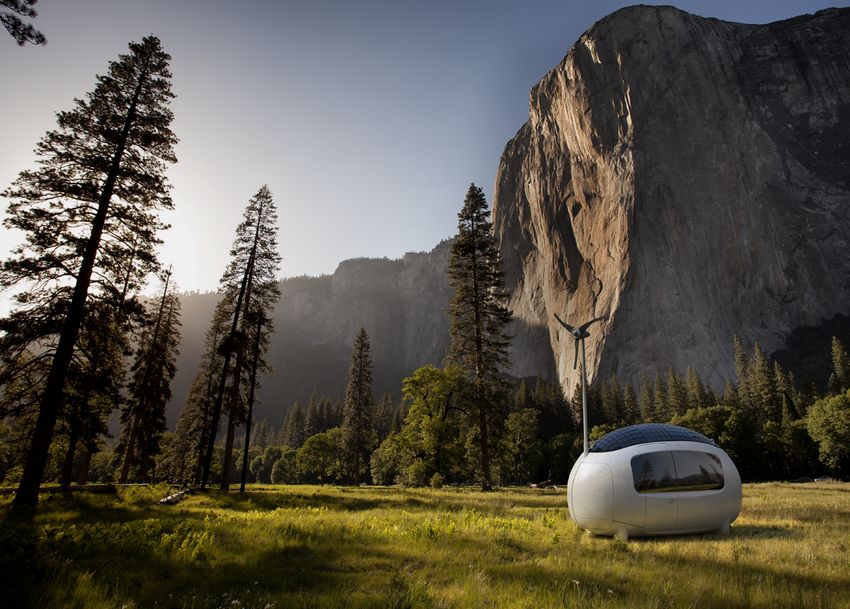

BEAUTIFUL, SELF-SUSTAINABLE
AND MOBILE MICRO-HOME.
Ecocapsule® is a smart, self-sustainable
micro-home, which utilizes solar and wind
energy. It allows people to live in remote
places out of reach of infrastructure, while
retaining a high level of comfort. It can be used
as a cottage, pop-up hotel, caravan, mobile
office, research station, or anything you want
it to be.
2 2019 | ECOCAPSULE® CATALOGUE
Soňa Pohlová Tomaš Žáček
“Imagine a warm mountain cabin in the great outdoors. A beach
cabana on a remote island. A quiet studio in the countryside.
A futuristic pod near your house. Ecocapsule® is your opportunity
to get away and enjoy an authentic off-grid lifestyle”.
Tomáš Žáček & Soňa Pohlová
3 2019 | ECOCAPSULE® CATALOGUE
table
of contents
STORY 5
MEET ECOCAPSULE 7
FEATURES 15
FAQ 17
SMART HOME 19
LET’S GET TECHNICAL 21
SERIES & PRICING 24
CONTACT 25
4
2019 | Ecocapsule® CATALOGUE STORY THE
the The story of Ecocapsule® has begun in the year 2009,
story
when our architectural studio Nice Architects participated
in the Andes Sprout Society Idea Competition to design
a small housing unit for an artist.
A massive amount of inquiries you the best possible product.
persuaded us to develop In 2014, the development of
this project further. Yet, the technology has allowed us to
technology in 2009 was not finish the Ecocapsule® prototype
ready for a truly independent equipped with systems necessary
house. Within the next five years, for long time independence.
we have been working on the In 2018, we have released the first
technological and product design Ecocapsule® on the market.
of Ecocapsule® in order to bring
01/ 2018
2009 — 2013 FIRST ECOCAPSULE®
DEVELOPMENT 07/ 2015 02/ 2017 SHIPPED
REDESIGN EXPO MILANO SEED INVESTMENT FIRST SERIES (50 PCS)
2009 05/ 2015 06/ 2017 2018
FIRST FIRST EXPO ASTANA PRODUCTION
CONCEPT PROTOTYPE OF FIRST SERIES
6 2019 | ECOCAPSULE® CATALOGUE
2019 | Ecocapsule® CATALOGUE
ECOCAPSULE ®
MEET
7
meet
Ecocapsule®
Ecocapsule® is powered by a dual system
of energy production, which – in connection with
high–capacity batteries – ensures energetic
self–sufficiency even in the case of a temporary lack
of sources. Ecocapsule® also has an electric plug,
enabling to charge the batteries from an external
electric source if needed.
SOLAR POWER
WIND POWER
RAINWATER
HARVESTING
EXTENDED
OFF–GRID STAY
8 2019 | ECOCAPSULE® CATALOGUE
meet
Ecocapsule®
SUSTAINABILITY
2019 | Ecocapsule® CATALOGUE
Ecocapsule® is a company that strongly believes in sustainability.
We offer a mid-term housing alternative that fully utilizes the latest
technological innovative solutions, enables people to connect with
nature in harmony and at the same time minimizes negative impact
on the environment.
9
meet
Ecocapsule®
LOW ENERGY
CONSUMPTION
The spheroid shape of Ecocapsule® is designed to maximize the collection of
rainwater and dew. The water filters consequently ensure the transformation
of water from any natural source into clean water. The design of the outer shell
minimizes energy loss. Hollow walls filled with highly efficient thermal insulation
protect inhabitants from harsh weather.
10 2019 | ECOCAPSULE® CATALOGUEmeet
Ecocapsule®
EASY MOBILITY TRANSPORTABLE
BY HELICOPTER
Ecocapsule® is optimized for easy transportation.
It can fit into a standard shipping container and
therefore can be easily shipped globally with
the lowest shipping fees possible. The custom
designed trailer enables the transportation of the
Ecocapsule® with a passenger car, allowing you
to move it anywhere.
FORKLIFT LOADING
CUSTOM DESIGNED TRAILER
EASILY PLACED
ON PONTOON
TRANSPORTABLE BY TRUCK
11 2019 | ECOCAPSULE® CATALOGUEmeet
Ecocapsule®
FLOORPLAN
2497 mm
1600 mm
1276 mm
370 mm
2200 mm
1296 mm
885 mm
TOILET FOLDABLE BED
422 mm
419 mm
SPACE
STORAGE
VERTICAL
1061 mm
4670 mm
1201 mm 800 mm
STORAGE SPACE
537 mm
65 mm
249 mm
125 mm
545 mm
498 mm
KITCHENETTE STORAGE SPACE
347 mm
FOLDABLE TABLE
DOOR
1650 mm
12 2019 | ECOCAPSULE® CATALOGUEmeet
Ecocapsule®
LED Stripe Light
Cabinets
Cabinets
Folding Bed
Tap
Folding Table
Cabinets
CROSS-SECTION VIEW
13 2019 | ECOCAPSULE® CATALOGUEmeet
Ecocapsule® STYLISH MINIMALIST
DESIGN In its compact space, Ecocapsule®
features everything you need. A fully
functional kitchen, a living room space
and a comfortable bed. Ecocapsule® is
comfortable, practical and minimal.
14 2019 | ECOCAPSULE® CATALOGUEFEATURES 15 2019 | ECOCAPSULE® CATALOGUE
features
Shell Water Unit
The body is made from a fiberglass Water comes from two sources - it is collected as
shell (with a low amount of styrene) rainwater and can also be supplied from another
overlaid on a steel framework. natural source, such as a stream or lake. Due to
an extremely efficient pre-filtration system and UV
Insulation LED lamp, Ecocapsule® is able to clean the water
The shell features locked high- up to 99.98%.p.
capacity thermal insulation (ecologic
polyurethane foam). Ecocapsule® Ecocapsule® comes with three tanks for water and
is designed for outside temperatures liquids - Harvested Water Tank (96 L), Grey Water
of -10°C to +40°C. Tank (96 L), and Black Water Tank (24 L). The
Harvested Water Tank contains rainwater, dew, or
Wind Turbine water from other natural sources, which needs to
Low-noise wind turbine on telescopic be filtered into clean water. The Grey Water Tank
pole, braced. Installed power output contains waste water from the shower and sinks.
750 W. The turbine also acts as a The Black Water Tank contains urine.
lightning rod.
Solar Panels Waterless Separating Toilet
High efficiency solar panels on the roof, Ecocapsule® features a waterless, separating toilet.
installed power output 880 W. In order With the help of bacteria, the waste can be purified
to provide maximum performance, the and discharged into nature. The toilet has its own
solar panels must be properly cared for ventilation and openable window.
(e.g. kept clean from dust or snow).
Batteries HVAC
Ecocapsule® features Ecocapsule® features a HVAC unit, which provides
a 9.7 kWh battery pack. heating, ventilation and air conditioning.
16 2019 | ECOCAPSULE® CATALOGUEFREQUENTLY
ASKED
QUESTIONS
2019 | Ecocapsule® CATALOGUE
17 2019 | ECOCAPSULE® CATALOGUEfaq
Can I really put Where can I see an
Ecocapsule® anywhere? Ecocapsule® live?
Ecocapsule® does not require Please, visit www.ecocapsule.sk
a building permit but you may need and follow our social media profiles
permission from the landowner or for more information on current
relevant authority, depending on showrooms and exhibitions.
where you choose to locate it. We
recommend you to check with your
local authority and/or check your
What kind of toilet does
country’s or region’s regulations Ecocapsule® use?
in this respect.
Ecocapsule® features
a waterless separating toilet.
How should I maintain
Ecocapsule®?
You just need to change the water filters
(every 3-24 months) and batteries (every
10-15 years). Otherwise maintain your
Can I connect Ecocapsule®
to an external power and water supply?
Ecocapsule® as you would maintain a
normal house. Yes, of course. In most locations external sources of
water and electricity will not be necessary, however
you can use Ecocapsule® connected to grids as
well. Ecocapsule® has the best possible shape for
What is the lifetime collecting rainwater and minimizing thermal losses.
of Ecocapsule®? Ecocapsule® is also capable of efficient power
If properly cared for, Ecocapsule® will last generation (up to 1.63 kW installed power)
for dozens of years. It is tailored for short– and storage (9.7 kWh battery pack as default
term to mid–term living. option).
18 2019 | ECOCAPSULE® CATALOGUEECOCAPSULE®
SMART HOME
2019 | Ecocapsule® CATALOGUE
19 2019 | ECOCAPSULE® CATALOGUESMART HOME
APP
ULTIMATE
CONTROL
power and
battery state
lights
climate control
floor
leveling water and liquid state
country localization
in app
to-do
checklist
notifications
and warnings
20 2019 | ECOCAPSULE® CATALOGUE2019 | Ecocapsule® CATALOGUE
LET’S GET
TECHNICAL
21let’s get
technical
BASIC INFORMATION WATER SYSTEM
exterior length 4.67 m / 15.32 ft waterless separating toilet
exterior width 2.20 m / 7.22 ft harvested water tank 96 l / 25.3 gal
exterior height (turbine down) 2.50 m / 8.20 ft grey water tank 96 l / 25.3 gal
exterior height (turbine pole extended) 4.10 m / 13.45 ft black water tank 24 l / 6.3 gal
weight (empty tanks, with batteries) 1350 kg / 2976 lb UV LED lamp
weight (full tanks, with batteries) 1570 kg / 3461 lb fluid level sensors
weight with trailer and full tanks 2000 kg / 4409 lb mechanical filters
gross floor area 8.2 m / 88.2 ft
2 2
boiler
net floor area 6.3 m2 / 67.8 ft2 automatic water pumps
sleeping capacity up to 2 persons rainwater inlet with distribution system + filters
openable windows 2
fixed windows 2
doors 1
ELECTRICAL SYSTEM
CONSTRUCTION wind turbine with maximum peak power 750 W
fiberglass shell custom photovoltaic system with peak installed power 880 W
steel frame LFP batteries with nominal capacity 9.7 kWh
high capacity thermal insulation R=7 m2K/W* HVAC unit
* average value fresh air distribution
central switch
EXTERIOR FEATURES
smart home unit
four retractable legs
DC/DC converter
UV protected car paint exterior
AC/DC inverter
triple glazed windows
Mennekes Type 2 compatible
openable window shades
external storage
entry door with window
entry door handle with key
22 2019 | ECOCAPSULE® CATALOGUElet’s get
technical INTERIOR FEATURES, MATERIALS BATHROOM FEATURES
A/C unit with heat strip natural light
LED lights with RGB spectrum sink
mosquito nets - windows, doors faucet
vinyl or laminate flooring ventilation
fiberglass walls and ceilling under sink storage
handcrafted German light plywood cabinetry (laminated or lacquered) waterless separating toilet
Ecocapsule® logo door mat with personal number forced and natural ventilation
wardrobe with hanging bar
fire extinguisher OPTIONAL PAID EXTRA FEATURES
two electrical sockets 110V hand washing bag
internet connection socket fridge 20 l
multifunctional hardware controller biodegradable cosmetics
upholstered walls
KITCHEN FEATURES extra solar panels
upper and lower laminated cabinetry battery pack extension
laminate folding table exterior compostable bin
flatware organizer eco detergents
LED light black water treatment tablets
laminated backsplash extra set of filters
laminated countertop warranty extension (2 years)
electrical cooktop
lightweight faucet
stainless steel sink
bin
BEDROOM FEATURES
foldable bed for 2 people
pillows with custom textile design
bedspread with custom textile design
reading LED lights
high quality mattress
overbed storage
window curtains
towel bar
23 2019 | ECOCAPSULE® CATALOGUESERIES
& PRICE
FIRST SECOND
EXCLUSIVE MASS–PRODUCED
SERIES SERIES
Limited to 50 pieces Unlimited
Sale: limited to USA, Australia, Japan, EU Sale: unlimited
Delivery: 2018 to 2019 Expected delivery: early 2020
PRICE from €79,900* PLUS SHIPPING PRICE TO BE REVEALED IN 2019
* Additional VAT might be charged accordingly.
24 2019 | ECOCAPSULE® CATALOGUECONTACT
www: www.ecocapsule.sk
Facebook: www.facebook.com/ecocapsule.sk
Instagram: www.instagram.com/ecocapsule.sk
Youtube: https://goo.gl/QWFPaG
Address:
Ecocapsule s.r.o.
Žltá 22/g
85107 Bratislava
Slovak Republic
EUROPE
DISCLAIMER
The information contained in this catalogue is to be used only as a guide to assist with product selection. Ecocapsule s.r.o. makes every
effort to maintain the accuracy and quality of the information provided in this catalogue. However, Ecocapsule s.r.o. cannot guarantee and
assumes no legal liability or responsibility for the accuracy or completeness of the information provided. The product and specifications set
forth in this catalogue are subject to change without notice and Ecocapsule s.r.o. disclaims any and all liability for such changes.
The information contained herein is provided without warranties of any kind, either express or implied, and Ecocapsule s.r.o. disclaims any
and all liability for typographical, printing, or production errors or changes affecting the products and/or the specifications contained herein.
It is the responsibility of the customer to thoroughly analyze all aspects of the customers’ proposed application for the products. Due to the
diversity of possible applications of Ecocapsule, the customer is solely responsible for making the final selection of the product to be used
and to assure that all performance, safety and warning requirements of the application are satisfied. The copyright of all content on this
catalogue is owned by Ecocapsule s.r.o. No part of this catalogue may be changed, reproduced, stored in or transmitted on any website
or medium without the prior written permission of Ecocapsule s.r.o.
2019 | ECOCAPSULE® CATALOGUEYou can also read
