DUAL OCCUPANCY 71 National Circuit Deakin, ACT - FINAL CONCEPT SET - ISSUE FOR DEVELOPMENT APPLICATION
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
DUAL OCCUPANCY 71 National Circuit Deakin, ACT Client: Melissa & Paul Coggan FINAL CONCEPT SET - ISSUE FOR DEVELOPMENT APPLICATION Prepared by dsb Landscape Architects 02 December 2021
PROJECT PRIVATE RESIDENTIAL DRAWING 4218-F101
71 National Circuit
Deakin, ACT
CONCEPT
REVISION C
CLIENT Melissa & Paul Coggan DATE 26 July 2021 I N S P I R AT I O N I M A G E R Y
CTm Citrus x meyeri 'Meyer Lemon' Meyer Lemon 1m Trunk 3.0m / 2.0m FEATURE WALL - VARIOUS HEIGHTS SEATING WALL - 450 HIGH
W2 W3
P1 / P2 Cladding Brick Cladding To Match Building
PYc Pyrus calleryana 'Capital' Callery Pear 50L 7.0m / 2.0m
Note: FENCE 1 - 1800 HIGH PALING FENCE 2 - 1200 GLASS BALUSTRADE
F1 F2
Trees shall be grown, containerised and supplied in accordance with MITS 09C and AS 2303. Painted Dark Grey With Matching Pool Gate
- LARGE (>1.0m) - Mix Native & Exotic FENCE 3 - 1200 STEEL BALUSTRADE GREEN WALL / CLIMBER PLANT WIRES
F3 GW
BXj Buxus microphylla var. japonica Japanese Box 200mm 1.2m / 1.0m Painted Black Finish Fixed To Wall
CAMs Camellia sasanqua Sasanqua Camellia 3.0m / 1.5m
KEY LEGEND - INDICATIVE PLANTING
200mm DECORATIVE PLANTER POTS WATER FEATURE
ESi Escallonia Iveyi Escallonia Iveyi 200mm 3.0m / 3.0m DP
Various Heights & Sizes WF 400 High Plinth With P2 Cladding.
GAf Gardenia augusta 'Florida' Fragrant Gardenia 200mm 1.0m / 2.0m Steel Water Trough Spill-Overs Into Pool.
LAn Laurus nobilis 'Baby Bay' (Pleached) 'Baby Bay' Bay Tree 3.0m / 1.5m

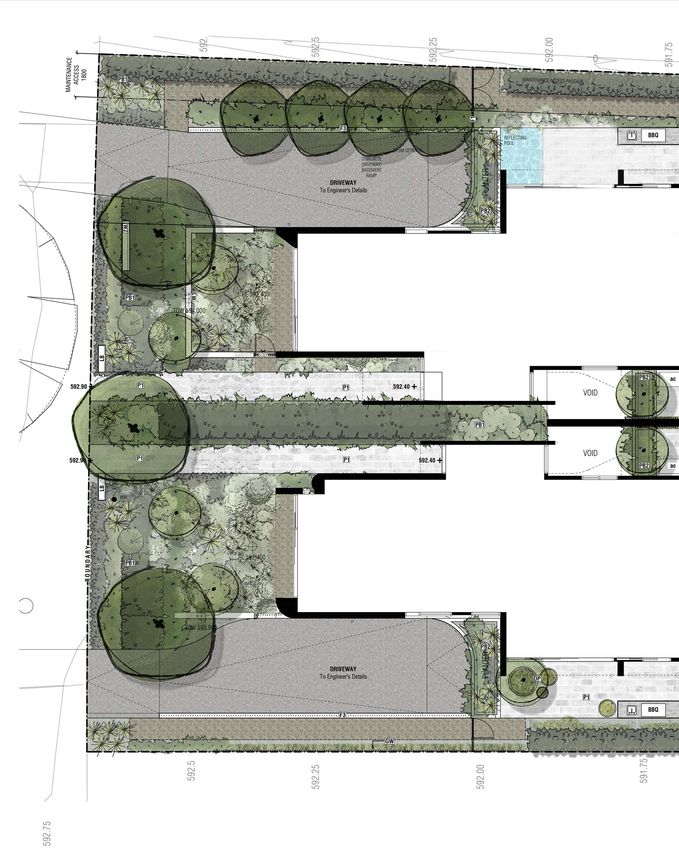

JOINS DWG F202
400mm
SCREENING HEDGE ORNAMENTAL TREE PLANTING SCREENING HEDGE
MCy Michelia yunnanensis (Pleached) Scented Pearl Magnolia 400mm 5.0m / 2.0m
Escallonia Iveyi Pyrus calleryana ‘Capital’ / Callery Pear Escallonia Iveyi
SITE BOUNDARY EXISTING VERGE TREE LOCATIONS CODE BOTANICAL NAME COMMON NAME MIN. SIZE MATURE SIZE
Refer Project Survey/ Drawing
- SMALL MEDIUM (1.0m) - Mix Ground Morning Glory 0.15m / 0.6m 10
0 BXj,Native
CAMs, & GAf,
ExoticCLv, EUj, HBe, LVm, POt 700mm CTS 40 CVs Convolvulus sabatius 140mm
0 A Buxus
BXj
Z1 FRONTmicrophylla
LANDSCAPE var. japonica
GRASSES: Japanese
LDlp, DTg Box 200mm 1.2m / 1.0mCTS
600mm 20 DCr Dichondra repans Kidney Weed Supertube 0.1m / 0.8m LETTER BOX WALL
0 CAMs Camellia sasanqua Sasanqua
GROUNDCOVERS: MYp, TRa, Camellia
WEm 200mm 3.0m / 1.5mCTS
800mm 40 DCs Dichondra argentea 'Silver Falls' Silver Falls 140mm 0.15m / 0.8m
ESi Escallonia Iveyi Escallonia Iveyi 200mm 3.0m / 3.0m GAo Gardenia augusta 'O So Fine' O So Fine Gardenia 140mm 0.3m / 1.0m 4
0 GAf Gardenia augusta 'Florida'SHRUBS: ASn, EUj,Gardenia
Fragrant WEg 200mm 500mm
1.0m / 2.0mCTS 30 MYp Myoporum parvifolium 'Yareena' Creeping boobialla 140mm 0.1m / 1.0 m
0 A
Z2 RAISED PLANTERS GRASSES:
LAn Laurus nobilis 'Baby Bay' (Pleached) DLcb, LPs
'Baby Bay' Bay Tree 400mm 3.0m / 1.5mCTS
600mm 10 PXs Phlox subulata Moss phlox 140mm 0.2m / 1.0m
ORNAMENTAL TREE PLANTING VOID 2
0 GROUNDCOVERS: CVs, DCs, GAo,Magnolia
VOh 800mm 60 Acer rubrum ‘October Glory’
MCy Michelia yunnanensis (Pleached) Scented Pearl 400mm 5.0m / 2.0mCTS THs Thymus serphyllum Creeping Thyme Supertube 0.1m / 0.8m
TRa Trachelospermum asiaticum 'Flat Mat' Flat Mat 140mm 0.3m / 1.5m 5 Z2
SHRUBS: BXj, CR, GAf, HYp, CLv, EUj, HBe, LVm, POt 700mm CTS 40
- SMALL / MEDIUM (
CTm Citrus x meyeri 'Meyer Lemon' Meyer Lemon 1m Trunk 3.0m / 2.0m FEATURE WALL - VARIOUS HEIGHTS SEATING WALL - 450 HIGH
W2 W3
P1 / P2 Cladding Brick Cladding To Match Building
PYc Pyrus calleryana 'Capital' Callery Pear 50L 7.0m / 2.0m
Note: FENCE 1 - 1800 HIGH PALING FENCE 2 - 1200 GLASS BALUSTRADE
F1 F2
Trees shall be grown, containerised and supplied in accordance with MITS 09C and AS 2303. Painted Dark Grey With Matching Pool Gate
- LARGE (>1.0m) - Mix Native & Exotic FENCE 3 - 1200 STEEL BALUSTRADE GREEN WALL / CLIMBER PLANT WIRES
F3 GW
BXj Buxus microphylla var. japonica Japanese Box 200mm 1.2m / 1.0m Painted Black Finish Fixed To Wall
CAMs Camellia sasanqua Sasanqua Camellia 3.0m / 1.5m
KEY LEGEND - INDICATIVE PLANTING
200mm DECORATIVE PLANTER POTS
DINING AREA UNDER ARBOR STRUCTURE WATER FEATURE
ESi Escallonia Iveyi Escallonia Iveyi 200mm 3.0m / 3.0m DP
Timber Bench Seat With Adjoining Dining Table. Various Heights & Sizes WF 400 High Plinth With P2 Cladding.
ORNAMENTAL TREE PLANTING GAf Gardenia augusta 'Florida' Fragrant Gardenia 200mm 1.0m / 2.0m

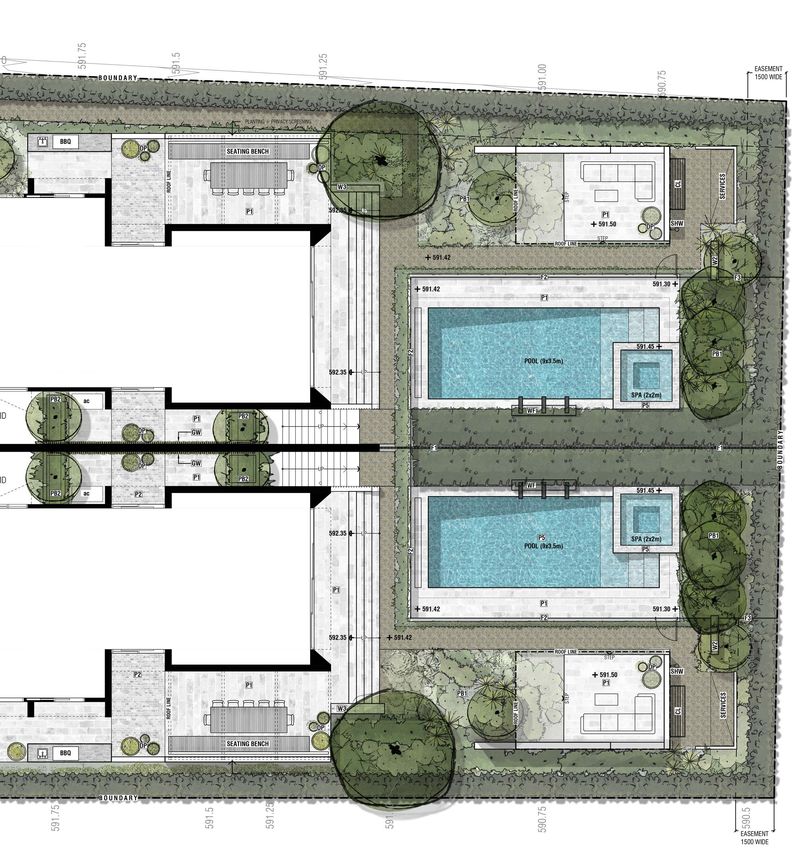

JOINS DWG F201
1500 hIGH Timber Screen To Back Of Bench Seat. Steel Water Trough Spill-Overs Into Pool.
Acer palmatum / Japanese Maple OUTDOOR ROOM / TERRACE LAn Laurus nobilis 'Baby Bay' (Pleached) 'Baby Bay' Bay Tree 400mm 3.0m / 1.5m
Wisteria Trained Up & Over Arbor.
Raised Lounge Area With Pergola. Framed By Feature Pergola Walls That Provide MCy Michelia yunnanensis (Pleached) Scented Pearl Magnolia 400mm 5.0m / 2.0m
SCREENING HEDGE ORNAMENTAL TREE PLANTING Screening & Enclosure To Space. (To Future Detail) SITE BOUNDARY EXISTING VERGE TREE LOCATIONS CODE BOTANICAL NAME COMMON NAME MIN. SIZE MATURE SIZE
Escallonia Iveyi Acer rubrum ‘October Glory’ Strip LED Lights To Underside Of Step. Refer Project Survey/ Drawing
- SMALL MEDIUM (1.0m) - Mix
BXj,Native
CAMs, & GAf,
ExoticCLv, EUj, HBe, LVm, POt 700mm CTS 40 CVs Convolvulus sabatius Ground Morning Glory 140mm 0.15m / 0.6m
A BASEMENT ATRIUM GRASSES: LPs 600mm CTS 20 A Buxus
BXj
Z1 FRONTmicrophylla
LANDSCAPE var. japonica
GRASSES: Japanese
LDlp, DTg Box 200mm 1.2m / 1.0mCTS
600mm 20 DCr Dichondra repans Kidney Weed Supertube 0.1m / 0.8m
GROUNDCOVERS: DCr, GAo, PXs, TRa, , VOh 800mm CTS 40 CAMs Camellia sasanqua Sasanqua
GROUNDCOVERS: MYp, TRa, Camellia
WEm 200mm 3.0m / 1.5mCTS
800mm 40 DCs Dichondra argentea 'Silver Falls' Silver Falls 140mm 0.15m / 0.8m
2 ESi Escallonia Iveyi Escallonia Iveyi 200mm 3.0m / 3.0m GAo Gardenia augusta 'O So Fine' O So Fine Gardenia 140mm 0.3m / 1.0m
SHRUBS: EUp, HBe, WEb 500mm HEDGE
SCREENING CTS (PLEACHED)
30 GAf Gardenia augusta 'Florida'SHRUBS: ASn, EUj,Gardenia
Fragrant WEg 200mm 500mm
1.0m / 2.0mCTS 30 MYp Myoporum parvifolium 'Yareena' Creeping boobialla 140mm 0.1m / 1.0 m
Z2 Z2 5 A LEVEL 01 ROOFTOP GRASSES: DLcb, LPs Laurus600mm CTS Bay’10
nobilis ‘Baby / Bay Tree A
Z2 RAISED PLANTERS GRASSES:
LAn Laurus nobilis 'Baby Bay' (Pleached) DLcb, LPs
'Baby Bay' Bay Tree 400mm 3.0m / 1.5mCTS
600mm 10 PXs Phlox subulata Moss phlox 140mm 0.2m / 1.0m
18
GROUNDCOVERS: CVs, DCs, MYp, WEm 800mm CTS 60 GROUNDCOVERS: CVs,
MCy Michelia yunnanensis (Pleached) DCs,
Scented GAo,Magnolia
Pearl VOh 400mm 800mm
5.0m / 2.0mCTS 60 THs Thymus serphyllum Creeping Thyme Supertube 0.1m / 0.8m
TRa Trachelospermum asiaticum 'Flat Mat' Flat Mat 140mm 0.3m / 1.5m
SHRUBS: BXj, CR, GAf, HYp, CLv, EUj, HBe, LVm, POt 700mm CTS 40
5 - SMALL / MEDIUM (
SITE BOUNDARY EXISTING VERGE TREE LOCATIONS
Refer Project Survey Drawing To Be Retained & Protected

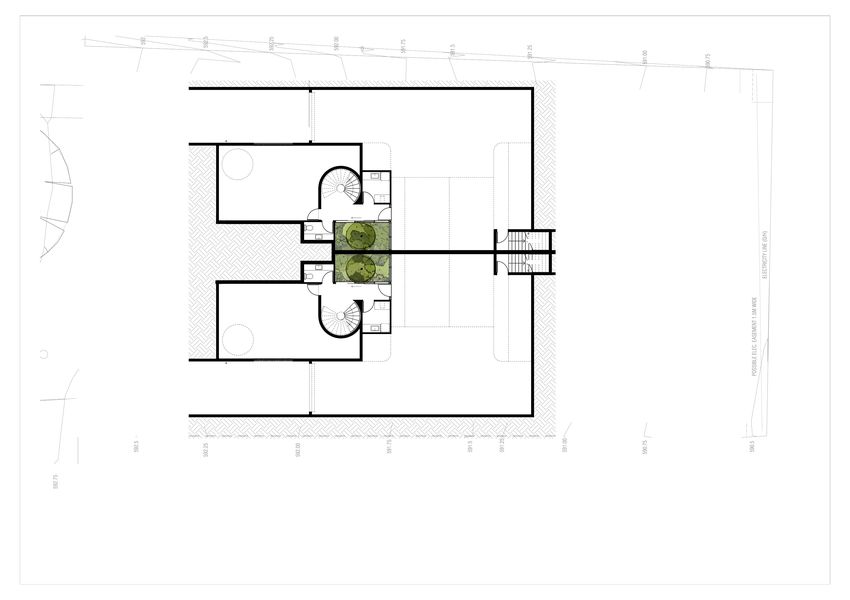

B A S E M E N T L E V E L - AT R I U M G A R D E N
PLANTING BED - RAISED
PLANTING BED - ON GROUND
PB1 PB2 Organic Mulch
Organic Mulch
Refer Walls For Structure Type

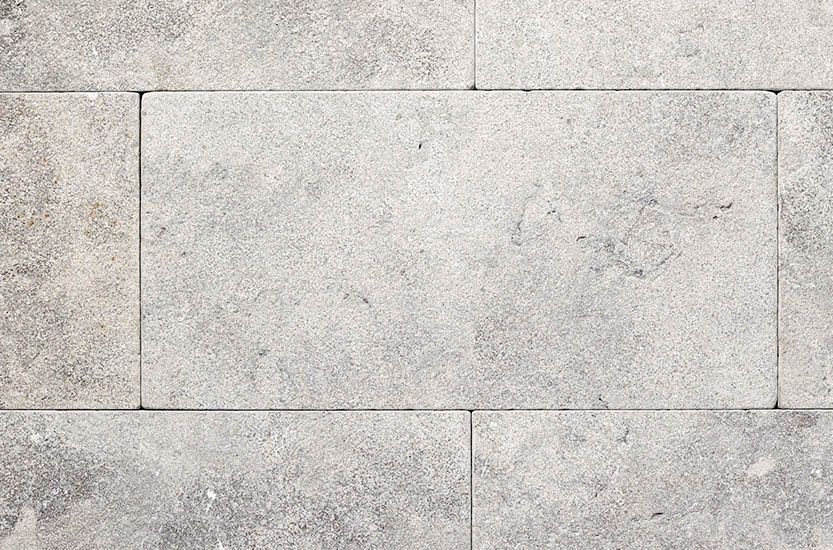

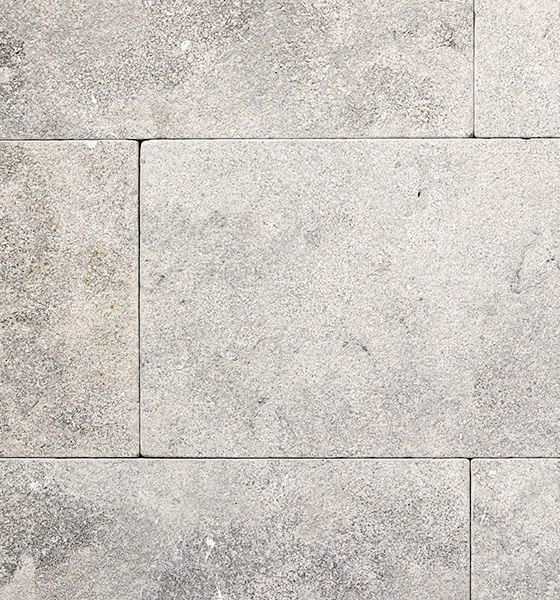

UNIT PAVER / TILE - LARGE FORMAT UNIT PAVER / TILE - SMALL FORMAT
P1 P2
Natural Stone Finish Natural Stone Finish

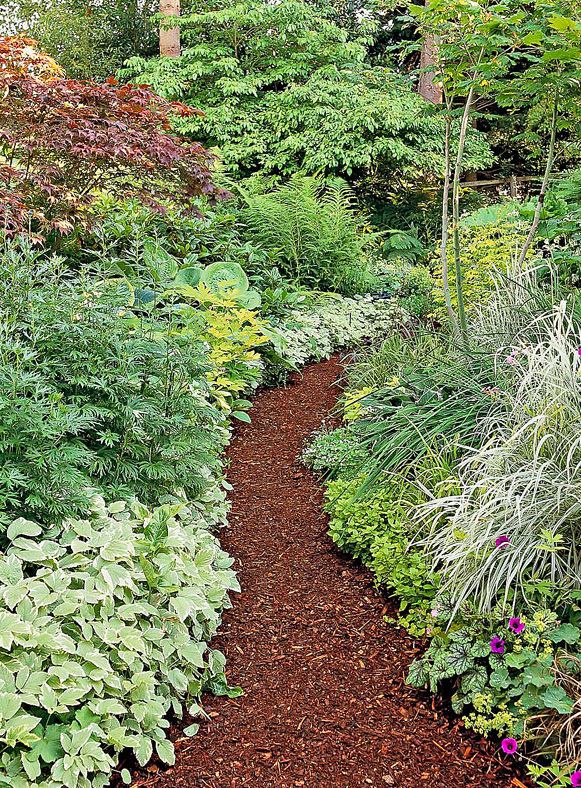

MULCHED GARDEN / PATH
P3
Mulch & Scattered Dichondra Planting
POOL / SPA TILE COURTYARD WALL - 1500 HIGH
P5 W1
Mosaic Tile Rendered Finish - White
FEATURE WALL - VARIOUS HEIGHTS SEATING WALL - 450 HIGH
W2 W3
P1 / P2 Cladding Brick Cladding To Match Building
FENCE 1 - 1800 HIGH PALING FENCE 2 - 1200 GLASS BALUSTRADE
F1 F2
Painted Dark Grey With Matching Pool Gate
F3
UNIT A
FENCE 3 - 1200 STEEL BALUSTRADE
GW
GREEN WALL / CLIMBER PLANT WIRES
Painted Black Finish Fixed To Wall
DECORATIVE PLANTER POTS WATER FEATURE
DP
Various Heights & Sizes WF 400 High Plinth With P2 Cladding.
Steel Water Trough Spill-Overs Into Pool.
CODE BOTANICAL NAME COMMON NAME MIN. SIZE MATURE SIZE
Height / Width
ACp Acer palmatum Japanese Maple 50L 4.0m / 4.0m
ORNAMENTAL TREE
ACo Acer rubrum 'October Glory' October Glory Red Maple 50L 12.0m / 9.0m
Acer palmatum / Japanese Maple
CPb Carpinus betulus 'Fastigata' Upright Hornbeam 50L 12.0m / 4.0m
CTm Citrus x meyeri 'Meyer Lemon' Meyer Lemon 1m Trunk 3.0m / 2.0m
PYc Pyrus calleryana 'Capital' Callery Pear 50L 7.0m / 2.0m
Z5 Note:
Trees shall be grown, containerised and supplied in accordance with MITS 09C and AS 2303.
ATRIUM PLANTING BEDS
- LARGE (>1.0m) - Mix Native & Exotic
Over Natural Ground.
Views Up To Ground Floor Planter Walls With Ground BXj Buxus microphylla var. japonica Japanese Box 200mm 1.2m / 1.0m
Cover Plants Spilling Over Edge Of CAMs Camellia sasanqua Sasanqua Camellia 200mm 3.0m / 1.5m
ESi Escallonia Iveyi Escallonia Iveyi 200mm 3.0m / 3.0m
Z5 GAf Gardenia augusta 'Florida' Fragrant Gardenia 200mm 1.0m / 2.0m
LAn Laurus nobilis 'Baby Bay' (Pleached) 'Baby Bay' Bay Tree 400mm 3.0m / 1.5m
MCy Michelia yunnanensis (Pleached) Scented Pearl Magnolia 400mm 5.0m / 2.0m
- SMALL / MEDIUM (
TREES SPECIES
Japanese Maple October Glory Maple Upright Hornbeam Meyer Lemon Capital Callery Pear
Acer Palmatum Acer rubrum ‘October Glory’ Carpinus betulus ‘Fastigata’ Citrus x meyeri ‘Meyer Lemon’ Pyrus calleryana ‘Capital’
SHRUBS>1.0m
SHRUBS>1.0m
Japanese Box Sasanqua Camellia Escallonia Iveyi Fragrant Gardenia ‘Baby Bay’ Bay Tree Scented Pearl Magnolia Bird’s Nest Fern Bottlebrush Callistemon Native Rasp Fern
Buxus microphylla var. japonica Camellia sasanqua Escallonia Iveyi Gardenia augusta ‘Florida’ Laurus nobilis ‘Baby Bay’ Michelia yunnanensis Asplenium nidus Callistemon viminalis ‘Better John’ Doodia aspera
SHRUBS>1.0m
White Carpet Rose Euonymus ‘Tom Thumb’ Mrs Robbs Bonnet Lime Green Hebe Pia Mina Hydrangea Dwarf Lavender Dwarf Pittosporum Soft Shield Fern Grey Box Rosemary
Rosa floribuna ‘Flower Carpet’ Euonymus japonicus ‘Tom Thumb’ Euphorbia amygdaloides var. robbiae Hebe ‘Lime Green’ Hydrangea macrophylla ‘Pia Mina’ Lavandula ‘Munstead’ Pittosporum tobira ‘Miss Muffet’ Polystichum proliferum Westringia ‘Grey Box’
GROUNDCOVERS
GRASSES
Lomandra ‘Little Pal’ Cassa Blue African Iris Lilyturf Ground Morning Glory Kidney Weed Silver Falls Dwarf Gardenia
Lomandra ‘Little Pal’ Dianella ‘Cassa Blue’ Dietes grandiflora ‘Grand Star’ Liriope muscari ‘Samantha Convolvulus sabatius Dichondra repens Dichondra argentea ‘Silver Falls’ Gardenia augusta ‘O So Fine’
GROUNDCOVERS
CLIMBERS
Creeping boobialla Moss phlox Creeping Thyme Asiatic Jasmine Native Violet Coastal Rosemary Creeping Fig Star Jasmine Japanese Wisteria
Myoporum parvifolium ‘Yareena’ Phlox subulata Thymus serpyllum Trachelospermum asiaticum ‘Shooting Star’ Viola hederacea Westringia fruticosa ‘Mundi’ Ficus pumila Trachelospermum jasminoides Westeria floribunda
PROJECT PRIVATE RESIDENTIAL DRAWING 4218-F301
71 National Circuit
Deakin, ACT
CONCEPT
REVISION A
CLIENT Melissa & Paul Coggan DATE 15 June 2021 S P E C I E S PA L E T T E
LEGEND TREE SPECIES KEY
ACj Acer japonicum
SITE BOUNDARY
Refer Project Survey Drawing Sor. Sorbus sp.
TREE REFERENCE NUMBER PSs Pistachia chinensis
TREE SPECIES CODE
12 Emf P R HEALTH STATUS FRo Fraxinus oxycarpa
MANAGEMENT STATUS Ulmus parvifolia
Ups
Psp. Pyrus sp.
TREE LOCATION / DRIP ZONE
Maf Malus floribunda
BTp Betula pendula
TREE TO BE REMOVED Qma Quercus macrocarpa
MANAGEMENT STATUS HEALTH STATUS
E EXCELLENT -A tree or group of trees that: Assessment based on crown and trunk
· Has natural of cultural heritage importance; or appearance:
· Has high and aesthetic value and will contribute
significantly to surrounding landscape; or
· Is of outstanding form and condition and is an G GOOD
excellent example of the species; or
· Has significant scientific value, including
ecological importance. F FAIR
H HIGH - A tree that:
· Is of good form, structure and health;
· Is without significant defect; and P POOR
· Presents a low hazard/safety risk.
M MEDIUM - A tree that:
· Is of reasonable form, structure and health; and
· Presents a medium to low hazard/safety risk.
P POOR - A tree that;
· Is of poor form, structure or health is in decline;
· Presents a high or very high hazard/safety risk.
BOUNDAR Y
NOTES
1.0 STANDARD CONDITIONS
A copy of these conditions shall be kept on site from the time that the protective fences are erected to the time that all
works are completed on site.
1.1 TREE REMOVAL
all protected trees are to be retained unless otherwise stated in specific conditions below.
1.2 FENCING OF PROTECTED TREES
· All regulated trees, other than those classified as being of 'exceptional' quality, shall be fenced off by a continuous
1800 high chain wire fence at the extent of the Tree Protection Zone as indicated in Tree Protection Act 2005.
· All registered trees and regulated trees classified as being of 'exceptional' quality, shall be fenced off by a continuous
Y
1800 high chain wire protective fence, 5 metres from the extent of the existing canopy.
BOUNDAR
FFL 592.400 · The protective fence shall be erected prior to the commencement of any earthworks, construction or demolition
AC
activity on any part or stage of the development and shall remain in place until all construction works are completed.
· The protective fence shall be maintained in good order for the duration of the construction works.
· A tree protection sign, as specified by Environment ACT, shall be displayed on the fences of all fenced off areas.
· No activities are permitted in the fenced off area unless otherwise stated in specific conditions below.
AC
· Tree surgery will be permitted to trees requiring such action. Activity is to be undertaken in accordance with AS4373
by a qualified arboriculturist to ensure that the activity results in a balanced tree.
FFL 592.400
2.0 SPECIFIC CONDITIONS
The following specific conditions are based on the following plans:
· Tree Management Plan (TMP):- 4218-G201 REV.: A
Y
BOUNDAR
The above conditions shall be observed except where the following apply:
2.1 PROTECTIVE FENCING
· Protective fencing is to be erected and maintained in accordance with the standard conditions except for trees that
are effected by adjacent works. These trees are to be fenced to the tree protection zone with the exception of the area
identified as 'effected' and may include a one (1) metre buffer area to allow works to occur.
· For the purpose of these conditions, the area inside the protective fencing is referred to as the 'fenced off area'.
BOUNDAR Y 2.2 TREE REMOVAL
Only trees that have been endorsed within the Tree Management Plan as marked for removal may be removed.
2.3 SERVICES
Services and utilities reticulation is permitted in accordance with the following conditions:
· Works under the canopy extent must be undertaken by under-boring.
· Works within the tree protection zone but outside the drip line must be undertaken by hand excavation.
· No roots greater than 50 in diameter are damaged; and
· Are at the minimum depth provided by the relevant standards and authority requirements.
2.4 LOW IMPACT WORKS
Low impact activity may occur within the fenced off area of trees (other than registered trees and those classified as being
of exceptional quality) for the purpose of light works, which includes the construction of footpaths, bike paths, driveways,
swale drains, specific footing, garden beds and the like, provided the activity is in accordance with the following conditions:
· The cultivation of soil for irrigation and shrub beds is not considered a groundwork activity provided it is in
accordance with the limitations below. Generally, no activity occurs within 3 metres of the trunk, with the exception
of landscaping activities specified below.
· Garden beds, where within 3 metres of the trunk must be no greater than 300 in depth, excavation is limited to 50
and where the garden beds adjoin a tree, a gravel breathing layer is used.
· Fences and walls within the drip line and more than 3 metres from the trunk will not be allowed unless piers are used
at 2.5m centres. no strip footings permitted.
· Any soil required for landscaping and irrigation purposes adjacent to trees must not be excavated below 50 and
result in fill which would exceed the natural surface level by 100.
· Generally, excavation is limited to a depth of 150 below natural ground level, except where it may be specified within
the specific conditions.
· No roots greater than 50 in diameter are damaged;
· The excavated area for footpaths, swale drains, bike paths, etc is less than 2.5 metres in width.
· Protective areas may be moved to provide sufficient space to allow footpaths, bike paths or swale drains to be
constructed whilst continuing to protect areas not affected by the activity; and
· Where there are existing structures, paths and services, low impact works may be undertaken provided there is no
increase in the development footprint and excavation is limited to a depth of 300 below natural ground level.
· Garden beds, where within 3 metres of the trunk must be no greater than 300 in depth, excavation is limited to 50
and where the garden beds adjoin a tree, a gravel breathing layer is used.
TO BE READ IN CONJUNCTION WITH VEGETATION ASSESSMENT REPORT PREPARED BY
dsb Landscape Architects
DATED 17/05/2021
Project Drawing Title
NOTES 0 2 4 6 8 10m
DRAWINGS TO BE READ IN CONJUNCTION WITH THE INFORMATION
BLK 14 SEC 2 DP 709 TREE MANAGEMENT PLAN
CONTAINED IN THE ACCOMPANYING VEGETATION ASSESSMENT 1:200 @ A1 1:400 @ A3
REPORT.
71 NATIONAL CIRCUIT, DEAKIN
TREE LOCATIONS BASED ON SURVEY SUPPLIED BY THE CLIENT.
Scale Plot Date: Sheet No.
DO NOT SCALE FROM DRAWING. Client
A MR YZ MR 17/05/2021 ISSUE FOR APPROVAL COGGAN FAMILY Drg. No.
4128-G202 A
NO. DESIGN DRAWN CHECKED VER'D DATE AMENDMENT / ISSUE
You can also read
