GENERAL LIGHTING APPLICATION NOTE Standard and professional solutions
3
Standard category
GENERAL LIGHTING
What is general lighting
and why do we need it?
This being the most basic type of lighting in our spaces, it is
also the most popular and widely used. Often, it is designed
with the intent of creating sufficiently high ambient lighting,
good enough to carry out tasks requiring high illumination
levels – to create the substitute of natural lighting within an
enclosed indoor space.
The key of good general lighting is to provide a sufficiently
high lighting level suitable for most tasks, with a luminaire
arrangement that blends in well with modern architectural
ceiling systems. Until recently, this was largely provided by
fluorescent lamp systems, which are now replaced with LED
solutions.
Which parameters have
to be carefully evaluated?
• High brightness and uniformity
• Vertical and horizontal light distribution
(wide beam)
• Glare free (mostly to avoid lateral glare)
Cover photo: Roman Thomas General lighting | LED Linear™ GmbH
4 5
Standard category
PRODUCT OVERVIEW
XOOLUM™ White IP40
XOOLUM™ is offering an enormous modularity and user-friendliness combined
with a lumen output of up to 2,630 lm/m. It's compact form factor of just
25.4 mm x 31 mm allows a smooth integration onto the ceiling.
Its variety of cover ranges from no cover to clear over to opal or even opal
high options. An outdoor version with opal polyurethane encapsulation in
combination with eight CCTs offer endless possibilities of general illumination.
IP40 CRI up to 97.
IP67 CRI up to 95.
Suitable applications:
Retail, offices, institutional buildings
XOOMINAIRE™ White IP40
The XOOMINAIRE™ is highly recommended for applications such as office
lighting. With its deep profile and larger than industry standard profiles, it is
able to offer generous and high light outputs, along with 7 optics options like
a deep light distribution (batwing).
The large profile allows pleasant illumination at moderate luminance and
directional light with low UGR (< 16) which is achieved with precision crafted
aluminium reflector optics.
CRI 85. Available as a constant current option for retrofit solution to T5/T8
lamps. Comes with integrated control gear.
Suitable applications:
Office buildings, institutional buildings
XOOLIGHT™ White IP40
With a robust 42 mm x 62 mm dimension, the XOOLIGHT™ allows the use of 4
different covers dedicated for various types of lighting application. Its main
focus on general lighting creates high and outstanding lighting distributions.
It is suitable for a variety of mounting options – recessed, surface mounted
as well as pendant. Its narrow end caps allow for infinite lines of light without
noticeable gap. These flexibilities lead to creative lighting solutions using
the same family of luminaires. The XOOLIGHT™ range is also available in IP67
using a high quality opal polyurethane encapsulation, making the range
highly versatile in its application.
IP40 CRI up to 97.
IP67 CRI up to 95.
Suitable applications:
Retail, offices, warehouses
Photo: Roman Thomas General lighting | LED Linear™ GmbH
6 7
Standard category
APPLICATION IDEA
1st method of using general lighting –
as a replacement to T5/T8 lamps for task lighting
A pure replacement of previous generation T5/T8 lamps by much more efficient
and long lasting LED lamps forms the foundation of general lighting. Key features
that mimic the photometric and optical characteristics of fluorescent lamps are
minimizing direct glare and maintaining a very wide distribution. Shallow depths
of installation make less ceiling conflicts with HVAC systems and more pleasing
profiles create a modern aesthetic. Continuous edge to edge runs are also
possible.
Pendant
Mounting accessories
VarioPendant 007
Slide Silver
Art.-#: 13000157
31 VarioPendant 007
Slide Black
Art.-#: 13000158
25.4
Description
Pendant set with screws for installations
directly on the ceiling. 2 m suspensions
is cuttable on site. Recommended to use
two suspensions per meter.
All dimensions in mm. www.led-linear.com/xoolum

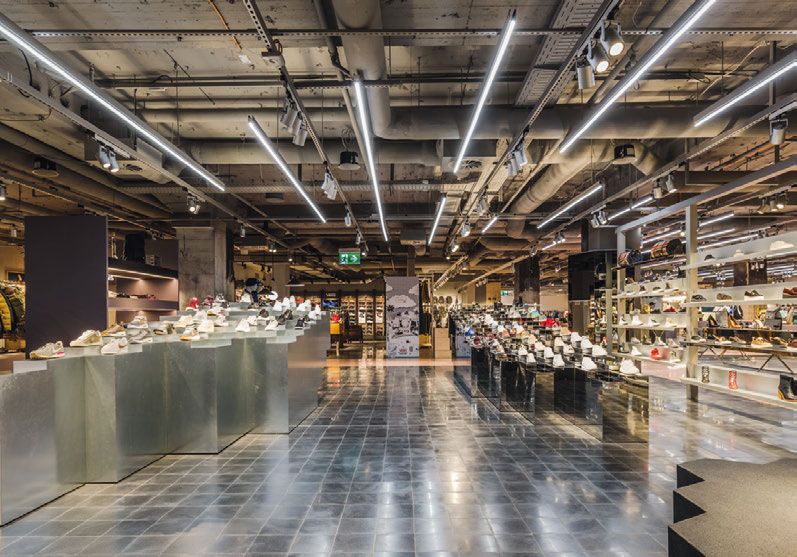

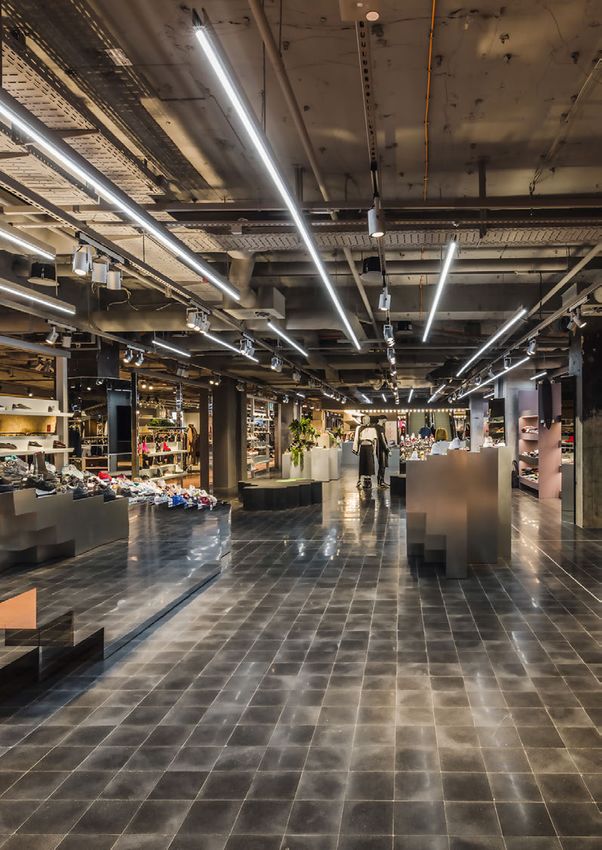

XOOLUM™ White IP40 suspended from the ceiling General lighting | LED Linear™ GmbH
8 9
Standard category
APPLICATION IDEA
2nd method of using general lighting –
complementing ceiling design and modern aesthetic
In this lighting method, general lighting is of two types – continuous row of light
from the ceiling profile and an end to end (custom length) light solution. Both
are hugely complementing the architectural design intent, and self-sufficient to
illuminate the space without any additional lighting.
Surface-mounted, horizontal
Mounting accessories
No additional accessories are
required for this mounting option.
62
Description
42
Special designed mounting profile for
surface-mounting options. Holes have
to be drilled on site.
All dimensions in mm. www.led-linear.com/xoominaire

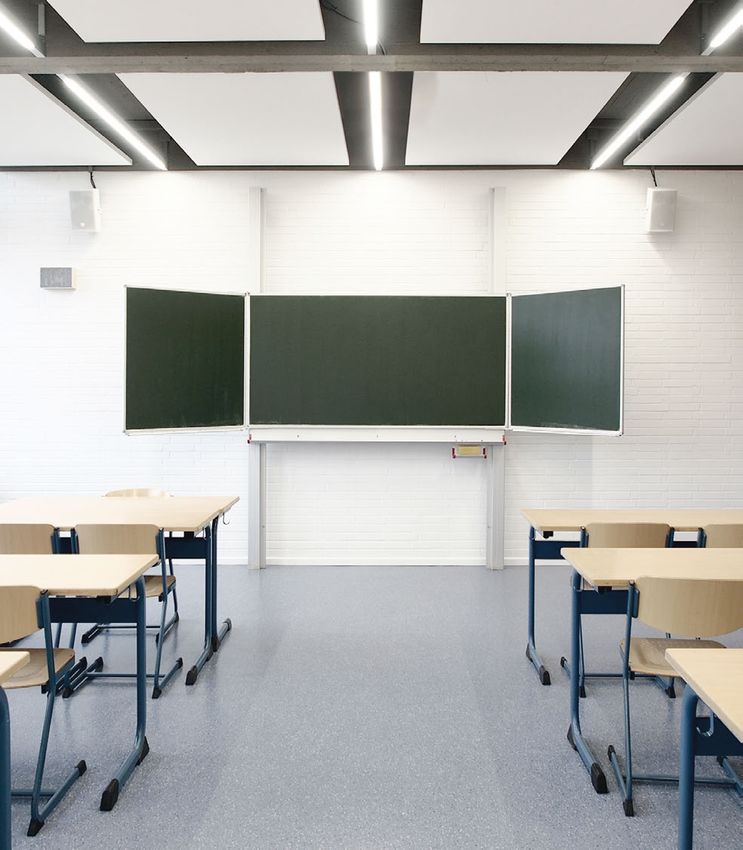

XOOMINAIRE™ mounted directly onto the ceiling General lighting | LED Linear™ GmbH
10 11
Standard category
APPLICATION IDEA
3rd method of using general lighting –
innovative and unique ceiling arrangements
Even though the application may be of general lighting, the dimensions and
optical properties of the linear profiles make previously unheard of solutions
possible. Unique patterns of luminaire arrangements, ceiling reorganization based
on architectural intent are all now possible with these effective tools.
Recessed
Mounting accessories
VarioPendant 4262
Art.-#: 13000106
Square Canopy Set (optional)
62
Art.-#: 13000330
42
Description
Pendant set with screws for installations directly
on the ceiling. 2 m Suspension is cuttable on site.
Recommended to use two suspensions per meter.
All dimensions in mm. www.led-linear.com/xoolight
XOOLIGHT™ White IP40 recessed into the ceiling architecture
Photo: Prof. Dr.-Ing. Thomas Roemhild, Wismar General lighting | LED Linear™ GmbH
12 13
Standard category Standard category
TECHNICAL DATA LIGHTING SIMULATION
General data XOOLUM™ White IP40
XOOLUM™ IP40 XOOMINAIRE™ IP40 XOOLIGHT™ IP40
100
Ingress protection IP40 IP40 IP40
200
CRI up to 97 up to 85 up to 97
300
Efficiency up to 105 lm/W up to 118 lm/W up to 113 lm/W Opal cover
Cross section 25.4 mm x 31 mm 42 mm x 62 mm 42 mm x 62 mm
A wide range of optics in combination with a small form factor and yet still
high lumen output. With its adjustable luminaire head can be tilt into 45° to
illuminate the desired places.
Color temperature (Kelvin)
XOOLUM™ HD36 OL
XOOLUM™ IP40 2,000 Kelvin 5,000
XOOMINAIRE™ IP40 2,700 Kelvin 4,000 XOOMINAIRE™ White IP40
XOOLIGHT™ IP40 2,000 Kelvin 5,000
Optic 30°
Luminous flux (Lumens per meter)
The greatest range of optics in general lighting meets a functional profile for
XOOLUM™ IP40 220 lm/m 3,840 an easy replacement of T5/T8 solutions.
XOOMINAIRE™ IP40 1,800 lm/m 3,900
XOOMINAIRE™ 4262 65 HE 30 1177
XOOLIGHT™ IP40 260 lm/m 2,840
XOOLIGHT™ White IP40
Length (mm)
Diffuse cover
XOOLUM™ IP40 198 mm 4,010 in 62,5 mm increments
XOOMINAIRE™ IP40 762 mm 3,887 in 125 mm increments With its no cover version and the option to use an opal, diffuse or clear
cover, this fixture is designed for general lighting applications. The maximum
XOOLIGHT™ IP40 84 mm 4,021 in 62,5 mm increments length of 4,021 mm is the longest one in the portfolio.
XOOLIGHT™ pendant 10,004 mm; suspension height 900 mm; HD36

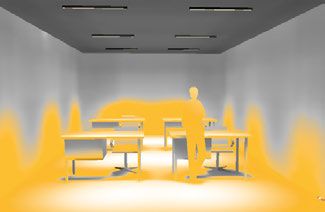

Room dimensions: 8 m x 5 m x 3 m ( L x W x H) Illuminances
500 Lux 400 Lux 300 Lux 200 Lux 100 Lux 75 Lux 50 Lux 25 Lux 10 Lux
LED Linear™ GmbH | General lighting General lighting | LED Linear™ GmbH
14 15
Profesional category Professional category
PRODUCT OVERVIEW
GENERAL LIGHTING MARS NANO CV IP40
The most advanced anti-glare luminaire produced by LED Linear™, the MARS
CV NANO is a superb example of a professional grade product with a slim and
discreet profile (only 42 mm width). It is also the first luminaire from LED
Linear™ to use the revolutionary NanoRay technology which means that the
optics were shrunk to a nano scale. These optics in combination with CSP
What is the professional category LEDs enable accurate beam angles of 15°, 25° ,40° or 65°. Anti-glares are
in general lighting? available in black or white and offering an UGR of
16 17
Professional category
APPLICATION IDEA
1st method of using general lighting –
linear low glare surface mount
Similar to the recessed version, the surface mount linear luminaires provide
ideal lighting solutions for spaces where it is not possible to recess a fixture into
a false ceiling. There are still the same benefits of a recessed light such as excel-
lent anti-glare, light control and the NanoRay technology.
Surface-mounted, horizontal
Mounting accessories
No additional accessories are
required for this mounting option.
62
Description
42
Special designed mounting profile for
surface-mounting options. Holes have
to be drilled on site.
All dimensions in mm. www.led-linear.com/mars

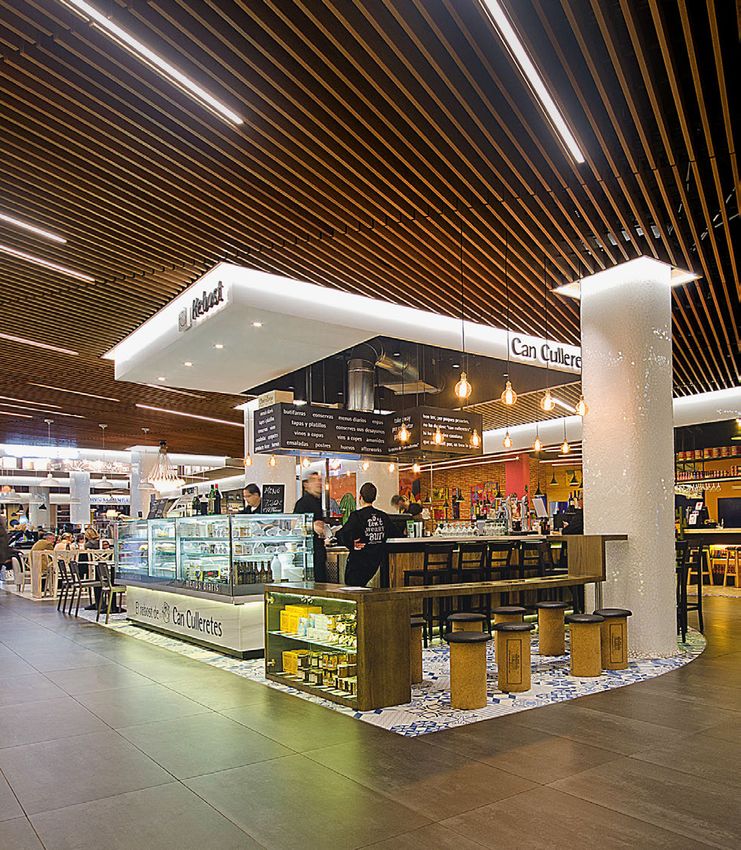

MARS CV NANO IP40 directly mounted onto the ceiling.
Photo: BMLD, Barcelona General lighting | LED Linear™ GmbH
18 19
Professional category
APPLICATION IDEA
2nd method of using general lighting –
pendant lighting solutions
What was previously done with T5/T8 equivalent LED pendants, is now possible
with a fraction of the size with products such as LYRA 36 NANO. Slim circular
profiles with low glare and NanoRay technology provide a discreet lighting
arrangement and is ideal for spaces that have open ceilings, or high ceilings that
require suspension solutions.
Pendant
Mounting accessories
VarioPendant LYRA 36
NANO Set Black
Art.-#: 13000300-SCH
VarioPendant LYRA 36
35 NANO Set Silver
Art.-#: 13000300 -SIL
37
Description
Black or silver anodized clips with pre drilled
holes and on site cuttable suspensions.
Recommended to use two suspensions per
meter.
All dimensions in mm. www.led-linear.com/lyra36

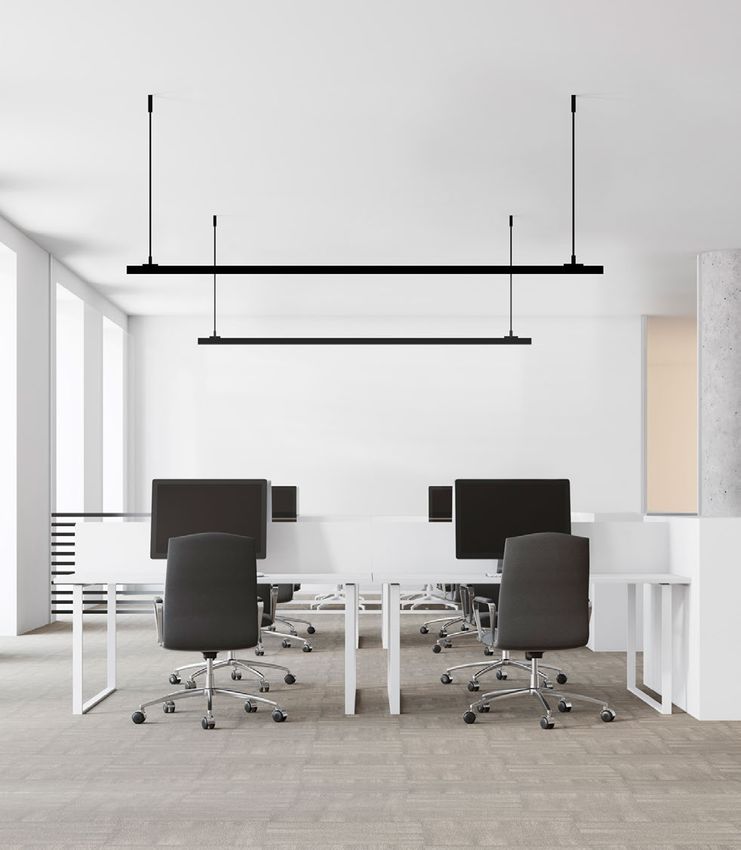

LYRA 36 NANO IP40 suspended from the ceiling.
Photo: Shutterstock.com General lighting | LED Linear™ GmbH20 21
Professional category
APPLICATION IDEA
3rd method of using general lighting –
linear low glare recessed downlight

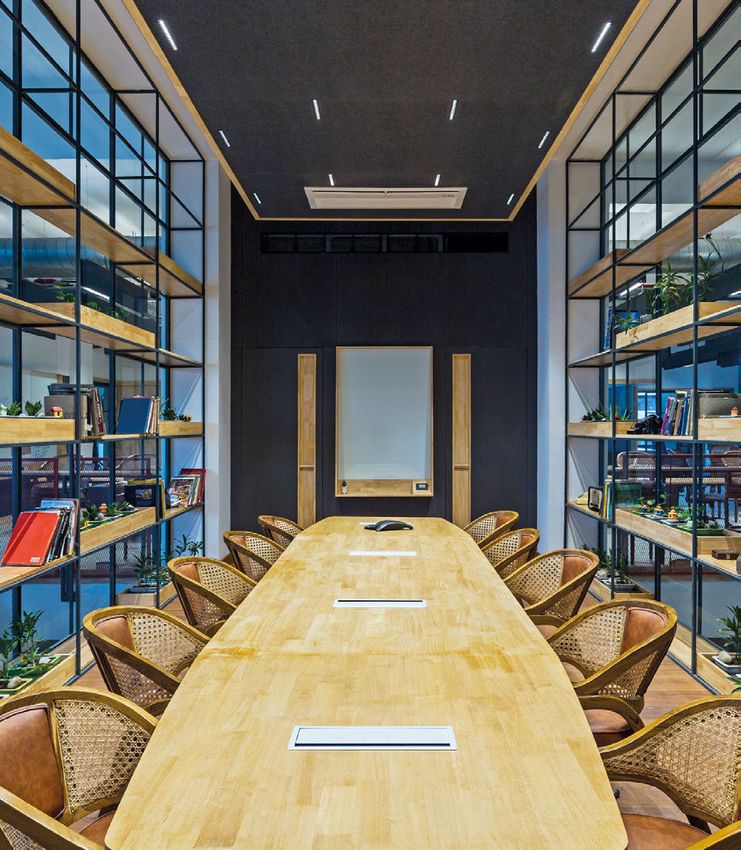

Recessed downlights fuse with the ceiling. Create interesting pattern on the
ceiling with a black anti-glare or hide the fixture on a white ceiling with the white
anti-glare.
Thanks to a low UGR of22 23
Professional category Professional category
TECHNICAL DATA LIGHTING SIMULATION
General data MARS NANO CV IP40 surface mounted
0
MARS NANO CV IP40 LYRA 36 NANO IP40 MARS CC IP20
390
Ingress protection IP40 IP40 IP20 780
CRI up to 94 up to 94 up to 85 1170
Efficiency up to 109 lm/W up to 92 lm/W up to 133 lm/W 40° Optic
Cross section 31 mm x 37.8 mm 36 mm 31 mm x 25.5 mm
Revolutionary NanoRay technology in combination with white or black anti-glare
for perfect light distribution with minimum glare. Pre-drilled holes in the back
of the profile for quick installation thanks to the LEDs click technology.
Color temperature (Kelvin)

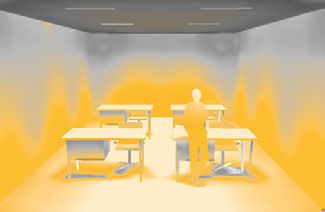

MARS NANO 1,014 mm; LD40 40 degree
MARS NANO CV IP40 2,200 Kelvin 5,000
LYRA 36 NANO IP40 2,200 Kelvin 5,000 LYRA 36 NANO White IP40 surface mounted
0
MARS CC IP20 2,000 Kelvin 5,000
390
780
1170
40° Optic
LYRA 36 NANO brings a design touch into general lighting applications. With
Luminous flux (Lumens per meter)
its slim round profile of just 36 mm it still provides a high lumen output up
to 3,170 lm/m. Easily mounted with suspended clips.
MARS NANO CV IP40 310 lm/m 3,770
LYRA 36 NANO IP40 300 lm/m 3,170
LYRA Pendant CV NANO 1,014 mm; suspension height 600 mm; LD40 40 degree
MARS CC IP20 550 lm/m 5,490
MARS CC IP20 recessed
Length (mm)
65° Optic
MARS NANO CV IP40 139 in 125 mm increments 4,014
LYRA 36 NANO IP40 139 in 125 mm increments 4,014 MARS CC perfectly merges with the ceiling thanks to pre-mounted spring on
the back of the profile. Invisible light will be provided due to the outstanding
MARS CC IP20 139 –764 in 125 mm increments anti-glare louvres.
MARS CC 764 mm; LD54 65 degree
Room dimensions: 8 m x 5 m x 3 m ( L x W x H) Illuminances
500 Lux 400 Lux 300 Lux 200 Lux 100 Lux 75 Lux 50 Lux 25 Lux 10 Lux
LED Linear™ GmbH | General lighting General lighting | LED Linear™ GmbHLED Linear™ GmbH I Application Note | General Lighting | Art.-# 3300003-ENG | Edition 03/2020 I All rights reserved, subject to change | Technical amendments and graphical presentation are subject to change
You can also read
