Organic flow ba4eries for massive
    electrical energy storage

                    Murray McCutcheon, Ph.D.
                    Business Development Manager
                    October 8, 2015
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
Global demand for energy storage, with Italy as one
of the leading markets

                                   • €200 million
                                     Energy Storage
                                     Funding IniLaLve
  • California mandates            • Grants and low
    1.3 GW by 2020                   interest loans to
  • California self-                 subsidized PV-
                                                         • Massive market
    generaLon incenLve               related storage
                                                         • Large renewables
    program                                                expansion, esp.
  • New York state 1.8                                     wind
    GWh RFP by LIPA       • Terna targeLng >1
  • Hawaii renewables       GW of storage for
                            renewable
                            integraLon
                          • Mandated to build
                            iniLal 75 MW
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
Italy: Renewables have taken off, with wind power
heavily concentrated in the south

                                     Source: Terna
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
California:
Solar generaLon not aligned with peak demand
     Sample day in California, 2020

                      Total load

                    Renewable genera5on

                                          Source: CAISO 2013
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
California: Midday over-capacity problem is an
opportunity for energy storage
•   In 2013, the California Public ULliLes Commission proposed storage targets totaling 1,325 MW

                                                                                   ramp of
                                                                                   ~13,000 MW
                                                                                   in 3 hours

                        over-generaLon
                        risk

                                                             Source: CAISO 2013
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
What is a flow ba4ery?

 • First explored in the 1970s

 • RelaLvely li4le investment
   compared to Li-ion

 • Cost-effecLve at scale

 • Long lifeLme

 • Best for long-discharge
   (energy) applicaLons

                                 Image: Perry, M. L., Science 349, 1452 (2015)
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
Vanadium is the dominant choice of other developers,
 but it is too expensive
Developer              Chemistry       Loca5on     Date founded
Sumitomo Electric      Vanadium        Japan       1985
Gildemeister           Vanadium        Germany     2000
Vionx Energy           Vanadium        USA         2002
Wa4Joule               Vanadium        USA         2011
Imergy                 Vanadium        USA         2004
Prudent Energy         Vanadium        China       2007
Rongke Power           Vanadium        China       2008
UniEnergy              Vanadium        USA         2012
Green Energy Storage   Quinone-based   Italy       2015
ZBB Energy             Zn/Br           USA         1982
RedFlow                Zn/Br           Australia   2005
Enstorage              HBr             Israel      2007
Primus Power           Zn/Cl           USA         2009
Lockheed MarLn         Iron-based      USA         2012
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
What will be the chemistry of the future?

                   ??
HARVARD E LE BA*ERIE ORGANICHE - MURRAY MCCUTCHEON BUSINESS DEVELOPMENT MANAGER, HARVARD UNIVERSITY - GREEN ENERGY STORAGE
Interdisciplinary research team

Prof. Roy Gordon                      Prof. Alan Aspuru-Guzik      Prof. Michael Aziz
• SyntheLc chemist                    • ComputaLonal chemist       • Materials engineer
• Pioneer of atomic-layer deposiLon   • Materials “genomics” for   • Fuel cells à flow ba4eries
• Invented low-e window coaLngs        flow ba4eries, OLEDs,        • Energy systems
                                       photovoltaics, etc.
Quinones found in nature
OH O        OH

                     OH
                                    Rhein, found in Rhubarb
        O        O

OH O        OH
                                    Emodin, found in Aloe Vera
                     OH

        O

        O
                                    Vitamin K1, part of the electron
                                3   transport chain in photosystem I
        O
    O

                                    Plastoquinone, accepts electrons from
                     H              chlorophyll in photosystem II
    O
                     9

        O
O
                                    Coenzyme Q10, parLcipates in the electron-transport
O                        H
        O                6-10
                                    chain in cellular respiraLon/reducLon of O2
Industrial applicaLons of quinones

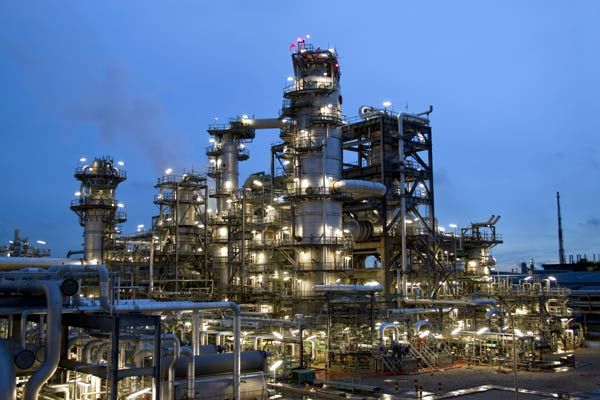

                             Petrochemicals

 Pulp and paper
Lab flow cell in operaLon

                                                                 Co0.9Ru0.1 Oxide
                                                                 electrocatalyst
                           Image: E. Grinnell, Harvard Paulson School
Quinones are a high-performance, low-cost, green
chemistry for the future of energy storage

•    Non-toxic and contain earth-abundant atoms
•    Can be synthesized at industrial scale
•    Inexpensive compared to Vanadium
•    Undergo extremely rapid redox reacLons
•    Permit use of inexpensive membrane
•    High energy density
•    Stable and long-lived
•     Can be tuned through organic chemical synthesis to improve cell
    performance
Research and commercial development

•   Research support from ARPA-E

•   Exclusively licensed to Green Energy Storage for commercial development
    in Europe
