HDC-3500 Three 2/3-inch 4K CMOS sensors portable system camera for fiber operation - pro.sony
HDC-3500
 Three 2/3-inch 4K CMOS sensors portable
 system camera for fiber operation

 Overview                       A new benchmark in creative flexibility
                                The HDC-3500 system camera brings new levels of image quality, portability and
                                creative flexibility to live production environments. Enjoy premium 4K/HD/HDR picture
                                quality – and anticipate tomorrow’s production needs while maintaining full
                                compatibility with today’s workflows and system hardware.
                                Imaging power unleashed
                                Capture premium pictures with the world’s first 2/3-inch 4K CMOS sensor with global
                                shutter technology that eliminates the ‘jello effect’ and banding noise. This allows the
                                HDC-3500 to capture pristine images with 4K high resolution (2000TVL), exceptionally
                                low noise (-62dB), impressive sensitivity (F10 at 1080/59.94p or F11 at 1080/50p) and
                                high dynamic range, while achieving the ITU-R BT.2020 broadcast standard wide colour
                                space. It’s teamed with a specially developed LSI Digital Signal Processor that fully
                                realises the extraordinary imaging power of this new sensor.
                                More format flexibility (4K/HD)
                                The HDC-3500 can output 4K signals via the CCU’s 12G-SDI and Quad 3G-SDI
                                interfaces and 3G-SDI signals in a range of formats right up to 1080/50p. So you can
                                benefit from maximum production convenience – and your viewers can enjoy
                                premium picture quality.
                                Get the look
                                Broaden your creative possibilities and achieve exactly the look you want in any
                                shooting situation. Low-key Saturation ensures rich, vibrant colours in low-light areas.
                                Powerful gamma functions give absolute control over fine-tuning tonal values, contrast
                                and detail.
                                Simultaneous HDR and SDR production
                                The HDC-3500 can capture High Dynamic Range images, supporting Sony’s SR Live
                                workflow for simultaneous HDR/SDR production with reduced inventory requirements.
                                This product contains pre-installed software and requires the purchase of
                                licence keys to activate some functions.

 Features                       Easy transmission change
                                The HDC-3500 supports optical fibre transmission as standard, with a SMPTE-standard
                                interface for connection with associated HDCU-3100/HDCU-2000 series Camera Control
                                Units. It’s quick and easy to reconfigure the camera at any time for fibre, third-
                                generation digital triax or wireless operation with a choice of optional outside panels.

                                Wider workflow options

© 2004 - 2020 Sony Corporation. All rights reserved. Reproduction in whole or in part                                      1
without written permission is prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are approximate. All trademarks are the
property of their respective owners.
HDC-3500 Three 2/3-inch 4K CMOS sensors portable system camera for fiber operation - pro.sony
Support for Sony’s SR Live for HDR workflow allows simultaneous 4K HDR and HD SDR
                                production by a single team – reducing hardware and personnel costs for multi-format
                                productions. In addition, the HDC-3500 can be upgraded by the optional software
                                licenses to add functions to capture progressive signals, progressive segmented frame
                                (PsF) signals, or double-speed acquisition for exquisite slow motion.

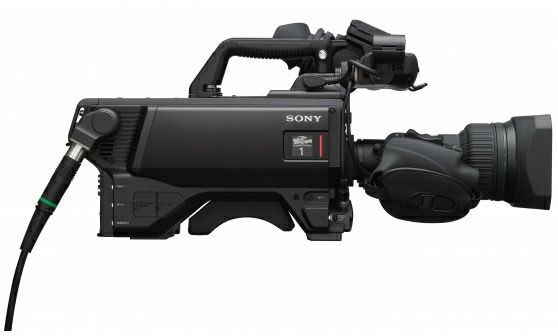

                                The go anywhere camera
                                Combining exceptional lightness and strength, the magnesium alloy body is
                                complemented by carbon fibre reinforced plastic (CFRP) outside panels. Sure, stable
                                handling is enhanced by the camera’s low centre of gravity, easily adjustable shoulder
                                pad and widened hand grip area. Also ideal for handheld operation, HDC series studio
                                cameras offer exceptional user ergonomics in a wide range of studio and field-based
                                production environments.

                                Seamless integration
                                Backwards compatibility with Sony’s industry-acclaimed HDC-2000 series system
                                cameras simplifies smooth integration with your current live production infrastructures,
                                including cameras and CCUs.

                                2x slow motion
                                The HDC-3500 offers a double-speed acquisition function, transmitting high-quality Full
                                HD images to the HDCU-3100 or HDCU-2500 Camera Control Unit (CCU).

                                Display camera number and tally
                                Assigned camera number is indicated on the camera body by a graphical electronic
                                paper display. Displayed information is updated automatically to reflect system
                                changes. There’s also an LED tally lamp beside the camera number display.

                                Rich focus assist functions
                                The Viewfinder Detail function adds dedicated image-enhancing edge signals directly
                                to the viewfinder, helping the operator to focus quickly and precisely in any shooting
                                situation. It’s complemented by a Focus Assist Indicator and advanced Focus Position
                                Meter function.

                                Servo controlled ND and CC filters
                                Dual optical filter wheels for Neutral Density (ND) and Colour Correction (CC)* open up
                                wider creative possibilities. Both filters can be controlled from a remote control panel,
                                master setup unit, or directly from the camera head.

                                Network TRUNK
                                Network TRUNK (via LAN port) allows high-speed data transmission between the
                                camera and CCU at up to 1 Gbps to support configurability* with IP-based products and
                                systems.
                                * Camera operating in fibre configuration.

 Specifications                  General
                                                                      AC 240 V, 1.4 A (max.), DC 240 V, 1.05 A
                                 Power requirement s
                                                                      (max.)

                                 Operat ing t emperat ure             .20°C t o +45°C (.4°F t o 113°F)

                                 St orage t emperat ure               .20°C t o +60°C (.4°F t o 140°F)

                                                                      Approx. 4.9 kg (10 lb 13 oz) (Unit only)
                                                                      Approx. 5.1 kg (11 lb 4 oz) (when HKC-TR37

© 2004 - 2020 Sony Corporation. All rights reserved. Reproduction in whole or in part                                       2
without written permission is prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are approximate. All trademarks are the
property of their respective owners.
HDC-3500 Three 2/3-inch 4K CMOS sensors portable system camera for fiber operation - pro.sony
Mass                                 is at t ached)
                                                                      Approx. 4.9 kg (10 lb 13 oz) (when HKC-FB30
                                                                      is at t ached)

                                 Imager
                                                                      2/3 inch t ype 4K CMOS sensor wit h global
                                 Imager
                                                                      shut t er

                                 Met hod                              3-CMOS, RGB

                                 Electrical characteristics
                                                                      F10 wit h 1080/59.94p
                                 Sensit ivit y                        F11 wit h 1080/50p
                                                                      (at 2,000 lx wit h 89.9% reflect ance)

                                 Signal-t o-noise rat io              -62 dB

                                 Geomet ric dist ort ion              Negligible (not including lens dist ort ion)

                                 Optical system specifications
                                 Spect rum syst em                    F1.4 prism

                                                                      ND filt ers 1: CLEAR, 2: 1/4ND, 3: 1/8ND, 4:
                                                                      1/16ND, 5: 1/64ND
                                 Built -in filt ers
                                                                      CC filt ers A: cross filt er, B: 3200K (clear), C:
                                                                      4300K, D: 6300K

                                 Input/output connectors
                                                                      Elect ro-opt ical connect or (LEMO 3K.93C
                                 CCU
                                                                      connect or) (x1)

                                 LENS                                 12-pin (x1)

                                 VF                                   20-pin (x1)

                                 MIC 1 IN                             XLR 3-pin, female (x1)

                                                                      XLR 3-pin, female (x1 each)
                                                                      AUDIO swit ch for MIC: –60 dBu (can be
                                 AUDIO IN CH1, CH2                    select ed up t o –20 dBu in t he menu),
                                                                      balanced
                                                                      AUDIO swit ch for LINE: 0 dBu, balanced

                                 INTERCOM 1, INTERCOM 2               XLR 5-pin, female (x1 each)

                                                                      4-pole mini jack (x1), (2-pole mono, 3-pole
                                 EARPHONE                             st ereo, 4-pole CTIA st andard, 4-pole OMTP
                                                                      st andard)

                                 DC IN                                XLR 4-pin (x1), DC 10.5 t o 17 V

                                                                      4-pin (x1), DC 10.5 t o 17 V, max. 0.5 A*¹, 2-
                                 DC OUT
                                                                      pin (x1), DC 10.5 t o 17 V, Max. 2.5 A*¹

© 2004 - 2020 Sony Corporation. All rights reserved. Reproduction in whole or in part                                      3
without written permission is prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are approximate. All trademarks are the
property of their respective owners.
HDC-3500 Three 2/3-inch 4K CMOS sensors portable system camera for fiber operation - pro.sony
SDI 1                                                       BNC (x1)

                                 SDI 2                                                       BNC (x1)

                                 SDI MONI                                                    BNC (x1)

                                 TEST OUT                                                    BNC (x1)

                                                                                             BNC (x1)
                                                                                             PROMPTER 1 Vp-p, 75 Ω
                                 PROMPTER/GENLOCK                                            GENLOCK HD: SMPTE ST274, t ri-level sync,
                                                                                             0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286
                                                                                             Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω)

                                 PROMPTER2                                                   BNC (x1), 1 Vp-p, 75 Ω

                                 RET CTRL                                                    6-pin (x1)

                                 REMOTE                                                      8-pin (x1)

                                 TRACKER                                                     12-pin (x1)

                                 CRANE                                                       12-pin (x1)

                                                                                             USB 2.0 Type A 4-pin (x1) (for connect ing
                                 USB
                                                                                             USB drive)

                                 NETWORK TRUNK                                               RJ-45 t ype 8-pin (x1)

                                                                                             Before Using This Unit (1), Operat ing
                                                                                             Inst ruct ions (CD-ROM) (1), Cable clamp belt
                                 Supplied accessories
                                                                                             (1 set ), Screws (+B3×8) (2), At t ached label
                                                                                             (1)

                                 Note
                                                                                             This may be limit ed by t he imposed load or
                                 *1
                                                                                             input s.

                                                                                             In cases where a HDC3500 Series camera’s
                                                                                             built -in Filt er does not fully reduce t he moire
                                                                                             caused by some LED walls, t he opt ional
                                 Opt ical Low Pass Filt er
                                                                                             Opt ical Low Pass Filt er (OLP) will help furt her
                                                                                             reduce t he moire effect (Part number; 1-
                                                                                             856-731-31).

 Related products

                                 HZC-UHD50 /                           HDCE-T X30                        MSU-1000                            HZC-UG50 /
                                 HZC-UHD50M /                          IP cam era ext en sion adapt or   Mast er set u p u n it , m u lt i   HZC-UG50M /
                                                                       for rem ot e produ ct ion         cam era rem ot e con t rol pan el
                                 HZC-UHD50W                            ( t ran sm it t er)               for H DC / H SC cam eras            HZC-UG50W
                                 Soft ware licen ses for sh oot in g                                     ( h oriz on t al t ype)             Soft ware licen ses for sh oot in g
                                 an d t ran sm ission of 4K video                                                                            1080/RGB 4:4:4 & U ser
                                 an d 1080 progressive video                                                                                 Gam m a wit h H DC-5 5 00/35 00
                                                                                                                                             series syst em cam era

© 2004 - 2020 Sony Corporation. All rights reserved. Reproduction in whole or in part                                                                                              4
without written permission is prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are approximate. All trademarks are the
property of their respective owners.
HKC-WL50                              RCP-1500                                PWA-RCT 1                             RCP-3500
                                 Wireless t ran sm ission              Joyst ick t ype of Rem ot e             Recordin g Con t rol Soft ware for    Rem ot e-con t rol pan el for
                                 adapt or for H DC-5 5 00 an d         Con t rol Pan el for                    PWS-45 00 an d H KCU -REC5 5          H DC/H SC/H XC series cam eras
                                 H DC-35 00                            H DC/H SC/H XC series cam eras.
                                                                       4 u n it s in 19-in ch EIA rack.

                                 HZC-PRV50 /                           HDCU-3500                               HKC-T R37                             HDVF-EL30
                                 HZC-PRV50M /                          IP-ready Cam era Con t rol U n it       Digit al Triax Tran sm ission         OLED 0.7-in ch colou r Fu ll H D
                                                                       ( CCU ) for H DC-35 00 4K/H D           Adapt or for H DC cam era series      viewfin der wit h 3.5 -in ch su b-
                                 HZC-PRV50W                            syst em cam era                                                               LCD
                                 Soft ware licen ses for sh oot in g
                                 an d t ran sm ission of
                                 Progressive video

                                 HDVF-EL75                             HZC-PSF50 /                             HDCU-3100                             HDCU-5000
                                 7.4-in ch OLED Viewfin der for        HZC-PSF50M /                            IP en abled n ext gen erat ion        Cam era Con t rol U n it ( CCU )
                                 port able cam eras                                                            Cam era Con t rol U n it              for H DC-5 5 00 an d H DC-
                                                                       HZC-PSF50W                                                                    35 00/3100 series syst em
                                                                       Soft ware licen ses for sh oot in g                                           cam eras
                                                                       an d t ran sm ission of PsF
                                                                       form at video

                                 HKCU-REC55                            RCP-3100                                HZC-DFR50 /                           MSU-1500
                                 Recordin g opt ion for H DCU -        Joyst ick t ype of rem ot e con t rol   HZC-DFR50M /                          Mast er set u p u n it , m u lt i
                                 5 5 00 an d H DCU -35 00              pan el for H DC/H SC/H XC series                                              cam era rem ot e con t rol pan el
                                                                       cam eras.5 u n it s in 19-          HZC-DFR50W                            for H DC / H SC cam eras
                                                                       in ch EIA rack.                         Soft ware licen ses for sh oot in g   ( vert ical t ype)
                                                                                                               Du al Fram e Rat e 2x slow
                                                                                                               m ot ion

© 2004 - 2020 Sony Corporation. All rights reserved. Reproduction in whole or in part                                                                                                     5
without written permission is prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are approximate. All trademarks are the
property of their respective owners.
Gallery

© 2004 - 2020 Sony Corporation. All rights reserved. Reproduction in whole or in part         6
without written permission is prohibited. Features and specifications are subject to change
without notice. The values for mass and dimension are approximate. All trademarks are the
property of their respective owners.
You can also read
