MAGNUM 72
Class leading performance in the 15-18 tonne GVW range,
the Magnum 72 is capable of delivering powerful cleansing results
in municipal, construction and road maintenance settings.
BIG ON CAPACITY
BIG ON PERFORMANCE
MAGNUM 72 REDUCED FUEL
CONSUMPTION
LESS
WEIGHT
GREATER
PAYLOAD
Big on capacity, big on
performance:
SIZE: 15-18 tonne GVW
DECREASED
SWEEPING SPEED: 0-20mph/0.32kph
REDUCED NOISE AND
MAINTENANCE ENGINE HOPPER CAPACITY: 7.2 cubic metres
POLLUTION
WATER TANK: 1800-2500 litres
ENGINE: Single engine hydrostatic or Unidrive
TYPICAL PAYLOAD: 15 tonne – 7000kg
18 tonne – 9000kg
SWEEP WIDTH: 2365mm single/3200mm dual
Big on capacity, big on performance - STRONG, ROBUST HOPPER
heavy-duty road sweeping from 15-18 GVW. The hopper is completely manufactured from strong,
Standard specification corrosion and abrasion-resistant 4003 stainless steel,
The Magnum 72 has been designed for mounting on which is shot blasted before a two-pack epoxy primer is
• Stainless steel hopper applied followed by a hard-wearing topcoat.
a truck chassis in the range of 15-18 tonne GVW and
• S
carab CANbus control panel incorporating
is capable of delivering powerful cleansing results in
operational information, data logging Particulate screening via a hinged stainless steel mesh
municipal, construction and road maintenance settings.
and self diagnosis filter – swings down for ease of cleaning and access to
Available in both Hydrostatic and Unidrive configurations, • 1 800-2500 litre corrosion resistant the stainless steel inlet cone.
water tank
a 7.2 cubic metre hopper giving a potential payload
capacity of up to 9000kg and water capacity ranging
from 1800-2500 litres, the Magnum 72 is the optimum
road sweeper for any operator looking to work harder,
for longer.
For the most demanding of heavy-duty applications,
Scarab’s optional high-speed fan solution takes the
Magnum 72’s performance to the next level.
BIG ON CAPACITY BIG ON PERFORMANCE
Shot blasting the stainless steel hopper
www.scarab-sweepers.com Tel: +44 (0)1622 831006 www.scarab-sweepers.com Tel: +44 (0)1622 831006
POWER & CONTROL A choice of power solutions
• T
railed widesweep brush is adjustment- HYDROSTATIC SYSTEM
SINGLE ENGINE, SINGLE EMISSION,
free and designed to ensure parallel usage. NO COMPROMISE The Scarab designed hydrostatic gearbox is
Scarab is the pioneer of the environmentally friendly installed in the chassis driveline and allows
• Trailed, robust, steel suction nozzle for the sweeping components to be powered
single-engine truck-mounted sweeper and continue
durability. directly from the chassis engine. As well
to lead the market in this field. As a result of the single
engine system, the Magnum 72 benefits from reduced bringing a range of benefits such as reduced
• Adjustable dust-suppression jets.
fuel consumption, decreased noise and engine pollution, weight, increased payload, reduced fuel
• Short suction hoses are an easy and low- less weight, greater payload and reduced maintenance. consumption and lower emissions, it also
cost replacement and are simple to clean. offers a range of operator benefits with
its simple joystick control for forward and
• Trailed channel brush mechanism with reverse, allowing single-pedal control which
adjustable brush-pressure control option. reduces fatigue and enables the driver to
fully concentrate on sweeping.

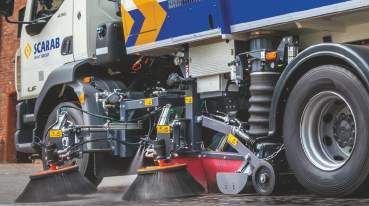

• Simultaneous dual sweep and high-
pressure street wash option.
CANBUS CONTROL SYSTEM
UNIDRIVE SOLUTION
EXTENSIVE SWEEPING CAPABILITIES Scarab’s CANbus control system revolutionised the way
Our Unidrive solution uses a Power Take-Off
The Magnum 72 is available in both single and optional sweepers are operated and maintained. It continues to
(PTO) fitted to the truck engine to power
dual sweep configuration. When the suction nozzle, side evolve today to offer market leading sweeper control.
sweeping functions. The Magnum 72 control
brush and widesweep functions are in operation the
system manages engine speed to ensure
Magnum 72 can sweep at 2365mm width. However, the Our latest CANbus control system offers colour coded door-
optimum sweeping performance.
brushes can reach an impressive 3200mm span when pod and pedestal controls with key sweeping functions
simultaneously dual sweeping. visible at a glance, and comfortably within reach. The large
graphical display clearly indicates sweeping configuration
With variable brush speeds, optional down pressure and and provides the user with regular updates on the vehicle,
swiveling widesweep, the Magnum 72 is proficient in
Roof mounted impellor
including warnings and service reminders. What’s more, AFTER SALES
any sweeping application. with real-time data-logging built into the system, you
can monitor your performance and keep your sweeper
SUPPORT
POWERFUL & RELIABLE SUCTION PERFORMANCE functioning at its very best. Scarab’s CANbus includes
universal connectors for fitment of Global Positioning Our dedicated After Sales team are front-line
A stainless steel centrifugal roof mounted impeller is
System (GPS) and the option of real-time data availability ambassadors of Scarab Sweepers and it’s
positioned to produce an efficient airflow path for high
via telematics. their aim to provide you with the highest level
suction performance and reduced power consumption.
of support for the lifetime of your vehicle,
The fan chamber is easily accessed for cleaning.
delivered through:
“Scarab are at the cutting edge of
Particulate screening via a hinged, stainless steel mesh • Industry renowned after sales care
filter, pleated to give maximum surface area and reduce
developing innovative solutions to be • A range of extended warranty options
blocking – it also swings down for ease of cleaning. more efficient with dust collection, • A choice of ‘Service’, or ‘Repair and
reducing noise pollution and lowering Maintenance’ solutions to suit your needs.
carbon footprints.”
www.scarab-sweepers.com Tel: +44 (0)1622 831006 www.scarab-sweepers.com Tel: +44 (0)1622 831006
STANDARD FEATURES UPGRADES /ENHANCEMENTS
SWEEPING WIDTHS (based on a typical 15 tonne GVW chassis) OPTIONS (other options and operator specific requirements are available upon request)*
A Suction nozzle only 740mm
B Nozzle & Side Brush 1135mm
C N
ozzle, Side Brush &
Widesweep 2365mm
D S
imultaneous Dual
Sweep 3200mm
Slight variations to the foregoing
dimensions can occur according to
individual chassis specifications.
*Some options listed are chassis dependent
WATER of 50 mm lay-flat hose for on-task • Tilting brush
replenishment of water
WEIGHTS AND DIMENSIONS • H
igh-pressure/high volume pump • Vari brush (variable in/out brush
with hand lance and self-retracting • Simultaneous wash & sweep facility control)
hose reel
TYPICAL PAYLOAD POTENTIAL TYPICAL DIMENSIONAL DATA CAPACITIES • O
verhead mounted high-pressure BRUSHES SUCTION SYSTEM
Standard specification Length overall 6100mm Hoppers* Voided volume 7.2m3 water boom • Dual sweep (a second channel brush • Rear-mounted swing-out wander boom
15 tonne - 7000kg Wheelbase 3620-3900mm Payload volume 6.5m3 • A
dditional dust suppression for suction on opposite side of the sweeper + • Overhead-mounted wander boom
> 18 tonne - 9000kg nozzles (A 4-jet water-boost bar in swivelling widesweep)
Width overall 2400mm Water tank **
1800-2500 litres
front of the nozzle) • S
imultaneous dual sweep (both
Overall height
* Calculated in accordance with European MISCELLANEOUS
Standard EN15429 • A
dditional dust suppression for suction channel brushes and widesweep
hopper lowered 3250mm • C
CTV camera to offside brush and/or
** The option of an additional water tank is available tubes (four additional jets at the top of operate together)
hopper raised 5000mm subject to chassis selected rear of vehicle
the suction tube) • A
uxiliary channel brush fitted ahead of
• C
entralised lubrication system (either
• D
etergent injection kit for use with standard brush on an sliding/swing-out
manual or automatic)
the hand lance on difficult cleaning mount
operations • Alternative or additional beacons
• A
djustable pressure control for channel
• Hydrant standpipe, key and 3 metres brushes and widesweep • Fire extinguisher
