SOFRAPER
Vacuum Systems
INDUSTRIAL
VACUUMING
DUST TREATMENT
CHIPS TREATMENT
FLUID TREATMENT
FILTRATION AND OIL SEPARATION
SPECIFIC APPLICATIONS
CENTRALISED INSTALLATIONS
SMOKE TREATMENT
2019 !
EMULSION AND NEAT OIL RECYCLING
INNOVA
TIONS
VACUUMING AT THE WORKSTATION
3 vacuuming technologies
adding up to an engineering office.
With more than 40 years of experience in industrial vacuuming, SIEBEC - SOFRAPER
Vacuum Systems offers a wide range of technical solutions to your vacuuming needs and
the treatment of chips, fluids, dust, smoke and oils, etc.
Investment in R&D is key for SIEBEC- Svs . Our solutions are based on patented technologies
for unparalleled performance and strict compliance with environmental standards like ISO
14001.
1 APS 2 OPTIMOIL 3 WINDVAC
Our APS technology is OPTIMOIL, to deal with fluids WINDVAC, with its patented
particularly suitable for charged with solid particles BI-VENTURI® pneumatic
collecting solid particles and and sludges using our TURBO® technology is the ultimate
fine dust and also enables patented technology for solution for vacuuming fluids.
fluids to be vacuumed in small unparalleled vacuuming power. It provides both a very high
quantities. The discharge and filtration flowrate and a very high vacuum
functions make it an extremely at the same time, unique
versatile vacuum cleaner. characteristics on the market.
2
Discover our expertise ...

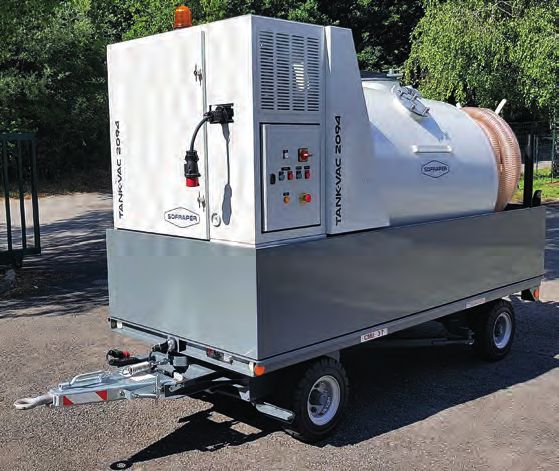

TANK-VAC
Vacuum and sump machine from 450 to 4000L.
MINIPURE
The machines of the MINIPURE range eliminate continously all micro-
chips, powder, solid particles, free-floating oils or in emulsion used for
lubricating the machine (for soluble oils).
Our engineering
SIEBEC - Svs is also your partner in the design of tailor made solutions
for your ergonomic workstations and centralised installations.
Our specific applications
Draining robot arms axis, recovering precious metals, vacuuming up
printing inks, etc. there are many versions specific to our equipment !
A choice for each applications
APS OPTIMOIL WINDVAC
Dust
Dry chips
Lubricated chips Vol. Liquids < Vol. Solids Vol. Liquids > Vol. Solids
Solvents x x x
Emulsion (draining)
Neat oil (draining)
Sludge TURBO ®
Tank draining Up to 1 m Up to 3 m Up to 7 m
Water Stainless steel version Stainless steel version
Hydrocarbons x x x
Detergent products According to the products characteristics According to the products characteristics According to the products characteristics
Discharge Simultaneous or delayed vacuuming Delayed vacuuming
Energy (power supply) Electric or pneumatic Electric Pneumatic
3
APS
INDUSTRIAL VACUUM CLEANERS
Our APS vacuum technology is deployed on a wide range of
professional dust and fluid vacuum cleaners. Particularly suited to
maintenance works and industrial cleaners,
APS vacuum cleaners combine vacuum power and robustness
with the solid reputation of SIEBEC- Svs products.
The APS range is entirely customizable depending on your needs :
• stainless steel tanks of different sizes
• wide range of motors
• ATEX version,
• fluid level sensor,
There is always an APS to meet your requirements. You will also
102M

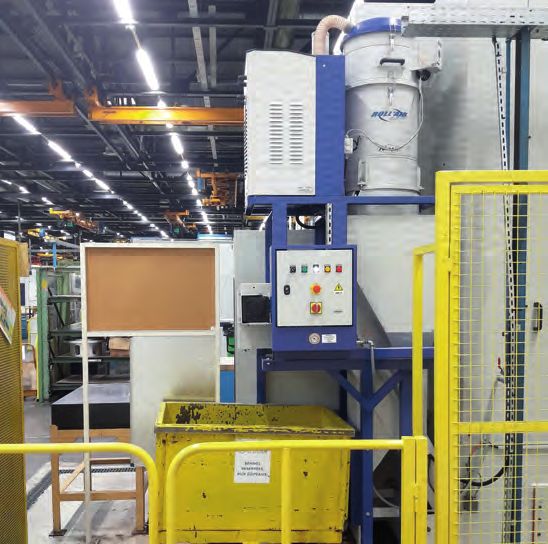

202M find APS technology for intensive use and very large volumes on
our ROLL'AIR centralised installation with automated discharge of
350D shavings and fluids.
RELIABLE OPTIMUM
& ROBUST FILTRATION
1 000 BP 305 303 ST 203
Other versions
ATEX 21 or 22 BIG BAG BAG
1 2 3 Continuous bagging
305
4
APS
INDUSTRIAL VACUUM CLEANERS
5 reasons to choose APS
1 2 3
HEPA filtration as
an option
M class filter
Tangential inlet Lockable mobile container
cartridge
Cyclonic effect separation Easy maintenance
4 5
Filter protection
By separation
chamber
Semi-auto std filter cleaning system Ergonomic Filtration
By vibration/ automatic E-JET as an Accessories holder and storage
option
In option
Chips separator basket Liquid level sensor Coupled floor nozzle Pneumatic motor
gravity draining Wireless, Aqua version 600 mm wide with wheels Venturi
Dust accessory kit 1 4 5 6 7 ou Oil and chips accessory kit 2 4 5 6 8
(Ø 40,50 or 60mm)
1. 3m antistatic hose with fittings
2. 3m reinforced polyurethan hose with fittings
1 3 5 7 3. In option : Semi-rigid PE pole, 0.9 m long
4. Straight PEHD pole Lg 1m
5. Flat nozzle, 120mm wide
6. Flat tapered nozzle
2 4 6 8 7. Metal floor nozzle with brush + angled metal pole
8. Metal floor nozzle with lips + angled metal pole
Standard APS
Référence 102 M 202 M 350 D 203 303 ST 305 1 000 BP
Tank - L 25L - Stainless 35L - Stainless 50L - Stainless 35L - Stainless 50L - Stainless 75L - Stainless 100L - epoxy paint
Power - kW 2,2 2,2 3,3 Bypass 3 3 5,5 4
Power supply 230V Singlephase 230V Singlephase 230V Singlephase 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz
Motor type Singlephased Singlephased Singlephased Asynchronous Asynchronous Asynchronous Asynchronous
Airflow rate - m3/h 340 340 510 320 320 520 2 200
Vacuum - mm/WC 2 300 2 300 2 300 2 900 2 900 2 900 430
Filter cleaning Semi-auto Semi-auto Semi-auto Semi-auto Semi-auto Semi-auto Auto
Inlet Ø - mm 40 40 50 40 / 50 50 50 / 60 150
Dimensions - WxDxH mm 480x480x920 500x620x1100 600x800x1180 500x620x1270 600x800x1300 630x800x1800 630x1180x1690
Weight 24 42 65 72 87 151 205
For information on other versions, please contact us
5
OPTIMOIL
VERSATILE VACUUM AND SUMP MACHINE
The OPTIMOIL combines:
• a unique vacuum power on the market
• vacuuming and discharge simultaneously
• two different filtration levels retaining particles down to 5µm
• a very easy to handle, straightforward cleaning
• a retention tank to preserve the environment including drainage
of accessories.
• adapted to industrial grounds
Lubricated chips require a high suction flowrate, in contrast to fluids
and still further sludges which require a very high vacuum to be
aspirated. With SIEBEC's - Svs patented TURBO ® technology, you
no longer have to choose between a high flowrate or high vacuum,
you have both and your OPTIMOIL adapts automatically according to
the suction constraints encountered, the only one that does on the
market!
103M TC
203M TC
ADAPTED TO TURBO ® VACUUMING & SIEBEC - Svs
INDUSTRIAL GROUNDS TECHNOLOGY VERSATILE DISCHARGE PATENT
The best of both technologies
Turbo technology
Aerial environment : high flowrates Liquid environment : High vacuum
1 Dust, lubricated chips
2 Sludges, oil
M1 3x flowrate M1 M2 M3
1X flowrate
Turbo® dual-speed
M2 self adjusting*
1x vacuum 2x vacuum
M3
*OPTIMOIL automatically adapts depending on encountered vaccum constraints, a market exclusiv
mmWC
3000
209
2000
3 motors turbo®
1000 3 motors in parallel
3 motors in series
0 100 200 300 400 500
mc/h
What type of motor: single-phase or three-phase?
1 TURBO® single-phase
More suction power, frequent switching on/off
Asynchronous three-phase
2 Continuous intensive use
104
204
Combining Asynchronous + Turbo ® for extreme uses with the Optimoil 209
205
6
OPTIMOIL
VERSATILE VACUUM AND SUMP MACHINE
7 reasons to choose Optimoil
1 2 3
Separation - prefiltration Drip cart Liquid discharge
2000µm standard strainer - 200µm in option. Run-off from accessories While vacuuming or afterwards
Cyclonic anti-clogging effect
4 5 6 6
Floater
blocking
SOFRAPER
the suction
Total gravity drainage Security Ergonomic Fine filtration
Inclined base + valve Floater blocking the aspiration + Accessories & pipe holder, storage With double bypass valves
separation chamber protecting
the filter
The options
Sludge container Fine filtration Fabric 200µm bag Floor nozzle with lips
Separated collection of Filtration oif discharged Pre-filtration from L= 450 mm with wheels
sludges or shavings to liquids down to 5µm 2000µm down to 200µm + angled metal pole
wring
Accessories kit (Ø 50 std)
1. Semi-rigid PE tube, 0.9 m long, Ø50 mm
2. Straight PE tube, 0.9 m lg, Ø50 or 60 mm
1 3 3. Flat 120 mm wide Ø50 mm nozzle
5 4. Flat tapered nozzle Ø50 mm
2 4 5. 3m of reinforced polyurethane hose, Ø
50mm with sleeves 204 Stainless steel version
Ideal for corrosive products
Our standard Optimoil models
Référence 103M TC 203M TC 104 204 205 209
Turbo technology ® Yes Yes No No No Yes
Tank - L 107 200 107 200 200 200
Treatment Max internal storage 90 170 90 170 170 170
capacity - L With simultaneous discharge Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
Power - kW 3.3 3.3 4 4 5.5 9.5
Power supply 230V Mono 230V Mono 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz
Motor type Singlephased Singlephased Asynchronous Asynchronous Asynchronous Asynchronous
2,000 µm strainer - L 15 15 15 15 15 15
Noise level - db(A) 74 74 75 75 75 75
Max airflow - mc/h 480 480 370 370 520 750
Max suction head - mm/WC 3,800 3,800 2,900 2,900 2,900 5,000
Inlet diameter- mm 50 50 50 50 50 50
Dimensions - W x D x H - mm 520 x 905 x 1380 620 x 910 x 1492 520 x 935 x 1488 620 x 940 x 1600 620 x 940 x 1770 620 x 1060 x 1770
Weight - kg 101 120 118 133 140 200
7

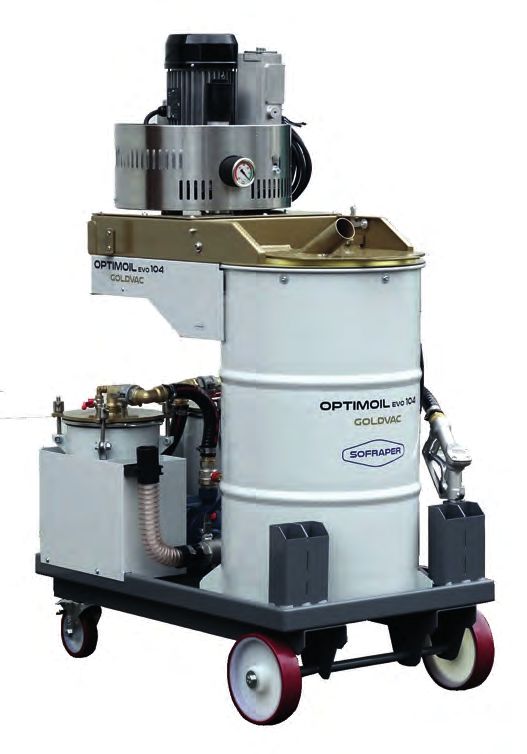

GOLDVAC evo
PRECIOUS METAL RECLAIMER
GOLDVAC Evo is a vacuuming and draining machine dedicated
to maximized recovery of precious metals during daily cleaning
operations performed in workshops and draining of machine tools
lubricant tanks before inventories.
It benefits from unmatched and famous suction power of SOFRAPER
products, especially in its 3 motor patented turbo® technology
version. Its design is derived from vacuuming and draining SOFRAPER
machine OPTIMOIL Evo.
The double-stage filtration integrates state-of-the-art SIEBEC filtration
technology and ensures « zero loss » of precious metals. Combining
robust design with reliability of SOFRAPER products, GOLDVAC Evo
grants a very quick return on investment and is acknowledged as a
reference on the market.
PERFECT FOR VERSATILE VACUUMING & SOFRAPER
INDUSTRIAL AREAS DISCHARGE PATENT
6 reasons to choose GOLDVAC evo
1 2
Liquid / solid pre-separation Dual filtration on discharge side
Stainless steel strainer for recovery and separation of pumped-out Two tanks for fine filtration are connected in series. First filtration stage
chips, 15 L capacity, with 200 µm pre-filtration removable & incinerable at 20 µm or 5 µm to trap majority of solid particles, then second and final
bag. filtration stage at « absolute rated 1 µm » so as to prevent any loss of
precious metal on oil discharge side.
3 4
Cleanliness and ergonomics Simultaneous vacuuming & discharge
GOLDVAC Evo is installed on a wheeled trolley. It is fitted with a Discharge being performed using a separate pump and simultaneously with
retention tank and an accessory holder with direct dripping in suction operation, tanks of far higher capacity than that of device tank can
retention tank. be treated. Discharge is done comfortably and safely with a lockable dosing
nozzle.
8
GOLDVAC evo
PRECIOUS METAL RECOVERY
5
Performances
GOLVAC Evo is combining outstanding performance of vacuuming and draining machine SOFRAPER Optimoil with state-of-the-art SIEBEC filtration
technology: 10" L-TECH pleated cartridge, offering a very large filtration area. Such cartridges are available in 20 µm, 5 µm and « absolute rated 1 µm »,
miscellaneous porosities being easily identified thanks to colour code.
c
6 a b
6. Easy cleaning and optimized metal recovery :
a. Direct sucking in gravity draining tank through a discharge pump
b. Draining of filtration chambers by compressed air through 2 cartridges
c. Removable stainless steel cartridge canisters with smooth surface for easy cleaning and wiping.
d. Filtration chamber is also removable, with conical and smooth bottom for easier draining and cleaning. Safety is granted thanks to a lockable dosing nozzle
Delivered with comprehensive set of accessories (Ø 40mm or Ø 50mm)
1 3
5
2 4
GOLDVAC evo models
Reference GOLDVAC evo 103M TC GOLDVAC evo 104
Turbo technology ® Yes No
Tank - L 107 107
Treatment Max internal storage 90 90
capacity - L With simultaneous discharge Unlimited Unlimited
Power - kW 3.3 4
Power supply 230V 1ph 3x400V 50Hz
Motor type Single-phase Asynchronous
2,000 µm strainer - L 15 15
Noise level - db(A) 74 75
Max airflow - mc/h 480 370
Max suction head - mm/WC 3,800 2,900
Inlet diameter- mm 50 50
Dimensions - W x D x H - mm 620 x 910 x 1380 620 x 945 x 1488
Weight - kg 121 138
9
WINDVAC
PNEUMATIC VACUUM CLEANER
SIEBEC's - Svs Windvac technology is based on a Venturi powered
by a compressed air supply to be connected to the system.
By creating a vacuum in the tank, the vacuuming or transfer of
charged fluid is enabled. A screw-in float on the 3/4˝ Gas opening
enables the WINDVAC vacuum to be clipped on easily and a quick-
fit enables the watertight fitting of the flexible vacuum pipe to be
connected to the 2˝ gas opening. Suction is controlled by simply
opening the air inlet valve.
The safety float stops the vacuuming when the upper level of the
tank is reached. As an option, it is possible to channel harmful
vapours for external discharge (contact us).
Windvac technology, in contrast to other Venturi systems available
on the market is characterised by a very low sound level of 72
db(A) and a high flowrate.
ADAPTED TO BI-VENTURI ® EASY SIEBEC - Svs
INDUSTRIAL GROUNDS VACUUM (HW7) MAINTENANCE PATENT
Highwind : vacuuming only
Vacuuming
only
Highwind 3 - Lightly charged liquids
Strong flowrate and max vacuum of 3200 mm/WC
Highwind 5 - Heavily charged liquids
Liquids and sludges vacuuming, heavily charged and viscous fluids collection, scouring of tanks
up to 5m.
Average flowrate and max vacuum of 5000 mm/WC
Windvac : vacuuming and discharge
Vacuuming &
discharge
Windvac 4 - Lightly charged liquids
Single speed
Max vacuuming of 4000 mm/WC (recommanded with standard barrel)
7
Windvac - Heavily charged liquids
Difficult collection of liquids, heavily charged fluids, viscous fluids, scouring of tanks up to 7m
Bi-Venturi ® self adjusting technology (SIEBEC - Svs patent)
Max vacuum of 7000 mm/CE (on SIEBEC -Svs reinforced barrels)
10WINDVAC
PNEUMATIC VACUUM CLEANER
6 reasons to choose Windvac
1 2 3
Pneumatic power supply Sécurity (valve) Liquid discharge
Easy maintenance Pressure/vacuum control Non simultaneously
4 5 6
Easy to use Compatible with standard oil barrels Silencer
Easy to operate and clean 72 dBa
Reinforced barrels and wheeled trolleys with total retention tank
100L
WxDxH
530 x 720 x 1060 mm
200 L
WxDxH
200L 220L
640 x 840 x 1120 mm
100L 120L
Reinforced barrel with float valve Wheeled trolley for barrels Set including wheeled trolley/barrel
mechanism Total retention tank on trolley with
With float stop valve mechanism and hydrocarbon-resistant polyurethane wheels
anti-spray shield
Standard accessories kit 2 4 5 ou CleanOil expert accessories kit 1 2 3 4 5
1. semi-rigid PE hose Lg 0.9m Ø40
1 3 2. straight PE hose Lg 0.9m Ø40 mm
5 3. flat 120 mm wide Ø40mm nozzle
2 4 4. flat tapered nozzleØ40mm
5. Flexible diving hose set + screw
connection + suction hose Ø40mm L=3m
reinforced Polyuréthane with cuffs. Floor nozzle with lips L=400mm +
Our standard Windvac metal pole
Reference Highwind 3 Highwind 5 Windvac 4 Windvac 7
Weight (kg) 2,5 2,5 6,5 6,8
Max air consumption - m3/h 45 40 42 42
Max air suction - m3/h 162 48 160 162
Max vacuum - mm/WC 3 200 5 000 4 000 3 800 / 7 000
Suction speed - m/s 40 15,5 42 45 / 15
Noise level - dB(A) 72 72 72 72
Standard petrol barrel* Yes No Yes Yes
Vacuuming - L/m 130 130 200 200
Discharge - L/m No No 200 200
Auto dual flow No No No Yes
Dimensions - W x D x H - mm 100 x 295 100 x 295 470 x 210 x 220 470 x 210 x 220
Ø suction hose - mm 40 40 40 40
* All our models are available on reinforced SIEBEC barrels which improves their efficiency
11TANK-VAC
LARGE VOLUMES VACUUM MACHINE
TANK VAC
TANK-VAC vacuum cleaners and collectors use OPTIMOIL
technology and enable collection with or without filtration of all
industrial fluids. They suck up chips, sludge and sediment that
they separate from the collected fluid and return it either directly
or after fine filtration for immediate re-use. This is standard on the
450 to 4000 litres capacities.
TURBO ® VACUUMING & SIEBEC - Svs
TECHNOLOGY VERSATILE DISCHARGE PATENT
TANK VAC SQ 450 - 600 L
Tank vac options & versions
Pressure washer
Tank Vac (1200 - 2000 - 3000 - 4000L) Parking brakes (with drawbar lifting)
Double steering axle Side hatch Level indicator Tank Vac Skid
12TANK-VAC
LARGE VOLUMES VACUUM MACHINE
6 reasons to choose TANK VAC
1 2 3
Electrical motor Pre-separation (filtration in option) Total retention tray
Singlephased 230V TURBO® - Threephased When vacuuming : chips cyclonic recuperation In compliance with ISO 14001 requirements
400V : simple or TURBO® strainer. When discharging : filtration from 100
down to 5 µm.
4 5 6
Pneumatic version Easy cleaning Mobility
Compressed air Windvac 7: for high flow rates Double reclaining bottom and total emptying Towable or Gripable by forklift
ou great vacuuming (in conformity CE) (depending on the
version)
Standard accessories kit (Ø 50 version SQ )
1. semi-rigid PE hose lg 0.9m Ø50
2. straight PE hose Lg 0.9m Ø50 or 60mm
1 3 3. Flat 120 mm wide Ø50mm nozzle
5 4. Flat tapered nozzle Ø50mm
2 4 5. 3m of reinforced polyurethane hose Ø50mm or 60mm with fittings
Main TANK VAC
TANK VAC SQ range TANK VAC range
Reference 454 455 453M TC 604 655 603M TC 1 200 2 000 3 000 4 000
Capacity - L 450 450 450 600 600 600 1 200 2 000 3 000 4 000
Turbo® technology No No Yes No No Yes Yes
Vacuum + discharge Yes Yes
Power supply 3x400V /50Hz 3x400V /50Hz 230V Single 3x400V /50Hz 400V Three 230V Single 3x400V /50Hz
Power - kW 4 kW 5,5 kW 3,3 kW 4 kW 5,5 kW 3,3 kW 6 to 11 kW
Total retention tank Oui Oui
Total gravity emptying Oui Oui
Pre-filtration strainer 2000µm Oui Oui
Fine filtration up to 5µm In option In option
Max vacuum - mm/WC 2800 2800 3300 2800 2800 3300 4500 à 7100
Max airflow - m3/h 320 530 480 320 530 480 560 à 1260
Hose Ø - mm Ø50 Ø60
Towable cart, double steering axle
Mobility Self suporting structure, 4 wheels 2 steering wheels, grippable by forklift
+ parking brake
Dimensions (without drawbar) 1450x790 1450x790 1450x790 1575x810 1575x810 1575x810
Variable depending on equipement
LxDxH - mm x1450 x1600 x1340 x1730 x1880 x1580
Other versions, skid, pneumatic, specific, consult us
13MINIPURE
NEAT OIL & EMULSION RECYCLING
Filtration specialist for 60 years, Siebec designs and manufactures
a wide range of industrial filters, pumps and industrial liquid
treatment. The group is composed of 6 subsidiaries in Germany,
Spain and the UK and is present worldwide with over 45
distributors.
Siebec developps a wide rande of equipment designed for the
treatment of industrial fluids and effluents :
The machines of the MINIPURE range eliminate continously
all micro-chips, powder, solid particles, free-floating oils or in
emulsion used for lubricating the machine (for soluble oils). Also
suitable for spark machining, water jet cutting...
Cotrol over Increases cutting Increases cutting Avoids clogging
cutting conditions tools lifespan fluids lifespan of machine filters
Treatment results Adapts on any machine tool
1 Neat oil
Neat oil : highly polluted Regenerated oil
2 Emulsions
Significant presence of floating neat oil and large pieces of swarf Regenerated oil : Free of floating neat oil and swarf
14MINIPURE
NEAT OIL & EMULSION RECYCLING
Minipure treatments
Siebec develops solutions meeting the requirements of all industrial fluid treatments. MINIPURE modular conception
enables a wide range of module treatment in order to perfectly adapat to your needs.
1 BAG TECH : bag filtration enables the retention of larger swarf
• Porosity from 150 to 600 microns.
• Washable and reusable.
• Assembly and disassembly without tools.
2 MAG TECH : magnetic filtration
The liquide is channeled around the 300mm stainless steel magnetic rods which
then collects metallic particles.
• Collects up to 3 kg of particles.
• Easy assembly and cleaning.
• Electromagnetic power of 3 800 Gauss
3 FILTECH : Great capacity filtratio pleated cartridge
• 5 m² filtration area.
• Washable and reusable.
• Assembly and disassembly without tools.
• Porosity of 5, 20 or 50 microns
4 OILTECH : Oil removal microfibers
The cutting fluid goes throughg the container filled with a load of microfibers
• Great retention capacity of hydrocarbon grease.
• Hydrophobic: does not retain water or cutting fluid emulsion
• One 11L charge of microfibers enables the recovery of 6L of oil. New Minipure Housing
Integrated safetech, manometer for pressure reading,
easy access to the pump, easy transportation
Standard accessory kit
1 2 3 1. Floating skimmer : Automatically adapts to a large variation in solution level
while conserving optimum skimming
2. Surface skimmer : Compact and easy installation thanks to a magnetic braket
3. SAFE-TECH housing : dry run protection
Our Minipure models
Pressure tank Pressure / Vacuum tanks
MINIPURE MP51 MP52 MP51 V MP52DV MP52D MP53D
Number of tanks 1 2 2000 2500 2 3
Siebec pump A18 three-phase A18 three-phase Volumetric three-phase Volumetric three-phase A18 three-phase A18 three-phase
Power - kW 0,75 0,75 0,75 0,75 0,75 0,75
Flow rate - m3/h 9 8 4 4 8 9
FIltration media 1 tank
st 3 Filtech 1 Filtech 3 Filtech 1 Bagtech 1 Bagtech 1 Bagtech
Alternativ 1 tank
st
4 Oiltech 3 Bagtech - - - -
FIltration media 2nd tank - 4 Oiltech - 3 Filtech 4 Oiltech 3 Filtech
FIltration media 3rd tank - - - - - 4 Oiltech
15ENGINEERING
CUSTOM MADE INSTALLATIONS
Fixed installations on individual or centralized workstations
SIEBEC - Svs combines future and present, our expertise and our vacuuming technologies are increasingly used on fixed installations,
designed and manufactured using specifications provided by our customers.
Whether it be fixed installations on operative workstations or on automated machines with collection, filtration and individual or cen-
tralised draining of the materials being processed, our design office and our production teams always offer you the best solution with
your constraints in mind
ROLL'AIR : centralised collection of fine dust, chips and lubricant residue
Depending on the type of materials being used, we integrate ROLL'AIR or AIR'CLEAN technologies for centralised collection, filtration
and drainage. Whether it be fine dust from wood machining, or even toxic shavings like composite materials or even damp chips with
neat oil or emulsion residue.
Distributed aspiration stations, on machine tool and dumping directly into chips container
AIRCLEAN : particle aspiration, air treatment
1 Vacuuming on workstation 2 Centralised vacuuming 3 Vacuuming on machine
16SPECIFIC APPLICATIONS
EXPERTISES & RELIABILITY
Using miscellaneous vacuum technologies, SIEBEC-Svs has developed a whole range of equipment designed for specific industrial
uses. Whether for treating particular fluids, air, fine particles, oils, or solid particles, SIEBEC-Svs offers a dedicated answer.
Here are a few examples but please do not hesitate to contact us if your application is not featured here.
Industrial liquid servicing
Easy collection in a large container and fluid retail service. Can
be used for:
• Oils and lubricants
• Aqueous solutions
• Other industrial fluids (depending on characteristics)
Bar turning
Vacuuming, draining and filtration of neat oils with pre-separa-
tion of sludges in standard. shavings containers.
Direct or sequential collection in large
containers for bulk (GEOBOX or BIG-BAG)
Composite machining, collection of dust directly into the
GEOBOX Container to integrate into the treatment process of
existing waste.
Whether for direct vacuuming during machining of composites
or for sequential transfer of larges volumes of powder products,
SIEBEC-Svs offers a solution for collection with direct dumping
into an IBC (Intermediate Bulk Container). This device fully
integrates into an already existing waste treatment process
and enables a compliance with safety standards while making
logistics easier.
SIEBEC - Svs also means...
Tailor-made Engineering office 2 manufacturing sites Technical A team at
solutions dedicated to your project in France expertise your disposal
CONSULT US !
17SIEBEC WORLDWIDE
4 subsidiaries
3 production sites
45 distributors
PRODUCTION SITE
SUBSIDIARY
DISTRIBUTOR
SIEBEC - Svs SAS
SIEBEC GmbH
Auf der Langwies 8
65510 Hünstetten-Wallbach
Deutschland
Tel.: +49 6126 95 985-0
Fax: +49 6126 95 985-66
info@siebecgmbh.de
03/19
Picturess and data non contractualYou can also read
