INSTRUCTIONS FOR USE GUCCI DIVE AUTOMATIC WATCHES
INSTRUCTIONS FOR USE
     GUCCI DIVE
 AUTOMATIC WATCHES
INSTRUCTIONS FOR USE GUCCI DIVE AUTOMATIC WATCHES
2
INSTRUCTIONS FOR USE GUCCI DIVE AUTOMATIC WATCHES
INTERCHANGEABLE STRAP

The watches of the Gucci Dive collection are delivered with an additional
strap, featuring an interchangeable system and specific tool to facilitate
strap changes.

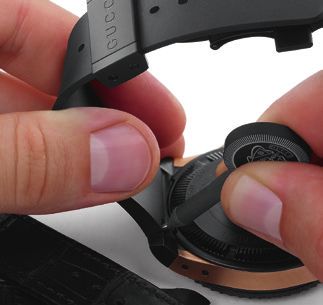

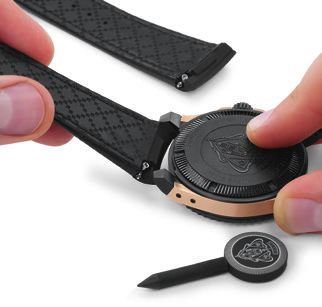

Illustration 1 and 2: removing the strap

                                 Place the watch flat, insert the point of the
                                 tool into the specific housing, and push
                                 inward.

                           1.

                                 Remove the strap from its housing, and
                                 then repeat the operation on the other
                                 part of the strap.

                           2.
                                     3
INSTRUCTIONS FOR USE GUCCI DIVE AUTOMATIC WATCHES

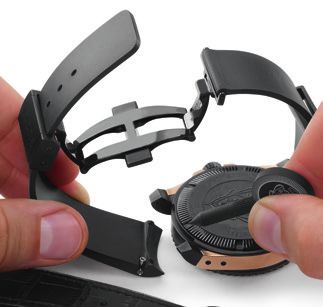

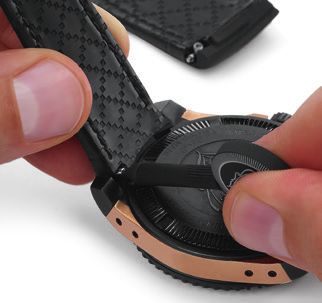

Illustration 3 and 4: fitting the strap

                                    Take one part of the new strap, and
                                    carefully position it as shown in image 3.

                             3.

                                    Insert the point of the tool into the specific
                                    housing, and push inward to slide the bar
                                    into its allocated position: then repeat the
                                    operation on the other part of the strap.
                                    Make sure that the strap is secured on both
                                    sides.
                             4.

Note: position the short part of the strap at 12 o'clock, and the long part
at 6 o'clock.

                                          4
INSTRUCTIONS FOR USE GUCCI DIVE AUTOMATIC WATCHES
WARRANTY

Gucci offers a 2 year international warranty for its timepieces, valid from
the date of purchase. The warranty is only valid if the warranty certificate
has been duly completed by the dealer upon purchase. The warranty
certificate must include the name or model number, the serial number, and
the date of purchase. The warranty covers any fault arising from defective
parts or a manufacturing flaw.
For any service or repair operation, your Gucci watch must only be
entrusted to one of our Gucci watch branch repair centers, as listed at the
end of this warranty booklet.
The Gucci watch branch reserves the right to repair or replace components
required for your watch to function correctly.

The warranty does not cover:
- damage or faults caused by an accident, inappropriate use or
   negligence
- damage caused by normal wear of the case, the strap and its buckle, the
   crown, the bezel or the crystal
- normal wear and ageing of any material
- use of the watch not in accordance with the general recommendations
   on the next page
- the watch, or one of its components, if it has undergone an operation by
   a third party other than a Gucci watch branch

                                     5
General recommendations
To ensure your watch provides complete satisfaction for many years to
come, please follow the instructions listed below:
- Avoid placing your watch near devices generating strong magnetic
   fields.
- Wherever possible avoid any impact that might damage your watch or
   affect its running.
- Avoid exposing your watch to extreme temperatures or temperature
   variations (solar radiation, halogen spotlight, etc.).
- Avoid direct contact with solvents, detergents, perfumes, mosquito
   repellent or any chemicals, since they may damage your watch’s
   components.
- The water resistance of your watch has been tested to at least a pressure
   of 30 bar, approximately corresponding to a depth of 300 meters.
   However, the absolute water resistance of a watch may not be
   permanently guaranteed. It may be affected by ageing of the gaskets,
   accidental impact on the crown or crystal and other external factors.
   We recommend having your watch’s water resistance tested by a Gucci
   watch branch repair center once a year.
- Never operate the crown when the watch is wet or underwater to
   prevent water penetrating into the case.
- Use soapy water and a soft brush for cleaning the rubber strap and the
   water resistant case. Rinse with clean water to eliminate washing residue.
   Never use cleaning agents. Wipe down with a soft cloth.

                                     6
-   Always rinse your watch in lukewarm water after use in a saline or
    chlorinated environment (sea water, swimming pool).
-   When changing the strap, make sure that the bar is correctly repositioned
    in its housing in order to ensure that the strap is secure.

                            Natural materials

Strap made from leather and other skins, straps made from natural
materials:
Since these materials are natural, be sure to protect your strap from
prolonged exposure to the sun and moisture, so as not to alter its shape
and color.
Avoid immersion situations such as wearing when swimming.
The characteristics of natural materials mean that their structure and
irregularities may be visible, which makes each piece unique and exclusive.

                       Protecting the environment

             Spent watch components must not be disposed of in the
             rubbish bin, but be recycled properly, in accordance with
             current national laws. We recommend in particular taking
             them back to your outlet.

                                      7
INSTRUCTIONS FOR USE

Instructions for watches with GP3300 Sowind Manufacture automatic
movement.

                         Display and functions

1 Hour                                  5 Screwed crown
2 Minute                                6 Power reserve
3 Date                                    indicator at 5 o'clock
4 Unidirectional rotating bezel         7 Small second at 9 o'clock

                                  8
Automatic watches draw their energy from an oscillating weight activated
by the natural movements of your wrist. This winds the watch.
The minimum power reserve is 46 hours. If the watch has stopped (e.g. if it
has not been worn for a long time or in case of limited activity), it must be
wound manually – unlock the screwed crown by turning it anti-clockwise to
position I, and rotate the crown a few times clockwise. Then press the crown
in while simultaneously turning it clockwise to screw it back into position 0.
Note: the accuracy of the time is influenced by how the watch is worn.
Normal running position: crown in position 0, screwed against the case.
Correcting the date: unscrew the crown and pull it out to position II. Turn it
clockwise until the desired date is displayed.
Push the crown back into position I and screw it back into position 0.
During this operation, your watch will keep running, so the time does not
need to be corrected.
Setting the watch time: unscrew and pull out the crown to position III, the
second hand will stop. Turn the crown clockwise or anti-clockwise to the
desired time.
Push the crown back into position I and screw it back into position 0.

After any setting, be sure to screw the crown carefully back into position 0
to keep your watch water resistant.

                                      9
Make sure that the date changes at midnight, and not at midday.
NB: do not correct the date between 8 p.m. and 2 a.m. because this may
damage the movement.

Screwed crown
Make sure that the crown is always pushed and screwed back into
position 0 (normal running position) once used, to prevent moisture or dust
penetrating into the case.
To do so, press the crown in against the case while turning clockwise to
return it to position 0.
Important: this operation is essential to ensure your watch's water resistance.

Unidirectional rotating bezel
The rotating bezel is used to measure dive times – or more precisely to
monitor them.
As a safety measure, the rotating bezel turns only one way.
Use – Measuring short time periods
Align the luminescent mark of the rotating bezel with the minute hand.
You will be able to read the elapsed time on the rotating bezel’s minute
graduation.

                                      10
Power reserve
The power reserve indicator shows the current winding status of the
timepiece.

Luminescent display
The hands, indexes and guide-mark on the rotating bezel are partly
covered with SuperLuminova ®, which charges up in a few seconds in light
for prolonged visibility in darkness.

Important note
Water resistant to 300 meters (30 ATM / 1000 feet), your Gucci Dive
collection watch meets standard ISO 6425 and Swiss watchmaking
standards NIHS 92-11 specific to diver watches.
However, your watch is not suitable for deep dives.
We recommend you avoid swimming with a leather strap, in order to
prevent accelerated wear.

                                  11
GUCCI WATCH BRANCH
                               REPAIR CENTER LIST

Australia                                        Italy
Gucci Timepieces & Jewellery                     GGW Italia Srl
Level 26, 201 Elizabeth Street                   Via Broletto 5
Sydney NSW 2000                                  20121 Milano
Tel:    +61 2 9282 4224                          Tel:    +39 02   88   005   794
Fax:    +61 2 9283 6093                          Tel:    +39 02   88   005   795
E-mail: ggwj.customerservice@au.gucci.com        Tel:    +39 02   88   005   796
                                                 Fax:    +39 02   88   005   783
China
Gucci Watches Marketing                          Japan
Consulting (Shanghai) Limited                    Luxury Timepieces Japan
Suite 1901-2, 19/F ECO City                      Palacio Tower 13F, 3-6-7 Kita-Aoyama
No. 1788 West Nanjing Road                       Minato-ku, Tokyo 107-0061
Shanghai 200040                                  Tel:    +81 3 5766 2030
Tel:    +8621 62183020 ext. 564                  Fax:    +81 3 5766 2033
Fax:    +8621 62181510
                                                 Spain
France                                           Luxury Timepieces España, S.L.
Gucci Group Watches France SAS                   Servico Post-Venta
103 Boulevard Haussmann, 2ème Etage              Avd. Burgos 19 – 5° dcha.
75008 Paris                                      28036 Madrid
Tel:    +33 1 53 43 31 41                        Tel:    +91 701 4005
Fax:    +33 1 40 07 10 63                        Fax:    +91 701 4001
E-mail: sav.montresggwf@fr.gucci.com
                                                 Switzerland
Hong Kong                                        Luxury Goods International (L.G.I.) SA,
Luxury Timepieces (HK) Ltd.                      Cortaillod Branch
Suite 2307-10, Tower One                         SAV Department
Times Square, Causeway Bay                       Chemin des Rochettes 2
Tel:    +852 2895 0728                           2016 Cortaillod
Fax:    +852 2576 9464                           Tel:     +41 32 732 00 00
                                                 Fax:     +41 32 732 00 10
                                                 E-mail: SAVRepairsTeamGGW@ch.gucci.com

                                            12
Taiwan R.O.C
Gucci Group Watches Taiwan Limited
31F, N° 99, Sec. 2, Dunhua S. Road
Taipei 106, Taiwan
Tel:    +886 2 7713 8900
Fax:    +886 2 7713 8918

United Kingdom
Gucci Group Watches
13/15 Hurlingham Business Park,
Sulivan Road
Fulham, London SW6 3DU
Tel:    +44 8456 77 78 79
Fax:    +44 8456 77 78 80
E-mail: ggwj.cs@uk.gucci.com

United States
GTS - Gucci Timepiece Service
50 Hartz Way
Secaucus NJ 07094
Tel:    +1 866 692 8244
Fax:    +1 201 348 5491
E-mail: servicecenter@us.gucci.com

                                     13
