I N T E R I O R S P E C I F I C AT I O N & M AT E R I A L
SELECTION
1 7 M A Y 2 0 2 1
CONTENTS - BATHROOMS WALL & FLOOR FINISHES - BATHROOM LIGHTING, CORNICE & SHOWER - BATHROOM ACCESSORIES & FITTINGS - ARCHITRAVES, SKIRTINGS, DOOR HANDLES - BEDROOMS FLOORS & FEATURE WALLS - BIC SPECIFICATIONS - KITCHEN FINISHES OPTION 1 - KITCHEN ELECTRICAL APPLIANCES, SINK & TAP - ELECTRICAL PLUGS & SWITCHES - BLUM KITCHEN INSERTS - LIVING ROOM FINISHES OPTION 1 - LIVING ROOM FEATURE WALLS - ALTERNATIVE FLOOR FINISH - KITCHEN FINISHES OPTION 2 - LIVING ROOM FINISHES OPTION 2 - DECK & FIREPLACE
B AT H R O O M S
1
FLOOR FINISH IN ALL BATHROOMS:
1 600 X 600MM MAZISTA SILVER GREY
PORCELAIN TILE
SHOWER FLOOR:
600 X 600MM MAZISTA SILVER GREY
PORCELAIN TILE TO FLUSH TILED
SLOPED FLOOR ON WATERPROOFING
WITH DRAIN AS SPECIFIED
WALL FINISHES:
600 X 600MM MAZISTA SILVER GREY 2
PORCELAIN TILE
FLOOR TO CEILING
2 WALL BEHIND WC & LOW BRICK WALL:
WHITE GLOSS SUBWAY TILES
EXPOSED BATH EDGES TO BE
CONCEALED WITH MTRIM SQUARE
EDGE TRIM.
EXTERNAL SIDES OF BATH:
600 X 600MM MAZISTA SILVER GREY
PORCELAIN TILE 3
EXPOSED BATH EDGES TO BE
3 CONCEALED WITH MTRIM SQUARE
EDGE TRIM CODE ASQE100/120.
3
2
1 3 BATHROOM WALL & FLOOR FINISHES
1
1 BATHROOM LIGHTING:
CEILING LIGHT AS PER CA SPEC.
COLOUR: BLACK Black
2 LED STRIP LIGHT BEHIND MIRROR
3 SHOWERS:
FRAMELESS GLASS SHOWER
SCREENS WITH FRAMELESS SWING
DOOR
2 3
4 BATHROOM CORNICE:
CS 20 SHADOWLINE
109 X 204MM
EX. CORNICE CEILINGS & DECO
4 1
2
CORNICE IN PASSAGE:
4
3
BATHROOM LIGHTING, CORNICE & SHOWER

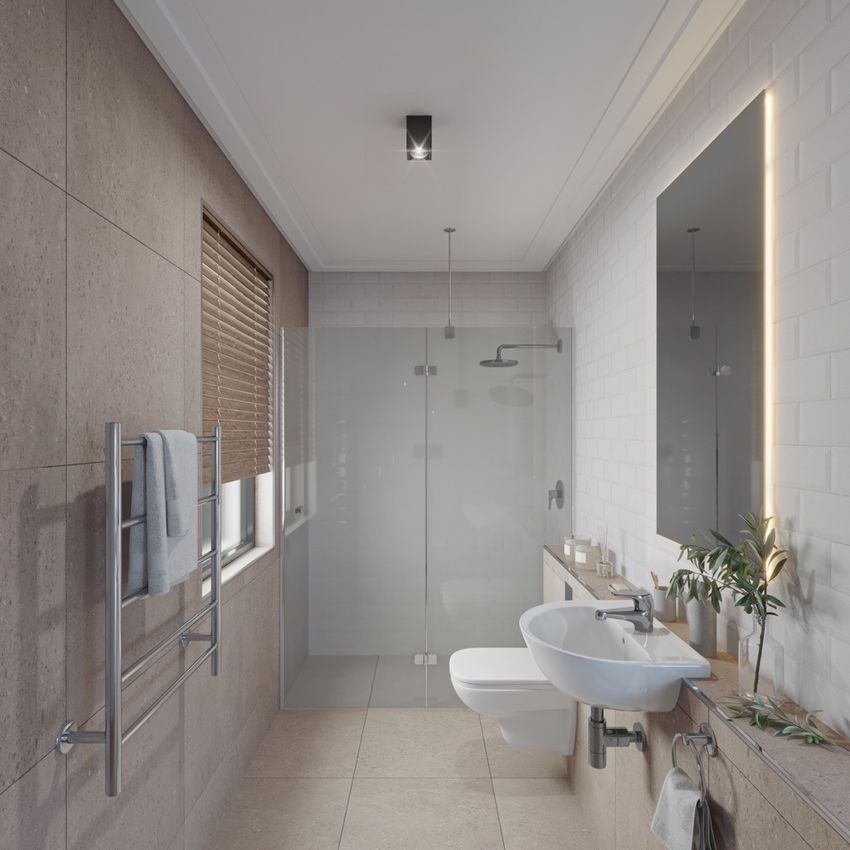

BATHROOM INSPIRATION IMAGE
17
17 Optional: Towel Warmer
Code: K-45130T-CP
Manufacturer: Kohler
ACCESSORIES & FITTINGS
ARCHITRAVES, SKIRTINGS, DOOR HANDLES
1 SKIRTINGS THROUGHOUT:
MDF MOISTURE RESISTANT ADJUSTABLE 1 2
PREFINISH WHITE
3
16MM THICK 150MM HIGH
EX. LEROY MERLIN
2 DOOR ARCHITRAVE THROUGHOUT:
MDF STYLE 4
PAINTED WHITE
18 X 70MM
EX. LEROY MERLIN
DOOR HANDLES THROUGHOUT :
3
OBORNE ON ROSE
STAINLESS STEEL
EX. GELMAR
RESIDENTIAL LOCK:
4
DANALOCK V3 – MOTORIZED
RESIDENTIAL LOCK
5 DANAPAD RESIDENTIAL LOCK
6 CORNICE THROUGHOUT :
CS 20 SHADOWLINE
4 5
109 X 204MM
EX. CORNICE CEILINGS & DECO
6
15mm
ARCHITRAVES, SKIRTINGS, DOOR HANDLES
BEDROOMS FLOORS & FEATURE WALLS
FLOOR FINISH IN ALL BEDROOMS:
1 VAN DYCK IDENTITY CARPET
COLOUR: DA VINCI 75
2 SKIRTINGS :
MDF MOISTURE RESISTANT ADJUSTABLE
PREFINISH WHITE
16MM THICK 150MM HIGH
EX. LEROY MERLIN
FEATURE WALL COLOURS
CAPPING STRIP BETWEEN FLOOR FINISHES: “GREIGE”
3 38MM ALUMINIUM CAPPING STRIP + BASE
EX. MTRIM
1 3
2
BEDROOMS FLOORS & FEATURE WALLSBUILT-IN CUPBOARDS SPECIFICATION
• SHOPFITTING SPECIFICATION: BIC
• CUPBOARD DOORS, DRAWER FACES & PLINTHS: PG BISON MELAWOOD TO APPROVED
SAMPLE. COLOUR: SUMMER OAK PEEN.
LUXURY OPTION:
• POWDER COATED SUPAWOOD DOORS, DRAWERS AND EXPOSED FACES
• SONAE NOVABOARD BRILLIANT WHITE WITH MELAMINE FACED CARCASS WITH 2MM THICK
IMPACT EDGE TO ALL EDGES
• INTERNAL SHELVES & CUPBOARD CARCASSES: WHITE MELAMINE FACED CHIPBOARD. SIZING
TO SUIT CUPBOARD FUNCTION AND IS TO BE THE RESPONSIBILITY OF THE SHOPFITTER.
INTERNAL SHELVES TO HAVE A MATCHING HIGH-IMPACT EGDE. SHELF THICKNESS TO SUIT SPAN
OF LOADED SHELVES.
• SHELVING LUGS TO ADJUSTABLE SHELVES: TO BE ‘M26 WH’ WHITE PLASTIC LUG WITH
STAINLESS STEEL PIN EX. ROCO (OEA). SHOPFITTER TO PROVIDE APERTURES @100MM CENTRES
FOR SHELVES.
• HINGES: TO BE GOOD QUALITY NON-CORROSIVE BLUM SELF-CLOSING TYPE, NOT TO BE VISIBLE
EXTERNALLY. SAMPLE TO BE PROVIDED FOR APPROVAL BY ARCHITECT PRIOR TO
MANUFACTURE/ ORDERING. HINGES TO BE OF SUITABLE STRENGTH AND NO.TO SUIT DOOR
WEIGHT & SIZE.
• HANDLES: TO BE 128MM LONG BRUSHED NICKLE LIP HANDLE EX. HANDLES INC. SHOPFITTER TO
SUPPLY SAMPLE FOR ARCHITECT’S APPROVAL PRIOR TO ORDERING.
• DRAWER SLIDES: TO BE GOOD QUALITY NON-CORROSIVE BLUM FULLY EXTENDABLE
TANDEMBOX DRAWER SLIDE TO SUIT SIZE OF DRAWER, NOT TO BE VISIBLE EXTERNALLY. TO BE
SOFT CLOSING DRAWER SYSTEM (BLUMOTION). SAMPLE TO BE PROVIDED FOR APPROVAL BY
ARCHITECT PRIOR TO MANUFACTURE/ ORDERING.
BUILT-IN CUPBOARDS SPECIFICATIONKITCHEN FINISHES OPTION 1
- High Level Timber Cupboards
- White Countertop
- Dark Grey Below Counter
Cupboards
KITCHEN INSPIRATION IMAGE: OPTION 1High Level Timber
Cupboards
White Countertop
Dark Grey Below Counter
Cupboards
KITCHEN INSPIRATION IMAGE: OPTION 1
FINISHES OPTION 11 HIGH LEVEL CUPBOARDS:
PG BISON MELAWOOD
5 COLOUR: SUMMER OAK PEEN
WITH 128MM BRUSHED NICKLE LIP
1 HANDLE
7 EX. HANDLES INC.
8 2 LED STRIP LIGHT
2 SPLASHBACK:
3 DOUGLAS JONES WHITE
CLASSIC 48MM X 48MM PORCELAIN
3
COUNTERTOP:
4 ENGINEERED STONE
COLOUR: WHITE
6 BELOW COUNTER CUPBOARDS:
5 DARK GREY DUCO SPRAYED
WITH 128MM BRUSHED NICKLE LIP
HANDLE
6 5 4 EX. HANDLES INC.
FLOOR FINISH: ENGINEERED TIMBER
COLOUR: GREY TIMBER
6 SKIRTING:
MDF MOISTURE RESISTANT
ADJUSTABLE PREFINISH WHITE
16MM THICK 150MM HIGH
1 2 EX. LEROY MERLIN
7
7 PENDANT LAMPS ABOVE DINNING
TABLE
CODE: 13276000305224
COLOUR: BLACK
MANUFACTURER: LEROY MERLIN
8 TRACK LIGHTS
3 4
8
FINISHES OPTION 1• SHOPFITTING SPECIFICATION: KITCHEN OPTION 1
• HIGH LEVEL CUPBOARD DOORS & DRAWER FACES: PG BISON MELAWOOD
TO APPROVED SAMPLE. COLOUR: SUMMER OAK PEEN.
• BELOW COUNTER CUPBOARD DOORS & DRAWER FACES: DUCO SPRAYED
SUPAWOOD TO APPROVED SAMPLE. COLOUR: DARK GREY.
• PLINTHS: CHIPBOARD WITH ALUMINIUM FACE
• INTERNAL SHELVES & CUPBOARD CARCASSES: WHITE MELAMINE FACED
CHIPBOARD. SIZING TO SUIT CUPBOARD FUNCTION AND IS TO BE THE
RESPONSIBILITY OF THE SHOPFITTER. INTERNAL SHELVES TO HAVE A
MATCHING HIGH-IMPACT EGDE. SHELF THICKNESS TO SUIT SPAN OF
LOADED SHELVES.
• SHELVING LUGS TO ADJUSTABLE SHELVES: TO BE ‘M26 WH’ WHITE PLASTIC
LUG WITH STAINLESS STEEL PIN EX. ROCO (OEA). SHOPFITTER TO PROVIDE
APERTURES @100MM CENTRES FOR SHELVES.
• HINGES: TO BE GOOD QUALITY NON-CORROSIVE BLUM SELF-CLOSING
TYPE, NOT TO BE VISIBLE EXTERNALLY. SAMPLE TO BE PROVIDED FOR
APPROVAL BY ARCHITECT PRIOR TO MANUFACTURE/ ORDERING. HINGES
TO BE OF SUITABLE STRENGTH AND NO.TO SUIT DOOR WEIGHT & SIZE.
• HANDLES: TO BE 128MM LONG BRUSHED NICKLE LIP HANDLE EX. HANDLES
INC. SHOPFITTER TO SUPPLY SAMPLE FOR ARCHITECT’S APPROVAL PRIOR
TO ORDERING.
• COUNTERTOP: TO BE 30MM THICK ENGINEERED STONE TO SUITABLE
SUBSTRATE BY SHOPFITTER. COLOUR: WHITE.
• DRAWER SLIDES: TO BE GOOD QUALITY NON-CORROSIVE BLUM FULLY
EXTENDABLE TANDEMBOX DRAWER SLIDE TO SUIT SIZE OF DRAWER, NOT TO
BE VISIBLE EXTERNALLY. TO BE SOFT CLOSING DRAWER SYSTEM
(BLUMOTION). SAMPLE TO BE PROVIDED FOR APPROVAL BY ARCHITECT
PRIOR TO MANUFACTURE/ ORDERING.
FINISHES OPTION 19 SINK:
12 KUBUS KBG ONYX EX. FRANKE
540X440MM
10 TAP:
CASCADDE PROFESSIONAL CHROME
EX. FRANKE
11 11 EXTRACTOR FAN:
SIEMENS IQ300 WALL MOUNTED 60CM
EXTRACTOR HOOD (LC66BHM50)
STOVE HOB & OVEN:
12 SIEMENS IQ100 (ET611HE17E) 60 CM CERAMIC
HOB & SIEMENS IQ300 (HB557JES0Z) S/STEEL
BUILT-IN OVEN
BUILT-IN FRIDGE/FREEZER:
13 IQ500 coolEFFICIENCY BUILT-IN FRIDGE
12 FREEZER, BOTTOM FREEZER COMBINATION
(*APARTMENT 301, 302, 401, 402 ONLY)
10
9
9 10 11 13
KITCHEN ELECTRICAL APPLIANCES, SINK & TAP1 2 3 1-6 SWITCHES & PLUGS
EMBEDDED MULTIPLUG 2X3 PIN - 2X 2PIN
7
MAJOR TECH PULL UP TOWER SILVER AND
BLACK
EX. LEROY MERLIN
8 POP UP BOX
AVAILABLE IN SINGLE OR DOUBLE
4 5 6 7 8
ELECTRICAL PLUGS & SWITCHESSPACE TOWER
BLUM KITCHEN INSERTS1 Wine Rack/ Bookshelf:
Pg Bison Melawood
Colour: Summer Oak Peen
6
1
2 Led Strip Light above TV
2 TV surround:
1 3
White Duco Sprayed
4
Cupboards & drawers:
4
Dark Grey Duco Sprayed
3 With 128mm Brushed Nickle Lip
Handle
Ex. Handles Inc.
Floor Finish:
5 Engineered Timber
Colour: Timber Grey
6 Track Lights
5
1 2 4 5
6
FINISHES OPTION 1
MODERN COASTAL LIVING, LIVING ROOMFEATURE WALL CLADDING: 1
1
SLATE NATURAL STONE CLADDING
EX. ITALTILE
2 600 X 600MM MAZISTA SILVER GREY
PORCELAIN TILE
2
1
1
2
LIVING ROOM FEATURE WALLSALTERNATIVE FLOOR FINISH :
1 600 X 600MM MAZISTA SILVER GREY
PORCELAIN TILE
2 150MM HIGH TILED SKIRTINGS:
600 X 600MM MAZISTA SILVER GREY
PORCELAIN TILE
ALL EXPOSED BATH EDGES TO BE
CONCEALED WITH MTRIM ALUMINIUM
STRAIGHT EDGE TRIM.
1 2
ALTERNATIVE FLOOR FINISH THROUGHOUT1 CUPBOARDS:
5 PG BISON MELAWOOD
1 COLOUR: AMERICAN WALNUT FUSION
NO HANDLES
2 SPLASHBACK:
6 WHITE GLOSS SUBWAY TILES
3 COUNTERTOP:
ENGINEERED STONE
2 COLOUR: DARK GREY
4 FLOOR FINISH:
ENGINEERED TIMBER
COLOUR: TIMBER GREY
5 SUSPENDENDED FLUORESCENT PENDANT
LINEAR MINI EX. REGENT
1200MM
6 LED STRIP LIGHT
3
4
1 2 3 4
5
FINISHES OPTION 2• SHOPFITTING SPECIFICATION: KITCHEN OPTION 2
• CUPBOARD DOORS & DRAWER FACES: PG BISON MELAWOOD TO
APPROVED SAMPLE. COLOUR: AMERICAN WALNUT FUSION.
• PLINTHS: CHIPBOARD WITH ALUMINIUM FACE
• INTERNAL SHELVES & CUPBOARD CARCASSES: WHITE MELAMINE FACED
CHIPBOARD. SIZING TO SUIT CUPBOARD FUNCTION AND IS TO BE THE
RESPONSIBILITY OF THE SHOPFITTER. INTERNAL SHELVES TO HAVE A
MATCHING HIGH-IMPACT EGDE. SHELF THICKNESS TO SUIT SPAN OF
LOADED SHELVES.
• SHELVING LUGS TO ADJUSTABLE SHELVES: TO BE ‘M26 WH’ WHITE PLASTIC
LUG WITH STAINLESS STEEL PIN EX. ROCO (OEA). SHOPFITTER TO PROVIDE
APERTURES @100MM CENTRES FOR SHELVES.
• HINGES: TO BE GOOD QUALITY NON-CORROSIVE BLUM SELF-CLOSING
TYPE, NOT TO BE VISIBLE EXTERNALLY. SAMPLE TO BE PROVIDED FOR
APPROVAL BY ARCHITECT PRIOR TO MANUFACTURE/ ORDERING. HINGES
TO BE OF SUITABLE STRENGTH AND NO.TO SUIT DOOR WEIGHT & SIZE.
• HANDLES: NO HANDLES. TO BE PUSH OPEN BLUM MECHANISM.
• COUNTERTOP: TO BE 30MM THICK ENGINEERED STONE TO SUITABLE
SUBSTRATE BY SHOPFITTER. COLOUR: DARK GREY
• DRAWER SLIDES: TO BE GOOD QUALITY NON-CORROSIVE BLUM FULLY
EXTENDABLE TANDEMBOX DRAWER SLIDE TO SUIT SIZE OF DRAWER, NOT TO
BE VISIBLE EXTERNALLY. TO BE SOFT CLOSING DRAWER SYSTEM
(BLUMOTION). SAMPLE TO BE PROVIDED FOR APPROVAL BY ARCHITECT
PRIOR TO MANUFACTURE/ ORDERING.
FINISHES OPTION 21 Drawers & Wine Rack:
Dark Grey Duco Sprayed
With 128mm Brushed Nickle Lip
6 Handle
1
2 Led Strip Light above TV
2
1
3 TV surround:
White Duco Sprayed
4
Pg Bison Melawood
4
Colour: American Walnut
3 Fusion
No Handles
5 Floor Finish:
Engineered Timber
Colour: Timber Grey
Suspended Fluorescent
Pendant
5 6 Linear Mini Ex. Regent
1200mm
1 2 4 5
6
FINISHES OPTION 2
MODERN COASTAL LIVING, LIVING ROOM600 X 600MM MAZISTA SILVER GREY
1
PORCELAIN TILE
2
2 SLATE NATURAL STONE CLADDING
EX. ITALTILE
3 800 DELUXE BUILT-IN BRAAI
304 STAINLESS STEEL
MANUFACTURER: HOMEFIRES
3 DIMS: 880 X 890 X 455MM
4 MODEL 9903 GAS GRILLER FLAT TOP BRAAI
304 STAINLESS STEEL
MANUFACTURER: HOMEFIRES
DIMS: 550 X 222 X 550MM
HYDROFIRE K7 ORLEANS
5
304 STAINLESS STEEL
MANUFACTURER: HOMEFIRES
1 DIMS: 691 X 425 X 526MM
1 2 3 4 5
STAINLESS STEEL OPTION
DECK & FIREPLACEYou can also read
