Laboratory Gas Sensor Solutions - Analox
Laboratory Gas Sensor Solutions
                    Your lab, your safety, OUR priority

Sensor Technology
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

                                                 O2NE
                                                            O2 depletion
                                                              monitor

What?
The O2NE+ is a simple to use and maintain ambient oxygen depletion monitor comprising
of a wall mounted main sensor unit and a repeater. It is ranged from 0 to 25% and
has 2 low audio/visual alarms. The sensor has a very long life and calibration is only
required every 18 months and can be achieved using certified air.

                                                    Why?
                                                    Any laboratory using inert gases such

        Key features                                as argon, nitrogen or helium as carrier
                                                    gases or in cryogenics need to

     Simple calibration
                                                    consider the O2NE+ this unique
                                                    oxygen depletion monitor will help you
                                                    comply with applicable legislation for
     Long life O2 sensor                            your laboratory.

    No risk of accidental
         calibration                                Where?
Suitable for use with helium                        The O2NE+ is usually situated in

   Minimal maintenance                              Laboratories that are using multiple
                                                    gases to ensure that oxygen levels do

     Repeater included
                                                    not deteriorate to an unsafe level.

       Plug and play
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

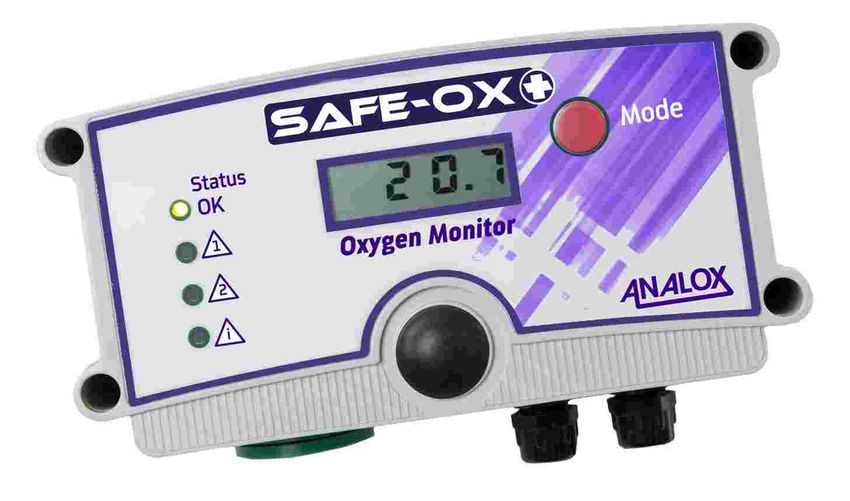

                                                 safe-ox
                                                            Oxygen
                                                         enrichment &
                                                           depletion
                                                            monitor

What?
The Safe-Ox+ is a simple to use and maintain ambient oxygen enrichment and depletion
monitor comprising of a wall mounted main sensor unit and a repeater. It is ranged
from 0 to 25% and has 1 low and 1 high audio/visual alarm. The sensor has a very
long life and calibration is only required every 18 months and can be achieved using
certified air.

                                                   Why?
                                                   Laboratories that store and operate
                                                   with high levels of O2 need to detect
         Key features                              and monitor the levels of oxygen,
                                                   should there be a leak of enriched O2
       Simple calibration                          this could prove to be a fire risk. The
                                                   Safe-Ox+ provides a high O2 alarm
       Long life O2 sensor                         ideal if you are using pure oxygen in

      Minimal maintenance                          your lab to protect you from O2
                                                   enrichment.
         Plug and play
       Repeater included                           Where?
      No risk of accidental                        The Safe-Ox+ can be wall mounted
                                                   at head height in the gas storage room
           calibration                             or where the enriched O2 is piped.

        Suitable for use
                                                   The unit comes with one repeater as
                                                   standard which is located at the

           with helium                             entrance to the room.
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

                                                       A50
                                                        Wall mounted
                                                         CO2 safety
                                                          monitor

What?
The A50 is a simple to use and maintain ambient CO2 monitor comprising of a wall
mounted main sensor unit and a repeater. It is typically ranged from 0 to 5% and
has 2 audio/visual alarms. The sensor has a 15 year warranty and the unit is almost
zero maintenance and is ready to be installed out of the box. Optional relays and
4-20mA output are ideal for integration into a larger system.

                                                     Why?
        Key features                                 Just a small leak of pressurised CO2
                                                     into a confined space could pose a
   15 year sensor warranty                           lethal threat to personnel. This low
                                                     cost leak detection monitor could
         Plug & play                                 prove life saving.

      Low maintenance
      Optional O2 sensor                             Where?
    Supplied with repeater                           The A50 main sensor unit is wall
         as standard                                 mounted at 450mm in the area where
                                                     a threat is risk assessed. A repeater
                                                     (or mimic) is cited at the entrance to
                                                     warn of any danger before entering.
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

                                                     AX60Carbon dioxide
                                                            detector

What?
The AX60 is a wall mountable CO2 detector. It allows multiple placement of repeater
and sensor units which are connected to the main display unit. The repeater unit not
only has an audible alarm it also includes a high intensity LED strobe light - perfect
for warning of danger in noisy environments.

                                                    Why?
                                                    CO2 is a highly toxic gas in relatively
                                                    small quantities.
         Key features                               The AX60 is an effective multi-point
                                                    CO2 detector ensuring safety for
                                                    everyone in the laboratory.
          Multipoint
     monitoring system
 Up to 4 areas of monitoring
       Easy installation
                                                    Where?
                                                    The sensor unit is to be wall mounted
      Low maintenance                               in the area highlighted as a risk. The

   5 year sensor warranty
                                                    AX60 can then have multiple repeaters
                                                    attached to the main display unit
       Highly accurate                              ensuring the warning of potential
                                                    dangers is highlighted to everyone.
         PPM display
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

                                                    3000SI
                                                           Range of
                                                          IS sensors

What?
The 3000SI range offers a comprehensive offering of robustly housed Zone 0 rated
analogue sensors ideal for integration into a breathing air compressor or system.

The 3000SI range includes (but is not limited to) CO, O2, VOC, He, NH3, Br2, NO2,
H2, SO2, O3, HCN, F2, ClO2, H2S & Cl2 all providing a 4-20mA output.

                                                    Why?
                                                    Analox realise that not all customer’s

        Key features                                require a complete monitoring solution
                                                    and prefer to integrate sensors into
     Safe: Certified to Ga                          their own system. The 3000SI range
                                                    is ideal for this requirement if analogue
  Ex ia IIC T4 (before March                        inputs are required.

      2008 EEx ia IIC T4)
   for use in Zone 0 Areas                          Where?
    Durable: Sensor body                            The 3000SI range is small enough to
                                                    be integrated almost anywhere in your
   manufactured from 316                            Laboratory breathing air system. Each
                                                    of the housing has a gas port and using
        stainless steel                             a simple flow adapter they can easily
                                                    be installed in series in the gas path.
     Easy sensor change                             They are also sometimes used on the
                                                    inlet to the compressor, particularly
       Simple to install                            where H2S & NH3 are a concern. With
                                                    a Zone 0 rating they can be used in
                                                    almost any environment and are
                                                    commonly used on platforms, chemical
                                                    plants or integrated into vapour
                                                    emission systems.
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

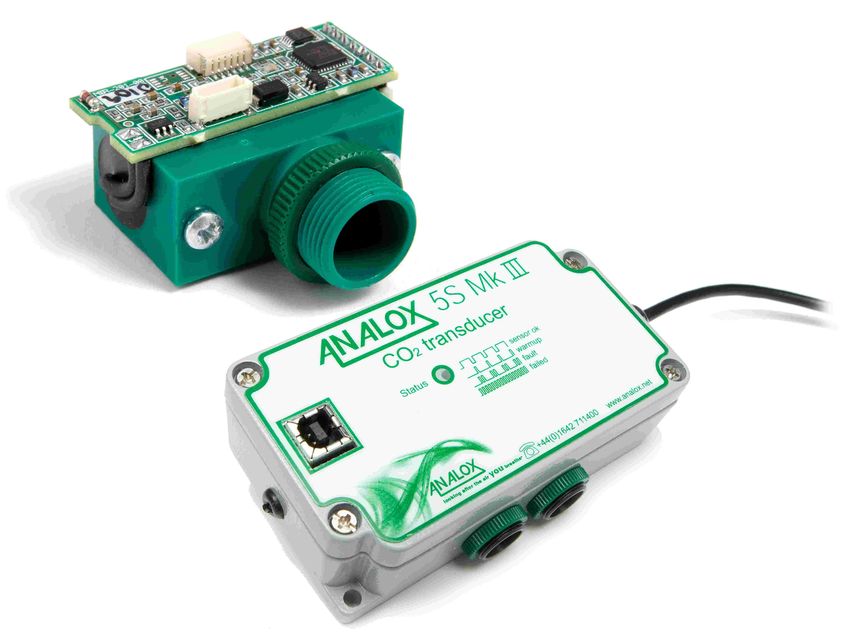

                                                    MIR
                                                   5S3
                                                        CO2 detection

What?
The MIR and 5S3 dual beam IR CO2 sensors are OEM sensors which are ideal for
integration into CO2 incubators or other gas cabinets.

The 5S3 is supplied in an aluminium enclosure, has a 5 wire connection and can offer
4-20mA or 0-2V output. The MIR sensor has a digital output and is temperature &
pressure compensated. Both sensors are available in a variety of ranges.

                                                  Why?
                                                  Both sensors would be used in
                                                  laboratory incubators or hospitals
        Key features                              environments to ensure process gases
                                                  are maintained and monitored at all
          Low power                               times.

         consumption
       Variety of ranges                          Where?
     Analogue output (5S3)                        The 5S3 and MIR sensors are used
                                                  in cell culture incubators to help aid
     Long life expectancy                         the cell cultivation process and tissue
                                                  culture storage. This is to ensure the
        Digital outputs                           process gas is monitored and
                                                  maintained for the procedure required.
         Temperature                              E.g replicating the human body for cell
        compensated                               cultivation
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

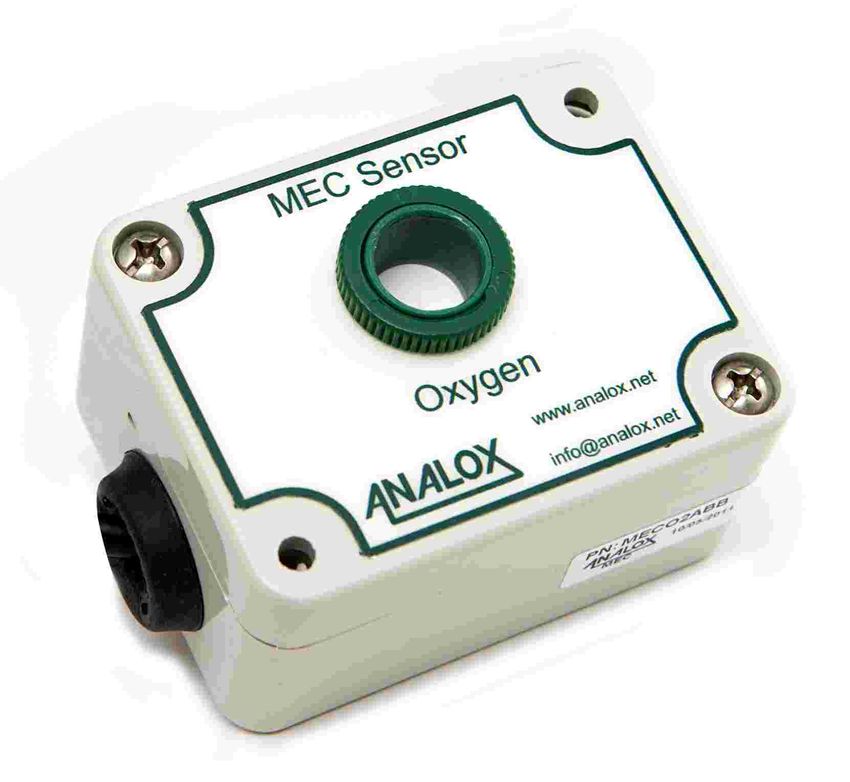

                                                           MEC
                                                            Range of
                                                           OEM sensors
                                                            with digital
                                                              output

What?
The MEC range offers a comprehensive assortment of robustly housed, user maintainable,
digital sensors ideal for integration into your system.

The MEC range includes (but is not limited to) CO, O2, VOC, He, NH3, Br2, NO2, H2,
SO2, O3, HCN, F2, ClO2, H2S & Cl2 all providing an RS485 output using Analox protocol.

                                                    Why?
                                                    Analox realise that not all customer’s
         Key features                               require a complete monitoring solution
                                                    and prefer to integrate sensors into
                                                    their own system. The MEC range is
        Field replaceable                           ideal for this requirement if digital inputs
                                                    are required.
         Highly accurate
            Versatile                               Where?
      Long life expectancy                          The MEC range is small enough to be
                                                    integrated almost anywhere in your
          Digital output                            system. Each housing has a gas port
                                                    and using a simple flow adapter they
       Compact enclosure                            can easily be installed in series in the
                                                    gas path.
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

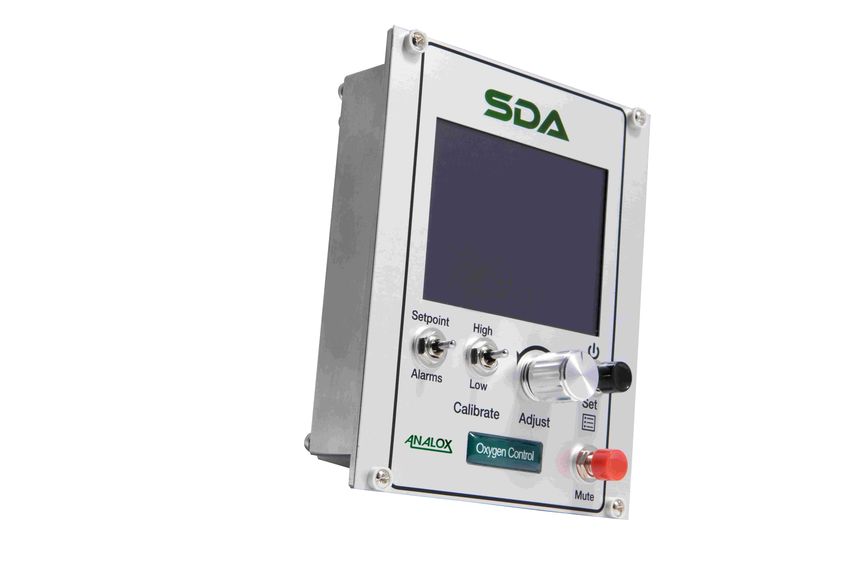

                                                              O2
                                                        Rack mountable
                                                         trace oxygen
                                                            monitor

What?
The SDA O2 uses a modern panel or rack mountable monitor connected to a state of
the art digital electrochemical oxygen sensor to provide accurate trace oxygen reading.

                                                    Why?
                                                    The SDA O2 is suitable for many trace
           Key features                             oxygen laboratory applications
                                                    including:-
        Highly accurate trace O2
         readings (+/- 350ppm                       • Chemical processing
                                                    • Glass manufacture
          O2 +/- 1% of reading)                     • Glove box monitoring
        0.01% display resolution                    • Metallurgy
        Fully user maintainable                     • Pharmaceutical manufacturing and
                                                      testing
 Intuitive easy to calibrate by the user            • Food production and packaging
         Calibration and sensor
              change flags
  2 audio/visual, adjustable alarms
                                                    Where?
     Optional relays, data logging                  The SDA O2 can be easily rack or
                                                    panel mounted in a laboratory. The
          and 4-20mA outputs                        sensor can be mounted on the rear of
                                                    the monitor or can be used remotely.
Laboratory Gas Sensor Solutions - Analox
Your lab, your safety, OUR priority

                                                  101D2  Portable trace
                                                        oxygen monitor

What?
The 101D2 is an economical table top, portable monitor connected to an electrochemical
oxygen sensor to provide accurate trace oxygen reading.

           Key features
                                                    Why?
                                                    The 101D2 can be used for a variety
        Highly accurate trace O2                    of trace oxygen requirements in a
                                                    laboratory but has the added benefit
      readings (+/-1% of reading                    of being portable and battery powered.
    1 month continuous use battery
                    life
    Dual resolution 0.00% to 19.99%
          and 00.0% to 100.0%
                                                    Where?
        Fully user maintainable                     The 101D2 trace oxygen monitor can
                                                    be used almost anywhere in a
    Intuitive easy to calibrate by the              laboratory due to it’s small size,

            user - even in air
                                                    generous sensor lead and long
                                                    battery life.
           2 audio and visual,
            adjustable alarms
Your lab, your safety, OUR priority

                                                      Aspida
                                                       Personal, portable
                                                       CO2 and O2 safety
                                                            monitor

What?
The Aspida is a robust, high specification personal monitor which can be worn on a
belt or even wall mounted as a back up to a primary CO2 or O2 safety system. Offering
audio/visual alarms, datalogging and a man down alarm for loan lab workers it is an
ideal solution to protect staff from the dangers of a leak of carbon dioxide, enriched
oxygen or an inert gas.
The Aspida is available as a stand alone CO2 or O2 monitor or as a dual CO2/O2
monitor ideal where a combination of CO2, O2 and inert gases are used.

                                               Why?
        Key features                           Standards such as EH40 in Europe mandate
                                               that employee are not exposed to potentially
                                               dangerous levels of CO2 as it is a highly toxic
     Available in O2, CO2                      gas in relatively small quantities. The Aspida
                                               is an affordable, easy to operate CO2 monitor
        or dual gases                          and is ideal for ensuring personal safety in
                                               the areas of a laboratory where the gas is
      Man down alarm                           piped or stored.
                                               The same standards also require that
        Data logging                           consideration is given to asphyxiating dangers
                                               so where inert gases such as nitrogen, argon
   Time weighted average                       or helium are used then a portable, personal
                                               monitor may be appropriate following a risk
    Dual battery flexibility                   assessment.

      Vibration & 95DB
            alarm                              Where?
                                               The Aspida is usually worn on the belt of the
                                               user but can also be wall mounted as a back
                                               up to a primary fixed gas detection system.
Your lab, your safety, OUR priority

                                                    FGD3    Flammable
                                                           gas detector

What?
The FGD3 flammable gas detector uses 'pellistor' technology to detect a wide range
of hydrocarbons, fuel gases and hydrogen. The sensor can be set to detect either
methane or general hydrocarbons. Pellistor sensors can be fitted to detect hydrocarbons
over the range 0 to 100% Lower Explosive Limit (LEL) or 0 to 100% Volume gas. The
detectors use the industry standard 4-20mA current loop to convey the gas levels
detected to a control unit such as the LC Commercial.

                                                    Why?
                                                    Methane, butane and propane are
                                                    commonly used in laboratories (such
         Key features                               as use with bunsen burners) and are
                                                    highly flammable. The installation of
                                                    a simple detector such as the FGD3
        4-20mA output                               is an ideal safety solution for your
                                                    laboratory.
       Easy to maintain
       Highly accurate                              Where?
     Perfect for multipoint                         The FGD3 is simply wall mounted in
                                                    the room or area where the flammable
          monitoring                                gas is stored or piped. It then provides
                                                    a signal to the laboratory’s building
            Robust                                  management system or to the LC
                                                    Commercial panel.
        Digital display                             The FGD3 is even suitable for Zone
                                                    1 or Zone 2 areas. A ducting or wall
                                                    mounting kit can be provided as an
                                                    option where required.
Your lab, your safety, OUR priority

                                                                  LC
                                                      Commercial
                                                              1, 2, 4 or 8
                                                             Channel gas
                                                             control panel

What?
The LC Commercial series comprises one, two and four channel mains-powered
monitoring and control units for use with the various ranges gas detector heads such
as the FGD3 and 3000SI. The front panel houses a graphical display with associated
keypad that shows simultaneously the current reading, sensor type and status (i.e.
Alarm, Fault) for each channel and, by use of the menu system, can be used to program
various operational features such as the alarm levels and relay operating modes. This
is ideal for laboratories which use a variety of gases or have multiple points to monitor.

                                                      Why?
                                                      Many lab gases pose safety risks such

         Key features                                 as the examples below:-
                                                      Fire Risk: methane, butane and propane.

      2 relays per channel
                                                      Asphyxiation Risk: nitrogen, liquid
                                                      nitrogen, argon and helium.

            IP65 rated                                Toxic Hazard: carbon dioxide, carbon
                                                      monoxide and many others.

          Easy to install                             The installation of gas detection such
                                                      as the 3000SI series is commonplace
      4-20mA per channel                              and where the sensors are not fed into
                                                      a building management system a local

      Available in 1,2,4 or 8                         display and control panel such as the
                                                      LC Commercial is ideal.
             channels
         Graphic display                              Where?
                                                      The LC Commercial control panel can
                                                      be housed in the laboratory or in a
                                                      central control area. It is easily wall
                                                      mounted and simple to operate.
worldwide distributors needed for
LABORATORY GAS SENSOR SOLUTIONS
With a growing need and interest from the laboratory market,
Analox have designed and developed a wide range of
custom gas monitoring solution products. With distributors
stretching all around the world from South Africa, USA,
Australia and Europe, Analox laboratory products are
becoming a globally recognised brand.

Analox are looking to expand and develop their extensive
distribution network through the recruitment of global
distributors.

If you have experience selling into the laboratory market
and are looking to expand this venture through the addition
of a global brand to your brand portfolio, contact a member
of the Analox new business development team today:
sales@analox.net

                                                       UK Global HQ : +44 (0) 1642 711400   US Office : +1 (714) 891 4478

                                                        sales@analox.net            analoxsensortechnology.com
You can also read
