MEET THE
NEXT GENERATION
CAT MINI EXCAVATORS
®
DESIGNED WITH
YOU IN MIND
WHAT THE GENERATION
CUSTOMERS OF EXCELLENCE
ASKED FOR TO DO YOUR BEST WORK, YOU NEED A
COMFORTABLE MACHINE YOU CAN RELY ON.
THE NEXT GENERATION MINI EXCAVATORS
CUSTOMERS ASKED US TO
REWRITE THE RULES WHEN IT WERE DESIGNED WITH YOU IN MIND.
CAME TO DESIGNING THE NEW The high-performance machines are not only affordable,
MINI EXCAVATOR RANGE. but they boast improved servicing, comfort and control.
THEY TOLD US:
• I need even more performance –
I want to choose machines which provide maximum
performance, particularly with attachments
• I want a better experience as an operator – COMFORT AND CONTROL HIGH PERFORMANCE
I want a more comfortable, better-connected
Putting the control in your hands, Stick Steer and Multifunctional and versatile, the new mini excavator
place to work
cruise control makes positioning and travelling in models are best in their class for productivity and
• I want the best owning and operating costs – y our excavator easier. You can choose to start the performance.
I want to reduce fuel, service and maintenance costs machine with the push of a button thanks to an
You can customize monitor settings to suit the task in
optional Bluetooth-enabled key.
hand with adjustable operator and attachment settings.
The 1-2 ton Next Generation models deliver up to 20%
AFFORDABLE more performance compared to the competition, and
The Next Generation Mini Excavators offer lower the 6-10 ton Next Generation models deliver up to
owning and operating costs. Now you can spend 20% more performance compared to previous models.
less time and money on servicing, repairs and fuel.
WHAT WE DELIVERED The steel panel design is durable and parts are
competitively priced, making this new range an
investment in both quality and efficiency.

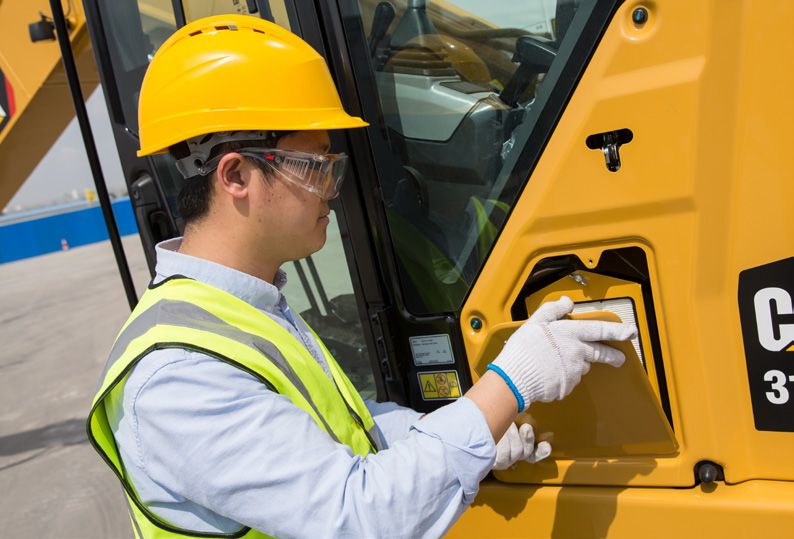

NO-HASSLE SERVICING
Servicing and repairs are easy thanks to improved
access, so your servicing time is reduced. Longer service
intervals mean less downtime and more productive
hours on site. Let's Do The Work.™
“HANDS DOWN
A MUCH BETTER
MACHINE.”
INSPIRED BY MIKE – FLEET MANAGER
FOR F&H CONTRACTORS
2 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 3

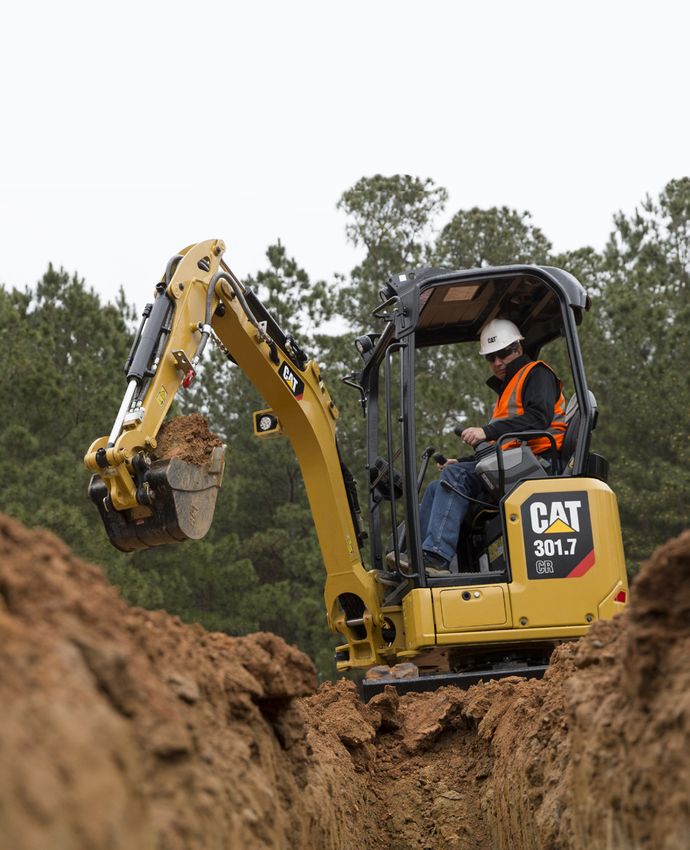

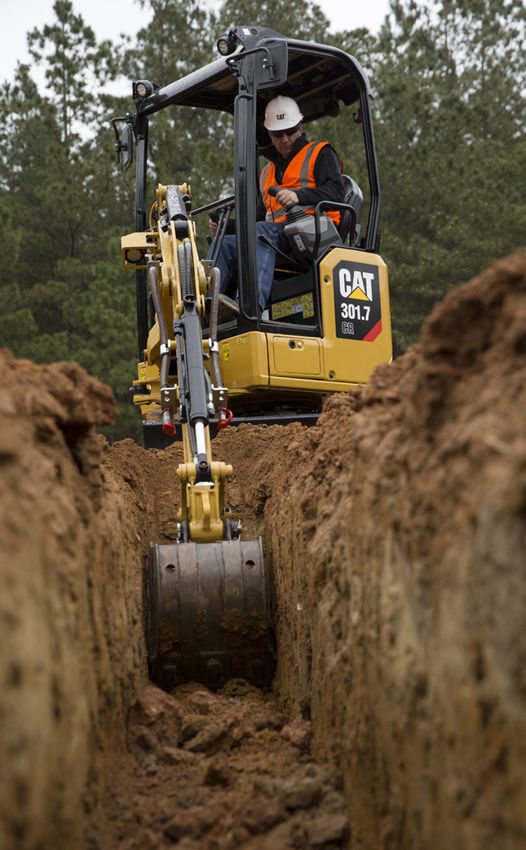

1-2 TON LINEUP 301.7 CR
• Gross power 21.6 hp / 16.1 kW
WORKING IN SMALL SPACES HAS NEVER BEEN SO EASY –
OR SO COMFORTABLE. CHOOSE FROM FOUR NEW MODELS • Track width 39 in / 990 mm retracted
51 in / 1,300 mm expanded
WITH INDUSTRY-FIRST FEATURES THAT YOU’LL ONLY FIND
IN A CAT® MINI EXCAVATOR. • Operating weight † 4,222 lb / 1,915 kg (canopy)
• Max. dig depth 100 in / 2,540 mm
(long stick)
SAVE TIME AND MONEY The 1-2 ton models come with:
The total ownership cost of these new models is • Stick Steer for comfortable control
up to 15% less than previous models. • LCD monitor with the option of Bluetooth radio
Compact Radius
The canopies and cabs tilt up on these models, making • Air conditioning option on cab models
it easier, quicker and cheaper to service the machines. • Cruise control for reduced operator fatigue.
301.8

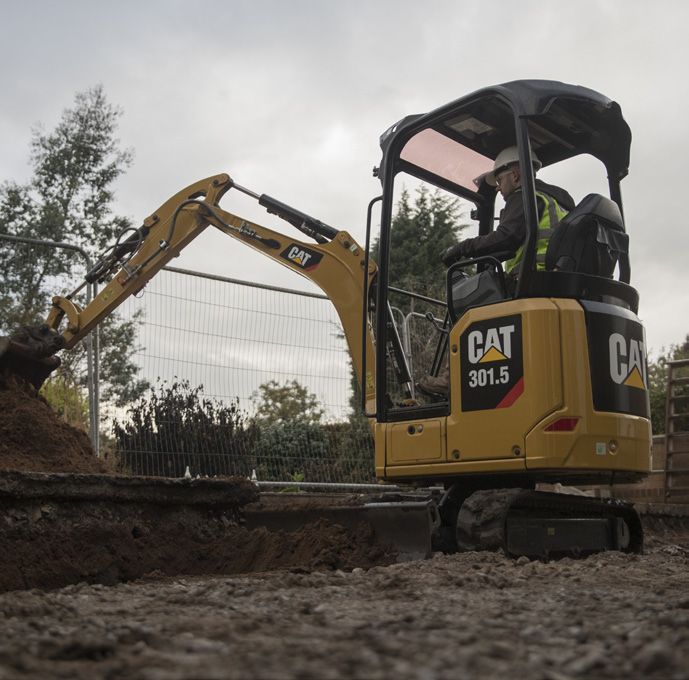

301.5 • Gross power 21.6 hp / 16.1 kW
• Gross power 21.6 hp / 16.1 kW • Track width 39 in / 990 mm retracted
51 in / 1,300 mm expanded
• Track width 39 in /990 mm retracted –51 in / 1,300 mm expanded
• Operating weight † 4,200 lb / 1,905 kg (canopy)
• Operating weight 3,911 lb / 1,774 kg (canopy)
†
4,473 lb / 2,029 kg (cab)
• Max. dig depth 100 in / 2,540 mm (long stick) • Max. dig depth 101 in / 2,570 mm
(long stick)
Standard tail swing Standard tail swing

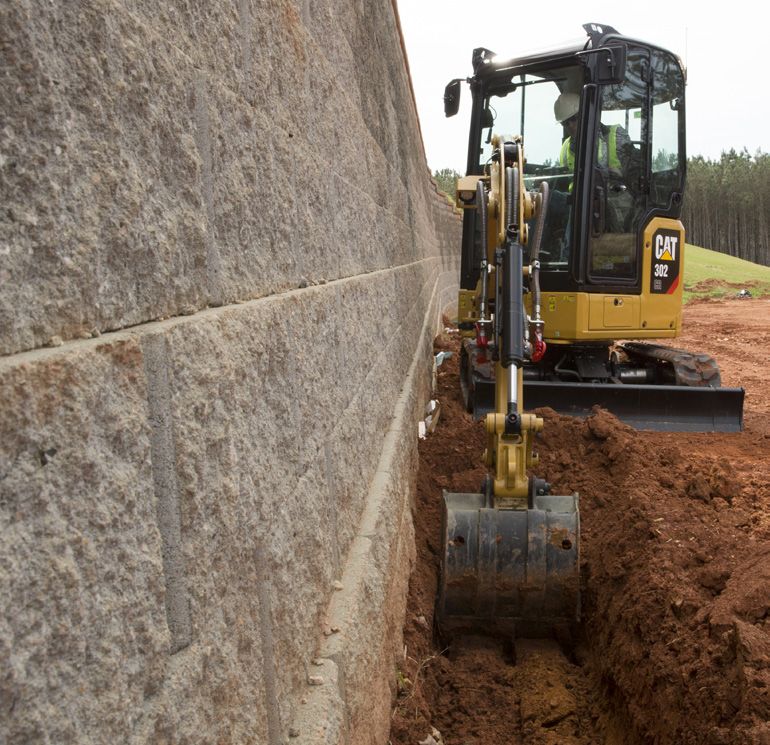

302 CR
• Gross power 21.6 hp / 16.1 kW
• Track width 43 in / 1,090 mm retracted
55 in / 1,400 mm expanded
• Operating weight † 4,588 lb / 2,081 kg (canopy)
4,894 lb / 2,220 kg (cab)
• Max. dig depth 101 in / 2,570 mm
(long stick)
Compact Radius
† Operating weights based on most common configuration, excludes bucket.
4 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 5
NEXT GEN FEATURES
STICK CRUISE
STEER CONTROL
Stick Steer makes long days easier Travel in comfort when you choose cruise
and so much more comfortable. control mode.
POWER IN YOUR HANDS TRAVEL IN STYLE
Moving around the job site is even You can set the cruise control by pressing
easier with the Cat Stick option. a trigger underneath the joystick –
Easily switch from traditional travel perfect for moving the machine across
controls with levers and pedals to a large open site. You no longer have
joystick controls with a push of a to put up with backache at the end of
button. You can control the machine the day from hunching over levers.
just like a skid steer loader using the
left-hand joystick. With the right-hand
joystick you can control the dozer
blade, or the boom and stick function.

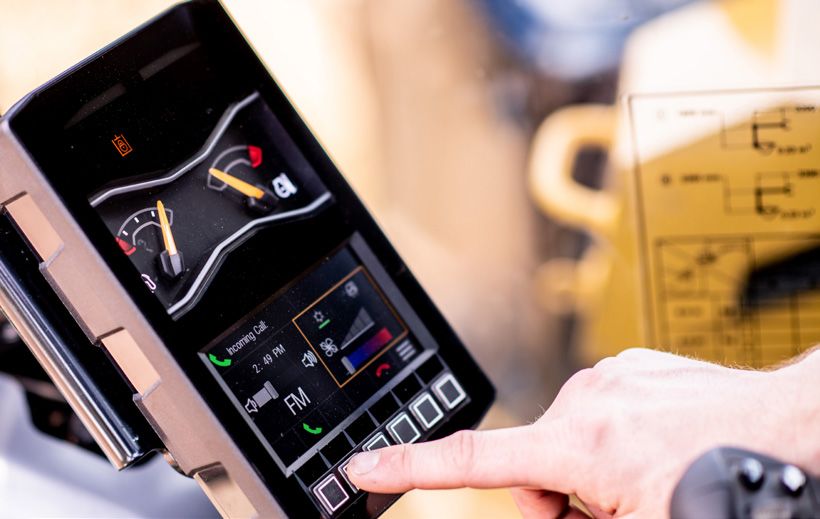

LCD
AIR MONITOR
CONDITIONING Customize your settings, receive calls and
stream music all in one place.
Work in luxury through the long, hot days when you
choose the option of cool, clean air conditioner. TOTAL CONTROL
Adjust your settings, such as hydraulic
STAY COOL speed, to suit the task at hand. You can also
receive calls through the monitor and adjust
You can control the air conditioner and the heating
the temperature in the cab. The option of
through the LCD monitor to make sure your cab stays
Bluetooth means you can turn up the radio
at a temperature to suit you. The sealed, pressurized
or stream your own playlists.
cab design keeps dust out and clean air in.
6 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 7

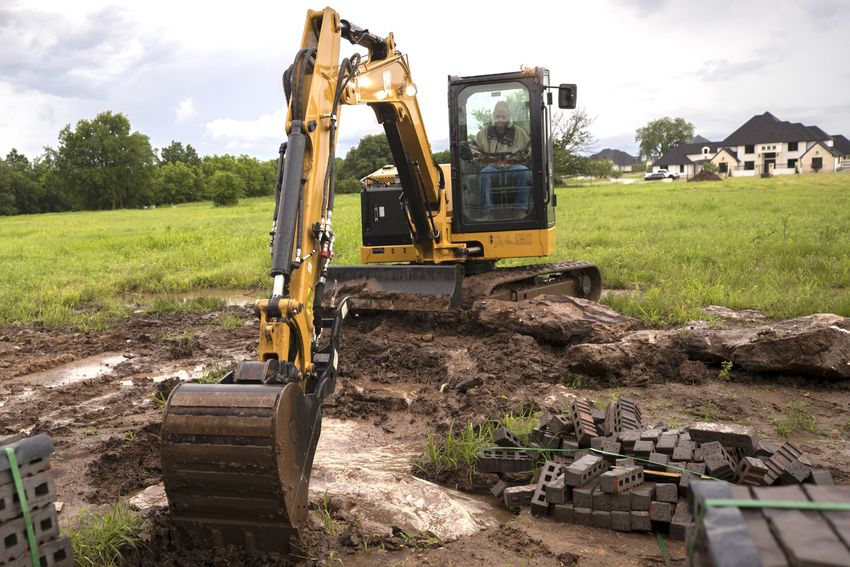

ONE DO-IT-ALL ROD HENRY CONSTRUCTION (RHC) IS A FAMILY-
OWNED BUSINESS THAT SPECIALIZES IN THE
MACHINE INSTALLATION OF AEROBIC SYSTEMS, SEPTIC
SYSTEMS AND STORM SHELTERS IN OOLOGAH,
OKLAHOMA, USA. THIS TYPE OF WORK REQUIRES
HIGH PERFORMANCE AND VERSATILITY IN
ROD HENRY RELIES ON HIS TIGHT QUARTERS. THEY TURNED TO THE NEW
CAT® 306 CR TO DO SOME CAT® 306 CR MINI EXCAVATOR.
HEAVY WORK IN SMALL SPACES.

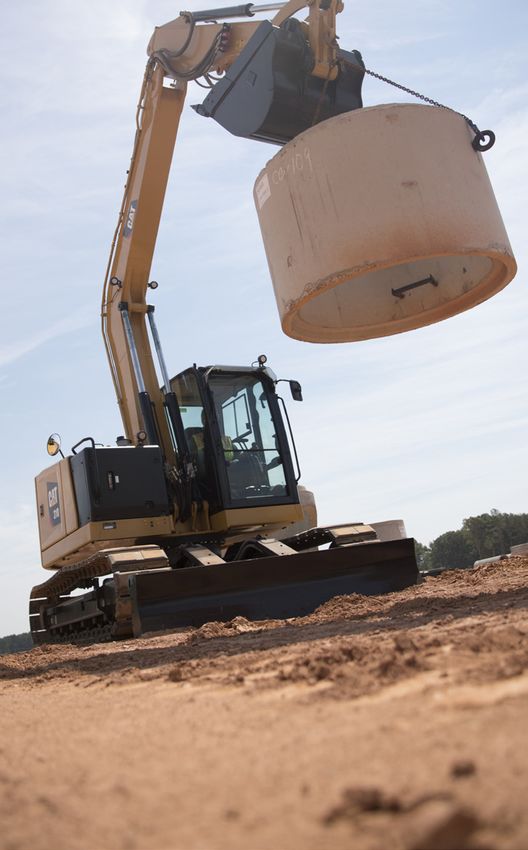

CLASS-LEADING LIFT CAPACITY
Offering big performance features, the new Cat 306 CR delivers
class-leading lift performance of up to 8,357 lb. (3,790 kg) at a 9.8-ft
(3-m) radius. Enhanced uphill swing torque and increased cycle
times provide greater productivity and efficiency for RHC’s operation.
IMPROVED CONTROL IS IN YOUR HANDS
Rod is able to easily switch from conventional lever/foot-pedal
steering controls to the standard Cat exclusive Stick Steer system
with the push of a button.
“Stick Steer is awesome. I can haul it around easily.”
STRETCH OUT IN A ROOMIER CAB
As a nimble family-owned operation, Rod wants his operators to be
comfortable in the cab all day long. The sealed and pressurized cabin
lowers in-cab operating noise levels to 72 dB(A) and is heated and
air-conditioned to elevate comfort regardless of outside temperatures.
“There’s so much room in the cab, which makes the visibility better.
It’s also airtight and quiet.”
DO MORE WITH LESS
RHC was able to reduce the number of machines on site with the
quick coupler systems, which allows for work tool changes in a
matter of seconds.
“The quick coupler is amazing. Previously, I would have had to
bring out two machines.”
Straight blade, angled blade and extra tool carrier (XTC) configurations
further expand the flexibility of the Cat 306 CR mini excavator.
FEEL SUPPORTED
Cat dealers can deliver maintenance services that keep a fleet in
good condition, along with a Customer Value Agreement (CVA)
that protects the business.
“My Cat dealer has been phenomenal. It doesn’t matter where I am,
my salesman will bring me a tube of grease if I call and ask him.”
8 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 9
“THE MACHINE
IS PHENOMENAL.
THERE'S NO
DOWNTIME,
WHICH SAVES US
A TON OF MONEY.”
INSPIRED BY CARTER – OWNER OF SAVAGE EXCAVATION
“DIGS FASTER
AND BETTER THAN
COMPETITORS WITH
THE SAME MODEL SIZE.”
INSPIRED BY BRIAN – OPERATOR FOR
BEN MOR CONSTRUCTION
10 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 11

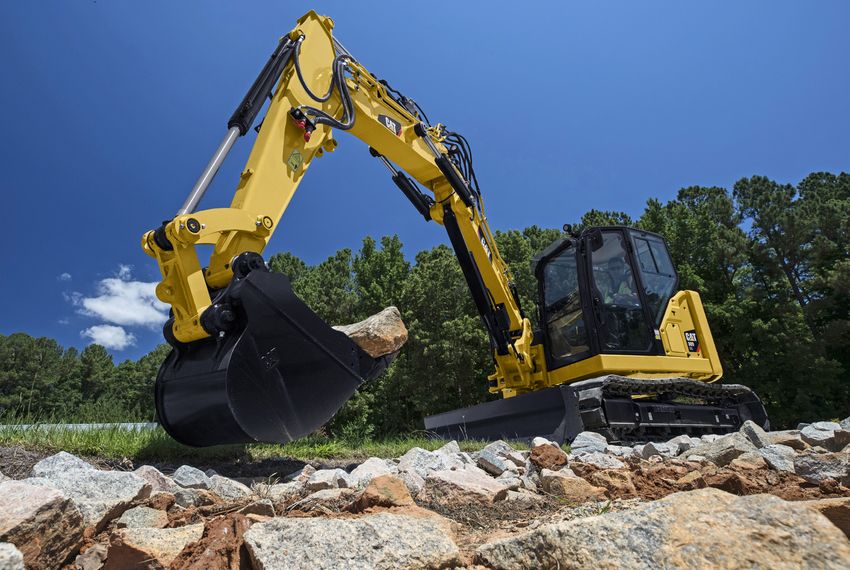

307.5
6-10 TON LINEUP • Gross power
• Max. lift capacity**
57.9 hp / 43.2 kW
7,928 lb / 3,596 kg
• Max. operating weight † 18,152 lb / 8,233 kg (long stick)
SMALL BUT MIGHTY, THESE MACHINES PROVIDE STRENGTH
WHEN YOU NEED IT. THE NEW MODELS PROVIDE A • Max. dig depth 183 in / 4,649 mm (long stick)
POWERFUL RANGE OF OPTIONS TO CHOOSE FROM.
Standard tail swing
MORE FUNCTIONS, LESS MONEY The 6-10 ton models come with:
With enhanced lift strength, travel power and • High flow* for hydraulic power you can customize
functions, these models are hugely versatile.
Extended service intervals provide a 10% cost
• Stick Steer for comfortable control
• LCD monitor with optional Bluetooth
308 CR / 308 CR VAB
saving compared to previous models. VAB models • Gross power 74.3 hp / 55.4 kW
• Cruise control for reduced operator fatigue
include a variable angle boom. Compact Radius
• Air conditioning and heating for year-round comfort • Max. lift capacity** 8,735 lb / 3,962 kg
• Optional angle blade or XTC (Extra Tool Carrier) on 12,701 lb / 5,760 kg (VAB in)
Burn less fuel – 11% fuel savings
the 306 CR • Max. operating weight † 20,678 lb / 9,380 kg (long stick)
compared to a 308E2
* High Flow available on 309 CR only
20,385 lb / 9,245 kg (VAB, standard stick)
• Max. dig depth 183 in / 4,644 mm (long stick)
153 in / 3,875 mm (VAB in, VAB standard stick)
306 CR
• Gross power 57.9 hp / 43.2 kW 309 CR / 309 CR VAB High Flow
• Max. Lift capacity** 8,357 lb / 3,790 kg • Gross power 74.3 hp / 55.4 kW
• Max. operating weight † 15,633 lb / 7,090 kg (canopy/long stick) • Max. lift capacity** 8,649 lb / 3,923 kg
15,766 lb / 7,150 kg (cab/long stick) 12,712 lb / 5,765 kg (VAB in) Compact Radius
• Max. dig depth 162 in / 4,110 mm (long stick) • Max. operating weight † 20,731 lb / 9,403 kg (long stick)
21,488 lb / 9,745 kg (VAB, standard stick)
• Max. dig depth 183 in / 4,650 mm (long stick)
150 in / 3,815 mm (VAB in, VAB standard stick)
Compact radius
310 Standard tail swing
Extra Tool Carrier (XTC) and • Gross power 74.3 hp / 55.4 kW
angle blade options available. • Max. lift capacity** 11,766 lb / 5,337 kg
• Max. Operating weight † 22,447 lb / 10,182 kg
• Max. dig depth 205 in / 5,211 mm
** Lifting capacity listed is the Maximum Configuration over front, blade down, at 3 m Lift Point radius with long stick,
no bucket. Lifting capacity is also dependent upon other variables such as machine configuration, counterweight,
lifting point, application, work tool, track and surface type, etc.
† Operating weights based on most common configuration, excludes bucket.
12 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 13
6-10 TON FEATURES
STICK CRUISE
STEER CONTROL
It’s easy to switch from traditional travel Travel in comfort when you
controls to joystick controls. choose cruise control mode.
SIMPLE AND COMFORTABLE MULTI-FUNCTION
The Stick Steer function keeps your options WITH EASE
open for controlling the machine. You can You can set cruise control by pressing
choose to operate with levers and pedals, a trigger underneath the joystick –
or transfer all the power and coordination perfect for working at a constant
to your hands at the touch of a button. speed with an attachment like a flail
mower or mulcher. You no longer have
to use your feet and hands; sit back
in comfort and eliminate backache at
the end of the day.
SIMPLE SERVICE LCD
FOR LESS MONITOR
DOWNTIME Customize your settings, receive calls and stream
music all in one place.
Maintenance is quick and easy on a Cat Next Generation Mini TOTAL CONTROL
Excavator. Routine check points are easy to access at ground Adjust your settings, such as hydraulic speed,
level with grouped service points and robust service panels. to suit the task at hand. You can also receive calls
through the monitor, and adjust the temperature in
the cab. The option of Bluetooth means you can
stream your own playlists.
OPTIONAL ADVANCED
TOUCH SCREEN MONITOR
Full eight-inch touch screen display with high definition
graphics and integrated Site Reference System.
14 NEXT GEN MINI EXCAVATORS NEXT GEN MINI EXCAVATORS 15
To find out more about the new range of Next Generation Mini Excavators,
contact your local Cat dealer or visit www.cat.com.
© 2020 Caterpillar. All Rights Reserved. CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos,
“Caterpillar Corporate Yellow,” the “Power Edge” and Cat “Modern Hex” trade dress, as well as corporate
and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
PEDJ0534-00 5/20
You can also read
