Mobile Hostile Vehicle Barrier CLAW
2 CLAW Profile Regulation Evaluating Impact CLAW 3
CLAW Concept Regulation Evaluating Impact Performance
Regional impact test standards
VOLKMANN & ROSSBACH GmbH is one of the leading suppliers of security
solutions to protect crowded spaces and products for stopping hostile vehicles. CWA 16221
The innovative CLAW protection system has been designed to provide protection
from hostile vehicles to temporary and permanent events like sports events,
outdoor markets, music festivals, shopping centres, industrial sites, public
services and critical infrastructures. The CLAW protection system has been
successfully tested in two different containment categories. ASTM
(Previously DOS)
The system is completely surface mounted, modular and allows, in a very short
time, to protect a multitude of scenarios.
Standard Region of Origin Year of Origin
ASTM USA 2007
WORLD
CWA 16221 Europe 2007
IWA 14-1 PAS 68 & 69 PAS 68 & 69 UK 2005
IWA 14-1 World 2013
PAS 68, ASTM F2656 & IWA 14-1 Standards have been prepared to address the needs of organisations who wish to
have assurance that Vehicle Security Barriers (VSBs) will provide the level of impact resistance that they seek.
The Standard specifies the essential impact performance requirement for a VSB and a test method for rating its
performance when subjected to a full-scale impact test by a vehicle.
The performance rating is designated to each product that has been impact tested; this classification code has to be
available to confirm the test results.
Head quarter
Comparing product performance codes
PAS 68:2013
6 Vehicle Categories, Impact Speed 16-112km/h, Penetration measured from REAR edge of product structure
Product given performance rating up from:
1 2 3 4 5 6
Vehicle Impact Vehicle Mass (class) Impact Speed Impact Angle Penetration Debris Dispersal
For more than 50 years, VOLKMANN & ROSSBACH GmbH has been Example performance classification: PAS 68:2013 Anti ram fence V/7500(N2)/80/90:0.0/3.6
successfully active in the field of traffic safety, road equipment and also
in nature and environmental protection. Highly qualified employees and ASTM F2656-2015
specialists from various departments develop innovative safety barriers, Superseded DOS standard and “K” ratings, 6 Vehicle Categories, Impact Speed 48-100Km/h
manufacture in modern production facilities and install road restraint
Penetration measured from REAR edge of product structure and given a “P” rating 1, 2 or 3
systems on site.
Product given performance rating up from:
Every day, VR makes an active contribution to passive safety all over the 1 2 3
world.Skilled experts support the customer in the planning, realisation
Vehicle Category Impact speed (mile/h) Penetration Rating
and control of small and large projects. VR quickly delivers customized
Example performance classification: Test Method F2656 C7:50-P3
solutions tailored to local conditions and construction requirements. A classification of Test Method F2656 M50-P1 is equivalnt to “DOS K12”
Quality is also the VR focus! Every product is strictly designed and
IWA14-1 2013
controlled during production according to the highest quality Standards.
9 Vehicle Categories, Impact Speed 16-112km/h, Debris measurement is omitted in performance classification, although recorded in full report,
The service network consists of consulting and development offices,
Penetration measured from FRONT edge of product structure
production companies with connected galvanizing plants and own
installation teams. VR is recognized as a competent industry consultant Product given performance rating up from:
in a large number of national and international committees and working 1 2 3 4 5
groups. Vehicle Impact Vehicle Mass (class) Impact Speed Impact Angle Penetration
Example performance classification: IWA14-1:2013 Bollard V/7500(N2A)/80/90:0.2
VR will continue to make World safer with new products and services –
meeting the slogan:
We provide Safety... worldwide!
4 CLAW Crash Test Crash test CLAW 5
VR present a new mobile crash
rated barrier with proven stopping
capabilities and customizable to meet
users’ requirements.
Mobile Hostile
Vehicle Barrier
Crash test
Pedestrian Friendly Design
The protection system has been designed to be
aesthetically pleasing and versatile, in order not
to be dangerous for pedestrians and to avoid
transmitting a hostile or threatening feeling to
people.
Thanks to the modularity of the product, the
number of configuration options is almost
infinite, allowing CLAW to adapt to any scenario.
The CLAW protection system is designed,
tested and certified to the highest International
Standards.
The protection system, individually tested, is also designed
Ratings to connect two or more elements together in order
to configure a defence perimeter.
Test 1. IWA 14-1:2013 V/1,500(M1)/64/90:4.7 and PAS68:2013 V/1500(M1)/64/90/3.9
Crash test 1 frame A Crash test 1 frame B Crash test 1 frame C Crash test 1 frame D
CLAW is designed to stop the motion of a vehicle before it reaches its goal.
The vehicle is quickly neutralized and the debris, consequent to the impact,
are considerably reduced thanks to the conformation and the barrier
engagement system.
Module dimensions
2840 913 1228

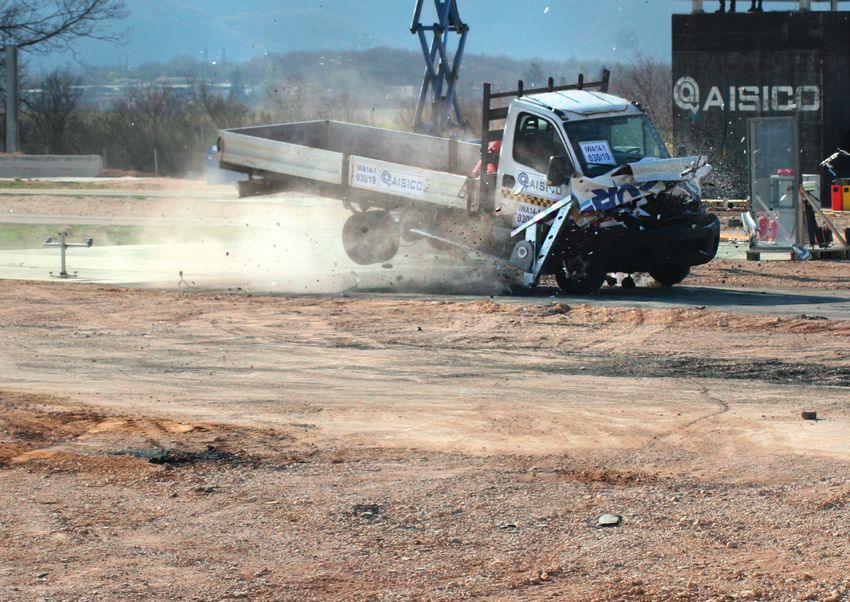

Test 2. IWA 14-1:2013 V/3,500(N1)/64/90:8.2 and PAS68:2013 V/3500(N1)/64/90/7.3
Crash test 2 frame A Crash test 2 frame B Crash test 2 frame C Crash test 2 frame D
1120
3000 2141
6 CLAW Application Application CLAW 7
CLAW Public utility function and advertising concept.
Application COMPLETELY INTEGRABLE IN THE URBAN CONTEXT
scenarios
Utilities and Sporting Outdoor Markets and Shopping Centers and Multi-purpose protection
Critical Infrastructures Events Music Festivals Industrial Sites
For additional value, the CLAW can be further
accessorised with advertising/sponsorship or
information panels, bike rack, trash cans, flower
pots, LED lighting further enhancing the benefit of
installing these systems in your specific scenario.
The CLAW protection system is completely
modular, giving the flexibility to adapt its use to any
kind of event.

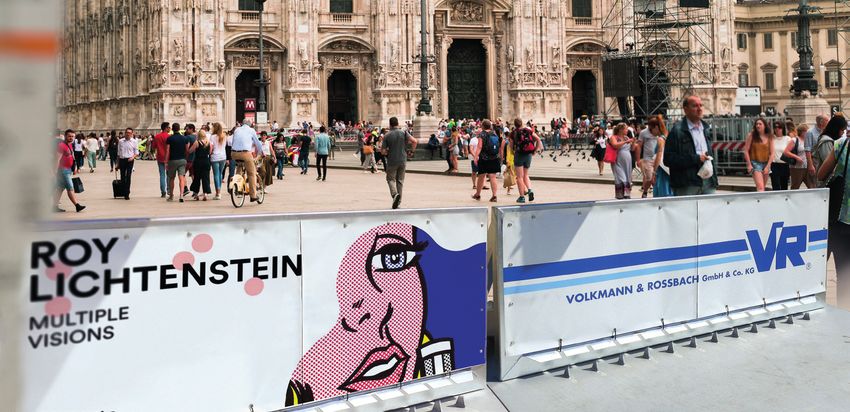

The CLAW can be deployed It can be installed over kerbs, curves and against
walls, making it the most versatile option in
in various perimeter security applications all over the world. temporary security. Every single element can also
be connected with others creating a completely
fenced and protected area.
CLAW 1-2019-ENGLISH
