Natural Stone Veneers - 2019 Catalogue - Erth Coverings
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
Lavastone Large Strips BH-LRP – Image Courtesy of Avenue Design Interiors
Image by Aia photography
SLATE
PEBBLE
BASALT
MARBLE
QUARTZITE
LIMESTONE
SANDSTONE
2019
Stone
Natural
Veneers
Catalogue
Erth produces high quality
natural stone veneers.
This is our passion and
what we do best. It’s no
wonder that we are the
preferred brand of many
renowned designers,
architects, builders,
renovators, and DIYers in
North America.
Beauty
Set in
Stone.
II
04 08 12 18 22 28
CASCADE HEX LARGE STRIPS MOUNTAIN PANELS PEBBLE
LEDGESTONE
Dover DOV-CAS White Wolf 06H-10/06H-16 Lavastone BH-LRP Blustone 3D 90F/90F-C Blustone PB-090
Fossil FOS-CAS Silver Fox SF-LRP Cream Quartzite 3D 40F/40F-C Bone RP-030
White Wolf 06-LRP Mount Rundle MR-ML/MR-ML-C Grey Wolf 3D 60F/60F-C Charcoal RP-020
Sierra Plains SP-ML/SP-ML-C Mountain Grey Ledgestone 101N/101N-C Durango PB-070
West Ridge WR-ML/WR-ML-C Silver Fox 3D SF-PAN Ivory Blend MX-005
Silver Fox Ledgestone SF-N/SF-N-C Sage RP-035
Smokey Mountain Ledgestone 185N/185N-C
White Wolf 3D 06F/06F-C
34 38 44 50 51
ROCK FACE SPLITFACE STRIPS RECOMMENDED FEATURES
Cariboo 145RF/145RF-C
Glacier 56RF/56RF-C
Blustone 90SPF/90SPF-C
Durango 70SPF/70SPF-C
Cedarstone SH-RP
Coral White CW-RP
INSTALLATION COMPARISON
Smokey Mountain 185RF/185RF-C Dover DOV-SPF/DOV-SPF-C Lavastone BH-RP MATERIALS Man Made Stone vs.
Full Bed Natural Stone vs.
Tundra 245RF/245RF-C Fossil FOS-SPF/FOS-SPF-C Silver Fox SF-RP ABP Rainscreen
ErthCOVERINGS
Chembond Mortar
Mapei Mortar
02 TABLE OF CONTENTS 03
Cascade
The Cascade series consists of light-weight and easy to install planks
designed to create a sense of harmony and dramatic appeal. The stone
is worked by hand to create a surface texture made up of a cascade of
natural indentations resembling water ripples. The unique surface
treatment allows the stone to blend with its surroundings.
Dover Cascade Fossil Cascade
DOV-CAS | Limestone FOS-CAS | Marble
APPLICATION TECHNICAL INFORMATION
Feature Wall, Fireplace, Format Planks
Landscaping Feature Dimension 4" x 16" x 5/8"
Weight 8 lbs/sq.ft.
Tolerance ± 1/8"
SURFACE
Salt Resistance Nil loss after 15 cycles
Wall Avg. Water Absorption ≤ 1%
Avg. Mass Loss Nil
USAGE
Indoor & Outdoor
MORTAR Flat
Chembond® MagniFlex™ Super 8820 or
Mapei® Ultraflex™ RS
4"
SEALER & ENHANCER
Professional grade natural stone sealers and
enhancers may be used on ErthCOVERINGS
stone veneers. 16"
5⁄₈"
04 CASCADE 05
Dover Cascade
DOV-CAS
Fossil Cascade
FOS-CAS
Image courtesy of Kingscape Landscape Construction.
CASCADE 07
Hex
From honeycombs to snowflakes, the hexagon abounds in nature. Our
Hex Series is a tribute to natures’ most efficient shape. The precision
cuts allow for endless uses of these easy to install marble tiles.
White Wolf Hex
06H-10/06H-16 | Marble
Rapid-setting or white thin-set mortar
must be used
APPLICATION TECHNICAL INFORMATION
Floor, Backsplash, Feature Wall, Fireplace Finish Honed
Format 8" Hexagon
Dimension 10mm or 16mm
SURFACE
Weight 7 lbs/sq.ft.
Wall & Floor Tolerance ± 1/16"
Salt Resistance NA
USAGE Avg. Water Absorption NA
Indoor Avg. Mass Loss NA
MORTAR
Mapei Ultraflex 2 White or
Mapei® Ultraflex™ RS
SEALER & ENHANCER
Professional grade natural stone sealers and
enhancers may be used on ErthCOVERINGS
stone veneers.
GROUT
Unsanded grout as required for grouted joints
only.
8 HEX 9
White Wolf Hex White Wolf Hex 06H-10/06H-16 06H-10/06H-16 10
Large Strips
The Large Strips series builds upon the much celebrated Strips series by
introducing a larger format unique to ErthCOVERINGS. The Large Strips
series presents the same clean, sharp lines and amazing shadow effects
but in a format that lends itself best to large projects with emphasized
scale. Experience the same naturally occurring striations and intricately-
formed patterns present in every piece but on a larger scale.
Image courtesy of Kingscape Landscape Construction.
12 LARGE STRIPS 13
SUGGESTED LARGE STRIPS LAYOUT
The following diagram represents our suggested layout for the Large Strips series. However, the strips
can be arranged any way you’d like - even vertically.
Large Strips Layout using 3 boxes | 33 Pieces | approx. 18 sq.ft.
4"
2"
6"
Height of strips
4"
2"
Lavastone Large Strips Silver Fox Large Strips White Wolf Large Strips 6"
BH-LRP | Basalt SF-LRP | Limestone 06-LRP | Marble
Rapid-setting, thin-set mortar must be used Rapid-setting, thin-set mortar must be used Rapid-setting or white thin-set mortar must be used
4"
2"
6"
The vertical layout of strips in each row shows this pattern: 6", 2", 4", 6", 2", 4" etc.
It is best to keep all vertical rows with the same height of stones.
The horizontal layout of this product in length and thickness will always be RANDOMIZED.
It is therefore up to the installer’s creative discretion to determine the most aesthetically pleasing design.
Large Strips Pieces
¾" THICK PIECES ⁷⁄₁₆" THICK PIECES
24" x 6" 24" x 6"
24" x 4" 24" x 4"
16" x 2" 24" x 2"
8" x 2" 16" x 2"
8" x 2"
APPLICATION TECHNICAL INFORMATION MORTAR Flat ¾" THICK PIECES
Fireplace, Feature Wall, Backsplash Finish Honed Mapei® Ultraflex™ 2 White or 8" x 2"
16" x 2"
Format Individual Pieces Mapei® Ultraflex™ RS H
24" x 4"
Dimension Multiple Sizes SF-LRP and BH-LRP must be installed using a 24" x 6"
SURFACE
Weight 10 - 11 lbs/sq.ft rapid-setting, thin-set mortar.
Wall Tolerance ± 1/8"
⁷⁄₁₆" THICK PIECES
Salt Resistance Nil loss after 15 cycles SEALER & ENHANCER W 8" x 2"
USAGE Avg. Water Absorption ≤ 1%
Professional grade natural stone sealers and en- 16" x 2"
Indoor & Outdoor Avg. Mass Loss Nil 24" x 2"
hancers may be used on ErthCOVERINGS stone
T 24" x 4"
veneers. Colour enhancers/enhancing sealers 24" x 6"
cannot be used on BH-LRP.
14 LARGE STRIPS 15
Silver Fox Large Strips
SF-LRP
Image Courtesy of W Network’s Love It or List It
White Wolf Large Strips
06-LRP
16Mountain Ledgestone
Our Mountain Ledgestone Series is the ideal stone for those looking
to add the warm and homey feeling one gets when driving up to a
mountain lodge. Whether for the interior fireplace or exterior facade of
the home, this stone is rustic and raw. With a rugged face and natural
hewn edges, this series of stone is as natural and raw as it gets.
Mount Rundle Mountain Sierra Plains Mountain West Ridge Mountain
Ledgestone Ledgestone Ledgestone
MR-ML/MR-ML-C | Limestone SP-ML/SP-ML-C | Quartzite WR-ML/WR-ML-C | Quartzite
APPLICATION TECHNICAL INFORMATION
Fireplace, Feature Wall, Exterior Façade. Finish Natural Split
Format Random horizontal lengths
Dimension Random
SURFACE
Weight 11-13 lbs per sq.ft
Wall Tolerance N/A
Avg. Water Absorption ≤ 1%
USAGE Avg. Mass Loss Nil
Indoor & Outdoor
MORTAR
Chembond® MagniFlex™ Super 8820 or
Mapei® Ultraflex™ RS
SEALER & ENHANCER
Professional grade natural stone sealers and
enhancers may be used on ErthCOVERINGS
stone veneers.
GROUT
Sanded grout (as required for grouted joints only).
18 MOUNTAIN LEDGESTONE 19MOUNT RUNDLE
MR-ML/MR-ML-C | LIMESTONE
WEST RIDGE
WR-ML/WR-ML-CPanels
O
Easy to install wall panels that are made from skillfully cut pieces of
natural stone that are arranged in a manner that creates depth and
FP
texture. This is natural stone made easy.
22 PANELS 23Blustone 3D Cream Quartzite 3D Grey Wolf 3D Mountain Grey Ledgestone Silver Fox 3D
90F/90F-C | Limestone 40F/40F-C | Quartzite 60F/60F-C | Marble 101N/101N-C | Limestone SF-PAN | Limestone
Rapid-setting, thin-set mortar must be used
Silver Fox Ledgestone Smokey Mountain White Wolf 3D
SF-N/SF-N-C | Limestone
Rapid-setting, thin-set mortar must be used
Ledgestone 06F/06F-C | Marble
Rapid-setting, thin-set mortar must be used
185N/185N-C | Quartzite
APPLICATION TECHNICAL INFORMATION MORTAR
Flat Corner
Fireplace, Feature Wall, Backsplash Finish varies Natural Cleft Chembond® MagniFlex™ Super 8820 or Staggered cut as
Format Panels (Flats & Corners) Mapei® Ultraflex™ RS needed
Dimension 6" x 24" x ( ½"- 1¾") 06F/06F-C, SF-PAN, and SF-N/SF-N-C must be 6" 6"
SURFACE
Weight 7-14 lbs/sq.ft. installed using a rapid-setting, thin-set mortar.
Wall Tolerance ± ⅛"
Salt Resistance Nil loss after 15 cycles SEALER & ENHANCER 24" 24"
USAGE Avg. Water Absorption ≤ 1%
Professional grade natural stone sealers and
Indoor & Outdoor Avg. Mass Loss Nil
enhancers may be used on ErthCOVERINGS ½"-1¾" ½"-1¾"
stone veneers.
24 PANELS 2560F/60F-C
Grey Wolf 3D
Image Courtesy of W Network’s Love It or List It
Photo by Dann Tardif
SF-PAN
PANELS
Silver Fox 3D
27Pebble The Pebble collection channels the most elemental characteristics nature has to offer. Centuries of slow erosion caused by turbulent water transforms each stone until it is rounded and smooth to the touch. Delightful to the senses, the Pebble collection is extremely versatile in its range of applications. 28 PEBBLE 29
PEBBLE MAT
Pebbles are mounted on an easy to install mesh-backed mat (see below).
12"
Blustone Pebble Bone Pebble Charcoal Pebble
PB-090 | Limestone RP-030 | Limestone RP-020 | Limestone
12"
Durango Pebble Ivory Blend Pebble Sage Pebble
PB-070 | Limestone MX-005 | Limestone RP-035 | Limestone
APPLICATION TECHNICAL INFORMATION MORTAR Mat
Shower/Bathroom Feature, Fireplace Finish Unpolished Chembond® MagniFlex™ Super 8820 or
Format Mat Mapei® Ultraflex™ RS
Dimension 12" x 12" x 1/2"
SURFACE
Weight 3 lbs/sq.ft.
Wall & Floor SEALER & ENHANCER
Tolerance N/A
Salt Resistance Nil loss after 15 cycles Professional grade natural stone sealers and
enhancers may be used on ErthCOVERINGS 12"
USAGE Avg. Water Absorption ≤ 1%
Avg. Mass Loss Nil stone veneers.
Indoor & Outdoor
GROUT
Sanded or unsanded.
12"
30 PEBBLE 31RP-020
Charcoal Pebble
Image Courtesy of Elora Home Hardware, Photo by John Strumpf
MX-005
Ivory Blend Pebble
PEBBLE
33Rock Face
What is old is new again, and this is so true for our Rock Face series.
Inspired by the homes of the Hollywood Hills and Sunset Blvd, this
hottest trend in natural stone veneers creates an organic and timeless
feel to any home.
Cariboo Rock Face Glacier Rock Face Smokey Mountain Rock Face
145RF/145RF-C | Quartzite 56RF/56RF-C | Quartzite 185RF/185RF-C | Quartzite
MORTAR
Chembond® MagniFlex™ Super 8820 or
Mapei® Ultraflex™ RS
SEALER & ENHANCER
Professional grade natural stone sealers and
enhancers may be used on ErthCOVERINGS
stone veneers.
GROUT
Sanded grout as required for grouted joints only.
Tundra Rock Face
245RF/245RF-C | Quartzite
APPLICATION TECHNICAL INFORMATION
Interior and Exterior Walls Finish Splitface
Format Random
Dimension Random
SURFACE
Weight 12-14 lbs/sq.ft.
Wall Tolerance N/A
Salt Resistance Nil loss after 15 cycles
USAGE Avg. Water Absorption ≤ 1%
Indoor & Outdoor Avg. Mass Loss Nil loss after 15 cycles
34 ROCK FACE 35Cariboo Rock Face Smokey Mountain Rock Face
145RF/145RF-C 185RF/185RF-C
ROCK FACE 37Splitface Our Splitface Series of natural stone is produced by craftsmen in a manner that allows for easy installation and a multitude of design possibilities, from rustic to contemporary. 38 SPLITFACE 39
CORNER CONFIGURATIONS
The Splitface series uses two distinct corner configurations depending on stone type. The Durango
Splitface and Blustone Splitface use seven differently sized 90° corner pieces. The Dover Splitface and
Fossil Splitface stones use natural edge corner pieces (see below).
90° Splitface Corner (70SPF-C & 90SPF-C)
L1
L2
H x L1x L2
2" x 7" x 3"
H 3" x 9" x 6"
3" x 7" x 4"
4" x 8" x 5"
Blustone Splitface Durango Splitface 4" x 7" x 3"
90SPF/90SPF-C | Limestone 70SPF/70SPF-C | Limestone 6" x 10" x 4"
6" x 7" x 3"
Natural Edge Splitface Corner (DOV-SPF-C & FOS-SPF-C)
Corner Connection
Natural Edge
Dover Splitface Fossil Splitface
DOV-SPF/DOV-SPF-C | Limestone FOS-SPF/FOS-SPF-C | Marble
APPLICATION TECHNICAL INFORMATION MORTAR
Exterior Home, Fireplace, Finish Splitface Chembond® MagniFlex™ Super 8820 or
Landscaping Feature. Format Flats & Corners Mapei® Ultraflex™ RS
Dimension Multiple Sizes
SURFACE Weight 11-14 lbs/sq.ft SEALER & ENHANCER
Tolerance ± ⅛"
Wall Professional grade natural stone sealers and
Salt Resistance Nil loss after 15 cycles
enhancers may be used on ErthCOVERINGS
Avg. Water Absorption ≤ 1%
stone veneers.
USAGE Avg. Mass Loss Nil
Indoor & Outdoor GROUT
Sanded or unsanded (as required).
40 SPLITFACE 41Blustone Splitface Durango Splitface
90SPF/90SPF-C 70SPF/70SPF-C

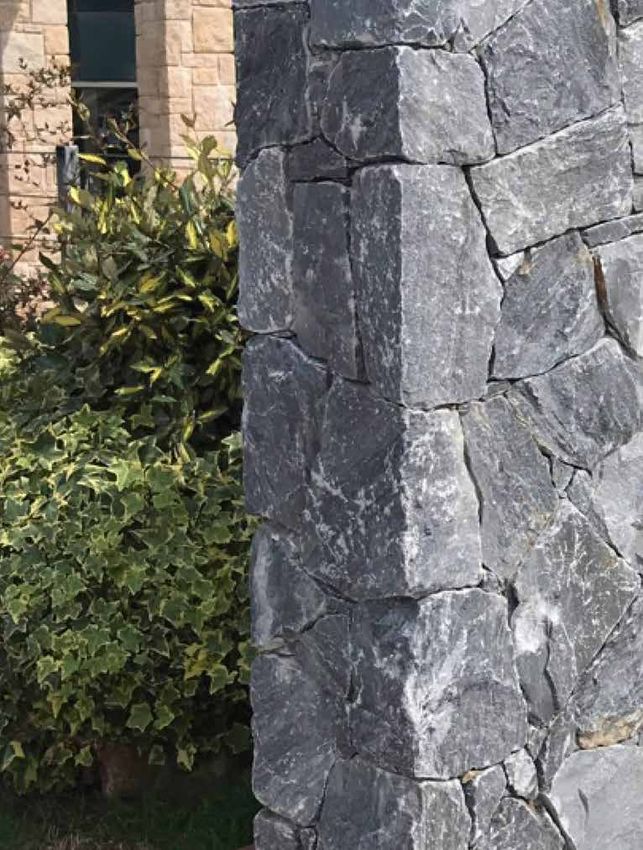

Image courtesy of Kingscape Landscape Construction.
42Strips With clean sharp lines and amazing shadow effects, our strips series are our most sophisticated creation. Precise cuts allow for easy installation of this contemporary series of natural stone. 44 STRIPS 45
SUGGESTED STRIPS LAYOUT
The following diagram represents our suggested layout for the Strips series. However, the strips can be
arranged any way you’d like - even vertically.
Strips Layout using 1 Box | 49 Pieces | approx. 6.5 sq.ft.
2"
1"
3"
Height of strips
2"
1"
Cedarstone Strips Coral White Strips Lavastone Strips 3"
SH-RP | Sandstone CW-RP | Sandstone BH-RP | Basalt
White mortar must be used to avoid staining Rapid-setting, thin-set mortar must be used 2"
1"
3"
The vertical layout of strips in each row shows this pattern: 3", 1", 2", 3", 1", 2" etc.
It is best to keep all vertical rows with the same height of stones.
The horizontal layout of this product in length and thickness will always be RANDOMIZED.
It is therefore up to the installer’s creative discretion to determine the most aesthetically pleasing design.
Strips Pieces
¾" THICK PIECES ⁷⁄₁₆" THICK PIECES
12" x 3" 12" x 3"
Silver Fox Strips 12" x 2" 12" x 2"
SF-RP | Limestone 8" x 1" 12" x 1"
Rapid-setting, thin set-mortar must be used
4" x 1" 8" x 1"
4" x 1"
APPLICATION TECHNICAL INFORMATION MORTAR Flat ¾" THICK PIECES
4" x 1"
Fireplace, Feature Wall, Backsplash Finish Varies Chembond® MagniFlex™ Super 8820 or Mapei®
8" x 1"
Format Individual Pieces Ultraflex™ RS H 12" x 2"
Dimension Multiple Sizes CW-RP must be installed using a white mortar to 12" x 3"
SURFACE
Weight 10-11 lbs/sq.ft avoid staining.
Wall Tolerance ± 1/8" SF-RP and BH-RP must be installed using a
⁷⁄₁₆" THICK PIECES
Salt Resistance Nil loss after 15 cycles rapid-setting, thin-set mortar. 4" x 1"
W
USAGE Avg. Water Absorption ≤ 1% 8" x 1"
Avg. Mass Loss Nil SEALER & ENHANCER 12" x 1"
Indoor & Outdoor 12" x 2"
T
Professional grade natural stone sealers and en- 12" x 3"
hancers may be used on ErthCOVERINGS stone
veneers. Colour enhancers/enhancing sealers
cannot be used on BH-RP.
46 STRIPS 47Coral White Strips Silver Fox Strips
CW-RP SF-RP
STRIPS 49Recommended Features
Installation Materials Comparison
CHEMBOND® MORTAR
Chembond Magniflex Super 8820 is an economical high performance multi-
purpose polymer modified mortar suitable for both wall and floor applications.
This mortar achieves initial set in 16 to 24 hours and has an excellent bond MAN MADE FULL BED NATURAL
capacity. ErthCOVERINGS® recommends this mortar for all applications STONE STONE
not requiring a fast setting mortar. Please read product data sheet for more
information.
Cost of Stone and Labour
Made from Natural Stone
MAPEI® MORTAR All Natural Colours
Mapei Ultraflex RS is a premium grade high performance rapid setting polymer All Natural Textures
modified mortar suitable for both wall and floor applications.
Made from Reclaimed Material
This mortar achieves initial set in approximately 1 hour. ErthCOVERINGS®
recommends this mortar for all stones that may be stained by a regular multi-
purpose mortar or for floor installations that must be ready for use in a short Fast & Easy Installation
period of time. Please read product data sheet for more information.
Requires No Additional Support
Range of Styles
Precision Cuts
ABP® RAINSCREEN
Minimal Thickness
Mortairvent employs innovative rainscreen technology that equalizes the air
pressure within the wall system by creating a ventilation cavity between the
weather resistant barrier and the exterior wall.
The polymer-core mesh creates the airspace that allows excess moisture to drain
and not remain in the wall system. ErthCOVERINGS® highly recommends the
use of Mortairvent for all exterior applications. Contact ErthCOVERINGS® for
more information.
50 RECOMMENDED INSTALLATION MATERIALS FEATURES COMPARISON 51“ I have used ErthCOVERINGS stone veneers in several Income
Property renovations. We have had stellar results and the quality of the
product has contributed to the overall value of the renovations.
”
– Scott McGillivray, Income Property - HGTV
“ We love using ErthCOVERINGS products.
They look great and install easy.
”
–The Love It or List It Team - W Network
“ ErthCOVERINGS has one of the most unique stone and tile lines
in the design industry. It is always great to work with such an innovative and
professional company such as ErthCOVERINGS. ”
– Barbara K, Candice Tells All - W Network
52erthcoverings.com
1.866.657.6606
55 Silton Rd. Unit 1, Woodbridge
Ontario, Canada L4L 7Z8You can also read
