NEVER SETTLE.
2021
REALM & REALM PRESIDENTIAL | RV.SPARTANMOTORS.COM
THE PREMIER 1 Safe Haul™ integrated tow
FOUNDATION.
vehicle braking system
2 Side-mounted
At the bottom of it all is the Spartan service center
chassis, made from the finest materials
3 Campground-friendly
and engineered to give your luxury coach a
cooling center
safe, smooth, and reliable ride. Spartan has
the features and components that give you
4 Passive steer tag axle
confidence from the road up.
5 Tire pressure
monitoring system
6 Torsion control
7 20-year frame
and cross-member
warranty, assembled
with American steel
8 Equipped with Premier Steer
steering assist system
9 Independent front
suspension and race
inspired schocks
10 Spartan Connected Coach™
digital dash and passive
keyless start
11 Air brakes with suspended
adjustable pedal
Note: Some features available as optional content
on specific OEM models (could vary by model year).
The only chassis made
exclusively for motorhomes.
Our partners at Foretravel wanted an unmatched
ride as smooth and quiet as it was invigorating
and well-appointed. The K4 605 chassis was
custom-built from the ground up to meet this
demand. Designed to connect the driver to the
road, the K4 605 is engineered with a trussed,
torque-box frame that performs like a luxury
SUV with both responsive handling and a
comfortable ride.

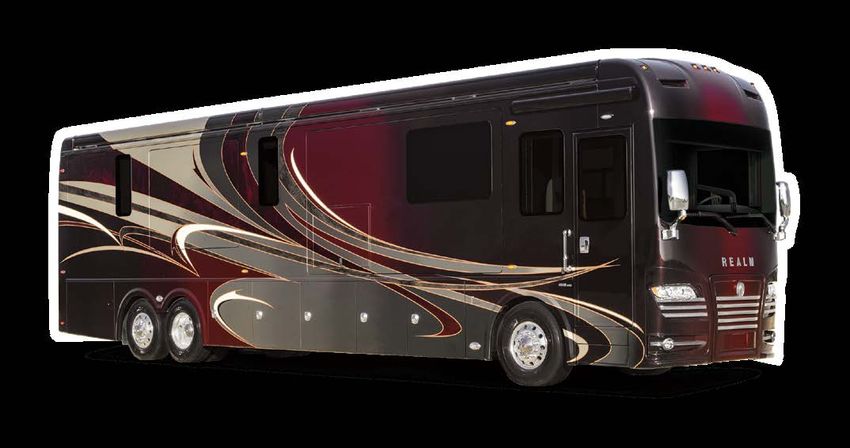

The Foretravel Realm and Realm Presidential Motorhomes riding on a Spartan chassis are built with
Class A coaches are built on our K4 605 Spartan longevity in mind. Our high-quality materials provide
chassis. Designed, engineered and made right reliability and dependability, backed by nationwide
here in America. Using only the finest components, service and the best warranty in the business.
we’ve created the premier foundation for the world’s
most demanding RV makers and owners. At Spartan Motors, we never settle.
Neither should you.
2021 FORETRAVEL REALM & REALM PRESIDENTIAL
Premium Features:
▪ “Premier Steer” Steering Assist System ▪ Suspended Adjustable Pedals
▪ SMART Steering Wheel with Wood Grain & Leather Details ▪ 20,000 lb Towing Capacity
& Integrated Radio Controls ▪ Five-Year / 75,000-Mile Warranty: No Deductible,
▪ Electronic Suspension Control System with Self-Leveling Feature 24/7 Roadside Assistance
▪ Passive Steer Tag Axle ▪ 20-Year Transferable Warranty on Frame & Cross Members
▪ Cummins Connected Diagnostics™ ▪ Fog-Maker Fire Suppression System for Engine Compartment
▪ Spartan Digital Instrument Panel
Spartan Advanced Protection System: NEW – Mobile Eye:
▪ Collision Mitigation System with Adaptive Cruise Control ▪ Forward Collision Warning (FCW)
▪ Electronic Stability Control ▪ Lane Departure Warning (LDW)
▪ Automatic Traction Control ▪ Pedestrian Collision Warning (PCW)
▪ Spartan Safe Haul™ (Industry's only factory-chassis ▪ Headway Monitoring & Warning (HMW)
integrated air supply for tow vehicle brake systems) ▪ Speed Limit Indication (SLI)
Specifications:
Engine Bilstein Shocks Cooling System
Cummins X15 Front: 60mm Side-mounted radiator: parallel air flow
18.7 CFM Air Compressor Rear: 46mm system with low-profile radiator, charge air
1500 Watt Block Heater Tag: 46mm cooler and integrated A/C condenser utilizing
Peak HP: 605 hp @ 1800 RPM a modulated engine-driven cooling fan
Peak Torque: 1,950 lb-ft @ 1200 RPM Brakes
ABS: WABCO 6S/6M Frame
Transmission Front: Air Disc Trussed, Torque-Box Structured Frame Design
Allison 4000MH 6-Speed Drive: Air Disc for Frame Strength, Reduced Camber and
Push-Button Shift Pad Tag: Air Disc Improved Storage Capacity
Shift Inhibit Parking: Push/Pull Knob, Front: 14.25" x 3.5" x .31"
Brake Interlock Rear (Rail): 12.75" x 3.5" x .31"
Chassis Ratings Auxiliary: Three-stage Engine, Rear (Drop): 10" x 3.5" x .38"
GVWR: 54,000 lb Compression Brake
Front GAWR: 20,000 lb Tires
Rear GAWR: 20,000 lb Steering Front: Michelin XZA 365/70R22.5 LRL
Tag GAWR: 14,000 lb Wood Grain & Leather Smart Wheel Rear: Michelin X Line Energy Z
GCWR: 74,000 lb with Integrated Radio Controls 315/80R22.5 LRL
Column: Power Tilt and Telescoping Tag: Michelin X Line Energy Z
Suspension 315/80R22.5 LRL
Front: Independent front air Fuel System
suspension with 20,000 lb Fuel Tank: 200 gallon with dual side fill Wheels
capacity DEF Tank: 15 gallon, dual fill (6) Alcoa Dura-Bright Aluminum Wheels
Rear: Non-torque reactive with Dress Kit
Electrical System (2) Steel Wheels on Inside Dual Wheels
parallelogram air suspension
Custom Modular 12v Electrical System
with 23,000 lb capacity Wheelbase
Batteries: Two 950 CCA
Tag: Parallelogram air suspension 316"
Alternator: 270 amp
and integrated passive
steering tag axle with
14,000 lb capacity
Wherever the road takes you. rv.spartanmotors.com/boldly-go
SPARTAN IS HERE TO MAKE
EVERY ADVENTURE WORRY FREE.
SAFE & SOUND: 24/7 service and
support is just around the corner. spartanmotors.com/rvservice
Your adventures on the road don’t always happen
from 9 a.m. to 5 p.m. Spartan Service and Support
is just a phone call or click away to make traveling
stress-free. A three-year complimentary roadside
assistance plan through the Coach-Net® network
includes access to over 40,000 service and repair
facilities throughout the U.S. and Canada, and
provides towing, fuel delivery, flat tire, jump
start, lockout, winching, and RV mobile mechanic
services, day or night (24/7/365).
You’re never far from one of hundreds of Spartan
Authorized Service Centers. Where you can find
licensed and insured technicians who are required
to complete regular training to keep current on all
Spartan chassis.

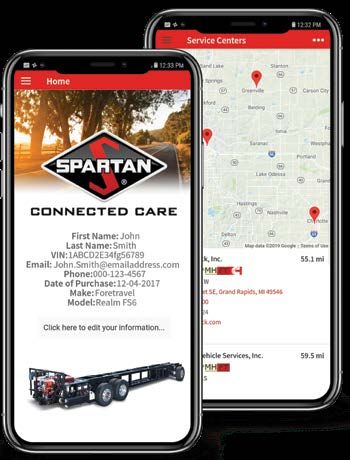

In addition, the Spartan Connected Care® mobile
app puts owners in touch with on-the go access to:
▪ Quick links to service and support
Spartan Connected Care®
▪ An integrated service center locator
▪ Diagnostic code search
▪ Key Spartan contact information
▪ Spartan’s show and rally schedule
▪ Pre-trip inspection checklists
▪ Maintenance schedules
▪ Plus more!
Industry-Best Warranty
Every Spartan chassis built for Foretravel
Motorcoach comes with a five-year/75,000-mile
transferable warranty. Our chassis also include
a 20-year transferable warranty on frame & Download from Google Play
cross members as well as a five-year/100,000- or on the App Store
mile Cummins Engine warranty and an Allison
Transmission five-year/200,000-mile warranty.
Roadside assistance from Coach Net® is
complimentary for the first three years

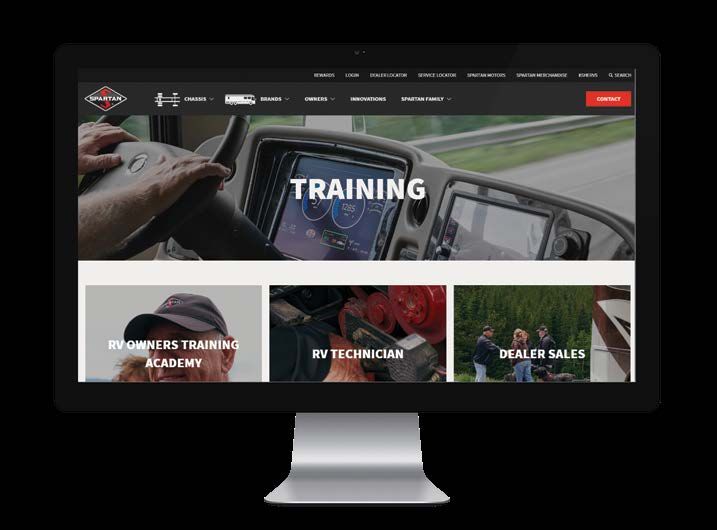

of ownership.KNOW THE ROAD: Spartan Owners Welcome to the Spartan Family
Training Academy
Owning a Foretravel Motorcoach on a To that end, Spartan attends a number
Spartan offers owners an exclusive Spartan chassis automatically makes of rallies and shows across the country
training program focusing on chassis you a part of Spartan’s extended family. to reconnect with and service its owner
care and maintenance. From a broad range of owner-exclusive community. Our expert staff of engineers
training opportunities to discounts on and parts and service personnel, are
Intimate class sizes, on-the -road driving
parts and accessories for your coach, available to answer any questions you
instruction, and networking with other
being a part of the Spartan network have about your Spartan chassis.
owners are just a few of the many highlights
means something more.
the Academy provides:
Spartan encourages membership in a
Chassis troubleshooting including:
broad range of organizations and groups
▪ Electrical that further extend the outreach of RVing
and make the pastime fun and enjoyable
▪ Air systems
for all who take to the road.
▪ Suspensions
▪ Chassis maintenance
▪ Weighing unit/tire pressure
▪ Spartan customer & product
support/warranty information
▪ On-the-road drive time with
a certified instructor spartanmotors.com/rvevents
▪ Walk-around of coach with a
qualified Spartan chassis technician
▪ Factory tour
▪ Discounts on parts & accessoriesRV.SPARTANMOTORS.COM 1.20.V12
