NM B2B Web Services
Connecting you and the Network
NM B2B Web Services Connecting you and the Network - Eurocontrol
Agenda'

!   Welcome'
!   Vision'
!   Strategy'and'Roadmap'
!   NM'B2B'Technical'Forum''
!   MUAC'Tes@mony'
!   Skyguide'Tes@mony'
!   FlightAware'Tes@mony'
!   Discussion'

                   NM B2B Web Services - Connecting you and the Network   2
NM B2B Web Services Connecting you and the Network - Eurocontrol
Vision'

          An'ATM'network'powered'by'the''

                         API'economy''

             NM B2B Web Services - Connecting you and the Network   3
NM B2B Web Services Connecting you and the Network - Eurocontrol
Strategy'

                                      All'data'and'
                                     services'thru'
                                          APIs'

                                      STRATEGY'

            Engage'with'                                           Main'stream,''
            customers'/''                                           Low'cost,'
              partners'                                             Web'based'

                     NM B2B Web Services - Connecting you and the Network           4
NM B2B Web Services Connecting you and the Network - Eurocontrol
Benefits'

                                                            ATM'              New'
                                                            ecosystem'        business'   InnovaJon'
                                                            growth'           models'

                                                                                          CompeJJon'
                                                                      But…'
                                                            Value'for'the'user'
      Timely'situaJonal'                                           the'Web'brings'
                                                            community'
         awareness'
                                                                      the'benefits'to'Opens'the'
                      Process'                                        another'level' market'to'
                                                                                     nonM
                   simplificaJon'                                         Reduced'         tradiJonal
                                                           New'business'
                                                                         dev.'&'ops'      players'
                                                           opportuniJes'
                Seamless'                                                costs'
               integraJon'

APIs'                                                                         Web'
                       NM B2B Web Services - Connecting you and the Network                        5
NM B2B Web Services Connecting you and the Network - Eurocontrol
Current'B2B'Web'Services'

2009'            2010'            2011'              2012'             2013'              2014'              2015'           2016'
  Flight'Plan'Valida@on'
  Route'Genera@on'

                 Dynamic'Airspace'Availability'in'AIXM'5.1'(eRAMI)'
                 ATFCM'Regula@ons'(ANM)'
                 ATFCM'Informa@on'Messages'(AIM)'

                            Flight'Plan'Filing'&'Management'

                                        Support'ICAO'2012'
                    '
         u sto mers
       'c
   ~200                                                 Airspace'Management'Service'in'AIXM'5.1'(FUA)''
                                                        Airspace'Data'in'AIXM'5.1'(AS,'AD,'PT,'RT,'UT)'

                                                                           Restric@ons'in'AIXM'5.1'
                                                                           4D'Trajectory'Exchange'(SESAR)'
               00''
         600'0 sts/day'
               e
          requ                                                                                 Airspace'Live'Updates'AIXM'5.1'
                                                                                               ATFCM'Regula@ons'publica@on'

                                      NM B2B Web Services - Connecting you and the Network                                           6
NM B2B Web Services Connecting you and the Network - Eurocontrol
Next'B2B'Web'Services'

2015'            2016'             2017'             2018'              2019'                2020'   2021'   2022'
ATFCM&tac*cal&updates&management&(BETA)&
Airspace&data&in&AIXM&5.1:&TV,&TVset,&FW,&RL&&
Hotspot&management&(SESAR)&
Measures&management&(SESAR)&
Counts&publica*on&&
MICDM&(SESAR)&
Network&Impact&Assessment&(SESAR)&
Regula*ons,&Airspace&and&AIM&publica*on&via&Publish/Subscribe&(BETA)&
Flight&plan&valida*on&services&based&on&EFPL&(SESAR)&

        Flight&plan&message&distribu*on&via&publish/subscribe&(BETA)&

                 Flight&status&updates&publica*on&via&Publish/Subscribe&(BETA)&
                 EIAMI&publica*on&via&Publish/Subscribe&
                 ATFCM&tac*cal&updates&publica*on&via&Publish/Subscribe&
                 Service&availability&&
                 Departure&Planning&Informa*on&(DPI)&(BETA)&

                                   Flight&status&updates&publica*on&via&Publish/Subscribe&
                                   Departure&Planning&Informa*on&(DPI)&&
                                   Arrival&Planning&Informa*on&(BETA)&
                                   Flight&Plan&valida*on&and&filing&in&FIXM&4.0&(BETA)&
                                   OAT&flight&plan&filing&in&FIXM&4.0&(BETA)&
                                   Publica*on&of&flight&plan&messages&in&FIXM&4.0&(BETA)&
                                   Network&Events&publica*on&via&Publish/Subscribe&
                                   Rerou*ng&opportuni*es&
                                   Airport&Strategic&Plan&

                                                    ATC&data&exchange&(BETA)&

                                       NM B2B Web Services - Connecting you and the Network                          7
NM B2B Web Services Connecting you and the Network - Eurocontrol
NM'Stakeholders'Engagement'

 B2B'Technical'Forum'
 '
      • Technical'Managers'of'the'ATM'community'
      • Focusing'on'technologies'and'business'services'
      • Contribu@ng'to'the'growth'of'the'ATM'API'economy'

                                            B2B'Tiger'Team'
 1st'mee@ng'May'2014'                       •    Enthusias@c'and'fully'commibed'members'
 •   37'par@cipants'
                                            •    4'web'conference'mee@ngs'in'2014'
 •   27'organisa@ons'
                                            •    Helped'shape'NM'developments'
                                            •    Customer'implementa@ons'already'in'2015''

                 2st'mee@ng'Jan'2015'
                 • 80'par@cipants'
                 • 44'organisa@ons'
                        NM B2B Web Services - Connecting you and the Network            8
NM B2B Web Services Connecting you and the Network - Eurocontrol
TesJmonies'of'NM'B2B'Users'

                 NM B2B Web Services - Connecting you and the Network   9
NM B2B Web Services Connecting you and the Network - Eurocontrol
Crystal and the NM B2B web services
Current and foreseen usages

B2B Tech Forum, 29/01/2015
Jérôme Layat, skyguide
What is Crystal?

     › skyguide traffic prediction tool, highly adapted to local environment
     › For FMP and Supervisors to:

     •   Improve local traffic situation awareness
     •   Choose the best sectorisation
     •   Increase capacity
     •   Provide reliable complexity indicator
     •   Reduce risks of saturations
     •   Reduce users workload

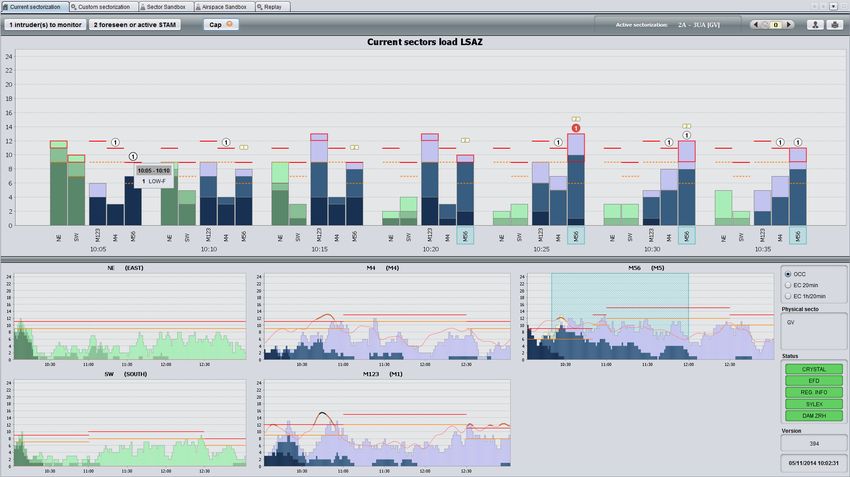

     Let's have a quick look: crystal_demo.flv

11

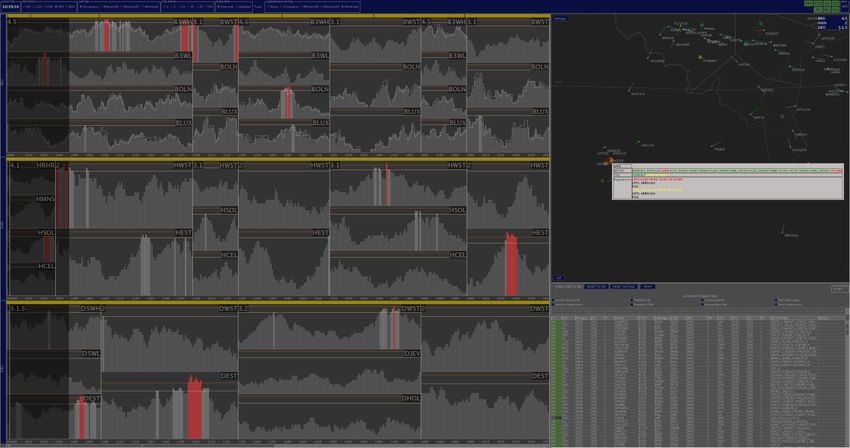

Crystal regulation display

                             regulations

12
Regulations data: entering NM B2B web services

› April 2014 : FlowServices : ANMRequest to get regulations
› June – October 14: B2B team improved the way to get detailed
     regulations information, creating the RegulationListRequest

› Current usage: polling regularly to get new Regulations data
› Near future: Publish/Subscribe to avoid polling
13
B2B usage topology
                                            internet
(today)
                                           regulations   B2B
                                                                Eurocontrol
                                                                   data

                   Network and other protection rules

                                                               Entry
                Crystal
                                                               Nodes

                Local ATM applications

                               OPS
                                                               eurocontrol
     skyguide
14
But…different traffic situation awareness
Local vs Network
              we wanted to
               improve this
                                           can't view skyguide info

                   can view network info

                                                                      CHMI

15
Improve the common traffic situation awareness

                  Send local info to eurocontrol

                                …
                         Using NM B2B
                        tactical updates!

16
B2B usage topology                              internet                                      Eurocontrol
(short-term)                                                                                     data
                                            Tactical updates
                                            MV, runway                               B2B    NM
                                                                                            flow
                                            D config
                                            changes
                                                                       regulations

                                                                   D configs plan

     skyguide                                                                               CHMI
                                  Network and other protection rules
                                                                                             updated with
                                                                                             skyguide data
                                                                 D-1 configs plan

                             Crystal
                                                                 FMP logbook

                   Update
                                                                              office
                                                                                            Entry
                D configs plan

                            Local ATM applications
                                                                                           Nodes
                                         OPS
                                                                                           eurocontrol

17
Questions we had regarding NM B2B

 Wait for NM B2B on PENS or go for the internet version?
                                                                           ?
                                                                ?
                                                              www   or   PENS

 What are the authorised limits when requesting the NM B2B?               ?

18
NM B2B web services team

 Improve the services according to users' requests/needs

 Nice support, availability: channels to interact with the team

                                                                                          Knowledge base
                                                                              videoconf
                                                                      email
 Tiger team (users) to gather usage and architecture feedback on
 tech topics: we participate

 Well prepared package and documentation

 onesky website is the central source for what you need to start to
 use NM B2B

19
Many features are in our backlog, some of them
involving NM B2B Services…

             …but now, it's time to…

               Thank you

20
iFMP

  integrated Flow Management Position

Network Manager – User Forum 2015
28-29 January 2015

                                                                             Robert Parys

                                    The European Organisation for the Safety of Air Navigation
Agenda

•   Problem statement

•   Why local ATFCM tool is needed?

•   What is iFMP today?

•   What are the B2B services used today?

•   Future enhancements
Problem statement

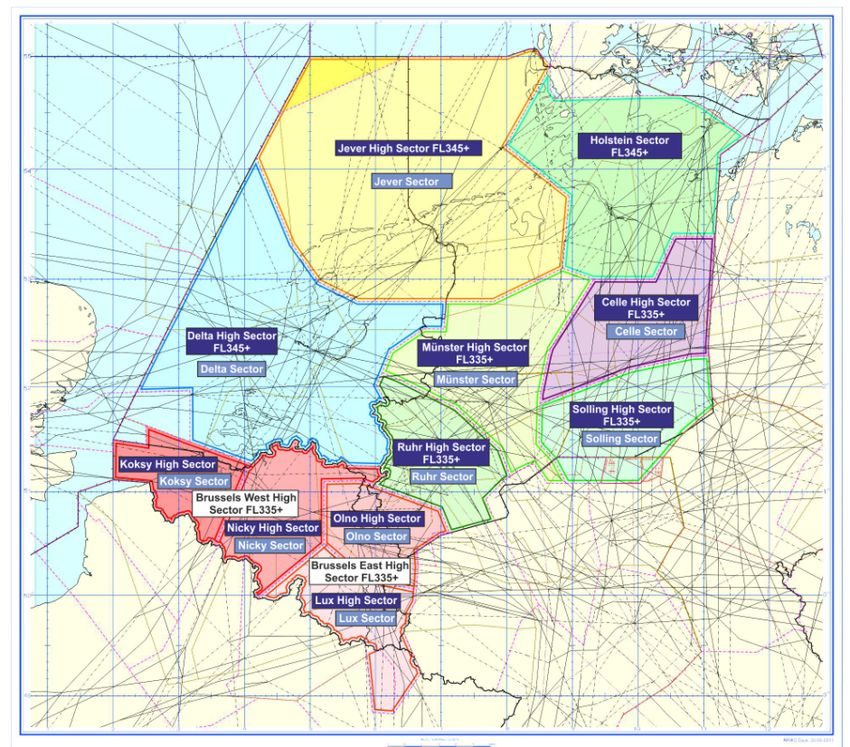

 MUAC airspace
        @
core area of Europe
Problem statement

 All-time high
TRAFFIC PEAK

 1 July 2011

 5,163 flights
Why local ATFCM tool is needed?

         iFMP becomes the primary ATFCM tool* @ MUAC                                                         because

•   Integrates with local systems
     • FDP system (trajectories)
     • Tactical man-power planning system (sectors manning)
     • ASM systems (eg LARA)
     • Can act as the local XMANs integrator
     • Allowing for ATFCM-ATC link (iFMP will feed FDP/CWP with STAM and/or XMAN proposals)

•   Supports new operational concepts
     • ATC2ATM Program at MUAC (2015-2025)
     • SESAR concepts
         • Complexity management
         • Advanced dDCB

•   Provides high reliability and availability, maintained in-house i.a.w. internal ENG standards

                                             * with CHMI & NOP available as-is as a backup and network reference tool
What is iFMP today?

•   TRAFFIC PREDICTION
     • prediction of sector load (1-60 min occ., 20/60 min entry, complexity) based on
         • EFD messages from ETFMS
         • trajectories from local FDP

•   PERFORMANT & USER FRIENDLY HMI
     • hotspots identification and tagging, detailed analysis of the hotspot
     • geographical radar-like display
     • interactivity between charts, maps and lists
     • customizable flights and flow filters

•   TOOLS
     • what-if on sector configurations & flights
     • sector optimization (for over- and under-load situations)

•   INTEGRATION
      • NM B2B web services (E-AUP/E-UUP, regulations, flights information)
      • weather (METAR/TAF)
      • link with tactical man-power planning system (TimeZone)
      • local FDP system

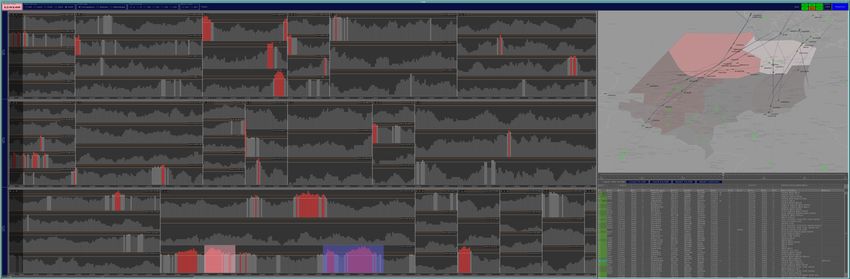

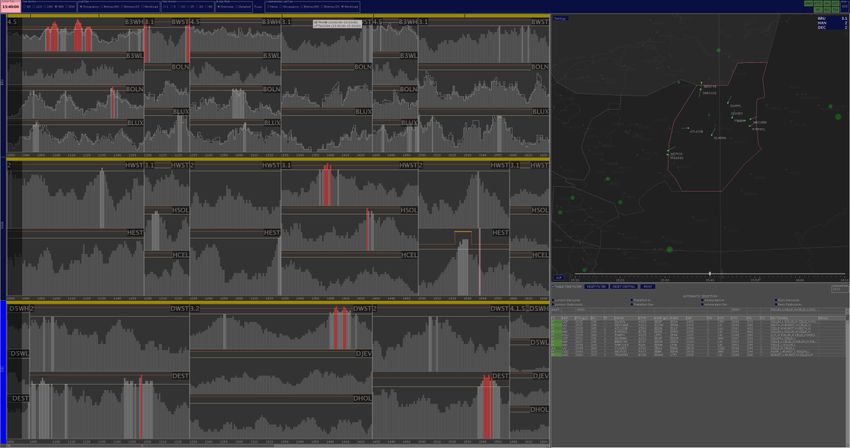

What is iFMP today?

OPS trial since Dec-14

Operational in Feb-15
B2B services used today

        E-AUP / E-UUP
            AirspaceServices

•   updates every 10 mins

•   Color coding for specific TSAs
    combinations

•   Replaces old means of AUP/UUP
    communication

•   First step towards ASM tact info
    (from LARA or NM in the future)
B2B services used today

           Regulations
      FlowServices; FlightServices
•   updates every 5 mins

•   Airports regulations displayed with
    TAF/METAR data

•   shows regulated flights (by most
    penalizing regulation)
Future enhancements

• Gradual replacement of most used CHMI/NOP functions into iFMP via B2B
  (e.g. tact capacity updates)

• ATC integration (feeding CWP/FDPS with STAM & sectorization changes)

• ASM integration (LARA)

• dDCB/STAM using B2B (part of SESAR P13.2.3 VP700)

• Further complexity algorithms refinement (SESAR P4.7.1)
FlightAware and Eurocontrol
      B2B Web Services

                              29 January 2015
Introducing FlightAware

•   Founded in 2005 by pilots, based in Houston, Texas

•   Originally focused on general aviation, expanded into airlines in 2008

•   Largest aviation web site in the world (>300MM pages/mo)

•   4,000 commercial customers representing >15,000 aircraft and >400 airports

•   Largest customers include United Airlines, SITA, NetJets, ARINC Direct, Boeing

•   Dozens of data sources spanning over 80 countries

•   Incorporating Eurocontrol data into services since 2011

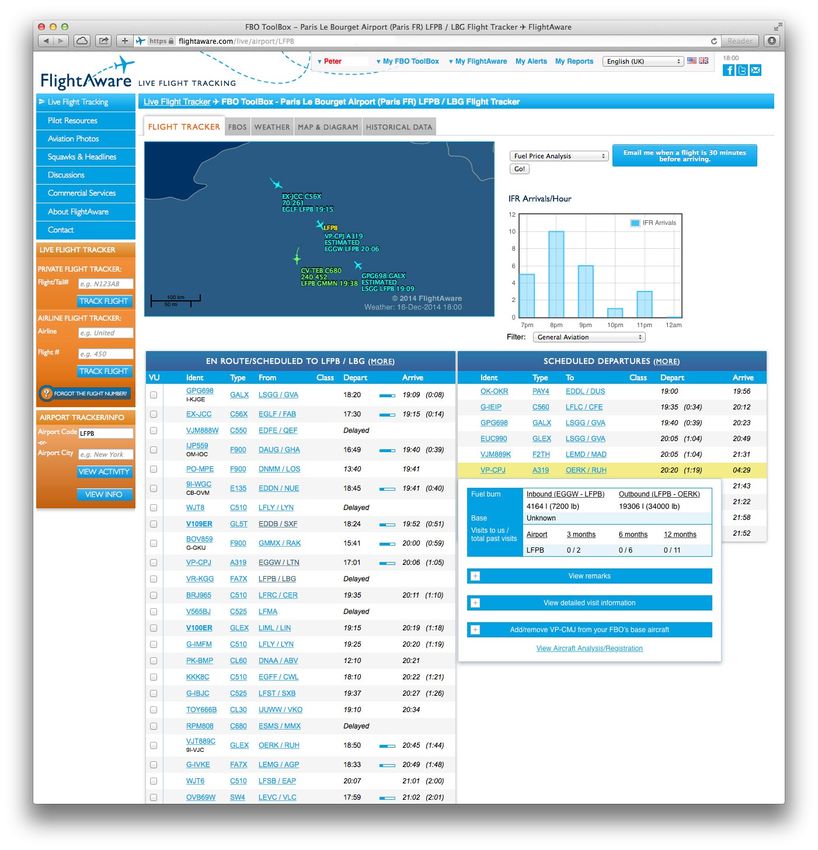

FlightAware Use Cases

         Aircraft Operators                    Airports/FBOs/Ground Agents

       Fleet scheduling and routing                    Arrival/Departure info

                                              Coordination times for slots, immigration,
         Real-time flight following
                                                              customs
Alerts (pre-departure route and clearances,
                                                   Flight Alerts (imminent arrival)
              flight following)
   Ground communications via ACARS
                                                Coordination with fueling companies
             messaging

        Weather imagery, briefings

 Worldwide airport delays and traffic flow
         management initiatives

Coordination with FBOs and ground agents
FlightAware in Europe - Gaps

Finding a comprehensive, reliable source
         for live flight plan data.
FlightAware in Europe - Gaps

    Finding a comprehensive, reliable source
             for live flight plan data.

              Eurocontrol B2B WS
Easy API for industry to access Eurocontrol data
FlightAware Use Cases & Data Source in Europe

            Aircraft Operators         Airports/FBOs/Ground Agents

Flight Plans: Eurocontrol B2B WS   Flight Plans: Eurocontrol B2B WS

Flight Plans: Datalink

Positions: Datalink

Positons: RADAR (in UK)            Positons: RADAR (in UK)

Positions: ADS-B / Mode S MLAT     Positions: ADS-B / Mode S MLAT
Fused data from FlightAware sources + Eurocontrol
FlightAware & B2B WS - Process & Challenges

•       Process and Access Management

    •     Managing User Applications / Certificates

    •     Restrict access to Eurocontrol data to authorized customers

•       Leveraging Data to Implement Useful Features

    •     Detect when new flight plans have been filed

    •     Supplement B2B WS data with positional data

•       Technical Limitations

    •     Validity of departure/arrival times

    •     Query mechanisms and performance
FlightAware & Eurocontrol - Summary
•       FlightAware & Eurocontrol
    •     In three years, FlightAware has gone from zero to thousands of customers
          using Eurocontrol CFMU data.
    •     Eurocontrol has been responsive and reactive to evaluating processes and
          policies to address FlightAware’s use cases.
•       Opinions on B2B WS
    •     Reliable and well documented API
    •     Organization desiring to widely leverage B2BWS need process development
          to comply with processes and restrictions.
•       Requests for B2B WS
    •     Coming soon - ability to subscribe to flight plans rather than querying
    •     Ability to query multiple aircraft at once to improve performance
    •     Indication of estimated vs actual data should be present
Vision'

          An'ATM'network'powered'by'the''

                         API'economy''

             NM B2B Web Services - Connecting you and the Network   32
You can also read
NEXT SLIDES ... Cancel
