OCULUS SDI® 4 / BIOM® 5
Wide Angle Observation
We focus on progress
The OCULUS BIOM® 5
Perfect view for non-contact wide angle observation
> The OCULUS BIOM® was a revolution in vitreoretinal surgery
and forever changed fundus viewing.
> Now 25 years later, the evolution continues.
> The BIOM® 5 series continuously incorporates the principle
of indirect ophthalmoscopy in the operating microscope.
Enlarge Your
Perspective !
The next evolution in non-contact
wide angle observation
Efficiency meets function
The easy handling of the BIOM® 5 persuades more and
more surgeons. While observing the vitreous and the
fundus, the BIOM® 5 is aligned coaxially with the operating
microscope. During extraocular phases of surgery, it
is swung aside out of the observation beam while the
inverting action of the SDI® is neutralized manually, by
foot switch or automatically, if the SDI® 4c / BIOM® 5c are
used. All sterilizable parts of the BIOM® system are steam
autoclavable following the latest recommendations.
The secret
A steam autoclavable micro switch for control of the
SDI® 4c guarantees convenience at its best. The activation
of the inverter function is ensured as long as the position
of the BIOM® 5c requires it. Of course the SDI® can be
controlled independently.
> Intelligent activation of the SDI® 4c

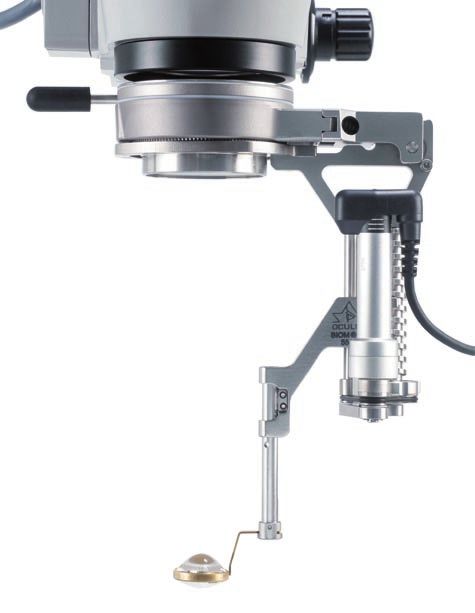

BIOM® 5c (with motorized focus)
Including the improvements of the BIOM® 5m, the latest
version, the BIOM® 5c offers additionally the convenience
of motorized focusing of the BIOM® image. It incorporates
the intelligent and automatic control of the corresponding
inverter, the SDI® 4c.

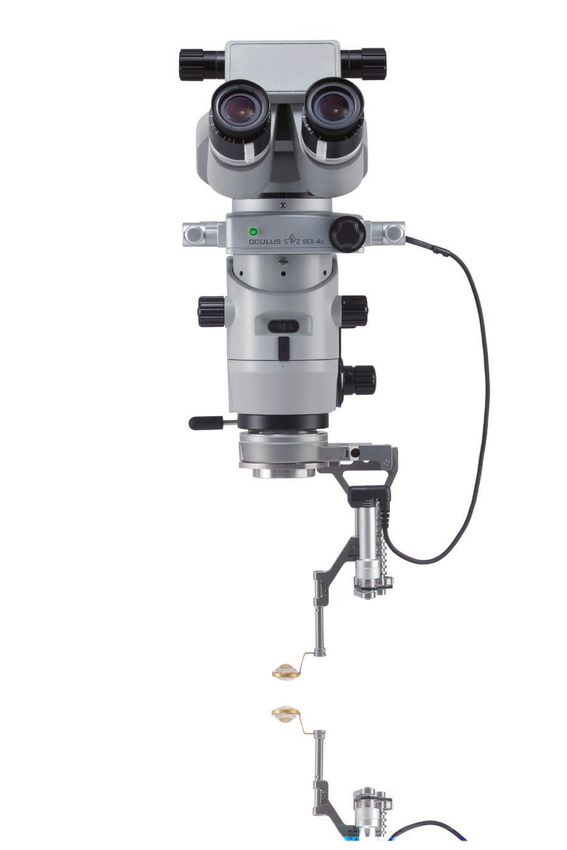

> BIOM® 5c in working position
OCULUS BIOM® 5
The advantages
Slim and sleek
The slim silhouette is not only styled attractively, but also light weight.
The open design supports easier access for reprocessing and also increases
freedom of movement for hands and instruments.
Optimized surgical efficiency
with the new system
Changing between the view of the retina and the anterior segment with
the new design of reduction lenses is easy and even faster than before. The
combination of wide field with high definition is gaining popularity among
experienced experts; this lens version reduces the necessity to exchange the
front lens during a case.
Maximum accuracy
Stainless steel and titanium offer durability with less play giving improved lens
adjustment and even greater stability of the front lens. The stainless steel lens
holder and guidance limit the play of the front lens. Due to the shape of the
lens receptacle and the small size of the lens frame, space consumption in the
operating field is minimized.
High durability for the toughest demands
The new BIOM® 5 versions are made from titanium and stainless steel offering
the highest mechanical stability; this material assembly offers excellent
resistance to todays rigorous and sometimes harsh sterilization methods.
Great compatiblity and continuity
The BIOM® 5 is interchangeable with most accessories of the former BIOM® 3
and BIOM® 4 versions.
Still the best: OCULUS SDI® 4
Stereoscopic Diagonal Inverter
> Cutting-edge technology in a stunning design
> Smaller than ever – really slim
> For ergonomics in use
All SDI®
Small dimensions
High transmission glass optics
Integration in most surgical microscopes
Easy to mount

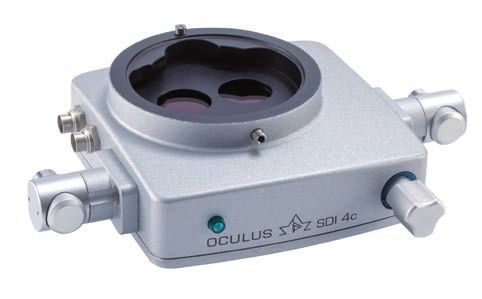

Manually inversion > SDI® 4m
Basic version
No voltage supply or cables required
For the use with BIOM® 5m
Motorized inversion
Electric switching
Integration into most microscope foot pedals
is possible
For the use with the BIOM® 5m
> SDI® 4e
Automatic inversion
Automatic activation depending on the position
of the BIOM® 5c
Connectors on both sides for convenient handling
SDI® 4c is required to control the motorized focus
of the BIOM® 5c
For the use with all BIOM® versions
> SDI® 4c
BIOM® 5 accessories
Easy sterilization

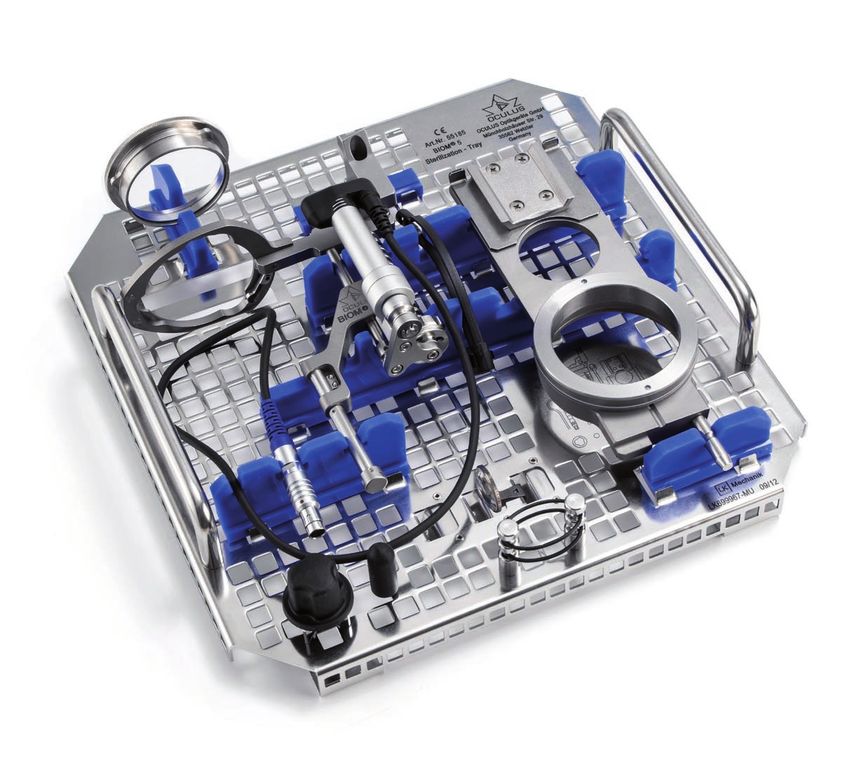

Customized sterilization tray for all
steam autoclavable BIOM® 5 parts.

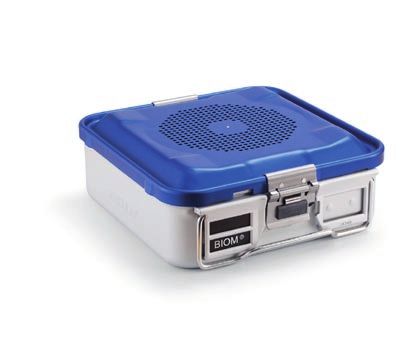

> Complete sterilization container
equipped with BIOM® 5
Wide variety of BIOM® lenses
Mini Wide Field Lens
Hi Res Macula Lens
Wide Field High
Enhanced Lens
Definition Lens
90 D Lens
Wide Field
Max. observation angle approx. 70° approx. 60° approx. 90° approx. 120° approx.
60° - 125°
Outer diameter 12 mm 19 mm 19 mm 19 mm 20 mm
Steam autoclavable with
134° C 134° C 134° C 134° C 134° C
max. temperature
Surface / material amorphous amorphous amorphous amorphous quartz glass
carbon coating carbon coating carbon coating carbon coating
Features for easy best resolution intermediate wide field most common
maneuverability of small field BIOM® lens,
of instruments structures, high high resolution
in small and magnification combined with
deep seated or of the micro- wide field of
infants‘ eye scope possible view
Adaptations
OCULUS SDI® 4/BIOM® 5
SDI® 4 / BIOM® 5 adaptations are currently available for the following microscope types:
Kaps SOM
Leica M500 / M501, M620, M650, M690, M841, M820, M822, M844
Möller Ophtamic 900, Hi-R 900, EOS 900, Allegra 900
Takagi OM-18, OM-8
Topcon OMS-110, OMS-600, OMS-610, OMS-650, OMS-710, OMS-800 Standard, OMS-800 Pro, OMS-850 Standard, OMS-850 Pro
Zeiss OPMI VISU 150 / 160, VISU 200 / 210, Lumera 700, Lumera T, Lumera i, OPMI CS with Retrolux 1/3/CS or with Retroskop 1/2/
CS, OPMI MDI / MDO / MDU, OPMI 1/6
in accordance with Medical Device Directive 93/42/EEG
Fits to most surgical microscopes
Specifications and design are subject to change without notice and may vary depending on region.

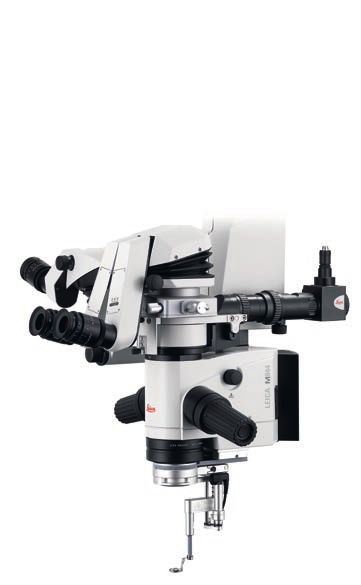

Specific: All SDI® 4c / BIOM® 5c functions can be controlled with the
16 functions foot pedal of the Leica M844 / M822 surgical microscope.
