Perceptual Ad-Blocking:
Meet Adversarial Machine Learning
Florian Tramèr
Palo Alto Networks
February 22nd 2019
Joint work with Pascal Dupré, Gili Rusak, Giancarlo Pellegrino and Dan Boneh
The Future of Ad-Blocking?
easylist.txt
…markup…
…URLs…
???

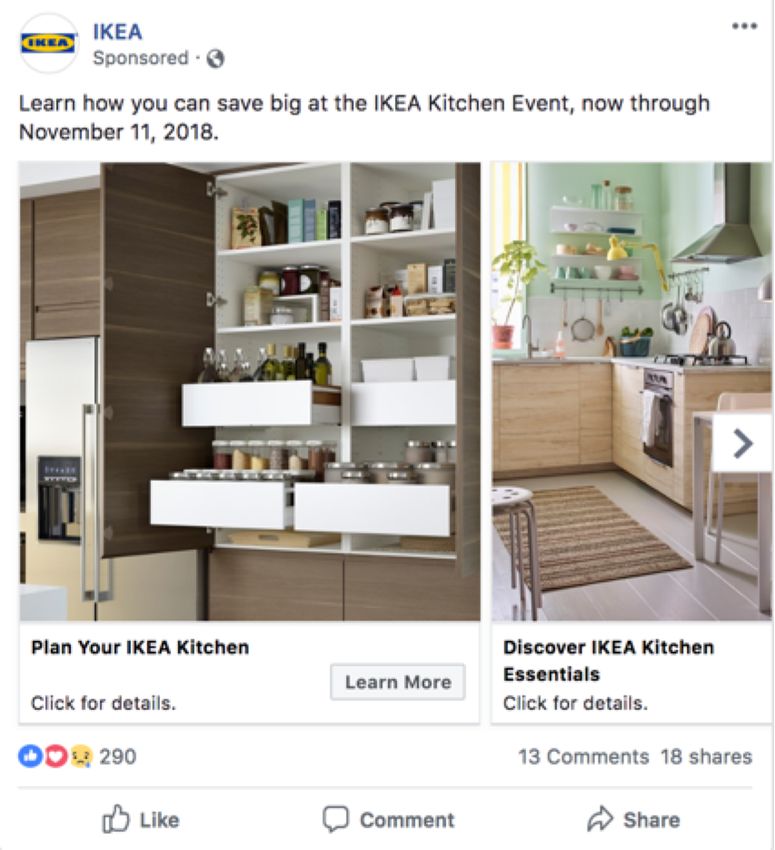

This is
an ad
Human distinguishability of ads
> Legal requirement (U.S. FTC, EU E-Commerce)
> Industry self-regulation on ad-disclosure
2
Perceptual Ad-Blocking
§ Ad Highlighter by Storey et al.
> Visually detects ad-disclosures
> Traditional Computer Vision techniques
> Simplified version implementable in Adblock Plus
§ Sentinel by Adblock Plus
> Locates ads in Facebook screenshots using neural networks
> Not yet deployed
3
Perceptual Ad-Blocking
§ Ad Highlighter by Storey et al.
> Visually detects ad-disclosures
> Traditional Computer Vision techniques
§ Sentinel by Adblock Plus
> Locates ads in Facebook screenshots using neural networks
> Not yet deployed
4

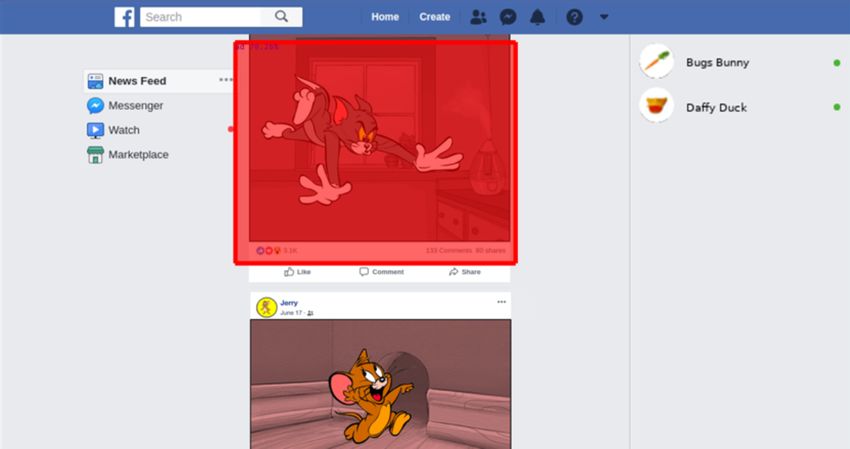

How Secure is Perceptual Ad-Blocking?
… so that
Tom’s post
gets blocked
Jerry uploads
malicious
content
…
5
Outline
§ Perceptual ad-blockers: how they work
§ Attacking perceptual ad-blockers
§ Why defending is hard
6
Outline
§ Perceptual ad-blockers: how they work
§ Attacking perceptual ad-blockers
§ Why defending is hard
7
How does a Perceptual Ad-Blocker Work?
https://www.example.com Ad Disclosure
Ad
Classifier Classifier
Data Collection and Training Page Segmentation Classification Action
Template matching, OCR,
DNNs, Object detector networks
Ø Element-based (e.g., find all tags) [Storey et al. 2017]
Ø Frame-based (segment rendered webpage into “frames”)
Ø Page-based (unsegmented screenshots à-la-Sentinel)
8
Building a Page-Based Perceptual Ad-Blocker
§ Sentinel is not yet deployed so we rolled our own
§ Let’s aim bigger than just Facebook!
(data collection on FB is a pain / privacy issue anyways...)
§ We trained an object detector neural network (YOLO-v3)
on news websites from all G20 nations
> Use filter lists to create a labelled dataset for training
> Crop & replace ads for data augmentation (increase data diversity)
9

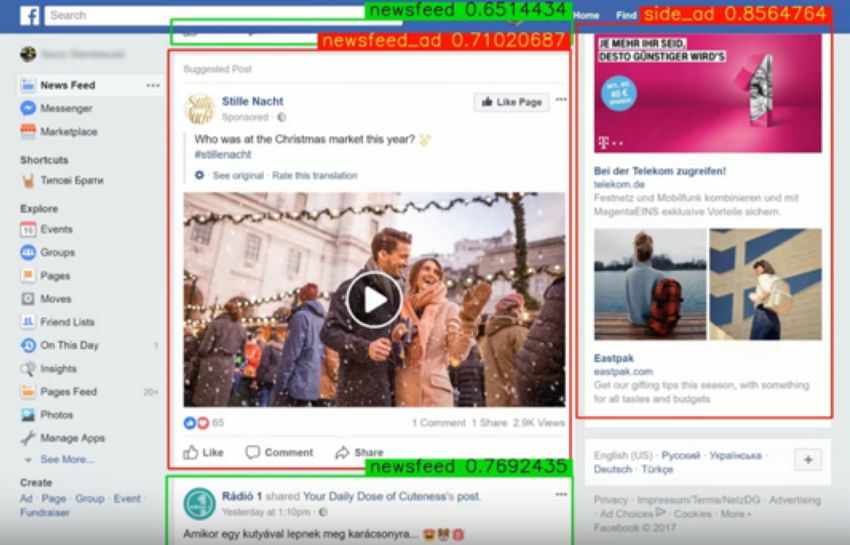

Our Ad-Detector in Action
Video taken from 5 websites not used during training
10Outline
§ Perceptual ad-blockers: how they work
§ Attacking perceptual ad-blockers
§ Why defending is hard
11The Current State of ML
ML works well on average
≠
ML works well on adversarial data
*
*as long as there is no adversary
12Adversarial Examples
Szegedy et al., 2014
Goodfellow et al., 2015
- ≈ 2⁄255
§ How?
> Training ⟹ “tweak model parameters such that !( ) = %&'(&”
> Attacking ⟹ “tweak input pixels such that !( ) = )*++,'”
13(Meaningful) Defenses
14Adversarial Examples for Perceptual Ad-Blockers
15Attacking Page-Based Classifiers
§ Challenge 1: Input of model is a webpage screenshot
> Attack must be implemented in HTML
§ Challenge 2: ! can’t control or predict the full input
> E.g., publishers can’t modify or know contents of ad frames
Classifier
16Ad-Block Evasion
§ Goal: Make ads unrecognizable by ad-blocker
§ ! = Website publisher
> Abilities: Inspect ad-blocker classifier(s) offline
Change page DOM, CSS, JavaScript...
Cannot modify content of ad frames
§ ! = Ad network (or advertisers)
> Abilities: Inspect ad-blocker classifier(s) offline
Arbitrary changes to content of ad frames
17Evasion 1: Universal Transparent Overlay
§ Web publisher perturbs every rendered pixel
Use HTML tiling to minimize
perturbation size (20 KB)
Ø 100% success rate on 20 webpages not used to create the overlay
Ø The attack is universal: the overlay is computed once and works
for all (or most) websites
18Evasion 2: Perturbed Ads
§ Ad network perturbs served ads
> Creating a single perturbation that works for every ad on every website is hard
> Target a specific domain
Alternative attack
Ø Publisher perturbs background below ad frame
Ø 100% success in evading ads
Original With adversarial ad
Ø 100% success rate for ads served on BBC.com
Ø No CSS: Ad image is directly perturbed on the server
Ø The perturbation is universal: It works for all ads (on this domain)
19Ad-Block Detection
§ Goal: Trigger ad-blocker on “honeypot” content
> Detect ad-blocking in client-side JavaScript or on server
> Applicability of these attacks depends on ad-blocker type
§ ! = Website publisher
> Abilities: Inspect ad-blocker classifier(s) offline
Change page DOM, CSS
Use client-side JavaScript to detect DOM changes
20Detection: Perturb fixed page layout
§ Publisher adds honeypot in page-region with fixed layout
> E.g., page header
original With honeypot header
21New Threats: Privilege Abuse
§ Ad-block evasion & detection is a well-known arms race.
But there’s more!
… so that
Tom’s post
gets blocked
Jerry uploads
malicious
content
…
What happened?
Ø Object detector model generates box predictions from full page inputs
Ø Content from one user can affect predictions anywhere on page
Ø Model’s segmentation is not aligned with web-security boundaries
22Outline
§ Perceptual ad-blockers: how they work
§ Attacking perceptual ad-blockers
§ Why defending is hard
23A Challenging Threat Model
https://www.example.com Ad Disclosure
Ad
Classifier Classifier
Data Collection and Training Page Segmentation Classification Action
Ø DOM Obfuscation Adversarial Privilege
Data Poisoning Examples Abuse
Ø Resource Exhaustion
Ø ! has white-box access to ad-blocker
Ø ! can exploit False Negatives and False Positives in classification pipeline
Ø ! prepares attacks offline ó The ad-blocker must defend against
attacks in real-time in the user’s browser
Ø ! can take part in crowd-sourced data collection
24Defense Strategy 1: Obfuscate the Model
§ Attacks are easy if ! has access to the ML model
> Hide model from adversary?
§ Obfuscate the ad-blocker?
> It isn’t hard to create adversarial examples for black-box classifiers
https://www.example.com https://www.example.com
Ad Disclosure Ad Disclosure
Ad Ad
Classifier Classifier Classifier
§ Randomize the ad-blocker?
(1) Pageand
Data Collection (2) Classification
Segmentation
Training (1) Page Segmentation
(3) Action(2) Classification (3) Action
> Deploy different models
- Adversarial examples that work against multiple models
> Randomly change page before classifying
- Adversarial examples robust to random transformations
25Defense Strategy 2: Anticipate and Adapt
§ If ad-blocker is attacked (evasion or detection),
collect adversarial samples and re-train the model
> Or train on adversarial examples proactively
§ This is called Adversarial Training
> New arms-race: ! finds new attacks and
ad-blocker re-trains
> Mounting a new attack is much easier than 1600 citations, 800 in 2018!
updating the model
> On-going research: so far ! always wins!
Broke 7 defenses, a few days after
they were accepted for publication
26Defense Strategy 3: Simplify the Problem
§ Storey et al: recognize ad-disclosures
> Simpler computer vision problem than
full-page ad-detection
> Light-weight and mature techniques
(OCR, perceptual hashing, SIFT)
§ Adversarial Examples still exist
27Take Away
§ Emulating human-like detection of ads could be the end-game
for ad-blockers
§ But very hard with current computer vision techniques
> Resisting adversarial examples is one of the most challenging open
problems in ML security
§ Perceptual ad-blockers have to survive a strong threat model
> Evasion & detection with adversarial examples
> Privilege abuse attacks from arbitrary content providers
> Similar threats for other ML-based ad-blockers (e.g., AdGraph?)
Ø Train a page-based ad-blocker
Ø Download pre-trained models
Ø Attack demos
http://arxiv.org/abs/1811.03194 https://github.com/ftramer/ad-versarial
