PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
PRO-JECT BOX-DESIGN
                                   PRODUCT CATALOGUE 2014

                                                             v3.1

THE SMART WAY TO LISTEN TO HIFI · BOX-DESIGN PRODUCTS 2014
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
PRODUCT CATALOGUE 2014

                                                 CONTENTS

                                       page                                                 page

           ♦ Elemental Line            3                ♦ Loudspeakers                      15

           ♦ Classic Line              4                ♦ Multimedia control                16

           ♦ S Line                    5-8              ♦ Accessories                       16

           ♦ DS Line                   9 - 12           ♦ Combinations                      17

           ♦ RS Line                   13 - 14          ♦ Design Boxes & Power 18

           ♦ Headphones                15               ♦ Cables                            19

ABOUT PRO-JECT AUDIO SYSTEMS AND BOX DESIGN

Pro-Ject Audio Systems was founded by Heinz Lichtenegger 1990 in
Vienna, with the idea that analogue playback is the most cost-
effective way to listen to music of audiophile quality.

Inspired by the concept of supporting analogue in the face of the
digital onslaught, Pro-Ject Audio Systems became one of the most
powerful driving forces in reinventing analogue turntables for the hi-fi
market. Today, Pro-Ject Audio Systems is the world leader in the
manufacture of quality hi-fi turntables, as turntables are once again
accepted as a must-have for every concerned music lover. Pro-Ject
Audio Systems' products are exported to almost 80 countries world-
wide and is the recipient of nearly every award in the audio industry.

                            Since 2006, Pro-Ject Audio Systems has been bringing its idea “less is more” mission
                            to the digital world. Inspired by the new possibilities of the iPod and high-quality
                            music reproduction from a PC or laptop, Pro-Ject Audio Systems has designed a
                            complete new and revolutionary range of micro high-end Hi-fi components under
                            the family name BOX DESIGN. Starting with the smallest audiophile amp in the
world, with open and euphonic sound, Pro-Ject Audio Systems now produces all of the components of
traditional hi-fi systems including CD players, tuners, phono amps, headphone amps and switching modules,
as well as digital products such as docking stations, D/A converters and streamers to connect with the PC
wired or wireless.

BOX DESIGN regards itself as the ‘next generation of hi-fi’ – the link between the micro-sized hardware of the
IT world and the big boxes of the audiophile world. All products, except for speakers and headphones, are
designed and produced in Europe.

Pro-Ject: Simple-to-use, high quality sound, astonishing value, long-term stability and good service.

2    CATALOGUE 2014 · BOX DESIGN Electronics                    SRPs are only for orientation, prices can differ depending on local taxes
                                                                            Prices, technical data & release date without engagement
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
Elemental Line
                                                   ELEMENTAL                                                                 OM 5e SRP € 199,00
                                                   Audiophile „Best Buy“ turntable
                                                   • Connec on to phono preamp or amplifier with phono preamp required • Pre-mounted inter-
                                                   connect cable with gold-plated RCA plugs

                                                   ELEMENTAL PHONO USB                                                       OM 5e SRP € 249,00
                                                   Turntable for Hifi & audio transfer to PC/Mac
                                                   • Integrated Phono-MM preamplifier • Connec ons: line-level RCA to amp & USB to PC/Mac
                                                   (simultaneously)
                                                   Both models: • Ultra rigid simplified design • Central Gravity point minimizing motor and chassis reso-
                                                   nances • Unique OM5 op mized tonearm • Super easy plug and play without any need of counter-
                                                   weight and an ska ng adjustment • Colour op ons: White/Black, Red/Black, Silver/Black

                                                   DAC BOX E                                                                            SRP € 99,00
                                                   NEW Digital to analogue converter
                                                   • Audio-upgrade for TV, Sat, Computer, etc • 24bit/192kHz Cirrus Logic DAC chip • Supports 24bit
                                                   audio data • Up to 192kHz sampling rates • Automa c signal sensing technology • Low clock ji
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
Classic Line

                        PHONO BOX                                                                               SRP € 99,00
                        MM/MC Phono preamp with line output
                        • Preamplifier for MM or MC with switch on rear panel • Op mal channel separa on through dual-
                        mono circuitry • „Green“ DC power supply (< 1 wa< standby power) • Precise RIAA equalisa on •
                        Low noise ICs • Output stage with ultra-low impedance • Gold-plated RCA sockets • Small size for
                        installa on near record player • Metal casing protects against vibra on and interference • Colour
                        op ons: silver or black

                        PHONO BOX USB                                                                         SRP € 139,00
                        MM/MC Phono preamp with line & USB outputs
                        • Preamplifier for MM or MC with switch on rear panel • Op mal channel separa on through dual-
                        mono circuitry • „Green“ DC power supply (< 1 wa< standby power) • Precise RIAA equalisa on •
                        High quality A/D conversion with USB out to PC/Mac • Compa ble with Windows®, Mac OS® • SMD
                        technology for shortest signal paths • Gold-plated RCA sockets • Output stage with ultra-low impe-
                        dance • Metal casing protects against vibra on and inter-ference • Colour op ons: silver or black

                        PHONO BOX USB V                                                                       SRP € 159,00
                        MM/MC Phono/line preamp with line & USB outputs
                        • Preamplifier for MM or MC with switch on rear panel • Op mal channel separa on through dual-
                        mono circuitry • „Green“ DC power supply (< 1 wa< standby power) • Precise RIAA equalisa on •
                        Phono/line selector on front • Record level adjustment • High quality A/D conversion with USB out to
                        PC/Mac • Compa ble with Windows®, Mac OS® • SMD technology for shortest signal paths • Output
                        stage with ultra-low impedance • Metal casing protects against vibra on and interference • Colour
                        op ons: silver or black

                        USB BOX                                                                                 SRP € 99,00
                        D/A converter with USB input for PC audio
                        • High quality D/A conversion with USB • Compa ble with Windows®, Mac OS® • Automa c detec-
                          on without the need of addi onal soRware, when used with conven onal computer systems • Po-
                        wered via USB • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage
                        with ultra-low impedance • Metal casing protects against vibra on and interference • Colour op ons:
                        silver or black

                        CD BOX                                                                                SRP € 249,00
                        Ultra-compact audio CD player
                        • 16bit/44.1kHz CD Audio playback • CD, CD-R, CD-RW, Hybrid SACD playback • Robust and reliable
                        all-metal CD transport • Slot-in mechanism • Servo board op mised for 1:1 playback of CDs • Direct
                        I²S digital-interface to DAC • DAC from Texas Instruments (BurrBrown) • Remote control with
                        volume level adjustment of Pro-Ject Audio Systems' amplifiers • Metal casing protects against vibra -
                        on and inter-ference • Colour op ons: silver or black

                                                                SRPs are only for orientation, prices can differ depending on local taxes
4     CATALOGUE 2014 · BOX DESIGN Electronics                               Prices, technical data & release date without engagement
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
S Line
                                               PRE BOX S                                                                          SRP € 249,00
                                               Stereo Line preamplifier
                                               • Advanced circuitry with premium components • Neutral sound with superior low noise floor • 2
                                               Stereo Line-in & Pre-out • Motorised volume control • SMD for short signal paths • Low output impe-
                                               dance for low loss with long cables • Gold-plated connec ons • Remote control for on/off, input sel-
                                               ect and volume • Trigger outputs for Amp Box and Switch Box • Metal casing protects against vibra -
                                               on and interference • Colour op ons: silver or black

                                               AMP BOX S                                                                          SRP € 249,00
                                               Stereo power amplifier
                                               • Ultra compact & audiophile • Advanced amplifier module • More power and further improved per-
                                               formance • Stereo input (RCA) • Gold plated speaker sockets • Suitable for Banana/Spade/Pin/bare
                                               wire • Trigger input • Trigger output for further Amp Box S • Metal casing protects against vibra on
                                               and interference • Colour op ons: silver or black

                                               AMP BOX S MONO                                                                     SRP € 249,00
                                               Mono power amplifier
                                               • Ultra compact & audiophile • Advanced amplifier modules • 2 ohms drive capability • More power
                                               and further improved performance • Mono input with loop-out (RCA) • Gold-plated speaker sockets •
                                               Suitable for Banana/Spade/Pin/bare wire • Trigger input with output for further Amp Box S Mono •
                                               Metal casing protects against vibra on and interference • Colour op ons: silver or black

                                                HEAD BOX S                                                                        SRP € 119,00
                                                Headphone amplifier
                                                • Audiophile headphone amplifier • 6,3mm jack output on front • Suitable for headphones with low
                                                or high impedance • RCA stereo input • RCA stereo loop-out • Sound upgrade compared to standard
                                                headphone outputs from integrated amplifiers • Best-buy award winner • Metal casing protects
                                                against vibra on and interference • Colour op ons: Silver or Black

                                               HEAD BOX S USB                                                                     SRP € 169,00
                                               Headphone amplifier with D/A converter with USB input for PC audio
                                               • Audiophile headphone amplifier • High quality D/A conversion with USB • 6,3mm jack output on
                                               front • Suitable for headphones with low or high impedance • RCA stereo input • RCA stereo loop-
                                               out • Significantly be
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
STEREO BOX S Phono                                                                    SRP € 359,00
                        NEW Stereo integrated amplifier with analogue & phono inputs
                        • High End integrated amplifier with 3 line & 1 phono input (MM) • 2x 30 wa
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
DAC BOX S USB                                                                       SRP € 159,00
                                                Digital to analogue converter with line & USB outputs
                                                • Audiophile 24bit/96kHz D/A-conversion • Precision D/A chip from Texas Instruments • 8 mes over-
                                                sampling • 3 Inputs: 1x USB, 1x op cal (Toslink), 1 x coax (S/PDIF) • Gold-plated RCA line level output
                                                sockets • To take full advantage of the DAC Box S USB features, please install soRware package (see
                                                manual, website) • Input selector on front • Metal casing protects against vibra on and interfe-
                                                rence • Colour op ons: silver or black

                                                DAC BOX S FL                                                                        SRP € 199,00
                                                Filterless non-oversampling digital to analogue converter
                                                • Audiophile 16bit linear D/A-conversion • Non-Oversampling • Without digital filter • 4 x TDA1543
                                                parallel opera on mode • "Analogue" full bodied sound • Input selector on front • Metal casing pro-
                                                tects against vibra on and interference • Colour op ons: silver or black

                                                USB BOX S                                                                            SRP € 99,00
                                                D/A converter with USB input for PC audio
                                                • High quality D/A conversion with USB • Compa ble with Windows®, Mac OS® • Automa c detec-
                                                  on without the need of addi onal soRware, when used with conven onal computer systems • Po-
                                                wered via USB • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage
                                                with ultra-low impedance • Metal casing protects against vibra on and interference • Colour op ons:
                                                silver or black

                                                USB BOX S+                                                                          SRP € 199,00
                                                High-End USB streamer & D/A converter
                                                • Asynchronous data transfer from USB with 32bits/384kHz BurrBrown DAC chip • Based on XMOS
                                                technology • USB Receiver and converter are 32 bit ready • Class:A output stage • Analogue output
                                                RCA connectors gold plated • Metal casing protects against vibra on and interference • Colour op -
                                                ons: silver or black

                                                DOCK BOX S DIGITAL                                                                  SRP € 199,00
                                                Highend Apple-Dock with internal D/A conversion
                                                • Pure digital audio transmission • 24bit/192kHz D/A converter • Addi onal S/PDIF output (RCA) •
                                                APPLE cer fied • Audio playback from iPod, iPhone, iPad • iPod/iPhone/iPad charging capability • S-
                                                Video output • Power bu
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
A/D PHONO BOX S                                                                        SRP € 199,00
                                     NEW Analogue to digital converter with digital op9c out (Toslink) & USB out
                                     • MM & MC capable • Linear RIAA equalisa on • Phono stage technology by Dr. Sykora • Line level
                                     input switchable • Recording level control • USB recording output to computer (Win & Mac) • Digital
                                     op c output (Toslink), works while USB is connected • Ultra low noise & low distor on levels • SMD
                                     circuitry • Metal casing protects against vibra on and interference • Small size allows installa on
                                     close to record player • Colour op ons: silver or black

                                     PHONO BOX S                                                                            SRP € 149,00
                                     „Best Buy“ MM/MC phono preamplifier
                                     • Audiophile performance • Dual mono configura on • Audiophile-grade amplifica on modules •
                                     Audiophile-grade polypropylene WIMA capacitors • Precise RIAA equalisa on • Switchable Subsonic
                                     filter –12dB @ 20Hz • Switchable input impedance/capacitance • 4 adjustable gain levels • Out-
                                     standing sound quality • Metal casing protects against vibra on and interference • Colour op ons:
                                     silver or black

                                     TUBE BOX S                                                                             SRP € 349,00
                                     MM/MC phono preamplifier with tube output stage
                                     • Audiophile Performance • Audiophile-grade ECC83 (12AX7) • Dual mono configura on • Audiophile
                                     -grade polypropylene WIMA capacitors • Precise RIAA equalisa on • Switchable input impedance/
                                     capacitance • 3 adjustable gain levels • Subsonic filter • Metal casing protects against vibra on and
                                     interference • Colour op ons: silver or black

                                     SPEED BOX S                                                                            SRP € 129,00
                                     Electronic motor control and speed change
                                     • Quartz-generated high precision electronic speed regula on with microprocessor control • Sound
                                     improvement through motor running smoothness • Clean power decoupled from mains interfe-
                                     rence • Allows electronic speed change 33 & 45 rpm • 78 rpm possible with op onal accessory pul-
                                     ley • Suitable for all turntables with 16 volt AC motor, up to 3 wa< max. power consump on • Small
                                     size allows installa on close to record player • Outboard power supply included • Metal casing pro-
                                     tects against vibra on and interference • Colour op ons: silver or black

                                     SWITCH BOX S                                                                           SRP € 119,00
                                     Input expansion for amplifiers/preamplifiers
                                     • 4 inputs • 2 line outputs for separate usage • Suitable for amplifiers (Pro-Ject Audio Systems or
                                     other brands) • 3-input expansion for Pre Box S • Ultra-low crosstalk • Automa c synchronisa on
                                     with trigger cable of Pre Box S • Metal casing protects against vibra on and interference • Colour
                                     op ons: silver or black

                                     POWER BOX S 4 WAY                          (available Q3/2014) es mated SRP € 129,00
                                     One power cable solu9on
                                     • Improves sonic performance of S-Line products by delivering of clean energy for powering with very
                                     good filtra on and voltage regula on • FiZng in rear side of Design Box 2 • Gives a neat finish of the
                                     Design Box • Suits: Stereo Box S, Amp Box S, Pre Box S, Receiver Box S, DAC Box S FL, DAC Box S USB,
                                     Dock Box S Fi, Dock Box Digital S, Head Box S, Phono Box S, Media Box S, etc. • Outputs: 1x 20V / 3A,
    shown with Design Box Acryl 2    2x 9V / up to 3A, 3x 18V / 500mA up to 1A • Colour op ons: silver or black
           (not included)

                                     POWER BOX S 6 WAY                         (available Q3/2014) es mated SRP € 149,00
                                     One power cable solu9on
                                     • Improves sonic performance of S-Line products by delivering of clean energy for powering with very
                                     good filtra on and voltage regula on • FiZng in rear side of Design Box 4 • Gives a neat finish of the
                                     Design Box • Suits: Stereo Box S, Amp Box S, Pre Box S, Receiver Box S, DAC Box S FL, DAC Box S USB,
                                     Dock Box S Fi, Dock Box Digital S, Head Box S, Phono Box S, Media Box S, CD Box S, etc. • Outputs: 1x
     shown with Design Box Acryl 4   20V / 3A, 2x 9V / up to 3A, 3x 18V / 500mA up to 1A • Colour op ons: silver or black
            (not included)

                                                                              SRPs are only for orientation, prices can differ depending on local taxes
8        CATALOGUE 2014 · BOX DESIGN Electronics                                          Prices, technical data & release date without engagement
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
DS Line

                                                PRE BOX DS                                                                             SRP € 359,00
                                                Stereo Line preamplifier
                                                • Improved circuitry with even less noise • Volume control through relais (64 steps, 1 dB) • 4 line
                                                level inputs • Relais switching of inputs • 1x Pre-Out, 1x Subwoofer-Out, 1x Record-Out • Extremely
                                                low output impedance for low loss with long cables • IR remote control • Trigger switching of power
                                                amplifiers • Big elegant control display • Metal casing protects against vibra on and interference •
                                                Colour op ons: silver or black

                                                AMP BOX DS                                                                             SRP € 399,00
                                                Stereo power amplifier
                                                • Improved PWM-circuitry (Pulse Wave Modula on) • 2x 125 / 80 wa
PRO-JECT BOX-DESIGN PRODUCT CATALOGUE 2014
PHONO BOX DS                                                                           SRP € 249,00
                      Phono preamplifier
                      • MM & MC capable • Linear RIAA equalisa on • Ul mate circuit technology from Dr. Sykora, simplifi-
                      ed version of Phono Box DS+ without display & relais switching • Ultra low noise & low distor on
                      levels • SMD circuitry • Subsonic filter (switchable on rear panel) • Substan al setup op ons • Com-
                      fortable switching via bu
DAC BOX DS                                                                        SRP € 399,00
                                                High-End Digital/Analogue Converter with USB 2.0 & DSD capability
                                                • Top grade PCM-1792 D/A chip from Texas Instruments • 3 Inputs: 1x USB, 1x op cal (Toslink), 1 x
                                                coax (S/PDIF) • 24bit/192kHz asynchronous USB streaming • 8 mes oversampling • 2 selectable filter
                                                seZngs • Ultra linear circuitry • Extremely low impedance output stage • Gold-plated RCA line level
                                                output sockets • Metal casing protects against vibra on and interference • Colour op ons: silver or
                                                black

                                                HEAD BOX DS                                                                       SRP € 349,00
                                                D/A converter & headphone amplifier
                                                • Audiophile grade headphone amp & 24bit D/A conversion • 3 digital inputs: Asynchronous USB 2.0,
                                                S/PDIF, Toslink • Special USB-2.0 driver für 24/192 (24/96 with USB1.1) • Ultra low-noise semiconduc-
                                                tors from BurrBrown • SMD technology for short signal paths • Analogue output (RCA) for use as D/A
                                                converter • Analogue input (RCA) • Headphone socket (6,3mm jack plug) • Metal casing protects
                                                against vibra on and interference • Colour op ons: silver or black

        PRELIMINARY
                                                POWER BOX DS 4 WAY                       (available Q3/2014) es mated             SRP € 249,00
                                                NEW Linear power supply and mains condi9oner
                                                • Improves sonic performance of DS-Line products by delivering of clean energy for powering with
                                                very good filtra on and voltage regula on • Suits source equipment: Pre Box DS, DAC Box DS,, Head
                                                Box DS, Phono Box DS, Phono Box DS+, Tube Box DS, Stream Box DS, Stream Box DSnet, Stream Box
                                                DS+, CD Box DS • Outputs: 2x 9V / up to 2A, 2x 18V / 500mA up to 1A • Metal casing protects against
                                                vibra on and interference • Colour op ons: silver or black

        PRELIMINARY
                                                 POWER BOX DS+ 6 WAY                      (available Q3/2014) es mated             SRP € 299,00
                                                 NEW Linear power supply and mains condi9oner
                                                 • Improves sonic performance of DS-Line products by delivering of clean energy for powering with
                                                 very good filtra on and voltage regula on • Increases amplifier power • Suits: Amp Box DS, Amp Box
                                                 DS Mono, Pre Box DS, DAC Box DS, Head Box DS, Phono Box DS, Phono Box DS+, Tube Box DS, Stream
                                                 Box DS, Stream Box DSnet, Stream Box DS+, CD Box DS • Outputs: 1x 48V / 2,5A, 2x 9V / up to 2A, 3x
                                                 18V / 500mA up to 1A • Metal casing protects against vibra on and interference • Colour op ons:
                                                 silver or black

SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
                                                                            BOX DESIGN Electronics · CATALOGUE 2014                                11
STREAM BOX DS                                                                           SRP € 699,00
                      Highend audio with Wi-Fi, LAN, USB sources
                      • Award winning audiophile grade 24bit/192kHz highend audio streaming client • Ethernet & WLAN •
                      Meets the Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk drives • USB
                      input for Apple devices using digital out • Internetradio with automa c detec on of local sta ons •
                      “Gapless“ playback for all formats • Supports following audio codecs/formats: MP3, WMA-9, AAC,
                      FLAC, WAV, AIFF • Luxury 3,5” TFT colour display that shows album cover art • Control via IR remote
                      (included) or Plug-Player, SongBook, Chorus DS, etc • Internetradio plaWorm: vTuner built-in • Using
                      streaming services, like Spo fy, Deezer, Grooveshark, Simfy, etc with Jamcast soRware • For direct
                      streaming from portable devices we recommend Flipps (iMediaShare) • Gold plated RCA connectors •
                      Metal casing protects against vibra on and interference • Colour op ons: silver or black

                      (Upgrade Stream Box DS to Stream Box DS net for full NetAPI compa bility, total retail cost is only €
                      100,00. For further informa on, please contact your local retailer or distribu on)

                      STREAM BOX DS NET                                                                       SRP € 799,00
                      24bit/192kHz Highend audio via Wi-Fi, LAN, USB with free Box Control App for iOS & Android
                      • Award winning audiophile grade 24bit/192kHz highend audio streaming client • Ethernet & WLAN •
                      Meets the Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk drives •
                      NetAPI plaWorm implemented, which supports Free Box Control App • Internetradio with automa c
                      detec on of local sta ons • “Gapless“ playback for all formats • Supports following audio codecs/
                      formats: MP3, WMA-9, AAC, ALAC (including cover art), FLAC, WAV, AIFF • Luxury 3,5” TFT colour
                      display that shows album cover art • Control via IR remote (included) or Plug-Player, SongBook, Cho-
                      rus DS, etc • Internetradio plaWorm: vTuner built-in • Using streaming services, like Spo fy, Deezer,
                      Grooveshark, Simfy, etc with Jamcast soRware • For direct streaming from portable devices, we
                      recommend Flipps (iMediaShare) • Gold plated RCA connectors • Metal casing protects against vibra-
                       on and interference • Colour op ons: silver or black

                      STREAM BOX DS+                                                                       SRP € 1.099,00
                      24bit/192kHz Highend audio with Wi-Fi, LAN, USB sources
                      Same features as audiophile Highend streamer Stream Box DS net but addi onally:

                      + Fixed & variable analogue audio outputs (RCA) + volume control using IR remote or- front bu
RS Line
                                                PRE BOX RS                                                                         SRP € 799,00
                                                High-end stereo line tube-preamplifier
                                                • Fully balanced double mono design • Ultra-linear & ultra low noise • Pure Class-A circuitry • Input
                                                switching via relais • Low ESR capacitors • Blue Alps volume control • 3 XLR & 3 RCA inputs • 1 Pre–
                                                out XLR & 1 Record-out RCA • Standby power consump on < 1W • IR remote control included • Me-
                                                tal casing protects against vibra on and interference • Colour op ons: silver or black
                                                Op onal Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality

                                                AMP BOX RS                                                                         SRP € 899,00
                                                Highend Stereo power amplifier
                                                • Fully balanced double mono design (Pulse Wave Modula on) • 2x 120 / 90 wa

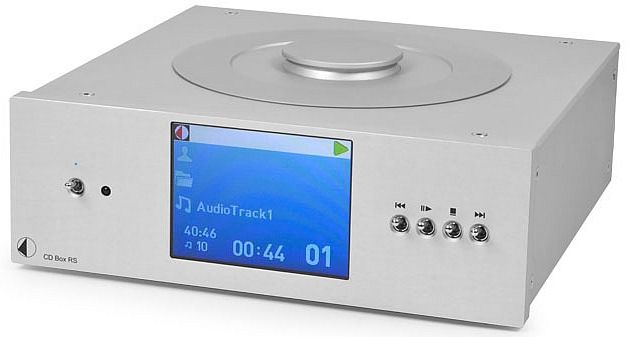

CD BOX RS                                                                              SRP € 999,00
                       NEW Ul9mate CD drive for CD/MP3/WMA/FLAC
                       • Top loader CD transport • CD mechanism with magne c clamp • Blue Tiger CD-100 servo system
                       suppor ng 24bit/96kHz FLAC playback • Gravity design with metal block on bo
Headphones

                                                HEAR IT ONE                                                                         SRP € 99,90
                                                Audiophile stereo headphone
                                                • Smart, audiophile & comfortable • Classic design • Adjustable leather-coated headband • SoR lea-
                                                ther ear cushions (memory foam) • Tex le coated cable made from oxygen-free copper (HP-OFC) •
                                                Gold plated 3,5mm jack plug • High gloss & metal finish

                                                HEAR IT TWO                                                                         SRP € 59,90
                                                Trendy headphone for iPod & Co
                                                • Super loud – super light – super cool • More SPL with iPod & Co (107dB) • Lightweight design 77 g •
                                                Adjustable ear-cushion posi on • Flat transport possible • High wear comfort • 3,5mm jack plug • 3
                                                colour op ons: red, white, black

                                                                                                            Loudspeakers
                                                SPEAKER BOX 4                                                                     SRP € 199,00
                                                2-way monitor speaker
                                                • 2-way sealed box, for clear bass • 100mm bass/midrange (aluminium die-cast) • 25mm silk-dome
                                                weeter • High-quality crossover (second order) • An -vibra on sealant • Magne c screening • Gold-
                                                plated 5-way binding posts • Impedance: 4 ohms > suitable for amplifiers from 4 – 8 ohms • Recom-
                                                mended amplifier power 10 to 100 wa
Mul9media control
                      REMOTE BOX S                                                                            SRP € 359,00
                      Lifestyle solu9on for audio control
                      • Works with Box Control App • Controls all Box-Design units (pre-programmed) + 6 IR controlled
                      units • Receives Wifi commands from the Box Control App • Converts Wifi commands to IR and trans-
                      fers to Standard Hifi Components (IR Receiver) • IR commands of Box-Design components are stored
                      in the Box Control App • Perfect solu on for complete remote control • Colour op ons: silver or black

                      BOX CONTROL                                                          FREE FOR IOS & ANDROID
                      SoHware for Remote Box S and Stream Boxes
                      Box Control is a special development for Pro-Ject Audio Systems, that will revolu onise the way of
                      controlling your highend audio equipment. This App offers full control of Stream Box DSnet and on-
                      wards plus addi onally the ability to operate all other IR controllable Box-Design components

                      CONTROL IT                                                                               SRP € 29,90
                      All-in-one IR remote for Box Design
                      • Manage all components with a single remote: preamplifiers, Integrated amplifiers, Receiver, FM-
                      Tuner, Dockingsta ons, CD-Players, Stream Box DS, Media Box S • Pre-programmed - no setup neces-
                      sary • Simple and easy to use • Widespread IR emission up to 135° • Rugged design

 Accessories
                      SPEAKER BOX Stand 70                                                                    SRP € 229,00
                      Audiophile speaker stand
                      • Ideal for Speaker Box 4 and 5 • Low resonance design • Metal/wood composite material • Cable
                      break-through within pillar • Heavy construc on with 6mm steel base • Adjustable spikes, mountable
                      in base • Upper plaWorm 140 x 150mm (WxD) • Overall height 725mm • High gloss piano lacquer
                      black or white • Packed in pairs

                      SPEAKER BOX DESKTOPSTAND                                                                 SRP € 99,00
                      NEW Bookshelf speaker plaJorm
                      • Perfect placement for near-field speakers • Damping feet prevent unwanted vibra on • Perfectly
                      suits Speaker Box 4 or 5 • Each stand also provides addi onal space for 1 Box Design S component •
                      Crystal clear acrylic • Stereo set includes 2 stands and 8 vibra on dampers

                      DAMP IT                                                                          1 pc     SRP € 7,99
                      NEW Highend damping feet                                                         4 pcs SRP € 29,90
                      • Special absorber feet made from hightech TPE • Prevents transmission of unwanted mechanical
                      vibra on • Especially for CD and other disc players, tube amplifiers, speakers & turntables • Single
                      or set of 4

                      ABSORB IT                                                                      4 pcs SRP € 159,00
                      NEW Highend damping feet
                      • Special absorber feet made from hightech synthe c material enclosed by metal ring • Prevents
                      transmission of unwanted mechanical vibra on • Especially designed for CD players and turntables

                      GRILLES SB-5                                                                             SRP € 29,90
                      • Acous c transparent loudspeaker front cover • Fabric front with wood-frame and magnet holder •
                      Exclusive Colour-Design for more Lifestyle • Suitable for Speaker Box 5

                      WB-SB-4/5                                                                                SRP € 39,00
                      Speaker wall mount
                      • Available in black and white • Suitable for Speaker Box 4 and Speaker Box 5 • Packed in pairs

                      SPIN-CLEAN® OPTICAL DISC CLEANER
                      SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 2 OZ (59 ML)                                    SRP € 20,00
                      SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 4 OZ (118 ML)                                   SRP € 25,00
                      SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 8 OZ (237 ML)                                   SRP € 30,00
                                                               SRPs are only for orientation, prices can differ depending on local taxes
16   CATALOGUE 2014 · BOX DESIGN Electronics                               Prices, technical data & release date without engagement
Combina9ons

                                                Set "Stereo-Hifi-System"                                                           SRP € 1.499,00
                                                NEW • Micro-sized stereo Hifi-system with turntable • Audiophile receiver with built-in FM-tuner •
                                                Slim-line CD player • Turntable with built-in phono stage and pre-mounted cartridge • IR remote
                                                control • Audiophile grade compact speakers • High quality interconnects and speaker cables in-
                                                cluded • Faceplates of components available in silver or black • Speakers available in red, white or
                                                black • Instead of Design Box 2iP: Alterna ve rack "the butler 2.2" is also available (upcharge)

                                                Set "Micro-Hifi-System"                                                            SRP € 1.099,00
                                                • Micro-sized stereo Hifi-system with Apple docking sta on • Audiophile Dock Box S Fi with fixed
                                                audio output level • 30-pin connec on for iPod, iPhone, iPad • Audiophile receiver with built-in FM-
                                                tuner • Slim-line CD player • IR remote control • Audiophile grade compact speakers • High quality
                                                interconnects and speaker cables included • Faceplates of components in silver or black • Speakers
                                                available in red, white or black • System remote control included • Instead of Design Box 4iP: Alterna-
      Set „Micro-Hifi-System“ with                 ve rack "the butler 2.2" is also available (upcharge)
       original rack Design Box 4iP

                                                Set "iPod® goes Hifi"                                                                 SRP € 599,00
                                                • Micro-sized stereo Hifi-system with Apple docking sta on • Audiophile Dock Box S Fi with fixed
                                                audio output level • 30-pin connec on for iPod, iPhone, iPad • Audiophile Integrated Stereo amplifier
                                                with addi onal analogue input (use with FM-tuner, CD, etc.) • IR control for both components • Audi-
                                                ophile grade compact speakers • High quality interconnects and speaker cables included • Faceplates
                                                of components available in silver or black • Speakers available in red, white or black • Instead of De-
        Set „iPod® goes Hifi“ with               sign Box 2iP: Alterna ve rack "the butler 2.1" is also available (upcharge)
       original rack Design Box 2iP

                                                Set "iPod® goes digital"                                                             SRP € 699,00
                                                • Micro-sized stereo Hifi-system with Apple docking sta on • Audiophile Dock Box S digital provides 2
                                                analogue outputs (RCA) & S/PDIF (use with external D/A converters) • Pure digital output from iPod,
                                                iPhone, iPad • Audiophile Integrated Stereo amplifier with addi onal analogue input (use with FM-
                                                tuner, CD, etc.) • Audiophile grade compact speakers • Highend interconnects and speaker cables
                                                included • Faceplates of components available in silver or black • Speakers available in red, white or
       Set „iPod® goes digital“ with            black • Instead of Design Box 2iP: Alterna ve rack "the butler 2.1" is also available (upcharge)
       original rack Design Box 2iP

                                                Set "Mediaplayer"                                                                    SRP € 750,00
                                                • Micro-sized stereo Hifi-system for digital music playback • MP3, WMA, AAC music with no need for
                                                PC, Mac • 2 digital inputs on Media Box S - USB 2.0 Hi-speed (hard disk drive or s ck) - SD (Secure
                                                Digital up to 32Gb) • 1 addi onal analogue input (use with FM-tuner, CD, etc.) • Audiophile grade
                                                amplifica on • Audiophile grade compact speakers • Faceplates of components in silver or black •
        Set „Mediaplayer“ with                  Speakers available in red, white or black • Instead of Design Box 2: alterna ve rack "the butler 2.1" is
       op onal rack the butler 2.1
                                                also available (upcharge)

                                                Set "Hifi-Airplay"                                                                    SRP € 850,00
                                                • Micro-sized stereo Hifi-system with "Airplay"-ability • Wireless playback of digital music from PC,
                                                Mac, iPhone • 2 addi onal digital inputs on DAC Box S USB - USB (PC or Mac connec on) - S/PDIF RCA
                                                -coax (use with satellite radio, etc) • 1 addi onal analogue input (use with FM-tuner, CD, etc) • Audio-
                                                phile grade amplifica on and speakers • Faceplates of components in silver or black • Speakers
         Set „Hifi-Airplay“ with                 available in red, white or black • Instead of Design Box 2iP: Alterna ve rack "the butler 2.1" is also
       op onal rack the butler 2.1              available (upcharge)

SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
                                                                            BOX DESIGN Electronics · CATALOGUE 2014                                   17
Design Boxes
                        Design Box Acryl 2                                                                      SRP € 69,00
                        Stylish frame system for Box-Design components
                        • New Clicking System • PET clips posi on and secure components • High gloss finish • Classy - suits
                        all living room styles and furniture • Design frame fits 2 Box-Design S components or 1 Box-Design DS
                        component

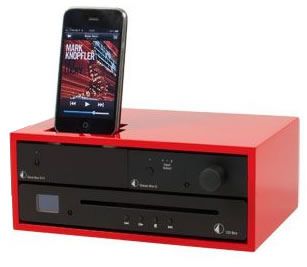

                        Design Box Acryl 2 iP                                                                   SRP € 75,00
                        Stylish frame system for Box-Design components
                        • New Clicking System • PET clips posi on and secure components • High gloss finish • Classy - suits
                        all living room styles and furniture • Design frame fits 2 Box-Design S components or 1 Box-Design DS
                        component • System frame with cutout for iPod®, iPhone® etc • Holds 1 Dock Box S + 1 addi onal
                        Box-Design S component

                        Design Box Acryl 4                                                                      SRP € 79,00
                        Stylish frame system for Box-Design components
                        • New Clicking System • PET clips posi on and secure components • High gloss finish • Classy - suits
                        all living room styles and furniture • Design frame fits a) 4 Box-Design S components b) CD Box DS c)
                        Stream Box DS and onward d) CD Box + 2 Box-Design S components e) 2 Box-Design DS components f)
                        1 Box-Design DS component + 2 Box-Design S components

                        Design Box Acryl 4 iP                                                                   SRP € 85,00
                        Stylish frame system for Box-Design components
                        • New Clicking System • PET clips posi on and secure components • High gloss finish • Classy - suits
                        all living room styles and furniture • Design frame with cutout for iPod®, iPhone® etc. • Holds a) 1
                        Dock Box S + 3 addi onal Box-Design S components b) 1 Dock Box S + 1 addi onal Box-Design S com-
                        ponent + 1 Box-Design DS component c) 1 Dock Box S + 1 Box-Design S CD Box + 1 addi onal Box-
                        Design S component

                        Micro Racks                                                           star ng from SRP € 69,00
                        „the butler“ series
                        „the professional“ series

                        The beau ful Design Box Acryl Micro Racks are made of sa n acrylic & easily to use in combina ons.
                        Three different types are offered in a variety of colours and three different heights (2, 3, 4 units
                        stacked) with standard or double widths. LED lights can be added on demand.

     Power Distribu9on
                        Connect it Power
                        4WAY (10A) SRP € 99,00                       4WAY (16A) SRP € 149,00
                        6WAY (10A) SRP € 149,00                      6WAY (16A) SRP € 199,00
                        Audiophile power strip
                        • Especially for use with audio equipment • No sound degrada on through filters or overload protec-
                          on • Magne cally shielding • Available with 4 or 6 mains outlets (EU, France-CZ, UK, US) • Maximum
                        con nuous current 10 or 16 ampere • High quality inner cabling (alterna vely with Furutech or Van
                        den Hul inner cabling) • Improved resistance against overhea ng and fire • 1,5m power cord in-
                        cluded • Handmade in EC

                                                                SRPs are only for orientation, prices can differ depending on local taxes
18     CATALOGUE 2014 · BOX DESIGN Electronics                              Prices, technical data & release date without engagement
Cables
                                                Connect it Power Cable
                                                1,0 m (10A) SRP € 79,00                      1,0 m 16A)       SRP € 149,00
                                                1,5 m (10A) SRP € 89,00                      1,5 m (16A)      SRP € 169,00
                                                2,0 m (10A) SRP € 99,00                      2,0 m (16A)      SRP € 189,00
                                                3,0 m (10A) SRP € 109,00                     3,0 m (16A)      SRP € 209,00
                                                Audiophile power cord
                                                • Especially for use with audio equipment • Magne c shielding • IEC C13 connector • Superior
                                                connec vity • 10 or 16 ampere maximum con nuous power surge • Perfect in combina on with
                                                Connect-it Power strips 10A or 16A • Handmade in EC

                                                Connect it
                                                Length                    RCA C             RCA CC / XLR CC                     RCA SI / XLR SI
                                                0,205 m             SRP € 49,00                 SRP € 69,00                       SRP € 139,00
                                                0,41 m              SRP € 55,00                 SRP € 79,00                       SRP € 199,00
                                                0,82 m              SRP € 59,00                 SRP € 89,00                       SRP € 299,00
                                                1,23 m              SRP € 69,00                 SRP € 99,00                       SRP € 399,00
                                                1,85 m              SRP € 89,00                SRP € 129,00                       SRP € 599,00
                                                2,46 m              SRP € 99,00                SRP € 149,00                       SRP € 799,00
                                                4,92 m             SRP € 159,00                SRP € 259,00                     SRP € 1.299,00
                                                RCA C - Electrically shielded with conductors made of OFC (oxygen free copper)
                                                Interconnect cable, 2x RCA phono plugs > 2x RCA phono plugs.
                                                RCA CC / XLR CC - Electrically shielded with conductors made of OFC (oxygen free copper) and
                                                an addi9onal layer of carbon fibre
                                                Interconnect cable, 2x XLR or RCA phono plugs > 2x XLR or RCA phono plugs.
                                                RCA SI / XLR SI - Electrically shielded with conductors made of pure silver and RCA phono plugs with
                                                locking func9on
                                                Interconnect cable, 2x XLR or RCA phono plugs > 2x XLR or RCA phono plugs.

                                                Connect it Y-Cable
                                                Length           Y-Cable RCA C                     RCA-3,5-C
                                                0,205 m            SRP € 69,00                    SRP € 49,00
                                                0,41 m             SRP € 79,00                    SRP € 59,00
                                                0,82 m             SRP € 89,00                    SRP € 69,00
                                                Y-Cable RCA C - Electrically shielded with conductors made of OFC (oxygen free copper)
                                                Y-Interconnect cable, 1x RCA phono plug > 2x RCA phono plugs.

                                                RCA-3,5-C - Electrically shielded with conductors made of OFC (oxygen free copper)
                                                Interconnect cable, 1x 3 pole mini-jack (3,5mm Ø) > 2x RCA phono plugs.

                                                Connect it D
                                                Length                BNC-BNC                       RCA-RCA
                                                0,41 m              SRP € 49,00                   SRP € 49,00
                                                0,82 m              SRP € 69,00                   SRP € 69,00
                                                Digital interconnect cable - Electrically shielded with conductors made of OFC (oxygen free copper)
                                                1x BNC plug > 1x BNC plug or 1x RCA plug > 1x RCA plug

                                                Connect it LS
                                                1 m Stereo set (2x banana plugs > 2x banana plugs)                                   SRP € 34,90
                                                2 m Stereo set (2x banana plugs > 2x banana plugs)                                   SRP € 39,90
                                                3 m Stereo set (2x banana plugs > 2x banana plugs)                                   SRP € 49,90
                                                4 m Stereo set (2x banana plugs > 2x banana plugs)                                   SRP € 59,90
                                                Bulk         SRP € 5,90/m
                                                Audiophile „best-buy“ speaker wire
                                                • 4 core speaker cable • Solid core technology • High purity oxygen free copper (HP-OFC) • Circular
                                                array geometry • Low distor on level, neutral sound • Suitable for Fullrange and Bi-wiring • Ideal in
                                                combina on with Box-Design components • Made in Austria

SRPs are only for orientation, prices can differ depending on local taxes
Prices, technical data & release date without engagement
                                                                            BOX DESIGN Electronics · CATALOGUE 2014                                   19
THE NEXT GENERATION OF HIFI

PRO-JECT AUDIO SYSTEMS a division of Audio Tuning Vertriebs GmbH · Margaretenstraße 98 · A-1050 Wien, AUSTRIA
   Phone: +43 1 5448580 · Fax: +43 1 5448580-33 · e-mail: info@project-audio.com · www.project-audio.com

                                     © Pro-Ject Audio Systems 2014, English version
                                         Technical data without engagement
You can also read
