RAILWAY TECHNOLOGY INDUCTIVE COMPONENTS INDUKTIVE KOMPONENTEN FÜR DIE BAHNTECHNIK
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
EN 2014/15
Ausgabe 1
Edition 1
DE
RAILWAY TECHNOLOGY
INDUCTIVE COMPONENTS
INDUKTIVE KOMPONENTEN
FÜR DIE BAHNTECHNIK
BLOCK custom and standard products for railway technology
BLOCK Sonderlösungen und Standardprodukte für die Bahntechnik
Developed Entwickelt
according to the nach den aktu-
latest railway ellsten Normen
technology der Bahntechnik
standards
100 % 100 %
DEVELOPMENT, PRODUCTION, TEST SYSTEMS, LOGISTICS –
EVERYTHING UNDER ONE ROOF, MADE BY BLOCK
block.eu
RAILWAY TECHNOLOGY
STANDARDS
100 %
EN 45545-2
EN 50124-1
EN 60310
WIND ENERGY SYSTEMS REQUIRE ROBUST AND
PROVEN PRODUCTS WHERE BLOCK HAS FOCUS TO
SUPPORT SUCH APPLICATIONS.

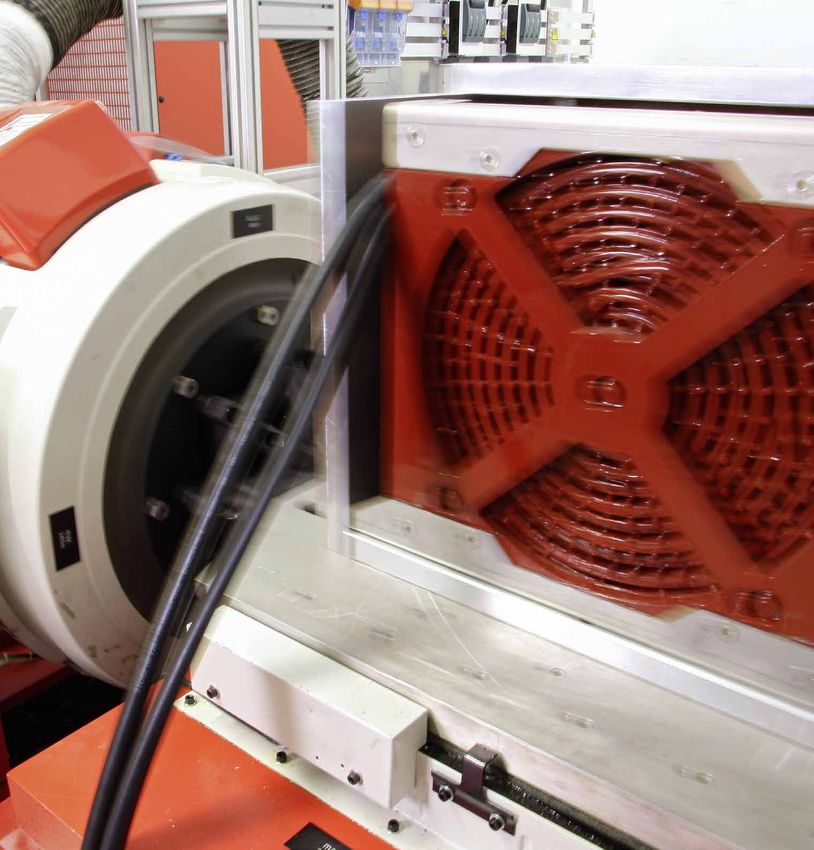

SHOCK AND VIBRATION TEST
X-RAY INSPECTION
3D CONSTRUCTION
LOAD TEST
FIRE PROTECTION TEST
FINITE ELEMENTS METHOD
VACUUM PRESSURE EQUIPMENT
OUR IDEAS TO
ENHANCE YOUR
MOVEMENT
EFFICIENCY EMC REACTOR
Insulation system resistant for mounting in
polluted environments (water, snow, brake
dust) • Cooling method: forced air • Ambient
temperature: -25 °C / +60 °C • Electrical
interface suitable for mounting directly from
IP21 into an IP54 housing • Voltage max.
BLOCK RAILWAY COMPONENTS:
1500 V
EXAMPLE
MF-trans- Rated inductance: 0,4 mH
Line DC-link Rated current: 400 A
Grid Inverter former and Sine filter Load
reactor reactor
output reactor Weight: 30 kg
Dimensions: 300 x 220 x 140 mm
MEDIUM FREQUENCY TRANSFORMER
Insulation system resistant for mounting
in polluted environments (water, snow,
brake dust) • Cooling method: forced air •
Ambient temperature: -25 °C / +60 °C •
Switching frequency 2 kHz – 8 kHz • Power
up to 120 kVA • Core material: ferrite or
nanocrystalline
EXAMPLE
Power: 110 kVA
Primary voltage: 650 V
Secondary voltage: 700 V / 130 V
Switching frequency: 7 kHz
Cooling method: forced air flow 3 m/s
Weight: 45 kg
Dimensions: 365 x 330 x 245 mm
LINE REACTOR LR3
Use as line reactor, commutating reactor or PFC
reactor • Ensuring the short‑circuit voltage of 2
‑ 5 % to the mains • Power harmonic damping •
Starting current limitation • Increases the service
life of consumers • Low ripple • Bridging voltage
dips • Peak current limitation • Very good corrosion
protection and low noise thanks to BLOCKIMPEX
vacuum impregnation • Integrated lifting rings •
Multifunctional fixing rail
SINE FILTER REACTOR
Insulation system resistant for mounting in
polluted environments (water, snow, brake
dust). • Cooling method: forced air • Ambient
temperature: -25 °C / +60 °C • Voltage RANGE
max. 1500 V Rated voltage: 3 x 400 Vac
Short‑circuit voltage: (uK) 2 ‑ 5 %
EXAMPLE Rated current: 3 x 2 ‑ 3 x 1600 A
Rated inductance: 3 x 0,15 mH Inductance: 0.019 ‑ 14.700 mH
Rated current: 3 x 250 A Insulation: class B or F
Weight: 35 kg Ambient temperature: ‑10 °C to +40 °C
Dimensions: 320 x 280 x 150 mm Degree of protection: IP 00
LOW PROFILE
TRANSFORMER FLN
Minimum size at high output • Low
height • Double input voltage for series
Info
or parallel connection • Double output
IP-CONNECT:
voltage for series or parallel connection •
Designed for high ambient temperatures A casing structure specifically desig-
• Permanent corrosion protection, high
insulation value and maximum electrical ned to allow a combination of different
reliability thanks to XtraDensiFill resin protection degrees without additio-
encapsulation • Coil shell in 2‑chamber
technology • Self‑extinguishing potting nal cable routing. This improves the
material system’s susceptibility to failure and
RANGE reduces installation costs.
Rated input voltage: 2 x 115 Vac
Rated output voltage: 2 x 6 ‑ 2 x 21 Vac
Rated power: 3 ‑ 60 VA IP54
Insulation: class B
Maximum ambient temperature: 70 °C
Efficiency: up to 85 %
Degree of protection: IP 00
IP21
block.eu
RAILWAY SYSTEMS REQUIRE ROBUST AND
AIR CORE REACTOR PROVEN TECHNOLOGY PRODUCTS.
Insulation system resistant for BLOCK’S FOCUS IS ON SUPPORTING SUCH
mounting in polluted environments
(water, snow, brake dust) • Cooling
APPLICATIONS.
method: forced air • Ambient tempe-
rature: -25 °C / +60 °C • Electrical
interface suitable for mounting di-
rectly from IP21 into an IP54 housing
• Voltage max. 3000 V
EXAMPLE
Rated inductance: 10 mH
Rated current: 320 A
Weight: 160 kg
Dimensions: 420 x 420 x 360 mm
© Oleksiy Mark - Fotolia.com
MEDIUM FREQUENCY TRANSFORMER
Very high power density • Insulation system resis-
tant for mounting in polluted environments (water,
snow, brake dust) • Cooling method: forced air •
Ambient temperature: -25 °C / +60 °C • Electrical
interface suitable for mounting directly from IP21
into an IP54 housing • Switching frequency: FULLY CAPSULED
12 kHz - 24 kHz • Freely scalable power • TRANSFORMER
Construction is optimised for air or water Housing for indoor mounting • Cooling me-
cooling (integrated cooling plate) thod: natural convection • Ambient tempe-
rature: -25 °C / +60 °C
EXAMPLE
Power: 250 kVA EXAMPLE
Primary voltage: 600 V Power: 4 kVA
Secondary voltage: 700 V / 150 V Primary voltage: 400 V
Switching frequency: 20 kHz Secondary voltage: 400 V
Weight: 55 kg Designated frequency: 50 - 60 Hz
Dimensions: 460 x 460 x 180 mm Weight: 61 kg
Dimensions: 390 x 390 x 300 mm

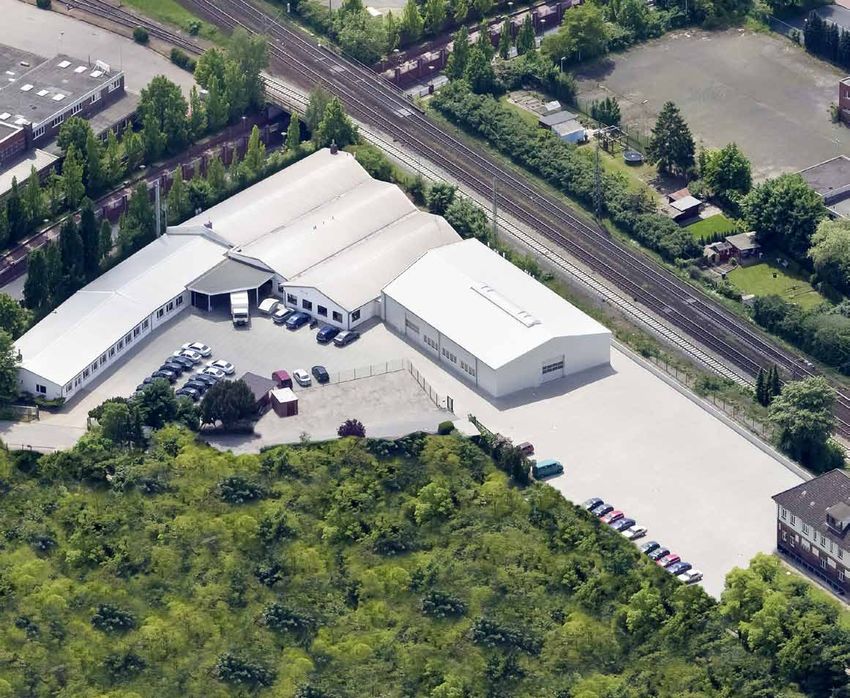

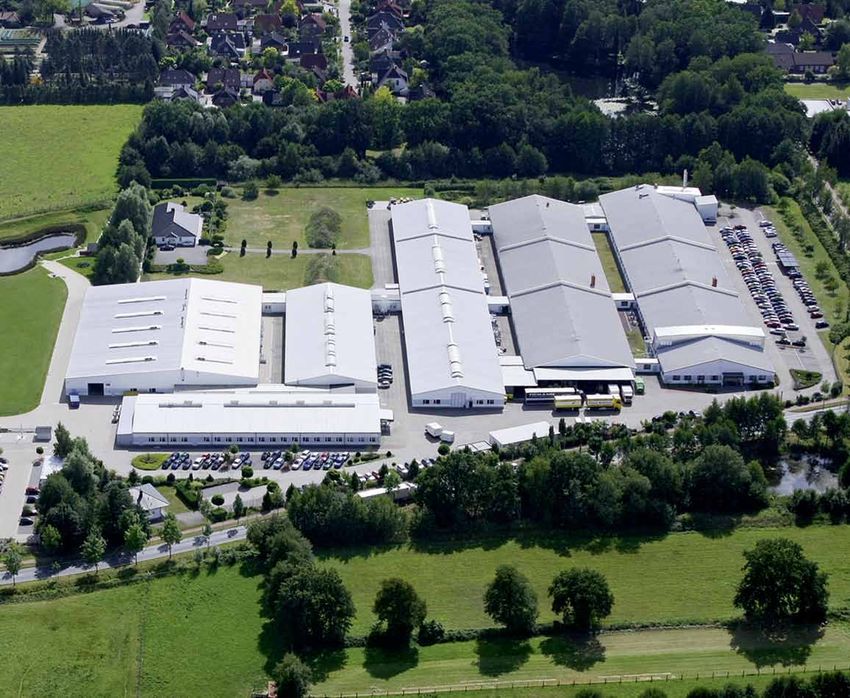

Werk 1 Factory 1 Werk 2 Factory 2
Research & Development Production Testing

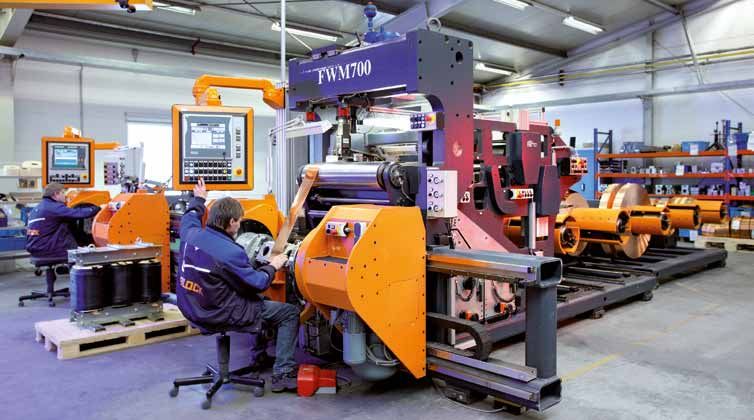

Every day, more than 50 engineers Using cutting-edge technology, We employ state of the art pro-
and specialists in our Research and BLOCK sets the standard for opti- duction in compliance with appli-
Development department search mised production processes. From cable standards for each product
for new ways to solve technical single units to line production, our series. For example railway techno-
challenges using the laws of physics. flexible manufacturing processes logy products according to
Through their efforts, we are able to ensure quick and efficient operation. EN 45545-2:2013.
maintain a high standard of quality
and keep building on our competitive Produktionstechnik Prüfen
advantage through innovation..
Mit zukunftsweisenden Technologien Wir fertigen nach dem neuesten
setzt BLOCK Maßstäbe für eine Stand der Technik und den entspre-
Forschung und Entwicklung prozessoptimierte Produktion. chenden Normen der jeweiligen
In unserer Forschungs- und Ent- Flexible Fertigungseinheiten erlau- Produktreihen. Zum Beispiel für
wicklungsabteilung setzen sich ben es uns vom Einzelstück bis zur Produkte der Bahntechnik nach
über 50 Ingenieure und Fachkräfte Großserie schnell und effizient zu EN 45545-2:2013.
BT 2014-15A1/DEU-ENG/09-14 ABC/Printed in Germany
Tag für Tag mit den unterschied- fertigen.
lichsten Gegebenheiten der Physik
auseinander. So gelingt es uns, das
hohe Qualitätsniveau aufrecht zu
erhalten und unseren Innovations-
vorsprung weiter auszubauen.
BLOCK Transformatoren-Elektronik GmbH
Max-Planck-Straße 36–46 • 27283 Verden • Germany
Phone +49 4231 678-0 • Fax +49 4231 678-177
info@block.eu • block.eu
