Semi-Integrated
ENG
ENG - 2022
Overcab
A-Class
www.etrusco.com
A BRAND OF THE ERWIN HYMER GROUP.
JUST DRIVE OFF AND ENJOY EVERY SECOND.
EXPERIENCE HOW THE LANDSCAPE CHANGES.
WAKE UP TO A NEW VIEW EVERY MORNING.
IT´S YOUR TIME TO TRAVEL.
feel welcome,
feel etrusco.
SEMI-INTEGRATED On the go and at home at the same time. Ready to conquer the world. The semi-integrated models from Etrusco: Versatile and ultimately variable. A top seller among motorhomes. Everything is included as standard for your dream holiday. Feel good and relax: The comfortable lounge, your own bed, the kitchen, the bathroom, and a good mood
DISCOVER
MORE
FREEDOM IN ITS MOST 360°
BEAUTIFUL WAY SEMI-INTEGRATED
HIGHLIGHTS
Door with
window
and shelves
T 7400 QBC T 7400 QB T 7400 SBC T 7400 SB
Soft-close 4 (5) 4 4 (5)
4
systems
2 (5) 2 (5) 2 (5) 2 (5)
in cupboards
and drawers
N 740 cm N 740 cm N 740 cm N 740 cm
3.500 (3.650) 3.500 (3.650) 3.500 (3.650) 3.500 (3.650)
UPHOLSTERY
Efficient
LED-lights
campania
in the interior
aosta
T 7300 SB T 6900 SB T 6900 DB T 5900 FB
Comfortable
coupé entrance 4 (5) 4 (5) 4 (5) 4
emilia 2 (5) 2 (5) 2 (5) 2 (3)
(Option
type X) N 730 cm N 695 cm N 695 cm N 595 cm
3.500 (3.650) 3.500 (3.650) 3.500 (3.650) 3.500 (3.650)
4 5

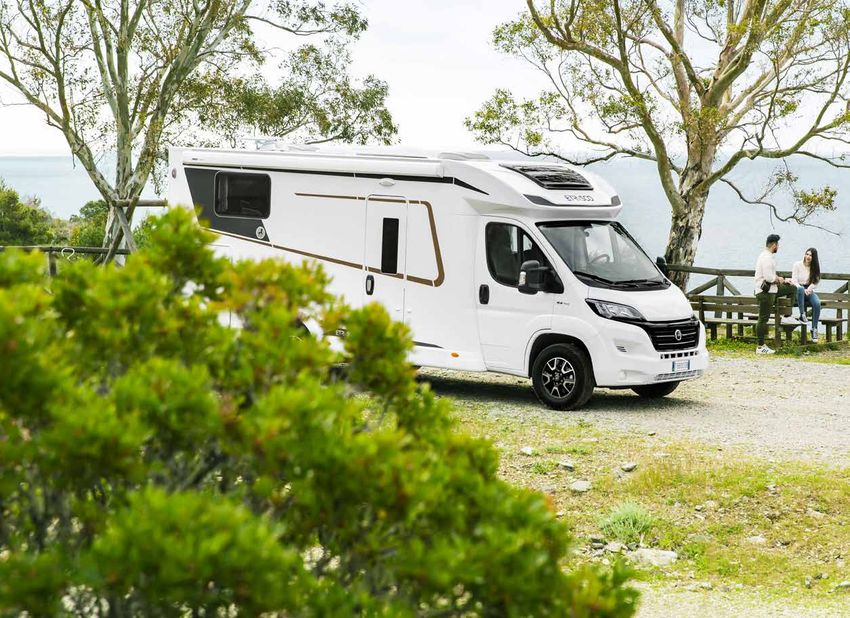

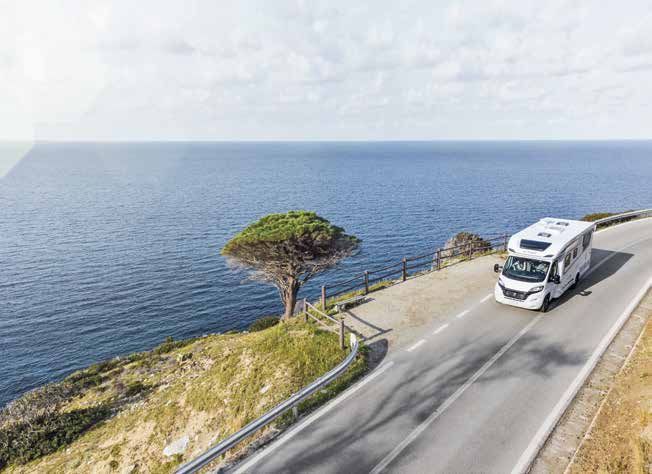

Outdoor star: our semi-integrated
motorhomes.
Be flexible and agile on the move.
Everything is possible with the right
motorhome.
From family vacations to city
trips for two. This year our semi-
integrated models receive design
updates and comfortable extras
making them even more comfortable,
even more sophisticated, and even
more relaxing. For exciting days and
tranquil nights.
T 7400 SBC | T 7400 QBC
T 7400 SBC | T 7400 QBC T 7400 QBC
6 7
SEMI-INTEGRATED DATA SHEET
T 7400 QBC T 7400 QB T 7400 SBC T 7400 SB T 7300 SB T 6900 SB
Length | Width | Height 2) cm 740 | 232 | 295 740 | 232 | 295 740 | 232 | 295 740 | 232 | 295 730 | 232 | 295 695 | 232 | 295
Internal height cm 210 210 210 210 210 210
Chassis Fiat Ducato 35 Light Fiat Ducato 35 Light Fiat Ducato 35 Light Fiat Ducato 35 Light Fiat Ducato 35 Light Fiat Ducato 35 Light
Base engine 2,2 l MJet 2,2 l MJet 2,2 l MJet 2,2 l MJet 2,2 l MJet 2,2 l MJet
Power rating kW (BHP) 103 (140) 103 (140) 103 (140) 103 (140) 103 (140) 103 (140)
Chassis type Fiat Low frame Fiat Low frame Fiat Low frame Fiat Low frame Fiat Low frame Fiat Low frame
Mass in running order (MIRO) 5)
kg 2.903 2.877 2.896 2.885 2.850 2.787
Payload 3)
kg 597 623 604 615 650 713
Maximum gross vehicle weight kg 3.500 3.500 3.500 3.500 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked | unbraked 4)
kg 2000 | 750 2000 | 750 2000 | 750 2000 | 750 2.000 | 750 2.000 | 750
Tyres 225 | 75 R16 225 | 75 R16 225 | 75 R16 225 | 75 R16 225 | 75 R16 225 | 75 R16
Wheel base cm 404 404 404 404 404 380
Homologated seats at 3,500 t max. weight 1)
4 4 | 5 (OPT) 4 4 | 5 (OPT) 4 | 5 (OPT) 4 | 5 (OPT)
Sleeping places 2 | 5 (OPT) 2 | 5 (OPT) 2 | 5 (OPT) 2 | 5 (OPT) 2 | 5 (OPT) 2 | 5 (OPT)
Bed size overcab | pull-down bed cm 200 x 140 | 123 (OPT) 200 x 140 | 123 (OPT) 200 x 140 | 123 (OPT) 200 x 140 | 123 (OPT) 200 x 140 | 123 (OPT) 200 x 140 | 123 (OPT)
Middle Bed cm 195x90 (OPT) 200x60 (OPT) 195x90 (OPT) 200 x 60 (OPT) 200 x 85 (OPT) 200 x 60 (OPT)
Bed size rear bed cm 198x148 198x148 1x204x80 1x210x80 1x196x80 1x184x80
1x209x80 1x205x80 1x210x80 1x195x80
204 | 209 x 210 (OPT) 210 | 205 x 210 (OPT) 196 | 210 x 210 (OPT) 184 | 195 x 210 (OPT)
Fridge | volume freezer l 140 | 15 140 | 15 140 | 15 140 | 15 140 | 15 140 | 15
Water tank incl. boiler (red. Vol.) 6)
| Waste water tank l 122 (20) | 90 122 (20) | 90 122 (20) | 90 122 (20) | 90 122 (20) | 90 122 (20) | 90
Battery | charger Ah|A 95|18 95|18 95|18 95|18 95|18 95|18
Power outlets 230 V 3 (5 OPT) 3 (5 OPT) 3 (5 OPT) 3 (5 OPT) 2 (4 OPT) 3 (5 OPT)
Power outlets 12 V 1 1 1 1 1 1
USB Socket (single | double) 2|1 2|2 2|1 2|2 2|1 2|2
Inner dimensions storage locker r in cm 95x110 95x110 95x110 95x110 95x110 95x110
l in cm 75 x 80 (OPT) 75 x 80 (OPT) 75x80 (OPT) 75x80 (OPT) 75x80 (OPT) 75x80 (OPT)
r = right l = left OPT = optional • = Serie – = not possible
CURRENT PRICES
The current basic prices can be found
in the separate price list at etrusco.com
8 9
SEMI-INTEGRATED DATA SHEET
T 6900 DB T 5900 FB
Length | Width | Height 2) cm 695 | 232 | 295 595 | 232 | 295
Internal height cm 210 210
Chassis Fiat Ducato 35 Light Fiat Ducato 35 Light
Base engine 2,2 l MJet 2,2 l MJet
Power rating kW (BHP) 103 (140) 103 (140)
Chassis type Fiat Low frame Fiat Low frame
Mass in running order (MIRO) 5)
kg 2.840 2.698
Payload 3)
kg 660 802
Maximum gross vehicle weight kg 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked | unbraked 4)
kg 2.000 | 750 2.000 | 750
Tyres 225 | 75 R16 225 | 75 R16
Wheel base cm 404 345
Homologated seats at 3,500 t max. weight 1)
4 | 5 (OPT) 4
Sleeping places 2 | 5 (OPT) 2 | 3 (OPT)
Bed size overcab | pull-down bed cm 200 x 140 | 123 (OPT) 200x100 |70 (OPT)
Middle Bed cm 200 x 60 (OPT) -
Bed size rear bed cm 210x136 194x133
Fridge | volume freezer l 140 | 15 113 | 14
Water tank incl. boiler (red. Vol.) 6)
| Waste water tank l 122 (20) | 90 122 (20) | 90
Battery | charger Ah|A 95|18 95|18
Power outlets 230 V 3 (5 OPT) 3 (5 OPT)
Power outlets 12 V 1 1
USB Socket (single | double) 2|2 2|1
Inner dimensions storage locker r in cm 65x110 -
l in cm 65x75 (OPT) 65x65
1) With the installation of special equipment, the maximum number of people may vary. Admission for more than 4 people is only possible
when ordering a 5th seat.
CURRENT PRICES 2) The vehicle height changes with the installation of accessories on the roof, such as satellite antenna, solar panels, etc.
The current basic prices can be found 3) The specified payload is reduced with the installation of special equipment.
in the separate price list at etrusco.com 4) When a trailer coupling is attached, the weight changes in the ready-to-drive condition, which can also change the maximum number
of people.
5) The mass in running order is determined in accordance with Regulation (EU) No. 1230/2012: driver 75 kg, capacity fuel tank (90%)
and freshwater tank (20 l), aluminium gas bottle (15 kg), connection cable (4 kg) and standard basic version. Deviations within the
framework of the factory tolerances are possible and permissible. General note on the permitted number of people: With the installation
of factory-made chassis options, special equipment and packages, the permitted number of people may be reduced, or an increase
may be necessary (for additional weights, see special equipment). The technically permissible total weight and the permissible axle
loads must not be exceeded.
6) Before starting your journey, check that the freshwater tank does not contain more than 20 litres.
11

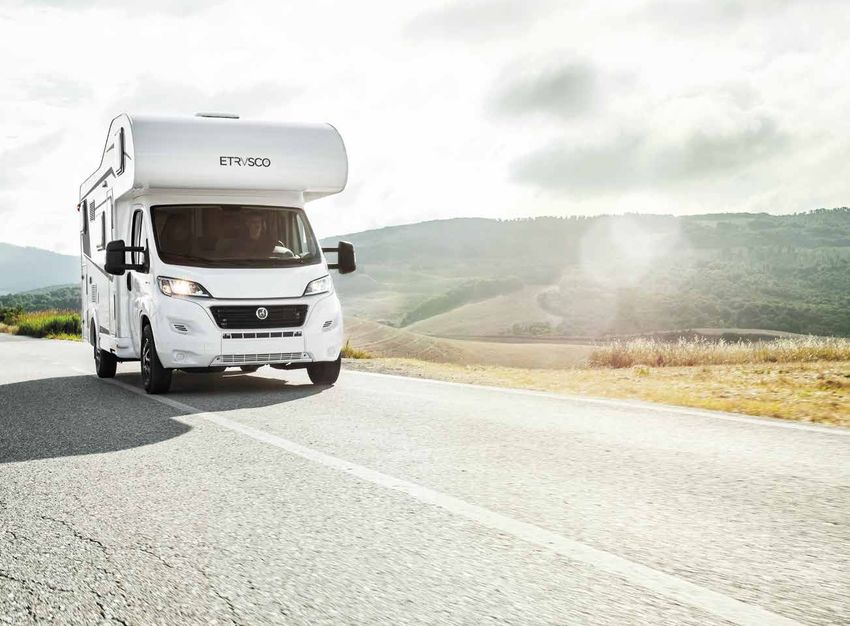

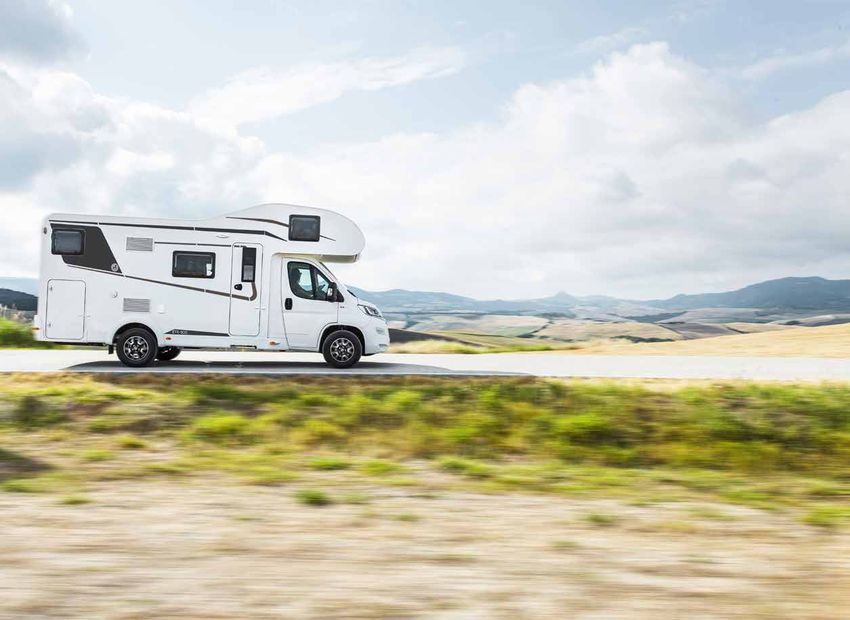

OVERCAB
Families are welcome: discover
the world at your own pace.
Enjoy freedom that is full of comfort
and extra space for living.
With the alcove from Etrusco,
always be where life is writing new
stories. Let yourself be surprised
on detours and byways.
For memories that last.
12 13
DISCOVER
MORE
FREEDOM IN ITS MOST 360°
BEAUTIFUL WAY
HIGHLIGHTS
Comfortable cab
through fold-up
overcab bed
A 7300 DB
Soft-close
systems
in cupboards
and drawers
OVERCAB
UPHOLSTERY
Spacious
garage campania
aosta
A 7300 DB A 6600 BB
Comfortable
and spacious 4 (6) 4 (6)
bathroom emilia 6 6
(Option
type X) N 725 cm N 659 cm
3.500 (3.650) 3.500 (3.650)
14 15
A 6600 BB A 7300 DB
AFFORDABLE
LUXURY
Impressive and inviting.
Enormous space for freedom.
Today here, tomorrow there.
Comfort everywhere. A clean,
modern living area in grey
and natural tones conveys
coolness. A mix of materials,
as brilliant as the view.
Etrusco Alcove models –
for the most exciting tour
group in the world:
your family.
A 6600 BB
16 17OVERCAB DATA SHEET
A 7300 DB A 6600 BB
Length | Width | Height 2) cm 725 | 233 | 315 659 | 233 | 315
Internal height cm 210 210
Chassis Fiat Ducato 35 Light Fiat Ducato 35 Light
Base engine 2,2 l MJet 2,2 l MJet
Power rating kW (BHP) 103 (140) 103 (140)
Chassis type Fiat Low frame Fiat Low frame
Mass in running order (MIRO) 5)
kg 2.861 2.777
Payload 3)
kg 639 723
Maximum gross vehicle weight kg 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked | unbraked 4)
kg 2.000 | 750 2.000 | 750
Tyres 225|75 R16 225|75 R16
Wheel base cm 404 380
Homologated seats at 3,500 t max. weight 1)
4 | 6 (OPT) 4 | 6 (OPT)
Sleeping places 6 6
Bed size overcab | pull-down bed cm 211 X 159 211 X 159
Middle Bed cm 180 x 100 170 x 100
Bed size rear bed cm 212 x 149|129 1 x 210 x 86
1 x 205 x 82
Fridge | volume freezer l 113 | 14 113 | 14
167 | 29 (OPT) 167 | 29 (OPT)
Water tank incl. boiler (red. Vol.) 6) | Waste water tank l 122 (20) | 90 122 (20) | 90
Battery | charger Ah|A 95|18 95|18
Power outlets 230 V 2 (4 OPT) 2 (4 OPT)
Power outlets 12 V 2 2
USB Socket (double) 1 1
1) With the installation of special equipment, the maximum number of people may vary. Approval for more than 4 people only in Inner dimensions storage locker r in cm 105x120 65x105
connection with a safety package.
2) The vehicle height changes with the installation of accessories on the roof, such as satellite antenna, solar panels, etc. l in cm 105x80 (OPT) 60x100 (OPT)
3) The specified payload is reduced with the installation of special equipment.
4) When a trailer coupling is attached, the weight changes in the ready-to-drive condition, which can also change the maximum number
of people CURRENT PRICES
5) The mass in running order is determined in accordance with Regulation (EU) No. 1230/2012: driver 75 kg, capacity fuel tank (90%) The current basic prices can be found
and freshwater tank (20 l), aluminium gas bottle (15 kg), connection cable (4 kg) and standard basic version. Deviations within the in the separate price list at etrusco.com
framework of the factory tolerances are possible and permissible. General note on the permitted number of people: With the installation
of factory-made chassis options, special equipment and packages, the permitted number of people may be reduced, or an increase
may be necessary (for additional weights, see special equipment). The technically permissible total weight and the permissible axle
loads must not be exceeded.
6) Before starting your journey, check that the freshwater tank does not contain more than 20 litres.

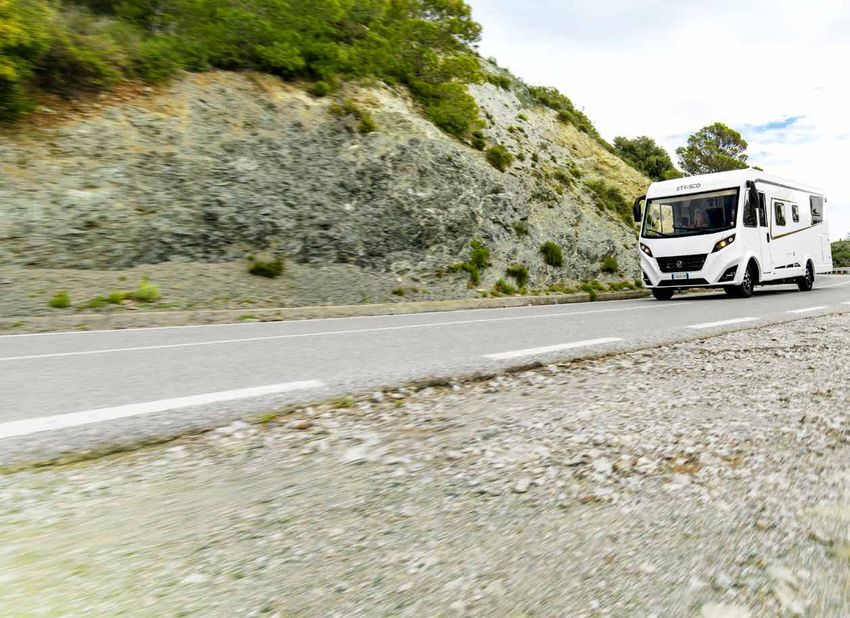

19A-CLASS
Decide where to go with Etrusco.
Feel good, relax and enjoy
the stylish interior.
There is plenty of space
to dream and thanks to the
panoramic windscreen you can
always keep a clear view
20 21DISCOVER
MORE
FREEDOM IN ITS MOST 360°
BEAUTIFUL WAY A-CLASS
HIGHLIGHTS
Pull-down
bed with
wooden
slatted frame
I 7400 QBC I 7400 QB
Soft-close
systems 4 4 (5)
in cupboards 4 (5) 4 (5)
and drawers N 740 cm N 740 cm
3.500 (3.650) 3.500 (3.650)
UPHOLSTERY
Efficient
LED-lights
campania
in the interior
aosta
Comfortable
I 7400 SBC I 7400 SB I 6900 SB
coupé entrance
emilia 4 4 (5) 4 (5)
(Option
type X) 4 (5) 4 (5) 4 (5)
N 740 cm N 740 cm N 695 cm
3.500 (3.650) 3.500 (3.650) 3.500 (3.650)
22 23I 7400 SB I 7400 SB | I 7400 QB
More than a place to sleep, your Etrusco
motorhome is a retreat. Stretch out in
the queen-sized bed and stay in bed a
little longer. Flexible: Keep the bed as two
singles or transform it into a large cosy
sleeping area. Experience pure comfort
from the mattress and supportive slatted
frame. Plus, there is a cleverly placed
wardrobe to store all your belongings.
Smart down to the last detail: USB plug
for tablets and phones.
The private spa that is always with you.
Whether a refreshing shower on in
between styling. Whether as a vario or
spacious bathroom. Everything can be
stored where you want, everything is
at hand, everything is simple and well
I 7400 SB | I 7400 QB thought out.
24 25A-CLASS DATA SHEET
I 7400 QBC I 7400 QB I 7400 SBC I 7400 SB I 6900 SB
Length | Width | Height 2) cm 740 | 232 | 295 740 | 232 | 295 740 | 232 | 295 740 | 232 | 295 695 | 232 | 295
Internal height cm 210 210 210 210 210
Chassis Fiat Ducato 35 Fiat Ducato 35 Fiat Ducato 35 Fiat Ducato 35 Fiat Ducato 35
Light Light Light Light Light
Base engine 2,2 l MJet 2,2 l MJet 2,2 l MJet 2,2 l MJet 2,2 l MJet
Power rating kW (BHP) 103 (140) 103 (140) 103 (140) 103 (140) 103 (140)
Chassis type Fiat Low frame Fiat Low frame Fiat Low frame Fiat Low frame Fiat Low frame
Mass in running order (MIRO) 5) kg 2.973 2.937 2.978 2.975 2.857
Payload 3) kg 527 563 522 525 643
Maximum gross vehicle weight kg 3.500 3.500 3.500 3.500 3.500
Weight upgrade (optional) kg 3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT) 3.650 (OPT)
Towing weight 12% braked | unbraked 4) kg 2000 | 750 2000 | 750 2000 | 750 2000 | 750 2.000 | 750
Tyres 225 | 75 R16 225 | 75 R16 225 | 75 R16 225 | 75 R16 225 | 75 R16
Wheel base cm 404 404 404 404 380
Homologated seats at 3,500 t max. weight 1) 4 4 | 5 (OPT) 4 4 | 5 (OPT) 4 | 5 (OPT)
Sleeping places 4 | 5 (OPT) 4 | 5 (OPT) 4 | 5 (OPT) 4 | 5 (OPT) 4 | 5 (OPT)
Bed size overcab | pull-down bed cm 193 x 150 193 x 150 193 x 150 193 x 150 193 x 150
Middle Bed cm 195x90 (OPT) 200x60 (OPT) 195x90 (OPT) 200x60 (OPT) 200x60 (OPT)
Bed size rear bed cm 198 x148 198 x148 1x204x80 1x210x80 1x184x80
1x209x80 1x205x80 1x195x80
204|209x210 (OPT) 210|205x210 (OPT) 184|195x210 (OPT)
Fridge | volume freezer l 140 | 15 140 | 15 140 | 15 140 | 15 140 | 15
Water tank incl. boiler (red. Vol.) 6) | l 122 (20) | 90 122 (20) | 90 122 (20) | 90 122 (20) | 90 122 (20) | 90
Waste water tank
1) With the installation of special equipment, the maximum number of people may
vary. Admission for more than 4 people is only possible when ordering a 5th seat.
Battery | charger Ah|A 95|18 95|18 95|18 95|18 95|18 2) The vehicle height changes with the installation of accessories on the roof, such as
Power outlets 230 V 3 (5 OPT) 3 (5 OPT) 3 (5 OPT) 3 (5 OPT) 3 (5 OPT) satellite antenna, solar panels, etc.
3) The specified payload is reduced with the installation of special equipment.
Power outlets 12 V 1 1 1 1 1 4) When a trailer coupling is attached, the weight changes in the ready-to-drive con-
dition, which can also change the maximum number of people
USB Socket (single | double) 2|1 2|2 2|1 2|2 2|2
5) The mass in running order is determined in accordance with Regulation (EU) No.
Inner dimensions storage locker r in cm 95x110 95x110 95x110 95x110 95 x 110 1230/2012: driver 75 kg, capacity fuel tank (90%) and freshwater tank (20 l), alu-
minium gas bottle (15 kg), connection cable (4 kg) and standard basic version.
l in cm 75x80 (OPT) 75x80 (OPT) 75x80 (OPT) 75x80 (OPT) 75x80 (OPT) Deviations within the framework of the factory tolerances are possible and per-
missible. General note on the permitted number of people: With the installation
of factory-made chassis options, special equipment and packages, the permitted
CURRENT PRICES number of people may be reduced, or an increase may be necessary (for additional
The current basic prices can be found weights, see special equipment). The technically permissible total weight and the
in the separate price list at etrusco.com permissible axle loads must not be exceeded.
6) Before starting the journey, check that the freshwater tank does not contain more
than 20 litres
26STANDARD EQUIPMENT | 2022 |
Chassis | Base vehicle Construction • Removable and washable mattress covers Kitchen | Water supply
• 7 year tightness guarantee * • Wooden slatted frame in all fixed beds for • Ergonomically arranged kitchen
• Fiat Ducato 2.2 l Multi-Jet with 103 kW / 140
increased comfort with a generous work surface
BHP, emission standard EURO 6d • Outer roof and rear skin made from durable
GRP • Lift-up bed as standard on A-Class • Spacious drawers with Servo-Soft in the
• Start & Stop Function
• Roof thickness 33 mm, wall thickness 34 mm, • High quality rear bed application with LED kitchen block (depending on the model)
• Broad gauge chassis
floor thickness 41 mm (T and A-class) lighting on the semi-integrated and A-class • Three-flame cooker with cast iron pan support
• Diesel tank 75 ltr. and glass cover in black (except T 7400 QBC +
• Roof thickness 33 mm, wall thickness 34 mm, • Generous storage spaces and storage Options
• Comfortable driving characteristics thanks to floor thickness 42 mm (Overcab) SBC, I 7400 SBC +QBC)
• Tela Sand & White furniture finish
rear and front axle stabilisers • Large round sink made of stainless steel
• Side wall outer skin made of smooth aluminum • Nautic Breeze floor
• Power steering, height-adjustable headlights, sheet with cover
immobiliser, 3-point seat belt with seat belt • Comfortable alcove with side window
• Elegant three-part rear light bracket with on the right (Overcab) • Flex rail system with 2 hooks
reminder (for Captain Chairs)
integrated lights • Foldable alcove bed for better access to the • Water tank including boiler 122 l, waste water
• ABS, EBD (electronic Brake force distribution), tank 90 l
ESP (electronic Stability program), ESC • Cab blinds for the best insulation and privacy driver‘s cab (Overcabs)
(electronic Stability control) including ASR with integrated • Safety nets on the alcove bed • Indirect LED lighting under the worktop
(Anti-slip regulation) and hillholder (Hill start • Coupé entry on the semi-integrated and • 140 l refrigerator with 15 l freezer compartment
assistant) A-class on the A-class & semi-integrated (except
On-board technology T 5900 FB)
• CWA (Crosswind Assistant), TSC (Trailer • Electric step on Overcab
• LED lighting integrated under the overhead
stability control) and PCB (Multi-collision brake) • Double-glazed vent window with blackout • 113 l refrigerator with 14 l freezer compartment
lockers
• Cruise control blind and fly screen (except toilet room on the overcab & T 5900 FB
• Indirect LED lighting in the room divider
• Front wheel drive window) • Bin
(except Overcab)
• Daytime running lights integrated in the • High-quality body door with window and
• LED outdoor light
standard headlights (except A-Class) ergonomic handle position inside and outside Bathroom
• LED living room light
• Steel rims 16“ incl. wheel covers • Fly screen door • Vario-bathroom in the T 6900 SB,
• Powerful, maintenance-free AGM body battery T 7300 SB, I 6900 SB
• Front bumper painted in body color (except • Generous rear garage with lowered frame,
(95 Ah)
A-Class) securing eyes and interior lighting (depending • Spacious bathroom with separate shower
on the model) • Board control panel opposite in the T 6900 DB / QB,
• Electric windows and central locking in the cab
• Rear garage payload up to 150 kg • Electric charger for body and vehicle battery T & I 7400 SB / QB / QBC / SBC
for semi-integrated vehicles
12 V / 18 A • Bathroom with bench toilet and integrated
• All-round panoramic laminated glass
windshield (with integrated) Living | Sleeping comfort • CEE external connection for 230 V with shower room in the T 5900 FB
automatic circuit breaker • Cassette toilet with electric pump
• Low-vibration, electrically adjustable and • Ergonomically shaped upholstery for more
seating comfort • FI circuit breaker and swivel seat int the overcab, integrated
heated exterior mirrors in coach optics with
wide angle (with integrated) • USB Socket and semi integrated (except T 5900 FB)
• Cosy L-shaped seating group with
• Driver and passenger airbag freestanding, rotatable and swiveling table • Roof hood with integrated insect screen
on the T 7300 SB, T 7400 QB, T 7400 SB, Heating | Gas supply (depending on model)
• Manual air conditioning in the driver‘s cab
I 7400 QB, I 7400 SB • Large mirror surfaces
• Cup holder in the center console (Cup holder) • Gas bottle locker for two 11 kg gas bottles
• Cosy lounge seating group with a freestanding • Clothes rail in the wet room
• Tablet holder and USB socket (double) • Combi 6 gas heating with integrated 10 l boiler
table that folds down on the T 7400 QBC and
on the semi-integrated, A-Class and overcab
• Fix & Go kit breakdown set T 7400 SBC and I 7400 SBC + QBC
Textile combination
• Driver / passenger rotatable seat in living area • High quality mattresses with increased comfort
in all beds • Aosta (grey) on the A-Class, semi-integrated
fabric with double armrests (except Overcab)
and overcab
•H eight and tilt adjustment for the driver‘s and
• Campania (brown) on the A-Class,
passenger seat
semi-integrated and overcab
*The Etrusco tightness guarantee conditions apply.
28 29PACKAGES
SEMI-INTEGRATED | OVERCAB
EDITION
COMFORT PACKAGE COMFORT PACKAGE + 21 KG
Panorama roof hood over kitchen 1)
Clear glass roof hood 40 x 40
Shower room cladding *)
Coat hooks 2) *)
Wooden slatted shower *) ●O
verhead locker door design in high gloss magnolia
Captain Chair with covers *)
Additional socket in the overhead locker above the kitchen block *) ●E
milia textile combination
Socket in the garage *)
●D
river seats with embroidered logo and Type x lettering
●T
ype X exterior design
CHASSIS PACKAGE CHASSIS PACKAGE + 6 KG
Electric and heated exterior mirrors *)
Radio preparation with speakers & DAB antenna *)
Antenna integrated in the exterior mirror
Steering wheel remote control for radio
Traction + incl. Hill Descent Control
CHASSIS CHASSIS DESIGN PACKAGE + 1 KG
DESIGN PAKET
Steering wheel & gear knob in leather
Dashboard with applications (Techno Trim)
Black frame headlights
Black radiator grille
A-CLASS
COMFORT PACKAGE COMFORT PACKAGE + 27 KG
Panorama roof hood over kitchen 1)
Clear glass roof hood 40 x 40
Shower room cladding *)
Mirror with indirect lighting and coat hooks 2) *)
Wooden slatted shower *)
Captain Chair with covers *)
Additional socket in the overhead locker above the kitchen block *)
Socket in the garage *)
Driver’s cabin door front left *)
Clear glass roof hood 40 x 40 over the pull-down bed
CHASSIS PACKAGE CHASSIS PACKAGE + 1 KG
Traction + incl. Hill Descent Control
Steering wheel remote control for radio
Steering wheel & gear knob in leather
Dashboard with applications (Techno Trim)
30 *) Forced option if package is not selected 31ACCESSORIES | 2022 |
T 7400 QBC
T 7400 SBC
I 7400 QBC
I 7400 SBC
A 6600 BB
A 7300 DB
T 6900 DB
T 7400 QB
T 6900 SB
T 5900 FB
T 7400 SB
T 7300 SB
I 7400 QB
I 6900 SB
I 7400 SB
Kg
CHASSIS
FIAT 2,2 l Multijet - 103 kW (140 bhp) - EURO 6d
with 9-speed automatic transmission 9) 55 O O O O O O O O O O O O O O O
(only in conjunction with 16” alloy wheels bicolor heavy chassis)
FIAT 2,2 l Multijet - 130 kW (180 bhp) - EURO 6d
with 9-speed automatic transmission9) 55 O O O O O O O – O O O O O O O
(only in conjunction with 16” alloy wheels bicolor heavy chassis)
FIAT 16” alloy wheels bicolor Light Chassis - O O O O O O O O O O O O O O O
FIAT 16” alloy wheels bicolor Heavy Chassis 3)
- O O O O O O O O O O O O O O O
Weight increase to 3,650 kg Fiat (without changing the chassis) - O O O O O O O O O O O O O O O
FIAT Ducato Heavy Chassis 4.400 kg not in conjunction with 140 bhp 40 – – – – – – – – – – O O O O O
EXTERIOR CONSTRUCTION
Framed window 5 O O O O O O O O O O O O O O O
Rear Styling Panels 4 O O O O O O O O O O O O O O O
Design application for alcoves 6 – – – – – – – – O O – – – – –
Insulated waste water tank 2 O O O O O O O O O O O O O O O
Cab Sun Roof 7 O O O O O O O O – – – – – – –
Second garage door (size depending on model) 4)
3 O O O O O O O – O O O O O O O
Rear supports (2 pcs.) 6 - O - O O O O O O O - O - O O
INTERIOR / LIVING ROOM CONSTRUCTION
Bed conversion in the seating area 5) 5 O O O O O O O – • • O O O O O
Bed conversion from single bed to double bed 5 – – O O O O – – – – – – O O O
Isofix child seat attachment for rear seat 4 – O – O O O O O O O – O – O O
Lift-up bed 47 O O O O O O O – – – • • • • •
Electrically height-adjustable queen-size bed 30 O O – – – – – – – – O O – – –
5th seat on the side bench with seat belt
15 – O – O O O O – – – – O – O O
(against the direction of travel) 6+7)
Safety package: 2 headrests and 2 lap belts middle. Seat against the direction
8 – – – – – – – – O O – – – – –
of travel (permissible number of people results from vehicle weight) 7)
Carpet (Living Area) 7 O O O O O O O O O O O O O O O
• = Standard equipment O = option ℗ = Obligatory - = not possible
32 33ACCESSORIES | 2022 |
T 7400 QBC
T 7400 SBC
I 7400 QBC
I 7400 SBC
A 6600 BB
A 7300 DB
T 6900 DB
T 7400 QB
T 6900 SB
T 5900 FB
T 7400 SB
T 7300 SB
I 7400 QB
I 6900 SB
I 7400 SB
Kg
ON-BOARD TECHNOLOGY
Second AGM body battery 95 Ah 27 O O O O O O O O O O O O O O O
Combi 6 E heater (with electric immersion heater) 2 O O O O O O O O O O O O O O O
Electric floor heating in the accessible area 5 O O O O O O O O O O O O O O O
12 V TV pre-cabling including flat screen holder 3 O O O O O O O O O O O O O O O
Cable preparation for reversing camera 1 O O O O O O O O O O O O O O O
Oven in the kitchen block
14 O O O O O O O O O O O O O O O
(for Overcab only in connection with 167 l fridge)
Large 167 l fridge with separate freezer compartment 29 l 14,5 – – – – – – – – O O – – – – –
Cable preparation for solar system 1 O O O O O O O O O O O O O O O
PACKAGES
Comfort Package (Semi-Integrated, Overcab) 8) 21 O O O O O O O O O O – – – – –
Comfort Package (A-Class) 8)
27 – – – – – – – – – – O O O O O
Chassis Package (Semi-Integrated, Overcab) 6 O O O O O O O O O O – – – – –
Chassis Package (A-Class) 1 – – – – – – – – – – O O O O O
Chassis Design Package 1 O O O O O O O O O O – – – – –
OTHERS
type X – O O O O O O O O O O O O O O O
Registration documents – ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗ ℗
• = Standard equipment O = Option ℗ = Obligatory - = Not possible
1) Panorama roof hood is mounted over the seating area in the T 5900 FB layouts.
2) Indirect lighting in the entrance area instead of the cloakroom mirror for T 5900 FB, A 7300 DB & A 6600 BB
3) Only in connection with automatic transmission or Heavy Chassis.
4) With the installation of the second external storage space flap, the window on the lower bunk bed of the A 6600 BB is removed.
5) W ith the integrated models, the bed is accessed via the side bench.
6) Inside storage space flap is removed when ordering 5th seat on side bench with seat belt.
7) General information on the permitted number of people: The permitted number of people is adjusted considering the total weight.
8) If the comfort package is not selected, the shower room cladding, mirrors with indirect lighting and coat hooks and the socket in the overhead
locker and in the garage are mandatory options. With the integrated models, the driver‘s door is also a mandatory option.
9) When ordering the 9-speed automatic transmission, the additional weight of the selected engine or chassis variant is already included.
All prices include VAT ex works, plus approval documents and freight to the local trading company.
Prices for special equipment are only valid for orders ex works. The specifications for dimensions and weights are approximate values. The dead
weight corresponds to the standard version without special equipment. The specified load & permitted number of people are reduced when
installing special equipment.
34 35DISCOVER ETRUSCO DISCOVER CURRENT PRICES
AND ALL ETRUSCO MODELS.
ORIGINAL PARTS & ACCESSORIES!
SCAN NOW.
Made for inside
and outside
Multimedia
CREDITS |
CONCEPT | DESIGN | PHOTOGRAPHY |
Lorenzo Mennonna Studio
Transport accessories Subject to technical and design modifications. The images may show alternative
designs and optional equipment for which additional costs may arise. They may also
show furnishing items (e.g. tableware) which are not included in the retail price and
are not sold by Etrusco. Some of the images in this catalogue show preproduction
models instead of final standard version vehicles (status as of 01/2022). Despite careful
editorial control this catalogue may contain errors. Technical information, equipment
and costs can be found in a separate price list. The colours shown are subject to the
limitations of the printing process and cannot be regarded as binding. Your local retailer
DISCOVER will be pleased to give you more information about product modifications which have
MORE been made after the printing of this catalogue. If you have any questions please do not
hesitate to contact us or your local retailer. The prices printed in this brochure are valid
until the next price announcement.
From practical accessories to exciting lifestyle products - we have the
Etrusco
perfect items for you and your Etrusco motorhome. Tel +49 7561 9097-450 | info@etrusco.com
www.etrusco-original-zubehör.com www.etrusco.com @etrusco_design_in_motionSemi-Integrated
ENG
ENG - 2022
Overcab
A-Class
www.etrusco.com
A BRAND OF THE ERWIN HYMER GROUP.You can also read
