PROLINE The leader in linear DRAIN CUSTOMIZATION.
PROLINE
A more sophisticated
shower solution.
Design is an integral part of the QuickDrain experience. Elegance and performance working
together in tandem, a seamless blend of style and engineering.
More than a linear drain, QuickDrain is a sophisticated curbed or curbless total shower solution,
full of refined detail.
Experience. Design. Authenticity. Quality.
Beautiful design is one thing. Pairing it with superior performance is another. Every engineering
and design choice was intended to make QuickDrain as efficient as it is appealing.
2 QuickDrainUSA.com
Cost-effective. Efficient.
And ideal for Universal Design.
ProLine delivers a new level of flexibility in linear drains. With a variety of drain waste outlet
location options and a customizable drain body, ProLine is the ideal choice for construction
jobs that involve specification requirements, including healthcare facilities or hospitality where
PVC is not allowed.
SPEC-FOCUSED FLEXIBLE HEALTHCARE APPLICATION
Engineered to meet rigorous Multiple outlet configurations 316L marine grade stainless steel
specification requirements. and adjustable height for different body paired with an ADA compliant
tile thicknesses. cover are ideal for hospitals and
assisted living.
3
PROLINE
Performance in curbless...

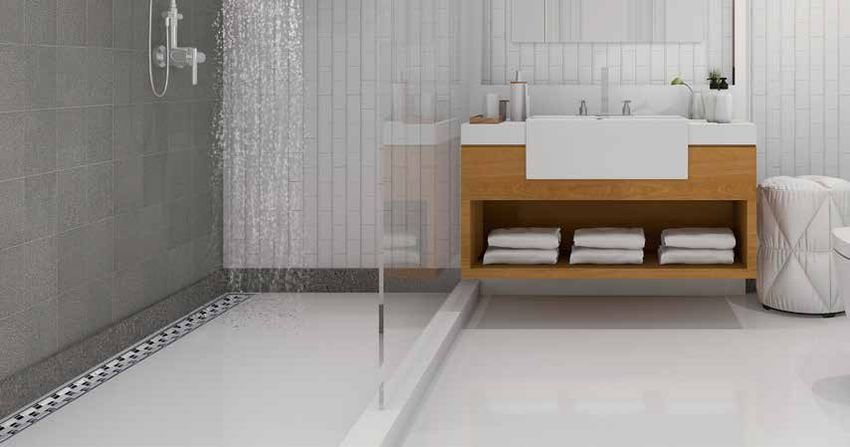

When QuickDrain is installed with a curbless entrance, it creates an easy, seamless transition
from dry to wet areas in the bathroom.
Universal Design & ADA Compliance
The roll-in shower is a hallmark of universal design, making the shower easily accessible to
all ages and abilities in accordance with the Americans with Disabilities Act. It also provides
a clean and expansive look, from traditional to modern aesthetics.
Improved Hygiene
A curbless QuickDrain shower can be designed with larger format tiles, reducing the number
of grout joints and seams where mold, mildew and grime can take hold.
Flooring Options
There are nearly limitless design options, as QuickDrain makes it possible to use nearly any
imaginable finish or flooring material.
4 QuickDrainUSA.com
and curbed showers.

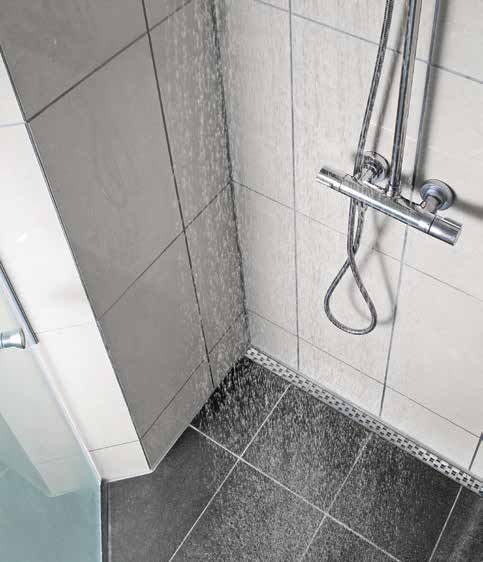

Shower curbs serve as the barrier between the shower pan and the rest of the bathroom
floor. QuickDrain can offer an attractive solution in these scenarios.
Versatile
With QuickDrain, there’s no need to move plumbing or adjust the shower pan. QuickDrain
can adapt to almost any existing plumbing condition.
Showers Without an ADA Requirement
When wheelchair accessibility is not necessary, QuickDrain installations with a curbed
shower can give a bathroom a sense of separation from the rest of the room and help
visually frame the shower area.
Flexible Orientation
QuickDrain can be placed in any orientation in the shower, just as long as it runs from
wall to wall to effectively promote water drainage.
5
PROLINE
Simple installation.
Wall-to-wall coverage.
One plane. No errors.
Instead of a four-way compound slope toward the drain, the
QuickDrain shower system requires only a one-directional slope.
This improves drainage, giving water one uniform path toward the
drain, minimizing installation errors.
All in a matter of hours.
Projects with a traditional mud bed and pan liner application
require a minimum of two days of construction, waiting for mortar
to set. The QuickSlope panel system can be completely installed in
less than one day.
Less labor.
The QuickDrain system allows installers to move on to the next job
quickly. The pre-sloped PET panels eliminate the need to float a
pitched mud bed and wait for it to cure, saving big on labor cost.
Adjustable height.
Stackable spacers mean installers can easily adjust the
drain cover after installation to ensure the cover is flush
with the floor.
Adjustable length.
Trough extensions and covers can be trimmed at the jobsite after
the body is installed, providing wall-to-wall coverage.
Versatility.
Install with QuickDrain can be installed by connecting to the drain waste line
or without
clamping or used with a traditional 2-piece clamping collar drain body.
ring drain
6 QuickDrainUSA.com
The most complete linear
drain system.
QuickDrain is a complete shower system that reimagines how a linear drain should perform
and be installed. QuickDrain slashes construction time, saves on cost and minimizes impact
on customers.
Example of ADA (Curbless) Installation Using ProLine Drain with Liquid Waterproofing
4
1
1 Stud Wall
4
2 2 Backer Board
3 Thin Set (for wall tile)
4
3 13
4 Reinforcing Fabric
14 5 First Layer Liquid Waterproofing
4
15 6 Second Layer Liquid Waterproofing
7 Quick Slope
5 8 Thin-set
9 Sub-floor
10 Floor Joists (wood floor)
6 11 Drain Body
12 Trough Extension
7
13 Wall Tile and Grout
8 14 Drain Cover
16
9 15 Height Adjustable Spacer
10
16 Capillary Break
17
17 Transition Tape
18 De-coupling Crack-installation Matt
18
19 Thin-set
19
11 20 Blocking (wood floor)
20
12
Complete Water Evacuation
Whereas a traditional center drain
requires a custom slope from a variety of DESIGN STYLE: STREAM
directions, QuickDrain is situated parallel Horizontal Design
to the shower entry, creating a single Wall-to-Wall Coverage
flat surface, with stable and consistent
flooring. And, the drain sits shallow
enough in the subfloor, eliminating the Complete Water Evacuation Stackable Spacers
need to recess the entire shower floor.
Most importantly, QuickDrain's QuickFlow Less Bacteria & Less Cleaning
System creates wall-to-wall coverage
and promotes the effective and efficient Drain extensions and covers ensure a perfect install each and every time,
vertical-to-vertical surface. Both are easily trimmed at the job site.
drainage of water.
7
PROLINE
Custom drains
for any installation.
In collaboration with world-renowned designer Michael
Graves, known for creating enduring, deeply human
design solutions, we are proud to offer two captivating
cover designs exclusive to QuickDrain: Stream & Cosmo.
Linear Drain Cover Designs
Cosmo Horizontal Vertical TileIn Lines Stream Element
8 QuickDrainUSA.com
Sample PROLINE Kit
ProLine drain bodies are made of 18
gauge, 316L marine grade stainless
steel. Unique stackable spacers
allow you to easily adjust the height
of the drain cover, while trough
extensions and covers ensure a
perfect install each and every time.
PROLINE DRAIN BODY DIMENSIONS
PROLINE DRAIN BODY DIMENSIONS
Model Number A B C D
A
B C
3 14 3 14
PLD26-N 26 26 26 26
D
PLD27.5-N 27.5 13.75 13.75 29.5
(A+2)
PLD30-N 30 12 18 32
PLD33-N 33 16.5 16.5 35
PLD36-N 36 15 21 38
Height PLD40-N 40 17 23 42
Model Number Adjustable Cover
Length
Spacers PLD44-N 44 19 25 46
PLD26-N, PLD27.5-N 4 COVER 32 PLD46-N 46 23 23 48
PLD30-N, PLD33-N, PLD36-N 6 COVER 40 PLD48-N 48 21 27 50
PLD40-N, PLD44-N, PLD46-N 6 COVER 48 PLD52-N 52 23 29 54
PLD48-N, PLD52-N 6 COVER 56 PLD57-N 57 25.5 31.5 59
PLD57-N 8 COVER 64 PLD63-N 63 31.5 31.5 65
PLD63-N, PLD68-N 8 COVER 72 PLD68-N 68 34 34 70
Ideal 18G, 316L Stainless Steel Waterproofing ProLine QuickSlope
Configurations
Application Drain Body Size Options PET Panel Kits
•H
ealthcare •P
LD26-N (Fits RO 28.5" TO 32") •V
erticaloutlet 2" • TopicalLiquid (preferred) • PLPAN26 • PLPAN63
•H
ospitality •P
LD27.5-N (Fits RO 30" TO 33.5") •V
erticaloutlet 1-1/2" • HotMop • PLPAN27.5 • PLPAN68
•R
esidential •P
LD30-N (Fits RO 32.5" TO 36") •S
ide waste outlet 2" • CPE/PVC Liner • PLPAN30 • SLPANADA48
•M
ulti-Family •P
LD33-N (Fits RO 35.5" TO 39") •M
ulti-outlet • Copper Pan • PLPAN33 • SLPANADA4874
•S
wimming Pool •P
LD36-N (Fits RO 38.5" TO 42") •O
ffset outlet • PLPAN36 • SLPANADA48100L
•P
LD40-N (Fits RO 42.5" TO 46") (Custom available • PLPAN40 • SLPANADA64L
•P
atio into House
upon request)
•P
LD44-N (Fits RO 46.5" TO 50") • PLPAN44 • SLPANADA6474
•P
LD46-N (Fits RO 48.5" TO 52") • PLPAN46L • SLPANADA64100
LD48-N (Fits RO 50.5" TO 54")
•P • PLPAN48
•P
LD52-N (Fits RO 54.5" TO 58") • PLPAN52
•P
LD57-N (Fits RO 59.5" TO 63") • PLPAN57
•P
LD63-N (Fits RO 65.5" TO 69")
•P
LD68-N (Fits RO 70.5" TO 74")
Note: RO = Rough Opening (Distance from wall board to wall board) Approved listing
9
PROLINE
Ordering ProLine
is fast & simple.
When you’re ready, you’ll contact your local
Visit QuickDrainUSA.com for helpful information.
QuickDrain USA dealer to place your order.
To make the ordering process seamless,
complete the following simple steps to guide
you through the process:
1V
erify structural integrity within shower
footprint (level sub-floor and square framing).
2S
ketch the desired shower layout with
measurements – include drain location
and sub-floor material.
3 ProLine Selection - Choose the following:
a. D rain Body Length - according to what will fit into the space.
b. Waste Outlet - vertical or side (horizontal) waste outlet configuration.
c. For non-standard sizes, multi-waste outlets and more, QuickDrain can help you customize
a drain body. Lead times will apply. Please contact us at info@quickdrainusa.com.
4 Select Drain Cover and/or Finish
5 Select Waterproofing Option (see chart on page 9)
a. Waterproofing Accessories - ProLine assembly kits include standard liquid waterproofing
accessories necessary for a four-sided curbed or curbless application. Additional
accessories can be purchased separately. The actual liquid will be supplied by the installer.
6 To make installation even easier, consider QuickDrain QuickSlope PET panels, available for both
curbed and curbless applications.
QUESTIONS?
Call 866-998-6685
Technical Support & Email info@quickdrainusa.com
Job Site Assistance For a complete list of QuickDrain
Our team is able to provide expert on-site
parts, materials and design options,
instruction and support. We also help by visit QuickDrainUSA.com or call
providing early design drawings to get 866.998.6685
your project started off right.
10 QuickDrainUSA.comCommitment
to community.
As part of our commitment to minimize our environmental footprint, we
use 100% recycled plastic bottles (Polyethylene Terephthalate or PET)
to manufacture our QuickSlope shower panels. These non-reactive,
economical and shatterproof parts do not degrade over time and perform
even under the toughest conditions at 145 PSI.
If you’re looking to obtain LEED certification for your next project, please
contact a QuickDrain representative to hear about our selection of
environmentally conscious products, which may qualify for LEED points.
13 million+
Plastic Bottles Recycled
For every QuickDrain shower panel installed,
450 plastic bottles are saved from landfills –
13 million bottles and counting.
#1 in the industry. Oatey® is the number one source for purchasing
the leading brands in the plumbing and home improvement industries.
One call does it all. Only Oatey brings you the plumbing industry’s best brands
in one source. Making it easy to purchase any product across all our brands
on one invoice, in one shipment.
