UFS Coastal Application:
An Overview and Update
NATIONAL
JULY 27, 2020
WEATHER Presenter: Andre van der Westhuysen, IMSG at NOAA/NWS/NCEP/EMC
SERVICE Patrick Burke, NOAA/NOS; Derrick Snowden, NOAA/NOS; Shachak Peeri, NOAA/NOS
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 1
Outline
• Coastal processes and application areas (2D vs. 3D)
• Modeling framework
• Major applications
- NUOPC Cap development
- Example results
• Summary and Outlook
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 2
Storm surge applications (2D approach)
Wave-surge coupling Compound flooding Wave/Surge-Ice
FrankPearson at English Wikipedia - Transferred from en.wikipedia to AP Photo/U.S. Coast Guard, Petty Officer
Commons by chris_j_wood., Public Domain, 2nd Class Kyle Niemi, Public Domain,
https://commons.wikimedia.org/w/index.php? U.S. National Park Service, Public Domain, https://
https://commons.wikimedia.org/w/index.php?curid=4885372 curid=3899195 commons.wikimedia.org/w/index.php?curid=6722103
Forecaster - High horizontal resolution O(50-100m) to capture spatial scale physics.
Requirements: - Resolution of federal v/s non-federal levees and other sub-grid scale features.
- Probabilistic approach to capture uncertainty in atmospheric forcing (tropical).
- Operational turn-around time of
Beyond the Ocean as an Atmospheric boundary condition:
Application areas served by ocean predictions (3D approaches)
Emergency Precision Water Quality Stock
Response Navigation (Ecological Forecasting) Assessments
NOAA Center for Operational Jesse Allen and Robert Simmon - Jim and Becca Wicks - Snap of Snapper!, CC BY 2.0,
NOAA Office of Response and Restoration Oceanographic Products and Services NASA Earth Observatory https://commons.wikimedia.org/w/index.php?curid=2760939
Challenge: Support diverse array of NOAA mission needs
Forecaster requirements: - Provide predictive information for full 3D ocean, US coastlines, and
Great Lakes (potential nesting strategy).
- Application will define model choice(s), spatial and temporal resolution,
validation metrics, and operational turn-around time.
- Bias correction (DA).
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 4
Modeling framework
*
Sea Ice Model
* Future inclusion for surge-ice and wave-ice effects
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 5
Major applications • COASTAL Act (NWS, NOS): 2D Surge-Wave-River (Hindcast) • ADCIRC-WW3-Holland B (HSUP, NOS): 2D Surge-Wave (Ensemble) • NWM-ADCIRC-WW3 (HSUP, OWP): 2D Surge-Wave-River • NWM-FVCOM-WW3 (IJC, GLERL): 3D Circulation-Wave-River • FVCOM-WW3-CICE (GLERL): 3D Circulation-Wave-Ice (Planned) • ROMS (NOS, Rutgers, NESDIS): 3D Circulation - 4DVar • WRF/ROMS Coupling (NOS, NC State): 3D Circulation-Ocean-River NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 6
Supporting NUOPC cap development
• Unstructured WW3 numerically optimized for
coastal application (implicit scheme, domain
decomposition parallelization).
• Existing WW3 NUOPC cap extended for
unstructured triangular mesh support.
• NUOPC cap written for ADCIRC (unstructured
mesh).
• NUOPC cap written for atmospheric data input
(unstructured mesh).

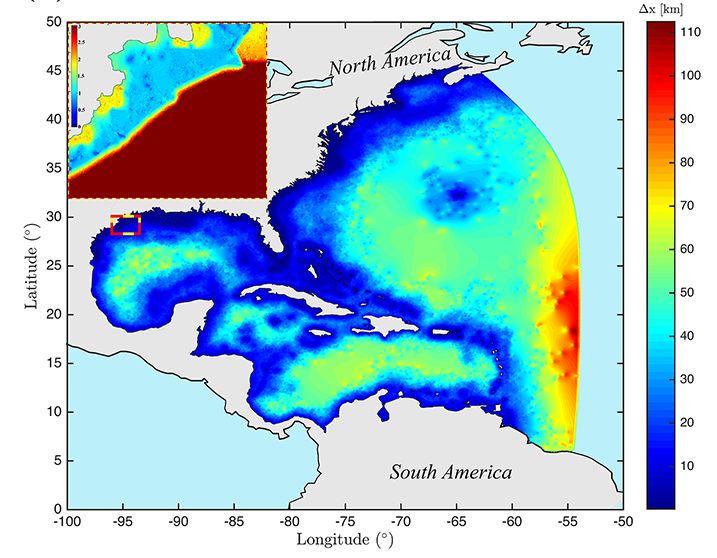

• NUOPC cap for NWM currently being finalized. ADCIRC/WW3
unstructured mesh
• NUOPC cap for WRF/ROMS with 4D-Var DA. cell sizes
• NUOPC cap for FVCOM in development (NOS,
Abdolali et al. (2020)
GLERL).
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 7
COASTAL Act Named Storm Model (NWS, NOS)
• An ADCIRC-WW3 application Driver
in NUOPC/NEMS, for high-
resolution hindcast application Data cap:
(post-storm assessments). Model:
Wind, HWRF/URMA/
NWM LES
Pressure
• One-way atmospheric forcing
from gridded data file (from WL,
Dis- Wind
HWRF/URMA/LES models) Current
charge
• Two-way exchange between Water level,
Current
ADCIRC and WW3 models Model: Model:
• To include river discharge ADCIRC WW3
from NWM Radiation
stress
NATIONAL WEATHER SERVICE For Official Use Only – Pre-decisional
Building information
a Weather-Ready Nation // 8
Sign Wave Height (Hs)
Coupled
∆Hs: Coupled - Stand Alone WW3
Example:
Hurricane
Ike (2008) Galveston Bay detail
NATIONAL WEATHER SERVICE For Official Use Only – Pre-decisional
Building information
a Weather-Ready Nation // 9
ADCIRC-WW3-Holland B (HSUP)
• An ADCIRC-WW3 forecast
application in NUOPC/NEMS. Driver
Model:
• One-way atmospheric forcing Data cap: Holland B
from parametric Holland B RTOFS Wind, (Best Track
Pressure data)
model (from best track data).
• Two-way exchange between Barocl. Wind
gradients
ADCIRC and WW3 models.
Water level,
• One-way forcing from RTOFS Current
data cap, to account for Model: Model:
ADCIRC WW3
baroclinic effects.
Radiation
• Run with ensemble members. stress
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 10NWM-ADCIRC-WW3 (HSUP)
• Three-way exchange between Driver
NWM, ADCIRC and WW3
models, for forecast
application. Model: Data cap:
Wind,
NWM GFS/HWRF
Pressure
• One-way atmospheric forcing
from gridded data file WL,
Dis- Wind
(GFS/HWRF). Current
charge
• Potential application in Water level,
Current
NUOPC/NEMS. Model: Model:
ADCIRC WW3
Radiation
stress
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 11International Joint Commission Lake
Champlain Forecasting System
• Real-time flood forecasting for the Driver
Lake Champlain-Richelieu River
basin. Model: Data cap:
Wind,
NWM HRRR
• NWM providing inflows to the Pressure
hydrodynamic model.
• FVCOM to predict lake levels and Discharge Wind
circulation, accounting for
hydrologic inflows and wind Water level,
effects. Current
Model: Model:
• WW3 component to predict the FVCOM WW3
effects of wind waves on
3D radiation
circulation, flooding, and run-up. stress, Mixing
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 12West Coast Operational Forecast System
• Phase 1: IOOS COMT project is
transitioning to become NOS’s first data
assimilative ocean model (ROMS with
4DVar).
• Operations transition complete: Feb 3
• First data assimilative ocean model in
the NOS portfolio: SSH, SST, high-freq
radar.
• Phase 1 operational model focusing on the
• Phase 2: Extensive outreach and physics/hydrodynamics (OCS + CO-OPS)
extension to biogeochemistry and • Phase 2 research into Biogeochemistry and
fisheries applications (coordination with
ecosystems. NMFS and GFDL to be planned)
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 13WRF/ROMS Coupling: Ocean-River (HSUP)
Salinity Salinity
St. Johns
River, FL
Salinity Salinity
Hurricane
Matthew
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 14IOOS Coastal Ocean Modeling Testbed
Mission: To use applied research and development to accelerate the transition of scientific and
technical advances from the coastal ocean modeling research community to improved operational
ocean products and services (i.e. via research to operations and also operations to research).
2018 – 2021 Themes • 6 projects; 3 years
• Coastal Coupling with • Readiness Levels: 4-6 -> Advance 2
National Water Model steps over the course of the project
• Ecoforecasting • Community development plus
• Enhancements to the stakeholder engagement (Science PI
NOS OFS portfolio and Transition PI)
Focusing on transition of research to operations; other testbeds prioritize more rigorous
testing of forecast improvement.
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 15Summary and Outlook 1. Various UFS coupling projects underway in the coastal realm. 2. For storm surge: Need for high-resolution (
Summary and Outlook (2)
6. Further coordination needed across NOAA to finalize Coastal Application
Team representation and scope, i.e. Inundation (2D) and Coastal
Processes (3D).
7. Recognition of additional coastal models within UFS modeling framework to
support NOAA mission needs.
8. Development of a 3D ocean modeling strategy that describes how NOAA
will support the temporal and spatial scales required to effectively fulfill
NOAA’s diverse missions in a changing climate.
9. Integrate existing and emerging data assimilation capabilities into Marine
JEDI.
10. Align NOAA operational oceanographic enterprise with GODAE
OceanPredict US activities.
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 17References
Abdolali, A., Roland, A., van der Westhuysen, A., Meixner, J., Chawla, A., Hesser, T. J., Smith, J. M., & Sikiric, M. D. (2020).
Large-scale hurricane modeling using domain decomposition parallelization and implicit scheme implemented in
WAVEWATCH III wave model. Coastal Engineering, 157, 103656. doi:https://doi.org/10.1016/j.coastaleng.2020.103656.
Moghimi, S., A. Van der Westhuysen, A. Abdolali, E. Myers, S. Vinogradov, Z. Ma, F. Liu, A. Mehra, N. Kurkowski.
Development of an ESMF Based Flexible Coupling Application of ADCIRC and WAVEWATCH III for High Fidelity Coastal
Inundation Studies. J. Mar. Sci. Eng. 2020, 8, 308. https://doi.org/10.3390/jmse8050308
Moghimi, S., S. Vinogradov, E. Myers, Y. Funakoshi, A.J. Van der Westhuysen, A. Abdolali, Z. Ma, F. Liu. Development of a
Flexible Coupling Interface for ADCIRC Model for Coastal Inundation Studies. NOAA technical memorandum, NOS CS
41, 2019, doi: doi.org/10.25923/akzc-kc14.
Moghimi, S., E. Myers, S. Vinogradov, B. Trimble, J. Zhang, F. Ye, J. Calzada, A. Van der Westhuysen, Y. Funakoshi, R.
Bakhtyar, K. Maitaria, A. Abdolali, D. Rosen, C. Lemmen (2020), A flexible infrastructure for coastal ocean and inland
hydrology models coupling, Ocean Sciences Meeting 2020, 16-21 February 2020 in San Diego, CA, USA, 2020.
Moghimi, S., E.P. Myers, S.V. Vinogradov, A.J. Van der Westhuysen, A. Abdolali, L. Shi, Z. Ma, A. Chawla, H. Mashriqui, T.
Flowers, N. Kurkowski. Application of ESMF/NUOPC Coupled Framework for Total Water Level Studies. In AGU fall
meeting 2018, DC, USA, 2018.
Moghimi, S.,S. Vinogradov, E. Myers, A. Van der Westhuysen, Y. Funakoshi, F. Liu and C. Massey. Effects of waves on
storm surge inundation using flexible coupling framework. In Coastal Ocean Modeling - Gordon Research Conference,
Maine, USA, 2017.
NATIONAL WEATHER SERVICE Building a Weather-Ready Nation // 18Additional projects
